Heinz Keystone AF08 User manual

Heinz Keystone Dispenser
User Manual
Model AF08
8570 Dispenser, Tomato Ketchup
8693 Dispenser, Ranch Dressing
8695 Dispenser, Deli Mustard
8694 Dispenser, Yellow Mustard
8696 Dispenser, Mayonnaise
8697 Dispenser, Sweet Relish
8699 Dispenser, Honey Mustard
8698 Dispenser, Barbecue Sauce
9053 Dispenser, Hot Sauce
9600 Dispenser, KraftHeinz Black
Manufactured exclusively
for KraftHeinz by Asept Int.
Keystone Manual
Dispenser (with Lever)
10815, Automated Keystone
Lid Assembly

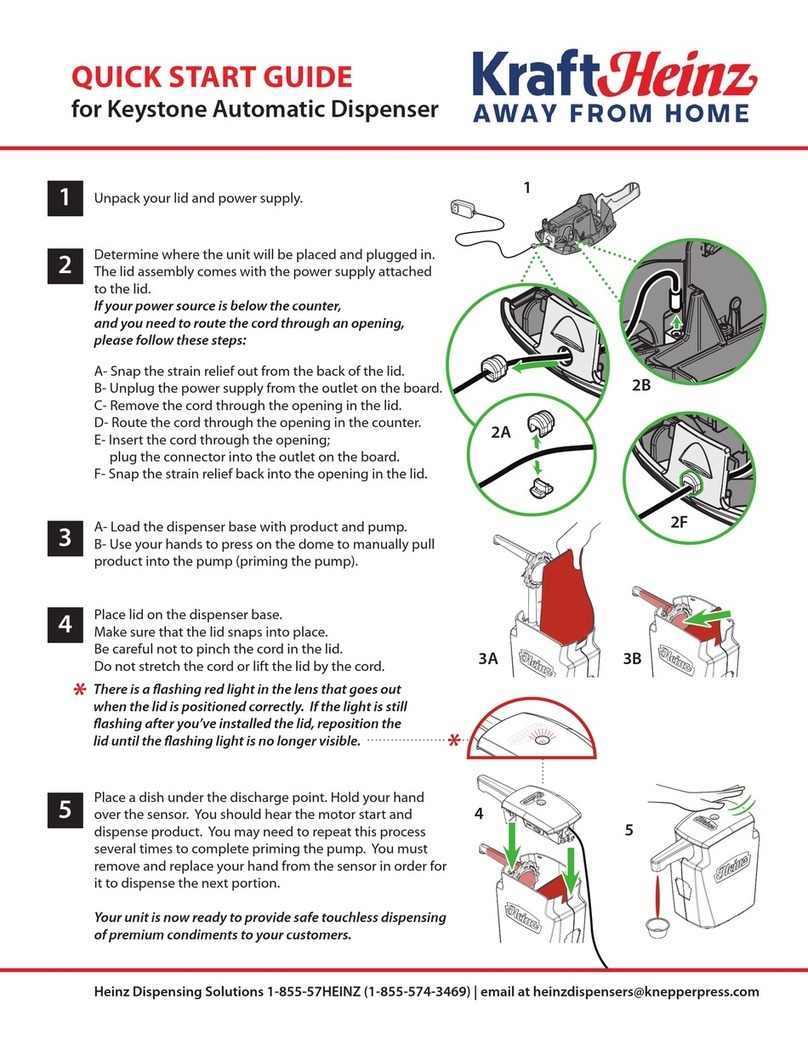

Keystone Automatic
Dispenser (with Sensor)

Heinz Keystone Dispenser
Complete
Pump
8668
2
Dome
8555
Brush
7615
Inlet Valve
8720
Locking Ring
9244
Pump Housing
8561
Nozzle
8651
Pump Slider
8569
Dispenser
Housing
Lid Assembly
(Automatic with Sensor)
10815
Lid Assembly
(Manual with Lever)
8669
Power
Supply
10818
Foot Plate
8572

3
Safety
All components must be cleaned
before rst use.
According to food and safety
regulations, most foods must be
stored and/or served at certain
temperatures or they could
become hazardous. Check with
local food and safety regulators
for specic guidelines. Be aware
of the product you are serving
and the temperature the product
is required to maintain.
Cleaning
All components are
dishwasher safe.
Disassemble all ve (5) parts
of pump.
Clean with soap and hot water,
rinse, sanitize and dry parts
according to local sanitization
requirements.
Use supplied brush to scrub
inside parts.
IMPORTANT Clean, rinse, sanitize,
and dry parts at a minimum
of every 24 hours. Always
comply with local sanitization
requirements.

4
Assembly
into the pump housing.
Ensure the smaller tab of dome is at top.
Press the entire dome rmly, including the
top portion.
Insert dome
1
into the bottom of the pump housing.
Wrap the aps on the side of valve onto the
pair of pegs on the pump housing.
TIP: Lubricate parts with clean water to
ease tting.
Insert valve inlet
4
onto the end of the pump housing.
Bend the outer portion of the nozzle
inside out.
Insert into opening. Tab of nozzle faces
towards dome. Flip the outer portion of the
nozzle over the end of tube.
Mount the nozzle
3
2
Fasten with locking ring
Turn locking ring clockwise around the
parts until they engage.

5
Hold end of pack up while lowering guide
rails on the pump into the track on the
pump slider inside the front of dispenser.
Insert Heinz dispenser pack
and pump into shroud.
7
Put a new Heinz dispenser pack on
countertop with tment facing up.
Place piercing end of complete pump in
center of the tment. Push rmly until
pump snaps into place.
Connect pump to pouch
5
Hold the pump in an upright position.
Press the dome with both thumbs and let
it recover to starting state. Repeat until
product has reached the nozzle.
Prime the pump
6

Linking Multiple Units
Connect foot plate
to dispenser shroud.
Lower lid onto
dispenser. Push
down evenly on
both ends until you
hear a snapping sound.
Connect lid
Push the tab on the back of the dispenser.
Simultaneously grip nozzle covering rmly
and pull the lid upward.
To remove lid
9
1to dispenser by slightly tilting dispenser
onto one of the foot plate hooks. Press
down on the lid until you hear a snap.
Link another dispenser
Attach a new foot plate to previous
foot plate then repeat Step 1.
To disconnect a dispenser:
Push down on one of the release-buttons
on the foot plate, then slightly tilt the
dispenser in the opposite direction.
3
2
8

1
7
Setting the Portion
Use a athead screwdriver to pry
o the locking washer from the
pin at the end of the link arms.
in the underside of the lid. Keep
locking washer for step 2.
Remove locking washer
Slide the pin out from
portion hole.
Remove pin
Select portion setting
Automatic Keystone dispenser is set for 1/2  oz portions only.
Manual Keystone dispenser is preset for 3/4  oz portions. It may be adjusted to a 1/2 
oz portion:
There are two holes in the handle.
Position the pin through the hole
closest to the nose of lid for 3/4
 oz portion. The other hole is for
1/2  oz portion.
Secure pin with locking washer.
Heinz Dispensing Solutions
1-855-57HEINZ (1-855-574-3469)
email at
[email protected]om
Warranty
Heinz Keystone Dispenser is backed by a
twelve month limited warranty against
defects in materials and workmanship.
Asept International AB
Traktorvägen 17, SE-226 60
Lund, Sweden
[phone] | [email protected]
Asept International Inc.
900 Oakmont Ln, Suite 207,
Westmont IL 60559, USA
[phone]
info[email protected]
www.asept.com
Manufactured exclusively
for KraftHeinz by Asept Int.
2
1/2 oz
3/4 oz

FAQs
FOR THE KEYSTONE AUTOMATIC DISPENSER WITH SENSOR:
Can I plug the Keystone Automatic Dispenser into a power strip? Yes, each dispenser
only draws 2 amps when in use. You can safely plug 7 dispensers into a power strip on
a single 15 amp plug and 10 dispensers into a 20 amp plug.
Can I change the portion on the Keystone Automatic Dispenser?
No, it is preset at ½  oz at the factory.
Why doesn’t the motor engage when I wave my hand over the sensor?
1) The sensor is designed to dispense when your hand is between 1" and 5" above the
sensor. If it's too close or too far away, the sensor might not recognize your
hand. Try moving your hand up and down on the sensor to see if it triggers.
2) Make sure that the power supply is plugged into a working outlet.
3) Make sure that the connector at the end of the power cord is plugged into the inlet
on the underside of the lid.
Frequently Asked Questions
FOR ALL KEYSTONE DISPENSERS:
Pump dispenses little or no product? Check the pouch to make sure it is not empty.
If it is full, check to make sure that the pump is assembled correctly per the instruc-
tions in the manual.
Product leaking from the tment in the bag? Make sure that the white tment in the
bag is fully engaged with the pump. When connecting the pouch, you should hear
a solid click and be able to pick up the pouch with the pump without the connector
coming free.
Product leaking from the dome of the pump? Make sure that the locking ring is
installed and tightened on the housing to hold the dome securely in place.
FOR THE KEYSTONE MANUAL DISPENSER WITH LEVER:
The dispense portion is smaller or larger than I want: Follow the steps on page 7 to
change your preset portion. You have options for ¾  oz or ½  oz.
Heinz Keystone Instructions10/20
Unable to place the lid on the dispenser?
The lid includes a safety switch that will
freeze the actuator in position if the lid is
removed in the middle of dispensing.
Reset the actuator:
1) Remove the pump and pouch from
the dispenser base.
2) Install the lid on the empty base.
3) Wave your hand over the sensor.
4) After the actuator cycles completely,
remove the lid and reinstall the pump
and pouch into the dispenser base.
5) Reinstall the lid.
