HENNESSY INDUSTRIES AMMCO 2800 User manual

1601 J. P. Hennessy Drive, LaVergne, TN USA 37086-3565 615/641-7533 800/688-6359 Manual Part No.: 940086 06
HENNESSY INDUSTRIES INC. Manufacturer of AMMCO®, COATS®and BADA®Automotive Service Equipment and Tools. Revision: 10/06
Installation Instructions
Operating Instructions
Safety Instructions
Maintenance Instructions
READ these instructions before placing unit in
service. KEEP these and other materials delivered
with the unit in a binder near the machine for
ease of reference by supervisors and operators.
2800/2801
Environmental Lathe-Enclosure™
®

ii • 2800/2801 Lathe Enclosures
Table of Contents
Definitions of Hazard Levels .................................................ii
Owner’s Responsibility ..........................................................ii
General Safety Instructions .................................................iii
Before You Begin .....................................................................1
Safety Notices and Decals ............................................1
Cautions and Dangers ....................................................1
Receiving ..........................................................................2
Installation – 2800 and 2801 ...................................................3
Unpacking the Enclosure ...............................................3
Preparing the Bench for Installation ............................3
Assembling and Installing the Enclosure ....................3
Additional Installation – 2801 only .......................................6
Assembling Shield ...........................................................6
Electrical Wiring ..............................................................6
Operation ...................................................................................7
Maintenance ............................................................................7
Parts Identification 2800 and 2801 ........................................8
Parts Identification – 2801 parts only ..................................8
Shield Assembly ..............................................................8
Wiring View ......................................................................9
Hood Switch Mounting ...................................................9
Foot Switch Assembly (assy part #40044) ...................9
Magnet Mounting ............................................................9
Stop Switch Mounting ....................................................9
Definitions of Hazard Levels
Identify the hazard levels used in this manual with the
following definitions and signal words:
DANGER
Watch for this symbol:
It Means: Immediate hazards which will result in severe
personal injury or death.
WARNING
Watch for this symbol:
It Means: Hazards or unsafe practices which could result
in severe personal injury or death.
CAUTION
Watch for this symbol:
It Means: Hazards or unsafe practices which could result
in minor personal injury or product or property damage.
Watch for this symbol. It means BE ALERT! Your safety, or
the safety of others, is involved.
Owner’s Responsibility
To maintain machine and user safety, the responsibility of
the owner is to read and follow these instructions:
• Follow all installation instructions and make sure
installation conforms to all applicable Local, State,
and Federal Codes, Rules, and Regulations; such as
State and Federal OSHA Regulations and Electrical
Codes.
• Carefully check the unit for correct initial function.
• Read and follow the safety instructions. Keep them
readily available for machine operators.
• Make certain all operators are properly trained, know
how to safely and correctly operate the unit, and are
properly supervised.
• Allow unit operation only with all parts in place and
operating safely.
• Carefully inspect the unit on a regular basis and
perform all maintenance as required.
• Service and maintain the unit only with authorized or
approved replacement parts.
• Keep all instructions permanently with the unit and all
decals/labels/notices on the unit clean and visible.
Failure to follow danger,
warning and caution
instructions may lead to
serious personal injury to operator or bystander, or
damage to property. Do not operate this machine until
you read and understand all the dangers, warnings and
cautions in this manual. For additional copies of either,
or further information, contact:
Hennessy Industries
P.O. Box 3002, 1601 J.P. Hennessy Drive
LaVergne, TN 37086-1982
615/641-7533 or 800/688-6359
WARNING
DANGER
WARNING
CAUTION

General Safety Instructions
Before operating the lathe, review the warning information
on the lathe and the cautions, warnings and dangers in this
manual. Also review the following general safety
instructions. Failure to follow safety instructions could
result in personal injury to operator or bystanders and
damage to the lathe or personal property.
1. Keep guards in place and in working order.
2. Remove adjusting keys and wrenches from the tool
before turning it on. Make this a habit.
3. Keep work area clean. Cluttered areas and benches
invite accidents.
4. Avoid dangerous operating environments. Do not use
power tools in areas where explosive vapors are
present or in damp or wet locations. Do not expose
them to rain. Keep the work area clean and well
lighted.
5. Keep children away. All bystanders should be kept
completely away from the work area.
6. Make the workshop kid-proof. Use padlocks and
master switches, and remove starter keys.
7. Don’t force a tool. It will do the job better and safer at
the rate for which it was designed.
8. Use the right tool. Don’t force a tool or an attachment
to do a job for which it was not designed.
9. Dress properly. Loose clothing, gloves, neckties, shop
rags or jewelry may get caught in moving parts. Non-
slip footwear is recommended. Wear protective hair
covering to contain long hair.
10. Wear eye protection. Safety glasses, goggles, or a
face shield will help protect the operator from injury.
Use a face shield and dust mask during dusty
operations.
11. Secure the work properly to the unit for setup and
tool bit positioning. Do not attempt to hold a drum or
rotor steady on the arbor with your hands. Both
hands must be free to operate unit.
12. Don’t overreach. Keep proper footing and balance at
all times when lathe is in operation or when working
around the unit.
13. Maintain tools with care. Keep tools sharp and clean
for best and safest performance. Follow instructions
for lubricating and changing accessories.
14. Remove power from the unit and disconnect tools
before servicing and when changing accessories
such as blades, bits, cutters, etc. Follow lock-out and
tag-out procedures as required.
15. Avoid unintentional starting. Make sure the switch is
in the OFF (O) position before plugging the machine in
or performing any maintenance or service work.
16. Use recommended accessories. Consult the
manufacturer’s catalogs for recommended
accessories. Use of improper accessories may cause
risk of injury to operator or bystanders.
17. Never stand or lean on a lathe. Serious injury could
occur if the lathe is tipped or if the cutting tool is
unintentionally contacted.
18. Check damaged parts carefully. Before further use of
the lathe, a guard or other part that is damaged
should be carefully checked. Immediately replace all
damaged, missing, or non-functional parts. Check for
alignment of moving parts, binding of moving parts,
breakage of parts, mounting, and any other
conditions that may affect operation. Guards and
other parts that are damaged should be properly
repaired or replaced before lathe is used again.
19. Always feed the work into a blade or cutter and
against the direction of rotation. Cutters and tool bits
are designed to cut from the inside of a drum or rotor
to the outer edge. Do not attempt to cut from the
outside edge in to the center.
20. Never leave tools running unattended. Turn the
power off. Don’t leave the tool until it comes to a
complete stop.
21. Never use compressed air to blow the tool clean.
Chips and dust may be driven between machined
parts and into bearings, causing undue wear. They
may also contact persons in the area causing
personal injury.
22. Operate the lathe in the proper environment. The
lathe incorporates parts such as snap switches and
power receptacles which tend to produce arcs or
sparks. Therefore, when located in a garage, the unit
should be in a room or enclosure provided for the
purpose, or should be at least 18” or more above the
floor to minimize the risk of igniting fuel vapors.
2800/2801 Lathe Enclosures • iii

iv • 2800/2801 Lathe Enclosures

2800/2801 Lathe Enclosures • 1
Before You Begin
Safety Notices and Decals
For your safety, and the safety of others, read and
understand all of the safety notices and decals included
here and on the unit.
Read entire manual
before installing,
operating, or servicing
this equipment.
Proper maintenance
and inspection is
necessary for safe
operation.
Do not operate a
damaged lathe.
– WARNING –
This equipment incorporates parts such
as snap switches and power receptacles
which tend to produce arcs or sparks.
Therefore, when located in a service
facility, the unit should be in a room or
enclosure provided for the purpose, or
should be at least 18” or more above
floor to minimize the risk of igniting fuel
vapors.
1. Read and follow instructions.
2. Always wear eye protection, avoid
loose clothing and jewelry.
3. Keep all guards, shields, and covers in
place and in working order.
4. Keep bystanders out of work area.
5. Unplug unit from power source before
servicing or adjusting.
6. Maintain unit properly, keep work
surfaces and work area clean.
CAUTION
Prevent accidents and injury, read and follow instructions.
Cautions and Dangers
1. Eye and face protection requirements:
“Protective eye and face equipment is required to be
used where there is a reasonable probability of injury
that can be prevented by use of such equipment.”
OSHA 1910.133 (a).
Protective goggles, safety glasses, or a face shield
must be provided by the purchaser/user and worn by
the operator of the equipment. Make sure all eye and
face safety precautions are followed by the
operator(s). Keep bystanders out of the area.
2. Do not remove any safety equipment, belt guards, or
shortcut controls or operations.
3. Make sure drums and rotors are properly and
squarely mounted before starting lathe, and that all
parts are secure.
4. Do not wear loose clothing, jewelry, or gloves when
operating or working around a lathe.
5. Do not overload the lathe. Read and understand the
lathe specifications. Overloading is poor machine
tool practice, shortens the life of the lathe, and could
cause a failure resulting in personal injury.

2 • 2800/2801 Lathe Enclosures
Receiving
The shipment should be thoroughly inspected as soon as
it is received. The signed bill of lading is
acknowledgement by the carrier of receipt
in good
condition of shipment covered by our invoice.
If any of the goods called for on this bill of lading are
shorted or damaged, do not accept them until the carrier
makes a notation on the freight bill of the shorted or
damaged goods. Do this for your own protection.
NOTIFY THE CARRIER AT ONCE if any hidden loss or
damage is discovered after receipt and request the
carrier to make an inspection. If the carrier will not do so,
prepare a signed statement to the effect that you have
notified the carrier (on a specific date) and that the carrier
has failed to comply with your request.
IT IS DIFFICULT TO COLLECT FOR LOSS OR DAMAGE
AFTER YOU HAVE GIVEN THE CARRIER A CLEAR RECEIPT.
File your claim with the carrier promptly. Support your
claim with copies of the bill of lading, freight bill, invoice,
and photographs, if available.
Although AMMCO’s responsibility ceases upon delivery of
the shipment to the carrier, we will gladly assist in tracing
lost shipments. Our willingness to assist in every possible
manner does not make AMMCO responsible for collection
of claims or replacement of lost or damaged materials.
Shipping damage claims will not be handled under
warranty.

2800/2801 Lathe Enclosures • 3
This installation procedure
requires 2 persons to
complete. The enclosure is
large and heavy and cannot be unpacked, moved,
or positioned safely by one person. The removal
and reinstallation of a lathe requires 2 persons.
Use care to avoid dropping or damaging the
Enclosure. Have one person hold the collector
while the other removes packing materials or
shipping cartons. During installation, one person
will need to hold the Enclosure in place on the
bench until it is securely fastened to the bench.
Installation – 2800 and 2801
Unpacking the Enclosure
The collector is packed standing on end in the
shipping carton. The required brackets and
hardware are included inside the carton. Unpack
the unit in an area large enough to allow the unit
to be laid out, opened, and spread out.
1. Remove the strapping from the shipping
container and remove the top cover.
2. Remove the tool board and all other items
packed around the Enclosure. Be careful not
to scratch the viewing window.
NOTE: The chip bucket contains the chip tube,
all the necessary fasteners, and some of the
bracketry.
3. Carefully lay the Enclosure on a pad on the floor.
4. Slide the lower carton off of the unit.
5. Stand the Enclosure on end in the middle of
the work area (fig. 1).
NOTE: Place a pad or blanket under the
Enclosure to avoid damaging the outside
surfaces of the unit.

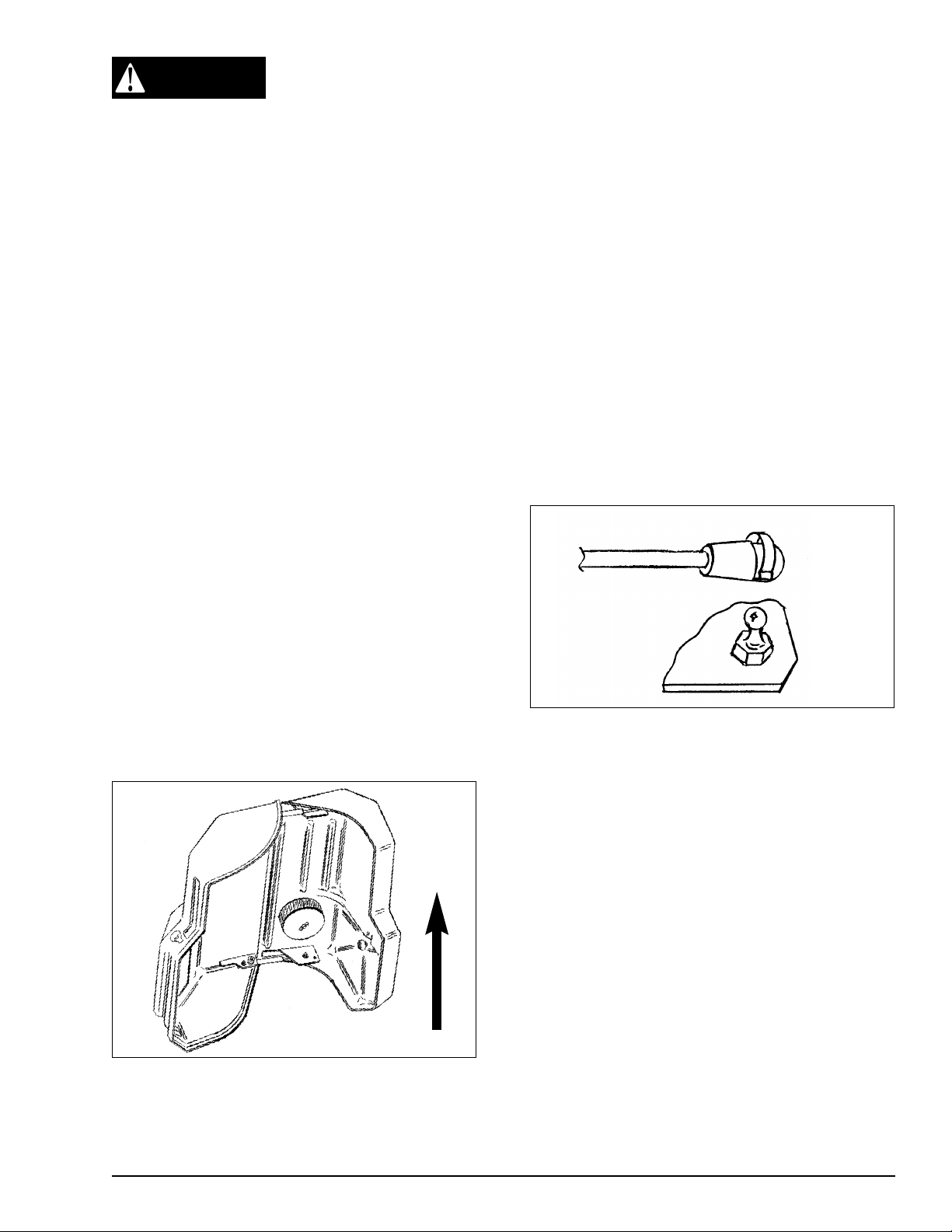

Figure 1 – Stand unit on end and open
5. Open the Enclosure and remove any parts or
materials packed inside.
IMPORTANT: Use care not to scratch the
window.
Preparing the Bench for Installation
6. If a lathe is attached to the bench, remove it
now.
7. Move the bench to a position where all sides
are easily accessible, and there is sufficient
room to install the collector.
8. If the bench has a tool board or sign attached,
remove them now. Be sure to remove all
mounting for the board and/or sign as well.
9. Clear the bench of all tools and materials.
Assembling and Installing the Enclosure
10. Open the Enclosure and locate the loose end
on both gas struts attached to the top cover of
the Enclosure.
NOTE: One person will need to hold the
Enclosure open at a workable distance while
the other attaches the struts.
11. Snap the socket on the loose end of the strut
onto the ball stud on the mounting bracket on
the lower half of the Enclosure (fig. 2). Repeat
for the second strut.
Figure 2 – Snap strut end onto ball stud
12. Lift the Enclosure and set it in place on top of
the bench.
13. Locate the lathe mounting holes in the
bottom of the Enclosure that will be used to
mount your lathe. Break the seals open on
these holes only.
14. Adjust the position of the Enclosure on the
bench so that the holes in the bottom of the
enclosure align with the mounting holes in
the top of the bench.
15. Use your lathe mounting bolts and nuts to
attach the Enclosure to the bench. Snug the
bolts at this time, but do not tighten.
16. Locate the Enclosure tool board and the 2
vertical mounting brackets.
17. Locate and remove the bolt and nut at each
end of the hinge on the lower section of the
Enclosure back wall.
CAUTION
Up

4 • 2800/2801 Lathe Enclosures
18. Locate and attach the horizontal mounting
bracket to the vertical brackets using 1/4x20
phillips screws and nuts (fig. 3). Do not
tighten.

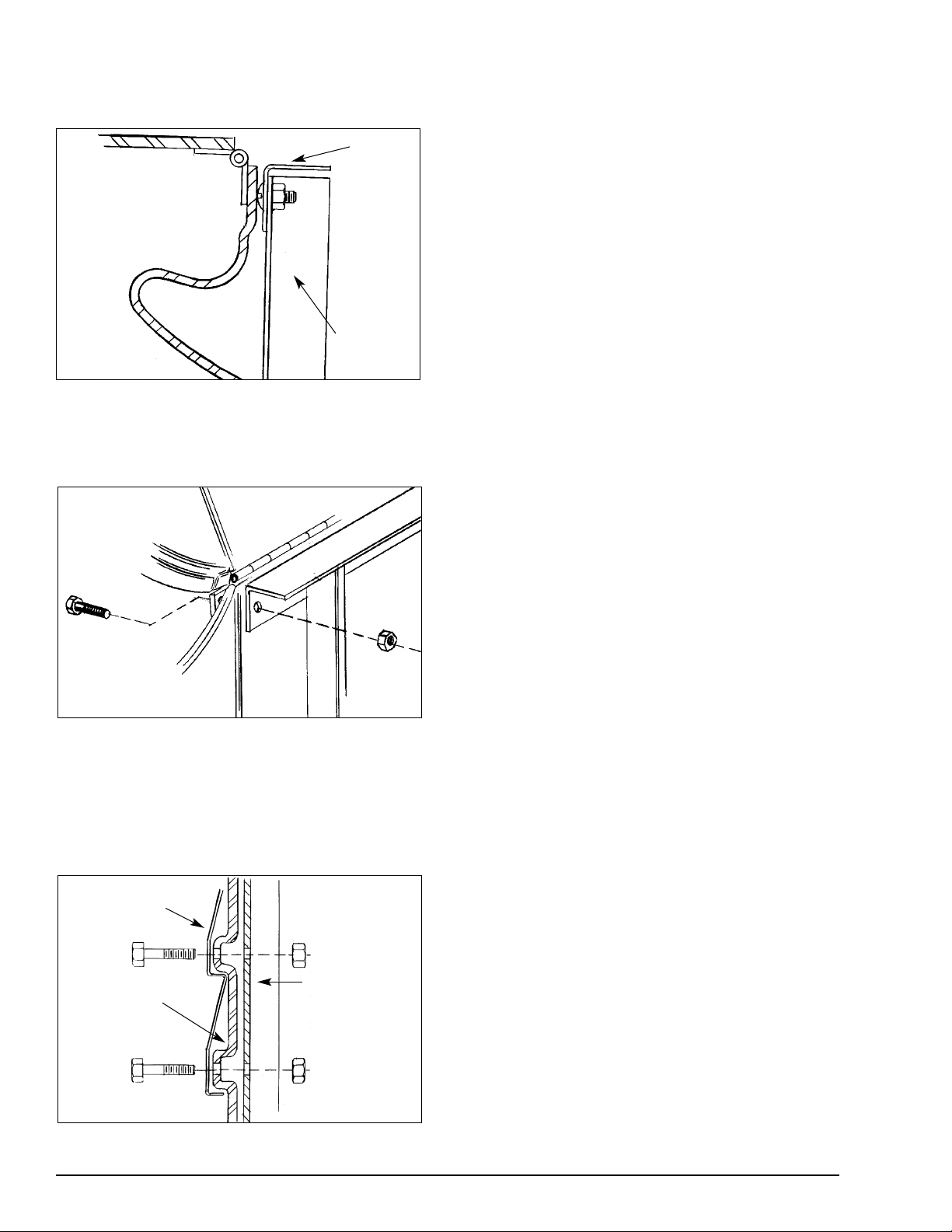

Figure 3 – Mounting horizontal bracket
19. Secure the Enclosure to the horizontal bracket
by replacing the bolts and nuts removed in
step 18, this time including the horizontal
bracket in the process (fig. 4). Do not tighten.
Figure 4 – Secure Enclosure to horizontal bracket
20. Secure the tool board and the brackets to the
Enclosure, as in fig. 5, using (4) 1⁄4-20x21⁄2bolts
and nuts. Insert the bolts through the tool
board, then through the mounting holes in
the Enclosure back wall, and finally through
the vertical brackets. Snug the nuts down, but
do not tighten.
Figure 5 – Mount tool board
21. Remove the lathe mounting bolts from the
mounting holes in the bench and Enclosure.
22. Place your lathe inside the Enclosure.
23. Align the mounting holes in the lathe with the
mounting holes in the Enclosure and the
bench.
24. Insert the lathe mounting bolts supplied with
the 2800 through the lathe, the Enclosure,
and the bench.
25. Position the Enclosure as far FORWARD and
the lathe as far REARWARD on the bench as
the mounting bolts will allow.
26. Snug nuts onto the lathe mounting bolts. Do
not tighten.
27. Measure the distance from the top bracket
mounting hole on the back of the bench to the
vertical mounting bracket extending down
from the Enclosure. Make separate
measurements for both sides (bench
mounting hole to vertical bracket).
The “L” brackets that will be used to secure
the vertical brackets to the bench are
adjustable. The measurements just taken will
be used to assemble the “L” brackets to the
correct size.
28. Locate the 2 short “L” brackets and the 2
longer “L” brackets. 1 short bracket will be
assembled with 1 long bracket to form a
spacer bracket. 2 spacer brackets will be
made in the following steps.
29. On a smooth, flat surface, stand 1 short
bracket and 1 long bracket next to each other
on end. Viewed from above, they should form
a “U” shaped assembly. The holes in the long
bracket should align with the slots in the short
bracket.
IMPORTANT: Assemble these spacers on a
smooth, flat surface so that the 2 brackets
remain parallel. It is extremely important that
the spacer brackets are assembled parallel so
that the Enclosure can be properly installed.
30. Insert a bolt through the 2 brackets and finger
tighten a nut onto the bolt. Repeat for the
second hole/slot on the bracket.
31. Repeat step 30 for the second spacer bracket.
32. Use the measurements taken in step 27 to
size the spacer brackets. Slide the brackets in
or out to adjust the width of the spacer. When
one bracket matches the first measurement
and the other bracket matches the second
measurement, securely tighten the nuts on
both brackets.
Enclosure
Horizontal bracket
Vertical
bracket
Tool Board
Enclosure Vertical bracket

2800/2801 Lathe Enclosures • 5
33. Install the newly constructed spacer brackets
in their appropriate location between the
bench and the vertical brackets with the short
bracket side of the spacer next to the bench
and the long bracket extending upwards. Be
sure to match the sized spacers to the correct
measured location. Use 8 bolts and nuts.
Hand tighten the fasteners at this time.

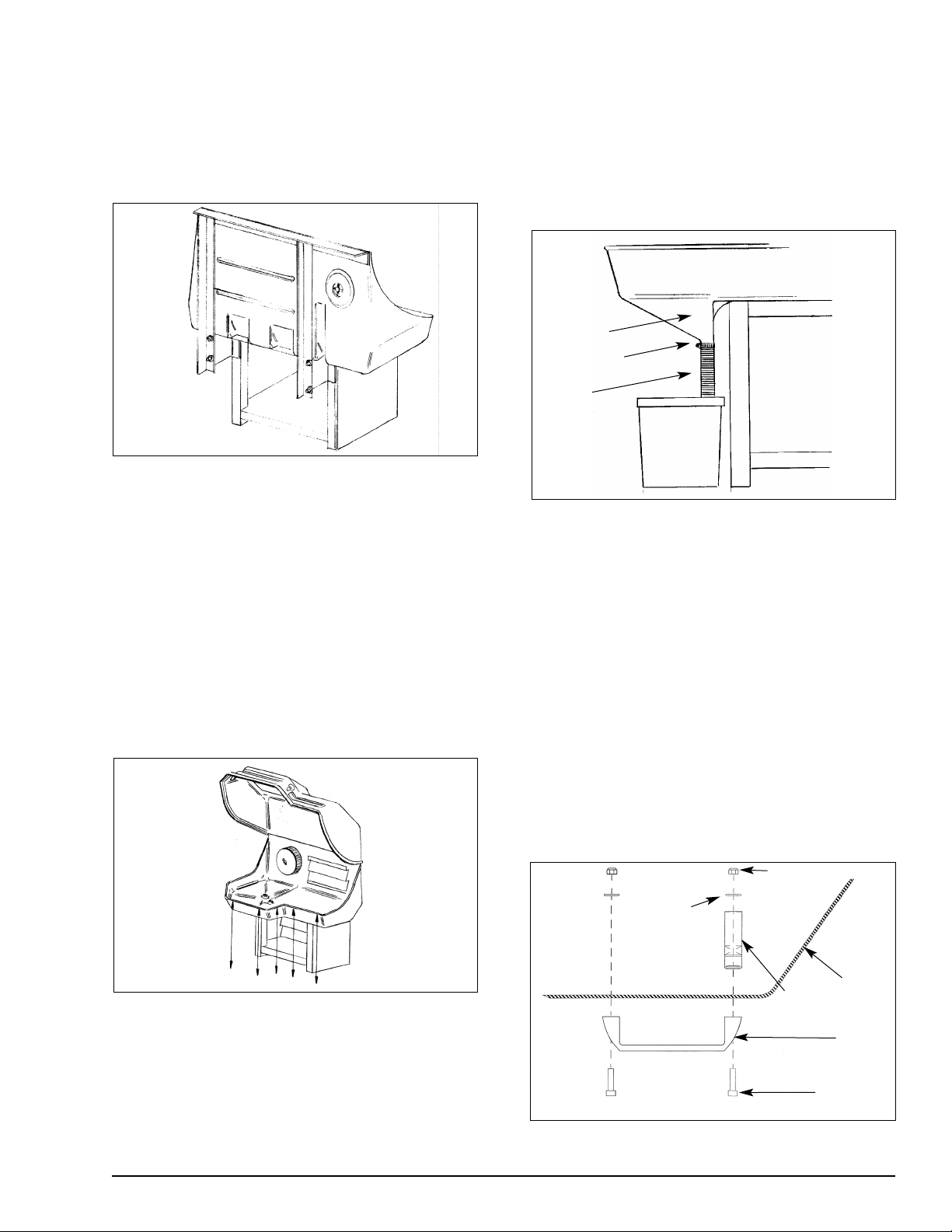

Figure 6 – Completed bracket assembly
34. The top cover must mate properly with the
lower portion of the Enclosure when closed. If
they do not, shimming of the rear support
structure is required.
35. Raise the top cover and measure the distance
from the floor to the front lip of the lower
portion of the Enclosure. Measure in multiple
locations.
The measurement should not vary more than
1/4” across the front of the Enclosure (fig. 7).
If it does vary by more than 1/4”, shim the
structure until the measurements are
satisfactory.
Figure 7 – Measure in multiple locations
36. Install alignment shims at the fasteners
between the spacer brackets and the vertical
support brackets as necessary to achieve
satisfactory measurements across the front.
The Enclosure may also be shifted within the
tolerances allowed by the lathe mounting
bolts to fine tune the adjustment.
37. When the front of the Enclosure is level within
1/4” and the top cover mates properly to the
lower portion, tighten all fasteners securely.
38. Check the fit of the top cover to the lower
portion again after tightening, and readjust as
required.
39. Attach the 2” chip tube to the fitting under the
Enclosure chip tray with the hose clamp (fig. 8).
Figure 8 – Chip hose and bucket
40. Slip the other end of the tube into the hole in
the top of the chip bucket and move the
bucket into place under the chip tray.
41. Route the lathe power cord through the hole
in the back of the enclosure and plug it into a
suitable power source.
42. Plug the Enclosure power cord into suitable
power source.
43. Attach handle and pull strap using the two (2)
5/16 - 18 x 1 1/4 screws, washers and lock nuts
to the hood.
After placing the screws through the handle
and the plastic, slide the pull strap over the
right-hand screw. Then slide washers over
both screws and secure with the nuts.
Figure 9 - Handle and pull strap assembly
Chip tray
Hose
Chip
bucket
Hose clamp
Hood
Washer (2)
5/16 ID
Strap
Handle
Screw (2)
5/16-18 x 1 1/4
Nut-Lock (2)
5/16

6 • 2800/2801 Lathe Enclosures
Additional Installation – 2801 only
Assembling Shield
1. Position the shield top & side assembly as
shown in fig. 10.

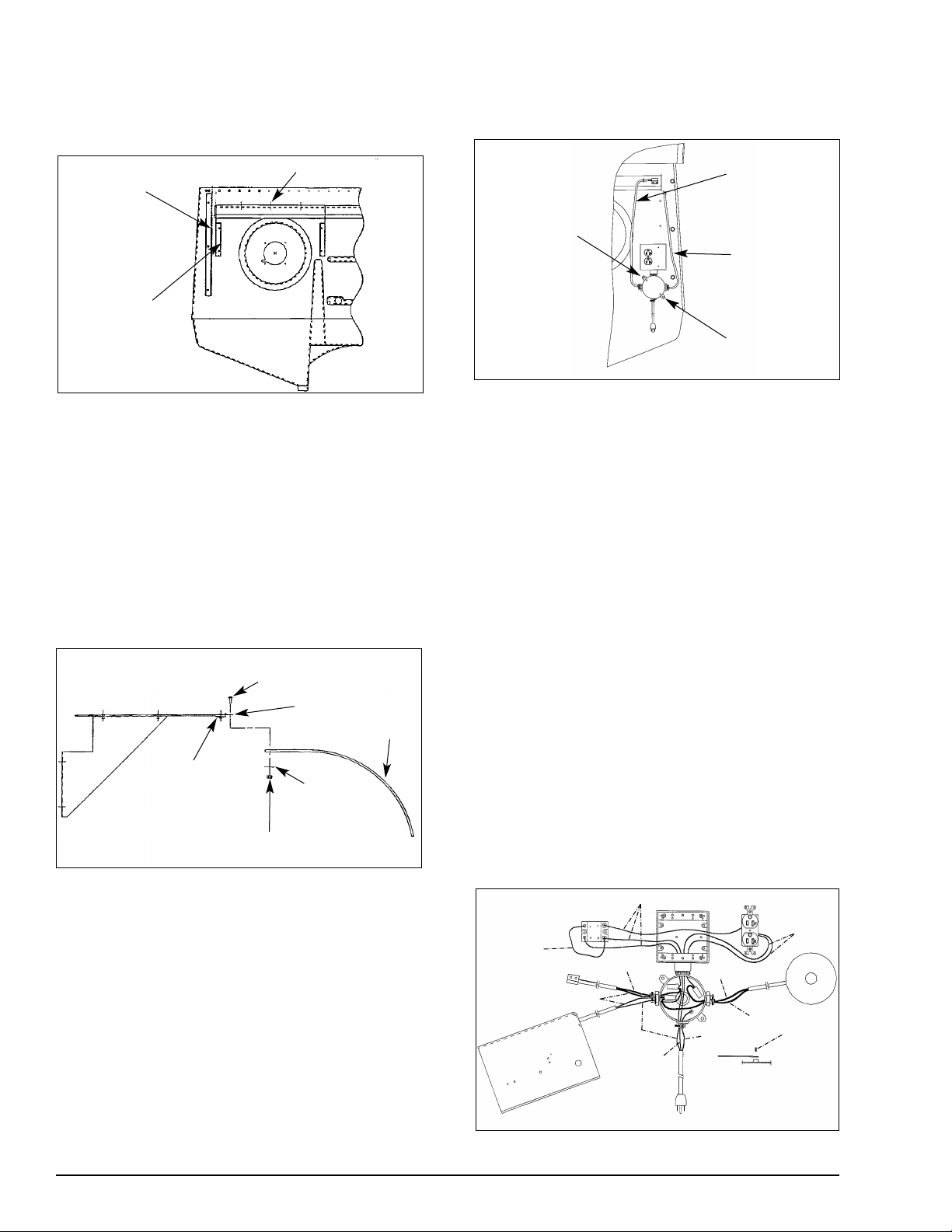

Figure 10 - Shield assembly
Place 1⁄4-20 screws through the top & side
assembly and the plastic base from the front
side. Attach washers and nuts from the rear of
the unit and tighten.
Place a #10-24 screw through the top side of
the hinge and through the corresponding
hole in the plastic shield.
4. Position the shield support so that its beveled
corners are facing the beveled corners on the
mating shield stop.
Figure 11 - Plastic shield assembly
Attach nut to screw. Assemble the remaining
(5) screws and nuts before tightening any of
them.
6. Attach electrical box assembly to the back of
the enclosure using (2) 1⁄4” bolts, washers
and nuts.
Electrical Wiring
7. Remove the cover on the round box by taking
out the two screws.
Figure 12 - Electrical box
8. Insert the emergency stop cable through the
empty box connector until the outside jacket
just enters the round box, or is completely
inside the connector.
Tighten the two connector screws.
9. Loosen the two screws that are clamping the
foot switch cable enough to push the hood
switch cable into the box.
Tighten the two connector screws.
10. Remove the screw-on connector from the
BLACK wire of the foot switch and add the
BLACK wire from the hood switch.
Screw connector on tightly.
11. Join the WHITE wires from all three switches
together with a screw-on connector.
12. Connect the BLACK wire from the stop switch
to the jumper wire from the outlet using a
screw-on connector.
13. Re-attach the round cover plate and gasket to
the box with the two screws.
Figure 13 - Electrical wiring assembly
Box Mounting Tab
940117 Shield
Lower Strut Bracket
4 Holes In
Shield Bracket
3 Holes In Top Shield
940277 Hinge
928950 10-24 x 1/2
Phillips Pan Hd. Screw
940338 Shield
Support
928051 10-24 Lock Nut
40337
Shield Stop
Black
Black
White
White
Green
Green Wire
Green Screw
Supplied with
Round Box
Ground Lug Detail
04” Round Outlet Box
White
White
Black
Black
Black Receptacle
Relay
Foot Switch
Hood
Switch
Power
Cord
Stop
Switch
Box Mounting Tab
Hood Switch Cable
(Ref)
Stop Switch Cable
(Ref)

2800/2801 Lathe Enclosures • 7
Operation
IMPORTANT: Do not plug fan or lathe into a
wall power source. Fan and lathe power cords
must be plugged into the Enclosure electrical
receptical or the safety features will not
function.
1. Plug the fan cord into the Enclosure
receptacle.
Plug the lathe cord into the Enclosure
receptacle.
3. Plug the ELE power cord into an approved
power source.
4. Push the lathe power switch to the ON
position.
5. Lower shield.
6. Lower hood and pull the emergency switch
out. Lathe will come ON.
7. Push stop switch in and the lathe will shut off.
Note: Lathe will only run under one of these
conditions:
(1.) Hood is fully lowered.
(2.) Foot pedal is depressed–use only for
setting up toolbits depth of cut prior to
lowering hood.
Maintenance
1. Check the air filter regularly for
contamination. The replacement interval for
the filter is directly proportional to use.
Replace the filter when the air flow is
diminished.
The filter is the same air filter typically used in
GM passenger cars with the 454 cubic inch
gasoline engine.
Seal the used filter in a plastic bag before
disposal.
2. Check the chip tube periodically to make sure
it is securely attached to the chip tray. Inspect
the tube for holes or cracks. Replace the tube
if it is damaged or leaks.
The chip tube is a typical 2” pre-heater hose.
3. If the gas struts are damaged, or begin to
weaken, replace them with struts of the same
force and length as the originals. Failure to
use the correct strut may create a hazard to
the operator. Replacement struts are available
from AMMCO.
4. Check the chip bucket and empty it before it
reaches capacity. If the chip bucket becomes
full, chips and other material will back up into
the chip tray and the interior of the Enclosure.
Dispose of the material in the bucket properly.

8 • 2800/2801 Lathe Enclosures
ITEM PART NO. QTY. DESCRIPTION
1 940030 2 Angle, vertical mounting bracket
2 940028-01 2 Spacer, vertical angle mtg-outer
940028-02 2 Spacer, vertical angle mtg-inner
3 940027 1 Angle, horizontal mounting
4 924100 14 Screw, 1⁄4 -20x3⁄4
5 924557 20 Nut, 1⁄4 -20 hex, flange
6 929906 1 Window
7 902322 16 Screw, 10-32x1⁄2
940137 16 Washer, #10 stainless, black oxide
8 940082 1 Hose clamp
9 940000 1 Chip tube
10 929999 1 Chip bucket w/lid
11 940052 2 Strut, gas
12 940053 2 Stud, ball
13 929969 1 Board, tool
14 9301818 6 Screw, 1⁄4-20x21⁄2 HHCS
ITEM PART NO. QTY. DESCRIPTION
15 940025-01 1 Bracket, gas strut
940025-02 1 Bracket, gas strut
16 940084 14 Screw, 5⁄16x18x11⁄4
17 8182178 18 Nut, 5⁄16x18 hex flange
18 940024-01 1 Bracket, gas strut
940024-02 1 Bracket, gas strut
19 940002 1 Fan assy. - 115V
20 929905 1 Filter
21 929864 1 Cover, filter
22 906358 1 Nut, wing 1⁄4-20
23 940089 1 Cord assy., power
24 940350 1 Handle
25 940351 1 Strap
26 900278 2 Washer, 5⁄16 I.D.
27 940381 2 Screw, 5⁄16x18x11⁄4
28 8181183 2 Nut, lock 5⁄16
ITEM PART NO. QTY. DESCRIPTION
1 ------- 1 Side, shield, RH
2 ------- 1 Side, shield, LH
3 ------- 1 Top, shield
4 ------- 10 Rivet, pop, 3⁄16x.250
5 ------- 6 Screw, 10x24x1⁄2, pan hd phillips
6 ------- 6 Nut, 10-24 lock, ESNA
7 ------- 1 Hinge
8 ------- 1 Stop, shield
9 ------- 1 Support, shield
10 940417 1 Shield, chip (with decal)
11 940166 1 Decal, warning
Parts Identification
2800 and 2801
Parts Identification – 2801 parts only
Shield Assembly 11
10
9
8
7
6
5
4
43
2
1
12
12
12
12
11
10
9
8
7
6
5
4
3
2
1
24
23
22 21
28
27
26
25
20
19
18
17
17
17
17
17
16
16
15
14
13

2800/2801 Lathe Enclosures • 9
Wiring View
Magnet Mounting
Hood Switch Mounting
Stop Switch
Mounting
Foot Switch Assembly
(assy part #40044)
Parts Identification – 2801 parts only
ITEM PART NO. QTY. DESCRIPTION
1 40121 1 Cord, power
2 40044 1 Foot switch assy
3 40051 1 Relay, SPST, 1 H. P.
4 40120 1 Receptacle, duplex, 20A
5 40125 1 Switch, hood
6 40220 1 Switch, stop
7 40221 1 Plate, stop switch
ITEM PART NO. QTY. DESCRIPTION
1 40125 1 Switch, hood
2 ------- 2 Screw, socket hd cap, 4-40x5⁄8
3 ------- 2 Nut, hex, kep, 4-40
4 ------- 4 Washer, plain, #4, type B
5 ------- 1 Tie, wire
ITEM PART NO. QTY. DESCRIPTION
1 40057 1 Shim, switch magnet
2 40050 1 Magnet, switch
3 40124 1 Cord, assy, foot switch
ITEM PART NO. QTY. DESCRIPTION
1 109947 2 Magnet, hood switch
2 111447 1 Screw, nylon, 5⁄16-18x1 HHCS
3 ------- 1 Nut, hex, 5⁄16-18 washer hd whiz lock
ITEM PART NO. QTY. DESCRIPTION
1 40220 1 Switch, stop
2 40221 1 Plate, stop switch
3
2
1
3
2
1
2
1
5
4
43
2
1
1
7
6
5
4
3
2
1
