HEPER TURA 4x12 LED Installation and operating instructions

1/4 2023-1 / 20/01/2022
Installation & Maintenance
Instructions
HEPER USA LLC
W227 N546 Westmound Drive Waukesha, 53186
Wisconsin, United States
[phone]
[email protected]

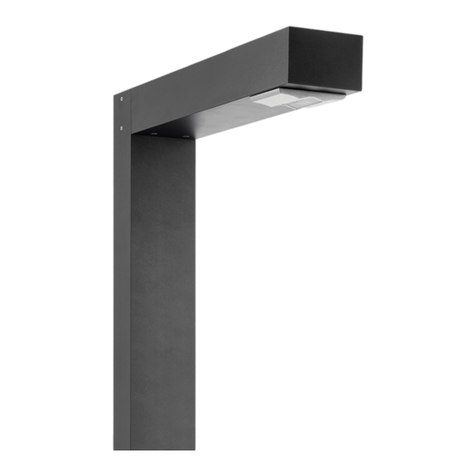

TURA 4x12 LED (LL2036.754-US)
22 lbs
https://heperlighting.com/us/ll2036.754-us/

2/4

3/4

4/4
English ( USA )
Safety
- The product must be installed in accordance with applicable
NEC standards by a qualified electrician familiar with the
installation of exterior lighting fixtures.
- The product must be operated under specified voltage at all
times.
- Do not install if parts are damaged.
- Power must be disconnected while installing or servicing to
avoid electrical shock.
- Failing to comply with warnings and installation steps in this
document might void warranty.
- Do not touch the light source.
- Make sure that temperature of the product is at a safe level before
touching.
- Do not allow cables to touch sharp edges of metal parts or other sharp
objects to avoid damage or abrasion.
- Check all of the cable connections including grounding before
powering the product.
- Check the proper grounding of the metal housing before powering the
product.
- Only use the product for its intended purposes.
- Do not use accessories not approved or recommended by
HEPER.
- Replace any broken/cracked protective surface with a new
one
- Before disconnecting the cables connections, disconnect the
luminaire from the electricity.
Installation
- Make the connection of the spigot. (Spigot position may change
according to project needs)
- Secure the pole to the spigot as shown on the visual.
- Make sure that the wire connections are as shown on the 12th visual.
Replacement of the light source
- Disconnect the power coming into the product.
- Reinstall the product following the same steps.
Replacement of the control gear
- Unlock the clip to reach the driver location.
- The electrical connection automatically will be blocked when the cap is
opened. Make sure that the mechanism is locked which is on the side of
the cap.
- Detach the driver as shown on the visual.
- To close the cap, push it to the back to unlock the mechanism and lock
the clip as shown on the visual.
Cleaning - Maintenance
- The product was designed and manufactured to operate for a long
period of time. To ensure maximum lifespan of the product, regular (i.e.
every six months) visual inspection and cleaning with a solvent-free
cleaner using a soft cloth is recommended.
- Do not clean or service while the product is power connected.
Disposal
- In accordance with EU Directive WEEE (Waste Electrical and
Electronic Equipment), luminaires must not be disposed of with
other household waste. At the end of their life, luminaires must
be taken to the appropriate local facility available for the
disposal or recycling of electronic products.
Wiring Color Codes
- Ground - GREEN
- Line - BLACK
- Neutral - WHITE
- Dim(+) - RED/PURPLE
- Dim (-) - GRAY/ORANGE
Disclaimer
- HEPER reserve the right to make technical and design changes.
