HeroSpeed Coaxial HD XVR User manual

Coaxial HD XVR
User Manual
Version 8.1.52.5

III
Declaration
Copyright © 2019. All rights reserved.
Without the written permission of the company, any company or individual
should not extract, duplicate part of or all of contents of this manual and no
spreading in any form.
As the upgrade of the products or other reason, the contents of manual will
be upgraded periodically. Unless otherwise stipulated, the manual is used as
a instruction. All statements, information and suggestions of the manual do
not constitute any ostensive or implied guarantee.
Photographs, graphics, charts, and illustrations provided in the manual are
for explanation and illustration purposes only, and may differ from specific
products. Please prevail in kind.
Safety Precautions
Notice
Please do not place and install equipment directly under the sunlight or
near heating device.
Please do not install equipment at moist place or place with dust or
soot.
Please keep equipment installed horizontally, or install equipment in a
stable place, avoid the equipment falling down.
Please avoid liquid dropping on the equipment, make sure no objects
filled (eg cups) with liquid on the equipment and prevent liquid from
leaking.
Please install the device in a well-ventilated place, do not block the
vents of the equipment.
Please only use equipment within rated input/output.
Please do not disassembly at liberty.
Please transport, use and reserve the equipment within allowing
humidity（10%~90%）and temperature（-10℃~+55℃）.
When cleaning the device, unplug the power cord and completely shut
off the power.

IV
The dust on the circuit board inside the NVR may cause a short circuit
after being exposed to moisture. Regularly clean the circuit board,
connectors, chassis, and chassis fan with a soft brush. If dirt is difficult
to remove, wipe it off with a neutral detergent diluted in water and
wipe it dry.
Do not use volatile solvents such as alcohol, benzene, or thinner when
cleaning the device. Do not use strong or abrasive cleaning agents. This
can damage the surface coating.
Please purchase the NVR dedicated hard drive recommended by the
equipment manufacturer from the formal channels to ensure the
quality and usage requirements of the hard drive.
Make sure that there is no threat due to uneven mechanical load.
Make sure that the video and audio cables have enough controls to
install the cable. The bend radius of the cable should not be less than 5
times the cable diameter.
Make sure that the alarm cable is firmly installed and the contact is
good.
Make sure that the NVR is reliably grounded.
Warning
Please do use the battery as requested, or it may lead to a battery fire,
explosion or risk of burning!
Please use the same type of battery when changing it.
Please do use recommended cord sets (power cords), do use within the
rated specifications.
If you connect the product to the Internet at your own risk, including
but not limited to products that may be subject to cyber-attacks,
hacking attacks, virus infections, etc., the company will not be
responsible for product abnormality, information leakage, etc., but the
company will timely to provide you with product-related technical
support.

V
Instruction
After receiving the product, please open the packing box, take out the
equipment, and confirm the packing product and accessories according
to the packing list in the box.
If you find any damage to the contents of the box or any missing parts,
please contact your dealer promptly.

VI
Content
Chapter 1 Outline and Feature.........................................................................8
1.1 Outline................................................................................................8
1.2 Default ................................................................................................8
1.3 Descriptive content agreement..........................................................8
1.4 Function Features...............................................................................9
Chapter 2 XVR Appearance ............................................................................13
2.1 Front Panel Introduction ..................................................................13
2.2 Rear Panel Introduction....................................................................14
2.3 Mouse Operation Instructions..........................................................15

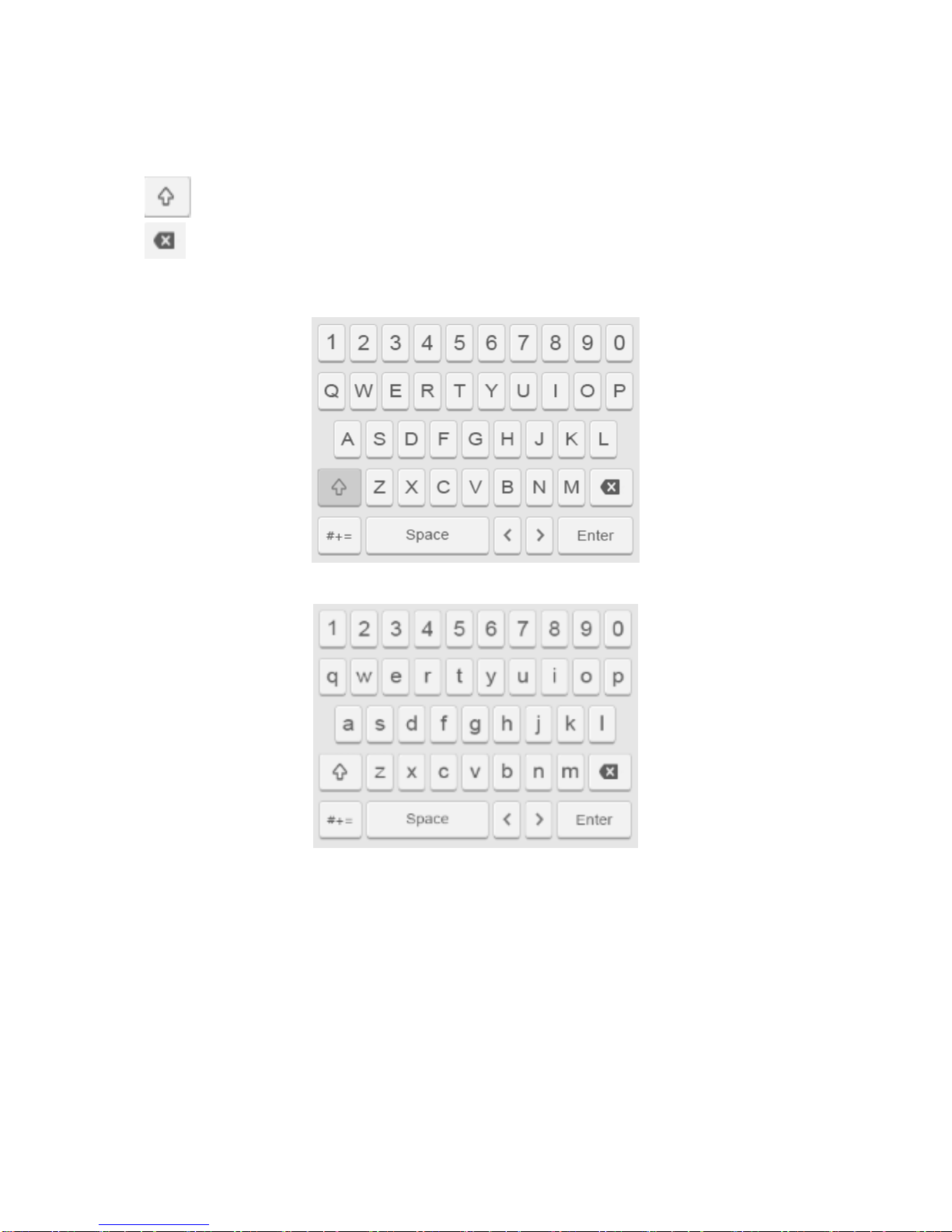

2.4 Input Method Introduction ..............................................................16
Chapter 3 Connecting XVR .............................................................................17

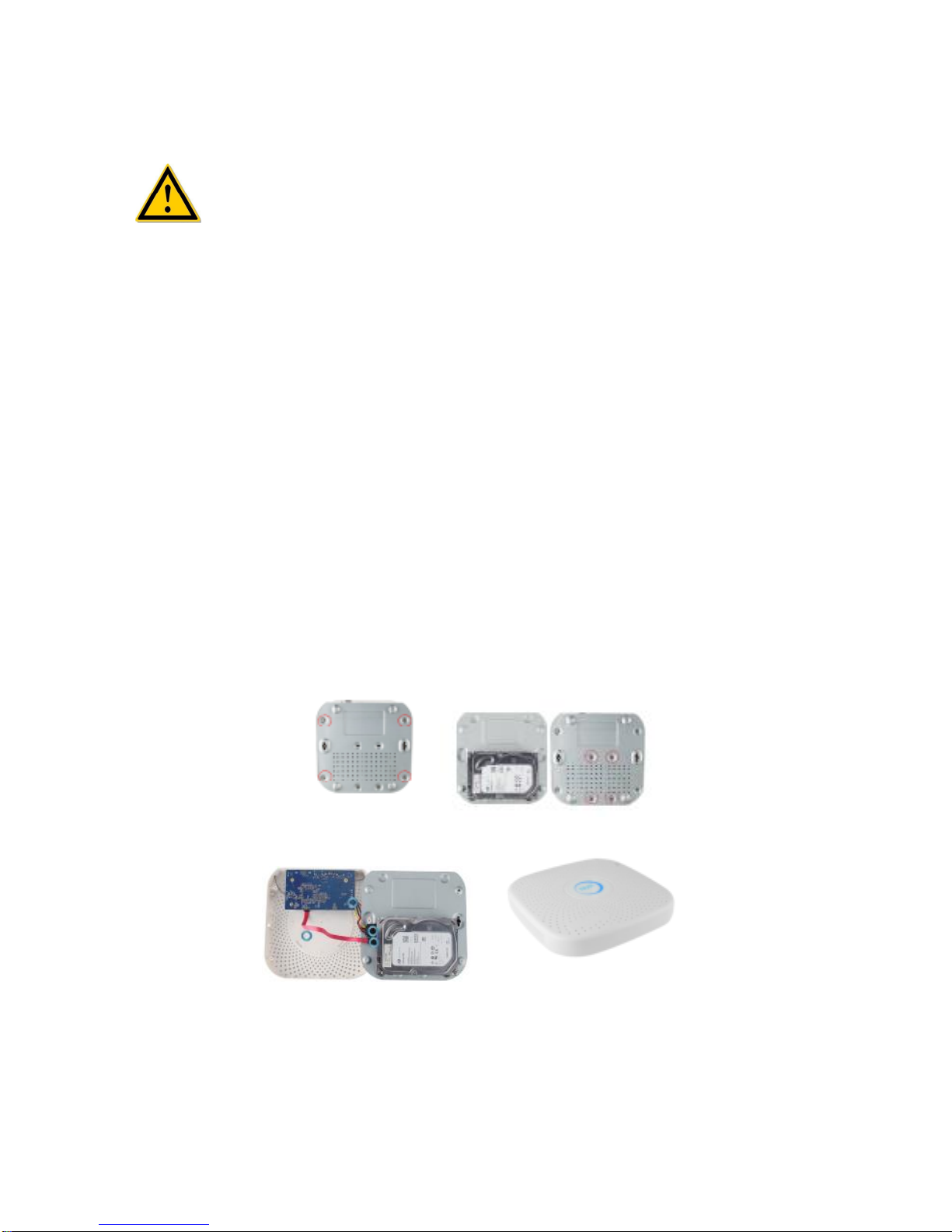

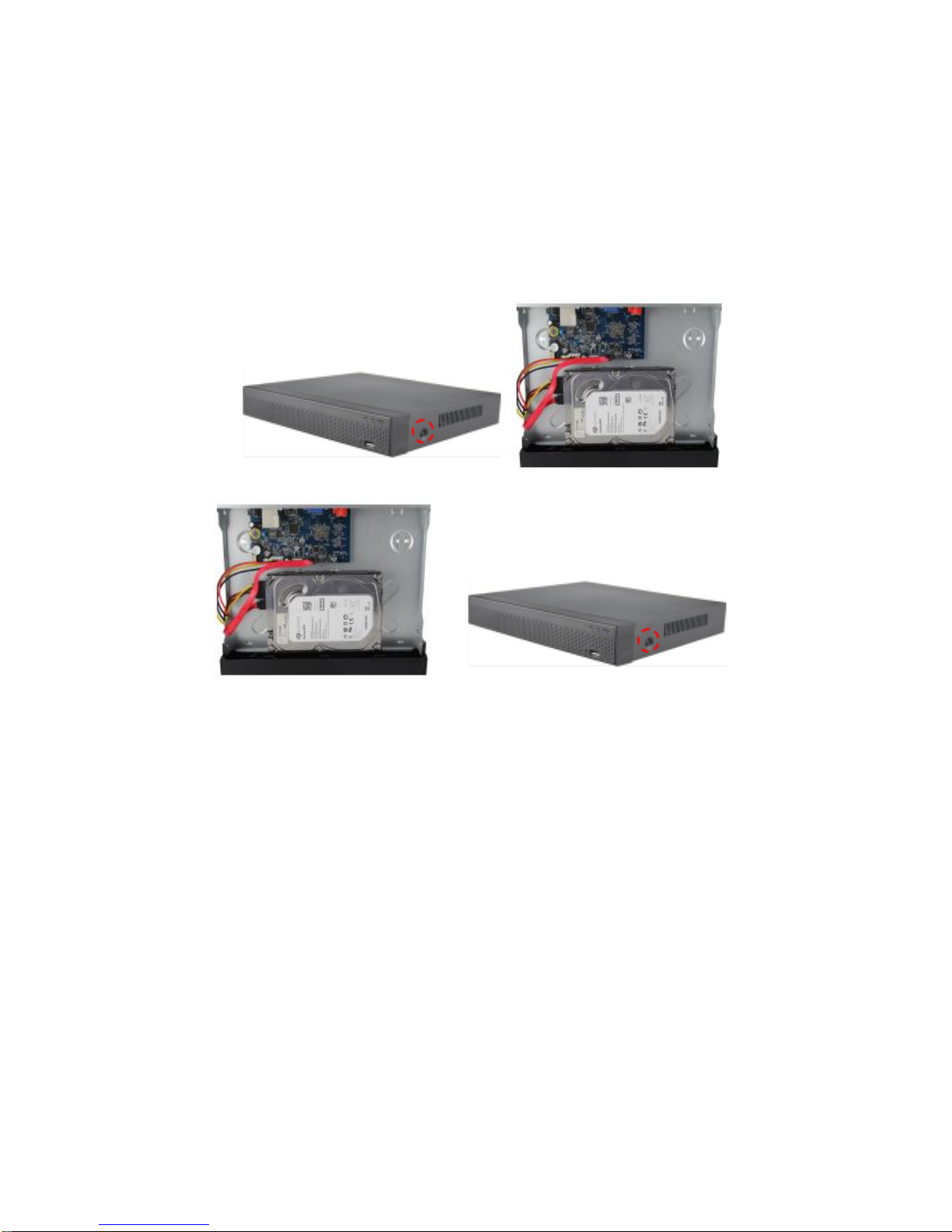

3.1 Hard Disk Installation........................................................................17

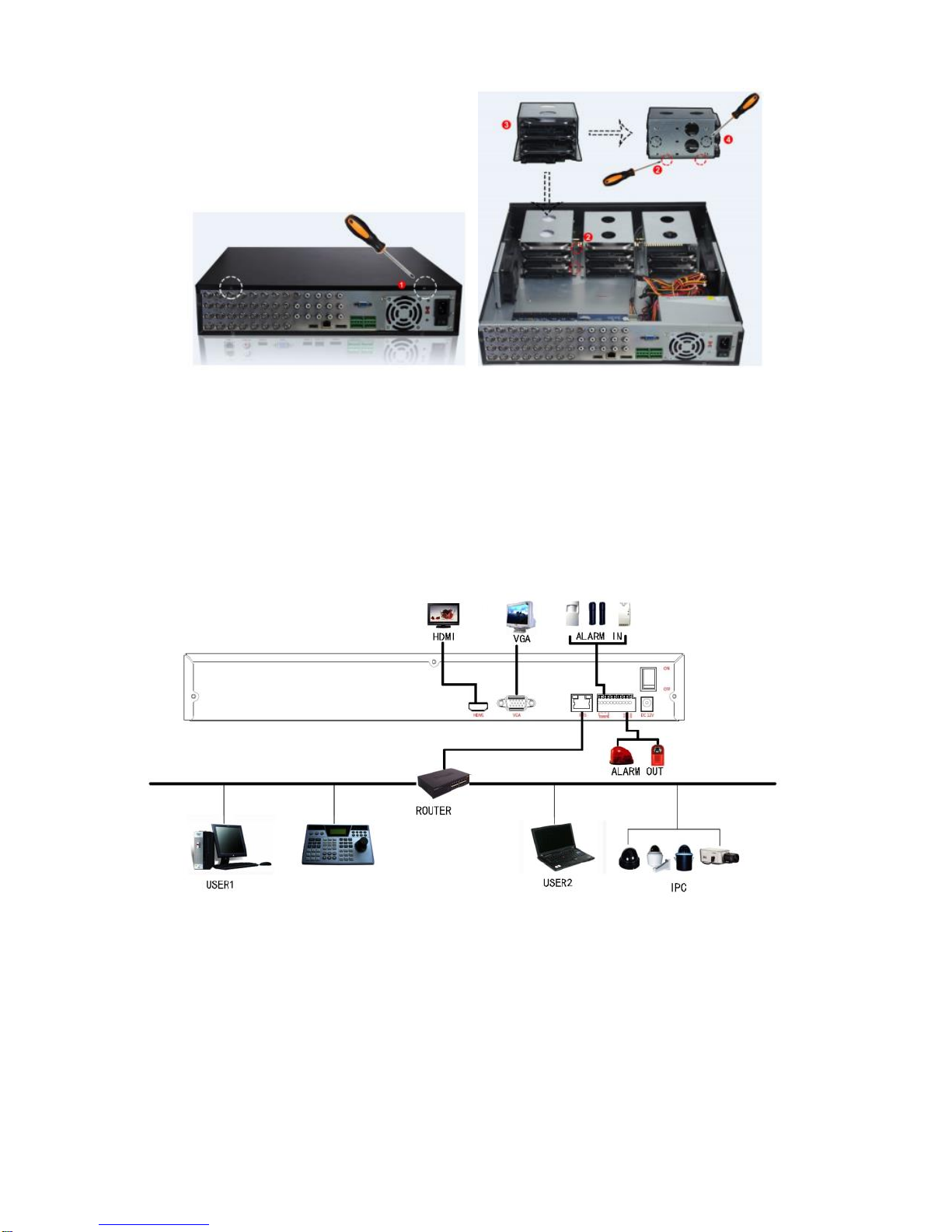

3.2 Device Connection............................................................................19
Chapter 4 XVR Startup....................................................................................20
4.1 System Initialization..........................................................................20

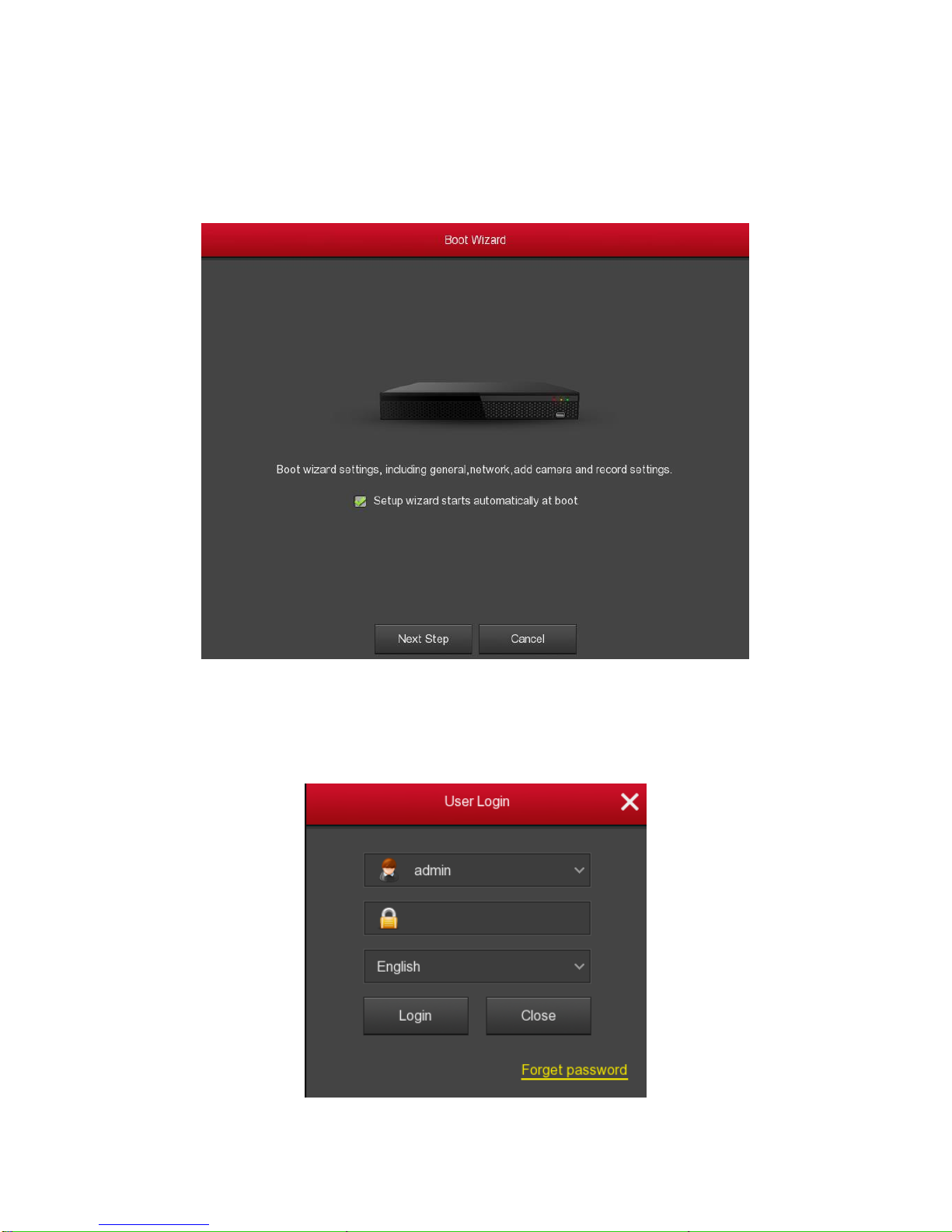

4.2 Boot wizard.......................................................................................21
4.2.1 Quick Startup Wizard ............................................................21
4.2.2 Forget Password ....................................................................25
4.3 Preview Interface..............................................................................27
4.4 Quick add device ..............................................................................28
4.5 Channel shortcut menu....................................................................30
Chapter 5 XVR Menu ......................................................................................32
5.1 Shortcut menu..................................................................................32
5.1.1 Manual screenshot................................................................33
5.1.2 Select Mode...........................................................................34
5.1.3 Poll.........................................................................................35
5.1.4 PTZ Setup...............................................................................35
5.1.3 XVR Image..............................................................................39
5.2 Main Menu.......................................................................................40
5.3 Operating..........................................................................................41
5.3.1 Playback.................................................................................41
5.3.2 File backup ............................................................................46
5.3.3 HDD .......................................................................................48
5.3.4 Record....................................................................................49

VII
5.3.5 Camera ..................................................................................53
5.3.6 Configuration.........................................................................67
5.3.7 Maintenance..........................................................................90
5.3.8 Shutdown ..............................................................................96
Chapter 6 WEB Operation ..............................................................................97
6.1 Internet connection..........................................................................97
6.2 Browser Login...................................................................................98
6.3 Active X install ..................................................................................98
6.4 Live View ........................................................................................100
6.5 Configuration..................................................................................102
6.5.1 Local Config .........................................................................102
6.5.2 Camera ................................................................................103
6.5.3 Record..................................................................................109
6.5.4 HDD .....................................................................................110
6.5.5 System .................................................................................111
6.5.6 Maintain ..............................................................................121
6.6 Playback..........................................................................................124
Chapter 7 Appendixes ..................................................................................127
7.1 Q&A ................................................................................................127
7.2 Maintenance ..................................................................................127

8
Chapter 1 Outline and Feature
1.1 Outline
The item is a five hybrid coaxial HD hard disk video recorder, compatible with
HDTVI, AHD and other coaxial HD specifications, free access to HDTVI, AHD,
CVI, CVBS, and network signal. You can disable any number of analog
channels into IP channel, dual function of both DVR and NVR. It characterizes
local previewing, multi-picture division displaying & local real-time storage of
recorded files. It supports shortcut operating of mouse and remote managing
and controlling. It has two ways of storage--Front storage & client-side
storage. Front-end monitoring points can be located anywhere on the
network without geographical restrictions. And the use of a number of IT
high and new technology, both to achieve independent HD monitoring, but
also can be networked to form a strong security system.
XVR can be widely used in financial, public security, military,
telecommunications, transportation, power, education, water conservancy
and other areas of security.
1.2 Default
The factory default super administrator account is admin and the
password is 12345.
XVR factory default IPv4 address: 192.168.1.88.
1.3 Descriptive content agreement
In order to simplify the description in this manual, the following conventions
are made:
The "device" mentioned in this manual mainly refers to the XVR.
The “IP device” mentioned in this manual mainly refers to IPC, IP DOME,
or DVS.
The "channel" mentioned in this manual refers to the XVR's IP channel.
Click the "X" or "Cancel" button to return to the previous screen.
Click All Interfaces Default to restore the current factory default settings.
Click "Apply" and "Save" on all screens to save the current settings.

9
Click all the interfaces "Copy" to enter the copy channel interface, select
the channel, and copy the current channel configuration to the selected
channel.
1.4 Function Features
The XVR features are as follows:
● High-definition XVR series, support HDTVI, AHD, CVI, CVBS, IP input (5 in 1
hybrid).
● Support network equipment access and can work with network cameras,
network dome and network video server which with ONVIF protocol; Can
increase the number of IP channels by disable the Analog channels, come
with dual function of DVR and NVR.
● Each channel supports dual-stream encoding.
● The video coding parameters of each channel is adjustable independently,
including frame rate, bit rate etc.
● Each channel supports timed recording and motion detection, alarm
recording.
● Support composite stream and video stream encoding. Audio and video
synchronized when it is composite stream encoding.
● Support HDTVI, AHD, CVI, CVBS switch adaptation.
● Support the option mode of video input and video output.
● IP channel function can be quickly added.
● Support fast search, Multi-channel playback and backup function and can
greatly improve the video retrieval and playback efficiency.
● Support H.264/H.264+ video compression format IPC access(1080N series
does not support H.264 +), HI3521A series, HI3531A series maximum support
800W resolution, HI3520DV300 maximum support 500W resolution,
HI3520DV200 maximum support 1080P resolution network camera intake.
● Support G.711µ audio compression format.
● USB2.0 or USB3.0 interface, support backup, software upgrades, mouse
operation.
●Support U disk or mobile hard disk in FAT32, NTFS, exFAT and other
formats.
● Support 23 languages: Chinese Simplified / Chinese Traditional / English /
Polish / Czech / Russian / Thai / Hebrew / Arabic / Bulgarian / Persian /
German / French / Portuguese / Turkish / Spanish / Italian / Hungarian /
Romanian / Korean / Dutch / Greek/Vietnamese.

10
Local Monitoring
Local Monitoring features as below:
●Supports local VGA and HD homology output, and HD supports up to 4K
resolution output.
● Support multi-screen split into different channels and preview & playback.
● 4-channel XVR support 1 / 4 / 8 / 9 screen preview, 8-channel XVR support
1 / 4 / 8 / 9 / 16 screen preview, 16 channel XVR support 1 / 4 / 8 / 9 / 16
screen preview, 32-channel XVR support 1 / 4 / 8 / 9 / 16 / 25 / 32 screen
preview.
● Support adjust the preview channel order by drag the mouse.
● Support preview manually or auto-tour preview, automatic polling cycle
can be set.
● Supports video motion detection and video loss detection.
● Support a variety of video monitor protocol, can access the menu easily
when connect to HD-Analog camera; For HD-PTZ Camera, no need to
connect RS485, simple and convenient.
● Support preset points, cruise paths and trajectories.
● Achieve IP PTZ camera control through the ONVIF protocol.
Hard disk management
Hard disk management features as below:
● Each SATA interface support up to 8T hard drive
● Support hard disk formatting
● Supports hard disk loss and hard disk abnormal alarm.
Video Record and Playback
Features as below:
● Video compression standard is H.264 / H.264+ / H.265 / H.265+, with
timed recording function.
● Support the main, sub-stream recording at the same time.
● Support cyclic writing.
● Maximum 6 recording time can be set in each day, and the recording
trigger mode can be set independently for different time periods.
● Support video data retrieval and playback through channel number, video
type, file type, start and end time.
● Support electronic zooming of preview & playback images.

11
● Support pause, fast, rewind (Local) and slow (Web) release in playback,
support mouse drag positioning.
● Support 1-4 channel playback(Pure analog support multi-channel playback)
and network multi-channel playback
Data backup
Features as below:
Support backup by USB interface.
Support U disk or mobile hard disk in FAT32, NTFS, exFAT and other
formats.
Support batch backup by file and time.
Support for VMS clip-by-clip backups.
Alarm and exception management
Features as below:
● Some models support alarm input / output arming time setting.
● Some models support multi-channel external alarm input and output.
● Supports video motion detection alarm, network disconnection alarm, IP
Conflict alarm, Disk error alarm and Disk loss alarm
● Various alarms can trigger pop-up alarm screen, voice warning, email
sending and trigger alarm output. Besides, video motion detection can
trigger any channel for video inspection; Various exceptions can trigger
audible alerts, email sending, and trigger alarm output.
Other Local Functions
Features as below:
● Users can quickly and easily set the system parameters by XVR buttons
frontal, USB mouse.
● Administrator can create multi-user and set permissions, which can be
refined to the channel.
● Support manual alarm trigger.
Network Function.
Features as below:
● Support a 10M / 100M adaptive network interface, 3531A series support
10M / 1000M adaptive network interface.

12
● Support remote client privileged access, improve system security.
● Support TCP / IP protocol cluster, support DHCP, DNS, HTP, SMTP, RTSP,
UPnP and other protocols.
● Embedded WEB SERVER, support HTTPS protocol, improve the security of
network access.
● Support remote search, playback, download.
● Support remote access and configure parameters.
● Support remote access to equipment running status, system log and alarm
status.
● Support remote formatted hard disk, upgrade program, restart and other
operations for system maintenance.
● Support remote manual trigger & stop recording.
● Support remote manual trigger & stop alarm output.
● Support alarm pushes function.
● Support remote FTP server configuration.
● Support remote PTZ control.
● Support for FreeIP / BitVision.
●Support ONVIF protocol access to platform.

13
Chapter 2 XVR Appearance
2.1 Front Panel Introduction
Figure 2-1
Table2-1
Note
The panel diagram does not reflect the product size and ratio. Please
refer to the actual product for details.
No.
Name
Description
1
Indicator light
Normal working hours, the corresponding
indicator light turns
2
Channel button
Select single channel full screen display
3
Multi-channel preview
Switch and display 4,9,16 channel
4
Direction button
Move the button up or down, right or left to
select menu
5
USB2.0 or USB3.0
Connect mouse or USB memory stick backup

14
2.2 Rear Panel Introduction
The schematic diagram of the rear panel of the common equipment is as
follows:
Figure 2-2
Table 2-2
Note
For informational purposes only, subject to object.
No.
Name
Description
1
Power input
DC12V
2
ON/OFF
ON/OFF
3
Video output
Output by TV/BNC
4
Input
BNC
5
Audio input
audio input
6
Alarm input
4 /I alarm input
Alarm output
I/O output for alarm
RS 485
RS 485 for connecting PTZ
7
Network
For connecting Ethernet
8
VGA
For connecting VGA monitor
9
Audio output
For connection audio output
10
HD
For connecting HD monitor
3
9
10
4
6
7
10
5
9
4
2
2
5
7
8
3
8
1
1
6

15
2.3 Mouse Operation Instructions
Operate XVR through mouse left button, right button ＆scroll wheel．
Mouse actions
Function
Click left mouse
button
1. Select one of the options;
2. Insertion cursor, enter or modify the value of
a parameter.
Click right mouse
button
1. When interface not locking, click right mouse
button, system menu pops up;
2. When interface locking, click right button on
real-time preview interface, login interface pop
up;
3. Entered to main menu, to a submenu of PTZ
control, click right mouse button on the menu
interface, return to previous menu (except
video playback interface);
4. Entered to close system interface, click
mouse right button on the interface, return to
preview interface.
Single, double-click the
mouse left button
1. When real-time preview multiple channels
interface, double-click maximized channel
display of one channel and return to the
original state;
2. Single click the password input field on the
login interface;
3. Single click setting parameters (date, time, IP
address, port number, bit stream value and
user password) or user names.
mouse movements
Select the menu or menu item.
Mouse drag
Drag progress bar to playback video.
Slide mouse scroll
wheel
1.Time setting;
2.Select the drop-down menu values;
Table 2-3

16
2.4 Input Method Introduction
Input method includes lowercase and uppercase English letters. Clicking
“” button on the left can switch the input method and the symbol
“ ” represents deleting incorrect input, as shown in Figure 2-4 and Figure
2-5:
Figure 2-3 Uppercase English input
Figure 2-4 Lowercase English input

17
Chapter 3 Connecting XVR
3.1 Hard Disk Installation
Notice
Before installation, please confirm that the power has been
disconnected.
Please use the XVR dedicated monitor hard drive recommended by the
device manufacturer.
Installation tools
A Phillips screwdriver
Hard disk installation
Hard disk installation guide for XVR PG / PGH series as shown in Figure 3-1:
（1）Unscrew the screws and remove upper cover.
（2）Align the hard disk screw holes to the chassis backplane, and then
tighten lock the screws.
（3）Connect one end of the hard disk power cable and data cable to the
motherboard and the other end to the hard disk.
（4）Install the cover and fix it by screws.
（1）（2）
（3）（4）
Figure 3-1
Hard disk installation guide for XVR C/D/CB/DB series as shown in Figure
3-2:

18
（1）Unscrew the screws on the back and sides of the chassis and remove
the cover.
（2）Connect one end of the hard disk power cable and data cable to the
motherboard and the other end to the hard disk.
（3）Align the hard disk screw holes to the chassis backplane, and then
tighten lock the screws.
（4）Install the cover and fix it by screws.
（1）（2）
（3）（4）
Figure 3-2
Hard disk installation guide for XVR L series as shown in Figure 3-3:
（1）Unscrew the back panel screws and take off the cover.
（2）Remove the hard disk rack.
（3）Install the hard disk to the rack from top to bottom.
（4）Fix the hard disk by screws.
（5）Install the rack and fix it.
（6）Connect the hard disk power cable and data cable.
（7）Install the cover and fix it by screws.

19
Figure 3-3
3.2 Device Connection
Use VGA cable or 1080P cable to transmit the XVR signal to the display. If it is
a controllable PTZ, use wire to connect RS485 A cable and RS485 B cable to
the corresponding RS485 interface on XVR, as shown in Figure 3-4:
Figure 3-4

20
Chapter 4 XVR Startup
4.1 System Initialization
The steps to turn on XVR are as follows:
○
1 Connect the device to the analog camera, monitor and plug in the
mouse and power cord.
○
2 Turn on the power switch on the rear panel to start the device. The
system initialization screen appears, as shown in Figure 4-1.
Figure 4-1
Instruction
Please confirm that the voltage to be connected matches the XVR
requirements and ensure that the XVR ground is well grounded.
If the power supply is abnormal, the XVR may not work properly or even
damage the XVR. It is recommended to use a regulated power supply
for power supply.
The illustrations that appear in the operation manual may not be exactly
the same as the menu interface displayed on your monitor, so all
illustrations are for user's reference only.
After the device starts up, it can be simply configured through the boot
wizard, which is the normal operation of the device.

21
4.2 Boot wizard
4.2.1 Quick Startup Wizard
Quickly configuration the NVR as shown in Figure 4-2：
○
1 After the device starts, enter the "Boot Wizard" and click "Next Step".
Figure 4-2 ○ 1
○
2 Then select a user name, enter the user password, select the system
language and click "Login" to login the system (the default username is
admin, password is 12345).
Figure 4-3 ○ 2
