Heta Panorama User manual

1
OPERATING AND INSTALLATION
INSTRUCTIONS
PANORAMA & PANORAMA XL
INSERT STOVE
is exempt for use in smoke control areas when burning dry wood
DANISH DESIGN . DANISH QUALITY . DANISH PRODUCTION
www.heta.dk
EN
ECODESIGN READY

2
Declaration of Performance EN
__________________________________________________________________________________________________________________________________
Regulation No. 305/2011
PANORAMA-1554-2011-EN
1. Unique identification code of product-type Insert stoves
2. Product name Scan-Line Panorama
3. Intended use or uses of the construction product, in
accordance with the applicable technical specification
Room heater burning solid fuel without hot water supply
4. Name and contact address of the manufacturer Heta A/S, Jupitervej 22, DK-7620 Lemvig. [e-mail]
5. Where applicable, name and contact address of
authorized representative. E-mail.
Factory Manager Martin Bach, E-mail: [e-mail]
6. System of assessment and verification of constancy of
performance of the construction product
System 3
7. Notified body relevant to the assessment and
verification of constancy of performance
Technologisk Institut DK 8000 Århus C Notified body
No. 1235
8. Declared Performance
Harmonized technical specification EN 13240:2001/A2:2004
Emission CO 0,08%/951 mg/Nm3
Nox 106 mg/Nm3
Dust 27 mg/Nm3
Dust (NS3058/3059) 2,74 g/kg
OGC (CEN/TS 15883) 46 mgC/Nm3ved 13% O2
Fire safety
Reaction to fire A1
Test of fire safety in connection with the burning of wood Approved
Distance to combustible materials
Insulation thickness Rear:
Insulation thickness Sides
Furniture distance
Minimum distances in mm
--
275
1100
Safety
Mechanical resistance (to carry a chimney / flue) Not tested (NPD)
Electrical safety NA
Surface temperature Approved
Cleanability No specification
Thermal output
Nominal heat output 6,5 kW
Room heat output 6,5 kW
Energy efficiency Ƞ80%
Fluegas temperature at nominal heat output T 273oC
Water heating output NA
Maximum water operating pressure NA
9.
The performance of the product identified in points1 and 2 is in conformity with the declared performance in point 8. This
declaration of performance is issued under the sole responsibility of the manufacturer.
Signed on behalf the manufacturer of 02.12.2016
____________________________________________________________________________________________________________________
In case of any change of the above-mentioned production type this Declaration of Performance becomes invalid.
Heta A/S, Jupitervej 22, DK-7620 Lemvig, Tlf. [phone], www.heta.dk
Page 1 of 1
Certifikat no. 1554

3
Declaration of Performance EN
__________________________________________________________________________________________________________________________________
Regulation No. 305/2011
PANORAMA XL-1553-2011-EN
1. Unique identification code of product-type Insert stoves
2. Product name Scan-Line Panorama XL
3. Intended use or uses of the construction product, in
accordance with the applicable technical specification
Room heater burning solid fuel without hot water supply
4. Name and contact address of the manufacturer Heta A/S, Jupitervej 22, DK-7620 Lemvig. [e-mail]
5. Where applicable, name and contact address of
authorized representative. E-mail.
Factory Manager Martin Bach, E-mail: [e-mail]
6. System of assessment and verification of constancy of
performance of the construction product
System 3
7. Notified body relevant to the assessment and
verification of constancy of performance
Technologisk Institut DK 8000 Århus C Notified body
No. 1235
8. Declared Performance
Harmonized technical specification EN 13240:2001/A2:2004
Emission CO 0,01%/1244 mg/Nm3
Nox 95 mg/Nm3
Dust 12 mg/Nm3
Dust (NS3058/3059) 2,68 g/kg
OGC (CEN/TS 15883) 100 mgC/Nm3ved 13% O2
Fire safety
Reaction to fire A1
Test of fire safety in connection with the burning of wood Approved
Distance to combustible materials
Insulation thickness Rear:
Insulation thickness Sides
Furniture distance
Minimum distances in mm
--
250
1200
Safety
Mechanical resistance (to carry a chimney / flue) Not tested (NPD)
Electrical safety NA
Surface temperature Approved
Cleanability No specification
Thermal output
Nominal heat output 9 kW
Room heat output 9 kW
Energy efficiency Ƞ81%
Fluegas temperature at nominal heat output T 266oC
Water heating output NA
Maximum water operating pressure NA
9.
The performance of the product identified in points1 and 2 is in conformity with the declared performance in point 8. This
declaration of performance is issued under the sole responsibility of the manufacturer.
Signed on behalf the manufacturer of 02.12.2016
____________________________________________________________________________________________________________________
In case of any change of the above-mentioned production type this Declaration of Performance becomes invalid.
Heta A/S, Jupitervej 22, DK-7620 Lemvig, Tlf. [phone], www.heta.dk
Page 1 of 1
Certifikat no. 1553

4
Congratulations on your new wood stove insert, we are confident that you will be
more than satisfied with your new Heta stove. Especially if you follow the following
advice and instructions.
The Panorama/Panorama XL is approved according to EN 13229, NS 3058 and NS
3059. These approvals, means that the wood stove insert meets a variety of specifi-
cations and requirements, ensuring it is made of quality materials, minimum environ-
mental impact and that it has an optimum fuel economy.
Operating Instructions
Contents
With your new wood stove you should find the following ..................5
1. Operating instructions........................................................................ 6
1.1 Before using ....................................................................................... 6
1.2 First firing ........................................................................................... 6
1.3 Regulating the airflow......................................................................... 6
1.4 Lighting the stove............................................................................... 6
1.5 Refueling ............................................................................................ 6
1.6 Reduced burning................................................................................ 7
1.7 Risk of explosion................................................................................ 7
1.8 Emptying the ash ............................................................................... 7
1.9 Draft conditions in the chimney ......................................................... 7
1.10 Fuel..................................................................................................... 8
1.11 Operational problems......................................................................... 9
1.12 Chimney fires ..................................................................................... 9
1.13 Troubleshooting ............................................................................... 10
1.14 Maintenance..................................................................................... 11
1.15 Cleaning the glass............................................................................ 11
1.16 Maintenance schedule ..................................................................... 11
1.17 Cleaning/Replacing bicks after chimney sweeping ......................... 12

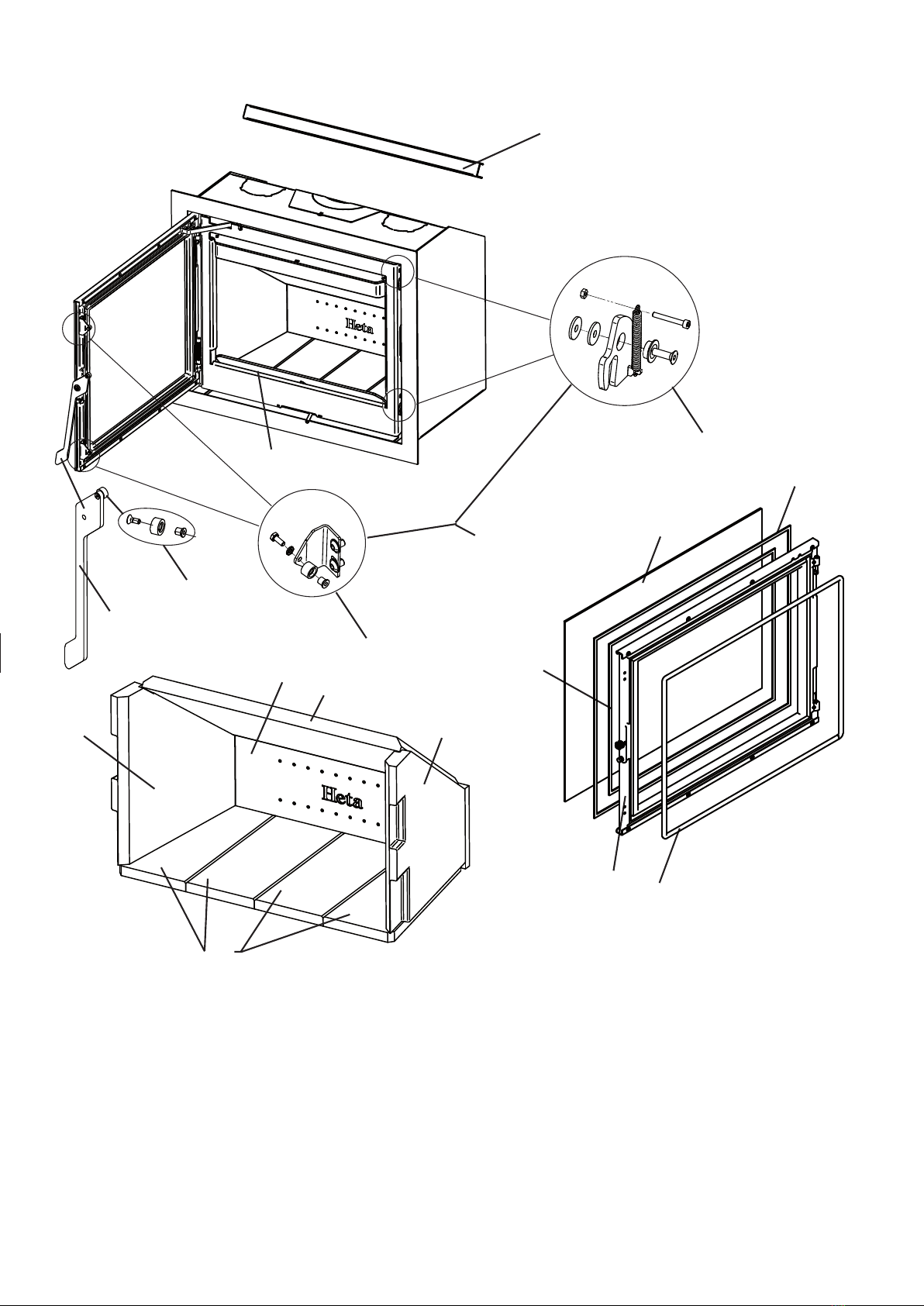

1.18 Parts Panorama................................................................................ 13
1.19 Parts Panorama XL .......................................................................... 14
1.20 Stove data table EN 13229 .............................................................. 15
1.21 Garantee........................................................................................... 15

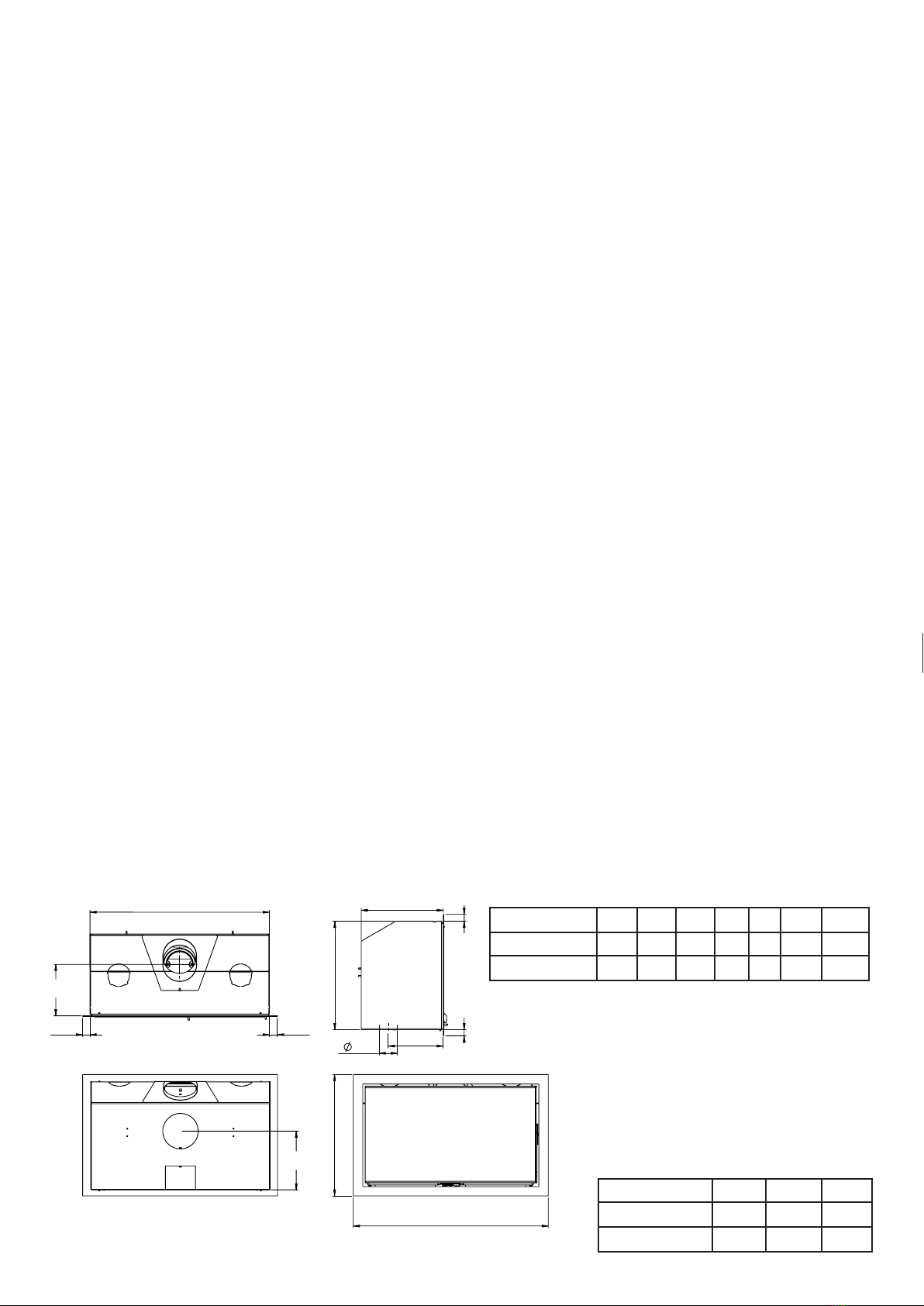

2. Installation Instructions .................................................................... 16
Heta A/S
Jupitervej 22,
DK-7620 Lemvig
Phone: [phone]
E-mail: [email protected]
Copyright © 2014
Heta is a registered
trademark of Heta A/S
02.01.2020
0037-1355 Version 1.2
Printed in Denmark
Subject to printing errors
and changes.

1
BETJENINGS- OG
OPSTILLINGSVEJLEDNING
PANORAMA & PANORAMA XL
PEJSEINDSATS
DANSK DESIGN . DANSK KVALITET . DANSK PRODUKTION
www.heta.dk
DK
8101-0040-DK
CE
Heta A/S Jupitervej 22
7620 Lemvig Denmark
DS/EN 13229/A2:2005/NS 3058/3059
Pejseindsats :
Lukket ildsted
For indbygning
Brændsel
Ydelse nominel:
Røggas Temp:
Middel Co emision:
Middel Co emision I Mg/Nm3:
Støv
Virkningsgrad:
Nox (mg/Nm³)
Støv (NS 3058/3059) samlet vægtet partikelemision
Afstand til sidevæg foran front af indsats (målt fra lågekant) 275 mm.
Ovnen er egnet til intermitterende brug
Anvend kun godkendt brændsel
Følg fabrikantens brugervejledning
DOP-Panorama-1554-2011
PANORAMA
Produkt beskrivelse
951 mg/Nm3
For opbygning i øvrigt se installationsvejledning.
Indsatsen må tilsluttes røggas samleledning.
Træ
6,5 kW
273 C°
0.08 %
27 mg/Nm3
2,74 g/kg
80%
106 mg/Nm³
5
Required tools are not supplied.
With your new wood stove you should find the following:
Operating /
Instruction manual
Heta glove
Data plate
Q.C. check
Standard V1,30

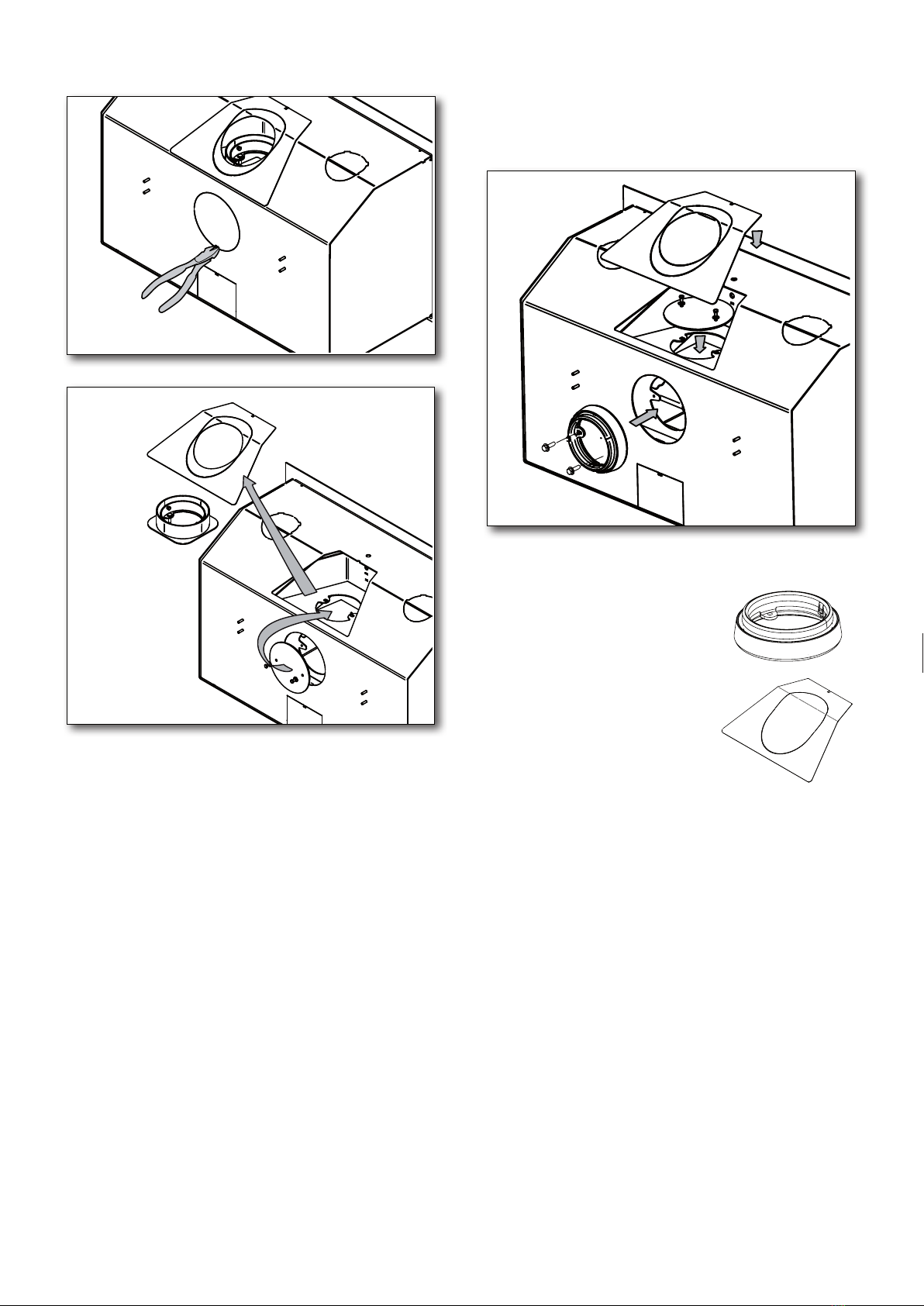

Panorama Flue collar
1525-0007 Is the fire-
place insert ordered-
with rear outlet- The
flue collar mountedat
the factory.
Panorama XL Flue
collar 1525-0027 Is
the fireplace insert
orderedwith rear
outlet- The flue collar
mountedat the factory.
Cover plate
1027-0301
Four pin screws
for leveling
Accessory Parts
1 x 1511-0028
External air from behind
1 x 0032-0015
External air from below
Connecting of the external
covection ducts
2 x 1027-0295
Before Installation
Heta wood stoves are quality products, therefore, your first impression is very important! We have
a good logistics network, which transports Heta products with great care for our dealers. Neverthe-
less, when in transport or handling, damage of the often-heavy stoves can occur. It is important that
upon receipt check your Heta product completely and report any damage or defects to your dealer.
The packaging must be disposed of as follows: Wood is untreated and able to burn in the stove.
Plastic and cardboard you can drop off at your local recycling center.

6
1. OPERATING INSTRUCTIONS
1.1 Before using
Before the wood stove is used make sure re-
quired installation conditions, are met. See page
15.
1.2 First firing
The stove paint is fully cured from the factory,
but a minor unpleasant odour could still arise.

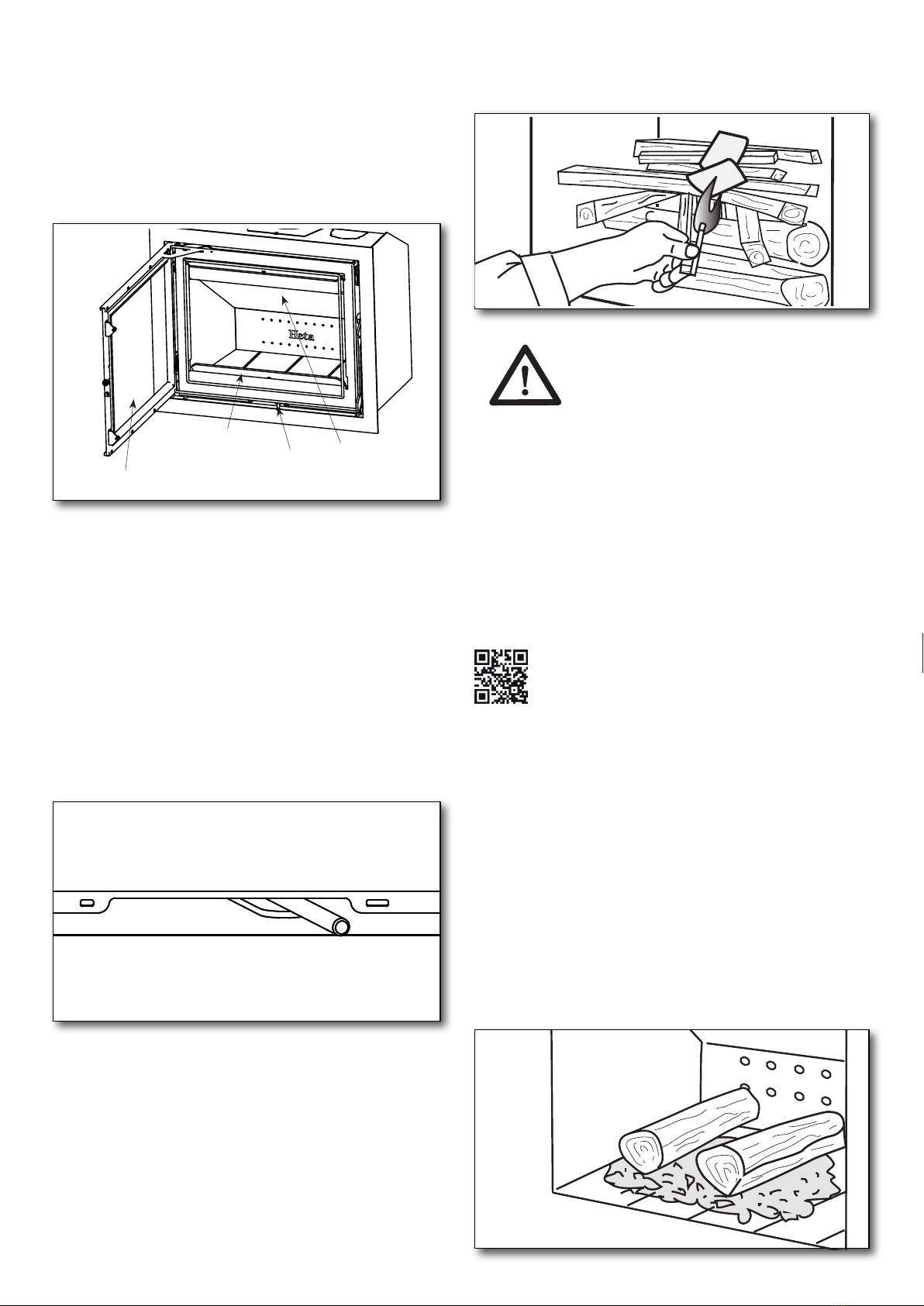

1.3 Regulating the air flow
A handle below the door regulates the stoves
combustion air.
The combustion air is fully open, when the hand-
le is pushed to the right. Closes gradually mo-
ving the lever to the left.
1.4 Lighting the stove
Place two pieces of wood on the bottom. Stack
kindling on top in layers with air between. Set-
ting fire starter (bag, brick, paraffin) on the top,
now you are ready to light the fuel. The flames
must work from the top down.
The use of lighter fluid, oils or any
liquid fuels is strictly forbidden
from use in a wood stove.
Fully open the combustion air and leave the
door ajar (about 1 cm open).
Once the fire is established and the chimney is
hot (after about ten minutes) closed door and
regulate the air into operating position. We re-
commend, all of the first fuel is burned with the
combustion air fully open in the operating po-
sition. This ensures the stove and chimney are
thoroughly heated.
Startup/Lighting
Scan the code and select a language.
1.5 Refueling
Refueling of your stove should be done while
there is still a good layer of embers. Distribute
the embers with the majority of them to the
front. Place pieces of wood equivalent to about
1,9 kg (Panorama) and about 2,3 kg. (Panora-
ma XL) on top of the embers perpendicular to
the door.
Open the combustion air completely and pos-
sibly. the door ajar (it is not necessary to keep
the door ajar, but it can accelerate the ignition
of the wood).
Røgvendeplade
Håndtag
- luftregulering
Indfyringslåge
1
2
Closed Open
3
4
Gnistfang

Maximum
wood filling
5
Vermiculite
(stone)
7
The wood will then ignite within a very short time
(Typically 1 to 3 minutes). Once the fuel is Ignited .
Close the door and regulate the air back to ope-
rating air. When the fire is well established, you
can now regulate the operating air to the desired
combustion level.
Nominal heat out-put is 6,5 KW for Panorama
and 9 KW for Panorama XL, equivalent to the
operating air at about 80% open.
Ensure when refueling that the wood is not too
close, it will cause poorer combustion, less heat
out-put and lower efficiency.
The fuel load, must be maintained below the top
series of air holes and within the outer vent in
each side. Fig. 5
When refueling be careful to place
the fuel into the combustion cham-
ber gently, (use the provided glo-
ve). By not doing so you risk crack-
ing or breaking the vermiculite.
If there is reduced draft in the chimney, we re-
commend opening a window at stoking. This will
give better ventilation to the room and more oxy-
gen for combustion.
1.6 Reduced burning
The stove is, designed for intermittent use.
It is important to maintain the layer of hot em-
bers. Lower heat out-put occurs when no flames
come from the tree, when it is becomes glowing
charcoal.
If you are looking for less heat out-put, achieve
this by fueling with smaller volumes of wood and
a lower operating air. You may not completely
close the operating air during firing.
Be aware that the stove will naturally soot if the
operating air is too low. This is not good for the
environment. There is also a risk for the glass,
t he chimney and other parts will become sooted.
By a combination of the above and possibly
burning damp wood. Can lead to high levels of
soot that it becomes sticky. Causing the sealing
of the door to tear off when opening the door
the next day.
1.7 Explosion!!!
It is very important never to leave
The stove after start up or refueling,
before the fire is established.
(Typically 1 to 3 minutes)
Explosion can occur if filled with too much fuel
in the stove, the production of large volumes
of gas, which can explode if the air supply be-
comes too low.
1.8 Emptying the ash
Be careful not to damage the vermiculite when
the removing the ash.
Be careful when emptying the
ashes out. There can be hot embers
left for a long time.
It is an advantage for the next firing to leave a
layer of ash lying in the bottom of the firebox.
Warning!
One must always use cation around
the stove seen, as it gets very warm
during use. (In excess of 90° C).
Children should avoid contact with the stove.
Setting up a fence if you have small children may
be necessary.
Do not place flammable objects like drying racks,
furniture, curtains too close to the stove.
1.9 Draft conditions
and the chimney
Poor draft will not allow the stove to burn, as it
should. The glass can soot, requires cleaning of
the chimney more often, smoke can escape out
when the door is open and it gives poor fuel ef-
ficiency. Leading to unnecessary polluting of the
environment.
Good draft will allow the stove to achieve op-
timal combustion and the highest possible ef-
ficiency. Heta wood stoves are constructed so
that it itself provides an optimal blend of com-

Combustion
air
Combustion
air
6
8
bustion air. This provides a high efficiency/heat,
clean glass and low environmental impact.
Minimum chimney draft for Panorama/Panorama
XL insert is 13 PA.
It is the draft that the stove
has been tested and approved on. The mini-
mum draft is necessary to provide clean bur-
ning, beautiful flame picture, as well as achie-
ving the rated efficiency.
There is a risk of smoke escaping into the room
if the door is opened during vigorous firing, or if
there is a lack of air supply to the room, for ex. if
an extraction fan is in use.
Flue gas temperature at the rated output is for
Panorama 273°C and for Panorama XL 266°C
relative to 20 ° C. Flue gas flow is 6 g / sec. for
Panorama and 7,5 g/sec. for Panorama XL
The chimney height and diameter, as well as
the temperature difference between the flue gas
and outside temperature generates the chimney
draft. Chimney insulation is therefore important
as new efficient stoves create lower flue tempe-
ratures. Wind and weather conditions also in-
fluence draft, in some cases it may be disad-
vantageous wind direction, combined with the
position of the chimney can cause negative draft
(it blows through the chimney), causing smoke
escape from the stove.
Before using after a long period of inactivity,
check that the chimney is free for any blocka-
ges. (soot build-up, bird nests, leaves etc.).
Reduced draft can occur when:
• The temperature difference is too small
between smoke gasses and outdoor
• To short of a chimney
• The outside temperature is high, and indoor
temperature is low f. ex. in summer
• False air in the chimney
• Chimney is blocked
• Air tight house (lack of combustion air supply)
• Poorly placed chimney for the surroundings,
for ex. the ridge and trees may cause
turbulence.
Good draft occurs when:
• The difference in temperature in the chimney
(warmer) and outside temperature (colder)
• It is clear weather
• The chimney has the right height min 4 meters
above the stove, and clear of the roof ridge
1.10 Fuel
Your new stove is EN approved for firing with
wood fuel. You must therefore only burn clean,
dry wood in your stove. Never use your stove
to burn driftwood, as this may contain a lot of
salt which can damage both the stove and the
chimney. Similarly, you must not fire your stove
with refuse, painted wood, pressure-impregna-
ted wood or chipboard, as these materials can
emit poisonous fumes and smoke.
Correct firing using well seasoned wood pro-
vides optimal heat output and maximum effi-
ciency. At the same time, correct firing prevents
environmental damage in the form of smoke
emissions and reduces the risk of chimney fires.
If the wood is damp and inadequately seasoned,
a large proportion of the energy in the fuel will
be used to vaporize the water, and this will all
disappear up the chimney. Thus, it is important
to use dry, well seasoned wood, i.e. wood with a
moisture content of less than 20 %. Achieve this
by storing the wood for 1–2 years before use.
Pieces of firewood with a diameter of more than
10 cm should be split before before storing. The
pieces of firewood should be of an appropriate
length (approx. 19-25 cm) so that they can lie
flat on the bed of embers.
If you store your wood outdoors, it is best to
cover it.
Examples of fuel values
for different woods and their typical densities
per cubic meter, specified for 100% wood with
a moisture content of 18%.

9
Wood kg/m3Willow kg/m3
Beech 710 Wood 560
Oak 700 Alder 540
Ash 700 Scotch pine 520
Elm 690 Larch 520
Maple 660 Lime 510
Birch 620 Spruce 450
Mountain pine 600 Poplar 450
It is advised not to use oil-containing woods
like teak tree and mahogany, as this can cau-
se damage to the glass.
Heating value in wood
You have to use about 2.4 kg normal wood to
replace one litre of heating oil. All woods have
almost the same heating value per kg, which is
about 5.27 kW/hour for absolute dry wood.
Wood with a moistness of 18% has a efficiency
of about 4.18 kW / hour per kg, and one litre
heating oil contains about 10 kW / hour.
CO2release
At combustion 1000 litres of heating oil forms
3.171 tons CO2. As wood is a CO2neutral heat/
energy source, you save the environment about
1.3 kg CO2every time you have used 1 kg nor-
mal wood.
1.11 Operational problems
The chimney must be swept at least once a
year, we recommend the use of a NACS (natio-
nal association of chimney sweeps) registered
chimney sweep.
In the event of smoke or malodorous fumes are
being produced, you must first check to see
whether the chimney is blocked.
The chimney must, of course, always provide
the minimum draft necessary to ensure that it is
possible to regulate the fire. Please note, how-
ever, that chimney draft is dependent on the
weather conditions. In high winds, the draft can
become so powerful that it may be necessary to
fit a damper in the flue gas pipe to regulate the
draft.
When cleaning the chimney, soot and other
deposits may come to fall on the baffle plate,
remove and clean it. In cases where the wood
burns too quickly, this may be due to excessive
chimney draft. You should also check to make
sure that the door seal and ash pan seal is intact
and correctly fitting.
If the stove it generating too little heat, this may
be because you are firing with wet wood. In this
case, much of the heating energy is used to dry
the wood, resulting in poor efficiency, poten-
tially damaging the vermiculite and an increased
risk of soot deposits in the chimney.
1.12 Chimney fire
In case of a chimney fire, which often results from
incorrect operation/maintenance or prolonged
use of damp wood, close the door and the air
supply completely, to help slow/smother the fire.
Call the fire department.

10
1.13 Troubleshooting table
Fault Cause Troubleshooting Solution
Lighting problems. When the
stove is cold, smoke seeps
into the room. Once the com-
bustion chamber has heated
up, the stove burns well.
Inadequate chimney draft.
The chimney only has
sufficient draft when it is hot.
You can test using a lighter whether
flame is drawn into the combustion
chamber.
Improve the chimney.
The stove burns poorly after
the warm-up phase,
and the
glass slowly soots up.
Soot in the flue pipe. Check the flue pipe regularly, as the
problem arises slowly.
Clean regularly, and limit the use
of horizontal flue pipes. Do not use
firewood which generates large
quantities of ash.
If the stove burns poorly
after start-up, and the
glass slowly soots up.
Inadequate chimney draft.
The fault usually already occurs during
lighting. Measure the chimney draft
.
Improve the chimney draft.
Insufficient air supply. Check the air supply. Read the operating instructions and
instruct all users.
Damp wood. Use clean, dry wood with a maximum
moisture content of 20%.
Firewood should ideally be dried for
at least one year after splitting.
Firewood pieces too large. Optimal size – see the section for
firewood, max. diameter 10 cm.
Use smaller pieces of firewood.
Insufficient air supply to the
room. Range hoods, airtight
windows, etc.
Ensure there is sufficient fresh air
supply, open a window, check the
outdoor air supply.
Depending on the cause, windows
must be opened or the outdoor air
connection cleaned.
Insufficient air supply to the
room. Range hoods, airtight
windows, etc
Ensure there is sufficient fresh air
supply, open a window, check the
outdoor air supply.
Depending on the cause, windows
must be opened or the outdoor air
connection cleaned.
The vermiculite in the
combustion chamber is
becoming very worn.
Wood and flue gases wear
down the vermiculite.
Investigate whether the wear is
normal.
Normal wear and minor cracks are of
no significance. It should be replaced
when the steel of the combustion
chamber is visible.
Too rapid combustion. Too much chimney draft. T
o test, you can open the cleaning
hatch, but remember to close it again.
Measure the chimney draft and install
a damper in the flue pipe if necessary.
The door or ash pan/drawer
seal is defective.
While cold, close a piece of paper in
the door – the seal should hold the
paper gently in place so it does not
fall out by itself. Normal wear.
Replace the seal.
The vermiculite in the
combustion chamber is
cracked.
Shocks or impacts while
adding firewood.
Normal wear Cracks only have cosmetic signifi-
cance. Replace when the steel of the
combustion chamber is visible.
Steel surfaces in the
combustion chamber
have oxidised.
The temperature in the
combustion chamber is
too high.
Unsuitable fuel is being used (such as
coal). Check the quantity of firewood
being used, read the operating
instructions.
If there are clear cracks or weak-
nesses in the stove body, it must be
replaced.
The stove whistles Too much chimney draft To test, you can open the cleaning
hatch, but remember to close it again.
Install a damper.
The stove 'clunks' Usually due to tension in the
metal plates.
Generally only occurs while heating
up and cooling down.
Adjust the metal plates.
The stove ticks Normal expansion and
contraction due to
temperature changes.
A normal sound. Ensure that the temperature in the
combustion chamber is as constant
as possible.
The stove creaks. The temperature in the com-
bustion chamber is too high.
Use less firewood. Also check the seal
in the ash pan/drawer.
See the operating instructions.
The stove smells.
The surface is steaming.
The paint on the stove sur-
ace is not yet fully hardened.
See the operating instructions
regarding the first firing.
Ensure there is sufficient ventilation.
Condensation in the
combustionchamber.
Moisture in the vermiculite. C
heck the condition of the vermiculite. Evaporates by itself after the stove has
been lit a few times.
Damp wood. Measure the moisture content. Use dry firewood.
Condensation from the flue
pipe.
The pipe is too long or the
chimney is too cold.
Check the flue pipe's length and heat
loss.
Improve the flue pipe, insulate the
chimney.
Damp wood Measure the moisture content. Use dry firewood.

11
1.14 Maintenance
The surface of the stove is treated with a heat-
resistant paint. The stove should be cleaned
with a damp cloth.
Any damage to the surface in the form of chips
or scratches can be repaired using touch-up
paint, which is available in spray cans.
1.15 Cleaning the glass
Incorrect firing, for example using wet wood,
can result in the viewing window becoming
covered in soot. This soot can be easily and
effectively removed by using proprietary stove
glass cleaner.
Stove Owner Qualified
Technicia
Maintenance / Period Before
Autum Daily 2-3 days
30
days
60-90
days
1st Year 2st Year
Cleaning the chimney (see. Chimney) C
Cleaning the chimney and stove C C
Cleaning the stoves firebox C VI C
Cleaning combustion air intake C C
Cleaning ash bucket (small) C VI
Cleaning ash bucket 8 Liter C VI C
Cleaning of the firebox C VI C
Checking / switch, gasket for door C/S VI C/S
Checking / changing, gasket for glass C/S VI C/S
Checking / switch, gasket for ashpan C/S VI C/S
Checking / changing gasket for flue pipe C/S VI C/S
Checking / changing vermiculite C/S VI C/S
Lubricate hinges L VI L
Lubricate lock L VI L
1.16 Diagram for the maintenance
For the lubricant used a heat-resistant product. (300c)
C = Cleaning
C/S = Checking /Switch
L = Lubricate
VI = Visual Inspection, pos. cleaning/replacing/adjusting

12
1.17 Cleaning after sweeping
or before replacing vermiculite stones
Note: it may be necessary to clean/vaccum the holes and air ducts behind the rear stone
Rear stone
The rear stone on Panorama XL is divided into
two.
They are held together by a bracket on the rear
side which is pressed down into the recesses.
Fig. 7.
7
Removal sequence of stones.
Replace in reverse order. Starting with Fig. 6.
1
34
5
2
1
2
3
4
5
6
1
2
3
4
5

13
1.18 Parts Panorama
Pos. No. Name Qty.
1 4020-0014 Handle 1
2 5013-0007 Rep. set for handle 1
3 5013-0006 Complete rep. set self-close 1
4 5013-0005 Rep. set self-close, door 1
5 5013-0004 Rep. set self-close, stove 1
6 0023-0126 Back stone 1
7 0023-0122 Baffle plate 1
8 0023-0124 Left stone 1
9 0023-0123 Right stone 1
10 1523-0076 Bottom stone set, complete 1
Pos. No. Name Qty.
11 0021-0047 Glass (4x512x646) 1
12 0023-3010 Textile glass 6 mm
with adhesive (2.31 m) 1
13 0023-3010 Textile glass 6 mm
with adhesive (1.96 m) 1
14 4005-0037 Door, mounted 1
15 0023-3015 Glass seal 10 mm (2.11 m) 1
16 1019-0024 Spark screen 1
17 1027-0289 Support rail 1
x2
x2
-1
-2
3
-4
-5
-6 -7
8- -9
-10
-11
-12
13-
14- 15-
-16
-17

14
1.18 Parts Panorama XL
Pos. No. Name Qty.
1 4020-0014 Handle with roller 1
2 5013-0007 Rep. set for handle 1
3 5013-0006 Complete rep. set self-close 1
4 5013-0005 Rep. set self-close, door 1
5 5013-0004 Rep. set self-close, stove 1
6 0023-0129 Rear stone, left 1
7 0023-0149 Rear stone, right 1
8 0023-0127 Baffle plate 1
9 0023-0124 Left side stone 1
10 0023-0123 Right side stone 1
11 1523-0075 Bottom stone set, complete 1
Pos. No. Name Qty.
12 0021-0048 Glass (4x512x906) 1
13 0023-3010 Textile glass 6 mm
with adhesive (2.8 m) 1
14 0023-3010 Textile glass 6 mm
with adhesive (2.5 m) 1
15 4005-0038 Door, mounted 1
16 0023-3015 Glass seal ø10 (2.6 m) 1
17 1019-0025 Spark screen 1
18 1013-0697 Stainless steel clip 1
19 1027-0290 Support rail 1
x2
x2
-1
-2
3
-4
-5
-6 -8
9- -10
-11
-12
-13
14-
15- 16-
-17
-19
-7
-18

15
1.19 Guarantee
Heta wood stoves, subjected to a strict quality
control during production and before delivery to
the dealer.
Therefore, the stoves guarantee is
FOR FIVE YEARS
Against defects in manufacturing
The guarantee does not cover:
Wearing parts / fragile parts such as:
- Vermiculite stones in the combustion
chamber, glass, seals and the casted bottom
or shaking grate.
- Damage caused by improper use.
- Transportation costs for warranty repair.
- Assembly / disassembly of warranty repair.
1.19 Stove data table in accordance with en 13229 testing
Stove type
Insert
Nominal
fluegas
temperature,
at 20°C room
temperature
C°
Flue
mm
Fuel
volume
kg
Draft
min.
mbar
Nominal
output
tested
kW
Actual
effi-
ciency
%
Distance to flama-
ble materials at the
sides
mm
Distance to
furnitures
from the stove
mm
Stove
weight
kg
Panorama 273 ø150 1,9 0,13 6,5 80 275 1100 116
Panorama XL 266 ø150 2,3 0,13 9 81 250 1200 145
The nominal output is the output to which the stove has been tested.
The test was carried out with the combustion air 80%.
Should you have cause to make a complaint,
please quote our invoice no.
Warning
Any unauthorized alterations to the
stove and the use of non-original
parts will void the warranty.

16
Installation Instructions
Contents
2. Installation instructions .................................................................... 17
2.1 Distance requirements ..................................................................... 17
2.2 Floor ................................................................................................. 17
2.3 Chimney connection ........................................................................ 17
2.4 Combustion air................................................................................. 18
2.5 Stovedrawings/measurments .......................................................... 18
2.6 Clearances for installation ............................................................... 19
2.7 Changing to a back outlet................................................................ 20
2.8 Installation of the stove .................................................................... 21
3. Connecting of the external covection ducts .................................... 22
4. Connecting external air supply from below ..................................... 22
5. Connecting external air supply from behind .................................... 23
6. Appendix A....................................................................................... 24
Remember
The stove and chimney installation, must comply with
local regulations, including those referring to national
and European standards.

17
2. Installation instructions
The stove installation must be in accordance
with national, European and possibly local regu-
lations. You must follow local regulations with
regard to installation of chimney and connection
to the chimney. We recommend that you let a
professional Heta dealer install the stove. Alter-
natively, you can ask the local chimney sweep
before installation. Be aware that it is always the
owner himself who has responsibility for ensu-
ring that applicable rules are complied with.
A modern stove places heavy demands on the
chimney due to the high efficiency. It may be
necessary to enhance or even replace an old
chimney.
Remember
1. Always ensure free access to any cleaning
doors in a chimney.
2. Always ensure ample fresh air to the room.
3. Exhaust/extraction fans in the house can re-
duce or create negative draft in the chimney.
Reduced draft can lead to the stove having
a dverse combustion properties. It may result
in smoke coming out of the stove when the
door is open. A negative draft due to an
exhaust/extraction fan can cause the chim-
ney to work in reverse, drawing smoke into
the house because of the fan.
4. Any air vents must not be covered.
2.1 Distance Provisions
There is a difference between installation next to
flammable wall or non-flammable wall. If the wall
is made of non-flammable material, the stove in
principle may be placed flush against it.
Inserts are generally only intended for installing
in existing open fireplaces or in a wall built of non-
combustible material. There must be adequate
space between the wall and the convection
case. This is to avoid damage to the masonry/
wall when the stove expands when in use.
Minimum distances to combustible material fou-
nd on the table on page 15, the data plate, as
well as drawings. Pay special attention to the
distance to flammable floor (180 mm), which is
also applicable, although there is a steel/glass
plate on the floor. If the floor is made of, for ex.
concrete, tile or similar, there may not be com-
bustible materials for at least a depth of 350
mm, valid from the bottom edge of the door on
the insert.
Distances for installation see page 19.
2.2 Floor
You must ensure that the floor can support the
weight of the stove and a top-mounted steel
chimney.
In front of the fireplace insert, the substrate
must consist of non-combustible material, for
ex. Steel/glass plate, stone or tile floor. The size
of the non-combustible surface must follow the
applicable national and local regulations. Pro-
tecting your floor from embers that may fall out
of the oven.
Distances see data table page 15.
Distance from flammable floor: 350 mm.
Pay special attention to the distance from flam-
mable floor, which is also valid even if there are
a steel, glass, stone or tile over flammable ma-
terials. It is the floor itself, which must be non-
flammable. (Concrete, tile or similar).
2.3 The chimney connection
The chimney opening must follow national and
local regulations. However, the area of the ope-
ning should never be less than 175 cm2, which
corresponds to a diameter of 150 mm.
If a damper is fitted in the flue gas pipe, there
must always be at least 20 cm2of free passage,
even when the damper is in its “closed” posi-
tion.
If local regulations permit, two contained stoves
can be connected to the same chimney. How-
ever, you must abide by local regulations regar-
ding the distance between the two connections.
The Panorama, Panorama XL insert can be in-
stalled with a horisontal straight back outlet.
Maximum length of the pipe should be 500 mm
with a 5” diameter. Minimum draft of 13 pascal
is required.
The insert stove must never be connected to
a chimney that is linked to a gas fire stove.
An efficient stove makes high demand on chim-
ney properties – so always have your local
chimney sweep evaluate your chimney.

Type A B C D E F G
Panorama 323 695 445 38 31 322 778
Panorama XL 275 955 437 39 30 313 1038
2.5 Stovedrawings/measurments
Type H W D
Panorama 610 715 460
Panorama XL 610 975 460
Minimum dimensions,
hole in brick wall
18
dent insert stove in accordance with EN 13229.
All the combustion air in the inset stove comes
from the room in which it is fitted. However, by
connecting a sealed air inlet to the insert stove’s
air intake connector, the stove can be supplied
with external combustion air. In this respect, the
following requirements must be met:
• Only approved materials may be used from
the ventilation unit to the air inlet vent.
• The air inlet vent must be tted correctly and
insulated to prevent formation of condensate.
The cross section of the vent and grille must
be at least 78 cm².
• If the vent leads out into the open air, please
note that the grille must be fitted with suitable
wind protection. There must be no risk that
the grille can get clogged by leaves, etc.
Ventilation
Adequate ventilation must be provided in ac-
cordance with building regulations (Doc J Oct
2010) especially when installing in newer build
properties when the stove is not going to be in-
stalled to an outside air supply.
The Panorama/Panorama XL has a nominal out-
put of less than 5 kW and does not need addi-
tional ventilation in older properties where it will
be ventilated by natural leakage.
Houses built after 2008 where the air leakage
rate is less than than 5 m3 / hour / m2then a ven-
tilator equivalent to 550 mm2per kW output will
be required (4.5 kW x 550 mm = 2475 mm2) un-
less the stove is connected to an outside fresh
air supply.
Connection to a brick chimney
Brick a thimble into the chimney and seat the
flue gas pipe in this.
The thimble and flue gas pipe must not penetra-
te the chimney opening itself, but must be flush
with the inside of the chimney duct. Joins bet-
ween brickwork, the thimble and flue gas pipe
m ust be sealed with fireproof material and / or
beading . Heta A/S stresses that it is of utmost
im portance that this is done correctly with very
tight joints . As mentioned earlier, we recommend
that setup and installation be left to a profes-
sional Heta dealer.
Connection to a steel chimney
When fitting a connection from a top outlet stove
directly to a steel chimney, we recommend fit-
ting the chimney tube inside the flue gas spigot
so that any soot and condensation drops into
the stove itself rather than collecting on the ex-
terior surface of the stove.
For connections to chimneys that are run through
ceilings, all national and local regulations regar-
ding distance to flammable material must be fol-
lowed. It is important that the chimney is fitted
with roof support so that the top panel of the
stove is not required to bear the entire weight
of the chimney (excessive weight may damage
the stove).
2.4 Combustion air
The insert stove is approved as a room air depen-
647
G
A
B
41,5 41,5
F
100
290
578
C
D
E

B
A
Min. 300
150
C
350
150
750 cm²
500 cm²
C
B
350
A
A
A
BB
500 cm²
750 cm²
D
350
300
Snit A-A
300
150150
40
50
40
A
Snit B-B
Type H W D
Panorama 610 715 460
Panorama XL 610 975 460
19
2.6 Panorama/Panorama XL
Clearances for installation EN 13 229
Stove type
Insert
Distance combustible material
A
To the
sides
B
Distance to
the convection
vent
C
Distance to com-
bustible above the
convection vent
D
Distance
to
furniture
Panorama 275 490 170 1100
Panorama XL 250 700 200 1200
The dimensions are the
minimum dimensions,
unless otherwise stated.
insulated flue
connection
Not combustible
material
12,5
(=<0,36 W/(m*K)
The Building materials that are used in safety test and shown in illustrations on this page, has a
thermal conductivity of max. (= <0.36 W (m * K)
S afty distance

20
2.7 Changing to back outlet
1
2
3
Mount the cover plate first and the the flue
collar.
To change to a back outlet, these items need
to be ordered.
1 x 1525-0025 Flue collar
2 x 0008-1115 M6x25
1 x 1027-0301
Cover plate to
convection case
