HETCH IDC-1705-HC User manual

Induction Cooker
(Ultra Slim)
Model No. : IDC-1705-HC
Size : 160 x 105mm
HETCH Induction Cooker - Ultra Slim (user manual)
Paper : 230gsm Art Card (cover matt laminate)

. Working Principle
. Important Safety Instructions
. Product Structure
. Function And Operate Instruction
. Usable And Non-usable Utensils
. Failure Examination
. Maintenance And Cleaning Methods
. Troubleshooting
. Specifications
. Warranty Card
A
B
C
D
E
F
G
H
I
J
Page : 2

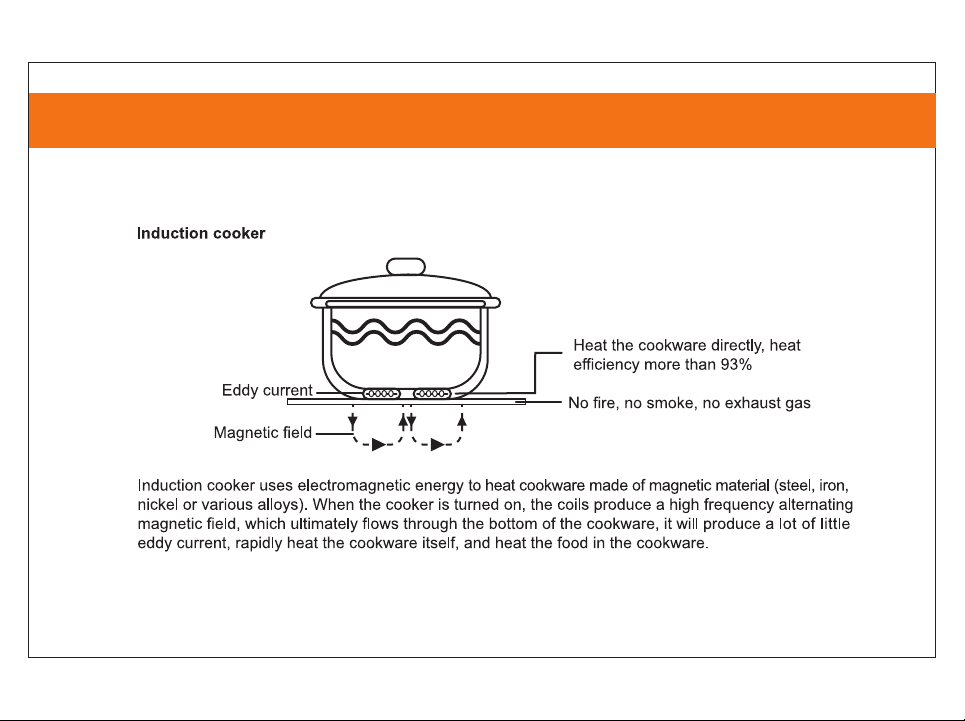

A. WORKING PRINCIPLE
Page : 3

B. IMPORTANT SAFETY INSTRUCTIONS
Page : 4

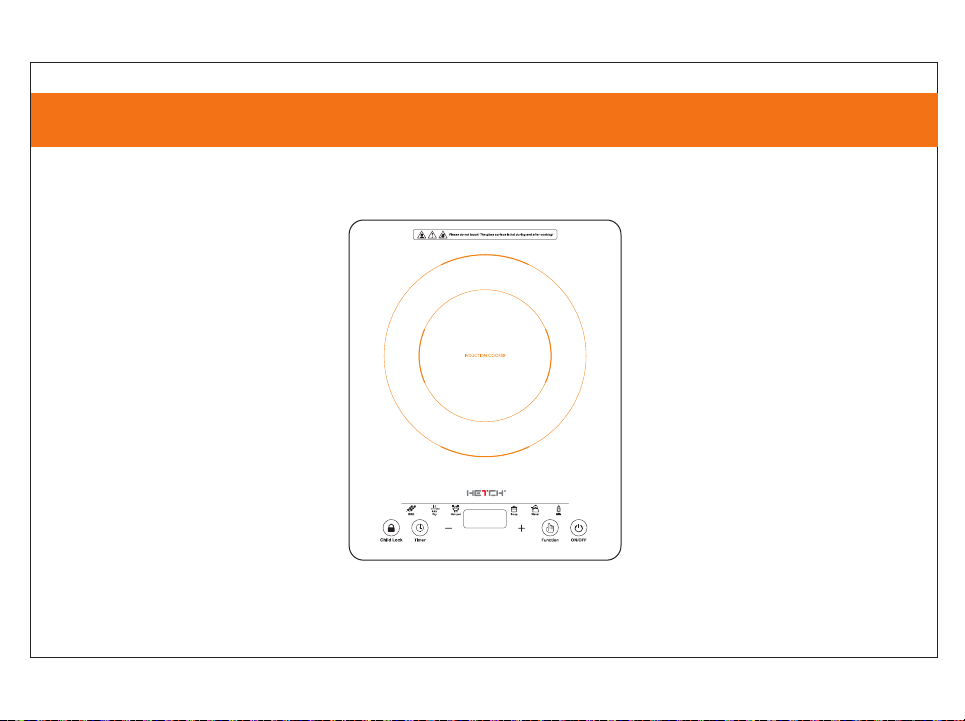

C. PRODUCT STRUCTURE
Technical specification
Temperature
Induction
Rated Power
: 80°C - 270°C
(food temperature)
: 2000W
Digital Display
Black Glass
Ventilation Outlet
Ventilation Outlet
Control Panel
Page : 5

D. FUNCTION AND OPERATE INSTRUCTIONS
ON/OFF
TIMER
INCREASE +
DECREASE
: The button is used to either switch ON or OFF the power.
:The button is used to adjust the time for the different cooking options.
CHILD LOCK : Press (CHILD LOCK) function, all keys will be locked, except (ON/OFF). To unlock,
press and hold (CHILD LOCK) function for 2 seconds.
Using the digital display, you can see the different option settings for power level (watts), temperature and
time. The digital display corresponds to the function like power, temperature and time.
When you switch the ON button, the buzzer will be beep for a second and the power indicator light will start
blinking indicating that the system is ON but will be in stand by mode.
To start the cooker, press the FUNCTION button to select one of the cooking option.
Remarks : Cooking time can be set from 1 - 180 min. To cancel timer setting, press the (ON/OFF) button.
: Select the manual cooking function and press + to increase power or temperature
to a higher level. Set the timer by pressing + to increase the cooking time.
: Select the manual cooking function and press - to decrease power or temperature
to a lower level. Set the timer by pressing - to decrease the cooking time.
Operation Method :
Function Explanation :
Page : 6

D. FUNCTION AND OPERATE INSTRUCTIONS
Using the induction cooker, you will be able to choose your own settings of power level, temperature and
time of your choice to suit the variety of cooking.
Cook Setting Function :
BBQ 80°C - 270°C
(default 180°C)
1 - 180 min.
FRY 80°C - 270°C
(default 240°C)
1 - 180 min.
HOT-POT 300W - 2000W
(default 1800W)
1 - 180 min.
SOUP - 1 - 180 min
(default 120 min)
WATER - 1 - 180 min.
(default 30 min)
MILK - 1 - 180 min.
(default 20 min)
Functions Temperature Timer
Page : 7

E. USABLE AND NON-USABLE UTENSILS
Recommend cookware (base must be of iron material)
Steel, cast iron, enameled iron, stainless steel, flat-bottom pans/pots with diameter from 12 to 21cm.
Unrecommend cookware
Heat-resistant glass, ceramic container, copper, aluminum pans/pots. Rounded-bottom pans/pots with
bottom measuring less than 12cm. S/S pots with a layer of aluminum layer in the inside.
Suitable utensils :
Enameled
Iron Pot
Iron/Enameled
Iron Pot
Cast Iron Pan Iron Pot Deep-Fry Pan Stainless
Steel Pot
Iron Plate
Rounded
Bottom Pot
Aluminum
Copper Pot
Bottom Measuring
Less than 12cm
Pot with Stands Ceramic Pot Heat-Resistant
Glass Pot
Page : 8

F. FAILURE EXAMINATION
When the cooker experiences unsuitable operations from you or by other means, the cooker stops
functioning exhibiting relevant codes on the display screen. This is meant only for the protection of
the cooker and guidance to you.
Error code Cause Solution
E0 Unplaced cookware, cookware material
discrepancies or diameter less than 12cm
Place pans and choose the right cookware
E1 Voltage lower than 85V Abnormal voltage until the voltage returns to
normal
E2 Voltage higher than 275V Abnormal voltage until the voltage returns
to normal
E3 Surface sensor open or short circuit Please contact an authorized service center.
E4 IGBT sensor open or short circuit Please contact an authorized service center.
E5 Surface temperature over 280 degree Make sure the bottom of the pot/pan is even.
Wait until the cooker cool down before use.
E6 IGBT temperature over 105 degree, over
heat protection
Ensure no any blockage to the cooker inlet
and outlet. Ensure the cooling fan is running.
Try again after cooker cool down.
Page : 9

G. MAINTENANCE AND CLEANING METHODS
Before or after use please unplug power supply cable from the power socket.
When the glass panel is dirty, please use soft wet cloth to scrub it, or use abstergent to scrub it and then use
wet cloth to wipe it until no residue is left.
When clean the cooker and control panel, please use a soft wet cloth to wipe it. For the oil stains, which can
not be easily cleaned, use neutral detergent to scrub it and then use wet cloth to wet it until no residue is left.
Please do not rinse any part of the cooker directly with water or immerse it into water or scrubbing.
Maintain the cleanliness of the cooker and the cooking panel to prevent worms/inserts from creeping into the
cooker and cause a short circuit.
Dust on the surface of the intake and the outlet can removed with cotton buds. For oil stains, use toothbrush
with some neutral detergent to clean them carefully.
Please don’t use organic solvent or chemical object to scrub the unit, it may cause the chemical reaction and
damage the unit.
1.
2.
3.
4.
5.
6.
7.
Page : 10

H. TROUBLESHOOTING
IMPORTANT
Possible cause and solution
Ensure that the power cord is connected tightly to the power socket outlet.
Connect to a different power socket outlet.
After trying #1 and 2, if they still don’t work, send it to an authorized
service centre.
1.
2.
3.
1.
2.
3.
1.
2.
3.
4.
Problem
No beeping sound and/or
power indicator light
Check if the cookware used is compatible.
Check if the cookware is put in the centre of the glass plate.
Check if the diameter of the pot bottom area is more than 12cm.
Cooker stops working after
beeping for 30 seconds
Check if the temperature is over the requirement.
Check if the air vent is blocked.
When it’s in the state of heat preservation, it means it has reached the set
temperature.
It may be caused by the protection circuit, try again in a few minutes.
Cooker stops heating suddenly
when it is in used
Page : 11

I. SPECIFICATIONS
Model
Rated Voltage
Rated Frequency
Rated Power
IDC-1705-HC
220-240V
50/60Hz
2000W
Page : 12

Page : 13

Page : 14

Page : 15

Page : 16

perforation line
Page : 17

perforation line
Page : 18

Page : 19

IDC-1705-HC
