Two-Zone Induction Cooker
雙頭電磁爐
Model/型號：EC-2966
Installation & Operating Instructions
產品使用說明書

1
1、 Product Introduction-------------------------------------------------- 2
1.1 .Introduction of Product
1.2 .Function & Characteristics
2、 Installation Guideline-------------------------------------------------- 3-5
3、 Control Panel Instructions-------------------------------------------- 6
4、 O eration Method----------------------------------------------------- 7-9
4.1 .O eration Instructions
4.2 .Usable and Non-usable Cookware
4.3. Heating Power Distribution
4.4. Caution
5、 Safety Precautions----------------------------------------------------- 9-10
5.1 . Safety Notes
5.2 . Warning
6、 Daily Maintenance----------------------------------------------------- 10
7、 Product S ecification-------------------------------------------------- 11
8、 Trouble-Shooting Guideline------------------------------------------ 11-12
8.1 . Code Of Breakdown
8.2 . Trouble Shooting
CONTENTS

2
1、Product Introduction
1.1、Introduction Of Product：
Thank you for choosing Garwoods EC Induction Cooker. This roduct utilizes
electromagnetic heating theory and be controlled by the micro-com uter touching sensor
control system. There are multi-functions which cater for any delicious cuisine. It is the
ideal roduct for modern family. Please read this o eration manual carefully before
installing or using this roduct.
1.2 、Function & Characteristics：
 Energ -efficient

It utilizes the brand-new calefaction rinci le. The thermal efficiency is
extremely high. It is both time-saving & energy-saving. Calefaction begins when a boiler
is on and heating is sto ed when the boiler is removed.
 Multi-function

It utilizes newest micro-com uter chi rogram control. It offers
multi le scales for heating ower level regulation. Also, it offers timing regulation and
can automatically check whether there is cooker on or not.
 Safet & Environmental Friendl

Safety & Environmental Friendly of the roduct is on
our to riority. 1) Only cookware with a ferromagnetic material would be heated; 2)
If the body tem erature of cookware is too high or the voltage change causes too strong
electric current, the cooker will enter into a self- rotection system; 3) Automatic shut off
by entering into a self- rotection system after 2 hours not in use during cooking; 4) The
surface of the cooker is a high quality heat-resistant ceramic glass that is insulated and
guarded from leakage; 5) No need to worry about bringing ossible damage to the
cooker when overflowing of sou ; 6) The cooker is free from ty ical roblems such as
leakage, ex losion, flaming burns etc. The chance of accidents are greatly reduced; 7)
Fireless and smokeless cooking is easier made for any cuisine. Meanwhile, it will kee
your family members out of res iratory system allergy.
 Eas -to-clean Surface

Ceramic glass to anel is easy to clean. Wi e it with a dam
cloth after cooking.
 Touch Buttons Operation

Touch button design is easy for use.
 Intellectual Power

The cooker ado ts intellectual ower distribution technology and
the s ecified ower can be distributed to each cooker zone by the micro-com uter
system.

3
2、Installation Guideline
★ Installation should be followed below requirements：

The walls on to of the working face and next to the installation of induction cooker
must be heat- roof.

The laminated boards and adhesive used for installation must be heat-resistant.

For any installation method, the air under the cooker and behind the cooking range
should have enough s ace for cooling in order to ensure the safety of o erating the
induction cooker.

Based on the rescribed dimensions, a square hole is o ened on the work table. Ensure
the distance between any side of the work table and the walls is

100mm.

Protect the o ening: If in contact with dam , the laminated boards used in marking the
work table will easily ex and more. It is required to stick varnish or s ecial adhesive onto
the edge of the o ening in order to revent any steam from condensation under the
work table.

For any condition of installation, the induction cooker should have a good ventilation
condition with air inlet and air outlet not blocked.

Don’t lace other equi ments on the working face of the double cooking zones of the
induction cooker and within the range of 30cm around the working face.

If choosing a table-to installation, ventilation hole shall be at least 100mm from wall
surface.

The induction cooker must be com lied with a 13A ower outlet.
★ Ste s on Installation：
~ O en an installation hole on the workto of cabinet as er

illustration 1

.
(Note : The height shall be more than 100mm)
Cut out dimensions(unit/mm)

(W) 670 x (D) 350 x (H) 100

illustration 1

* If the installation hole on the work table is a new o en, it is recommended a de th to
370mm and ut the cooker into the hole at front side so at to have a good ventilation
condition.

4
~ In front of the cabinet, o en an air inlet with more than 100cm2 under the location of
induction cooker as er

illustration II

. If the cabinet is not sealed, the air inlet may not be
o ened so as to ensure heat elimination.

illustration II

~ Before ut the induction cooker into the hole, an water- roof ty e is ro erly a lied on
the bottom of front anel of the induction cooker as er

illustration III

. If the old size of
the hole is large than the current size of cutting hole, a double side ty e can be used to fix
the movement between induction cooker and workto .

illustration III


5

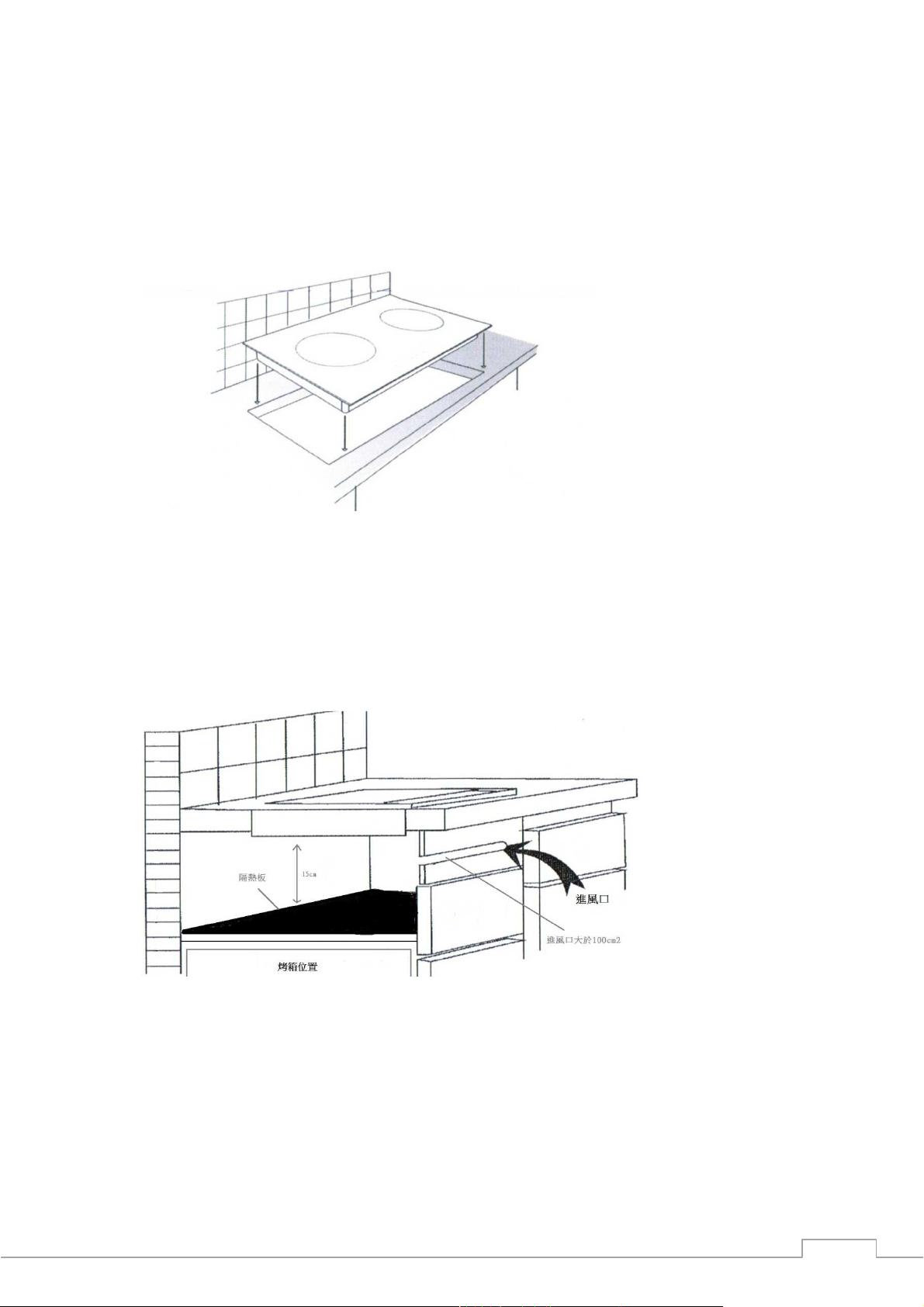

~ Put induction cooker into hole. Insert lug of ower line into corres onding socket. The
induction cooker can be used after ower connection as er

illustration IV

.

illustration IV

~ If the induction cooker is installed above an oven, fix an insulation art at least 15cm under
the induction cooker as er

illustration V

. Also, o en an air inlet with more than 100cm2
under the location of the induction cooker to ensure ventilation and o eration in good
conditions
 
 !"#

6
3、Control Panel Instruction

Cooking Zone


Control Panel

9 8 7 6 5 4 3 2 1
1…On/Off Switch 2…On/Off Indicator
3…Plus Key 4…LED Digital Indicator (Heating & Timer)
5…Minus Key 6…Timer Key
7…Time Indicator 8…Lock Key
9…Lock Indicator

7
4、Operation Method
4.1、Operation Instructions：
 Power Connection

After ower connection, buzzer will make a short sound and the
induction cooker kee s at the stand-by mode. LED digit will show (----).
 On switching

Place cookware on heating zone (Pls. refer to Usable and Non-usable
Cookware), by ressing the “ON/OFF” key, buzzer will make a short sound and the
on/off indicator will be on. LED will show the re-set ower level 5.
 Power Level Alteration

At the ower function, by ressing “
$
” Or “
%
” key to increase
or decrease ower level. LED digit shows set ower level.
(Note : This induction cooker ado ts intellectual ower distribution technology. When the
ower level of a cooker zone is increased and total ower level exceeds s ecified value, the
micro-com uter system will automatically decrease ower level of another cooker zone so
as to assure total ower is under s ecified value.)
 Selecting Timer

By ressing
&
Timer
'
key, the time indicator will be on. At the time, by
ressing
&$'
Or
&%'
key to set the required time. The o erational setting range is
between 1 min. and 3 hrs 59 min. (Dis lay form in
(
hrs : mins
)
). After setting, the LED
will change to ower level. When set time is reached, buzzer will make a long sound and
the induction cooker sto s heating.
 Lock Function

By ressing the
&
Lock
'
key, buzzer will make a short sound and a red dot
will be on. At this time, all keys will be locked in order to avoid mis-o eration. By
ressing
&
Lock
'
key 3 sec. again, buzzer will make a short sound and a red dot will be
off.
The induction cooker will be locked automatically after 15 sec. when switching off.
For restarting the induction cooker, by ressing the
&
Lock
'
key 3 sec. again, buzzer
will make a short sound and the red dot will be off, then by ressing the
&
ON/OFF
'
key to enter the normal cooking mode by other function keys.
 Off Switching

During heating, by ressing
&
ON/OFF
'
key to switch off.
*

8
4.2、Usable and Non-usable Cookware：
~ Please refer to below information to select a suitable cookware cater for all delicious
cuisine by the induction cooker.
Usable Cookware Non-usable Cookware

Materials

Iron, cast iron, stainless steel
and enamel cookware.

Materials

Cookware made of ottery,
aluminum, glass, co er or bronze.

Shape and size

The diameter
more than
120mm (4.5 inches) are recommended.

Shape and size

The bottom diameter of
the cookware is less than 120mm (4.5
inches). And, the cookware with curved
bottom, with concave bottom (the concave
de th
+
4mm) or with legs (the
height
+
4mm).

Sorts
of suitable cookware

Stainless
steel kettle, iron tray, bottom an, iron ot,
iron tray, enamel ot etc.

Sorts of un
-
suitable cookware

Co er,
bronze and aluminum ot, glass ot,
ottery ot, bronze an etc.
 !"#
~ Put the suitable cookware on the central osition of the heating zone.
~ It is normal that sound
&
ze..ze..
'
from the cookware when heating.
4.3、Heating Power Distribution：
When two single zones are o erating in the same time, the total ower is u to 2800W.
However, the ower of one single zone will reduce automatically when the other zone is
being cooking so as to maintain the total ower level will not exceed 2800W.
Left
Zone
R
ight
Zone
Level
Power(W)
Level
Power(W)
9
2
8
00
0
0
8
2
5
00
1
3
00
7
2
2
00
2
6
00
6
1
9
00
3
900
5
1
6
00
4
1
2
00
4
1
2
00
5
16
0
0
3
9
00
6
1900
2
600
7
2200
1
3
00
8
2500
0
0
9
2800

9
4.4、Caution：
 Don’t lace any metal cooking utensils, e.g. knife, fork, s oon, lid over the heating zone
to avoid getting burnt.
 Don’t lace an em ty cookware on the heating zone that will cause damage of the
induction cooker.
 Beware of the cookware gets overheated and burnt while heating u oil.
 Please use level 4 for dee fry cooking. Otherwise the induction cooker will turn off
automatically after cooking around 20 minutes. And the LED indicator will show the
&
E2
'
.
5、Safet Precautions
5.1 Safet Notes：
 No other objects then cookware to be laced on the calefaction area.
 Do not insert any objects like iron wire etc. into the vent in order to revent any electric
shock.
 Do not ut anything to block the air outlet
,
 Do not heat u uno ened tins of food on the heating zone as ressure will build u in
the tin and it can ex lode, which in turn could result in injury and scalding or damage.
 Do not use the induction cooker in a high tem erature environment. Kee it far away
from fire.
 Do not lay object, which are susce tible to the magnetic fields such as credit cards,
diskettes in the immediate vicinity of the induction cooker.
 Always kee children away from the induction cooker.
 Kee a distance between the water su ly and the induction cooker, to revent any
electric shock and interference or malfunction on function of the induction cooker.
 Water or liquid on the control anel will affect interference or malfunction on function of
the induction cooker.

10
5.2、Warning：
 The induction cooker must not be installed over any metal work to or electrical
a liances such as dishwasher, oven, and fridge etc.
 Do not lace metallic objects such as knives, forks, scoo s or s oons on the induction
cooker, calefaction area in order to revent any danger caused by high tem erature
 The late of the induction cooker is hot after cooking; do not touch the heating area by
hand.
 If ower wire is broken, you must shut off the ower su ly immediately and contact
our After Sales Service rofessional to change the broken wire. User does not allow
re airing by yourself, otherwise the maintenance of the induction cooker will be invalid.
 Do not smash the glass surface, switch off the induction cooker when the glass surface is
cracked.
6、Dail Maintenance
 Clean the induction cooker only when it has cooled down.
 Do not ut any tinder of acid or alkaline materials near the induction cooker in order to
avoid the electric circuits inside the stove from the erosive damages of acidity and
alkali which can affect the life s an of the induction cooker.
 Never use a steam cleaner or aggressive or abrasive detergent to clean the induction
cooker.
 Do not swash the induction cooker directly with water.
 When cleaning the ceramic surface, wi e all coarse soiling off using a dam soft cloth
and a ly a few dro s of ro rietary-cleaning agent for ceramic surfaces.
 Do not let the bottom of the induction cooker rubs the glass surface of the working
area so as to revent lacerating. (The laceration of the glass surface of the working area
does not affect the normal o eration of the induction cooker).
 The air inlet should be cleaned regularly in order to have a good ventilation
condition.
 Be sure to remove stains from the bottom of cookware. Otherwise, the stains will be
scorched and stuck on the to late.

11
7、Product Specification
Description Two-zone Induction Cooker
Model EC-2966
Power Suppl AC220-240V/50Hz
Total Rated Power 2800W
Overall Dimension(W x D x H) 750 x 450 x 65 mm
Net Weight 10 Kg
8、Trouble-shooting Guideline
8.1、Code Of Breakdown：
In case of im ro er installation or use, abnormal ower su ly or breakdown of the
induction cooker, the LED digit on front anel will dis lay code of breakdown.
Code of breakdown Root cause of breakdown
E0 Failure of Circuit
E1 Cookware not be sensed on the cooking zone
E2 High tem erature inside induction heater
E3 Failure of heater tem erature sensor
E4 Failure of IGBT tem erature sensor
E5 High ower voltage
E6 Low Power voltage

12
8.2、Trouble Shooting：
Garwoods induction cooker has ado ted the most advanced micro-com uter ins ection and
control technology. Some henomena a eared in the course of working may not indicate
roblems to occur.
Please check the induction cooker according to the follow s ecifications

Situation Reason Solution
The heater works for a while
and sto , indicating
-
E1
.
1. No cook ware ut on the
cooking zone
2. Non-usable cookware is
used
1. Put the cookware on the
cooking zone
2. Refer to
-
Usable and
Non-usable cookware
.
in
the o eration manual
The heater works for a while
and sto s, indicating
-
E2
.
.
1. The inlet of fan is off.
2. The fan sto s working.
3. The surrounding
tem erature is too high.
Pls. check if there is some
heating device nearby.
4. The tem erature of the
stuff being heated rises
too high.
1. Clean and remove the stuff
in the inlet.
2. Ask hel from a
rofessional service
technician.
3. Im rove the ventilation.
4. Remove the cause for fry
heating and continue to
use the cooker after the
calefaction area is cooling
down.
The heater works for a while
and sto , indicating
-
E3
.
or
-
E4
.
.
The tem erature sensor
breakdown.
Ask hel from a rofessional
service technician.

13
一、 產品簡介---------------------------------------------------------------- 14
I . 產品介紹
II . 性能特點
二、 產品安裝說明--------------------------------------------------------- 15-17
三、 控制面板說明----------------------------------------------------------- 18
四、 產品操作說明----------------------------------------------------------- 19-21
I . 操作說明
II . 鍋具的選擇與使用
III. 火力段數及 率分配說明
IV. 警告事項
五、使用注意事項--------------------------------------------------------- 21-22
I . 安全注意事項
II . 警告
六、日常 養注意事項--------------------------------------------------- 22
七、產品規格--------------------------------------------------------------- 23
八、維修指南--------------------------------------------------------------- 23-24
I . 錯誤代碼
II . 簡易故障的判別和排除
目錄

14
一、產品簡介
I、產品介紹
多謝選購Garwoods EC智能電磁爐。本產品採用先進電磁加熱方式，微電腦控
制，輕觸式操作，安全耐用。適合各種不同的烹飪需求，是現代家庭廚房的理想
之選。請在安裝及使用本產品之前閱讀本說明書。
II、性能特點
 節能效益： 本產品採用全新加熱原理，傳熱效率高，省時省電，鍋具放
置電磁爐後開始加熱，取走鍋具後立即停止加熱。從而達到
煮食節能目的。
 齊全功能： 採用最新微電腦晶片程式操作，具有多段火力段數調節，定
時操控，自動鍋具檢測等 能，方便實用。
 環保安全： 本產品在設計上充分考慮使用者的安全及環境保護。1)加熱
區只能感應適用電磁爐的鍋具；2)當鍋體溫度過高或電壓變
動導致電流過大，本產品將自動進入保護狀態；3)使用過程
中如無指令接收達到兩小時後，自動停機保護啟動；4)爐面
選用高級耐熱微晶玻璃面板，絕緣防漏；5) 無需擔心湯水溢
出燒壞電磁爐；6)無煤氣爐常見的洩漏、爆炸、明火灼傷等
危險，減少意外事故的發生；7)烹調過程中無明火、無煙，
令烹飪變得潔淨容易，令家居環境清新及家人健康。
 容易清潔： 高級耐熱微晶玻璃面板、易潔耐用。烹調後，只須用布輕輕
一抹即可。
 輕觸式操作： 輕觸式觸控設計，只需要用手指輕輕觸摸玻璃控制面板上
能鍵即可，簡便易用。
 智能功 ： 本產品採用智能 率分配技術。由微電腦根據用戶使用狀況
，將規定的總 率分配到每個爐頭。

15
二、產品安裝說明
★安裝須遵守以下說明要求：
1、 工作枱面及靠近電磁爐的牆壁必須是耐熱的。
2、 用於安裝電磁爐與廚櫃的層板和膠黏劑必須是耐熱的。
3、 在任何安裝方式中，應確保爐具底下及爐面後側能徹底散熱，以確保安
全。
4、 按規定 寸在枱面上開一個安裝孔，同時確保任何一面距牆面距離至少
100mm。
5、 安裝孔防水保護：若與濕氣接觸，製作廚櫃所用的層板相對容易膨脹，在
開口邊緣塗上透明漆或專用膠黏劑，可防止水氣滲入造成篜氣在廚櫃枱面
下產生冷凝。
6、 在各種安裝條件下，電磁爐都需要良好的通風，要確保進氣口和出氣口不
會被堵塞。
7、 電磁爐爐面四周及爐面垂直上方30cm的範圍內不要設置其它設備。
8、 如選擇座檯式安裝時，亦須確保排風口距離牆壁至少100mm。
9、 使用此型號電磁爐時必須配備13安培獨立開關掣或固定接線座。
★安裝步驟
1. 在需安裝電磁爐的廚櫃枱上按照【安裝圖 一】 寸開一安裝孔
（注意：高度距離枱面需超過100mm）。
開孔 吋(單位/mm)：(闊) 670 x (深) 350 x (高) 100
【安裝圖 一】
* 如屬新枱面開孔，開孔深度可開至370 亳米，並將電磁爐緊貼枱面前方放進孔
內以預留背部較多散熱空間

16
2. 在櫥櫃前側電磁爐放位置的下方開出一個大於100c㎡的進風口如【安裝圖
二】, 以確保電磁爐有足夠的散熱，如果櫥櫃不是密封式的，可以不開此口，
但電磁爐下方不可有任何雜物堵窒通風。
【安裝圖 二】
3. 安裝電磁爐在櫥櫃枱面前，必須將隨爐具所附的防水膠條如【安裝圖 三】，
貼在面板下方的四邊。如原枱面開孔大於本電磁爐開孔 吋，應使用雙面貼
貼在底盤四邊，以固定爐具與枱面而避免產生移動。
【安裝圖 三】

17
4. 將貼好防水膠條的電磁爐放入枱面開孔中如【安裝圖 四】，然後將電源線
插頭插入對應的插座中，通電即可正常使用。
【安裝圖 四】
5. 如安裝電磁爐在烤箱上方時，櫥櫃內電磁爐與烤箱中必須加裝一個隔熱板如
【安裝圖 五】隔熱板與電磁爐底部至少有15cm的距離：電磁爐安裝位置的
前側必須開出一個大於100c㎡的進風口以確保電磁爐磁與烤箱能夠有足夠
的通風。
【安裝圖 五】
六、鍋具的選擇與使用

18
三、控制面板說明

加熱區


能鍵

9 8 7 6 5 4 3 2 1
/
開關鍵
/
開關指示燈
/
調高鍵
/
LED數碼顯示區(火力段數及定時)
/
調低鍵
/
定時鍵
/
定時指示燈
/
安全鎖鍵
/
安全鎖指示燈

19
四、產品操作說明
I、操作說明：
 通電： 電源接通後，蜂嗚器會發出一短聲，表示電源已接通，電磁爐
處於待機狀態。LED數碼顯示會顯示為 (- - - - )。
 開機： 在加熱區放置所需的鍋具(請参考鍋具的選擇和使用) ，按住
“開關鍵”，蜂嗚器會發出一短聲，開關指示燈會亮，LED數碼
顯示會顯示為預設火力段數5。
 調整火力： 當火力 能運作時，按“調高鍵”或“調低鍵”可增大或減小
火力段數，而LED數碼顯示區亦顯示所設定的段數（火力）。
0123456789:; <=>? @AB CDE FG 7HIJ KLM BNO <= PQRS <=
TUVWBXYZ[\ ]^ _G7H TIJ KLB `a b<=c ZPQ RS< =d e
 設置定時： 按“定時鍵”，定時指示燈會亮，然後按“調高鍵”或“調低
鍵”置定所需要的定時時間。此時LED數碼顯示區內會顯示設
定時間(顯示格式為《小時：分鐘》) ，時間設定範圍為1分鐘
至3小時59分，設定完成後，LED數碼顯示即自動顯示回火力
段數 。當達到所設定的時間時，蜂嗚器會發出一長聲，電磁爐
會停止加熱。
 鎖 定： 按住“鎖定鍵”，蜂鳴器會發出一短聲，同時鎖定指示燈會亮
着，此時鎖定 能啟動，其它按鍵將會被鎖定而無法操作以防止
兒童觸碰或其他意外觸碰操作。若取消鎖定 能，再次按住“鎖
定鍵”3秒，蜂鳴器發出一短聲，鎖定指示燈熄滅，鎖定狀態被
解除。
在關機狀態後15秒，電磁爐會自動上鎖，所有按鍵都不能操作。
若需開啟電磁爐，先按“鎖定鍵” 3秒，蜂鳴器會發出一短聲，
鎖定指示燈熄滅，鎖定狀態被解除，然後按“開關鍵”，其他按
鍵才可使用。
 關機： 加熱過程中，按“開關鍵”即可關機。
