Hexin HXSP-2108W User manual

Http://www.hexin-technology.com/
Quick Start Guide
Wi-Fi TO RS-232/422/485
CONVERTER
MODEL HXSP-2108W
1
1
1
.Check Package Content
■HXSP-2108W unit 1Pcs
■RS-232 DB9 Female Crossing configuration cable
1Pcs
■Software CD 1Pcs
■Ext power adapter 1Pcs
■Printed version of this HXSP-2108W Quick Start Guide
1Pcs
2
2
.Hardware Installation
■Connect RS-232 DB9 Female Crossing configuration cable
to HXSP-2108W unit on RS-232 side.
■Connecting the Power Adapter to HXSP-2108W power jack.
When the power is properly supplied.The Link and DIS. LED
will light in red and yellow color until the system is ready, at
which time the Link. LED will be put out and DIS PWR LED
still light.
RS-232/422/485 Pinouts
RS-232 Pinout(DB9 Female )
PIN
RS-232
Input/Output
2
RXD
I
3
TXD
O
5
GND
-
7
RTS
O
8
CTS
I
RS-422/485 Pinout(SIX Terminal from Left)
PIN
RS-422
RS-485
1
T+
485+
2
T-
485-
3
R+
NC
4
R-
NC
5
VIN+
VIN+
6
VIN-
VIN+
3
3
.LED indication
LINK ---- Indicate WLAN status
DIS ---- Indicate WLAN status
ACT ---- It will flash when transmit the data from WLAN to
serial or from serial to WLAN.
PWR ---- Indicate the Power supply
Detail for LINK,DIS Led indicate
LINK
DIS
Status
OFF
OFF
WLAN Connecting
ON
OFF
WLAN Connected
OFF
ON
WLAN Disconnect
ON
ON
Setup Command
4
4
.Software Installation
■Insert the software CD and search for such as F:/Tool/
pcommlite folder to run Settup.exe.Note: Be sure you have
administrative rights &disable firewalls in windows XP
5
5
.Configure the HXSP-2108W
■Serial Console (38400, n, 8, 1)
Before configuring the HXSP-2108W via the serial console,
turn off the power and use a serial cable to connect the
HXSP-2108W to your computer’s serial port. We suggest
using PComm Terminal Emulator, which is available in CD
driver to carry out the configuration procedure. Firstly install
PComm Terminal Emulator on your computer.
■Connect HXSP-2108W RS-232 serial port directly to your
computer’s male RS-232 serial Port with RS-232 DB9 Female
Cross Configuration cable
■From the Windows desktop, click on Start #Programs #
PComm Lite #Terminal Emulator.
■When the PComm Terminal Emulator window opens,
first click on the Port Manager menu item and select Open,
or click on the Open icon.
■The Property window opens automatically. From the
Communication Parameter page,
select the appropriate COM port for the connection, COM1 in
this example, and 38400 for
Baud Rate,8for Data Bits,None for Parity, and 1for Stop
Bits.

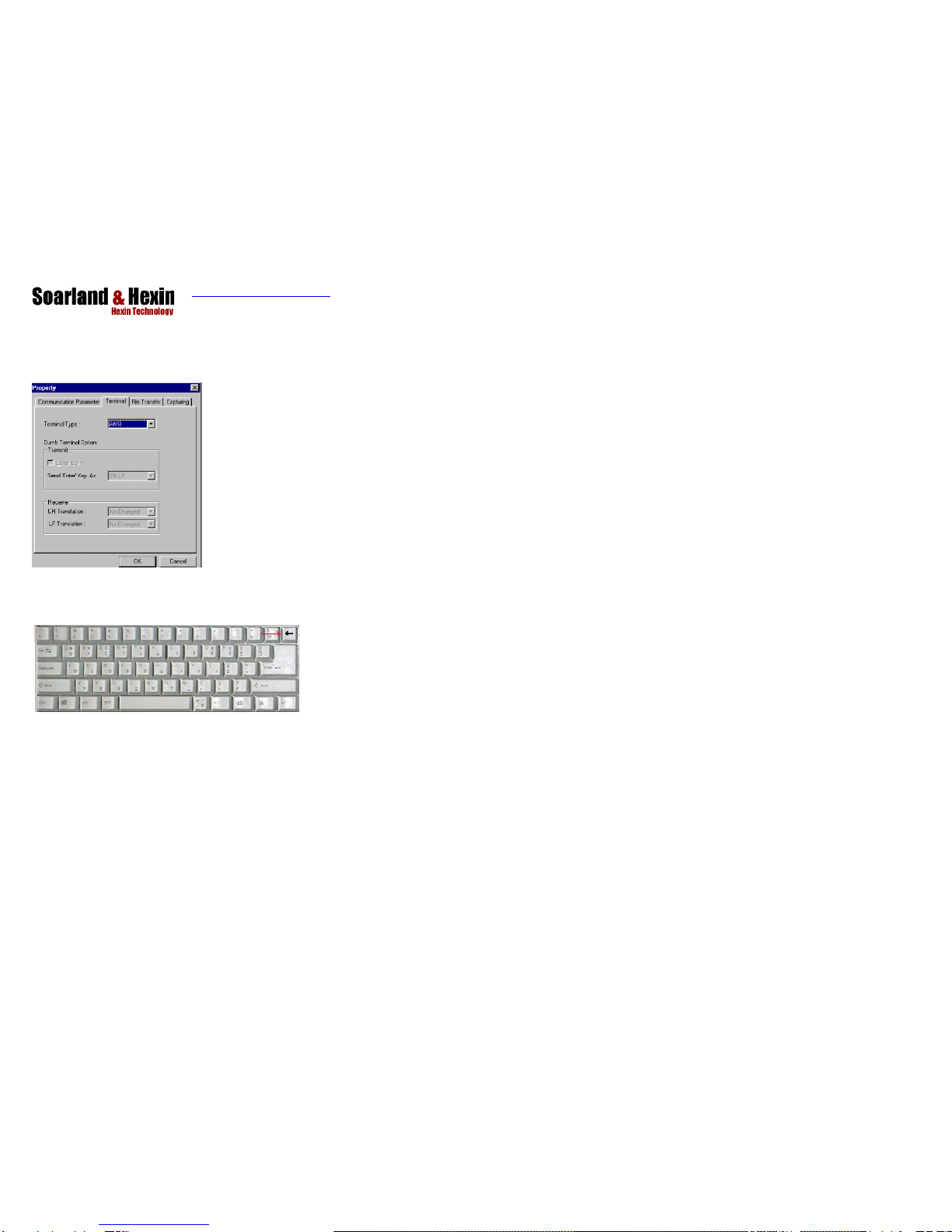

■From the Property window.s Terminal page, select ANSI
or VT100 for Terminal Type, and click on OK. If you select

Http://www.hexin-technology.com/
Dumb Terminal as the terminal type, some of the console
functions—especially the .Monitor. function—may not work
properly.
■Press the “ ←” backspace key (located in the upper right
corner of the keyboard) continuously while powering on the
HXSP-2108W
■Sending a continuous “ ←” backspace string to
HXSP-2108W triggers it to switch automatically from data
mode to console mode.
■Start by configuring the IP address and WLAN under
MS-DOS Command Mode.section for instructions on how to
configure the rest of the IP settings.
■Choosing the Proper Operation Mode
6
6
.Factory Default WLAN &IP Address
Network Setting
IP :192.168.1.250 MASK :255.255.255.0
GW :192.168.1.254 DHCP :OFF
Wireless LAN Commands
CHAN :6 MODE :infrastructure
SSID :wlandemo RATE :11 mbps WEP :OFF
Serial Port Commands
Baud Rate:38400 bps
Serial Flow Control setting :OFF
TCP Serial Port Number :1234
7
7
.Summary of Commands –Listed by Functional
Category
(These commands are explained in detail with more detailed
functioning examples further in this document.)
■Network Commands
IP xxx.xxx.xxx.xxx Where x is the IP of this device
MASK xxx.xxx.xxx.xxx Where x is the Network Mask of this
device
GW xxx.xxx.xxx.xxx Where x is the Gateway of this device
DHCP x Where x is the DHCP setting: 1=ON 0=OFF
■Wireless LAN Commands
CHAN x Where x is the channel setting 1-14
MODE x Where x Network Mode x = a(ad hoc)
b(infrastructure) p(Pseudo IBSS)
SSID xxxxxxxxx Where x is the multi-character SSID network
name
RATE x Where x is the Tx rate, 1,2,5,11 mbps
WEP x Where x is WEP key 0=OFF, 1=64bit, 2=128bit
WK x yyyyyyyyyy Load WEP Encryption Key into WEP
buffers 1, 2, 3 or 4
WKID x Where x is the Buffer of the WEP encryption key in
use 1, 2, 3 or 4
AA x Where x is the authentication: A=Auto, S=Shared Key,
O=Open
■Serial Port Commands
BAUD x Where x is serial port baud rate, 0=115200, 1=57600,
2=38400, 3=9600
FCTL x Where x is Serial Flow Control setting, 1=ON, 0=OFF
PORT xxxxx Where x= TCP Serial Port Number (Default
value is “1234”)
■Server/Client Settings
RMODE x Where x is CLIENT or SERVER setting for this
device
RIP xxx.xxx.xxx.xxx Where x is Server Target Remote IP
when this device is in Client mode.
RPORT xxxxx Where x is Server Target Remote PORT when
this device Client mode.
■Enter Command Mode
SetUpWLAN Gatekeeper Command Entry String
■Exit and Save Settings Commands
EXIT Exits Command Mode but DOES NOT SAVE
CHANGES
SAVE SAVE Command (Saves only but does not Exit
Configuration Mode.)
SE SAVES and EXITS Command Mode simultaneously
■Other Commands
PSMOD x Where x is the power saving mode: 1=ON 0=OFF
RES Reset as if a Hardware reset was applied
DEF Restores all settings to Factory Default
MAC Read-Only command that display the unique MAC
addressVER Read-Only command returns Firmware Version
Number HELP Displays list of all available Commands along
with abbreviated format
LIST Displays alphabetic readout of all Settings
