Crystal Vision Introduction
326/02/2007
1Introduction
ENDAC is a 12-bit broadcast encoder with four outputs that can be configured to give a
variety of component and composite signals.
ENDAC will fully integrate with any other interface or keying product from the Crystal
Vision range. Further flexibility is afforded by the large choice of control options. Control
options include board edge control, local or remote active control panel and the Statesman
PC Control System.
•12-bit digital encoder
•Flexible control, including PC software.
•Three link configurable outputs, 1 fixed composite output
•Compact design for high packing density
ENDAC 12-bit Encoder
ENDAC is a 100mm x 266mm module that fits in Crystal Vision four standard frame
sizes. 24 modules fit in 4U, 12 modules fit in 2U, six in 1U or two in a desktop box. There
are a range of rear connector modules available for the ENDAC which allow the system
builder great flexibility in frame configuration.
12-bit
digital
encoder
and
D to A
Output
configure
Y, G or composite
C, U, B or composite
V, R or composite
Composite
Reclocked
SDI Output
Reclocker
and
cable
equilizer
SDI Input

Crystal Vision Introduction
426/02/2007
1.1 Operating modes
Analogue video formats
There are four analogue video outputs of which one is a fixed composite output. The other
three video outputs can be configured using on-board links to produce a selection of
further composite outputs, YC, GBR or YUV component (Y’P’b P’r or Y’C’b C’r). 625
and 525-line output standard can be set. Data in the VBI (vertical blanking interval) is
passed to the analogue composite output. The addition of a 7.5% IRE setup is also
selectable when outputting an NTSC format signal. Betacam signal levels can also be
selected for component YUV outputs.
Status and control
Status and control is available using the board edge menu selection switches and LEDs.
Control and status reporting is also available from either an active frame front or remote
active control panel. PC control is also available using Crystal Visions Statesman PC
controller package.
Note. When the ENDAC is set to remote control mode the position of the board edge
switches may not reflect the actual configuration of the card. Returning the card to local
control will reinsert the board edge configuration

Crystal Vision Hardware installation
526/02/2007
2Hardware installation
The ENDAC single height module uses the RM01, which will fit into all Crystal Vision
rack frames. All modules can be plugged in and removed while the frame is powered
without damage.
The ENDAC can also be used with several other rear modules such as the RM02 and
RM18 but at reduced packing density.
2.1 Rear modules and signal I/O
The Indigo 4 4U frame will house up to 24 single height modules with up to three power
supplies. The FR2AV and Indigo 2 2U frames will house up to 12 single height modules
and dual power supplies. The FR1AV and Indigo 1 1U frames will house six single height
modules and a single power supply. The DTBAV and Indigo desk top boxes both have a
built-in power supply and will house up to two single height modules.
Note: For details of fitting rear connectors please refer to the appropriate frame manual
Rear module connections with RM01
The RM01being a single height module will allow maximum packing density with the
maximum number of outputs available.

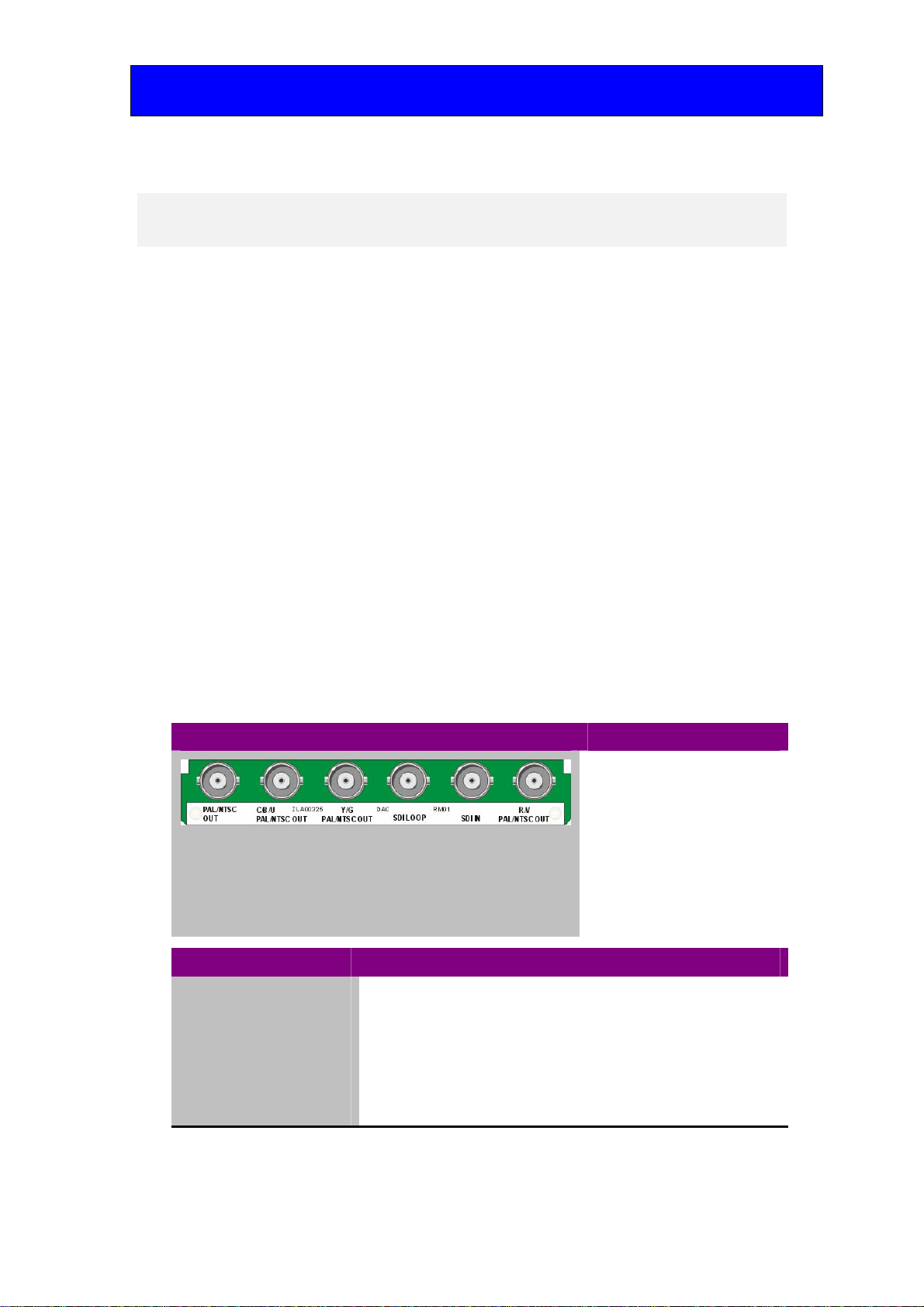

RM01 rear module connector Description
RM01
•24 ENDAC modules per
Indigo 4 frame
•12 per FR2AV or Indigo
2 frame
•Six per FR1AV or Indigo
1 frame
•2 per Indigo DT
•All frame slots can be
used
BNC I/O assignment
R/V PAL/NTSC OUT Component R / V or composite output (link selectable)
SDI IN Serial digital input
SDI LOOP Reclocked SDI input loop-through
Y/ G PAL/NTSC OUT Component G / Y, YC-Y or composite output (link selectable)
C/B/U PAL/NTSC OUT Component B / U, YC-C or Composite output (link selectable)
PAL/NTSC OUT Composite Output

Crystal Vision Hardware installation
626/02/2007
Module configuration
The ENDAC has five user selectable jumper links, which are used to configure output
formats.
Note links PL10 & PL11 must be moved together as a pair.
Linked position Output Function
PL2 (YCY) Y
PL3 (CVBS) Composite
PL4 (G/Y)
Y/ G PAL/NTSC OUT
Green or Y component
PL5 (YCC) C
PL6 (CBVS) Composite
PL7 (B/U)
C/B/U PAL/NTSC OUT
Blue or U component
PL8 (CBVS) Composite
PL9 (R/V) R/V PAL/NTSC OUT Red or V component
PL10 (U) C/B/U PAL/NTSC OUT Left Y’P’bP’r
Right Y’C’bC’r
PL11 (V) R/V PAL/NTSC OUT Left Y’P’bP’r
Right Y’C’bC’r
2.2 General Purpose Interface (GPI)
Each frame slot has up to six connections ‘a-f ‘for GPI control and monitoring. These
connections are available at the rear of the frame on the 26-way D type Remote
connectors.
GPI Low (<1V) High (+5V)
0 ‘a’ No user connection at present
1 ‘b’ No user connection at present
2 ‘c’ Loss of input No user connection at present
3 ‘d’ No user connection at present
4 ‘e’ No user connection at present
5 ‘f’ No user connection at present
As supplied, each GPI output has a 220Ωresistor in series with its output. This allows for
an external LED to be driven, connected to a DC voltage of +5V.

Crystal Vision Hardware installation
726/02/2007
4U frame GPI connections
GPI lines ‘a’ to ‘f’ of each card connect to one of eight rear remote connectors as follows:
Slot no. ‘a’ pin ‘b’ pin ‘c’ pin ‘d’ pin ‘e’ pin ‘f’ pin
1 8 (1) 9 (1) 18 (1) 26 (1) 19 (2) 20 (2)
2 7 (1) 16 (1) 17 (1) 25 (1) 10 (2) 11 (2)
3 8 (3) 9 (3) 18 (3) 26 (3) 19 (4) 20 (4)
4 7 (3) 16 (3) 17 (3) 25 (3) 10 (4) 11 (4)
5 5 (1) 6 (1) 15 (1) 24 (1) 1 (2) 2 (2)
6 4 (1) 14 (1) 13 (1) 23 (1) 3 (2) 4 (2)
7 5 (3) 6 (3) 15 (3) 24 (3) 1 (4) 2 (4)
8 4 (3) 14 (3) 13 (3) 23 (3) 3 (4) 4 (4)
9 3 (1) 12 (1) 22 (1) 21 (1) 12 (2) 13 (2)
10 10 (1) 11 (1) 19 (1) 20 (1) 21 (2) 22 (2)
11 3 (3) 12 (3) 22 (3) 21 (3) 12 (4) 13 (4)
12 10 (3) 11 (3) 19 (3) 20 (3) 21 (4) 22 (4)
Slot no. ‘a’ pin ‘b’ pin ‘c’ pin ‘d’ pin ‘e’ pin ‘f’ pin
1 8 (5) 9 (5) 18 (5) 26 (5) 19 (6) 20 (6)
2 7 (5) 16 (5) 17 (5) 25 (5) 10 (6) 11 (6)
3 8 (7) 9 (7) 18 (7) 26 (7) 19 (8) 20 (8)
4 7 (7) 16 (7) 17 (7) 25 (7) 10 (8) 11 (8)
5 5 (5) 6 (5) 15 (5) 24 (5) 1 (6) 2 (6)
6 4 (5) 14 (5) 13 (5) 23 (5) 3 (6) 4 (6)
7 5 (7) 6 (7) 15 (7) 24 (7) 1 (8) 2 (8)
8 4 (7) 14 (7) 13 (7) 23 (7) 3 (8) 4 (8)
9 3 (5) 12 (5) 22 (5) 21 (5) 12 (6) 13 (6)
10 10 (5) 11 (5) 19 (5) 20 (5) 21 (6) 22 (6)
11 3 (7) 12 (7) 22 (7) 21 (7) 12 (8) 13 (8)
12 10 (7) 11 (7) 19 (7) 20 (7) 21 (8) 22 (8)
Table shows pin number (Remote number)
Note: Remote 1, Remote 3, Remote 5 and Remote 7 are 26 way high-density D-Type female
sockets. Frame ground is pin 2 and +5V @500mA is pin 1 in each case.
Remote 2, Remote 4, Remote 6 and Remote 8 are 26 way high-density D-Type male plugs
and frame ground is pin 6 in each case and +5V @500mA is pin 15 on Remote 2 and
Remote 6.
Note. The +5V output is protected by self-resetting thermal fuses, which limit the total
output current available from Remotes 1-4 to approximately 1A. Remotes 5-8 are similarly
protected.
UpperLower

Crystal Vision Hardware installation
826/02/2007
2U frame GPI connections
GPI lines ‘a’ to ‘f’ of each card connect to one of four rear remote connectors as follows:
Slot no. ‘a’ pin ‘b’ pin ‘c’ pin ‘d’ pin ‘e’ pin ‘f’ pin
1 8 (1) 9 (1) 18 (1) 26 (1) 19 (2) 20 (2)
2 7 (1) 16 (1) 17 (1) 25 (1) 10 (2) 11 (2)
3 8 (3) 9 (3) 18 (3) 26 (3) 19 (4) 20 (4)
4 7 (3) 16 (3) 17 (3) 25 (3) 10 (4) 11 (4)
5 5 (1) 6 (1) 15 (1) 24 (1) 1 (2) 2 (2)
6 4 (1) 14 (1) 13 (1) 23 (1) 3 (2) 4 (2)
7 5 (3) 6 (3) 15 (3) 24 (3) 1 (4) 2 (4)
8 4 (3) 14 (3) 13 (3) 23 (3) 3 (4) 4 (4)
9 3 (1) 12 (1) 22 (1) 21 (1) 12 (2) 13 (2)
10 10 (1) 11 (1) 19 (1) 20 (1) 21 (2) 22 (2)
11 3 (3) 12 (3) 22 (3) 21 (3) 12 (4) 13 (4)
12 10 (3) 11 (3) 19 (3) 20 (3) 21 (4) 22 (4)
Table shows pin number (remote number)
Note: Remote 1 and Remote 3 are 26 way high-density D-Type female sockets. Frame ground is
pin 2 and +5V @500mA is pin 1 in each case.
Remote 2 and Remote 4 are 26 way high-density D-Type male plugs and frame ground is
pin 6 in each case and +5V @500mA is pin 15 on Remote 2.
Note. The +5V output is protected by self-resetting thermal fuses, which limit the total
output current available from Remotes 1-4 to approximately 1A.
1U frame GPI connections
GPI lines ‘a’ to ‘f’ of each card connect to one of two rear remote connectors as follows:
Slot no. ‘a’ pin ‘b’ pin ‘c’ pin ‘d’ pin ‘e’ pin ‘f’ pin
1 8 (1) 9 (1) 18 (1) 26 (1) 19 (2) 20 (2)
2 7 (1) 16 (1) 17 (1) 25 (1) 10 (2) 11 (2)
3 5 (1) 6 (1) 15 (1) 24 (1) 1 (2) 2 (2)
4 4 (1) 14 (1) 13 (1) 23 (1) 3 (2) 4 (2)
5 3 (1) 12 (1) 22 (1) 21 (1) 12 (2) 13 (2)
6 10 (1) 11 (1) 19 (1) 20 (1) 21 (2) 22 (2)
Table shows pin number (remote number)
Note: Remote 1: 26 way high-density D-Type female socket. Frame ground is pin 2 and +5V
@500mA is pin 1.
Remote 2: 26 way high-density D-Type male plugs and frame ground is pin 6 and +5V
@500mA is pin 15
Note. The +5V output is protected by self-resetting thermal fuses, which limit the total
output current available from Remotes 1-2 to approximately 1A.

Crystal Vision Hardware installation
926/02/2007
DTB-AV desk top box GPI connections
GPI lines ‘a’ to ‘f’ of each card connect to the rear remote connector as follows:
Slot no. ‘a’ pin ‘b’ pin ‘c’ pin ‘d’ pin ‘e’ pin ‘f’ pin
1 1 2 3 4 5 6
2 9 10 11 12 13 14
Note: Remote connector is 15 way normal density D-Type socket. Frame ground is pin 15.
Indigo DT desk top box GPI connections
GPI lines ‘a’ to ‘f’ of each card connect to the rear remote connector as follows:
Slot no. ‘a’ pin ‘b’ pin ‘c’ pin ‘d’ pin ‘e’ pin ‘f’ pin
1 8 (1) 9 (1) 18 (1) 26 (1) 19 (2) 20 (2)
2 7 (1) 16 (1) 17 (1) 25 (1) 10 (2) 11 (2)
Table shows pin number (remote number)
Note: Remote 1: 26 way high-density D-Type female socket. Frame ground is pin 2 and +5V
@500mA is pin 1.
Remote 2: 26 way high-density D-Type male plugs and frame ground is pin 6 and +5V
@500mA is pin 15
Note. The +5V output is protected by self-resetting thermal fuses, which limit the total
output current available from Remotes 1-2 to approximately 1A.

Crystal Vision Card-edge control
10 26/02/2007
3Card edge operation
The hinged front panel of the case reveals the card user controls and LED indication of
card status.

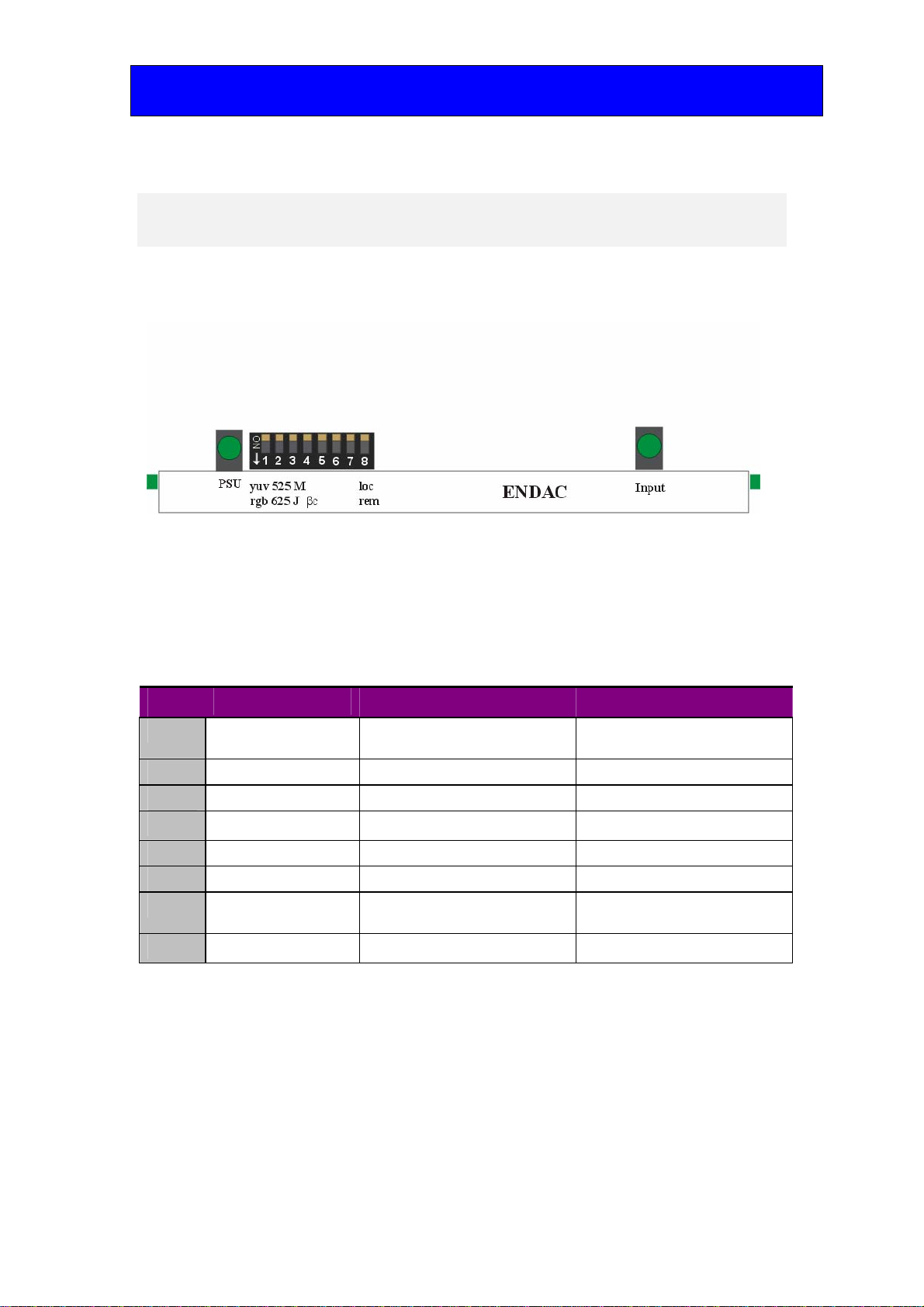

ENDAC front view showing controls and LEDs
3.1 Card edge switch settings
The 8 way piano switch allows the operating modes and status options to be selected.
Lever Function Up position Down position
1 Component output
format YUV RGB
2 Line standard 525 625
3 NTSC format NTSC-M NTSC-J
4 YUV Betacam format UP normal Betacam format
5
6
7 Control Board-edge control Statesman or active front panel
control
8
8 way DIL switch functions

Crystal Vision Card-edge control
11 26/02/2007
3.2 Reading card edge LEDs
Card edge LEDs may be used in conjunction with status information from any connected
remote status panel display or from Statesman if available.
Refer also to the trouble-shooting chapter for more help with solving problems and
monitoring status information.
The following table summarises the card edge LED functions and colours:
Name Led
Colour Function when ON
PSU Green Good power supply (PSU) rails. (Bottom LED)
Input Green Video input present
3.3 Card edge configuration
Component output format
Selecting the Component output format
The ENDAC can be configured to output four component analogue video formats, RGB, YUV Y’P’bP’r or
Y’C’bC’r and YUV Betacam.
Note Y’P’bP’r / Y’C’bC’r selection is selected by the positions of links PL10 and PL11.
DIL 1 Function
UP YUV Normal
DOWN Sets YUV gains to output Betacam video Chroma amplitudes
Line standard
The ENDAC is able to operate in both 625 and 525 line rates.
DIL 2 Function
UP 525 525-line standard selected
DOWN 625 625-line standard selected

Crystal Vision Card-edge control
12 26/02/2007
Adding NTSC setup (pedestal)
When the NTSC standard is selected the analogue output can have a 7.5% IRE setup
(pedestal) applied. The Chroma amplitude is also adjusted accordingly.
DIL 3 Function
UP M
+7.5% IRE setup added
DOWN J
No setup
Betacam format
The ENDAC is able to output in Betacam Y’P’bP’r format where the P’bP’r component is
attenuated by 1.333.
DIL 4 Function
UP Normal
DOWN βSets YUV gains to output Betacam video Chroma amplitudes
Control
Control can be from card-edge or remotely from an active control panel or Statesman PC
control package.
DIL 7 Control
UP loc Local, board-edge control available
DOWN rem Remote control selected. Board edge control are non-functional
Note. M/J and BETA modes will interact globally with composite and component
outputs.

Crystal Vision Trouble shooting
13 26/02/2007
4 Using the active front panel
4.1 Module selected
This operational guide assumes that the panel has been setup according to the Panel setup
procedure described in the Crystal Vision Control Panel manual.
Note: It is ESSENTIAL that the Panel setup procedure is followed and any old or unknown
passwords cleared prior to using the panel for the first time.
At power up, the two line 20-character screen will display ‘Crystal Vision’ followed by
the firmware version number for the control panel. All eight control panel keys LEDs will
illuminate.
The Crystal Vision control panel start up display
'Control Panel' then briefly replaces the version number display.
If the control panel firmware has been updated for Statesman control (version 1.5.0 or
higher), Statesman Mode will be entered and the message, ‘Press CAL to Exit’ will be
displayed and the CAL LED will light.
Statesman mode is entered by default

Crystal Vision Trouble shooting
14 26/02/2007
To continue with control panel operation or configuration, press the CAL key once. A
second press of the CAL key will return to Statesman control.
The control panel will display the name of the card that first responds to the polling
request together with its location number.
The location number consists of the frame number plus the card position in the frame.
Navigating the display
The functions assigned to control panel keys are:
•DEVICE – enters Device menu to select a card or show cards available / enters Panel setup when
held down during power up / shows frame status when pressed from Statesman mode
•CAL – enters or leaves Statesman mode / enters panel diagnostics mode when held down during
power up / updates the display
•Asterisk – enters board rename menu from the Device menu
•F1 to F4 – soft keys, function assigned within each menu
•HOME – moves the display to the home menu
•ENTER – accept current selection
•Upward arrow – used to move up the menu structure / enter lock panel menu from the Device
menu
•Rotary control – shaft encoder used to select options or variable data.
Note: Please refer to the Crystal Vision Control Panel manual for details of the Panel Setup,
Lock Panel and Diagnostic menus.
Selecting ENDAC
To select a particular card in a frame, press the DEVICE key to go to the Device menu.
The top line of the display will show ‘Available Cards X’, where X is the number of cards
that have responded so far to the polling request.

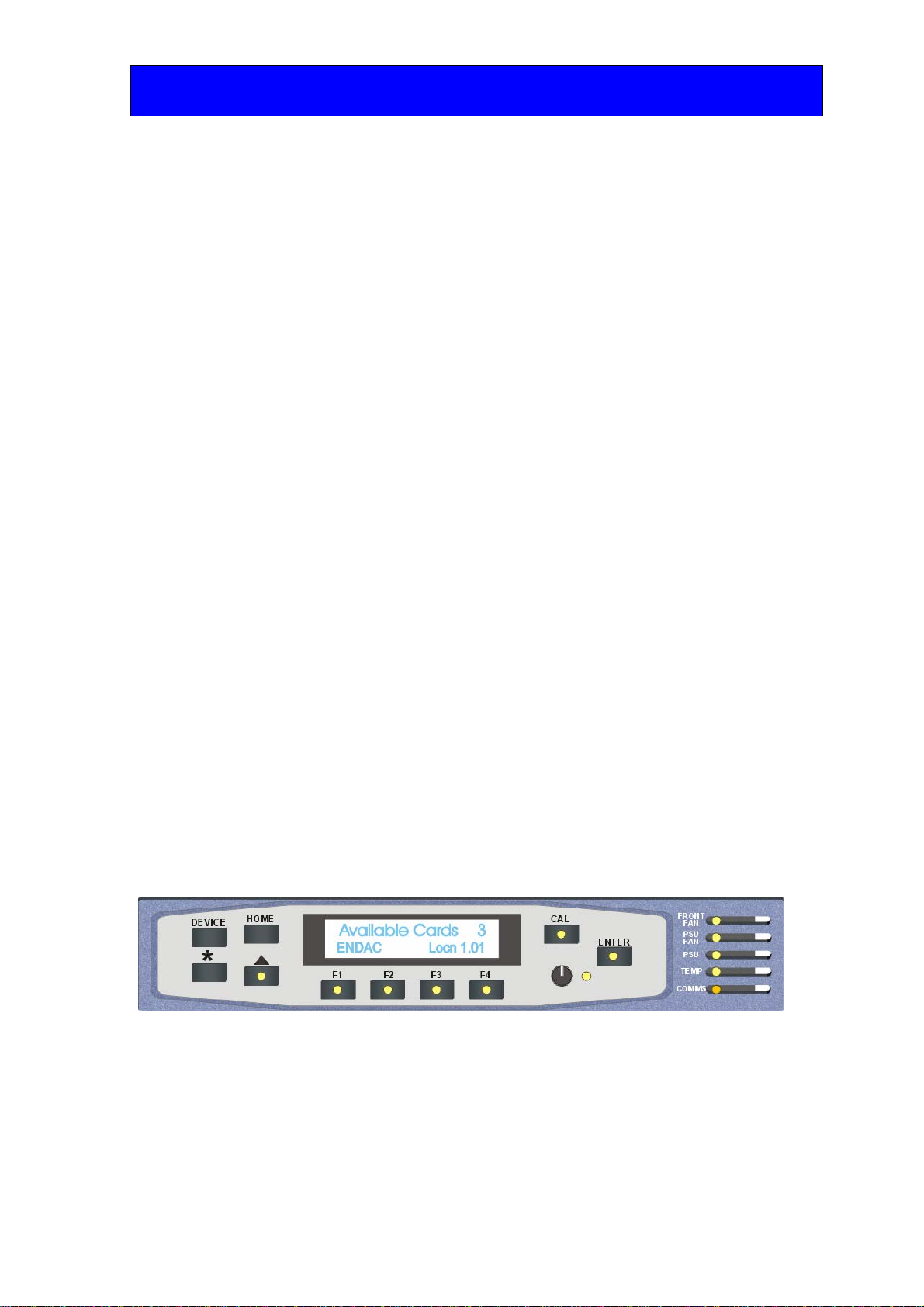

The available cards menu
Rotate the shaft encoder and the bottom row will display the successfully polled cards by
name and location or slot number.
In the example above, the card displayed is located in the first frame in slot number 1.
When the desired card is selected press the ENTER key to access that card’s HOME
menu.

Crystal Vision Trouble shooting
15 26/02/2007
The message shows that an ENDAC has been selected with the version of software on the
module as Vv2.03.
The ENDAC home menu
Updating the display
The values displayed on an active front panel are only updated when an adjustment is
made and when changing menu level. If mode changes occur through the use of
Statesman, card edge controls or through automatic response to the input video signal, the
text displayed on the active front panel will not be updated immediately. If necessary,
press CAL to update the display.
The ENDAC menu structure
The main top-level menu is obtained by pressing the F1 HOME menu. Menu keys are
illuminated when active and when further menus are available.
Pressing the Function keys F2-3 accesses the ENDAC's sub menus. When a sub menu has
been selected, further options can be accessed by further use of the function buttons.
Where adjustments are available rotating the shaft will then make the required change. An
adjacent LED illuminating indicates an active key. All key presses and numeric value
changes are implemented immediately.
The following chart shows the available ENDAC menus. The actual menus available may
vary slightly as software is updated.

Crystal Vision Trouble shooting
16 26/02/2007

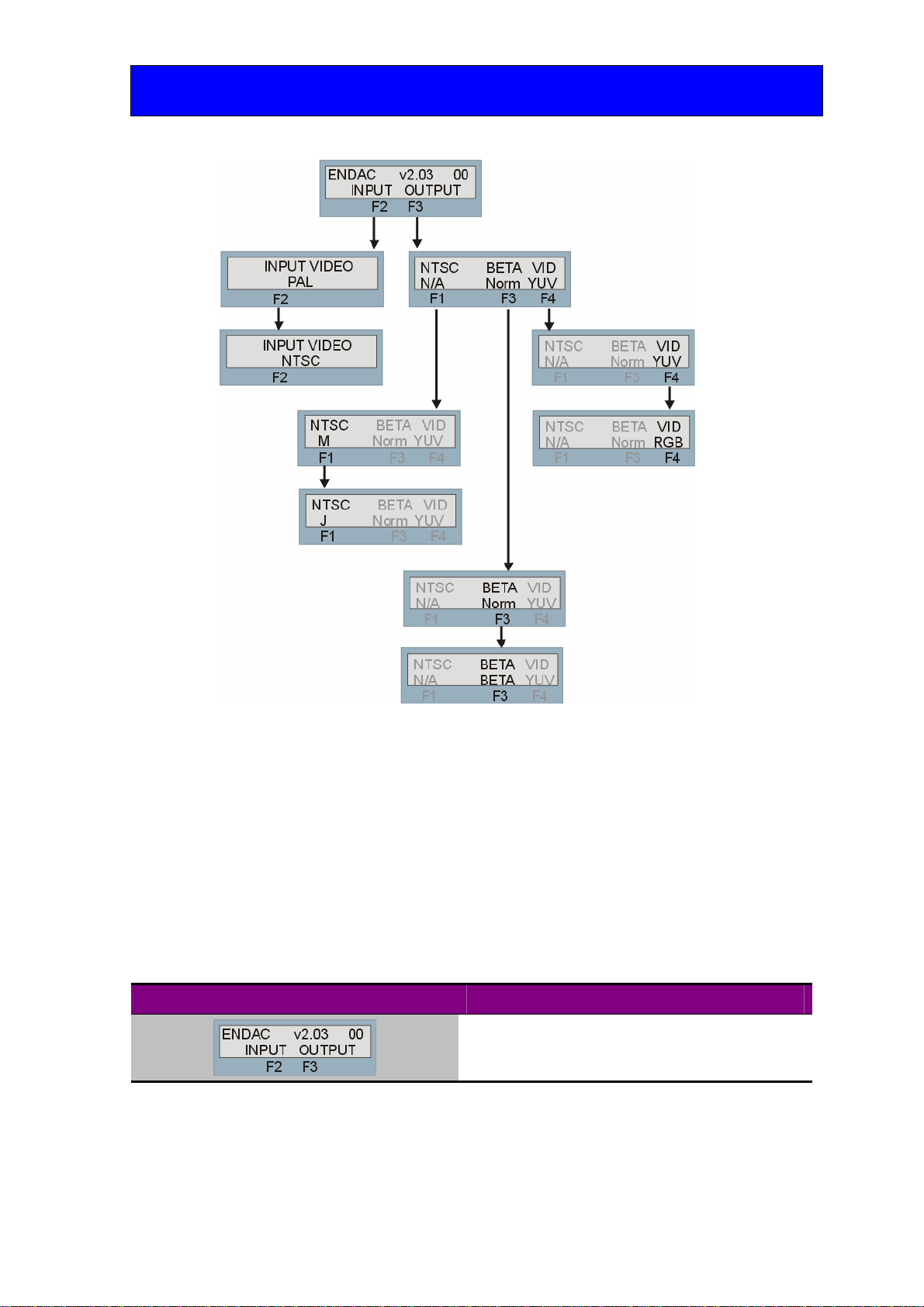

The ENDAC menu tree
Note: Function keys LEDs are illuminated when active.
A more detailed description of the individual menus follows.
Home Menu
There are two sub menus available, Input and Output from the home menu. Pressing F2
Input leads to the line rate configurations. Output F3 contains the analogue output format
configurations. The Home menu also contains information about the type of card and its
position in the frame.
Configuration menu structure Description
Card type and frame position. Access to sub menus.

Crystal Vision Trouble shooting
17 26/02/2007
Input Menu
The Input configuration menu allows the user to set the video operating standard for the
ENDAC.
Video Configuration menu structure Description
Toggle F2 to set the operating mode to be either PAL
625-line or NTSC 525-line.
Output Menu
This menu gives access to the output configuration controls.
When NTSC input standard is selected the analogue output can have a 7.5% IRE setup (pedestal) applied. The
Chroma amplitude is also adjusted accordingly.
The ENDAC can be configured to output four component analogue video formats, RGB, YUV Y’P’bP’r or
Y’C’bC’r and YUV Betacam.
Note Y’P’bP’r / Y’C’bC’r selection is selected by the positions of links PL10 and PL11.

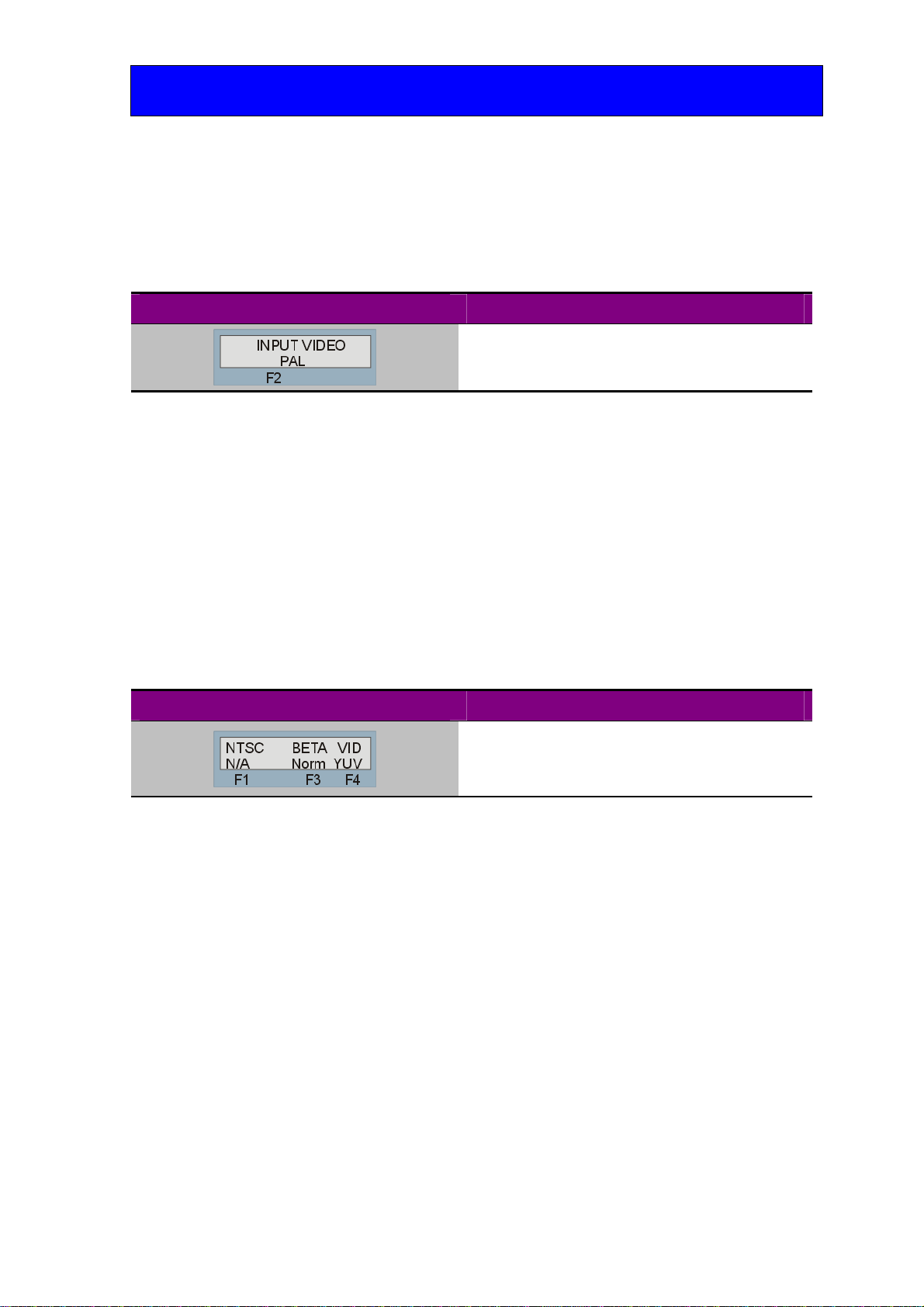

Output configuration menu Description
F1 NTSC. Toggle for M or J. N/A in PAL mode.
F3 BETA. Toggle for BETA or Normal. Only active
if YUV output is selected.
F4 VID. Toggle for YUV or RGB
Note. M/J and BETA modes will interact globally with composite and component
outputs.

Crystal Vision Trouble shooting
18 26/02/2007
5Statesman
The Crystal Vision Statesman PC control software is designed to control a range of
Crystal Vision modules via serial control from a PC.
The main Statesman application communicates with each module in a frame that is fitted
with an active front panel. This panel can be with or without a LCD display. Statesman
will not be able to detect modules used in a frame with only a passive front panel unless it
is part of an active/passive combination.
5.1 Installing Statesman
Minimum pre-requisites:
•A PC running Windows 98, NT4 with SP 5 or higher Windows 2000 or Windows XP
•A parallel port dongle supplied with the Statesman software package
•An RS422 serial connection from the host PC to the Indigo frame control input or to Remote 2
connector on an FR1AV or FR2AV Crystal Vision frame with at least one FTX202 module
and/or other Statesman compatible module
•An active control panel MUST be fitted to the frame with version 1.63 or above firmware – if it is
an Indigo frame the firmware must be V1.04 or above
•An optional RS422 to RS232 converter if the PC has no RS422 ports
Installing Statesman
•Refer to the readme and/or help file on the CD before proceeding
•To view all application windows, set graphics resolution to at least 1024 x 768
•Remove any previous version of the Statesman software using the Add/Remove Programs
application in the Windows Control Panel
•Ensure that the Statesman dongle is fitted to the parallel port of the host PC
•Insert the Statesman CD and the installation should start immediately – if it does not, run the
setup.exe file on the CD
•Obey any installation program prompts and restart the PC when prompted
Running Statesman for the first time
The Statesman PC Control System may be run from the Crystal Vision programs folder
via the Start menu or by double clicking on the Crystal Vision.exe file in the installed
program directory.
When the program runs it will require licence information and an administrator name and
password. It will also need to know which computer port is being used to connect to a
Crystal Vision frame(s).
Note: For further details of Statesman configuration please refer to the Statesman manual.

Crystal Vision Trouble shooting
19 26/02/2007
5.2 Statesman operation
Once Statesman is configured it should automatically detect any Statesman compatible
modules in the connected frame or frames and display them in the main application left
hand explorer-style window.
Open any frame by clicking on the + sign or by double clicking on a frame. Installed
modules should be shown with module icons. Frame and module icons can be named as
desired by right clicking or using the edit menu and choosing rename.
To aid user recognition of module and frame status quickly, the following colour and size
coding is used:
•A module is shown present by full colour and absent by greyed colour
•A module is shown open by large icon size and closed by small icon
•A module is the source of an active alarm if red and not alarmed if green
Double clicking on a module will enable the display of the main application menus.
Statesman main application window
The two large control panes shown in the upper and lower halves of the window may
display different menus for the same card, or controls for different cards. Click on the
horizontal button-bar between the two panes to close the lower plane or drag the button to
vary the size of the panes.
Note: For further details of Statesman configuration and operation please refer to the Statesman
manual.
