HGI Generators HRD060D User manual

Ravenstor Road
Wirksworth
Derbyshire
DE4 4FY
ENGLAND
Sales Tel: [phone]
Sales Fax: [phone]
Email: [email protected]
[email protected]
Website: www.hgigenerators.com
Operation and Maintenance Manual
6.0 kVA Air Cooled Diesel Generator
Build No: HRD060D
Publication No 498-1084
© Harrington Generators International Limited
All rights reserved. No part of this publication may be reproduced in any material form (including photography or storing in
any medium by electronic means or other) without the written permission of the copyright holder except in accordance with
the provisions of the Copyright, Designs and Patents Act 1988.
Applications for the copyright holder’s written permission to reproduce any part of this publication should be addressed to
Harrington Generators International Limited at the address above.
Any reference to trademarked product names used within this publication is owned by their respective companies.
Harrington Generators International Limited reserves the right to change the contents of this document without prior notice.

Change Control
Date Version Author Mod No Reason for change
Feb 18 Provi MC - Draft for Review by AP
Apr 18 A MC 401673 Upd and released following review

Harrington Generators International
498-1084HRD060D Diesel Generator
Contents
Contents
CERTIFICATION ............................................................................................. 1
EC Declaration of Conformity ...................................................................... 1
Data Plate ....................................................................................................... 2
SPECIFICATION ............................................................................................. 3
General Specication.................................................................................... 3
General Arrangement and Dimensions ....................................................... 5
SAFETY .......................................................................................................... 6
A few words about safety ............................................................................. 6
Operator Responsibility................................................................................ 6
Precautions.................................................................................................... 6
Electrical Safety........................................................................................... 14
Lifting and Moving....................................................................................... 14
Hazards to Health ........................................................................................ 16
OPERATION ................................................................................................. 18
Generator Layout......................................................................................... 18
Pre-Operation Checks................................................................................. 22
Starting......................................................................................................... 23
Stopping....................................................................................................... 23
Stopping and Starting Remotely................................................................ 23
AMF Installations......................................................................................... 24
Shutdown Protections ................................................................................ 24

Harrington Generators International
498-1084 HRD060D Diesel Generator
Contents
FAULT FINDING ........................................................................................... 25
Engine Fails to Start.................................................................................... 25
Engine Starts but then Stops ..................................................................... 26
Other Engine Faults .................................................................................... 26
No Electrical Output.................................................................................... 26
MAINTENANCE............................................................................................ 27
Maintenance Schedule................................................................................ 27
Safety Precautions ...................................................................................... 28
Maintenance Routine .................................................................................. 28
Maintenance Record Sheet......................................................................... 31
PARTS AND SERVICE ................................................................................. 32
Contact Details ............................................................................................ 32
Warranty Statement..................................................................................... 32
Functional Spares ....................................................................................... 32
TRANSPORTATION AND STORAGE .......................................................... 33
WIRING ......................................................................................................... 34
DATASHEETS AND SPECIFICATIONS ...................................................... 35
CN222 Remote Start Controller - programmable ..................................... 35
MANUFACTURER’S SERVICE AND USER GUIDE LINKS ........................ 37
Yanmar L100 Engine Operators Manual.................................................... 37
Deep Sea 3110 User Guide ........................................................................ 37
Mecc Alte ECO / ECP User Manual ............................................................ 37

HRD060D
3000 RPM
Diesel Generator

Harrington Generators International
498-1084 HRD060D Diesel Generator
Harrington Generators International

Harrington Generators International
1498-1084HRD060D Diesel Generator
Certication
Harrington Generators International Certication
Certication
EC Declaration of Conformity

Harrington Generators International
498-1084 2HRD060D Diesel Generator
Certication
Data Plate
Each generator supplied will have a data plate attached to the canopy of the set. Below is an exemplar data
plate with notes to help understand the terminology and information supplied on the data plate of your machine.
This is the “CE” mark and indicates that the generator complies with the
European Directives as detailed in the Certicate of Conformance
Model: This is the build model of the machine e.g. SKD60C3
Build Code:
This is a code number, which tells us the exact build standard to which the
generator was built. This is important when ordering spares or contacting our
Technical Help Line
Serial No: This is a unique number, which identies the generator. This is important when
ordering spares or contacting our Technical Help Line
Year of Manufacture: Year of Manufacture e.g. 2013
Electrical Power: This is the power in kVA and kW, the power factor and frequency
Voltage: This is the nominal voltage e.g. 400V, 230V or 110V
Current Amps: This is the nominal electrical current of the principal voltage
Performance Class
LTP “Limited Time Performance” means the generator should not be used
continuously but will typically run for 8 hours a day. G1 is for general purpose
use and the generator is not suitable to power sensitive specialist electronic
equipment
Sound Pressure Level: This is the level of sound produced by the generator when running at 75%
auxiliary power. This generator complies with the CE Directive on sound levels
Maximum Altitude /
Ambient Temperature:
These are given and if the generator is to be used at higher altitudes or at higher
ambient temperatures HGI should be consulted
Weight: This provides weights including and excluding a full tank of fuel
Fuel: Only commercially available diesel fuel can be used. If a special type of diesel is
to be used please consult HGI rst to discuss its suitability

Harrington Generators International
3498-1084HRD060D Diesel Generator
Specication
Specication
General Specication
Output Power & Power Factor:
6.0 kVA 4.8kW CTE Single Phase stand by power
5.4 kVA 4.3kW CTE Single Phase prime power
Power Factor 0.8
Environment:
Temperature range: -10°C (without additional starting aids) to +40°C
Relative Humidity: 10% to 90%
Altitude sea level to +1000m (with slight derate)
Performance Class ISO 8528:
Electrical Class G1
Steady state voltage: +/- 10% Frequency droop < 8%
LTP: Limited Time Performance
Overload Capability: n/a
Fuel: Commercial diesel with up to 10% bio-diesel i.e. B10 blend.
Voltages and Frequency: 230V/110V 50 Hz
Output Current: 400V - 230V 26.1A 110V 52.2A
Output Type: Switched
Sockets 110V 2 x 16A, 1 x 32A
Sockets 230V 1 x 16A, 1 x 32A
Sockets Position: Control Panel
Electrical Protection Devices: 2-pole main 25A MCB and individual socket breakers
Other: Buccaneer Socket for remote panel/AMF start/stop connection
Generator Control System: Deep Sea Electronics Engine and Generator Control Module
Starting Method: Electric Start via Control Module as local or remote start.
Control Module: DSE3110
Engine Protection: Low Oil Pressure, Low Fuel
Engine Monitoring: Battery voltage, hours run.
Electrical Protection: Over/Under Speed, Voltage, Frequency
Electrical Monitoring: Volts, Frequency
Engine model: Yanmar L100N
Service Interval: 200 hours (rst oil change at 50 hours)
Cylinders: 1
Power: 6.5 kW
Engine Speed: 3000 rpm
Engine Cooling: Air cooled
Starting Method: Electric Start
Electrical System: 12V DC system
Emissions Level: n/a below threshold.
Lowest starting temperature: -10°C without extra aids
Other: n/a

Harrington Generators International
498-1084 4HRD060D Diesel Generator
Specication
Battery: 12V DC 45Ah 360A CCA maintenance free
Location: Fitted inside canopy
Alternator Model: Mecc Alte S20W-95A
Alternator Performance: 6kVA, DV/CTE, 2 Pole Single Phase, Class H
Fuel Tank Capacity: 26 litres
Fuel Fill: Internal 2” Filler Neck
Fuel Tank Bund: n/a
Run Time at 100% load 12 hrs. Consumption at 100% load 2.16 l / h
Run Time at 75% load 16 hrs. Consumption at 75% load 1.62 l / h
Sound Level 75% load at 7 m 69 dBA
Sound Level 75% load LWA 94 dBA
Noise Compliant to EC Reg’s: Yes below 97 threshold
Canopy Type: Full Acoustic Canopy with Hinged Lid
Material: Smooth Galvanised Steel
Finish: Painted Polyester Powder Coat
Colour: Canopy: RAL9016 Arctic White
Base: RAL9005 Black
Doors: Lift-Up Hinged Cover with supporting cable.
Catches: Compression latches
Lifting: Lifting Beam
With forklift from below
Fixing Down: Through skid tubes underneath the base.
Towing: Not suitable for tow or drag
Dimensions LxWxH Skid Base 1014 x 580 x 851mm
Operating Clearance: Minimum of 0.6 m all around and above.
Access for Servicing: Access of 0.6 m required both sides.
Weight – fuel tank empty: 185 kgs
Weight – fuel tank full: 210 kgs

Harrington Generators International
5498-1084HRD060D Diesel Generator
Specication
General Arrangement and Dimensions
1 1
2 2
3 3
4 4
5 5
6 6
7 7
8 8
A A B B
C C D D
E E
F F
C
Checked
Material Finish
Title Drg No.
For insert & fabrication specifications refer to PD999-001
23.03.18
HRD060 mkI General Arrangement
WG-HRD060-mkI
A
R.W
23.03.18
WG-HRD060-mkI
Item
Description
Item
Pt No.
Item
Material
Sht
no.
Weight (kg)
1 /1
3D views are for illustration only
.
270 kg
974.4
760.0
757.9
616.8
580.0
1014.0 314.3
1341.6

Harrington Generators International
498-1084 6HRD060D Diesel Generator
Safety
Safety
A few words about safety
Your safety and the safety of others are very important
and using this generator safely is an important
responsibility.
HGI have designed this generator to give safe and
dependable service if operated in accordance to
these instructions. Please ensure that you read this
owner’s manual and understand the functionality of
the generator before using. You can help prevent
accidents and harm to yourself and nearby personnel
by being familiar with the controls, and by observing
safe operating procedures.
The warnings and safety instructions appearing in this
guide are not meant to cover every eventuality and
hazards associated with operating or maintaining a
generator. You must use your own good judgement,
care and caution.
This is the safety alert symbol. It is used to
alert you to potential hazards. Obey all safety
messages that follow this symbol to avoid possible
injury or death.
here are four types of safety alert messages used in
this manual:
DANGER
Danger refers to immediate hazards which WILL
result in severe personal injury or death.
WARNING
Warning refers to a hazard or unsafe method or
practice which CAN result in severe personal injury
or possible death.
CAUTION
Caution refers to a hazard or unsafe method or
practice which CAN result in personal injury.
NOTICE
Notice refers to a method or practice which can
result in product damage, or to draw attention to
additional information or explanations.
Operator Responsibility
• Know how to stop the generator quickly in case of
emergency.
• Understand the use of all generator controls,
output sockets, and connections.
• Be sure that anyone who operates the generator
receives proper instruction.
If you have any doubts about the safe operation of
this equipment, please contact HGI or a competent
operator or qualied technician.
Precautions
The generator can constitute a hazard to users,
nearby personnel and property unless the following
precautions are observed during operation:
• Ensure that you know how to stop the engine in
an emergency.
• Exhaust fumes are poisonous and can kill.
• Ensure that the area surrounding the machine
has no restrictions that would prevent an ad-
equate ow of clean, ambient air.
• Fuel is highly ammable, when refuelling:
• Do not run the engine.
• Do not smoke.
• Avoid overlling the fuel tank.
• Wipe up any fuel spilt on the machine and
move the equipment away from the area where
fuel has been spilt.
• Parts of the engine, and particularly the exhaust
system will get very hot during use, and will
remain hot for some time after the generator has
stopped.
• Do not use the equipment with loose or missing
components or guards.
• Additional care should be applied if using the
generator in damp or wet conditions.
• Regularly inspect the condition of trailing cables
and integrity of connectors. Only use correctly
rated cable and standard plugs of suitable
capacity for the application.
• During servicing, follow HSE recommendations
regarding the handling and disposal of
contaminated oil products.

Harrington Generators International
7498-1084HRD060D Diesel Generator
Safety
The generator is tted with a number of labels that alert the user to the safe operation and safety requirements.
A full explanation of these is contained here. If any of the labels are missing or unreadable a duplicate should be
obtained and tted.

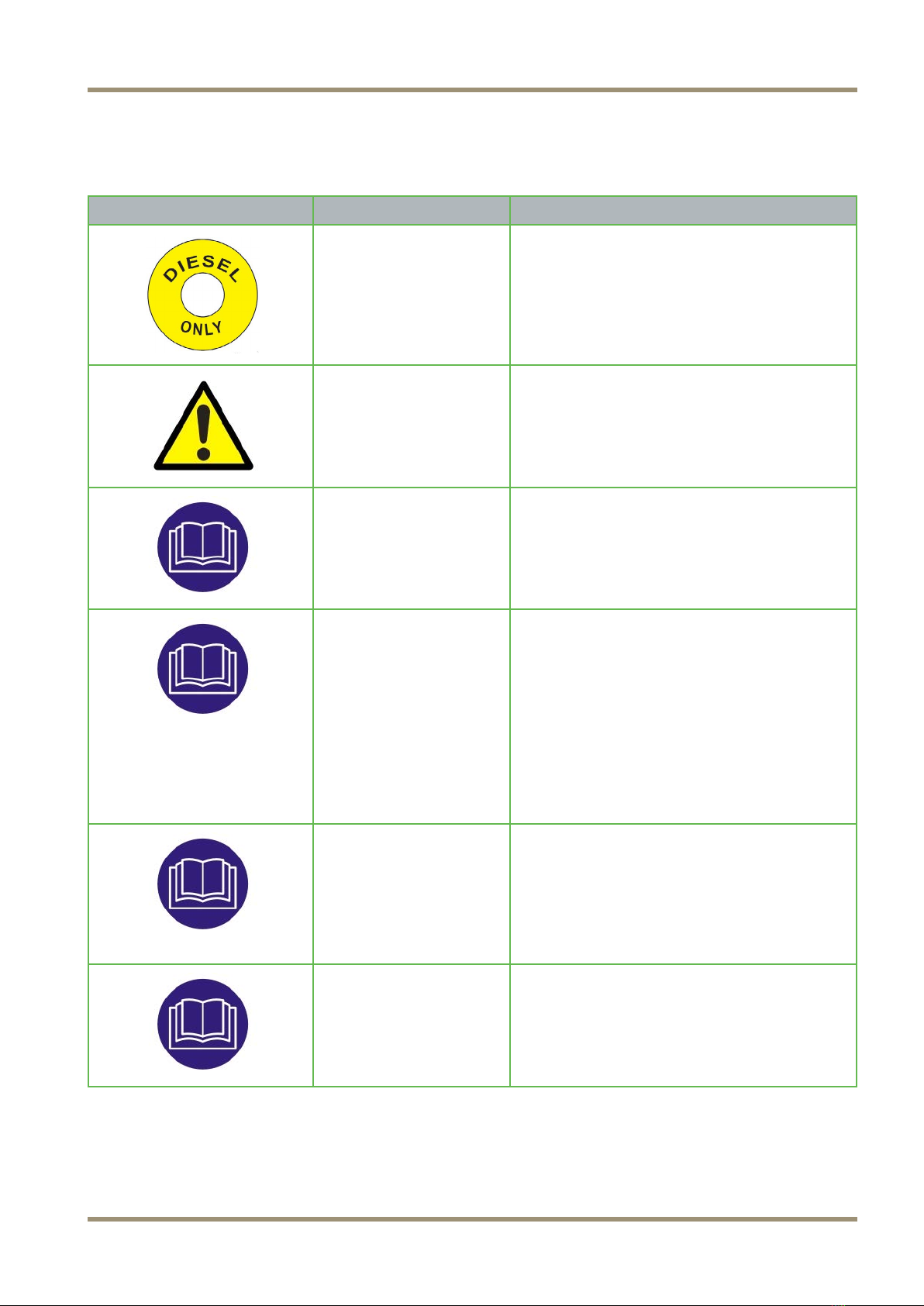

Label Location / Part No Description
On Fuel Filler Cap. Qty.
1.
Label No: 499-1081-002
DIESEL FUEL ONLY
This generator must only be lled with
commercial diesel fuel containing up to 5%
bio-fuel. If special grades of diesel e.g. 100%
Bio-Diesel are to be used consult HGI rst to
discuss its suitability.
On end:
Part of label
No: 499-1081-003
ELECTRICITY IS DANGEROUS
If in doubt about the correct use consult a
qualied electrician or contact our Technical
Help Line.
On end:
Part of label
No: 499-1081-003
CHECK ENGINE OIL LEVEL DAILY
Check the oil level each day and top up if
necessary to the top mark given in the oil level
diagram above. If oil consumption is excessive
investigate further.
On end:
Part of label
No: 499-1081-003
LOW LOAD RUNNING:
Operating the generator at low load levels for
extended periods can result in high levels of
carbon build up in the engine and exhaust
system which can lead to excessive smoking,
reduced efciency and overheating.
If the generator is not required switch it off and
avoid running with light or no load wherever
possible. Also see Maintenance Section.
On end:
Part of label
No: 499-1081-003
ENSURE Generator IS AT LEAST 1 METRE
AWAY FROM BUILDINGS, VEHICLES etc.
WHEN IN USE.
This is to ensure a free ow of cooling air to
the generator and that the exhaust from the
generator does not affect other items.
On end:
Part of label
No: 499-1081-003
KEEP FLAMMABLE MATERIAL AWAY FROM
THE GENERATOR
The exhaust and some surfaces are hot and
ammable material should not be allowed near
the generator.

HRD060D Diesel Generator
On end:
Part of label
No: 499-1081-003
OPERATE ONLY IN WELL VENTILATED
AREAS. EXHAUST FUMES CAN KILL.
Generally the generator will be installed in a
Welf-Air Cabin or similar in accordance with
our separate Installation Guide
An exhaust extension is normally supplied with
each generator and should be used to duct
the exhasut gas straight outside. Sufcient air
grilles for ventilation should be provided. For
such applications consult the Technical Help
Line if in doubt.
On end:
Part of label
No: 499-1081-003
STOP ENGINE AND ALLOW TO COOL
DOWN FOR A FEW MINUTES BEFORE
REFUELLING.
In addition DO NOT SMOKE while refuelling,
use a funnel or similar to prevent fuel spillage,
avoid over lling the fuel tank and wipe up any
spilt fuel. Avoid contact of fuel with skin.
On end:
Part of label
No: 499-1081-003
THIS GENERATOR SHOULD ONLY BE USED
TO POWER DOUBLE INSULATED CLASS
II ELECTRICAL EQUIPMENT UNLESS THE
OPTIONAL EARTH LEAKAGE TRIP (RCD) IS
FITTED.
In the UK it is currently permissible to use
small mobile generators for short periods
without an external earth connection being
made. But ONLY double insulated electrical
equipment can be powered by the generator.
All modern electrical equipment intended for
outdoors use should be double insulated and
marked with the
logo.
For xed installations (or where a mobile
generator is to remain in the same position
for a long time) an earth leakage system
(RCD) should be tted to the generator and an
external earth connection should be used.
CAUTION: Using a 13 amp 3 pin “plug in”
type earth leakage unit intended for the mains
supply may not work on a generator and
should not be relied upon to protect the User in
the event of all types of fault.
On end:
Part of label
No: 499-1081-003
DO NOT ADJUST THE SPEED OF THE
ENGINE UNLESS YOU HAVE BEEN
TRAINED TO DO SO
If the generator is not producing enough power
for the application or you suspect a problem
do not adjust the engine speed. This may
damage the engine, alternator and any power
equipment plugged into the generator.

Harrington Generators International
9498-1084HRD060D Diesel Generator
Safety
On end:
Part of label
No: 499-1081-003
KEEP CHILDREN AT A SAFE DISTANCE
FROM THE EQUIPMENT AND DO NOT
ALLOW THEM TO OPERATE IT
This is a mandatory Health and Safety
Requirement for this equipment. A version with
a key switch is available if required.
On end:
Part of label
No: 499-1081-003
DO NOT OPERATE WITH ANY COVERS
OPEN
If covers are open (or missing) the generator
will exceed the European Noise Regulations
and the cooling of the engine and alternator
will be affected which may cause damage to
them.
On end:
Part of label
No: 499-1081-003
ONLY OPERATE ON A LEVEL SURFACE
Generally the generator will only be used
on a level surface. It can be used on small
inclines as given in the Specication as given
previously but additional precautions may be
needed to stop it moving due to vibration.
On end:
Part of label
No: 499-1081-003
DO NOT SPILL FUEL ONTO HOT SURFACES
The exhaust outlet and the box around it in
particular are hot.
On end:
Part of label
No: 499-1081-003
IF AN EARTH LEAKAGE TRIP (RCD) IS FIT-
TED THE GENERATOR’S BRASS EARTH
STUD SHOULD BE CONNECTED TO AN
EXTERNAL EARTH. THIS EXTERNAL EARTH
CAN BE AN EARTH SPIKE OR ANY SUIT-
ABLE EARTH POINT. THE RCD SHOULD BE
TESTED DAILY BY PRESSING THE TEST
BUTTON AND CHECKING IT DOES TRIP.
If the generator is to be used for a xed instal-
lation or installed on the same site for a long
period it should be installed by a competent
person. The User should be shown where the
TEST button is located and shown how to use
it. An earth spike kit is available as an optional
extra.
On Control Panel. Qty. 1.
Label No: 499-1081-004
ELECTRICITY IS DANGEROUS
Warning Label advising safe use of sockets

Harrington Generators International
498-1084 10 HRD060D Diesel Generator
Safety
On side panels near
base.
Qty. 4 off.
Label No: 499-1081-005
FORK LIFT POINT
The generator can be lifted from the sides or
from the front or rear using a fork lift truck with
correctly spaced forks.
It is intended that when lifting from the sides,
that one fork passes through the part of the
frame that forms a loop and foot.
On control panel and
generator base Qty 2
Label No: 499-1081-006
EARTH POINT
An M8 brass earth stud is supplied next to
the output sockets for the external earth
connection.
On the panel that can be
removed to gain access
to the oil dip stick.
Qty. 1.
Label No: 499-1081-007
CHECK ENGINE OIL LEVEL DAILY
The oil level should be seen on the oil dip stick
as per the diagram on the label.
On Fuel Filler Cap.
Qty. 1.
Label No: 499-1081-008
DIESEL FUEL ONLY
This generator must only be lled with
commercial diesel fuel containing up to 5%
bio-fuel. If special grades of diesel e.g. 100%
Bio-Diesel are to be used consult HGI rst to
discuss its suitability.
On Control Panel around
the DC Isolator Switch
Qty 1
Label No. 499-945-012
DC ISOLATOR IDENTIFICATION
Informational label showing the ON / OFF posi-
tions of the switch.
Next to exhaust outlet.
Qty. 1
Label No: 499-1081-010
CAUTION HOT EXHAUST
The exhaust pipe is shielded as much as is
practical but the nal outlet is hot.

Harrington Generators International
11 498-1084HRD060D Diesel Generator
Safety
Next to air vents.
Qty. 2 off.
Label No: 499-1081-011
INLET AND OUTLET VENTS TO BE KEPT
CLEAR
These must be kept free from obstructions to
allow a free ow of cooling air or the engine
and alternator could over heat.
On the top panel
Qty. 1
Label No: 499-1081-012
NO STEP
The generator should not be used as a step.
The fuel tank is made of plastic and not
suitable to support the weight of a person.
On Output Panel
Pt No. 499-1081-013
Qty 1
DANGER 230V
Alerting to voltages behind cover
On Control Panel
Qty 1
Label No. 499-1081-014
230V OUTPUT
Advisory label showing voltage of the generator
On Hinged Lid
Qty 1
Label Part No:
499-1081-015
DANGER MOVING MACHINERY INSIDE
DOOR
This label warns operators that there will be
moving parts inside the generator when the
unit is in a running state.
On Control Panel below
the USB Port
Qty 1
Label No. 499-1081-016
USB PORT
Information label advising position of USB Port.
On the RH side, above
the access panel
Label No: 499-1081-017
FUEL FILL THIS SIDE
The fuel ller cap is located inside this cover.
Remove the cover to access the ller and for
refuelling.
DO NOT REFUEL WHILE THE SET IS
RUNNING OR HOT!

Harrington Generators International
498-1084 12 HRD060D Diesel Generator
Safety
On Control Panel
Qty 1
Label No. 499-1081-018
DANGER ELECTRICITY
The battery is 12 V DC and care should be tak-
en not to come into contact with the terminals.
On Top of 110V Sockets
Qty 1
Label No. 499-1081-019
110V
Advisory of voltage on socket output
On Top of 230V Sockets
Qty 1
Label No. 499-1081-020
230V
Advisory of voltage on socket output.
On Control Panel
Qty 1
Label No. 499-1081-021
12 V DC
Advisory of the battery voltages and care should
be taken not to come into contact with the termi-
nals.
On top next to lifting
loops.
Qty. 4 off.
Label No: 499-1081-022
LIFTING POINT
The generator can be lifted by hooks or lifting
straps at the four points marked on top of the
square tube frame. A four-point (not two-point)
lift is recommended.
94
LWA
dB(A)
Harrington Generators International Ltd
Ravenstor Road, Wirksworth, Derbyshire DE4 4FY
Tel: [phone] Fax:[phone]
Pt No. 499-325-094
On end:
Part of label
No: 499-325-094
LWA 94 dB
This is the sound level. At this level the
generator should not be operated in a small
space occupied by people.
The generator is intended to be operated out
doors or in a very large industrial building
where people are many metres away from
the generator. If you cannot hold a normal
conversation because of background noise
your hearing may be in danger. You should
move away, wear ear protection or turn off the
equipment.

Harrington Generators International
13 498-1084HRD060D Diesel Generator
Safety
Battery Compartment
On front panel over battery
compartment
Part of label
No: 499-081-001
DANGER ELECTRICITY
The battery is 12 V DC and care should
be taken not to come into contact with the
terminals.
On front panel over battery
compartment
Part of label
No: 499-081-001
DANGER ACID
The battery contains acid and if any liquid is
seen check the source, but assume rst that
it is acid. Care should be taken in cleaning up
acid.
On front panel over battery
compartment
Part of label
No: 499-081-001
WARNING EXPLOSIVE MATERIAL
The battery can under certain conditions give
off small quantities of hydrogen gas. Do not
smoke or use naked ames while working on
a battery. NEVER attempt to burn a battery
as a method of disposal.
On front panel over battery
compartment
Part of label
No: 499-081-001
DISCONNECT NEGATIVE LEAD FIRST
AND RECONNECT LAST
This is to ensure that if a spanner slips you
cannot create a circuit from the live battery
post to the generator chassis.
On front panel over battery
compartment
Part of label
No: 499-081-001
NO SMOKING OR NAKED LIGHTS
The battery can under certain conditions give
off small quantities of hydrogen gas. Do not
smoke or use naked ames while working on
a battery.
On front panel over battery
compartment
Part of label
No: 499-081-001
RECYCLE
The battery contains lead and sulphuric acid
and should be recycled at an approved facil-
ity only and not put into a dust bin.

Harrington Generators International
498-1084 14 HRD060D Diesel Generator
Safety
Electrical Safety
In addition to the information given previously the-
generator should be installed, earthed and used with
reference to the following:-
• I.E.E Regulations 17th Edition (BS 7671:2008)
• Health and Safety Executive Publications GS27
Protection Against Electric Shock
• Health and Safety Executive Publications GS24
Electricity On Construction Sites
• Health and Safety Executive Publications PM53
Emergency Private Generation
available from HMSO. Alternatively the HGI Technical
Help Line would be pleased to advise you on the best
measures for your particular application.
NOTICE
This generator is NOT fully water proof and
neither the generator, nor any electrical equipment
should be left out side indenitely and operated in
prolonged and heavy rain or snow. The generator
is suitable to be left outside in light rain. We would
NOT recommend operating hand held electrical
equipment in light rain or snow.
DO NOT use a pressure washer to clean the
generator as high pressure water may enter the
electrical system.
Lifting and Moving
In addition to the information given previously the
following apply:-
Manual Lifting
Manual handling operations should be planned and
under taken after considering:-
• Manual Handling Operations Regulations 1992:
Guidance on Regulations L23: HSE Publications
1998
• Manual Handling Assessment Charts: HSE Publi-
cations 08/03
For the HRD060D generator, manual lifting (even with
four people) cannot be recommended as a formal risk
assessment would show it to be a high risk activity.
Manual Moving by Pushing Using the Handles and
Wheels
The generator has been designed to be pushed on an
occasional basis over a short distance by a t person
with no relevant health problems over a suitable dry
surface. As such this activity would represent a low
to medium risk. A specic risk analysis should be
conducted for the particular set of circumstances.
For smooth surfaces like concrete oors generators
with solid tyres can be used. For rough surfaces only
those generators tted with pneumatic tyres should be
pushed.
Generators should not be pushed up or down steep;
ramps, inclines or loaded/unloaded from vehicles
using planks or similar temporary structures. Extra
care should be taken in the wet. The bar on the front
of the generator can be used by a second person to
guide or help the generator wheels to pass over a
bump but is not designed as a lifting point.
The centre of gravity of a generator can move once it
is being pushed due to the fuel moving in its tank. It
should be anticipated that the generator will try to tip
over forwards if you hit a bump on the ground or if you
are trying to push it too quickly.
Mechanically Assisted Lifting
The weight has been given previously in this manual.
The centre of gravity is located as shown in Figure
1 General Dimensions. In Great Britain all assisted
lifting is governed by:-
• Lifting Operations & Lifting Equipment Regula-
tions 1998 (LOLER) SI 1998 No: 2307
The following publication should also be observed:-
• HSE ACoP publication L113 Safe Use of Lifting
Equipment, Lifting Operations and Lifting Equip-
ment Regulations.
