Highlite International Infinity iB-715 User manual

Infinity iB-715 V1
Highlite International B.V. –Vestastraat 2 –6468 EX –Kerkrade –the Netherlands
Ordercode: 41540
MANUAL
ENGLISH

1
Ordercode: 41540
Infinity iB-715
Table of contents
Warning ...............................................................................................................................................................................2
Safety Instructions .........................................................................................................................................................2
Operating Determinations ..........................................................................................................................................4
Rigging ............................................................................................................................................................................4
Connection with the mains.........................................................................................................................................5
Return Procedure..........................................................................................................................................................6
Claims..............................................................................................................................................................................6
Description of the device.................................................................................................................................................7
Frontside..........................................................................................................................................................................7
Backside .........................................................................................................................................................................8
Installation...........................................................................................................................................................................8
Set Up and Operation .......................................................................................................................................................8
Control Modes...............................................................................................................................................................9
One Infinity (Stand-alone)........................................................................................................................................9
Multiple Infinitys (Master/Slave control).................................................................................................................9
Multiple Infinitys (DMX Control) .............................................................................................................................10
Fixture Linking...............................................................................................................................................................11

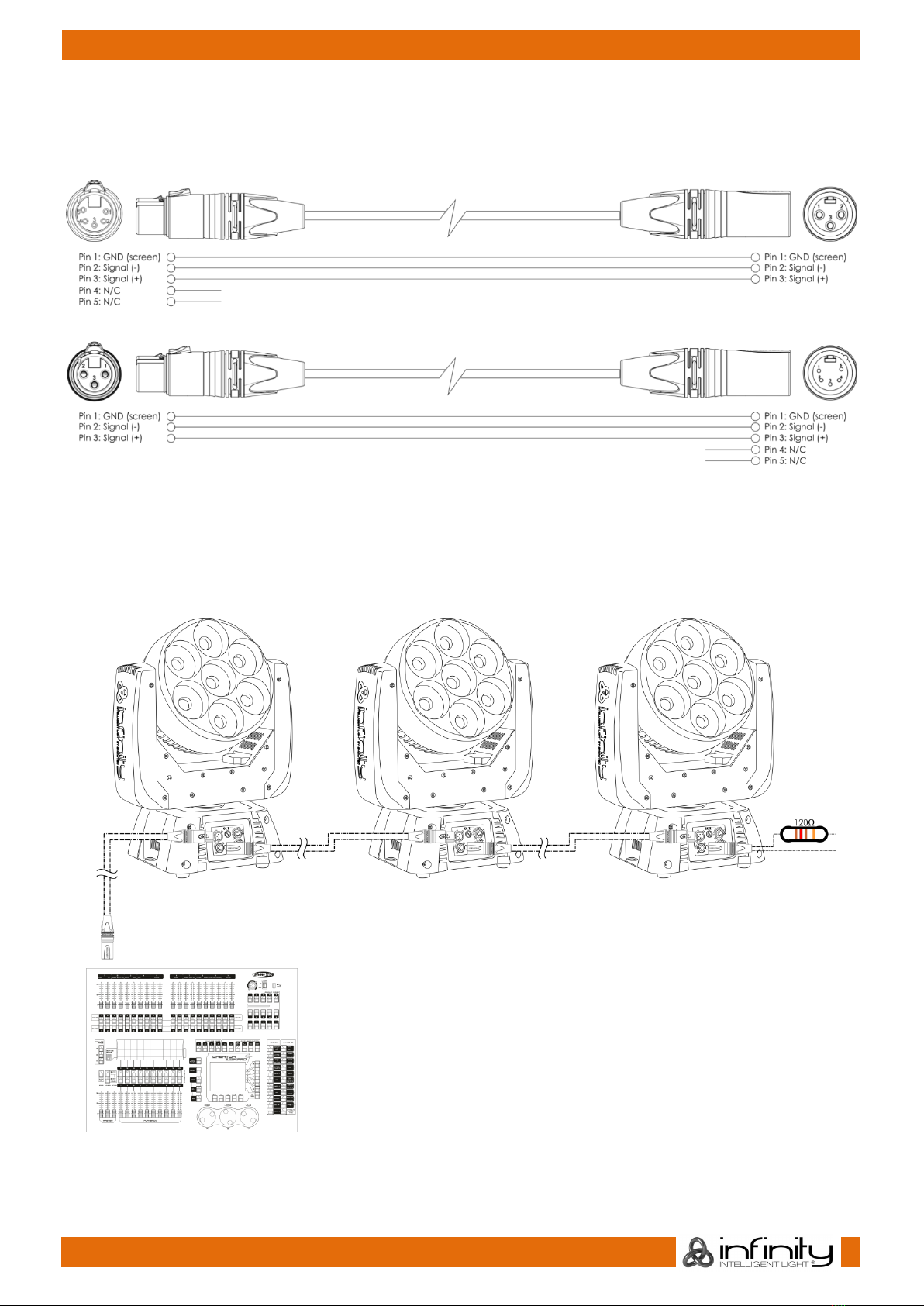

Data Cabling...............................................................................................................................................................11

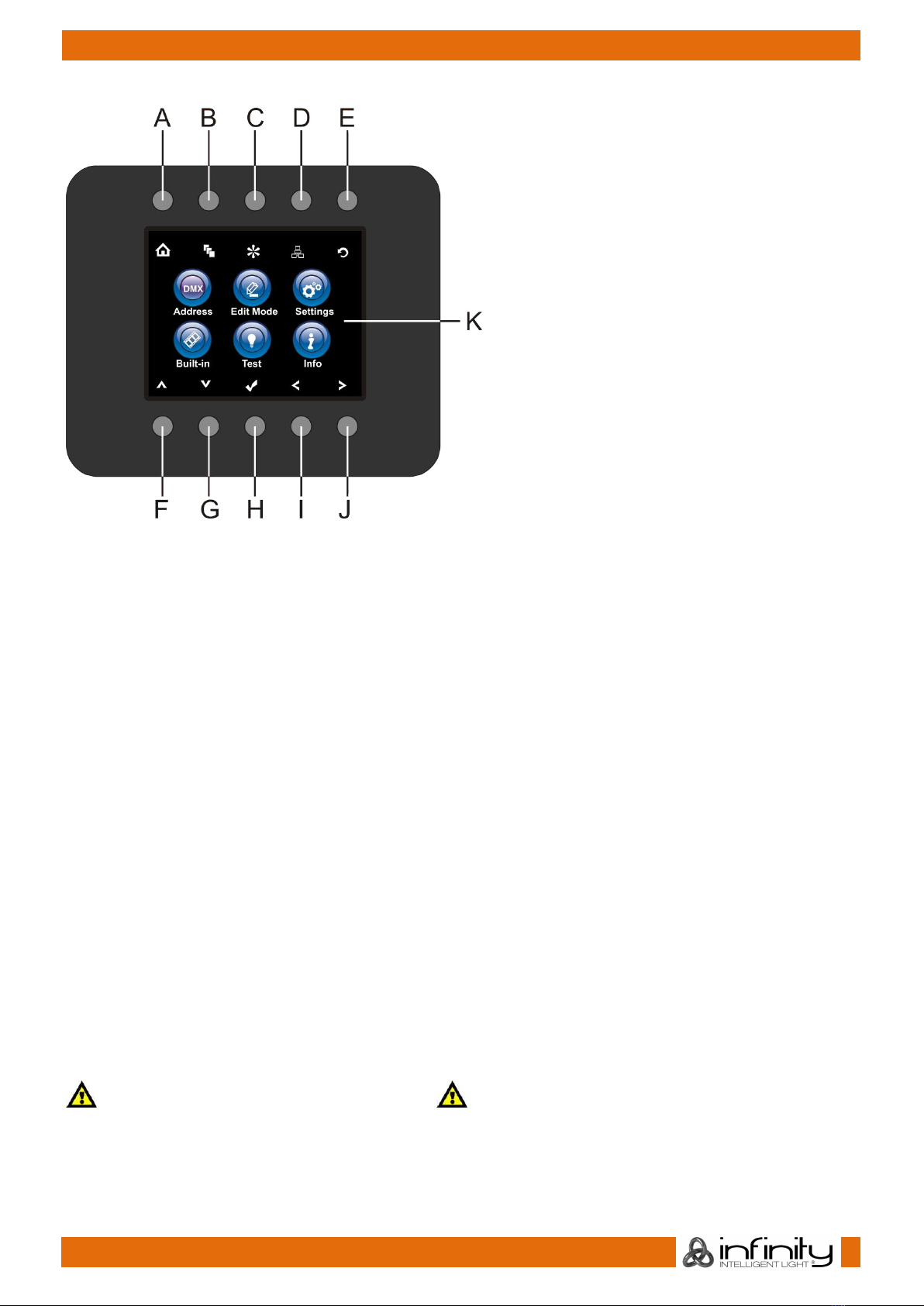

Control Panel ...............................................................................................................................................................12
Control Mode ..............................................................................................................................................................12
DMX Addressing ..........................................................................................................................................................12

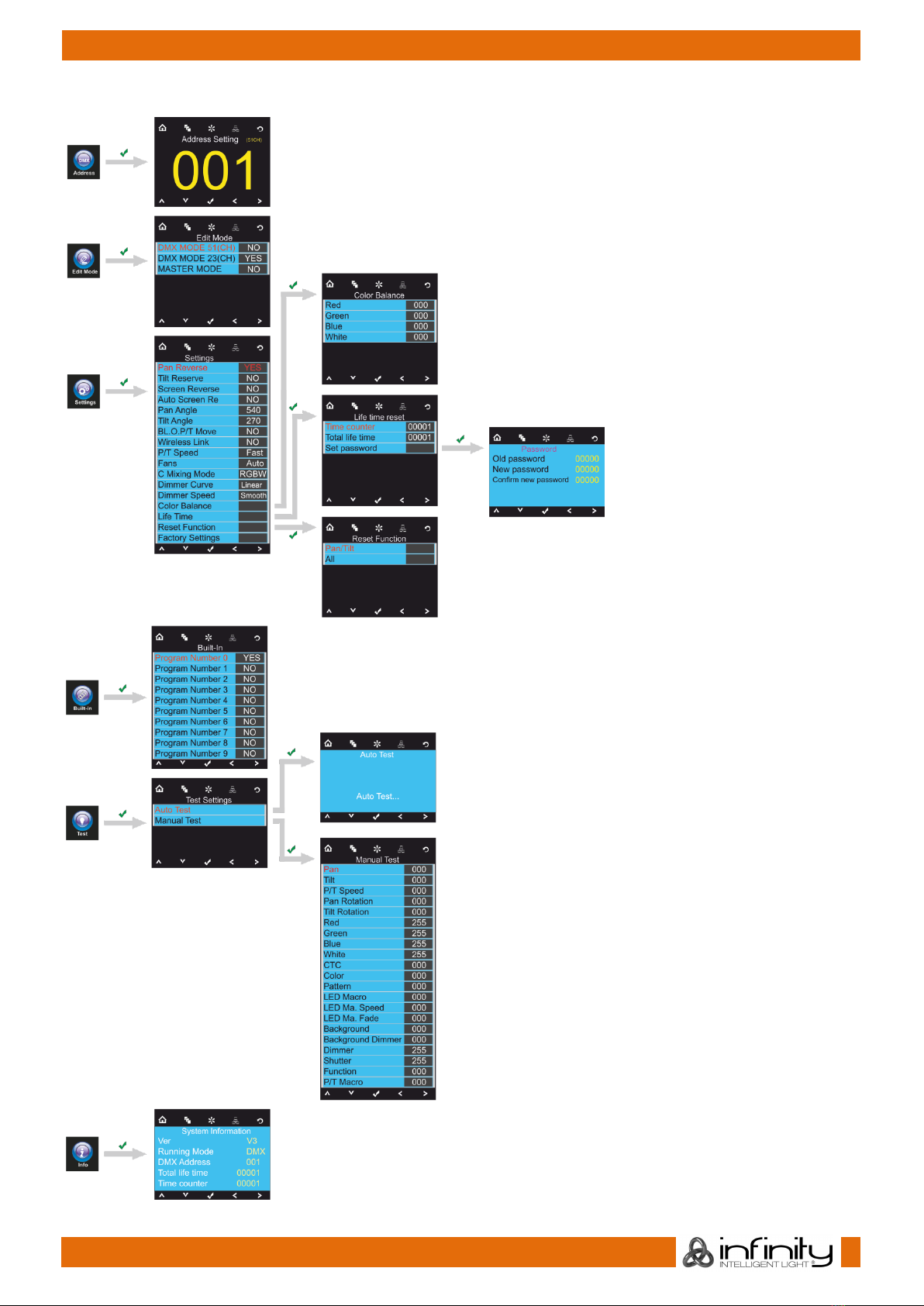

Menu Overview...........................................................................................................................................................13

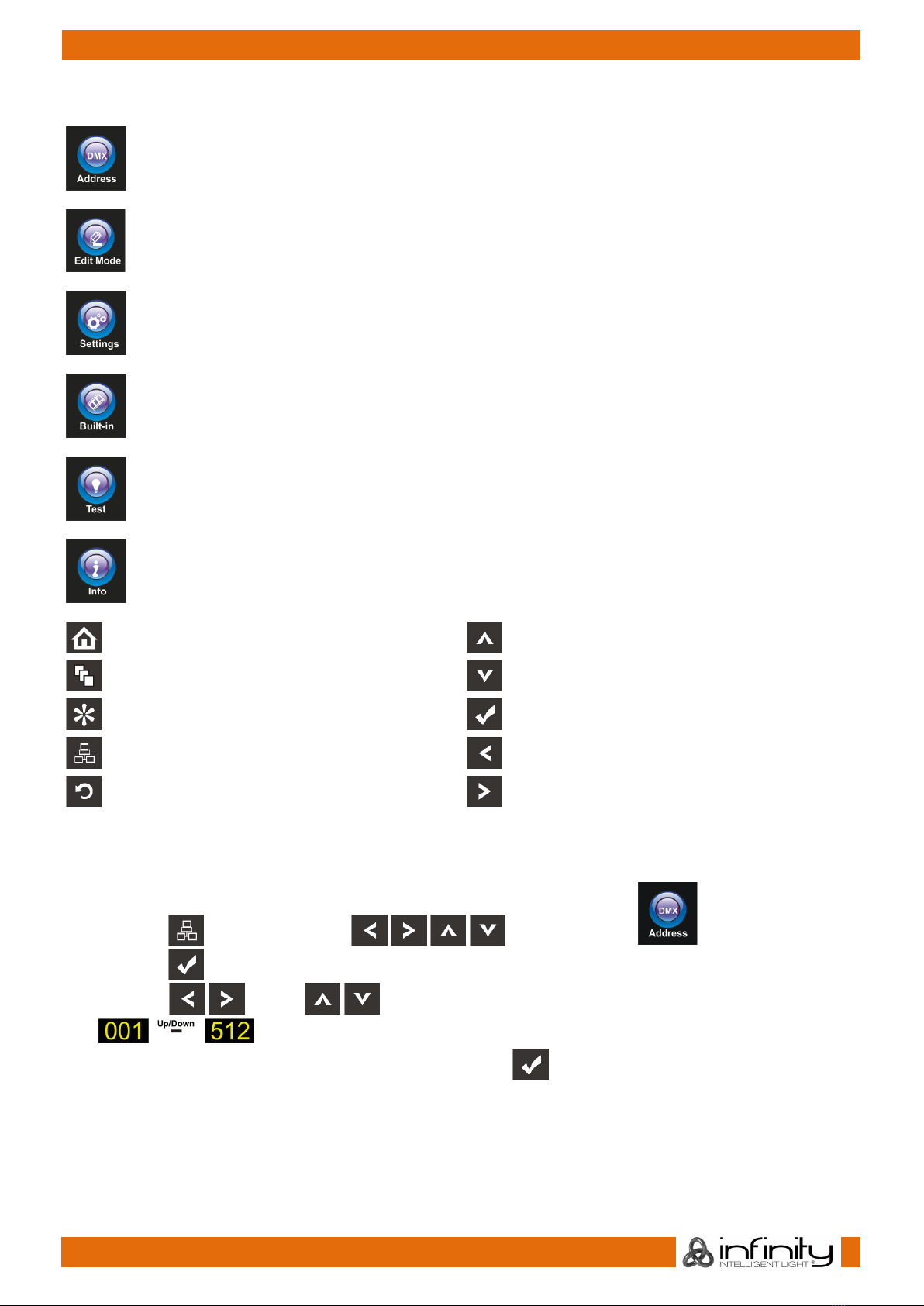

Main Menu Options....................................................................................................................................................14
1. DMX Addressing...................................................................................................................................................14

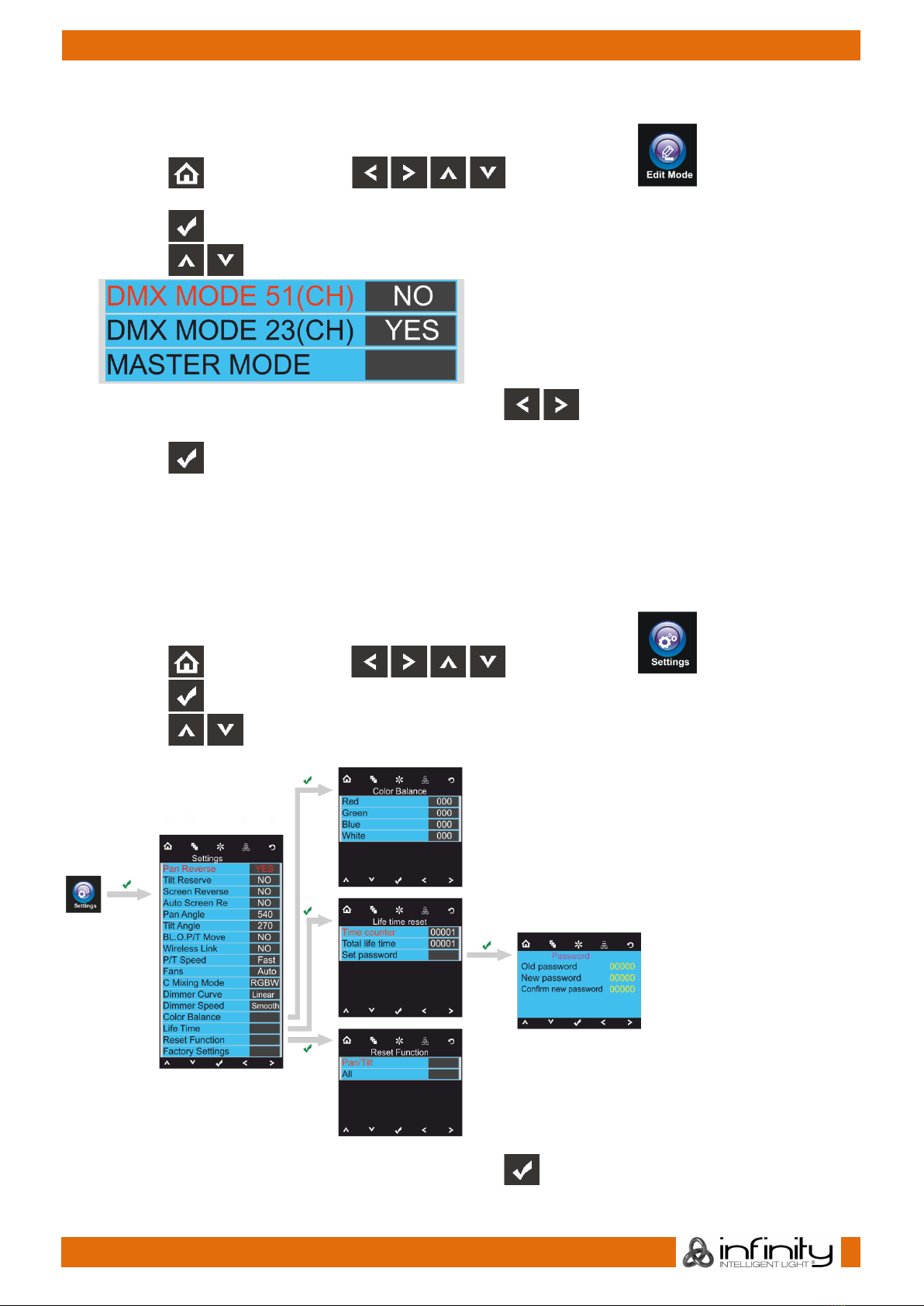

2. Edit Mode..............................................................................................................................................................15
3. Settings Menu.......................................................................................................................................................15
3.1. Color Balance ...................................................................................................................................................16
3.2. Life Time..............................................................................................................................................................16

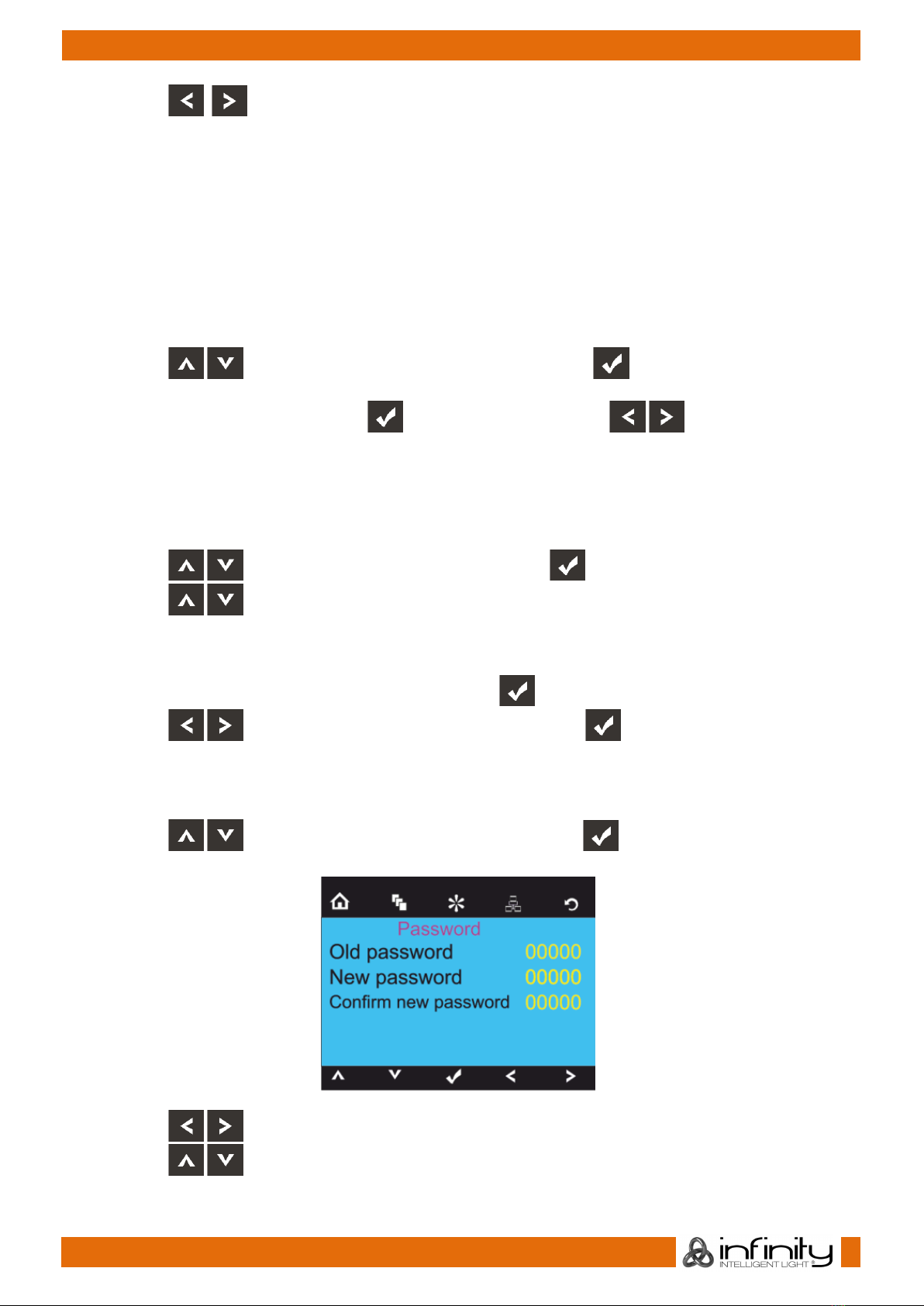

3.2.1. Set Password ..................................................................................................................................................16
3.3. Reset ...................................................................................................................................................................17
4. Built-in Programs...................................................................................................................................................17
5. Test Menu ..............................................................................................................................................................18
6. System information ..............................................................................................................................................19
DMX Channels .............................................................................................................................................................19
23 channels...............................................................................................................................................................19
51 channels...............................................................................................................................................................25
Maintenance....................................................................................................................................................................32
Replacing the Fuse.....................................................................................................................................................32
Troubleshooting ...............................................................................................................................................................32
No Light.........................................................................................................................................................................32
No Response to DMX..................................................................................................................................................33
Product Specifications....................................................................................................................................................34
Dimensions........................................................................................................................................................................35
Notes ..................................................................................................................................................................................36

2
Ordercode: 41540
Infinity iB-715
Warning
Unpacking Instructions
Immediately upon receiving this product, carefully unpack the carton and check the contents to ensure
that all parts are present, and have been received in good condition. Notify the dealer immediately and
retain packing material for inspection if any parts appear damaged from shipping or the carton itself
shows signs of mishandling. Save the carton and all packing materials. In the event that a fixture must be
returned to the factory, it is important that the fixture be returned in the original factory box and packing.
Your shipment includes:
Infinity iB-715
Mounting bracket with quick-locks
Power cable Neutrik PowerCON to Schuko 1,5 m
User manual
LED Expected Lifespan
LEDs gradually decline in brightness over time. HEAT is the dominant factor that leads to the acceleration
of this decline. Packaged in clusters, LEDs exhibit higher operating temperatures than in ideal or singular
optimum conditions. For this reason, when all color LEDs are used at their fullest intensity, life of the LEDs is
significantly reduced. If improving life expectancy is of higher priority, place care in providing for lower
operational temperatures. This may include climatic-environmental and the reduction of overall
projection intensity.
Safety Instructions
Every person involved with the installation, operation and maintenance of this device has to:
be qualified
follow the instructions of this manual
Before the initial start-up, please make sure that there is no damage caused by transportation. Should
there be any, consult your dealer and do not use the device.
To maintain perfect condition and to ensure a safe operation, it is absolutely necessary for the user to
follow the safety instructions and warning notes written in this manual.

3
Ordercode: 41540
Infinity iB-715
Please consider that damages caused by manual modifications to the device are not subject to
warranty.
This device contains no user-serviceable parts. Refer servicing to qualified technicians only.
IMPORTANT:
The manufacturer will not accept liability for any resulting damages caused by the non-observance of
this manual or any unauthorized modification to the device.
Never let the power cord come into contact with other cables! Handle the power cord and all
connections with the mains with particular caution!
Never remove warning or informative labels from the unit.
Never use anything to cover the ground contact.
Never lift the fixture holding it by the projector-head, as the mechanics may be damaged. Always
hold the fixture by the transport handles.
Never place any material over the lens.
Never look directly into the light source.
Never leave any cables lying around.
Never loosen the screws of the rotating gobo otherwise you risk opening of the ball bearing.
Do not insert objects into air vents.
Do not connect this device to a dimmerpack.
Do not switch the device on and off in short intervals, as this will reduce the device’s life.
Do not touch the device’s housing bare-handed during its operation (housing becomes hot). Allow
the fixture to cool for at least 5 minutes before handling.
Do not shake the device. Avoid brute force when installing or operating the device.
Only use the device indoors, avoid contact with water or other liquids.
Only operate the fixture after having checked if the housing is firmly closed and all screws are tightly
fastened.
Only operate the device after having familiarized with its functions.
Avoid flames and do not put close to flammable liquids or gases.
Always keep the case closed while operating.
Always allow a free air space of at least 50 cm around the unit for ventilation.
Always disconnect power from the mains, when device is not used or before cleaning! Only handle
the power cord holding it by the plug. Never pull out the plug by tugging the power cord.
Make sure that the device is not exposed to extreme heat, moisture or dust.
Make sure that the available voltage is not higher than stated on the rear panel.
Make sure that the power cord is never crimped or damaged. Check the device and the power
cord from time to time.
If the lens is obviously damaged, it has to be replaced.
If device was dropped or struck, disconnect mains power supply immediately. Have a qualified
engineer inspect for safety before operating.
If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not
switch it on immediately. The arising condensation water might damage your device. Leave the
device switched off until it has reached room temperature.
If your Infinity device fails to work properly, discontinue the use immediately. Pack the unit securely
(preferably in the original packing material), and return it to your Showtec dealer for service.
For adult use only. The moving head must be installed beyond the reach of children. Never leave the
unit running unattended.
Never attempt to bypass the thermostatic switch or fuses.
For replacement use fuses of same type and rating only.
The user is responsible for correct positioning and operating of the Infinity. The manufacturer will not
accept liability for damages caused by the misuse or incorrect installation of this device.
This device falls under protection class I. Therefore it is essential to connect the yellow/green
conductor to earth.
Repairs, servicing and electric connection must be carried out by a qualified technician.
WARRANTY: Till one year after date of purchase.

4
Ordercode: 41540
Infinity iB-715
Operating Determinations
This device is not designed for permanent operation. Consistent operation breaks will ensure that the
device will serve you for a long time without defects.
The minimum distance between light output and the illuminated surface must be more than 1 meter.
The maximum ambient temperature ta = 40°C must never be exceeded.
The relative humidity must not exceed 50 % with an ambient temperature of 40° C.
If this device is operated in any other way than the one described in this manual, the product may
suffer damages and the warranty becomes void.
Any other operation may lead to dangers like short-circuit, burns, electric shock, crash etc.
You endanger your own safety and the safety of others!
Rigging
Please follow the European and national guidelines concerning rigging, trussing and all
other safety issues.
Do not attempt the installation yourself!
Always have the inspections carried out by an authorized dealer!
Procedure:
If the projector is lowered from the ceiling or high joists, professional trussing systems have to be used.
Use a clamp to mount the projector, with the mounting bracket, to the trussing system.
The projector must never be fixed swinging freely in the room.
The installation must always be secured with a safety attachment, e.g. an appropriate safety net or
safety cable.
When rigging, derigging or servicing the projector, always make sure, that the area below the
installation site is secured and that there are not any unauthorized people around.
