HIK VISION DS-2CD712P(N) User manual

Hikvision Technical Manual

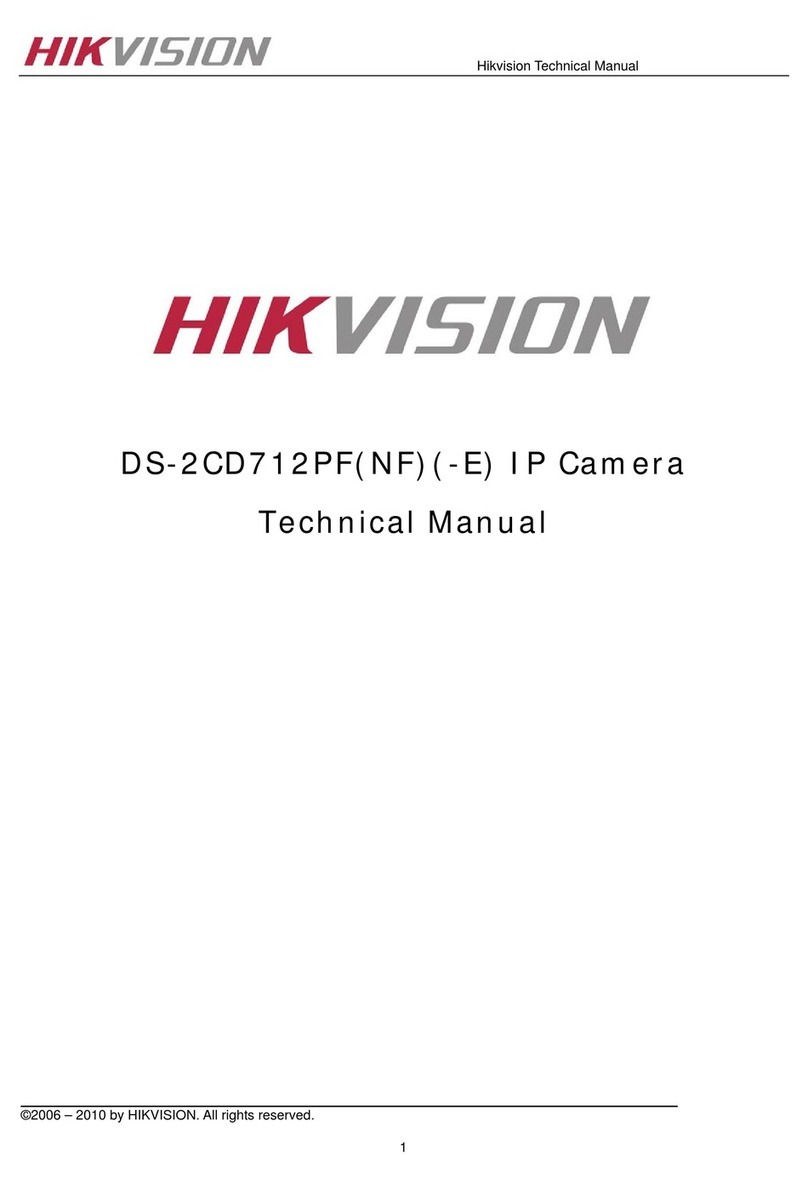

DS-2CD712P(N) IP Camera
Technical Manual
©2006 – 2010 by HIKVISION. All rights reserved.
1

Hikvision Technical Manual
©2006 – 2010 by HIKVISION. All rights reserved.
2
Notices
The information in this documentation is subject to change without notice and does not represent any
commitment on behalf of HIKVISION. HIKVISION disclaims any liability whatsoever for incorrect data
that may appear in this documentation. The product(s) described in this documentation are furnished
subject to a license and may only be used in accordance with the terms and conditions of such license.
Copyright © 2006-2010 by HIKVISION. All rights reserved.
This documentation is issued in strict confidence and is to be used only for the purposes for
which it is supplied. It may not be reproduced in whole or in part, in any form, or by any means or
be used for any other purpose without prior written consent of HIKVISION and then only on the
condition that this notice is included in any such reproduction. No information as to the contents or
subject matter of this documentation, or any part thereof, or arising directly or indirectly therefrom,
shall be given orally or in writing or shall be communicated in any manner whatsoever to any third party
being an individual, firm, or company or any employee thereof without the prior written consent of
HIKVISION. Use of this product is subject to acceptance of the HIKVISION agreement required to use
this product. HIKVISION reserves the right to make changes to its products as circumstances may
warrant, without notice.
This documentation is provided “as-is,” without warranty of any kind.
Please send any comments regarding the documentation to:
[email protected]
Find out more about HIKVISION at www.hikvision.com

Hikvision Technical Manual
©2006 – 2010 by HIKVISION. All rights reserved.
3
Contents
1. Key Features
2. Specifications
3. Dimension

Hikvision Technical Manual
©2006 – 2010 by HIKVISION. All rights reserved.
4
1.Key Features
z±0.1° Preset Accuracy
z150°/s Pan Preset Speed and 60°/s Tilt Preset Speed
z0.7-80°/s Pan Manual Speed and 0.7-45°/s Tilt Manual Speed
zPark Action: Start to Call Preset / Patrol / Pattern / Auto Scan / Random Scan /
Frame Scan, after a Defined Time of Inactivity
zProgrammable Limit Stops for Auto / Random Scan / Frame Scan Modes
zAlarm I/O: 1 Channel Input and 1 Channel Relay output
zAlarm Actions: 200 Presets, 8 Patrols, 4 Patterns, Auto Scan, Alarm Output, SD
Memory Recording and Notification on PC Client
zEmbedded Linux OS
zTI DaVinci Hardware Compression
zH.264 video Compression
z1 Channel Audio Compression
zSupport 4CIF / DCIF / 2CIF / CIF / QCIF Real Time Compression
zSupport Dual Compression Stream
zSupport Motion Detection, and Notification on PC Client
zSupport both Variable Bit rate and Variable Frame Rate
zSupport TCP/IP, HTTP, DHCP, DNS, RTP/RTCP, PPPoE, etc.
zSupport IE for Network Preview
zSupport HIKVISION Watermark
zSupport Network Intercom Function
zCompatible with Current HIKVISION DVR/DVS SDK and Client Software
zBuilt-in Surge Protection
zWorking Temperature -10℃~50℃(Indoor)

Hikvision Technical Manual
©2006 – 2010 by HIKVISION. All rights reserved.
5
2.Specifications
Parameter
Model DS-2CD712P (N) F-EPT
Camera
Image Sensor 1/3 inch SONY Super HAD CCD
Effective Pixels PAL: 752 (H) × 582 (V)
NTSC: 768 (H) × 494 (V)
Lens 3.5--9mm / F1.2 / Φ14 / Auto Iris
Signal System PAL / NTSC
Day & Night Electronic
Electronic Shutter 1/50s ~ 1/100,000s
Min. Illumination 0.1Lux @ F1.2
S/N Ratio More than 48dB
Video Output 480 TVL, 1Vp-p Composite Output (75Ω/ BNC)
BLC ON
Compression Standard
Video Compression H.264
Video Output 32 K ~ 2M, adjustable (8Mbps maximum)
Audio Compression OggVorbis
Image Resolution PAL: 704 × 576, 528 × 384, 704 × 288, 352 × 288, 176 × 144
NTSC: 704 × 480, 528 × 320, 704 × 240, 352 × 240, 176 × 120
Frame Rate 25fps (704 × 576)
Functions
Horizontal Range 0 ~ 360°endless
Vertical Range 0 ~ 90°
Horizontal Speed 0.7 ~ 80°/S
Vertical Speed 0.7 ~ 45°/S
RS-485 Protocols HIKVISION, Pelco-D, Pelco-P (addible), Self-adaptive
Pan Preset Speed 0 ~ 150°/S
Auto Mode Auto Scan, Frame Scan, Random Scan, 8 Patrol Scan, 4 Pattern Scan.
Number of Presets 200
Auto Flip Support
Menu Language Chinese, English
Mouse Control Support Mouse Drag while select HIKVISION protocol in Client Software
Dual Stream Support
SD card Local Recording Support

Hikvision Technical Manual
©2006 – 2010 by HIKVISION. All rights reserved.
6
Heartbeat Support
Password Protect Support
Protocols TCP / IP, HTTP, DHCP, DNS, RTP / RTCP, PPPoE (FTP, SMTP, NTP, SNMP
addible).
Interface
Audio Input 1 channel (2.0 ~ 2.4Vp-p, 1kΩ)
Audio Output 1 channel (Line level, 600Ω)
Communication 1 RJ45 10M/100M self-adapted Ethernet port and, 1 RS-485 interface
Alarm Input 1 channel signal input
Alarm Output 1 channel signal relay output
Others
Working Temperature -10℃~ 50℃(Indoor)
Power Supply 12VDC, ±10%, (-E) series support PoE (Power over Ethernet)
Power Consumption 12W MAX
Dimensions (mm) φ145×132.8
Weight 2000g

Hikvision Technical Manual
3.Dimension
©2006 – 2010 by HIKVISION. All rights reserved.
7
