Chapter 1 Overview
1.1 Brief Description
HIKMICRO HABROK series is a powerful and innovative handheld thermal and digital day &
night vision multi-spectrum binocular. It adopts a 12 μm infrared thermal detector with
high thermal sensitivity up to NETD < 20 mK, 2560 × 1440 low illumination optical detector
with built-in adjustable IR illuminator, and a precise built-in laser rangefinder up to 1000 m
measuring distance. It offers excellent image quality in true living color or thermal during
day and night observation in adverse weather conditions with up to 1800 m detection
range. The device can be mainly applied in forest & field hunting, birding, animal searching,
adventuring, and rescuing scenario.
1.2 Function
Zoom Pro
Zoom Pro, an advanced zoomed image processing algorithm, ensures maximum image
optimization under digital zoom.
Smart IR
The smart IR function helps to view targets clearly in dark environment.
GPS
Equipped with satellite positioning modules, the device can be located with GPS system.
Compass
The device can detect the azimuth angle and elevation angle and show the direction
information on the screen.
Distance Measurement
Built-in laser range finder provides an accurate distance between the target and the
observation position.
Auto Screen Off
Auto screen off function allows the device to enter standby mode/wake up through
angle changes. The function darkens the screen to save energy and increase battery
time.
App Connection

Multi-spectrum Binocular User Manual
2
The device can capture snapshots, record videos, and set parameters by HIKMICRO
Sight app after being connected to your phone via hotspot.
1.3 Appearance
The appearance may vary according to different models. Please take the actual product
for reference.

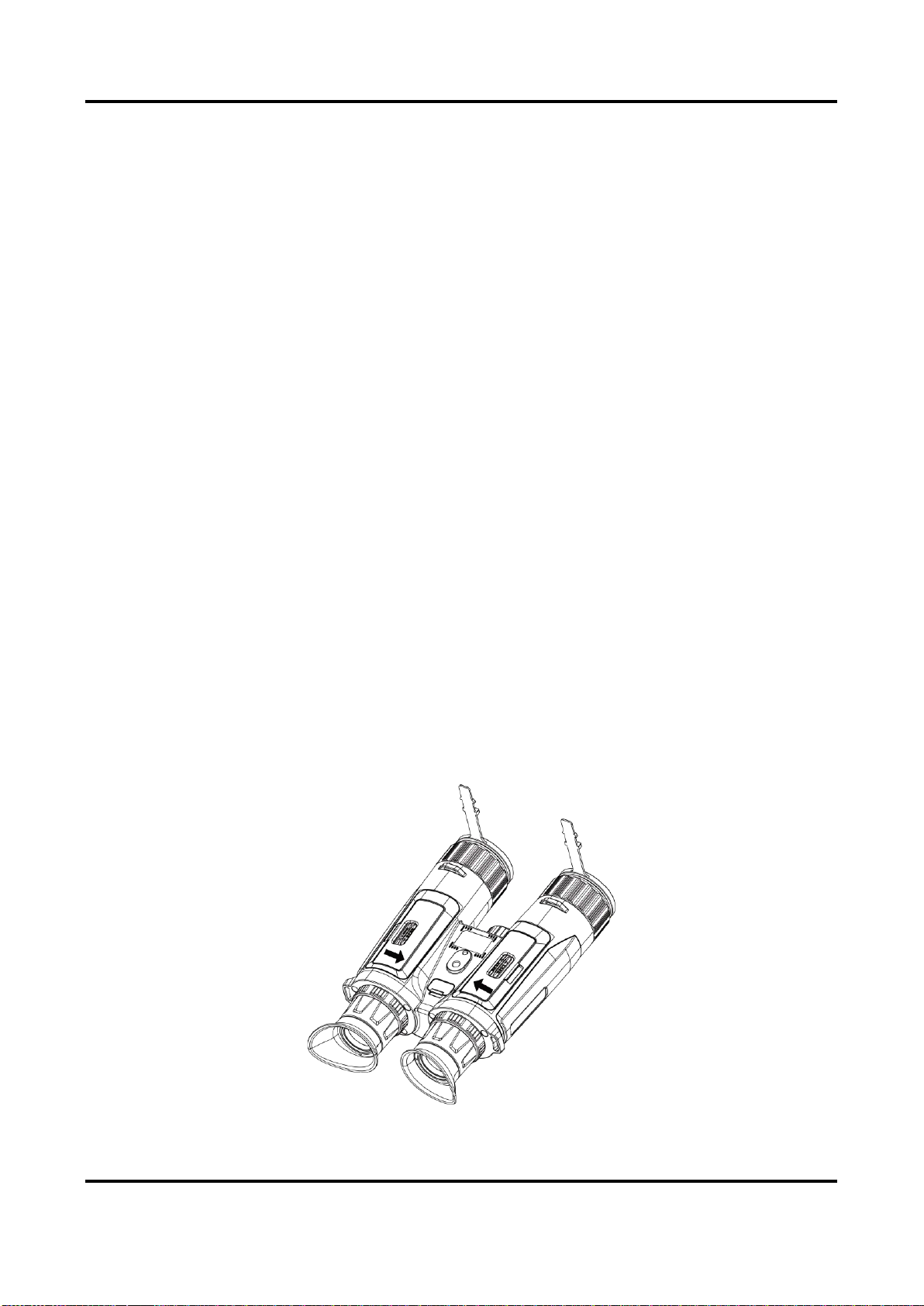

Figure 1-1 Appearance

Multi-spectrum Binocular User Manual
3
Table 1-1 Components
No.
Description
Function
1 & 7
Eyepiece
The piece placed closest to the eye to view the target.
Adjust the interpupillary distance by moving the
eyepieces farther or closer to each other.
2
Infrared Light
Helps to view target clearly in the dark environment.
3 & 8
Focus Ring
Adjusts focus to obtain clear targets.
4
Thermal Lens
For thermal imaging.
5
Buttons
To set functions and parameters.
6
Laser Rangefinder
Measures the distance to the target with laser.
9
Optical Lens
For optical imaging.
10
Type-C Interface
To connect the device to power supply or transmit
data with a type-C cable.
11
Charging Status
Indicator
●Flashing Red & Green: Error occurred.
●Solid Red: Charging.
●Solid Green: Fully charged.
12 & 15
Battery
Compartment
For holding the battery.
13 & 17.
Neck Strap
Attachment Point
Mounts the neck strap.
14 & 18
Diopter
Adjustment Ring
Adjusts the dioptric setting.
16
Tripod Mount
Mounts the tripod.
Table 1-2 Button Description
Icon
Button
Function
Power
●Press: Standby mode/Wake up device.
●Hold: Power on/off.
Capture
●Press: Capture snapshots.
●Hold: Start/Stop recording videos.
Measure
●Press: Turn on/off laser ranging.
●Hold: Correct non-uniformity of display (FFC).
Mode
Non-Menu Mode:
●Press: Switch palettes.
●Hold: Switch day/night/auto mode.
Menu Mode: Press to move up.
Menu
Non-Menu Mode: Press to enter the menu.
Menu Mode:
●Press: Confirm/Set parameters.

Multi-spectrum Binocular User Manual
4
Icon
Button
Function
●Hold: Save and exit menu.
Zoom
Non-Menu Mode:
●Press: Switch digital zoom.
●Hold: Turn on/off PIP (Picture-in-Picture).
Menu Mode: Press to move down.
Note
●The power indicator stays solid red when the device is on.
●When the auto screen off function is enabled, if you press to enter standby mode,
you can also tilt or rotate the device to wake up the device. Refer to Auto Screen Off
for detailed operation.

Multi-spectrum Binocular User Manual
5
Chapter 2 Preparation
Take out the device and accessories. Check them with the packaging list to confirm device
and accessories are included and available for use. Read the user manual to learn the
usage methods and cautions.
2.1 Install Battery
2.1.1 Battery Instruction
Remove the battery if the device is not used for a long time.
The external rechargeable battery type is 18650, and the battery size should be 19 mm ×
70 mm. The rated voltage is 3.6 VDC, and the battery capacity is 3200 mAh.
Charge the battery for more than 5 hours before first use.
To ensure better conductivity, if the battery compartment cover gets dirty, use a clean
cloth to wipe the thread.
2.1.2 Battery Installation
Insert the battery into the battery compartment.
Steps
1. Unlock and open the battery compartment cover.

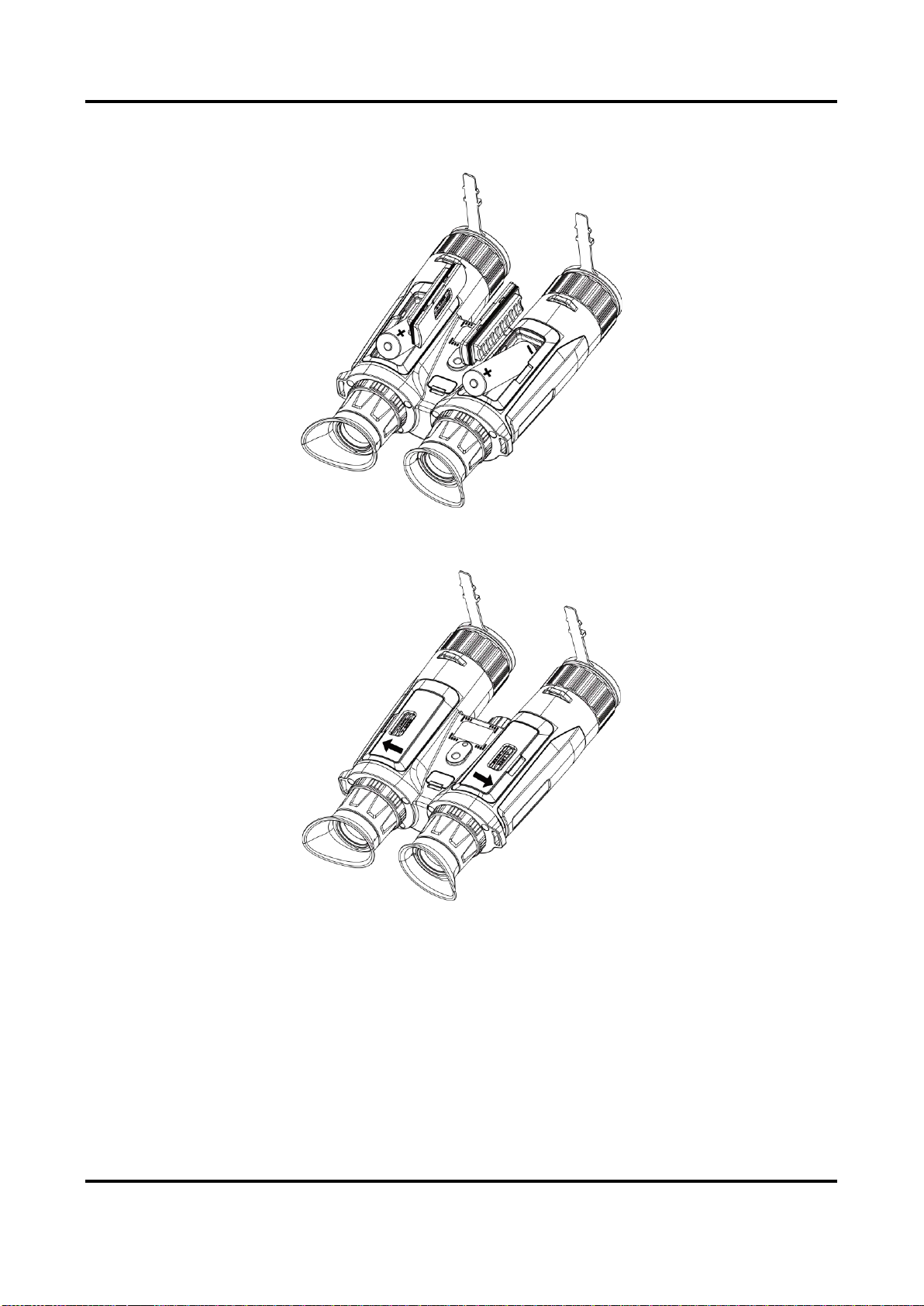

Figure 2-1 Open the Cover

Multi-spectrum Binocular User Manual
6
2. Insert batteries into the battery compartment as the positive and negative marks
indicate.
Figure 2-2 Install the Battery
3. Close the battery compartment cover and lock it.
Figure 2-3 Close the Cover
2.2 Cable Connection
Connect the device and power adapter with a type-C cable to charge the device.
