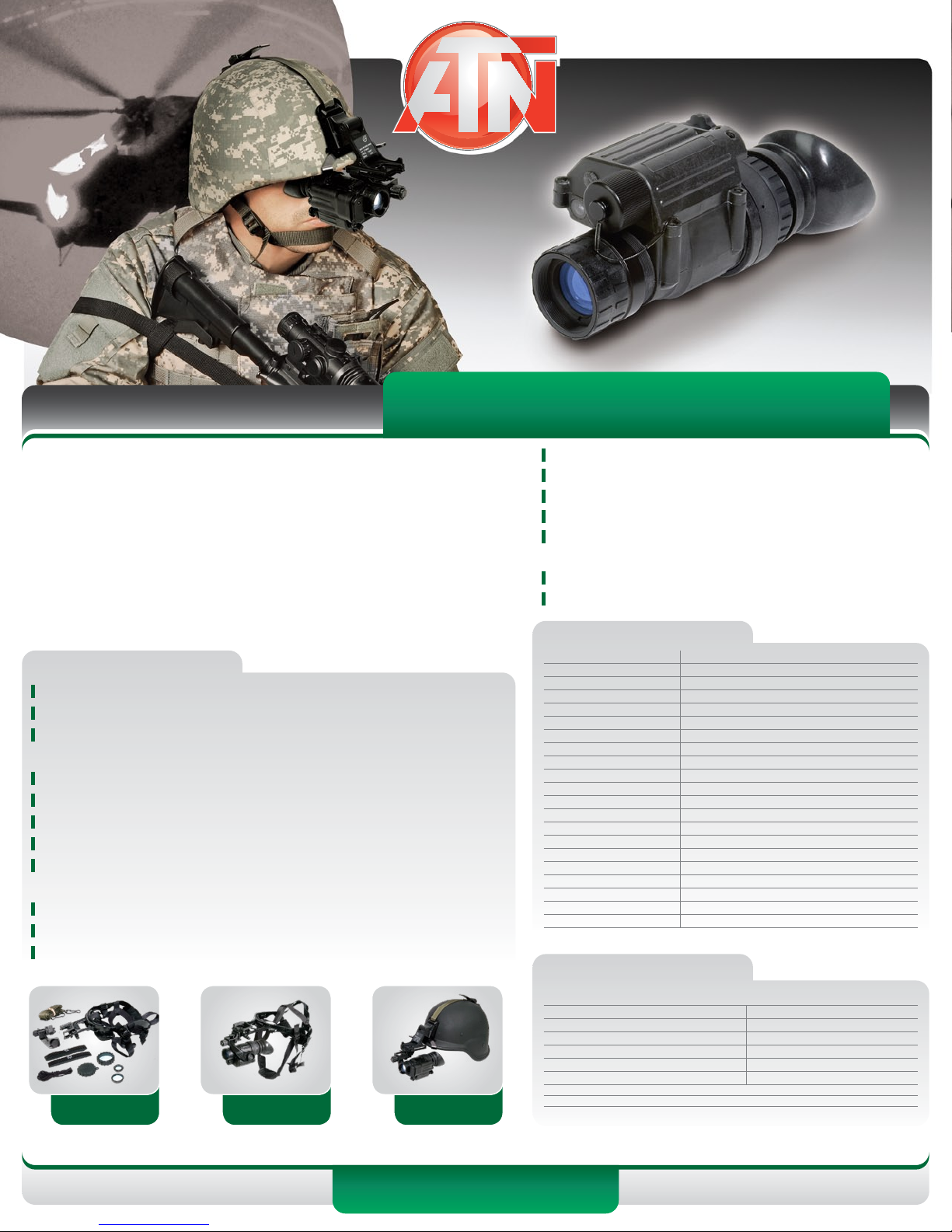

MULTI-PURPOSE SYSTEM
ATNs 6015 are rugged, lightweight and versatile night
vision monoculars, designed for the most demanding of
nighttime applications. The 6015 can be handheld, head/
helmet-mounted for hands-free usage or adapted to cameras/
camcorders. Originally designed for the U.S. military,
these units are of the highest quality in optics, design and
functionality. The ATN 6015 is an outstanding choice for
professional night vision applications.
THE PVS-14 BASIC KIT
Head Mount Assembly — Allows for hands-free operation
Brow Pad — Changeable pad for secure head mount fit
Helmet/Head Mount Adapter — Allows the user to position the monocular in
front of either eye
Eye Cup — Prevents the emission of stray light or facial reflections
Soft Carrying Case — Provides convenient storage of PVS14 and accessories
Shoulder Strap — Attaches to the PVS14 carrying case for easy portability
Lens Paper — Used to lightly clean the objective and eyepiece glass surfaces
Day Light Filter — Filters excessive light. Protects objective lens from the
elements
Diopter Lens Cap — Protects diopter lens from the elements
Operator’s Manual — Instructional user’s guide
Batteries — One 1.5V AA size
INCLUDED
ACCESSORIES
HEAD MOUNT
ASSEMBLY
HELMET MOUNT
ASSEMBLY
US Military design
Multi-Purpose unit
Handheld monocular
Hands-free goggle (optional helmet mount)
Nighttime photography (with use of optional camera
adapter)
Mil-Spec headgear
Limited Two-Year Warranty
HIGH QUALITY WPT™ IMAGE INTENSIFIER TUBE
GENERATION WPT™
PHOTOCATHODE TYPE Multi-Alkali
RESOLUTION, lp/mm 60-74
SIGNAL TO NOISE, MINIMUM 18-26
MTTF - MEAN TIME BEFORE FAILURE, hours 10,000
EXPORT N/A for Export
* WPT is registered trademark of American Technology Network, Corp.
** Specifications are provided for informational purposes only. Actual values may vary
TUBE SPECIFICATIONS
6015-WPT™
Magnification 1x
Lens System F1.2, 26 mm
Proshield Lens Coating Yes
FOV 40°
Range of Focus 0.25 m to infinity
Diopter Adjustment -5 to +2
Controls Digital
Automatic Brightness Control Yes
Bright Light Cut-off Yes
Automatic Shut-off System Yes
Infrared Illuminator Yes
IR Indicator Yes
Low Battery Indicator Yes
Power Supply (1) 1.5 Volt AA size
Battery Life 50 hrs
Environmental Rating Waterproof
MIL-STD-810 Complies
Operating Temperature -40 to +50 °C
Storage Temperature -50 to +70 °C
Dimensions 114x56x50 mm / 4.5”x2,2”x2”
Weight 0.3 kg / 0,68 lbs
SPECIFICATIONS
