English
2
GENERAL HEATED OUTERWEAR / VEST SAFETY
WARNINGS
WARNING
Read all safety warnings and all instructions.
Failure to follow the warnings and instructions may result in electric shock, fire and/or serious
injury.
Save all warnings and instructions for future reference.
1) Electrical safety
a) Do not expose heated outerwear/vests to rain or wet conditions.
Water entering a heated outerwear/vest will increase the risk of electric shock.
b) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging
the heated outerwear/vest.
Damaged or entangled cords increase the risk of electric shock.
2) Personal safety
a) Stay alert, watch what you are doing and use common sense when operating a
heated outerwear/vest.
Do not use a heated outerwear/vest while you are tired or under the influence
of drugs, alcohol or medication.
A moment of inattention while operating heated outerwears/vests may result in serious
personal injury.
CONTENTS
GENERAL HEATED OUTERWEAR / VEST SAFETY WARNINGS................2
CORDLESS HEATED OUTERWEAR / VEST SAFETY WARNINGS .............4
CAUTION ON LITHIUM-ION BATTERY .........................................................5
REGARDING LITHIUM-ION BATTERY TRANSPORTATION ........................7
SYMBOLS ......................................................................................................7
APPLICATIONS..............................................................................................7
SPECIFICATIONS..........................................................................................7
BATTERY INSTALLATION / REMOVAL ........................................................9
CONNECTING HEATED OUTERWEAR/VEST WITH USB ADAPTER........10
HOW TO USE...............................................................................................11
LAMP INDICATORS FOR HEATING STAGE SWITCH................................12
MAINTENANCE AND INSPECTION ............................................................12
SELECTING ACCESSORIES.......................................................................14
000BookUJ1810DADVAChSChT.indb2000BookUJ1810DADVAChSChT.indb2 2017/12/1117:16:252017/12/1117:16:25

English
3
3) Heated outerwear/vest use and care
a) Do not use the heated outerwear/vest if the switch does not turn it on and off.
Any heated outerwear/vest that cannot be controlled with the switch is dangerous and
must be inspection.
b) Disconnect the battery from the heated outerwear/vest before storing heated
outerwear/vest.
Such preventive safety measures reduce the risk of starting the heated outerwear/vest
accidentally.
c) Store idle heated outerwears/vests out of the reach of children and do not
allow persons unfamiliar with the heated outerwear/vest or these instructions
to operate the heated outerwear/vest.
d) Maintain heated outerwears/vests. Check for breakage of cords and any other
condition that may affect the heated outerwear/vestʼs operation.
If damaged, consult with HiKOKI Authorized Service Center for an inspection
before use.
Many accidents are caused by poorly maintained heated outerwears/vests.
e) Use the heated outerwear/vest and battery in accordance with these
instructions.
Use of the heated outerwear/vest for operations different from those intended could
result in a hazardous situation.
4) Battery tool use and care
a) Recharge only with the charger specified by the manufacturer.
A charger that is suitable for one type of battery may create a risk of fire when used
with another battery.
b) Use heated outerwears/vests only with specifically designated batteries.
Use of any other battery packs may create a risk of injury and fire.
c) When battery is not in use, keep it away from other metal objects, like paper
clips, coins, keys, nails, screws or other small metal objects, that can make a
connection from one terminal to another.
Shorting the battery terminals together may cause burns or a fire.
d) Under abusive conditions, liquid may be ejected from the battery; avoid
contact. If contact accidentally occurs, flush with water. If liquid contacts eyes,
additionally seek medical help.
Liquid ejected from the battery may cause irritation or burns.
CAUTION
Keep children and infirm persons away.
When not in use, tools should be stored out of reach of children and infirm persons.
000BookUJ1810DADVAChSChT.indb3000BookUJ1810DADVAChSChT.indb3 2017/12/1117:16:252017/12/1117:16:25

English
4
CORDLESS HEATED OUTERWEAR / VEST SAFETY
WARNINGS
1. This heated outerwear/vest is an electrical device. Remove the battery and the
USB adapter if there is smoke or any smell. Immediately stop use and request an
inspection and/or repairs.
2. Be sure not to use the heated outerwear/vest if you feel dizzy, drowsy, or have a
headache or other body ailment. Doing so may result in an injury or accident.
3. Improper use may lead to burns.
4. The heated outerwear/vest can burn - do not use the heated outerwear/vest near
flying sparks or open fire.
5. Do not wear the heated outerwear/vest on naked skin. Doing so may result in an
injury or electric shock.
6. Do not wear the heated outerwear/vest during pregnancy or if you have problems
that make you sensitive to overheating.
7. If you have any body aids. Ask your doctor and/or the manufacturer of the body aid
if you can use this heated outerwear/vest.
8. Deactivate the heating of the heated outerwear/vest if you move around in a warm
environment. There is the risk of a heat stroke.
9. Do not use the heated outerwear/vest for keeping warm of toddlers, helpless
persons, sleeping or unconscious persons, persons with circulatory disorders,
or persons with insufficient sensitivity to heat. The wearer must be able to
immediately perceive the temperature of the heated outerwear/vest and his/her
own physical comfort to prevent overheating.
10. The heated outerwear/vest is not intended for hospital use.
11. When it has the battery connected, protect the heated outerwear/vest from heat,
continuous direct sunlight, fire, water and moisture. There is a risk of smoke
emission or fire.
12. Do not pierce the heated outerwear/vest with needles or other pointed objects. A
damaged heating element or a damaged cable of the connection plug causes a
malfunction of the heated outerwear/vest and increases the risk of electric shock
or fire.
13. The heated outerwear/vest is water-repellent, in case the heated outerwear/vest is
wet it must not be used. Remove the battery and the USB adapter.
14. Do not fold a heated outerwear/vest and do not store any objects on top of it. A
damaged heating element or a damaged cable of the connection plug causes a
malfunction of the heated outerwear/vest and increases the risk of electric shock
or fire.
15. Pay careful attention to the instructions for care and cleaning of the heated
outerwear/vest. Lack of due diligence carries the risk of electric shock or fire.
16. Do not connect or disconnect the USB adapter or battery with wet hands. Doing so
may result in electric shock.
17. When using the hook of the USB adapter, hang it securely on your belt, etc. Failure
to do so may result in the adapter falling and causing an accident.
000BookUJ1810DADVAChSChT.indb4000BookUJ1810DADVAChSChT.indb4 2017/12/1117:16:252017/12/1117:16:25

English
5
18. Attach the battery securely. Failure to do so may result in the battery falling offand
causing an accident.
19. Do not allow the battery’s terminals to become shorted with metallic powder or
other substances. Doing so may result in smoke generation or fire.
20. Do not allow the USB output port or the DC 12V output terminal of the USB adapter
to become shorted. Doing so may result in smoke generation or fire.
21. Be sure to store the heated outerwear/vest properly when it is not being used. After
allowing it to cool sufficiently, store it in a dry location that is out of the reach of
children (such as somewhere high above the ground or locked away).
22. If there is any visible deformation or damage to the heated outerwear/vest,
immediately stop use and consult with a HiKOKI Authorized Service Center for an
inspection.
23. Do not dispose of the battery together with ordinary trash or place it in a fire.
24. Store the battery in a location that is out of the reach of children.
25. Use the battery properly according to its indicated specifications.
26 Do not disassemble or modify the heated outerwear/vest. Doing so may result in
electric shock or fire.
27.
Do not use the heated outerwear/vest together with any other heating products, as they
may produce a high temperature. Doing so may result in heat stroke and/or burns.
CAUTION ON LITHIUM-ION BATTERY
To extend the lifetime, the lithium-ion battery equips with the protection function to stop
the output.
If any of the situations 1 to 3 below occurs while the product is being used and its switch
is turned on, the battery’s output may stop. This is not the trouble but the result of
protection function.
1. When the battery power remaining runs out, the output stops.
In such a case, charge it up immediately.
2. Output may stop if the heated outerwear/vest becomes overheated. If this happens,
temporarily turn offthe switch and allow the heated outerwear/vest’s heating
elements to cool.
3. Output may stop if the battery becomes overheated. If this happens, stop use of
the battery, remove the battery from the heated outerwear/vest, and allow the
battery to sufficiently cool in a well-ventilated area out of direct sunlight. After that,
you can use it again.
Furthermore, please heed the following warning and caution.
WARNING
In order to prevent any battery leakage, heat generation, smoke emission, explosion and
ignition beforehand, please be sure to heed the following precautions.
1. Make sure that swarf and dust do not collect on the battery.
○ During work make sure that swarf and dust do not fall on the battery.
○ Do not store an unused battery in a location exposed to swarf and dust.
○ Before storing a battery, remove any swarf and dust that may adhere to it and do
not store it together with metal parts (screws, nails, etc.).
000BookUJ1810DADVAChSChT.indb5000BookUJ1810DADVAChSChT.indb5 2017/12/1117:16:262017/12/1117:16:26

English
6
2. Do not pierce battery with a sharp object such as a nail, strike with a hammer, step
on, throw or subject the battery to severe physical shock.
3. Do not use an apparently damaged or deformed battery.
4. Do not use the battery in reverse polarity.
5. Do not connect directly to an electrical outlets or car cigarette lighter sockets.
6. Do not use the battery for a purpose other than those specified.
7. If the battery charging fails to complete even when a specified recharging time has
elapsed, immediately stop further recharging.
8. Do not put or subject the battery to high temperatures or high pressure such as
into a microwave oven, dryer, or high pressure container.
9. Keep away from fire immediately when leakage or foul odor are detected.
10. Do not use in a location where strong static electricity generates.
11. If there is battery leakage, foul odor, heat generated, discolored or deformed, or in
any way appears abnormal during use, recharging or storage, immediately remove
it from the equipment or battery charger, and stop use.
CAUTION
1. If liquid leaking from the battery gets into your eyes, do not rub your eyes and
wash them well with fresh clean water such as tap water and contact a doctor
immediately.
If left untreated, the liquid may cause eye-problems.
2. If liquid leaks onto your skin or clothes, wash well with clean water such as tap
water immediately.
There is a possibility that this can cause skin irritation.
3. If you find rust, foul odor, overheating, discolor, deformation, and/or other
irregularities when using the battery for the first time, do not use and return it to
your supplier or vendor.
WARNING
If a conductive foreign matter enters in the terminal
of lithium ion battery, the battery may be shorted,
causing fire. When storing the lithium ion battery,
obey surely the rules of following contents.
○ Do not place conductive debris, nail and wires
such as iron wire and copper wire in the storage
case.
○ Either install the battery in the heated outerwear/
vest or store by securely pressing into the
battery cover until the ventilation holes are

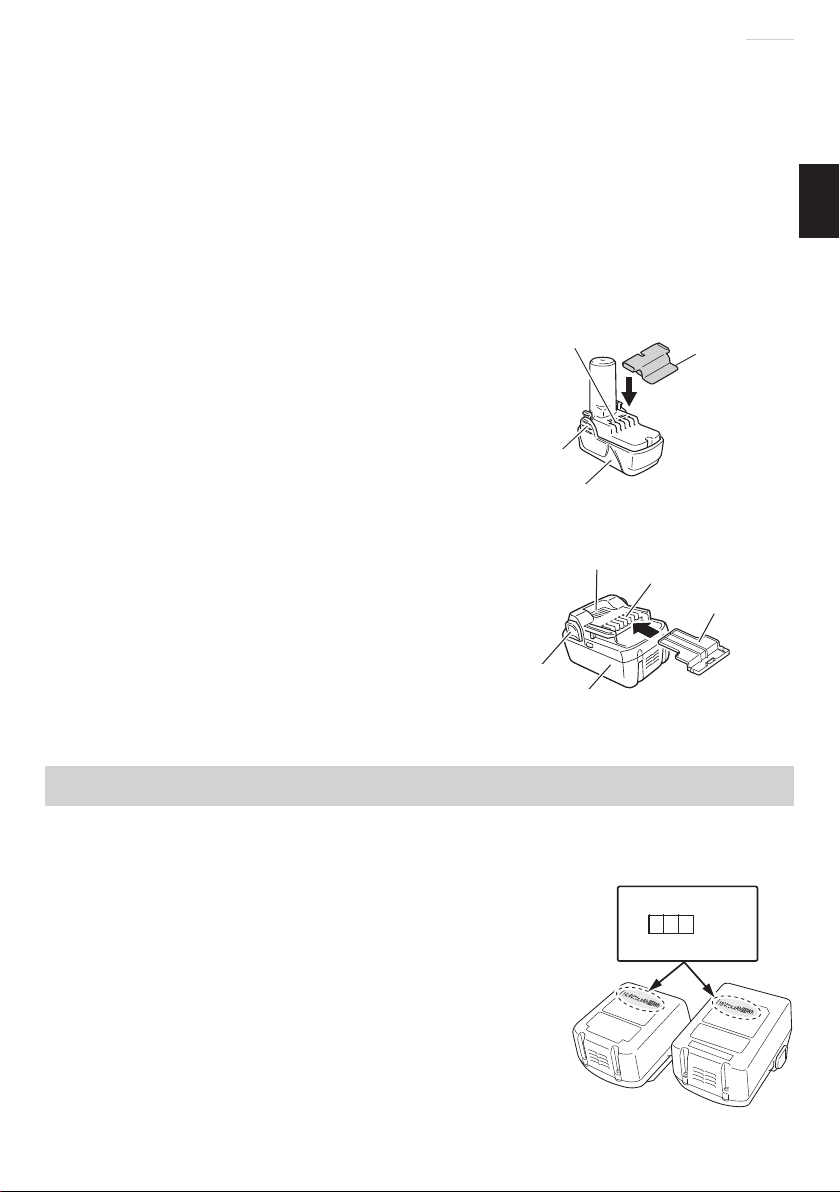

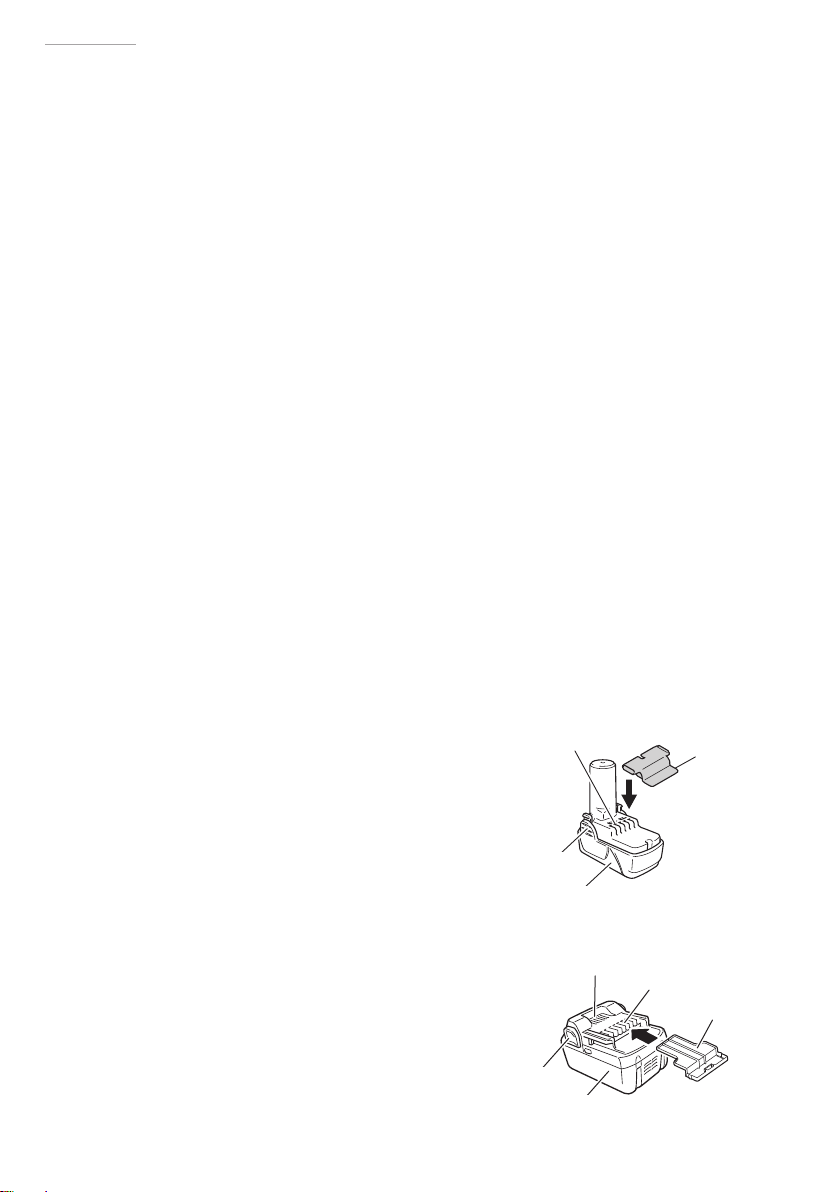

concealed to prevent short-circuits (See Fig. 1).
Fig. 1-a
Terminals Battery cover
Latch
Battery
Fig. 1-b
Ventilation holes
Terminals
Battery cover
Latch
Battery
000BookUJ1810DADVAChSChT.indb6000BookUJ1810DADVAChSChT.indb6 2017/12/1117:16:262017/12/1117:16:26

English
7
REGARDING LITHIUM-ION BATTERY
TRANSPORTATION
When transporting a lithium-ion battery, please observe the following precautions.
WARNING
Notify the transporting company that a package contains a
lithium-ion battery, inform the company of its power output
and follow the instructions of the transportation company
when arranging transport.
● Lithium-ion batteries that exceed a power output
of 100Wh are considered to be in the freight
classification of Dangerous Goods and will require
special application procedures.
● For transportation abroad, you must comply with
international law and the rules and regulations of the
destination country.

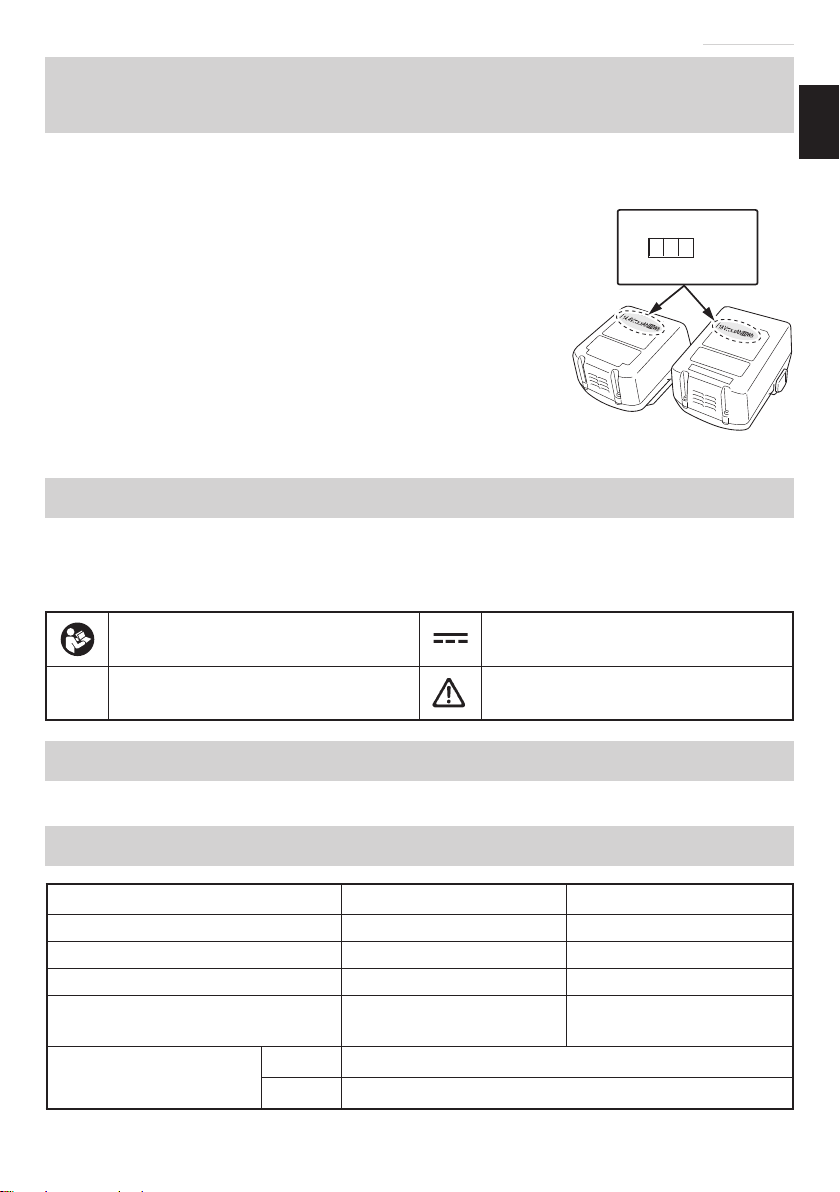

SYMBOLS
WARNING
The following show symbols used for the machine. Be sure that you understand their
meaning before use.
To reduce the risk of injury, user must
read instruction manual. Direct current
V Rated voltage Warning
APPLICATIONS
This heated outerwear/vest is intended to keep the body warm in cold environmental conditions.
SPECIFICATIONS
Model UJ1810DA UJ1810DVA
Size M, L, XL, XXL, XXXL S, M, L, XL, XXL, XXXL
Rated input 12 V DC / 1.4 A 12 V DC / 0.9 A
Rated output 16.8 W 11.2 W
ON/OFF and heating stage switches 2 (independent front
and rear)
1 (front and rear
interconnected)
Heating stages Manual High, Medium, Low
Auto Fast heating (immediately after power-on only)
Wh
Power Output
2 to 3 digit number
Fig. 2
000BookUJ1810DADVAChSChT.indb7000BookUJ1810DADVAChSChT.indb7 2017/12/1117:16:262017/12/1117:16:26

English
8
NOTE
Due to HiKOKI’s continuing program of research and development, the specifications
herein are subject to change without prior notice.
Hours of continuous use (example)*1
(when fully charged)
<UJ1810DA>
Battery Voltage
(V) 10.8 14.4 18
USB adapter
(sold separately) BCL-10UB BSL18UA(SA)
Battery
Capacity*2(Ah) 1.5 3.0 1.5 3.0 6.0 1.5 3.0 6.0
Heating stage*3
High
approx.
1.2
Hours
approx.
2
Hours
approx.
1.3
Hours
approx.
2.6
Hours
approx.
5.2
Hours
approx.
1.6
Hours
approx.
3.2
Hours
approx.
6.5
Hours
Medium
approx.
1.7
Hours
approx.
3
Hours
approx.
1.9
Hours
approx.
3.7
Hours
approx.
7.5
Hours
approx.
2.4
Hours
approx.
4.7
Hours
approx.
9.5
Hours
Low
approx.
4
Hours
approx.
8
Hours
approx.
4.5
Hours
approx.
9
Hours
approx.
18
Hours
approx.
5.6
Hours
approx.
11.2
Hours
approx.
22.5
Hours
<UJ1810DVA>
Battery Voltage
(V) 10.8 14.4 18
USB adapter
(sold separately) BCL-10UB BSL18UA(SA)
Battery
Capacity*2(Ah) 1.5 3.0 1.5 3.0 6.0 1.5 3.0 6.0
Heating stage
High
approx.
1.7
Hours
approx.
3.5
Hours
approx.
2
Hours
approx.
4
Hours
approx.
8
Hours
approx.
2.5
Hours
approx.
5
Hours
approx.
10
Hours
Medium
approx.
2.9
Hours
approx.
5.8
Hours
approx.
2.8
Hours
approx.
5.6
Hours
approx.
11.2
Hours
approx.
3.5
Hours
approx.
7
Hours
approx.
14
Hours
Low
approx.
5.8
Hours
approx.
13.8
Hours
approx.
6.4
Hours
approx.
12.8
Hours
approx.
25.6
Hours
approx.
8
Hours
approx.
16
Hours
approx.
32
Hours
*1 Hours of continuous use will vary depending on factors such as battery type and usage.
*2 indicate nominal values
*3 when front and rear are in the same mode (UJ1810DA)
000BookUJ1810DADVAChSChT.indb8000BookUJ1810DADVAChSChT.indb8 2017/12/1117:16:262017/12/1117:16:26

English
9

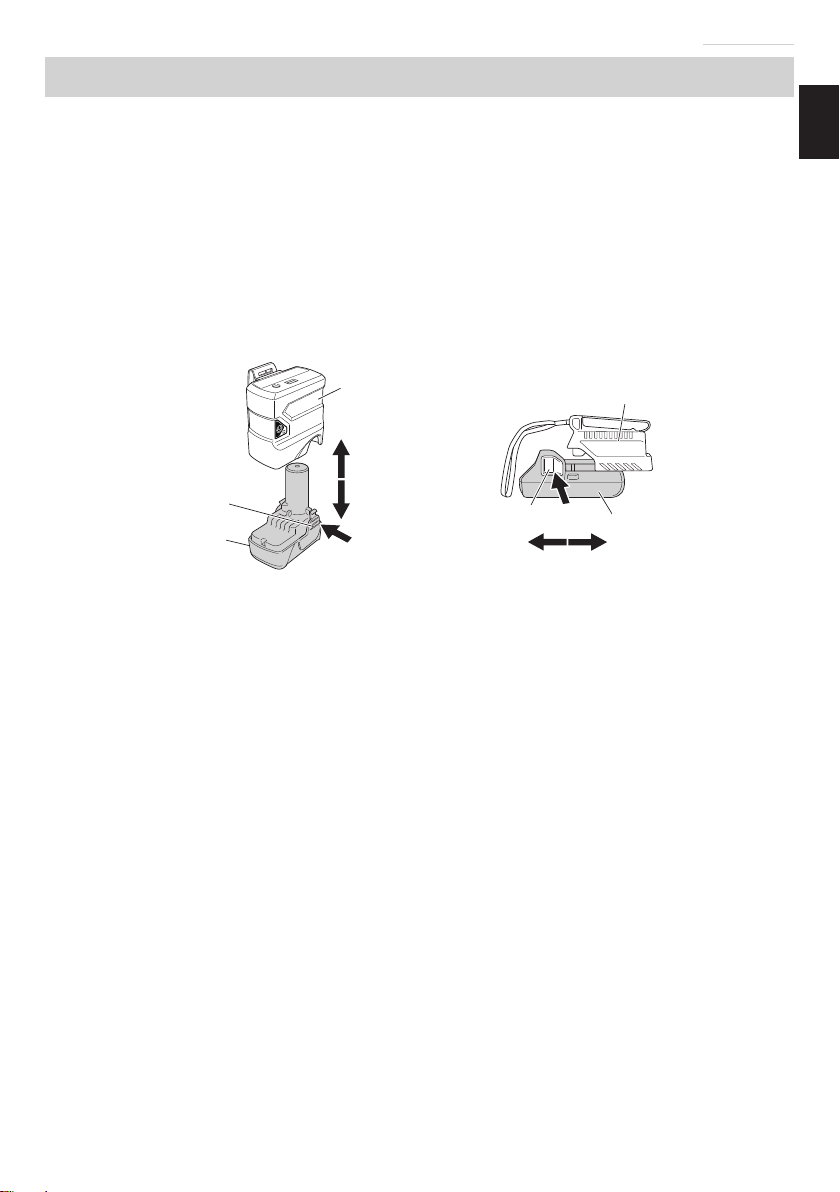

BATTERY INSTALLATION / REMOVAL
1. Battery installation
Insert the battery while observing its polarities (see Fig. 3).
2. Battery removal
Push the battery latches to remove the battery (see Fig. 3).
CAUTION
Never short-circuit the battery.
Fig. 3
Battery
Latch Pull out
Insert
Push
Battery
Latch Push
USB adapter
[BCL-10UB]
USB adapter
[BSL18UA(SA)]
Pull out Insert
000BookUJ1810DADVAChSChT.indb9000BookUJ1810DADVAChSChT.indb9 2017/12/1117:16:262017/12/1117:16:26

English
10

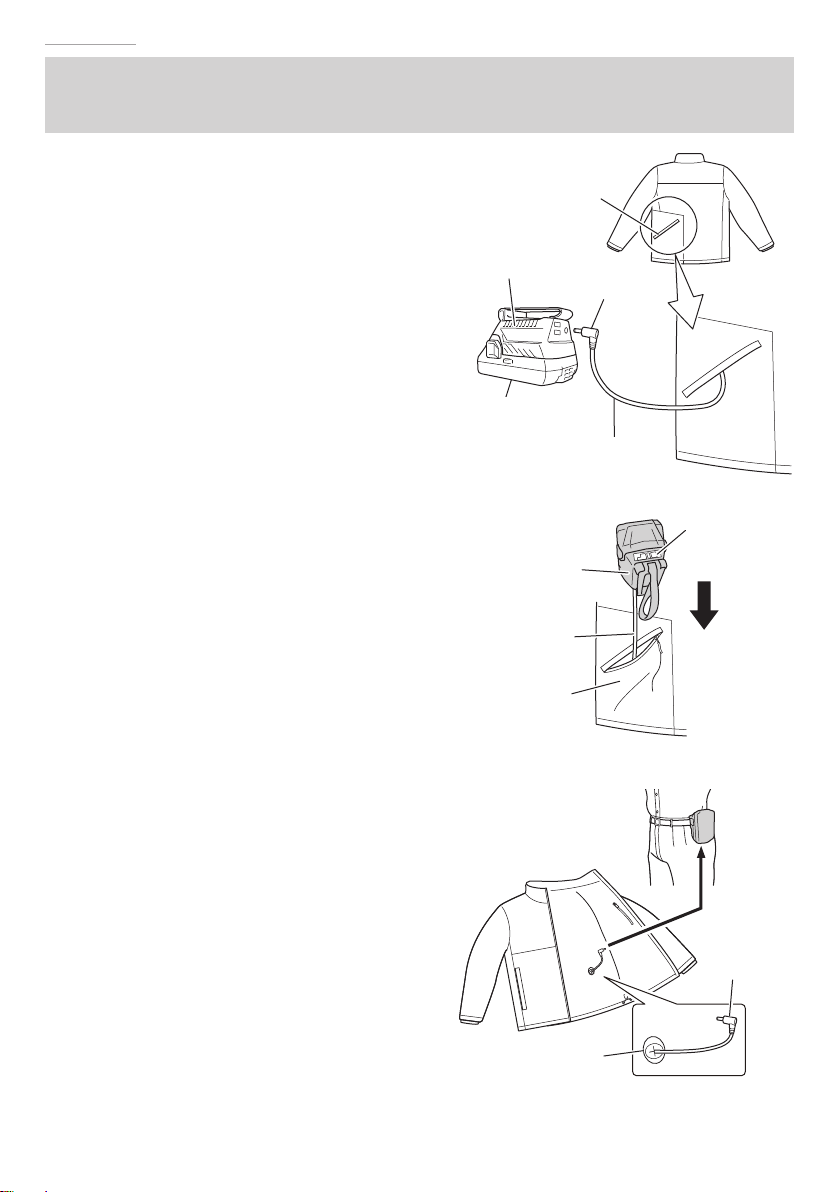

CONNECTING HEATED OUTERWEAR/VEST WITH USB
ADAPTER
1. Attach the battery to the USB adapter.
2. Take the power plug in the back pocket and
fully insert it into the DC 12V output terminal of
the USB adapter. (Fig. 4)
3. Take the USB adapter with the attached
battery and store it in the back pocket of the
heated outerwear/vest. (Fig. 5)
CAUTION
Make sure the battery and power plug is
fully inserted into the USB adapter.
If not fully inserted, it may result in an
unexpected accident.
The hook of the USB adapter can be
used to hang the adapter from your belt.
When doing so, thread the power plug
of the heated outerwear/vest through the
hole in the back pocket so that the plug
hangs inside the jacket. (Fig. 6)
Back pocket
USB adapterPower plug
Fig. 4
Battery
Power cord
Fig. 5
Switch panel
facing up
USB adapter
Power cord
Store
Back pocket
Fig. 6
When hung from your
belt using the hook of the
USB adapter.
USB
adapter
Hole in the
back pocket
Power plug
000BookUJ1810DADVAChSChT.indb10000BookUJ1810DADVAChSChT.indb10 2017/12/1117:16:272017/12/1117:16:27
