Hills PARALINE DUO User manual

HILLS GUARANTEE
HILLS INDUSTRIES LIMITED undertake that if any part of its manufacture has failed to
operate correctly due to faulty workmanship or defective material, it will repair or
replace the part free of cost for a period of TEN (10) years from the date of purchase of
the article, given fair wear and tear. The line is also guaranteed for a period of one (1)
year. Evidence of unfair usage or incorrect adjustment by the owner will void this
promise.
HILLS INDUSTRIES LIMITED will not be responsible for any costs in connection with
freight or postage, or for the expenditure necessary to dismantle the article, replace the
part in position and re-assemble the article.
This guarantee is in addition to any rights or remedies conferred on the consumer by
the Trades Practices Act or state laws.
As a proudly Australian manufacturer, we are commited to provide you complete
customer satisfaction. If you have questions about this product, or find there are
missing or damaged parts. PLEASE CALL Hills direct on 1300 300 819 (cost of a local
call) for assistance during normal business hours.
HILLS INDUSTRIES LIMITED do not recommend the application of a ‘canopy’ on any
of their outdoor dryer range.
Unless any addition or attachment to this product has HILLS specific approval or is sold
as a HILLS product the warranty on this product is waived. This product is designed to
perform a specific task under established test loads and unauthorised attachments may
produce stresses for which the design is not appropriate.
Design, specifications and colours are subject to change without notice.
HILLS INDUSTRIES LIMITED
A.B.N. 35 007 573 417
ISSUE 25/10/00
IMPORTANT: Please retain this owners manual for spare parts identification. Record
the following information from the carton for future reference.
Product Number: FD..................................................
Record date of purchase..............................................
Name and location of store................................................................................................................................
PARALINE - DUO
“Designed not to be noticed”
OWNER’S
MANUAL
IMPORTANT: READ OWNER’S MANUAL AND
WARNINGS BEFORE ASSEMBLING AND USING THIS PRODUCT
“PATENTS AND REGISTERED DESIGNS APPLY TO THIS PRODUCT”
RD13092d
G L I D E L I F T
TM

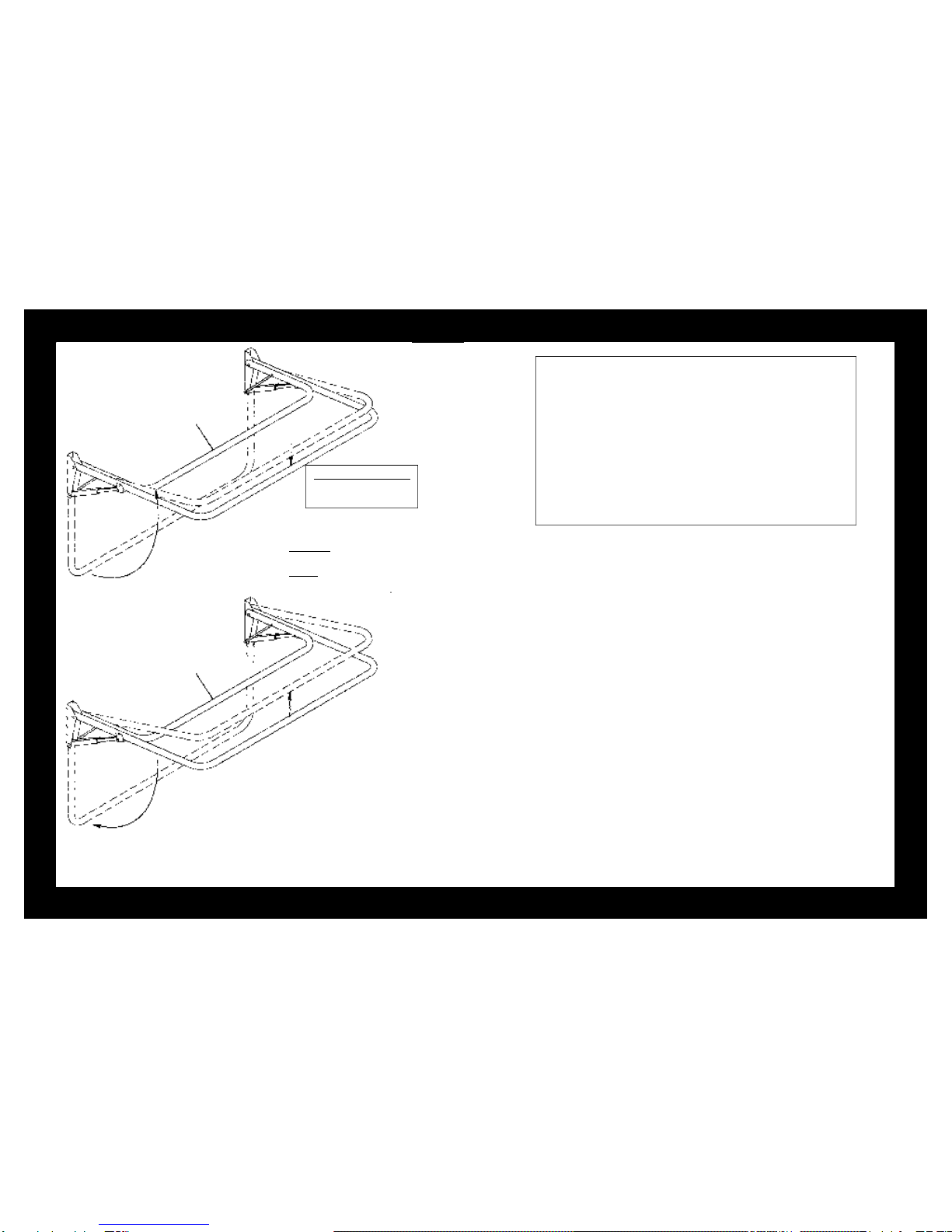

HOW TO OPERATE WARNINGS — MAINTENANCE
TO FOLD OUT
TO FOLD DOWN
“CLICK”
“CLICK”
“CLICK”
LOCKED
• GRIP FRONT BAR IN THE
CENTRE WITH BOTH HANDS.
• SLOWLY RAISE ABOVE HEAD
HEIGHT UNTIL YOU HEAR
BOTH STRUTS “CLICK”.
• LOWER SLIGHTLY UNTIL
STRUTS LOCK.
• GRIP FRONT BAR IN THE CENTRE
WITH BOTH HANDS.
• RAISE ABOVE HEAD HEIGHT UNTIL
YOU HEAR BOTH STRUTS “CLICK”.
• LOWER INTO ITS FOLDED POSITION.
NOTE: Raising frame other than from centre may result in
only 1 strut locking. If this occurs, raise frame on locked
side only until locked strut “clicks”, then lower into folded
position.
LIFT TO UNLOCK
“CLICK”
FIXED FRAME
FIXED FRAME
IMPORTANT
CORRECT METHOD
TO OPERATE
MAINTENANCE
* LINE TENSIONING:
REMOVE EXCESSIVE SLACK FROM THE LINES BY STARTING AT
ONE TIE OFF POINT AND WORKING THE SLACK LINES TOWARDS
THE SECOND TIE OFF POINT. UNTIE THE LINE AND PULL THE
ACCUMULATED SLACK LINE THROUGH THE LINE TENSIONER
AND RE-TIE. SEE DIAGRAM 9.
IMPORTANT DO NOT OVER TENSION THE LINE AS THIS MAY
BOW THE END FRAMES.
* WE DO NOT RECOMMEND THE USE OF OIL OR ”WD” TYPE
LUBRICANTS ON ANY PART OF THE PARALINE.
* WIPE AWAY ANY DIRT AND DUST FROM THE TELESCOPIC
STRUTS WITH A DAMP CLOTH ONCE A MONTH. MORE
REGULARLY IN DUSTY CONDITIONS.
* INSPECT YOUR PARALINE REGULARLY FOR SIGNS OF DAMAGE
OR WEAR. DO NOT USE YOUR PARALINE IF PARTS ARE WORN
OR DAMAGED. CONSULT YOUR LOCAL HILLS CUSTOMER
SERVICE DIVISION FOR REPLACEMENT PARTS.
REFER TO THE LIST BELOW FOR REQUIRED REPLACEMENTS.
* TO MAINTAIN THE APPEARANCE AND DURABILITY OF THE
COATING ON THE METAL COMPONENTS WE RECOMMEND A
TWICE YEARLY APPLICATION OF A REPUTABLE BRAND OF CAR
POLISH OR WAX.
WARNINGS
DO NOT ALLOW CHILDREN OR PETS TO SWING ON
THE PARALINE OR ITEMS OF LAUNDRY.
DO NOT UNLOCK AND ALLOW TO DROP DOWN
UNCONTROLLED.
DO NOT USE FOR ANY PURPOSE OTHER THAN TO
HANG AND DRY WASHING.
* INJURY MAY OCCUR FROM THE MISUSE OF THIS
PRODUCT.
* ENSURE WHEN RAISING AND LOWERING YOUR
PARALINE THAT BYSTANDERS (IN PARTICULAR
CHILDREN) ARE WELL CLEAR.

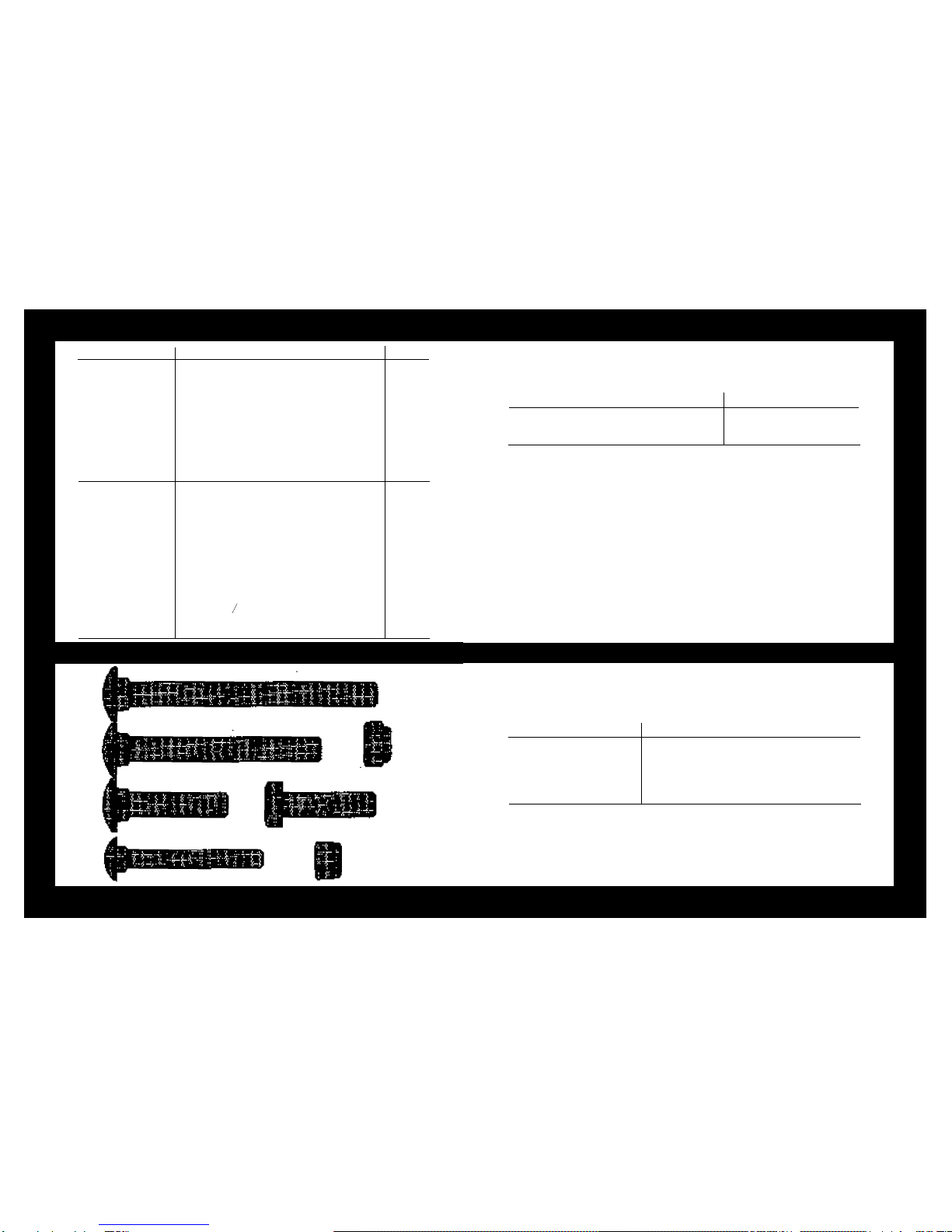

CHECK LIST SPARE PARTS
PARTS DESCRIPTION QTY
CONTENTS OF END FRAME TUBES — LONG 2
CARTON END FRAME TUBES — SHORT 2
SPACER TUBE — LONG 1
SPACER TUBE — SHORT 1
PIVOT BRACKETS 2
WALL BRACKETS 2
TELESCOPIC STRUTS 2
FIXED STRUTS 2
LINE 25M
ACCESSORY BAG 1
CONTENTS OF BOLT B — 5/16 BSW x 1 1/2” CH SN 2
ACCESSORY BOLT C — 5/16 BSW x 1 1/4” HEX 2
BAG BOLT D — 5/16 BSW x 3 1/2” CH SN 2
BOLT E — 5/16 BSW x 2 3/4” CH SN 2
BOLT F — 1/4 BSW x 2” CH SN 2
NUT A — 5/16 UNC NYLOC 8
NUT B — 1/4 UNC NYLOC 2
END CAP — SQUARE 2
END CAP — OVAL 2
SQUARE END PLUG 1/2” x 1/2” 2
SPACER O25 x 12.5 — PLASTIC 2
LINE TENSIONER 4
FASTENER CHART
DRAWN FULL SIZE
BOLT — D
BOLT — E
BOLT — B BOLT — C
NUT — B
NUT — A
BOLT — F
OPTIONAL MOUNTING KITS
SPARE PARTS ARE AVAILABLE FROM YOUR DEALER. REFER
TO THE LIST BELOW FOR REQUIRED REPLACEMENTS.
PART NAME ORDER KIT NUMBER
POLY CORE LINE 40M — BEIGE FD902716
LINE TENSIONER FD901932
A MORE COMPREHENSIVE RANGE OF SPARE PARTS ARE
AVAILABLE UPON REQUEST. PLEASE CALL HILLS DIRECT ON
1300 300 819 (COST OF A LOCAL CALL) FOR ASSISTANCE
DURING NORMAL BUSINESS HOURS.
ORDER KIT NUMBER
GROUND MOUNT KIT FD45072 — SALTBUSH
GROUND MOUNT KIT FD40782 — FEDERATION GREEN
SOCKET KIT FD40388

3
DRILL HOLES FOR
MASONRY ANCHORS
NOTE: MASONRY ANCHORS ARE NOT
INCLUDED WITH THIS PRODUCT.
CONSULT YOUR LOCAL HARDWARE
SPECIALIST FOR ADVICE ON WHICH
MASONRY ANCHORS ARE MOST
SUITABLE FOR YOUR PARTICULAR TYPE
OF BUILDING STRUCTURE.
DRILL HOLES IN WALL AS PER ANCHOR
MANUFACTURERS DIRECTIONS.
UNIT TO BE FITTED TO WALL USING 5/16”
OR 8mm DIAMETER BOLTS.

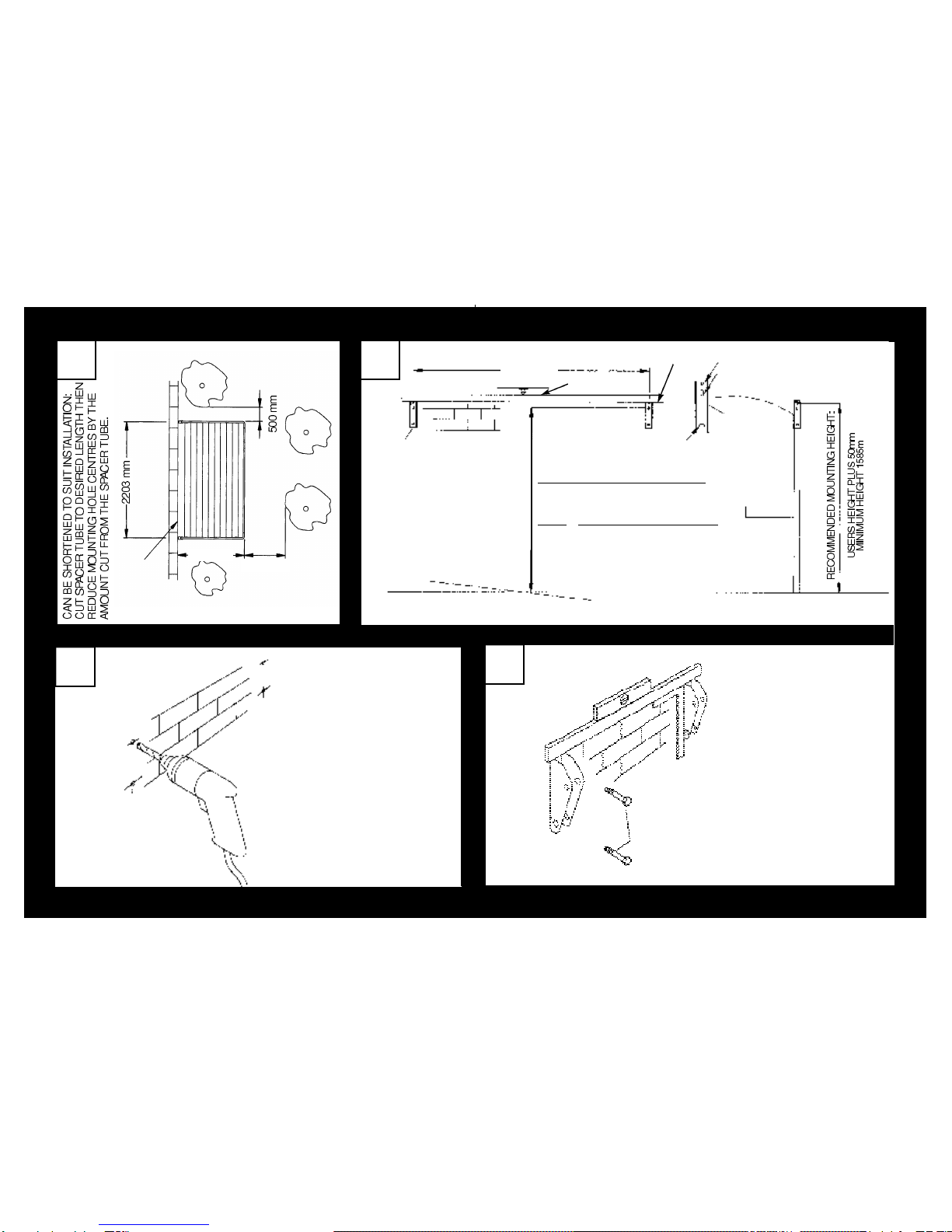

1SELECT A SUITABLE LOCATION
1000 mm
1560 mm
NO PIPES
OR
OBSTRUCTIONS
BETWEEN BRACKETS
4FIT WALL BRACKETS
BEFORE TIGHTENING BOLTS
ENSURE THAT THE BRACKETS
ARE LEVEL AND VERTICAL
NOTE:
MASONRY ANCHORS ARE NOT INCLUDED
WITH THIS PRODUCT. CONSULT YOUR
LOCAL HARDWARE SPECIALIST FOR
ADVICE ON WHICH MASONRY ANCHORS
ARE MOST SUITABLE FOR YOUR
PARTICULAR TYPE OF BUILDING
STRUCTURE.
INSTALLATION: RECOMMENDED FOR BRICK WALL AND POST MOUNT ONLY
2MARK POSITION OF WALL BRACKETS
WALL MOUNT DETAIL
MAKE ALLOWANCE FOR
SLOPING GROUND
RECOMMENDED MOUNTING HEIGHT:
USERS HEIGHT PLUS 25mm
MINIMUM HEIGHT 1560m
NOTE: A MINIMUM DISTANCE OF 500MM
FROM THE EAVES TO THE TOP OF THE
FRAME IS REQUIRED
OPTIONAL
POST
2203mm SPIRIT LEVEL
STRAIGHT EDGE
WALL
BRACKET
WALL
BRACKET
POST MOUNT HOLE
WALL MOUNT HOLE
POST & WALL
MOUNT HOLE
(OPTIONAL) POST MOUNTING
REFER TO GROUND MOUNT KIT FOR INSTALLATION DETAILS.

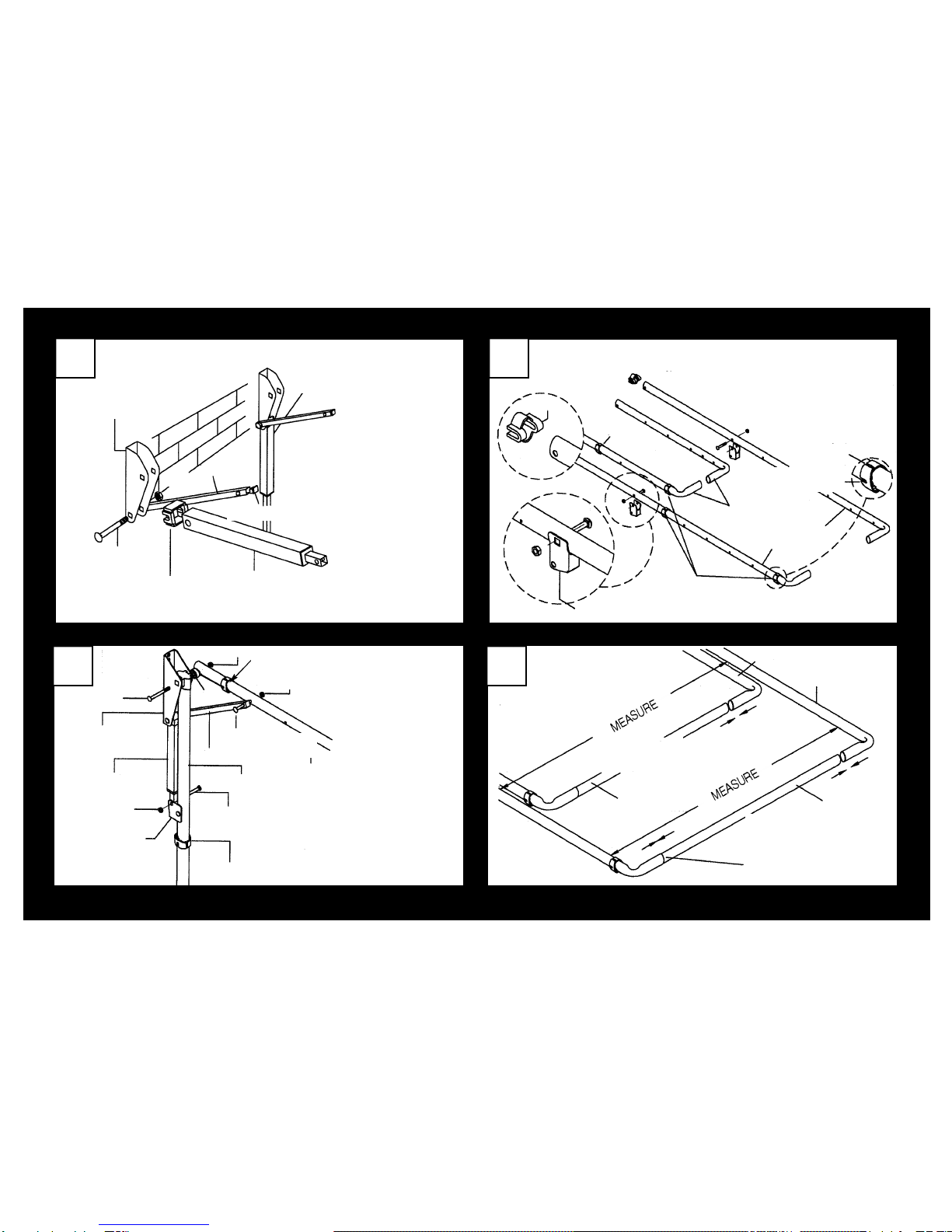

7FIT END FRAMES TO WALL BRACKETS, FIX STRUTS TO
END FRAMES AND
TELESCOPIC STRUTS TO
PIVOT BRACKETS.
5FIT SQUARE CAPS TO STRUTS AND STRUTS TO WALL BRACKETS
BOLT - E
BOLT - D
BOLT - C
NUT - A
NUT – A
FIXED STRUT
END CAP
NUT - A
NUT - B
SPACER
BOLT - F
FIXED STRUT
WALL BRACKET
SQUARE
CAP
END FRAME - SHORT
*TIGHTEN NUT - B FIRMLY
END FRAME - LONG
TELESCOPIC STRUT
IMPORTANT: DO NOT OVER
TIGHTEN THE NUT. THE STRUT
MUST BE FREE TO PIVOT ON
THE BOLT.
IMPORTANT: DO NOT
OVER TIGHTEN NUTS.
THE FRAME & STRUT MUST BE
FREE TO PIVOT ON THE BOLTS.
ONCE FITTED, LAY STRUT BACK
AGAINST THE WALL
PIVOT BRACKET
WALL BRACKET
TELESCOPIC STRUT
LINE TENSIONER
LINE
TENSIONER 8FIT SPACER TUBES TO
END FRAMES
6FIT LINE TENSIONERS, OVAL CAPS AND PIVOT BRACKETS TO END
FRAMES. MAKE LEFT AND RIGHT HAND PAIR.
BOLT - B
SPREAD END FRAMES
APART AND PUSH SPACER
TUBE INTO THE ENDS.
NUT - A
OVAL CAP
END FRAME - SHORT
END FRAME - LONG
END FRAME - LONG
END FRAME - SHORT
NOTE: TIGHTEN ALL NUTS FIRMLY
GROOVE ON TOP
SLOT FACING
OUTWARDS
LINE
TENSIONER
LINE
TENSIONER
SPACER TUBE - LONG
SPACER TUBE -
SHORT
PIVOT BRACKET
MEASURE TO ENSURE THAT THE
SPACER TUBE IS FULLY
INSERTED INTO END FRAMES.
NOTE: THE ORIENTATION OF
THE BOLTS IS IMPORTANT
TO THE SUCCESSFUL
OPERATION OF THE
PARALINE.

PIVOT BRACKET
OVAL CAP
SPACER
WALL
BRACKET
END FRAME - LONG
END FRAME - SHORT
SPACER TUBE - SHORT
DETAIL ENLARGED
SEE DETAIL
SQUARE CAP
BOLT - F & NUT - B
BOLT - C & NUT - A
LINE TENSIONER
TELESCOPIC STRUT
DO NOT USE THIS HOLE
WHEN WIRING THE CLOTHESLINE
9ASSEMBLY DETAILS
BOLT - D
BOLT - B
NUT - A
NUT - A
FIXED STRUTEND
PLUG
NUT - A
BOLT - E
LINE
START
FINISH
START
FINISH
SPACER TUBE LONG
NOTE: TENSIONERS
MAY BE USED ON
LEFT OR RIGHT
HAND END OF
FRAME
LINE TIE OFF METHOD
STEP 1:
THREAD LINE THROUGH
TENSIONER AND PULL
TIGHT.
FORCE THROUGH GROOVE
IN TOP.
STEP 2:
KEEP LINE TIGHT AND
THREAD THROUGH THE
TWO HOLES AS SHOWN
BELOW.
TRIM OFF EXCESS LINE.
WIRING DETAILS
IMPORTANT: DO NOT OVER TENSION LINE.
GROOVE
TRIM
TENSIONER
TYPICAL LINE TIE OFF DETAIL
