Hillyard TRIDENT R22SC User manual

Scrubbing machine
Use and Maintenance manual
Original istruction - DOC. 10083767 Ver. AA - 11-2018

The descriptions contained in this document are not binding.
The company therefore reserves the right to make any modifications at any time to elements,
details, or accessory supply, as considered necessary for reasons of improvement or
manufacturing/commercial requirements.
The reproduction, even partial, of the text and drawings contained in this document is prohibited
by law.
The company reserves the right to make any technical and/or supply modifications. The images
are for reference purposes only, and are not binding in terms of design and supply.

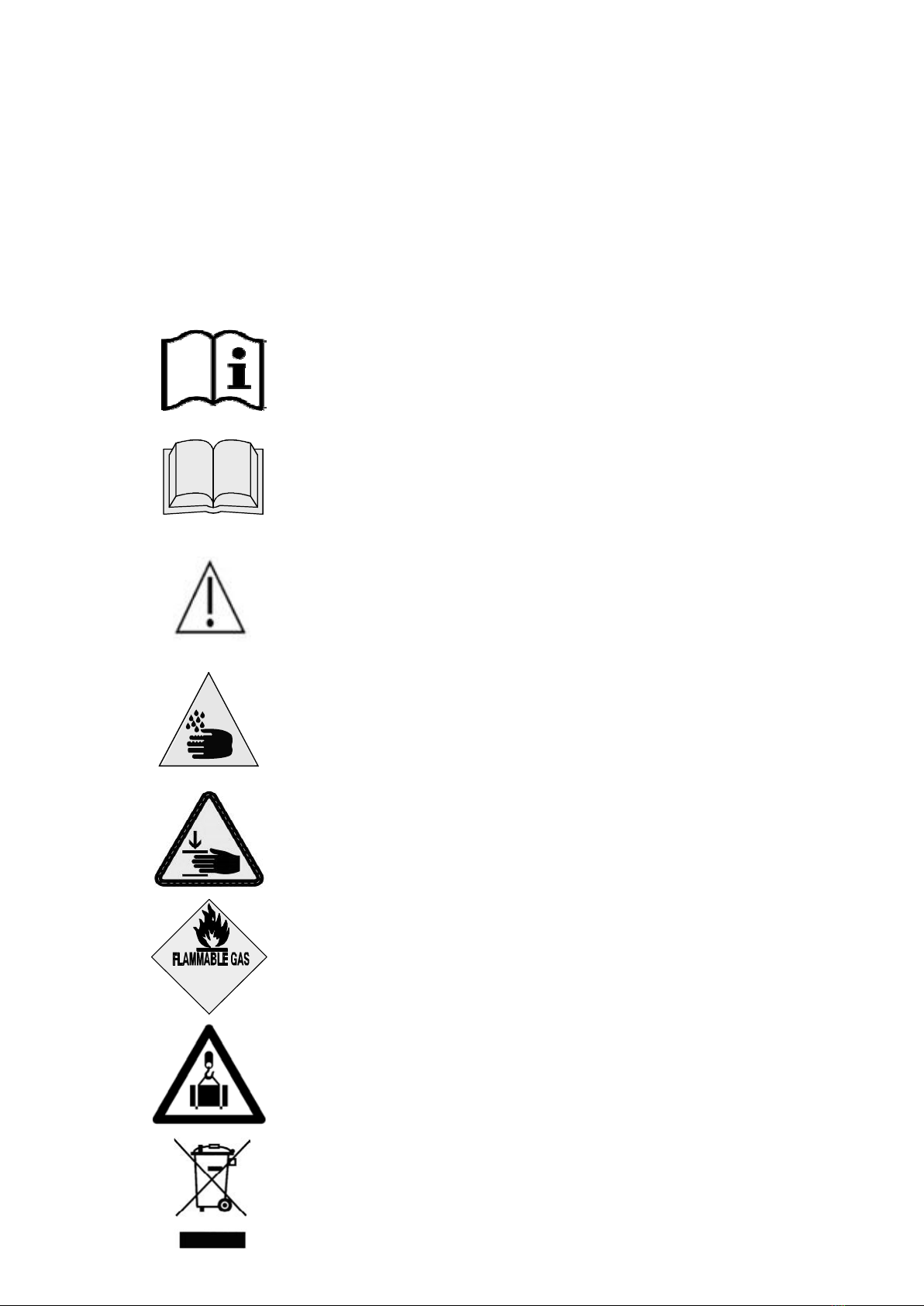

Symbols used in the manual
Open book symbol with an "i"
Indicates the need to consult the instruction manual
Open book symbol
Used to tell the operator to read the manual before using the machine
Warning symbol
Carefully read the sections marked with this symbol and observe the
indications, for the safety of the operator and the machine
Warning symbol
Indicates danger of gas exhalation and leakage of corrosive liquids
Warning symbol
Indicates operator should take safety measures to avoid damage to limbs.
Warning symbol
Indicates the danger of fire.
Do not go near with free flames
Warning symbol
Indicates that the packed product should be handled with suitable lifting
means that comply with the legal requirements
Disposal symbol
Carefully read the sections marked with this symbol for machine disposal

3
CONTENTS
ON CONSIGNMENT OF THE MACHINE............................................................................................................................................. 5
SERIAL NUMBER PLATE ................................................................................................................................................................. 5
INTRODUCTORY COMMENT ............................................................................................................................................................ 5
INTENDED USE ............................................................................................................................................................................... 5
TECHNICAL DESCRIPTION .............................................................................................................................................................. 6
SYMBOLS USED ON THE MACHINE ................................................................................................................................................ 7
GENERAL SAFETY REGULATIONS ................................................................................................................................................. 8
MACHINE PREPARATION .............................................................................................................................................................. 11
HANDLING OF THE PACKED MACHINE............................................................................................................................................ 11
HOW TO MOVE THE MACHINE ....................................................................................................................................................... 11
INSTRUMENT PANEL ELEMENTS.................................................................................................................................................... 12
STEERING COLUMN ELEMENTS..................................................................................................................................................... 12
FOOTBOARD ELEMENTS............................................................................................................................................................... 12
SIDE MACHINE ELEMENTS ............................................................................................................................................................ 13
REAR MACHINE ELEMENTS........................................................................................................................................................... 13
FRONT MACHINE ELEMENTS......................................................................................................................................................... 14
TYPE OF BATTERY....................................................................................................................................................................... 14
BATTERY MAINTENANCE AND DISPOSAL........................................................................................................................................ 14
HANDLING - INSERTING BATTERIES ............................................................................................................................................... 15
BATTERY CONNECTION AND BATTERY CONNECTOR....................................................................................................................... 16
BATTERY CHARGER CONNECTION (VERSIONS WITHOUT BC) ........................................................................................................... 16
BATTERY CHARGER CONNECTION (VERSIONS WITH BC) ................................................................................................................. 17
BATTERY CHARGE LEVEL INDICATOR ............................................................................................................................................ 17
HOUR METER .............................................................................................................................................................................. 18
FORWARD WORK SPEED.............................................................................................................................................................. 18
SOLUTION TANK .......................................................................................................................................................................... 18
FILLING THE SOLUTION TANK........................................................................................................................................................ 19
REGULATING THE DETERGENT ..................................................................................................................................................... 19
RECOVERY TANK......................................................................................................................................................................... 19
ASSEMBLING THE SQUEEGEE....................................................................................................................................................... 19
ADJUSTING THE SQUEEGEE INCLINATION...................................................................................................................................... 20
ADJUSTING THE SQUEEGEE HEIGHT ............................................................................................................................................. 20
ASSEMBLING THE BRUSHES ......................................................................................................................................................... 20
BLINKING LIGHT........................................................................................................................................................................... 21
EMPTY SOLUTION TANK DEVICE ................................................................................................................................................... 21
ASSEMBLING THE ABRASIVE PAD (ORBITAL VERSION) .................................................................................................................... 21
WORK ........................................................................................................................................................................................... 22
WORK......................................................................................................................................................................................... 22
"ECO" DEVICE.............................................................................................................................................................................. 23
OVERFLOW DEVICE ..................................................................................................................................................................... 23
EMERGENCY BUTTON .................................................................................................................................................................. 23
AT THE END OF THE WORK .......................................................................................................................................................... 24
AT THE END OF THE WORK........................................................................................................................................................... 24
DAILY MAINTENANCE ................................................................................................................................................................... 26
CLEANING THE RECOVERY TANK .................................................................................................................................................. 26
CLEANING THE RECOVERY TANK FLOAT ........................................................................................................................................ 26
CLEANING THE SQUEEGEE........................................................................................................................................................... 27
CLEANING THE SOLUTION TANK FILTER......................................................................................................................................... 27
WEEKLY MAINTENANCE ............................................................................................................................................................... 29
CLEANING THE VACUUM HOSE ..................................................................................................................................................... 29
CLEANING THE BRUSH ................................................................................................................................................................. 29
EXTRAORDINARY MAINTENANCE ................................................................................................................................................ 30
REPLACING THE FRONT SQUEEGEE RUBBER ................................................................................................................................. 30
REPLACING THE REAR SQUEEGEE RUBBER................................................................................................................................... 30
REPLACING THE BRUSH ............................................................................................................................................................... 30
TROUBLESHOOTING ..................................................................................................................................................................... 31
THE MACHINE DOES NOT START ................................................................................................................................................... 31

4
INSUFFICIENT WATER ON THE BRUSHES ....................................................................................................................................... 31
THE SQUEEGEE DOES NOT DRY PERFECTLY ................................................................................................................................. 31
THE MACHINE DOES NOT CLEAN WELL .......................................................................................................................................... 31
EXCESSIVE FOAM PRODUCTION ................................................................................................................................................... 31
THE SUCTION MOTOR DOES NOT FUNCTION .................................................................................................................................. 31
THE BRUSH MOTOR DOES NOT WORK ........................................................................................................................................... 31
DISPOSAL ..................................................................................................................................................................................... 32
CHOOSING AND USING THE BRUSHES ......................................................................................................................................... 33

5
On consignment of the machine
When the machine is consigned to the customer, an immediate check must
be performed to ensure all the material mentioned in the shipping
documents has been received, and also to check the machine has not
suffered damage during transportation. If this is the case, the carrier must
ascertain the extent of the damage at once, informing our customer service
office. It is only by prompt action of this type that the missing material can
be obtained, and compensation for damage successfully claimed.
Serial number plate
Introductory comment
TRIDENT R22SC is a floor scrubbing machine which, by means of the
mechanical action of the rotating brush and the chemical action of a
water/detergent solution, can clean any type of flooring. As it advances, it
also collects any removed dirt as well as the detergent solution not
absorbed by the floor.
The machine must only be used for this purpose. Even the best
machines will only work well if used correctly and kept in good working
order. We therefore suggest you read this instruction booklet carefully
and read it again whenever difficulties arise while using the machine. If
necessary, remember that our customer assistance service (organised in
collaboration with our dealers) is always available for advice or direct
intervention.
Intended use
The scrubbing machine is designed exclusively for the professional
cleaning of surfaces and floors in industrial, commercial and public
environments. The machine is only suitable for use in closed - or at least
covered - locations.
The machine is not suitable for use in the rain, or under water jets. It is
FORBIDDEN to use the machine for picking up dangerous dusts or
inflammable liquids within places with a potentially explosive atmosphere.
In addition, it is not suitable as a means of transport for people or objects.
