HILO HIL Smart Mirror User manual

DisplayDisplay

HIL Smart Mirror

Thank you for purchasingthis Smart mirror. Before installation, please read this user manualfirst and
keep it with you for later reference.
·Please keep Smart mirror away from any heat or under direct sun light.
· Please keep Smart mirror away from anything that can generate heat, such as candles, ashtrays,
incantation, combustible gas or explosive substance.
·Please do not overload your wall sockets, extension power cables.
·Please place the power cable properly without anything pressing again the power cable.
·For safety reasons, please unplug Smart mirror power in storm weather or when you won't be using Smart
mirror for a long time.
·Please use proper direct current supply for Smart mirror. Make sure your local DC power is within
safety range.
·In case of any electric shock, please do not insert any metal object into Smart mirror sockets.
·Please make sure power jack is plugged in tightly into your power socket. Unplug power jack when you
disconnect Smart mirror.
·Please do not touch Smart mirror's power cable with wet hands.
·In case of any malfunction, especially when there's unusual sound or smell coming out of Smart mirror,
please unplug the power and contact your supplier immediately.
·If you'll be leaving Smart mirror unused for a very long time or traveling with our senior family members,
children and people with disabilities at home, please make sure to unplug Smart mirror.
·Too much dirt on the power socket or cable might generate heat and cause insulation aging, please keep it
clean in case of electric shock and fire.
·Please make sure your power socket is well grounded in case of electric shock or damage to Smart
mirror.
·To unplug Smart mirror is to unplug from your power socket, for convenience, we recommend you to use
power socket with its own ON/OFF switch.
·Please do not allow children to play with Smart mirror.
·Please install Smart mirror in a safe place, any wobble or tilt installation puts Smart mirror in a
vulnerable position.
·In case of fall and damage to Smart mirror, please unplug the power and contact your local supplier
immediately.
·Unplug Smart mirror before you clean it. Use soft and dry cloth to wipe it clean. Do not use any chemical
solution on Smart mirror surface for it might erode Smart mirror.
Index 01
1
Quick Guide
02~07
2
Installation
08~09
3
Dimension
10
4
Specifications
11
5 Connection 12
6
Others
13
Warning: Please keep Smart mirror away from candles or any other fire or heat.
This is for important notes of how to maintain Smart mirror.
This is a sign of high voltage danger. Any contact with the
internal parts can be extremely dangerous.
Warning
Do not try to open Smart mirror in case of electric shock
Note:Incase ofelectricshock,pleasedo not tryto open Smartmirror.
Whenmalfunctionhappens,pleaseconsultaprofessionbeforeyou open
Smart mirror .

HILO Mirror
1
Quick Guide
Package Introduction

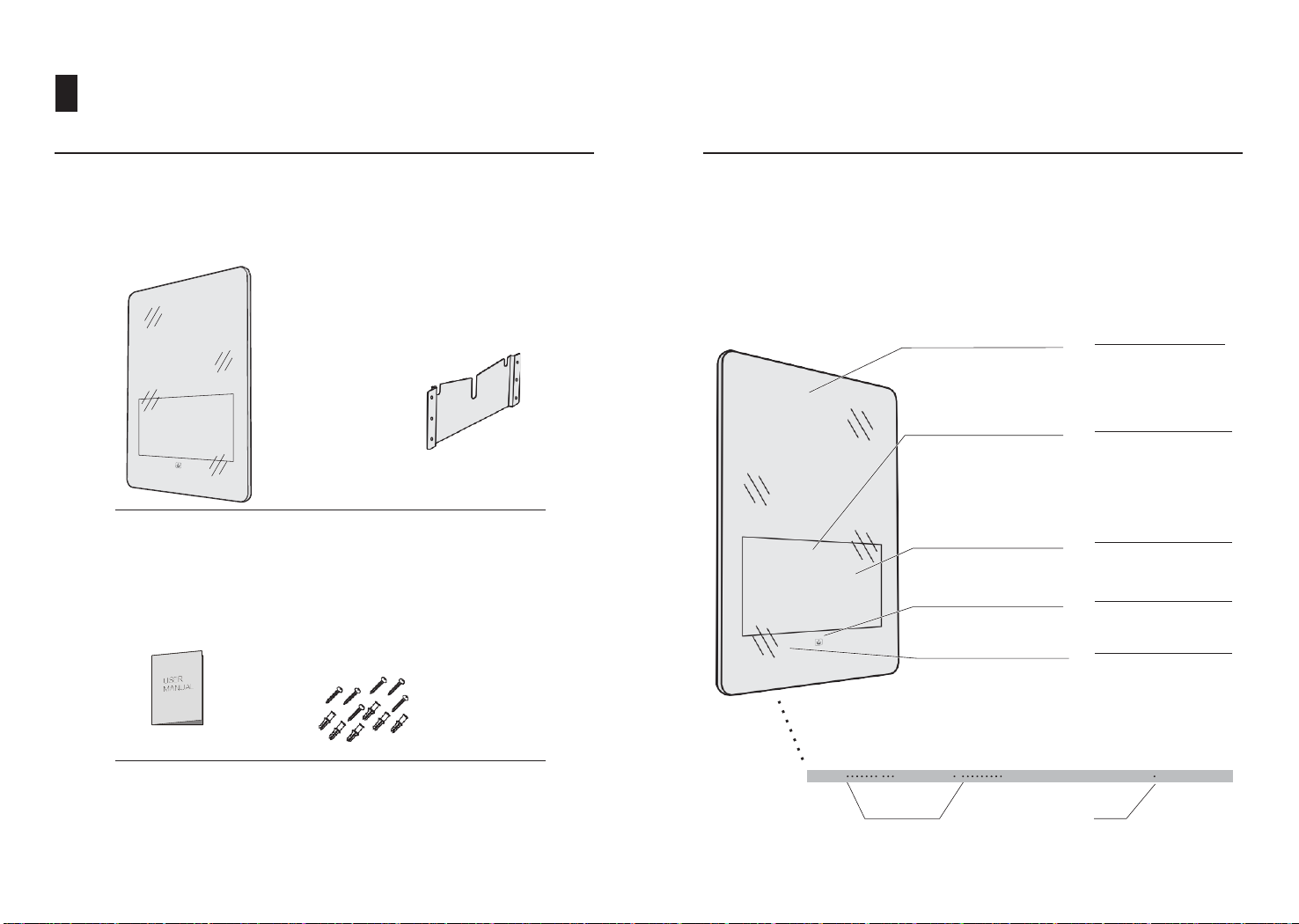

Standard Smart Mirror package contains the following items as below. Please
contact your local retailer if anything is missing. Some of the items in this manual may
differ becauseof customization or model.
Smart Mirror is a mirror that comes with a touch screen, display and integrated
speakers, microphone and motion sensors. Mirror is an interactive terminal and a
comprehensive hub for all smart devices. Smart Mirror helps to connect to health
devices or simply be used as entertainment device.
Mirror*1 Wall Bracket*1
User Manual*1 Crewhead *6 Dilating
screw *6
02 03
Front
View
1.
Mirror panel Mirror reflection
2.
Display area
Full HD display
3. Touch area
4. Touchbutton
5. Motion Sensor
Full
touch on display area
ON/OFF
Turn
ondisplay when
people
approaching
mirror.
Bottom bar
Speakers
Mic

HILO Mirror
Press
2s
Startup
HILO screen
Back View
Frosted surface
Wall mount support
USG, OTG, Ethernet
Quick Guide
1 、 Startu p &Shutdown
① Start up: Press RED touch button below the display area for 2 seconds, Smart
Mirror will boot up until home page appears. Touch button turns white.
② Shut down: Press WHITE touch button below the display area for 10 seconds,
Smart Mirror will shut down. Touch button turns red.
AC 100V-240V, 50/60Hz Input
Press
10s
Shut down
0
1. Metal Casing
2. Wall Anchor
3.
Ports
4. Power
cable

HILO Mirror
4 、 Bluetooth
HILO bluetooth is ON by default. Once external devices (Smart Scale, Sleep monitor,
Blood pressure monitor, Blood sugar monitor and etc..) are ON, they will be available for
pairing from the blutooth menu in settings
5、Connect to external smart devices
Different smart devices work with mirror through different protocols, Smart mirror supports
Wifi, and bluetooth. Refer to smart device user manual for demonstration.
07
Smart Devices
Smart Scale, connected tooth brush,
Sleep monitor, Blood pressure
monitorr, skin detector, etc..
3、Wifi network setting
Home page > setting> > Wi-Fi > Select your personnal Wifi > Once connected, you will be
able to browse internet and download Apps.
2、Motion Sensor
When Smart mirror is on standby, it'll turn on the screen when the motion sensor detects a person is
approaching. Smart mirror will turn OFF the display after 15 seconds if not in use. Screen timer can be set by
users through the build-in HILO APP (Available on the home screen)
Ideal detection range 8~30''
Motion sensor demonstration
Motion sensor

Wall
Mirror
Wall
Mirror
2
Installation
Installation Installation Demonstration
Flush Mount
Open a recess asshown in the wall
where you want to install the
mirror
N.B: Must be installed by a
professionnal
Wall Mount
Hang Mirror directly to the wall.
Notes: Be careful during installation to avoid scratching the mirror surface.
08 09
Fix bracket to the wall with screws
Wall Mount
Install bracket
Bottom support
Connect topower
Mirror

HILO Mirror
Cutout depth/inches
for wall
bracket.
Add 20mm wood plate
3
Dimension
Size/mm
4
Specification
Configuration
10.6''
23.6''
0.6'' 1''
31.5''
22''
22.4''
30''
Wall cutout size
No further notice on small changes on the same model.
11
10
18.8''
21.5''
5.9'' 5.9''
4.3''
15.74''
717
Power/Consumption
Power input
Consumption
Standby Consumption
AC 100-240V 2AMax 50/60Hz
≤45W
≤1W
Display size
Display type
Display ratio
Resolution
Brightness
Contrast Ratio
Viewing angle
Display color
Reponse time
Working life
General Size
Thickness
Mirror panel
Material
IP level
800X600mm
40mm
Coated Silver Mirror
Stainless steel bracket, metal casing,
plastic parts and etc.
IP65
General Dimension
21.5"
IPS
16:9
1920 x R.G.B x 1080
1000 cd/m2(Original LED screen)
4000:1
178° (H) X 178° (V)
16.7M
5ms
≥25000 Hour
DisplayDisplayDisplayDisplayDisplayDisplayDisplayDisplayDisplay
2.36''

HILO Mirror
5
Connection
Connect topower
6
Others
Notes
1. Use only original power cable that comes with the Smart Mirror.
2. Keep power cable in good shape and condition.
3. In any case of malfunction, unplug Smart Mirror immediately.
4. Unplug the Smart Mirror if you won't be using it for a long time.
1. Connect Mirror to power as shownabove.
2. Once successfully connected, touch button below display area isRED.
Connect to USB device
USB drive
Portable hard drive
In any case of malfunction, before sending Smart Mirror for maintenance, please read the
following instructions and solution.
Troubleshooting
Troubleshooting is only for users who are facing major operating issues on Smart mirror. If
users should have problems with specific functional page, please go to your retailer to get
user manuals on specific functions.
Couldn't start up Smart Mirror
1. Check if power jack is loose.
USB
Insert USB drive or portable hard drive to Mirror through USB port.
Note: Please do NOT insert USB devices to OTG port.
No image/sound or bad display
1. Make sure settings are properly adjusted
2. Call yoursupplier.
12 13
Power
socket(
110v
)
Power
cable

O Correct disposal of this product
(Waste Electrical & Electronic Equipment)
This making on the mirror, accessories or literature indicates that the Mirror and
its electronic accessories should not be disposed of with other household waste
at the end of their working life.
Household users should contact either the retailer where they purchased the
Mirror or their local government office, for details of where and how they can take
these items for environmentally safe recycling.
NOTE
