Hilomast NX User manual

0
NXLONG/HD TRAILER
NX Trailer
Operating Manual
Hilomast LLC
402 Chairman Court
Debary FL32713
Tel: [phone]
Email: [email protected]
Website: www.hilomast.com

NX Trailer Operating Manual Issue 1
1
Manual NX
Contents
Safety Information................................................................................................................................ 2
Product Information............................................................................................................................. 4
Trailer Specification.................................................................................................................. 4
Mast Specification.................................................................................................................... 5
Compressor Specification......................................................................................................... 5
Trailer Features..................................................................................................................................... 5
Trailer Operation ................................................................................................................................. 6
Mast Operation.................................................................................................................................. 12
Maintenance....................................................................................................................................... 14
Trailer..................................................................................................................................... 15
Mast....................................................................................................................................... 15
Notes ................................................................................................................................................. 16
Figures
Fig. 1 Trailer Features.......................................................................................................................... 5
Fig. 2 Trailer Operation Stages 1-3..................................................................................................... 6
Fig. 3 Trailer Operation Stages 4.a - 4.b .............................................................................................6
Fig. 4 Trailer Operation Stage 7 ......................................................................................................... 7
Fig. 5 Trailer Operation Stage 8.......................................................................................................... 8
Fig. 6 Trailer Operation Stage 11 - 12 ................................................................................................ 9
Fig. 7 Trailer Operation Stage 11 - 12 ................................................................................................ 9
Fig. 8 Trailer Operation Stage 13……................................................................................................. 10
Fig. 9 Trailer Operation Stage 14 ..................................................................................................... 11
Fig. 10 Mast Operation Stages 1 - 2………………………………….............................................................. 12
Fig. 11 Mast Operation Stages 4 - 5.................................................................................................. 13
Fig. 12 Mast Operation Note…......................................................................................................... 14

NX Trailer Operating Manual Issue 1
2
Manual NX
Safety Information
Always follow the Operating Instructions
ALWAYS wear protective shoes, safety helmets and protective gloves when in the area of the
trailer or when operating the trailer.
ALWAYS check with the local and state authority of the Country where the trailer is to be
used in for specific trailer regulations.
Ensure the area in which the mast is to be raised, that it is free of any overhead obstructions
and power lines.
Do NOT operate the mast in weather conditions that may endanger the operators, any
personnel or equipment. Do NOT exceed the MAXIMUM weather conditions stated.
Do NOT operate the mast outside of the operating temperature range -30°C to +70°C, wind
speeds or head loads in excess of those recommended.
Ensure that the head load is securely mounted to the mast.
Ensure the load rating on the vehicle tow bar is the same or greater than the coupler load
rating.
Ensure the ball size is the same as the coupler.
Always make sure jockey wheel is in the down position when the trailer is stationary and
before disconnecting it from the vehicle.
Always connect the trailer lighting plug to the trailer and ensure all trailer lights are
functioning correctly. Do not tow the trailer if any of the lights are not functioning.

NX Trailer Operating Manual Issue 1
3
Manual NX
Before towing the trailer, check that the wheel nuts are tight. Check the wheel nuts for the
first 10, 25 and 50 miles of driving on newly mounted wheels.
Before towing the trailer, check the tire pressure and tread condition of each trailer tire.
Do NOT exceed the trailers maximum gross weight (G.V.W).
CAUTION the tread plate on the trailer may become slippery when wet.
Ensure that the trailer Jockey Wheel is fully raised and locked into its transiting position
before towing the trailer.
Ensure that the Mast Mounting Bracket is fitted and secures the mast to the trailer before
towing.
Protective gloves MUST be worn due to the danger of hands becoming trapped between the
equipment.
Do NOT tow the trailer with the mast in the operational position. Always lower the mast and
lock into the stored position.
Ensure the Mast Safety Strop is fitted and secured before moving or towing the trailer.
Failure to observe any of the warnings in this manual may result in
personal injury, death, or equipment damage. South Midlands
Communications Ltd. (SMC)/Hilomast LLC do not accept responsibility
or liability for unauthorized use or actions outside of those
recommended.

NX Trailer Operating Manual Issue 1
4
Manual NX
Product Information
The NXLONG/HD is designed to carry the HD9 Pneumatic Telescopic Hilomast. The trailer is
designed and constructed for road use, with Radial style wheels.
Trailer Specification
Trailer Category
NX
Dimensions
(*Mast in the Stored Position)
Length
16ft
Width
6ft
Height
8ft*
Category Weight
(Weight of trailer when coupled)
2300Lb
Max Gross Weight (G.V.W)
3300Lb
NOTE: All dimensions are approximate.

NX Trailer Operating Manual Issue 1
5
Manual NX
Features
Trailer
Mast Safety Strop
Winch
Spare Wheel
Storage Box
Jockey Wheel
Extension Arm
Lighting Board
Tread Plate
Ladder
Mast
Fig. 1 Trailer Features
Trailer and Mast shown in the stored position

NX Trailer Operating Manual Issue 1
6
Manual NX
Trailer Operation
1. Park the trailer on level ground in accordance with the local and state
authority regulations. Wear all required safety equipment and clothing.
2. Disconnect the trailer lighting plug from the towing vehicle.
3. Release the trailer safety chains from the towing vehicle.
4. Lower the Jockey wheel using the following procedure:
a. Undo the locking pin using the handle and lower the wheel
b. Lock the pin and use jockey wheel handle to level the trailer
Hitch Ball Lock
Lighting Plug
Trailer Safety Chain
Jockey Wheel
Handle
Locking Pin
Jockey Wheel
Fig. 2 Trailer Operation Stages 1-3
Fig. 3 Trailer Operation Stages 4.a-4.b

NX Trailer Operating Manual Issue 1
7
Manual NX
5. Set-up an operational zone around the trailer
6. Move the towing vehicle outside of the trailer’s operational zone

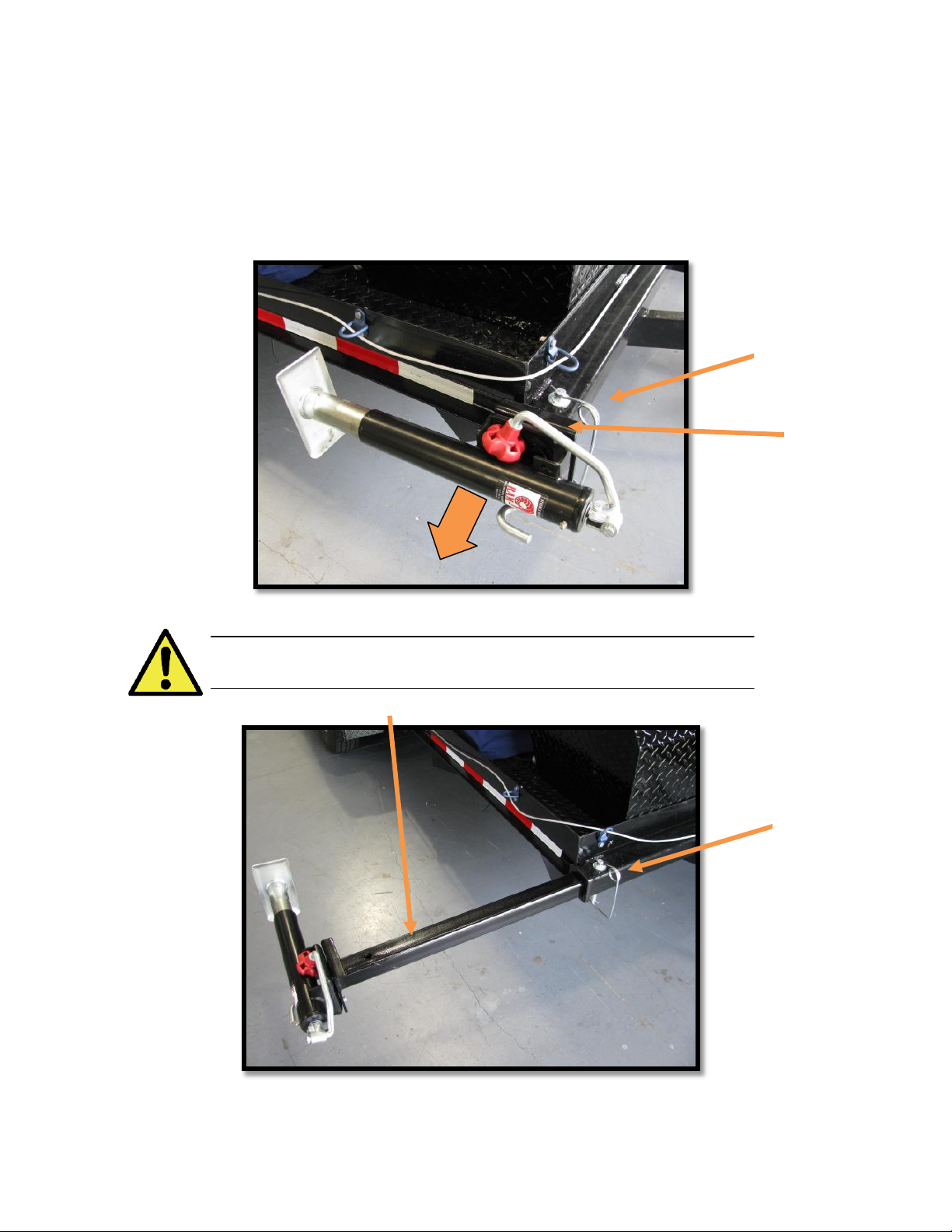

7. Remove the through pins holding the extension arms and extend them to
fully extended position, then engage the through pin to secure the
extension arms in place.
Ensure the through pins fully engage and lock the Extension arms into position
Through Pin
Extension Arm
Extension Arm –Fully Extended
Through Pin
Fig. 4 Trailer Operation Stage 7

NX Trailer Operating Manual Issue 1
8
Manual NX

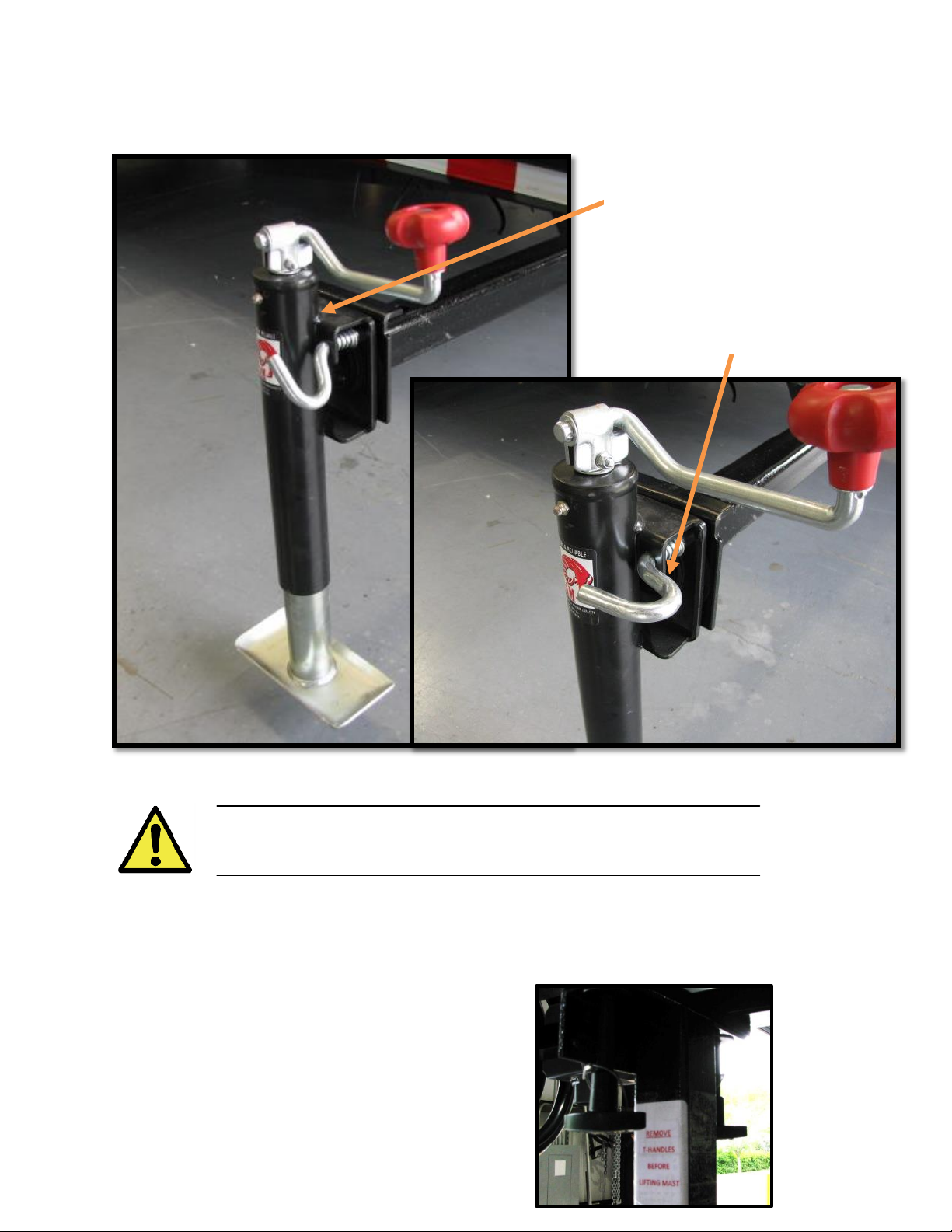

8. Release the locking pins and swing the stabilizing jacks down into position.
Ensure the Locking Pins fully engage into the Stabilizing Jacks and
The Pin Retainers are installed
9. Adjust the stabilizing jacks so that the trailer is level in both planes
10. Release the Tilt Over system by un-screwing the 7/16 T-Handle screws.
Stabilizing Jack
Jack Locking
Pin
Fig. 5 Trailer Operation Stage 8

NX Trailer Operating Manual Issue 1
9
Manual NX
11.Remove the mast safety strop by unclipping the carbine from the Eye-Bolt
on the mast Head.
12.Secure the head load to the mast.
Ensure the head load is securely mounted to the mast
Mast Safety Strop
Mast Safety Strop
Locking Collar Handles
Fig. 6 Trailer Operation Stages 11-12
Fig. 7 Trailer Operation Stages 11-12

NX Trailer Operating Manual Issue 1
10
Manual NX

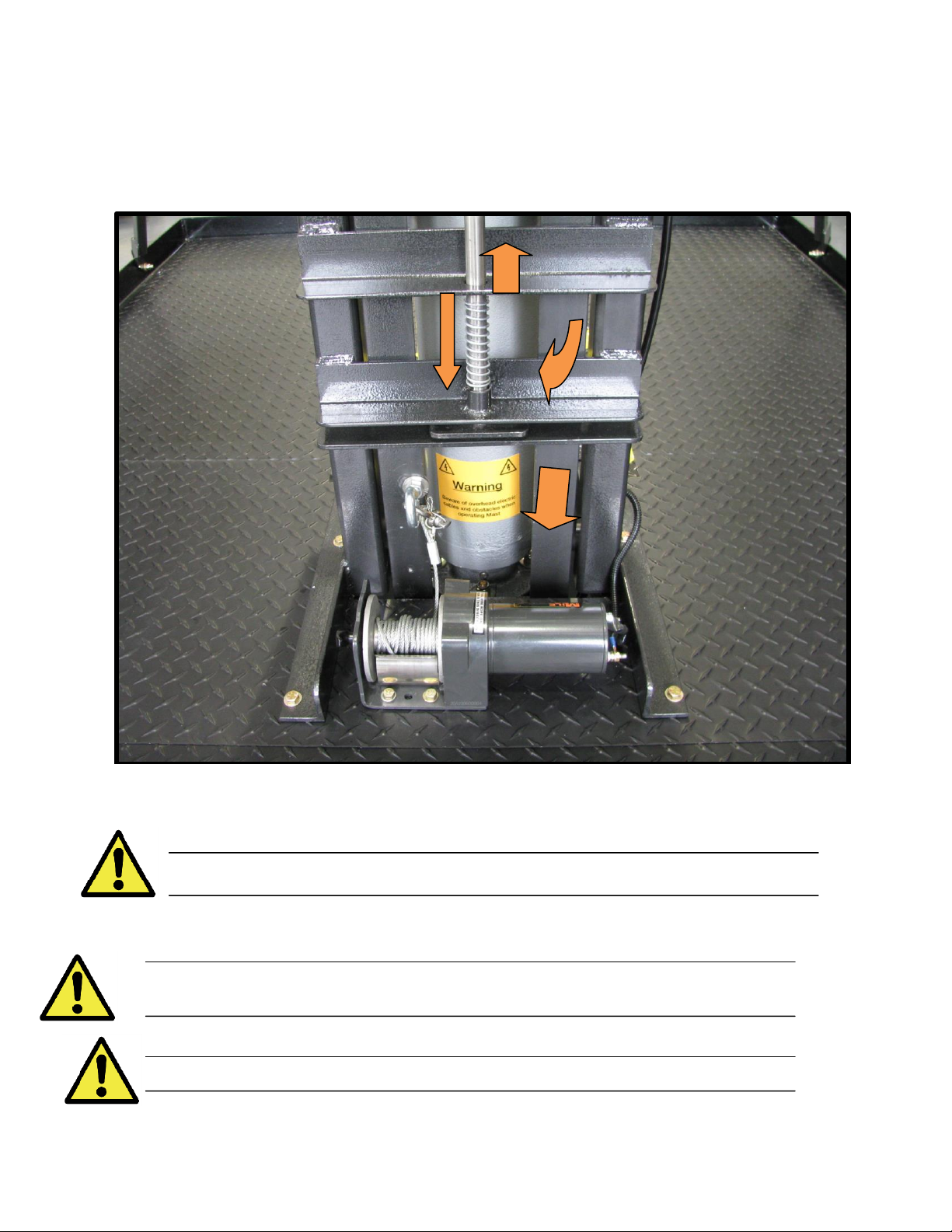

13.Activate the Winch Switch and guide the mast into the operational
position.
Ensure the area in which the mast is to be rotated and then raised is free of any overhead
obstructions and power lines
Caution: Hands may get caught in equipment, protective gloves must be worn at all times
Winch
Winch
Switch
Locking Pin
Mast Carriage
Fig. 8 Trailer Operation Stage 13
Down
Up
Be sure to not over tension the winch line

NX Trailer Operating Manual Issue 1
11
Manual NX
14.(1) Activate the winch until the mast is seated firmly in the mast carriage.
(2) Lift locking pin from the cradle; (3) line up the holes on mast carriage
and the trailer and (4) insert the locking pin.
Ensure the locking pin engages into the mast carriage and trailer
To return the mast to the stored position, reverse this procedure. Note: Stop retraction of actuator
when safety tape is resting on the actuator cover.
Ensure the mast bracket and mast safety strop is fitted and secure when the mast is not locked into
the operational position
Ensure the Jockey Wheel is fully raised and locked into position when towing the trailer
1
2
3
4
Fig. 9 Trailer Operation Stage 14

NX Trailer Operating Manual Issue 1
12
Manual NX
Mast Operation
Raising the Mast

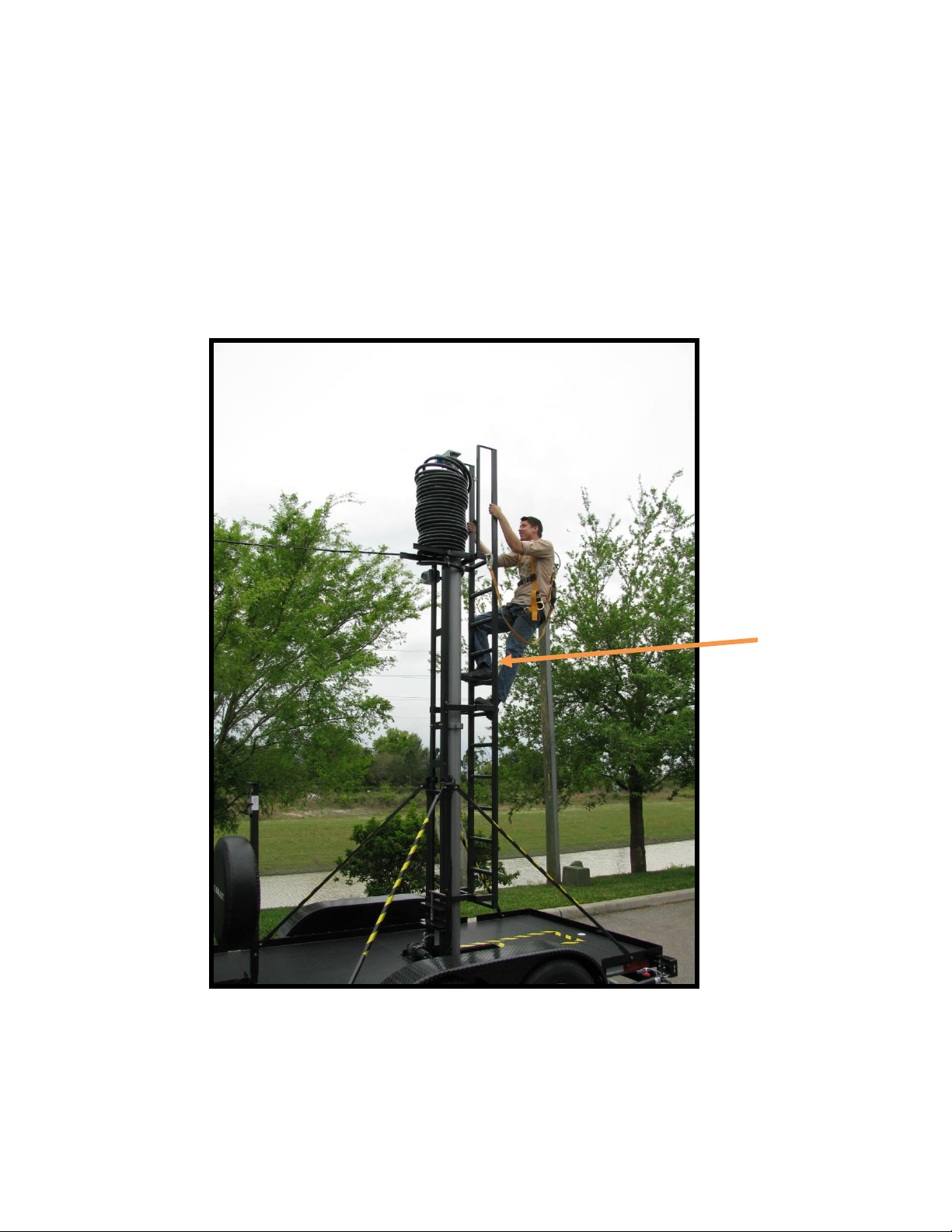

1. Make sure swing assembly is secured fully prior to use.
2. Climb the mast carriage using the ladder. (*Harness should be worn when
climbing the mast.)
Ladder
Fig. 10 Mast Operation Stages 1-2
*Harness not included

NX Trailer Operating Manual Issue 1
13
Manual NX
3. Secure all locking collars (with the exception of the top mast section) by
turning the thumb screw in a Clockwise direction
4. Engage the compressor
5. Use compressor control to extend the mast
Ensure the area in which the mast is to be raised is free of any overhead obstructions and
power lines
6. Once the Mast Top Section is fully extended, secure the Locking Collar by
turning the locking handle in a Clockwise direction
7. Release the Locking Collar on the next section down from the Mast Top
Section by turning the locking handle in a Counter Clockwise direction
8. Once fully extended secure the Locking Collar
9. Repeat this procedure until all Mast sections are fully extended
Lowering the Mast
1. Use compressor control to lower the mast.
2. Release the Locking Collar on the Mast Base Section by turning it in a
Counter Clockwise direction
3. Engage the Type 21 Valve on the Right side of the lower base piston of the
mast
Compressor
Compressor Control
Down
Up
Fig. 11 Mast Operation Stages 4-5

NX Trailer Operating Manual Issue 1
14
Manual NX
4. The Mast Section will descend
5. Once fully descended release the Locking Collar on the next section
6. Repeat this until all Mast Sections have been retracted
7. Once each section is lowered, tighten the locking handles
NOTE: Please refer to the Mast Manual supplied for detailed operation
instructions.
NOTE: Following long term deployment, re-pressurize the Mast Sections
using the Compressor before lowering the Mast. This is to ensure a controlled
decent of each of the Mast Sections.

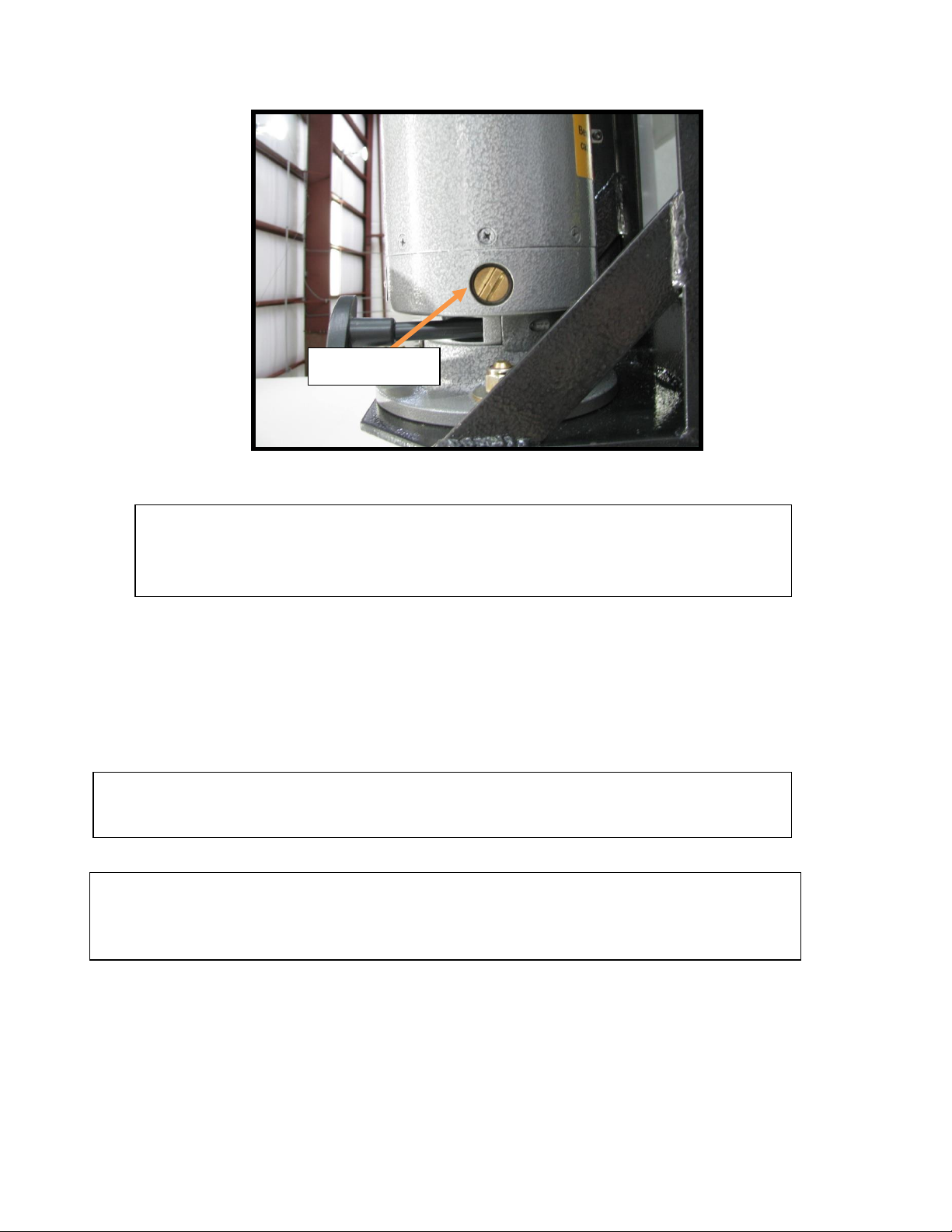

*Note: Type 21 Valve may also be used to quickly release air contained
in mast or connect black supply hose for drainage purposes. Run hose
off of trailer
*Type21 Valve
Fig. 12 Mast Operation *Note

NX Trailer Operating Manual Issue 1
15
Manual NX
Maintenance
Trailer
Inspect the trailer before every use.
Check all electrical connections to ensure that they are in good working order and replace
where necessary.
Check the trailer lighting board for correct operation. The trailer must not be used until the
lighting board is functioning correctly.
Check the tire pressure and tire tread of each tire on the trailer.
Mast
Weekly place a few drops of oil at the top of each mast section using the oilier on each
collar to ensure smooth operation.
Like any mechanical device, the mast should be used regularly to keep everything in good
working order. Long periods of inactivity can have an adverse effect on the working parts.
Rainwater can enter the mast by running down the sections but will not affect the mast in
any way. However, keep the drain holes clear.
After some years the PTFE bearing material and Nylon keys may require replacement.
NOTE: Please refer to the Mast Manual supplied with the Mast for detailed maintenance
instructions.

NX Trailer Operating Manual Issue 1
16
Manual NX
Notes
__________________________________________________________
__________________________________________________________
__________________________________________________________
__________________________________________________________
__________________________________________________________
__________________________________________________________
__________________________________________________________
__________________________________________________________
__________________________________________________________
__________________________________________________________
__________________________________________________________
__________________________________________________________
__________________________________________________________
__________________________________________________________
__________________________________________________________
__________________________________________________________
__________________________________________________________
__________________________________________________________
__________________________________________________________
__________________________________________________________
__________________________________________________________
__________________________________________________________
__________________________________________________________
__________________________________________________________
__________________________________________________________
__________________________________________________________
__________________________________________________________
__________________________________________________________
__________________________________________________________

NX Trailer Operating Manual Issue 1
17
Manual NX
Hilomast LLC
402 Chairman Court
Debary FL32713
Tel: [phone]
Email: [email protected]
Website: www.hilomast.com
