Hiniker 7812 User manual

PICKUP TRUCK SNOWPLOW
STRAIGHT MOLDBOARD PLOW
Models 7802, 7902, 7812, 7912, 7812SS, 7912SS, 10331
SCOOP PLOW
Models 6801, 6901, 6812, 6912
OPERATOR’S MANUAL
DO NOT USE OR OPERATE THIS EQUIPMENT UNTIL THIS MANUAL
HAS BEEN READ AND THOROUGHLY UNDERSTOOD
PART NUMBER 25013499 Rev. C

TABLE OF CONTENTS
TO THE PURCHASER.................................................................................................................. 2
SAFETY......................................................................................................................................... 3
OPERATING PROCEDURES ....................................................................................................... 4
TROUBLE SHOOTING ................................................................................................................. 9
MAINTENANCE ...........................................................................................................................11
ASSEMBLY ................................................................................................................................. 13
SPECIFICATIONS....................................................................................................................... 23
SYSTEM CHECKOUT AND JOYSTICK CONFIGURATION....................................................... 24
HEADLAMP AIMING PROCEDURES......................................................................................... 25
ELECTRICAL CIRCUIT.......................................................................................................... 26-27
HYDRAULIC CIRCUIT ........................................................................................................... 28-29
WARRANTY ................................................................................................................................ 30
Table of Contents 1
25013499 Rev. C 1/18 Hiniker/25013499RevC

Instructions for raising and lowering the plow refer to
the joystick controller as received from the factory.
The raise and lower functions may be reversed to
suit the preference of the operator by following the
instructions on page 24 for switching the controller
joystick and face plate.
This Operator’s manual is shipped with this
equipment. Contact your Hiniker dealer for additional
copies.
Always obtain original Hiniker service parts.
Substitute parts could adversely affect equipment
performance and warranty.
Check that your dealer has forwarded to Hiniker
company the delivery report form along with the plow
identication number because it helps to maintain
maximum service and warranty benets. This does
not put you on any mailing list, and information
thereon is not available to others.
Your plow’s identication number decal is at location
(1) in the following illustration.
DWG NO. 6066
TO THE PURCHASER
2 To The Purchaser
This product is designed and manufactured to
give years of dependable service, when properly
maintained and used for the purpose for which it
is intended. Never allow anyone to operate this
equipment until they fully understand the complete
contents of this manual. It is the responsibility
of owners who do not operate this equipment
to ensure the operator is properly instructed
and understands the contents of this manual. It
is also the owner’s responsibility to ensure that
anyone operating this equipment is mentally and
physically capable of so doing.
Important information is contained in this manual
to help ensure safe and efficient operation.
If you have any questions about this manual, or
the equipment discussed herein, contact your
Hiniker dealer.
TAKE NOTE! THIS SAFETY ALERT
SYMBOL FOUND THROUGHOUT THIS
MANUAL IS USED TO CALL YOUR
ATTENTION TO INSTRUCTIONS INVOLVING
YOUR PERSONAL SAFETY AND THE SAFETY
OF OTHERS. FAILURE TO FOLLOW THESE
INSTRUCTIONS CAN RESULT IN INJURY OR
DEATH.
THIS SYMBOL MEANS:
- ATTENTION!
- BECOME ALERT!
- YOUR SAFETY IS INVOLVED!
SAFETY SIGNAL WORDS:
DANGER: Indicates an imminently hazardous
situation that, if not avoided, will result in death or
serious injury.
WARNING: Indicates a potentially hazardous
situation that, if not avoided, could result in death
or serious injury.
CAUTION: Indicates a potentially hazardous
situation that, if not avoided, may result in minor or
moderate injury, or damage to components.
NOTE: Addresses safety practices not related to
personal safety.
All references to LEFT or RIGHT are defined as
viewing the plow from the cab of the truck.
Record the following information for later
reference when obtaining service parts:
Purchase Date
Purchaser’s Name
Dealer’s Name
Machine I.D. No.

This is a safety alert symbol. It alerts
an operator to information concerning
personal safety. Always observe
and heed these symbols and instructions,
otherwise death or serious injury can result.
Operator safety is a principle concern in
equipment design and distribution. However,
many accidents occur because a few seconds
of thought, and a more careful approach to
handling, were ignored.
Accidents can be avoided by knowing and
following the precautions cited in this manual.
GENERAL SAFETY
1. Read this manual thoroughly. Make sure
the operator understands it and knows
how to operate this equipment safely. This
equipment can kill or injure an untrained or
careless operator and bystanders. If you
sell this equipment, ensure the new owner
acknowledges receipt of this manual.
2. This plow is intended for plowing snow
only. Plowing gravel, rocks, etc., or using
the plow for any purpose other than plowing
snow could result in harm to the operator or
bystanders or cause damage to the plow or
vehicle.
3. Do not service or otherwise handle a plow
in the raised position unless it is securely
blocked against unexpected falling.
4. Do not attempt to handle or service this
equipment, and direct others to do the
same, unless you know how to do it safely
and have the proper tools for the job.
5. Keep hands, feet, hair, and clothing away
from moving parts.
6. Do not alter the equipment to the extent of
compromising safety or performance.
SAFETY
Safety 3
BEFORE OPERATION
1. Discipline yourself to visually check for
worn, damaged or cracked parts before
starting use. Replace these with genuine
Hiniker parts.
2. Escaping hydraulic oil under pressure can
penetrate the skin, causing serious injury.
Do not use your hand to check for leaks.
Use a piece of paper or cardboard to nd
suspected leaks. Tighten all connections
before pressurizing hydraulic lines.
If uid is injected into the skin, get medical
attention immediately to prevent serious
infection.
3. Check all controls and operating functions
of the machine in a safe area before starting
to work.
DURING OPERATION
1. Always wear seat belts when operating a
motor vehicle.
2. Ensure everyone is clear of the machine,
especially away from blind areas of
the operator, before starting, actuating
hydraulics or operating this equipment.
3. Do not plow snow at excessively high
speeds.
4. Avoid hitting objects that will damage your
plow or truck.
5. Set the brakes and stop the truck’s engine
before adjusting or servicing your plow.
AFTER OPERATION
1. Park the plow on a solid, level surface.
Fully collapse the lift cylinder and use the
stop plate, as described on page 7 before
unhitching the plow to prevent the plow
frame from falling forward.

OPERATING PROCEDURES
4 Operating Procedures

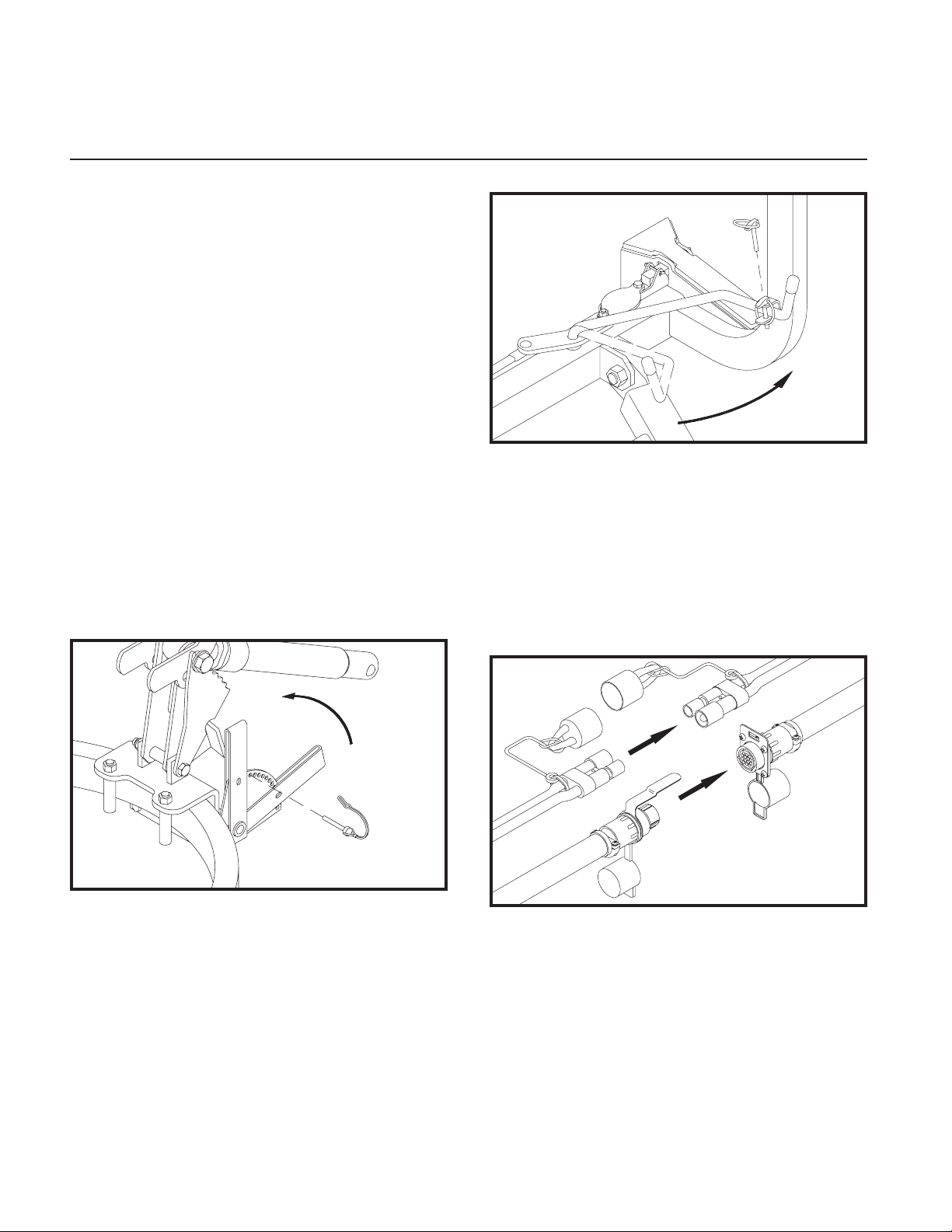

Handle Pinned With Plow On Truck DWG NO. 6721A
Pin the handle in the clevis with its klik pin.
Failure to pin the handle in place may allow
the plow to fall off the truck.
NOTE: Before connecting the plow’s wiring to
the truck, make sure power is switched “Off”
on the joystick controller.

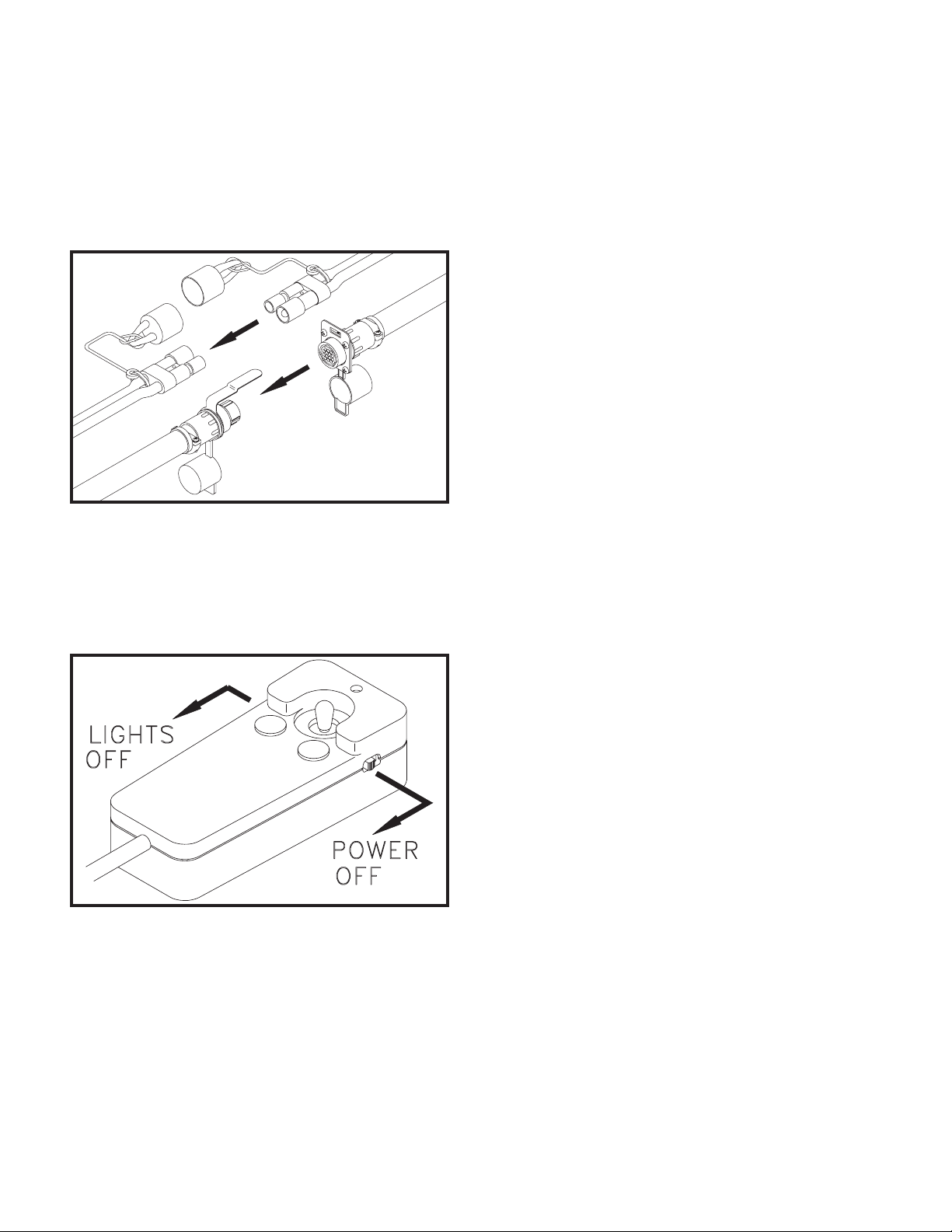

Alignment Tab and Slot DWG NO. 6697
Plug in the two electrical connectors between
the plow and the truck after latching the plow.
The alignment tab on the 16-pin plug will
mate with the slot on the mating receptacle to
ensure proper connection.
ATTACHING THE PLOW
Attachment prongs on the truck should be mount-
ed such that the bottom edge of the prongs mea-
sure about 10 inches above the ground. Prong
receivers on the plow frame should remain par-
allel to the ground and at the correct height by
fully retracting the lift cylinder with the upper lift
links and bracing the frame with the stop plate
before removing the plow from the truck (See
“Removing the Plow”). Ideally, the prongs on
the truck should lift the plow frame slightly when
driving into the plow for attachment.
Powdered graphite applied on the prongs will
help the plow slide on and off more easily.
Check that prongs are in line with the receiv-
ers before driving into the plow. Set the parking
brake in the truck to prevent it from creeping
back out from the receivers.
DWG NO. 5617A
Remove the tab lock pin from the parking stand
index plate and raise the stand to its highest po-
sition. Reinstall the pin in the plate for transport.
Pull the latch handle into the clevis on the lift
frame to force the sliders through the notches
in the prongs and receivers. Check that both
sliders are fully engaged.

Operating Procedures 5
NOTE: When removing the plow, remember to
place the headlight switch in the “Truck” position
to return power to the truck’s headlights.
Raise or lower the plow by moving the joystick to
the “Raise” or “Lower” position.
Hold the plow at an intermediate height by releas-
ing the controller from the “Raise” position when
the plow reaches the desired height.
Moving the controller to the “Lower” position will
lower the blade to the ground and allow the plow to
“Float” along the contour of the ground while plow-
ing snow.
A yellow light on the control box indicates the plow
is in the oat mode. Momentarily moving the joy-
stick to the “Raise” position will remove the plow
from the oat condition and the yellow indicator will
return to green.
Move the joystick left or right to angle the blade.
Release the joystick when the blade is at the de-
sired angle.
TRANSPORTING THE PLOW
The extra weight of the snowplow on your truck
will impair handling response and increase braking
distance.
The plow will also block some airow to the ve-
hicle’s cooling system, possibly causing the ve-
hicle to overheat. Therefore, it is important not to
exceed speeds above 45 mph when the plow is
attached.
Remove the plow if you must drive your truck for
long distances when the temperature is warm.
Raise the blade to a position where it will not inter-
fere with the headlights before driving.
Transport the plow with power to the joystick con-
trol box switched off to prevent accidental lowering
of the plow.
Never adjust the blade height or angle the blade
while driving.
Check that the plow headlamps and turn signals
are operational, and headlamps are aimed cor-
rectly. Test the lift and angling cylinders in a safe
area before using the plow.
To make alignment of the plow easier in the future,
mark a point on the back of the head lamp, a point
on the hood near the front of the truck and a point
on the windshield that are in line when you are
seated behind the steering wheel. Line up these
three points when driving into the plow.
THE JOYSTICK CONTROLLER
The joystick control box has slide switches for con-
trolling power to the snowplow and for switching
from the truck headlights to the headlights on the
plow.
The joystick controller raises and lowers the plow
and angles the blade left or right.
NOTE: Drawings 4176 and 4177 show the raise
and lower functions of the joystick controller as
received from the factory. Functions may be re-
versed to suit the preference of the operator by
following the instructions on page 24 for switching
the controller joystick and face plate.
The vehicle’s electrical power must be turned on
before the control box will function.
Joystick Control Box DWG NO. 4176
Place the on/off switch on the joystick control box
in the “On” position to supply power to the snow-
plow. A green light will indicate power is on.
Move the headlight slide switch on the control box
to the “Plow” position to change from the truck lights
to the snowplow lights. Activate high beam/low
beam and turn signal/parking lamps from the truck
as you normally would without the plow attached.

PLOWING SNOW
WARNING: Always wear a seat belt
when plowing snow. Sudden contact
with a hidden object can result in
serious personal injury.
Inspect areas to be plowed before snowfall for
potential hazards, and mark obstructions with
stakes that will be seen when snow covers the
ground. Identify any emergency equipment and
utility outlets that may need to be cleared in the
event of a storm. Prepare a plan beforehand for
clearing snow from tight or enclosed areas and
locate sites for stacking snow.
When using skid shoes on the back of the
moldboard, adjust the skids according to the
surface to be plowed. The bottom of the skids
should be about 1/2” below the cutting edge when
plowing gravel roads or lots. Skids should be even
with the cutting edge on hard surfaces such as
asphalt or concrete.
Always plow snow as it is accumulating. Wet snow
may weigh about 12 pounds per cubic foot. The
weight of snow being pushed by your plow may
increase to several tons.
Allowing snow depth to grow to unmanageable
levels can cause difcult removal problems and
can be costly in terms of wear on equipment.
WARNING: Serious personal injury
can result from plowing at excessive
speeds, as well as costly damage to
equipment and property, if an obstruction is
encountered while plowing. Do not exceed 10
mph while plowing.
Plow snow in the lowest truck gear to transfer
maximum power to the cutting edge. Clear areas
in front of buildings rst. Back drag snow away
from buildings by driving to the building with the
plow raised, then dropping the blade to pull snow
away from buildings.
Clear large lots by angling the blade and creating a
single path. Roll snow to outer edges of the lot by
taking successive passes with the blade angled.
When plowing very deep snow, it may be
necessary to raise the blade and shear off layers of
6 Operating Procedures
snow until a working area is cleared. Work small
areas in multiple passes to push snow to outer
edges. Generally, 6 inch snow can be plowed
with the entire blade width; 9 inch snow with 3/4
of the blade width; 12 inch snow with 1/2 of the
blade width. Local conditions will determine how
much work can be done before stalling or getting
stuck.
PARKING
Lower the plow to the ground when parking
your truck for a long period of time with the
plow attached. Place the on/off switch in the
“Off” position to prevent the plow from drawing
power from the truck battery. The plow’s power
unit may continue to draw electrical current from
the truck battery if the control switch is left on;
possibly resulting in insufcient charge to start
the truck.
REMOVING THE PLOW
To remove the snowplow from your truck, park
on a solid level surface with the blade straight
across the truck. Lower the plow to the ground
and leave the controller in the “Float” mode.
Lower Plow, Leave Controller in “Float” DWG. NO. 4177
NOTE: The plow control box must be in the
“Float” mode to manually retract the lift cylinder
rod. If the cylinder rod cannot be retracted with
power on and the controller in oat, loosen the
packing nut on the lift cylinder up to 1 1/2 turns
to reduce friction.
With the plow lowered to the ground and the
controller in the ”Float” mode, push down on the
upper lift links to fully retract the lift cylinder rod.

Operating Procedures 7
Retracting the lift cylinder will orient the prong
receivers correctly for reattaching the plow later.
Failure to retract the lift cylinder rod will allow
the lift frame to fall forward, possibly causing
personal injury or damage to plow components.

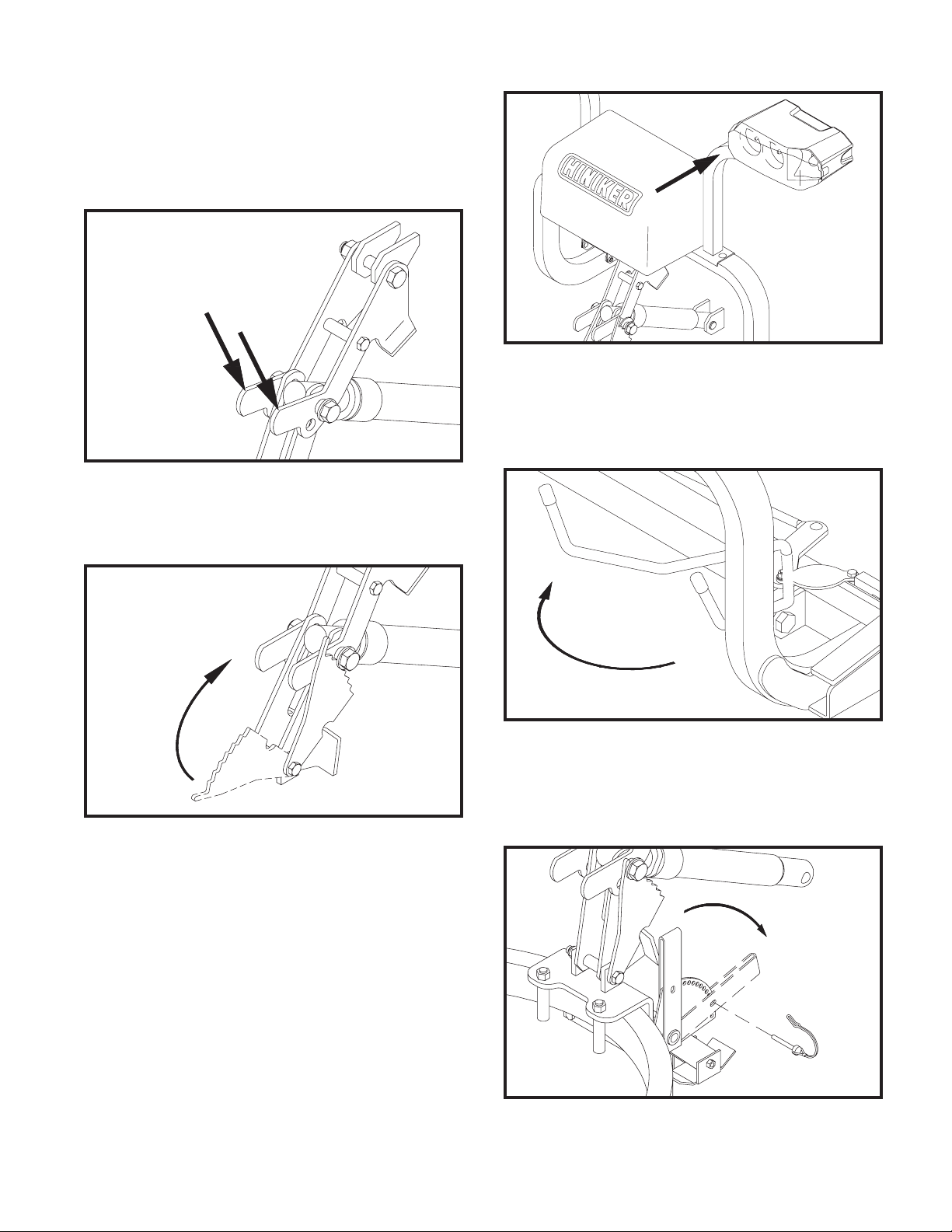

Retract Cylinder With Upper Lift Links DWG NO. 6000
Rotate the stop plate up to contact the spacer
bushing on the lift cylinder bolt.
Rotate Stop Plate DWG NO. 6004
Gently push back on the headlight bracket to
tilt the lift frame back as far as possible, then
release the bracket to allow the weight of the lift
frame to lock the stop plate in place.
Push Lift Frame Back DWG NO. 6005B
Swing the latch handle open until the latch
sliders are fully removed from the attachment
prongs.
Swing Handle To Remove Sliders DWG NO. 6722A
Lower the parking stand to the ground by remov-
ing the tab lock pin from stand index plate, then
swinging the stand to the ground with the lever.
Lower and Pin Parking Stand DWG NO. 5251A
Reinstall the pin in the index plate through the
hole in the lever to hold the stand in place.

8 Operating Procedures
Unplug the electrical connectors by pulling
them straight out from the receptacles. Do not
twist the connectors. Twisting will damage the
connector pins or the wiring harness.
Place dust caps on connectors to prevent
contamination.
Disconnect Plugs DWG NO. 6698
Back inside the truck, return control of the
headlights to the truck and switch power off on
the snowplow control box, then slowly back the
truck out from the plow.
Turn Off Lights and Power DWG NO. 4164
NOTE: The stop plate will automatically
fall forward as soon as the lift cylinder is
fully extended for raising the blade prior to
transporting the plow.
If the snowplow won’t be used for an extended
period of time, the prong weldment can be
removed from the truck by removing the hex
bolts that fasten it to the truck mount frame.

GENERAL
1. Check to see that the motor is wired cor-
rectly with tight connections, for the proper
voltage.
2. Check reservoir oil level.
PROBLEM
1. Plow does not attach to ve-
hicle
2. Pump motor does not run
3. Pump runs with joystick in
neutral position
4. Plow will not lower
5. Hydraulic cylinder does not
function or functions slowly,
motor runs
6. Plow does not remain raised
with joystick in “neutral” posi-
tion
REMEDY
A. Fully collapse lift cylinder and
rotate stop plate up to brace
the lift frame before removing
plow from truck.
B. Slowly drive into receivers
and set parking brake
C. Lower receivers by adjusting
park stand
A. Replace solenoid
B. Replace brushes or pump
motor
C. Charge or replace battery
D. Clean and tighten connec-
tions
E. Replace control box
F. Replace fuse
A. Replace solenoid
B. Replace control box
C. Locate and repair
A. Correct wiring
B. Replace control box
C. Replace valve or coil
A. Charge or replace battery
B. Add oil (do not overll)
C. Tighten or redo connection
D. Replace valve or coil
A. Clean valve, or replace
B. Clean valve, or replace
C. Repack or replace cylinder
D. Replace control Box
POSSIBLE CAUSE
A. Receivers are tipped forward
B. Prongs recoil out of receivers
when attaching
C. Park stand pinned too low
A. Defective solenoid
B. Defective pump motor
C. Weak or defective battery
D. Bad electrical connections
E. Defective joystick control box
F. Blown fuse supplying power
to control box
A. Defective solenoid
B. Defective joystick control box
C. Wiring short
A. Reversed wiring on valve
block
B. Defective joystick control box
C. Defective lift return valve or
coil
A. Weak or defective truck bat-
tery
B. Oil level low
C. Hydraulic connection leak
D. Solenoid valve not opening
properly
A. Leakage through pump check
valve
B. Leakage through solenoid
lowering valve
C. Internal leakage in cylinder
D. Defective joystick control box
TROUBLE SHOOTING
3. Check that wiring harness relay connec-
tions are wired correctly
4. Check for external leakage at cylinders,
hoses and power unit.
Trouble Shooting 9
(Continued On Page 10)

10 Trouble Shooting
PROBLEM
7. Angling cylinders relieve too
easily or too difcultly while
plowing
8. Oil leaks from cylinder(s)
9. Battery goes dead with power
to the control box on and joy-
stick in neutral position.
10. Battery goes dead with power
to the control box off.
11. Plow parking/turn lights are
dim
12. Plow does not clean-up snow
from low areas
13. In extremely cold tempera-
tures, the oil in the hydraulic
system is thickened, causing
slow functioning of the plow
14. Pump chatters when raising
plow
15. Oil running out of cap on hy-
draulic reservoir
16. Vehicle overheats with the
plow on
17. Plow lights do not operate
with plow attached
18. Truck headlights do not op-
erate properly with plow re-
moved
19. Poly moldboard is bowing or
cracking
REMEDY
A. Have relief pressure adjusted
by Hiniker snowplow dealer
A. Tighten packing 1/8 turn
B. Repack or replace cylinder
A. Locate and repair
B. Replace coil
C. Replace control box
A. Locate and repair
A. Repair connection
B. Properly ground
A. Controller should be in the
oat mode
A. As the system warms, the oil
will thin out and function nor-
mally
B. Select Hiniker Cold Flow Hy-
draulic Oil for plowing in ex-
tremely cold temperatures
A. Add hydraulic oil until chatter-
ing stops. Do not overll
A. Avoid excessive inclines or
change direction of plowing
B. Remove excess oil
A. Add coolant
B. Remove ice and snow
C. Transport plow at lower
speeds
A. Move switch to “plow” posi-
tion
B. Replace relay
C. Replace joystick control box
D. Replace fuse
A. Move switch to “truck” posi-
tion
B. Replace relay
A. Loosen the bolts so the plas-
tic can expand and contract
POSSIBLE CAUSE
A. Relief pressure set too low or
too high
A. Loose packing
B. Defective cylinder
A. Short in wiring
B. Short in valve coil
C. Defective joystick control box
A. Short in wiring
A. Bad connection(s)
B. Lights not properly grounded
A. Controller not in oat mode
A. Cold temperatures
A. Hydraulic oil low
A. Plowing on steeply inclined
terrain
B. Too much oil
A. Vehicle coolant level low
B. Ice and snow buildup in grill
C. Insufcient airow to engine
compartment
A. Light switch on joystick con-
trol box in “truck” position
B. Defective relay
C. Faulty light switch on joystick
control box
D. Blown fuse on vehicle acces-
sory feed
A. Light switch on joystick con-
trol box in “plow” position
B. Defective relay
A. Moldboard bolts are too tight.

Maintenance 11
MAINTENANCE
WARNING: Do not service or otherwise
handle a plow in the raised position
unless it is securely blocked against
unexpected falling.
Dependable snowplow operation is the result
of following good maintenance procedures.
Inspect your plow frequently to ensure that
all parts are working smoothly, and develop a
schedule for maintenance at required intervals.
GENERAL
Wash salt and dirt off the plow before storage.
Do not power wash hydraulic cylinders, as high
pressure can damage seals and cause cylinder
damage. Touch-up any chips or scratches in
the paint and apply a light coating of grease to
extended cylinder rods to prevent corrosion.
HYDRAULIC SYSTEM
The majority of snowplow operational problems
are caused by bad oil in the hydraulic system.
Hydraulic oil should be changed every year for
best performance.
Select Hiniker Cold Flow Hydraulic Oil or an
equivalent oil that meets military specification
5606, for plowing in extremely cold temperatures.
To change hydraulic oil, disconnect the electrical
wiring harnesses from the snowplow power unit
and uncouple three hydraulic lines. Unbolt the
power unit from the plow, and remove it to a
clean working area that can capture any spilled
oil.
Carefully unbolt the oil reservoir from the power
unit and discard old oil. Purge old oil from the
angling cylinders by forcing rods to retract.
Clean the suction filter at the pump inlet and
wipe any metal shavings off the magnet on the
pump.
Re-attach the reservoir onto the power unit and
re-connect the power unit on the snowplow
before adding new hydraulic oil.
Re-attach hydraulic hoses and electrical wires
at the correct locations on the power unit.
Pour hydraulic oil into the power unit reservoir
until the reservoir is half full. Angle the plow full
left or right to fill the angling cylinder with oil,
then add more oil until the oil reaches the fill line
- about 1 1/4 inches from the top. Do not overfill
the reservoir.
Cycle the plow left and right and up and down,
to purge any air trapped in the system.
Check the oil level with the plow on the ground.
Add oil to the fill line, if necessary, but do not
overfill the reservoir.
ELECTRICAL MAINTENANCE
Periodically check all electrical connections for
proper fit and remove any contamination that
may be present.
To prevent contamination always place dust caps
on connectors when not in use. This is particularly
important when the plow is being stored. A light
coat of dielectric grease is recommended to
reduce corrosion of the contacts and to make
connecting and disconnecting easier.
Before each season check vehicle battery
and electrical system for proper operation. A
weak battery, dirty terminals, or faulty charging
system may cause improper operation and
possible failure of the joystick controller.
Before every plowing season, and throughout
the season, check the snowplow headlamps for
proper function and aim. Refer to sections titled
“System Check-Out” and “Headlamp Aiming
Procedure” in this manual for instructions.

12 Maintenance
MECHANICAL COMPONENTS
Prior to the operation of a new snowplow, or one
which has been stored, inspect all hardware
and verify proper torque on all bolts and nuts
in accordance with the recommended torque
specifications.
GRADE 5 TYPE B & F LOCK NUT
TORQUE VALUES
Diameter Ft-lbs. N-m
5/16” 13-18 17-25
3/8” 23-33 31-44
1/2” 58-82 79-112
5/8” 117-165 158-223
GRADE 5 BOLT TORQUE VALUES*
Size Ft-lbs. N-m
1/4” 8-12 11-16
3/8” 29-41 39-56
1/2” 73-103 99-140
5/8” 146-206 198-279
Loose bolts can cause hole elongation and
part failure resulting in dangerous operating
conditions and equipment breakdown.
Check all hardware periodically during operation
and keep tightened to specified torque values.
Replace worn bolts and lock nuts with grade 5
bolts and equivalent type B or type F lock nuts.
Type B lock nuts are plain hex; type F lock nuts
are flanged hex.
Inspect wear of cutting edges before every
plowing season and frequently throughout the
season. Replace the cutting edge before wear
reaches the main plow blade.
The 5/16” hex bolts in the latch sliders are factory
retained with anaerobic threadlock. If removal
or replacement of these bolts is necessary,
purchase new bolts with threadlocker from your
Hiniker dealer, or apply a commercially available
threadlock, i.e., Loctite 242 (blue) or Perma-Lok
HM118 (red), to standard 5/16-18 X 3/4” grade 5
hex bolts before reassembly.

Plow Assembly 13
GENERAL INFORMATION
WARNING: To prevent personal injury
or death, be certain to keep clear of any
parts that may drop when removing
bundling straps, wires or brackets. Support
heavy sections with hoist or blocks before
removing wires or straps.
In the following instructions, left and right
machine references are dened as being viewed
from the cab of the truck.
Be certain that hydraulic hoses and electrical
wires are safely routed and allow full motion of
moving parts. Secure loose wires with plastic tie
straps.
Some components are fastened at incorrect
locations for shipping purposes.
All hardware should be tightened only enough to
insure safety during assembly. Torque hardware
to specied values, as shown in the following
chart, only after assembly has been completed.
GRADE 5 TYPE B & F LOCK NUT
TORQUE VALUES
Diameter Ft-lbs. N-m
5/16” 13-18 17-25
3/8” 23-33 31-44
1/2” 58-82 79-112
5/8” 117-165 158-223
GRADE 5 BOLT TORQUE VALUES*
Size Ft-lbs. N-m
1/4” 8-12 11-16
3/8” 29-41 39-56
1/2” 73-103 99-140
5/8” 146-206 198-279
* applications without lock nuts
Replace worn bolts and lock nuts with grade 5
bolts and equivalent type B and type F locknuts.
Type B lock nuts are plain hex; type F lock nuts
are flanged hex.
PLOW ASSEMBLY
PLOW ASSEMBLY
1. Place moldboard face down on cardboard
or other padding that will prevent scratches
in the paint.
Unbolt shipping brackets from the ends of
the moldboard assembly and save two sets
of 5/16 inch hex bolts, at washers and lock
nuts for reattaching the side markers later.
Remove the side markers from the
moldboard assembly and set aside for
reassembly. Remove the snow deector
from 10’ moldboards and also save for later.
Remove both skid assemblies from their
shipping locations and reassemble at the
ends of the moldboard with one 1 inch
spacer and one 1/2 inch spacer beneath
the moldboard tube.

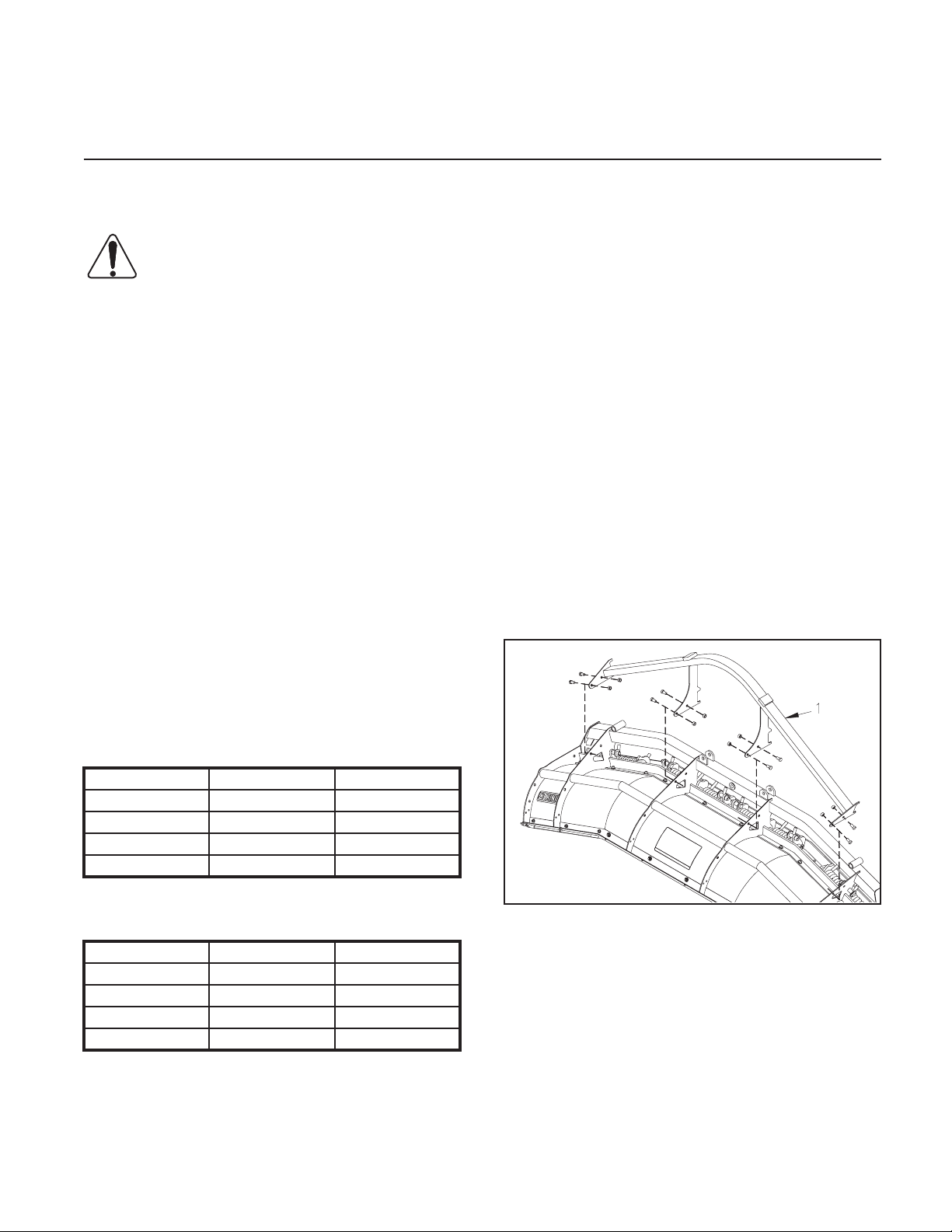

DWG. NO. 7345A
Wrap hoist straps or padded chains around
the quadrant weldment, item 1 in drawing
7345A to support its weight.
Unbolt the quadrant from the back of the
moldboard assembly by removing eight hex
bolts and lock nuts. Rotate the quadrant to
its working position and line up eight holes
with holes in moldboard. Reassemble the
quadrant to the moldboard with eight hex
bolts and lock nuts previously removed.

14 Plow Assembly
3. Tip the moldboard and frame assembly to
their working position with a hoist or fork
truck. Pin the parking stand to hold the
square tubes of the push frame parallel to
the ground.
Lower and Pin Parking Stand DWG NO. 5251A
Swing the lift frame to its approximate work-
ing position and hold it with a hoist or forklift
for assembly of the lift mechanism.
The bottom surface inside the two prong
receiver channels should measure approxi-
mately 10 inches above the ground in the
working position.
4. Locate a 90 O-ring/are adapter in the
hardware bag and the lift cylinder from the
parts box. Turn the O-ring end into the port
of the lift cylinder so that the are end points
toward the rod end and is directed up about
20 from the cylinder centerline to provide
clearance for installing the hose later.
DWG NO. 7147
2. Open the frame crate and set aside the
power unit box, headlamp boxes and parts
box for later. Carefully lift the frame assem-
bly from the crate by wrapping hoist straps
or padded chains around both ends of the
2 1/2 inch square tube at the back of the
frame assembly.
Remove the 3/4 inch hex bolt, arrow 1 in
drawing 5420A, and two 1/2 inch hex bolts,
and spacers, arrow 2, from the push frame.
DWG. NO. 5420A
Align the push frame hitch plates with the
pivot hole in the moldboard tube, then re-
assemble the 3/4 inch hex bolt, slotted nut
and cotter pin. Install the nut so that the as-
sembly is secure, but frames will pivot.
Reassemble the two 1/2 inch hex bolts,
spacers and lock nuts at their original loca-
tions and fully tighten hardware.
Remove clevis pins from the rod ends of the
two angling cylinders. Loosen the plugs in
the cylinder ports and extend the cylinder
rods to the lugs on the back of the mold-
board. Pin the rods between the lugs with
the clevis pins and cotter pins.

Plow Assembly 15
Pin the base of the cylinder between the
center lugs of the lift frame with the 3/4” x 3”
clevis pin. The hydraulic tting should be on
the right side of the cylinder.
Remove four lift links and the stop plate kit
from the parts box. From the hardware bag
remove two 3/4 inch hex bolts, two 3/4 inch
I.D. shim washers and one 3/4 inch nylon in-
sert lock nut. Also remove the 1/2 inch hex
bolt and upper link spacer bushing.

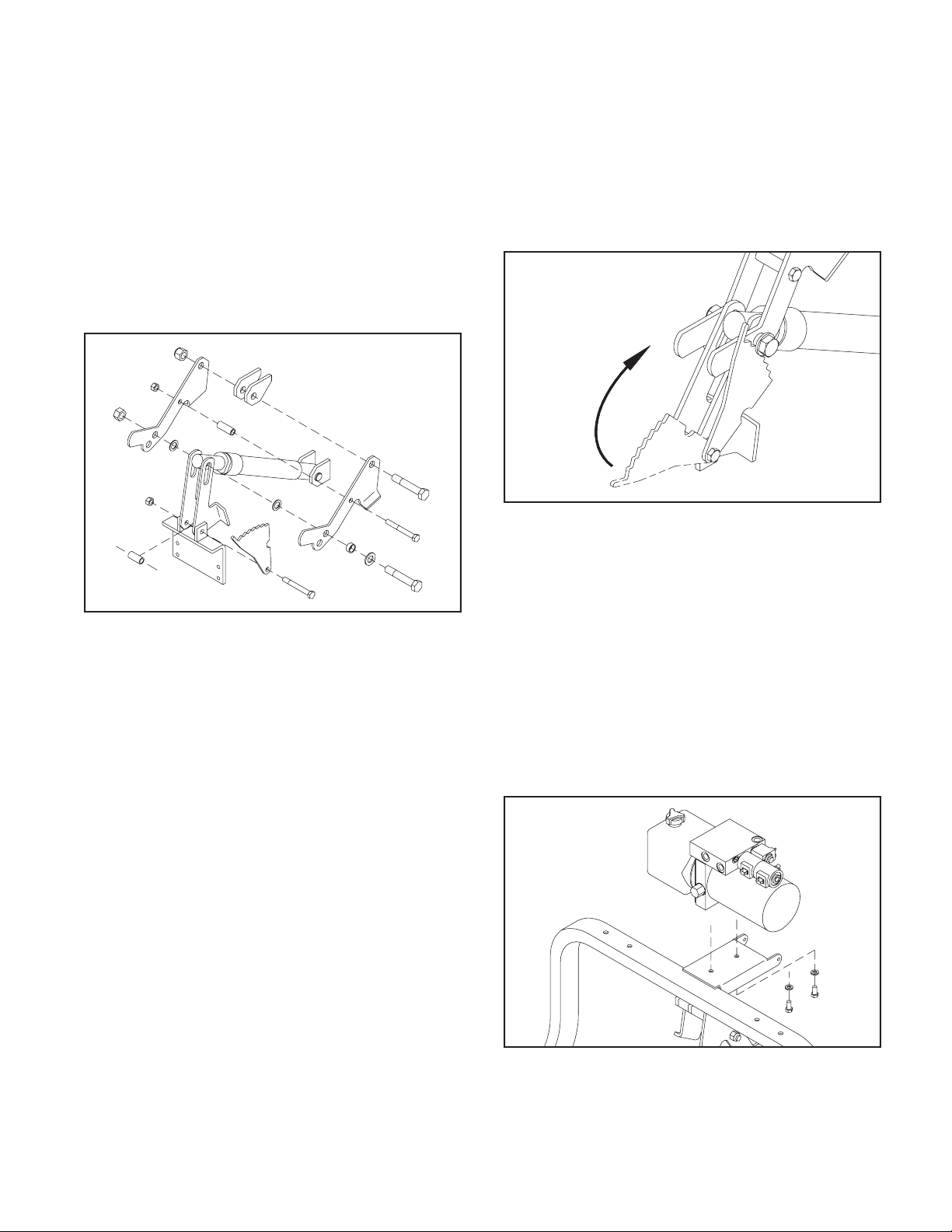

DWG NO. 6585
Identify the RH and LH upper and lower links
by referring to drawing 6585. Assemble the
links with their stop surfaces away from the
lift cylinder.
Remove the 1/2 inch hex bolt and spacer
from between the tabs on the push frame.
Slide the stop plate onto the bolt, as shown
in the drawing, then bolt the two lower links
inside the tabs, with the spacer between the
links.
Assemble the two upper lift links outside
the lugs on the lift frame with a 3/4 inch x
4 1/4 inch hex bolt and nylon insert lock
nut.
Bolt the upper link spacer bushing between
the two upper links with the 1/2 inch hex
bolt and lock nut.
Place the at washer and spacer bushing
from the stop plate kit onto the remaining
3/4 inch hex bolt, then complete the lift
mechanism assembly by bolting the lift cyl-
inder rod, lower links and two shim washers
between the upper links.
Bolt through the upper set of bottom holes
in the upper links for most vehicles, then
secure the assembly with the 3/4 inch lock
nut from the stop plate kit. Bolting through
the lower set of holes will increase down-
ward plow travel for taller trucks, but reduce
lift height.
DWG NO. 6004
Rotate the stop plate up to contact the spac-
er bushing on the lift cylinder bolt. Gently
push back on the upper lift frame tube, then
release to allow the weight of the frame to
lock the stop plate in place.
5. Before assembling the power unit on the lift
frame, scrape a small amount of paint from
the two mount holes in the lift frame to pro-
vide a good electrical ground for the turn
signals and parking lights.
DWG NO. 6595
Mount the power unit on the lift frame with
two 3/8” x 3/4” hex bolts and two 3/8” lock
washers. The plastic reservoir of the power
unit should be to the left side of the plow.

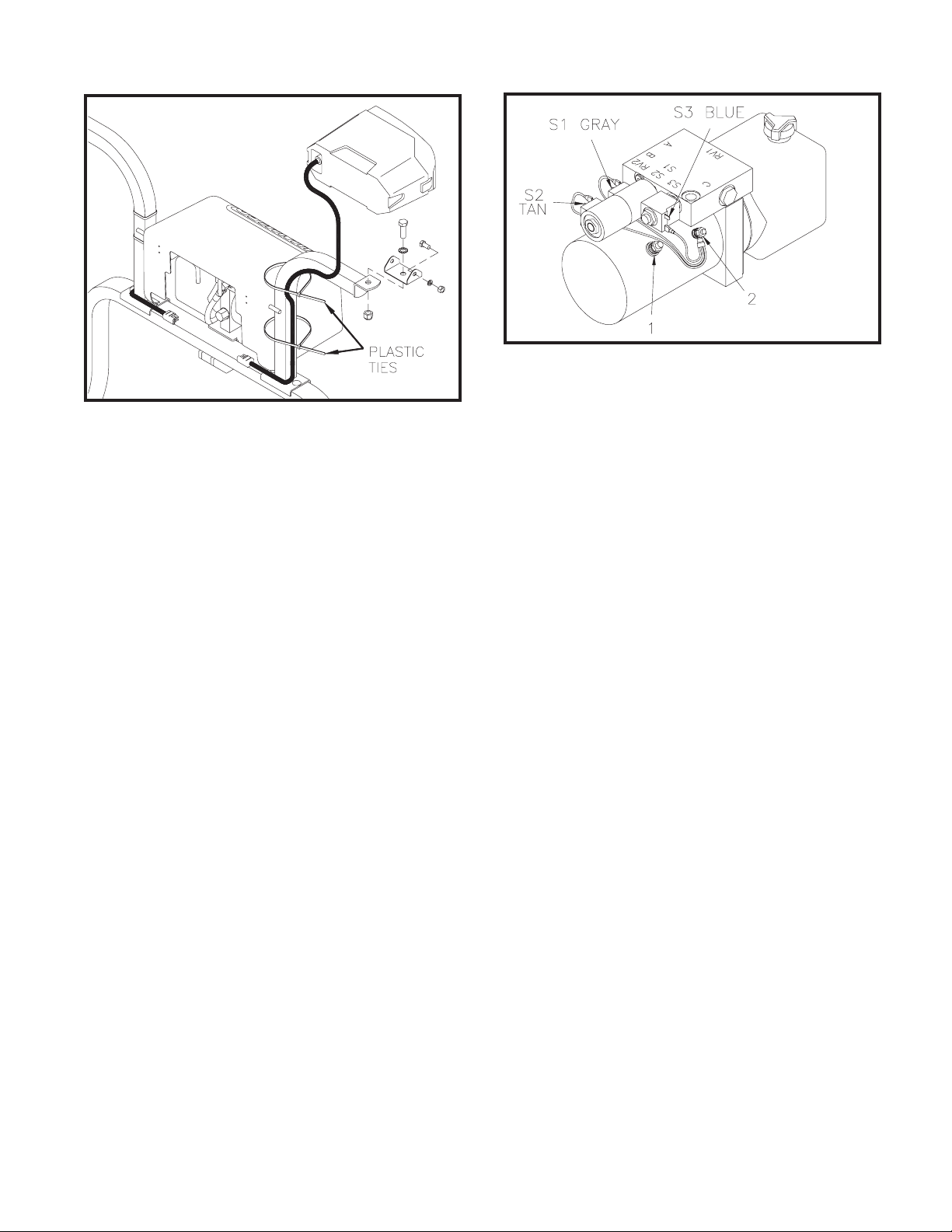

DWG NO. 6484
Locate three 90 O-ring/flare adapters in
the hardware bag. Turn the O-ring end of
one adapter into the top port (Port C) of the
power unit so that it points about 45 to the
right and to the rear when viewed from the
top.
Turn the other two 90 adapters into ports
A and B from the back of the power unit so
that the flare ends point at opposite 45 an-
gles from center. See drawing 6485.
Install 45 O-ring/flare adapters into the
ports of the angling cylinders so that the
flare ends are nearly parallel to the mount
lugs of the push frame.
DWG NO. 4205
Three identical hydraulic hoses are in the
parts box. Each hose has a swivel nut on
each end that will assemble to the adapters
from the power unit and three cylinders.
16 Plow Assembly
Connect one hose to the tting on the top of
the power unit (Port C), then route the hose
ahead of the lift frame tube before assem-
bling to the fitting on the lift cylinder.
DWG NO. 6485
Connect the remaining two hoses to the t-
tings from ports A and B at the back of the
power unit. Route both hoses ahead of the
lift frame tube before assembling the hose
from port A to the LH side angling cylinder
and the hose from port B to the RH side an-
gling cylinder.
The tting on the LH side angling cylinder
may have to be adjusted slightly to route
the hydraulic hose to best avoid interfer-
ence with the latch handle and the lift links.
Use plastic tie straps to secure all hydraulic
hoses away from lift link stops.
6. Before assembling the headlamp brack-
ets on the lift frame tube, scrape a small
amount of paint from the three holes in each
bracket and from the four holes in the frame
tube to provide a good electrical ground for
the turn signals and parking lights.
Mount the headlamp brackets to the lift
frame tube with four 3/8” x 2” carriage bolts
and anged lock nuts from the hardware
bag in the parts box.
Remove the LH and RH headlamps from
their boxes and mount on the brackets with
hardware from the headlamp boxes.

Plow Assembly 17
DWG NO. 7218
Use plastic tie straps to band headlamp
cables above and below the brackets at the
locations shown to provide clearance for
the power unit cover later.
Refer to sections titled ”System Check-Out”
and “Headlamp Aiming Procedure” in this
manual for aiming instructions.
7. Identify the plow power cable assembly
and plow wiring harness in the parts box. A
ground wire harness for the solenoids is in
the power unit box.
The power cable for the snowplow has two
cables with ring terminals on one end and
a two pin connector on the other and mea-
sures about 38” long.
The plow wiring harness has a 16-pin con-
nector on one end and the other end has
connectors labeled “DRIVER SIDE” and
“PSNGR SIDE” for the headlamps and
three loose wires with spade terminals.
The ground wire for the solenoids has one
7 inch long wire and two wires 11 inches
long. There is a 1/4 inch ring terminal on the
common end and three spade receptacles
on the remaining ends.
NOTE: To prevent corrosion apply a light coat
of dielectric grease to all electrical connections
including ring and spade terminals.
DWG NO. 6502
Refer to drawing 6502. Attach the ring ter-
minal of the solid red (or red-striped) wire
of the power cable assembly to the terminal
on the power unit at location 1.
Fasten the ring terminal of the solid black
wire of the power cable assembly and the
ring terminal of the solenoid ground wire
harness to the terminal on the motor at
location 2.
Connect the three black wires of the ground
harness to solenoids S1, S2 and S3.
Connect the gray wire from the wiring har-
ness to solenoid S1. S1 extends the right
side of the plow to plow left.
Connect the tan wire from the wiring har-
ness to solenoid S2. S2 extends the left
side of the plow to plow right.
Connect the blue wire from the wiring har-
ness to solenoid S3. S3 lowers the plow.
Connect the RH headlamp to the wiring har-
ness end labeled “PSNGR SIDE” and the
LH headlamp to the end labeled “DRIVER
SIDE”.
Ensure connections are fully mated for
proper sealing. There should be no gaps
between connector halves. Secure these
cables to the frame with plastic ties.

18 Plow Assembly
WARNING: Disconnect truck battery
before beginning electrical installation
to avoid shock hazard.
The motor solenoid, underhood wiring harness,
power cable and joystick control box are located
in the parts box shipped with the snowplow frame.
NOTE: To prevent corrosion apply a light coat of
dielectric grease to all electrical connections in-
cluding ring and spade terminals.
8. Refer to drawing 6699. Lay the underhood
harness in it’s approximate position for nal
assembly with the 7-pin circular connec-
tor near the driver’s side rewall. Place the
16-pin connector just left of center near the
grill, the set of four relays near the driver’s
side inner fender and the other set near the
passenger side inner fender. Place the 5-pin
headlight connectors at the respective head-
lights.
9. Determine the location of the vehicle bat-
tery. If the battery is located on the right
(passenger) side or if there are two batteries
DWG NO. 6699
Truck Battery On Passenger Side
congured as a 12 volt system, then pro-
ceed to step 10.
If the battery is located on the left (driver)
side of the vehicle, then the wiring harness
will need to be modied.
Refer to drawing 6700. Remove the tape
from the Black corrugated loom at the
points shown. Locate the Orange, Red,
and two Black wires. These wires connect
to the battery and motor solenoid located
next to the battery. Remove the four wires
from approximately 33 inches of the loom,
making sure the Red and Black wires are
long enough to connect to the battery. Tuck
these wires back into the loom as shown in
the drawing and retape the loom.
10. If there is no access hole in the drivers side
rewall then drill a 1-1/8 inch diameter hole.
Route the 7-pin circular connector through
the rewall into the cab compartment and
install the 4 inch grommet in the hole, if re-
quired.
