HIRED-HAND 0404-3213 User manual
HIRED-HAND MFG., INC. •1733 Co Rd 68 •Bremen, Alabama 35033 •Phone 256-287-1000 •Fax 265-287-2000
Manual Part Number 4801-0106 Rev. 12-06 Page 1 of 2
WARNING
Disconnect all Electrical Power before installing the HAF Fan Mounting Bracket
TOOLS REQUIRED PART NUMBERS
INSTRUCTIONS
Lay the Fan on a flat surface and install the
small hooked end between the inner ring of guard
and motor. See Figures 1 and 2.
Press against the bracket to squeeze
support hooks through the wires in the guard.
Make sure that a support falls between the
two support hooks. See Figure 2. Pull up on
the bracket to seat hooks.
Insert screw through hole in Bracket. This will
prevent Bracket from vibrating loose.
Hang fan in secure place.
!
Screwdriver Pliers
HAF Fan Mounting Bracket
Part Number Quan. Description
0404-3213 1 FAB GS Brkt mtn hanging HF-20
IMPORTANT!
Locate packing slip and make sure that all listed parts are enclosed. If not, call your Hired-Hand distributor
immediately. Please read and understand all instructions in this manual before installing HAF Fan Bracket.
HAF Fan Mounting Bracket Installation
STEP 1
STEP 2
STEP 3
Install Small
Hooked End in
the Fan housing.
Small Hooked
End
STEP 4

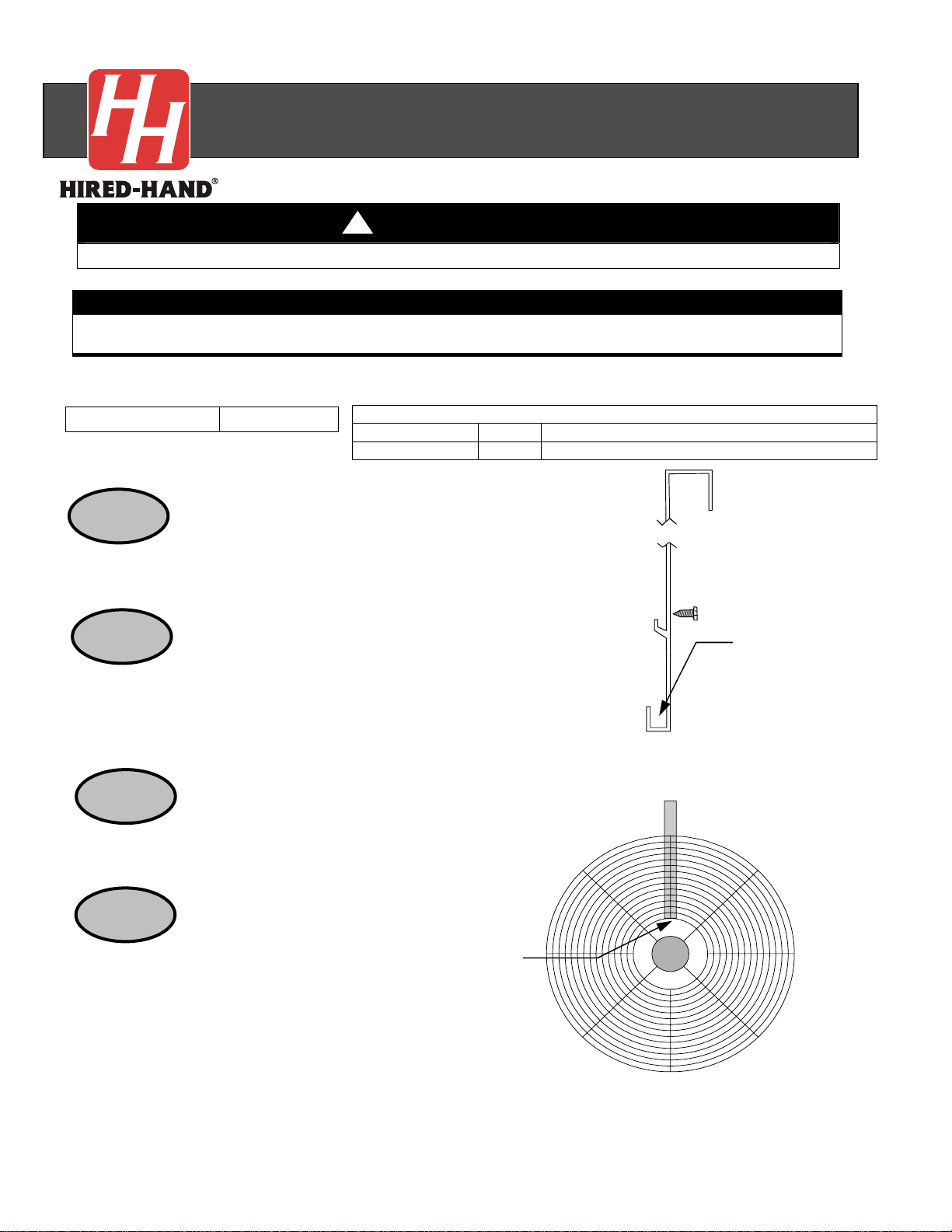

Figure 1
HAF Fan Mounting Bracket
Figure 2
HAF Fan with Mounting Bracket
HAF Fan Mounting Bracket Installation
