Hirtz HICO-ULTRASONAT 810 User manual
Translation of the Original
Operating Instructions
Ultrasonic Nebulizer
HICO-ULTRASONAT 810
Operating Instructions HICO ULTRASONAT810
HICO-ULTRASONAT 810 2
HIRTZ & Co. KG
Bonner Str. 180
50968 Köln/Germany
Phone: +49 (0) 2 21 / 37 67 8 – 0
Fax: +49 (0) 2 21 / 37 67 8 – 85
Internet: www.hico.de
Doc-No. 392801; Version 3-08/09
© 2009 HIRTZ & Co. KG
Table of contents
HICO-ULTRASONAT 810 3
1General ..................................................................6
1.1 Information about this instruction manual ...................6
1.2 Warning notes .................................................................7
1.3 Limitation of liability .......................................................9
1.4 Copyright law ..................................................................9
1.5 Manufacturer's address..................................................9
2Safety...................................................................10
2.1 Intended use ..................................................................10
2.2 Personnel requirements ...............................................11
2.3 General safety notes.....................................................12
2.4 Danger sources .............................................................13
2.4.1 Danger of drowning......................................................13
3Transport and placement...................................14
3.1 Scope of delivery and transport inspection................14
3.2 Unpacking......................................................................15
3.3 Waste disposal of packaging material ........................15
4Commissioning...................................................16
4.1 Safety notes...................................................................16
4.2 Placement and setting up.............................................16
4.2.1 Requirements on the set up place................................16
4.2.2 Illustration of device (standard setup of table unit) .......17
4.2.3 Total overview of components......................................18
4.2.4 Standard setup as table unit.........................................20
4.2.5 Setting up with five-castor base (optional)....................21
4.2.6 Use a wall rail unit (optional) ........................................23
4.3 Connecting the HICO-ULTRASONAT 810 ...................24
4.3.1 Filling the chamber / direct nebulizing ..........................24
4.3.2 Nebulization using sterile water capsules.....................26
4.3.3 Permanent nebulizing (optional)...................................27
4.3.4 Lowest quantity nebulizing (optional) ...........................29
4.3.5 Heatable aerosol hose (optional) .................................31
4.3.6 Disposable aerosol hose (optional) ..............................32
4.3.7 Heating for disposable aerosol hose (optional) ............32
4.3.8 Electrical connection ....................................................33
Table of contents
HICO-ULTRASONAT 810 4
5Representation and function.............................34
5.1 View of unit, control and display elements.................34
5.2 Safety features ..............................................................35
5.2.1 Sensors ........................................................................35
5.3 Type plate ......................................................................35
5.4 Function .........................................................................36
5.4.1 Basics...........................................................................36
5.4.2 Indications / contraindications / side effects .................37
6Control and operation ........................................39
6.1 Before switching on......................................................39
6.1.1 Inspections on the unit .................................................39
6.2 Operation .......................................................................40
6.2.1 Commissioning.............................................................40
6.2.2 Timer operation ............................................................40
6.2.3 Adjusting flow and intensity ..........................................41
6.2.4 Button lock ...................................................................41
6.2.5 Alarm function ..............................................................42
7Cleaning and disinfection..................................43
7.1 Safety notes...................................................................43
7.2 Unit .................................................................................44
7.2.1 Surface.........................................................................44
7.2.2 Filter .............................................................................44
7.3 Attachments and accessories......................................45
8Maintenance and technical inspection.............46
8.1 General...........................................................................46
8.1.1 Unit...............................................................................47
8.1.2 Filter change ................................................................47
8.1.3 Transducer (quartz) replacement .................................49
8.2 Technical inspection.....................................................50
9Trouble shooting ................................................51
9.1 Safety notes...................................................................51
9.2 Fault causes and rectification......................................52
Table of contents
HICO-ULTRASONAT 810 5
10 Waste disposal of old unit .................................53
11 Warranty ..............................................................54
12 Technical data and accessories........................55
12.1 Technical data ...............................................................55
12.2 Accessories ...................................................................57
13 Guidelines and declaration of manufacturer ...58
14 Brief instructions................................................61
General
HICO-ULTRASONAT 810 6
1 General
Please read the information in this manual to become
acquainted with the HICO-ULTRASONAT 810 as quickly as
possible to be able to utilize its functions to the full extent.
1.1 Information about this instruction manual
These operating instructions are part of the HICO-
ULTRASONAT 810 (hereafter referred to as unit) and contains
important notes concerning commissioning, safety, intended
use as well as care and maintenance of the unit.
All illustrations and drawings in these operating instructions
serve the purpose of general understanding and are not
relevant with respect to design details.
These operating instructions must be available at all times,
preferably near the unit. They must be read by any person
involved in the:
•commissioning,
•operation,
•cleaning,
•maintenance,
•trouble shooting
of the unit.
General
HICO-ULTRASONAT 810 7
1.2 Warning notes
The following warning notes are used in these operating
instructions:
A warning note of this danger level identifies an imminent
dangerous situation.
Not avoiding this dangerous situation will cause severe injury or
even death.
►Follow the instructions given in this warning note to avoid the
danger of death or severe injury to persons.
A warning note of this danger level identifies a possibly
dangerous situation.
Not avoiding this dangerous situation can lead to severe
injuries.
►Follow the instructions in this warning note to avoid the risk
of injuries to persons.
A warning note of this danger level identifies a possibly
dangerous situation.
Not avoiding this dangerous situation can lead to minor or
moderate injuries.
►Follow the instructions in this warning note to avoid the risk
of injuries to persons.
General
HICO-ULTRASONAT 810 8
A warning note of this danger level identifies the possibility
of material damage.
Not avoiding this situation can lead to material damage.
►Follow the instructions in this warning note to avoid the risk
of material damage.
A note highlights additional information to assist in working with
the unit.
General
HICO-ULTRASONAT 810 9
1.3 Limitation of liability
All technical information, data and notes on installation,
operation and care contained in this manual were up-to-date at
the date of printing and have been entered to the best of our
knowledge under due consideration of our previous experience
and knowledge.
No claims can be deduced from the information, illustrations
and descriptions in this instruction manual.
The manufacturer will not assume liability for damaged resulting
from:
•disregarding these instructions
•unintended use
•unprofessional repairs
•technical modifications
•use of non-permitted spare parts
•unauthorized conversions and changes
Translations are made to the best of our knowledge. We do not
assume liability for translation mistakes, even if the translation
was made by us or ordered by us. Only the original German
text is binding.
1.4 Copyright law
This documentation is protected by copyright law.
All rights, also the rights for photo-mechanical reproduction,
copying and distribution by means of special methods (e.g. data
processing, data carrier and data networks), even in parts,
remain reserved by HIRTZ & Co. KG.
Subject to changes in contents and technical modifications.
1.5 Manufacturer's address
HIRTZ & Co. KG
Bonner Str. 180
50968 Köln/Germany
Phone: +49 (0)2 21 / 3 76 78-0
Fax: : +49 (0)2 21 / 3 76 78-85
Safety
HICO-ULTRASONAT 810 10
2 Safety
This chapter contains important safety notes for work with this unit.
This unit complies with the specified safety regulations.
However, improper use can lead to personal injury or material
damage.
2.1 Intended use
This unit is solely intended for the nebulization of fluids in
clinical and therapeutic applications for the treatment of the
respiratory tract on a patient. Any other use or use beyond
these limits is assumed unintended.
Danger caused by unintended use!
Dangers may arise from the unit if it is put to unintended use
and/or if it is used for any other purposes.
►Only use the unit for the purpose is is intended for.
►Follow the procedures described in these operating
instructions.
Claims of any type because of damages resulting from
unintended use are excluded.
The user is the sole bearer of the risk.
Safety
HICO-ULTRASONAT 810 11
2.2 Personnel requirements
►Work on/with the unit must only be carried out by persons
who are authorized for this work because of their education
and qualification. Apart from this these persons must also be
entrusted with this work by the operator.
►Allow personnel to be trained, instructed, directed or
undergoing general training to only work on or with the unit
under the supervision of an experienced person.
►Persons who are under the influence of drugs, alcohol or
medication that affects their responsiveness may under no
circumstances carry out work on or with the unit.
►Dangers may arise from the unit if it is improperly used by
untrained personnel.
►All generally valid legal and otherwise binding regulations for
the avoidance of accidents and the protection of the
environment as well as general health and safety
requirements must be observed in addition to the operating
instructions. The operator must instruct his personnel
accordingly.
Safety
HICO-ULTRASONAT 810 12
2.3 General safety notes
For safe handling of the unit you should comply with the
following general safety notes:
►Do NOT operate the unit in the presence of explosive gases
or in an explosion endangered environment.
►Before start-up check the proper condition of the unit (mains
cable, housing, chamber, hoses, filter, etc.).
►Aerosol and ventilation hoses free of loops, creases and
buckling.
►Stand the unit horizontally; inclination of the support area ≤3%.
►Do not cover the unit; the underside is provided with
ventilation slots, the air intake for aerosol transport is located
on the back of the unit.
►Ensure an adequate water level in the nebulizer chamber.
►Only aqueous solutions are permitted to be nebulized.
►Do not use any combustible fluids or carrier gases.
►Do not reach into the nebulizer chamber during operation.
►The nebulizer chamber must only be filled in assembled
condition.
►Operate the unit only with an appropriate water level.
►Remove the nebulizer chamber only when the unit is
switched off.
►After removing the nebulizer chamber the user should not
touch the uncovered contacts on the unit for safety reasons.
►When removing the nebulizer chamber the user should
never touch the uncovered contacts on the unit and the
patient at the same time for safety reasons.
Safety
HICO-ULTRASONAT 810 13
►The HICO-ULTRASONAT 810 is not intended for direct
inhalation via mouthpiece or face mask. The distance
between patient and aerosol hose should be at least 10 cm.
►Under hygienic aspects a cleaned, disinfected or (when
using disposable products) new nebulizer system must be
used when changing patients and/or nebulizer medium.
►Strictly comply with the ambient temperature range
(10 - 30 °C) and storage temperature range (10 - 40 °C).
►An ambient temperature of 30 °C must not be exceeded
when operating with a heated aerosol hose (danger of too
high aerosol temperature).
►The unit must only be operated with original HICO
accessories and an original bacteria filter.
►In operation do not use or combine the unit with other heat
sources, which may be available as accessories.
►Do not operate the unit in the vicinity of heat sources
(spotlights, direct insolation, radiators/
radiant heaters, etc.).
►Perform maintenance and operation related inspections by
following these operating instructions.
2.4 Danger sources
2.4.1 Danger of drowning
There is a risk that the patient may drown.
►In case of too direct and too long aerosol administration the
patient may suffer under drowning symptoms. Monitor the
type and duration of administration when using the unit on a
patient.
►Maintain a minimum distance of approx. 10 cm between
aerosol outlet and patient.
Transport and placement
HICO-ULTRASONAT 810 14
3 Transport and placement
3.1 Scope of delivery and transport inspection
The scope of delivery of the HICO-ULTRASONAT 810 for
standard installation consists of:
•HICO-ULTRASONAT 810 unit with mains cable
•nebulizer chamber with distance ring, cover and cone cup
ring as accessory
•one ventilation and aerosol hose each
•bacteria filter, coarse air filter and angle adapter
•holding bar and supporting arm
The accessory optionally consists of:
•five-foot rack on castors for installation as a mobile unit
•wall bar holder for installation as wall unit
•bottle, bracket and level regulator for continuous nebulizing,
permanent nebuliztion system
•disposable cone cups for drug nebulization
•heated aerosol hose
•silicone aerosol hose
•disposable aerosol hose
•heater for disposable aerosol hose
►Check the delivery for completeness and visible damages.
►Immediately report an incomplete delivery or damage
caused by inappropriate packaging or transport to the
forwarding agent, the insurance company and the supplier.
Transport and placement
HICO-ULTRASONAT 810 15
3.2 Unpacking
To unpack the device:
•Take the unit out of its box and remove the packaging
material.
•Stand the unit on a level and horizontal base with sufficient
load bearing capacity.
3.3 Waste disposal of packaging material
The packaging material protects the unit against transport
damage. The packaging material has been chosen under
environmental and waste disposal related aspects and is
therefore recyclable.
Returning packaging material to the material circulation system
saves raw materials and reduces the amount of waste. Return
packaging material, that is no longer needed, to the collecting
locations for the recycling system in your country.
►If possible keep the original packaging over the warranty
period, to be able to pack the unit again properly in case of a
warranty claim.
Commissioning
HICO-ULTRASONAT 810 16
4 Commissioning
This chapter contains important information for commissioning
the unit. Please follow these notes to avoid dangers and
damages.
4.1 Safety notes
Personal injuries and material damage may occur when
commissioning the unit!
Please comply with the following safety notes to avoid dangers:
►The unit has form closed and moveable components. Avoid
risks of crushing and shock when unpacking and setting up.
Follow the hygiene requirements!
►When setting up the unit make sure you use a sterile, new or
cleaned nebulizer system, fresh filters (bacteria filter with
CE-sign) and coarse air filter.
4.2 Placement and setting up
4.2.1 Requirements on the set up place
For safe and fault-free operation of the unit the set up place
•must have sufficient load bearing capacity (weight of unit
approx. 4.5 kg).
•must be level.
•must be horizontal (inclination ≤3%).
•must have sufficient stability.
•must provide 20 cm space at the back of the unit.
•the room must be sufficiently ventilated.
Commissioning
HICO-ULTRASONAT 810 17
The optionally available five-foot rack meets these
prerequisites.
►If the unit is not exactly horizontal, the aerosol intensity may
be impaired.
Personal injuries and material damage may occur when
commissioning the unit!
►If the unit is not in a horizontal position, the oscillator may be
damaged during dry running.
►Placing the unit too far away from the patient may impair the
stability.

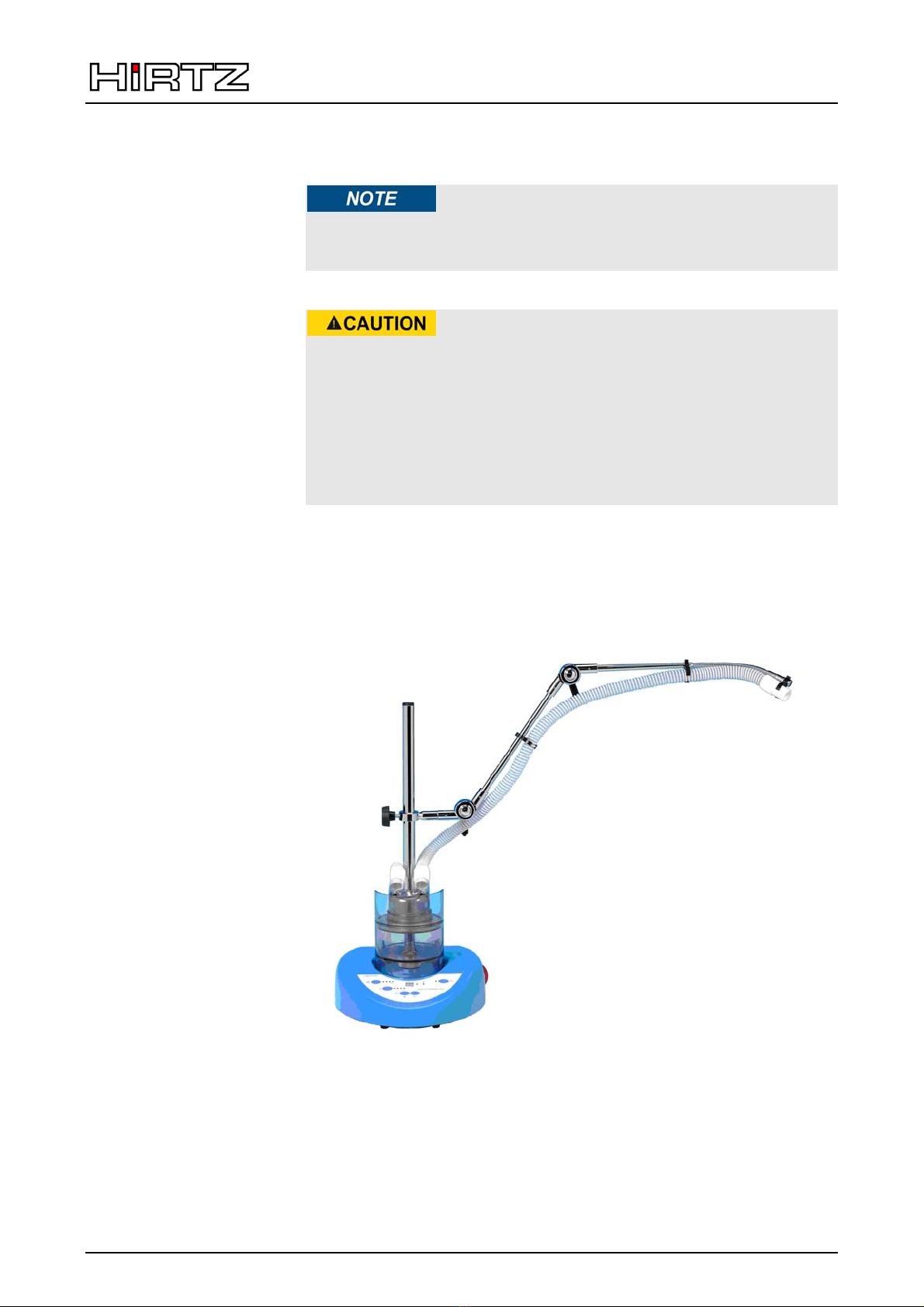

4.2.2 Illustration of device (standard setup of table unit)
Commissioning
HICO-ULTRASONAT 810 18
4.2.3 Total overview of components
1. Supporting arm
2. Clamps
3. Aerosol hose
4. Lid
4a. Cone cup ring (optional)
5. Distance ring
5a. Plug
6. Nebulizer chamber
7. Device
8. Ventilation hose
9a. Holding bar with thread
9b. Holding bar with dummy plug
10. Five foot on castors
11. Bacteria filter
12. Angle adapter
12a. Adapter connection
13. Grip screw
14. Level regulator
15. Gasket
16. Provision bottle
17a. Bottle holder
17b. Bottle suspension
Total setup
(shown as standard unit including optional accessories)
Commissioning

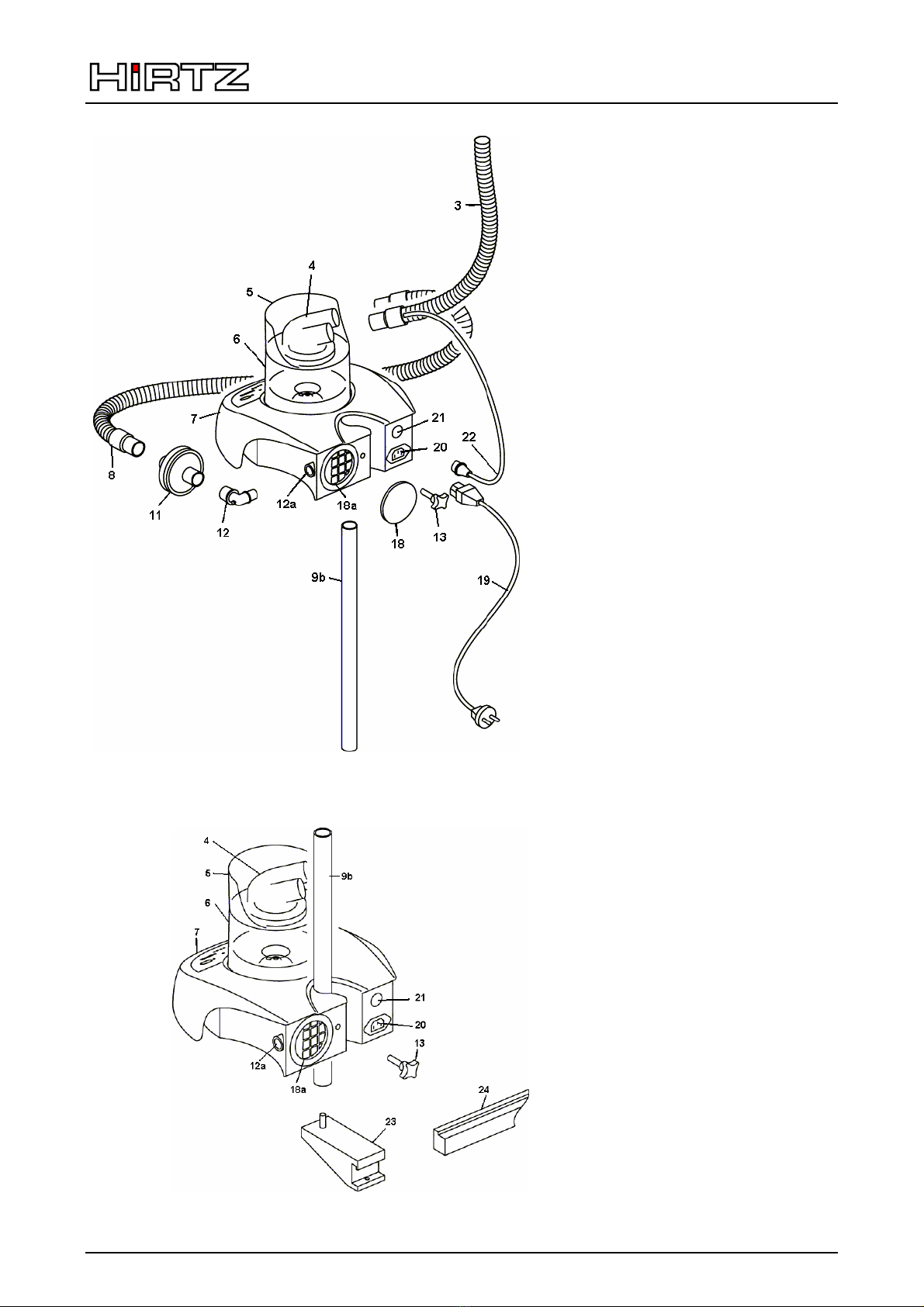

HICO-ULTRASONAT 810 19
3. Aerosol hose
4. Lid
5. Distance ring
6. Nebulizing chamber
7. Device
8. Ventilation hose
9b. Holding bar with dummy plug
11. Bacteria filter
12. Angle adapter
12a. Adapter connection
13. Grip screw
18. Coarse air filter
18a. Coarse air filter insert
19. Mains cable
20. Power inlet socket
21. Heating connection socket
22. Heating cable from aerosol hose (3)
Total setup rear view
23. Wall bar holder
24. Wall bar
View as wall mounted unit
Commissioning
HICO-ULTRASONAT 810 20
4.2.4 Standard setup as table unit
a) Press the nebulizing chamber (6) with the distance ring (5)
and the lid (4) slightly so that it engages in the bayonet lock
of the device (7), then turn slightly clockwise against the
stop.
b) Insert the coarse air filter (18) into the corresponding recess
(18a) on the device (7).
c) Plug ventilation hose (8), bacteria filter (11) and angle
adapter (12) together and connect the assembly to the
adapter connection (12a) on the device (7). Route the
ventilation hose along the front under the unit and connect it
to the lid (4).
d) Fasten the holding bar with blind plug (9b) to the device (7)
using the grip screw (13). For reasons of stability the stand
should touch the ground.
e) Fasten the supporting arm (1) for the aerosol hose (3) on
the holding bar with thread(9b) using clamping ring and grip
screw.(13)
f) Use clamps (2) to fasten the aerosol hose (3) on the
supporting arm.
g) Insert the end socket of the aerosol hose (3) into the second
opening of the lid on the nebulizer chamber (6), making
sure that the supporting arm (1) is adjusted in such a way,
that the aerosol hose (3) always remains stretched and has
a continuous descent towards the nebulizer chamber (6), so
that the condensed mist will flow back into the nebulizer
chamber.
h) Plug the mains cable into the unit and into a wall socket.
The unit is ready for operation. This is indicated by the
flashing LED to the left of the start button.
