User Manual
Piston Compressor Nebulizer
INSTRUCTION
MANUAL
MODEL: JLN-2305AS
Revision: V1.2
Date: February 05, 2018
!

Shenzhen Homed Medical Device Co.,Ltd File No.: JLN23XX-CE-14
Page 2 of 12
READ THIS INSTRUCTION
MANUAL CAREFULLY
BEFORE USE
Piston COMPRESSOR NEBULIZER
MODEL NO.: JLN-2305AS
INDEX
1. Introduction --------------------------------------------------------------------- Page 3
2. Product Identification --------------------------------------------------------- Page 4
3. Important Safeguards -------------------------------------------------------- Page 4
4. Operating Your Compressor Nebulizer ---------------------------------- Page 6
5. Cleaning ------------------------------------------------------------------------- Page 7
6. Distinfection---------------------------------------------------------------------- page 7
7. Replacement Parts & Optional Accessories----------------------------- Page 8
8. Guidance and Manufacturer,s Declaration ------------------------------ Page 8
9. Specifications ------------------------------------------------------------------- Page 11

Shenzhen Homed Medical Device Co.,Ltd File No.: JLN23XX-CE-14
Page 3 of 12
1. INTRODUCTION
Thank you for purchasing the HOMED Piston Compressor Nebulizer. It is a
compact medical device designed to efficiently deliver physician prescribed
medication to the bronchial lung passages. With proper care and use, it will
provide you with many years of reliable treatment.
It is intend for use in the treatment of asthma, COPD and other respiratory
ailments in which an aerosolized medication is required during therapy. It is
single use or reusable for single patient. The device is for pediatric and adult
population.
Your Homed Piston Compressor Nebulizer should be used under the
supervision of a licensed physician and/or a respiratory therapist. We encourage
you to thoroughly read this guidebook to learn about the features of this product.
Any use of this product other than its intended use should always be avoided.
2. PRODUCT IDENTIFICATION

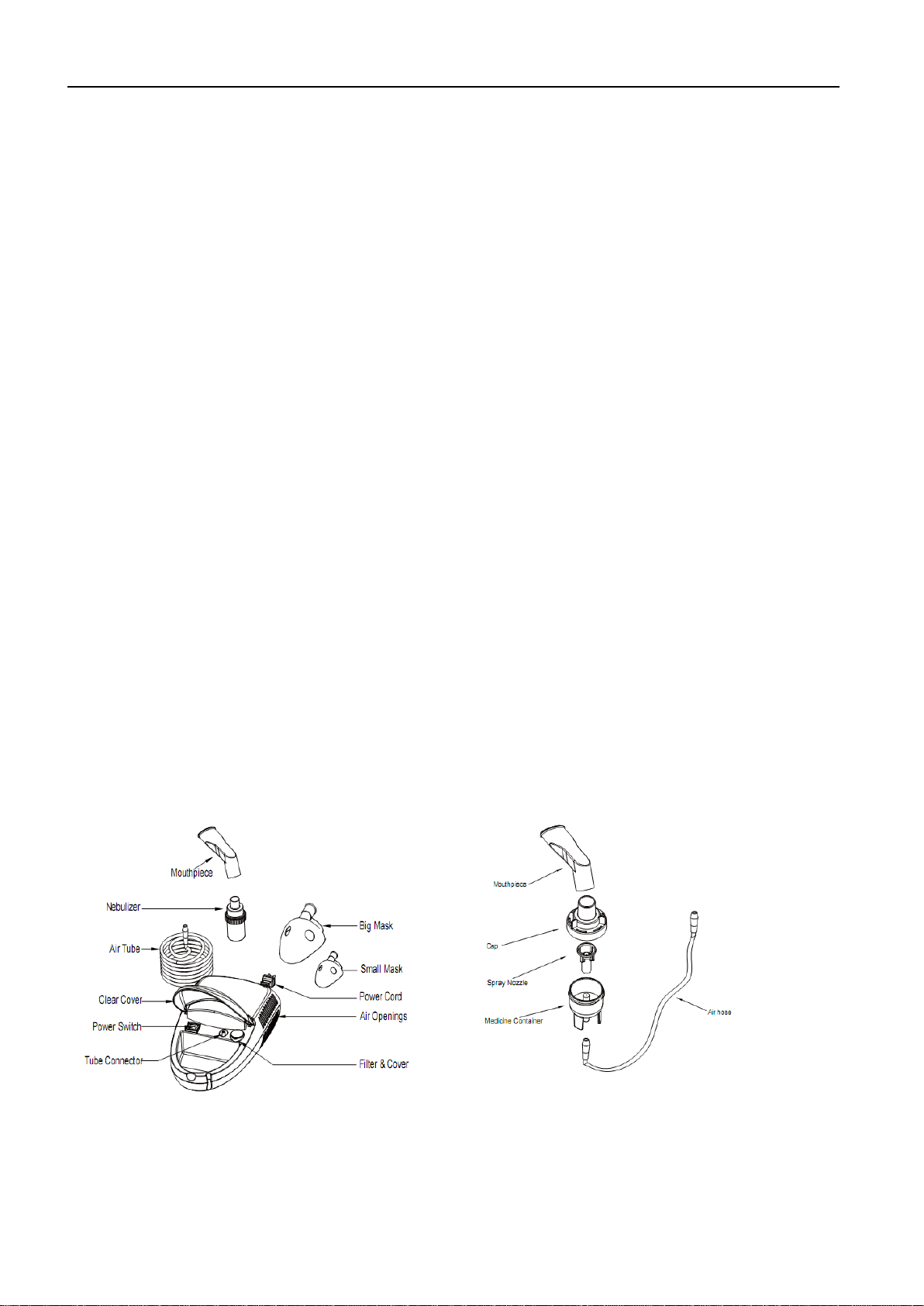

Your Piston Compressor Nebulizer comes with the following components:
Compressor (Main Unit)
AC Adapter
Nebulizer
Air Filter
Air tube
Mouthpiece
Big Mask / Small Mask

Shenzhen Homed Medical Device Co.,Ltd File No.: JLN23XX-CE-14
Page 4 of 12
3. IMPORTANT SAFEGUARDS
Note: Please read this instruction manual thoroughly before using the product.
The following basic precautions are needed when using an electrical product:
Caution: Failure to read and observe all precautions could result in personal
injury or equipment damage.
Product cautions:
1. To avoid electrical shock:
•Do not connect the AC adapter terminal using wire or other metallic
conductors.
•Do not use the compressor (main unit) orAC adapter while they are wet.
•Keep the unit away from water.
•Do not use or store the device in humid locations, such as a bathroom. Use
the device within the operating temperature and humidity.
•Use only the AC adapter designed by Homedfor this device. Use of any
other AC adapter may damage the device.
•Do not immerse the power cord or the unit in liquid
•Do not use while bathing
•Do not reach for a unit that has fallen into water –immediately unplug the
unit.
•Do not overload power outlets. Plug the AC adapter into the appropriate
voltage outlet.
2. Never operate the unit if it has any damaged parts (including power cord), if it
has been dropped or submersed in water. Promptly send it to a service center
for examination and repair.
3. The unit should not be used where flammable gas, oxygen or aerosol spray
products are being used.
4. Disconnect the unit from the electrical outlet before cleaning, filling and after
each use.
Operating Cautions:
1. Connect this product to an appropriate voltage outlet for your model.
2. Never operate it if this unit has a damaged cord or plug, if it has been
dropped, or in any way, into water, if it does not work properly. Return it to a
service center for repair.
3. If any abnormality occurs, discontinue use immediately until the unit has been
examined and repaired.
4. If you feel anything unusual during use, stop using the device immediately
and consult your physician.
5. Do not cover the compressor with a blanket, towel, or any other type of cover
during use. This could result in the compressor overheating or malfunctioning.

Shenzhen Homed Medical Device Co.,Ltd File No.: JLN23XX-CE-14
Page 5 of 12
6. Always unplug the product immediately after use.
7. Never block the air openings of the main unit or place it where the air
openings may be obstructed.
8. The compressor and power cord are not waterproof. If liquid spills on these
parts, immediately unplug the power cord and wipe off the liquid with gauze or
other soft absorbent material.
9. Do not use a cellular phone near the device. It may result in an operational
failure.
10.Do not use extension cords. Plug the power cord directly into the electrical
outlet.
11.For type, dose, and regime of medication follow the instructions of your
licensed physician and/or respiratory therapist.
12.Do not add more than 8ml of medication to the medication cup.
13.Do not use the device if the air tube is bent.
14.Clean and disinfect the nebulizer, air tube ,mouthpiece or masks before
using them for the first time after purchase.
15.Provide close supervision when this device is used by, on, or near infants,
children or compromised individuals.
16.Make sure the air filter is clean. If the air filter has changed color or has been
used on average for more than 30 days, replace it with a new one.
17.Make sure the air tube is correctly connected to the compressor and the
nebulizer . Air may leak from the air tube during use if not securely
connected.
18.Use only Homed authorized parts and accessories. Parts and accessories
not approved for use with the device do not perform the expected
specification or it may damage the unit.
19.To avoid the medication residue on the face. After nebulization, be sure to
wipe the face after removing the optional masks.
20.Do not use the device where the device may be exposed to flammable gas or
vapors
Storage Cautions:
1. Do not store the unit under direct sunlight, high temperature or humidity. Store
the device within the storage temperature and humidity.
2. Keep the unit out of reach of small children.
3. Always keep the unit unplugged while not in use.
4. Store the device and the components in a clean, safe location.
5. Do not wrap the power cord around the compressor (main unit) and AC
adapter.
Cleaning Cautions:
1. Do not immerse the unit in water. It may damage the unit.
2. Disconnect the unit from the electrical outlet before cleaning.
3. Clean all necessary parts after each use as instructed in this guidebook.

Shenzhen Homed Medical Device Co.,Ltd File No.: JLN23XX-CE-14
Page 6 of 12
4. OPERATING YOUR COMPRESSOR NEBULIZER
Note: Prior to initial operation, the nebulizer should be thoroughly cleaned
referring to the “Cleaning Procedures” in the manual.
1. Place your Piston Compressor Nebulizer on a flat and stable surface. Be sure
that you can easily reach the controls when you are seated.
2. Open the clear cover and remove the inside accessories.

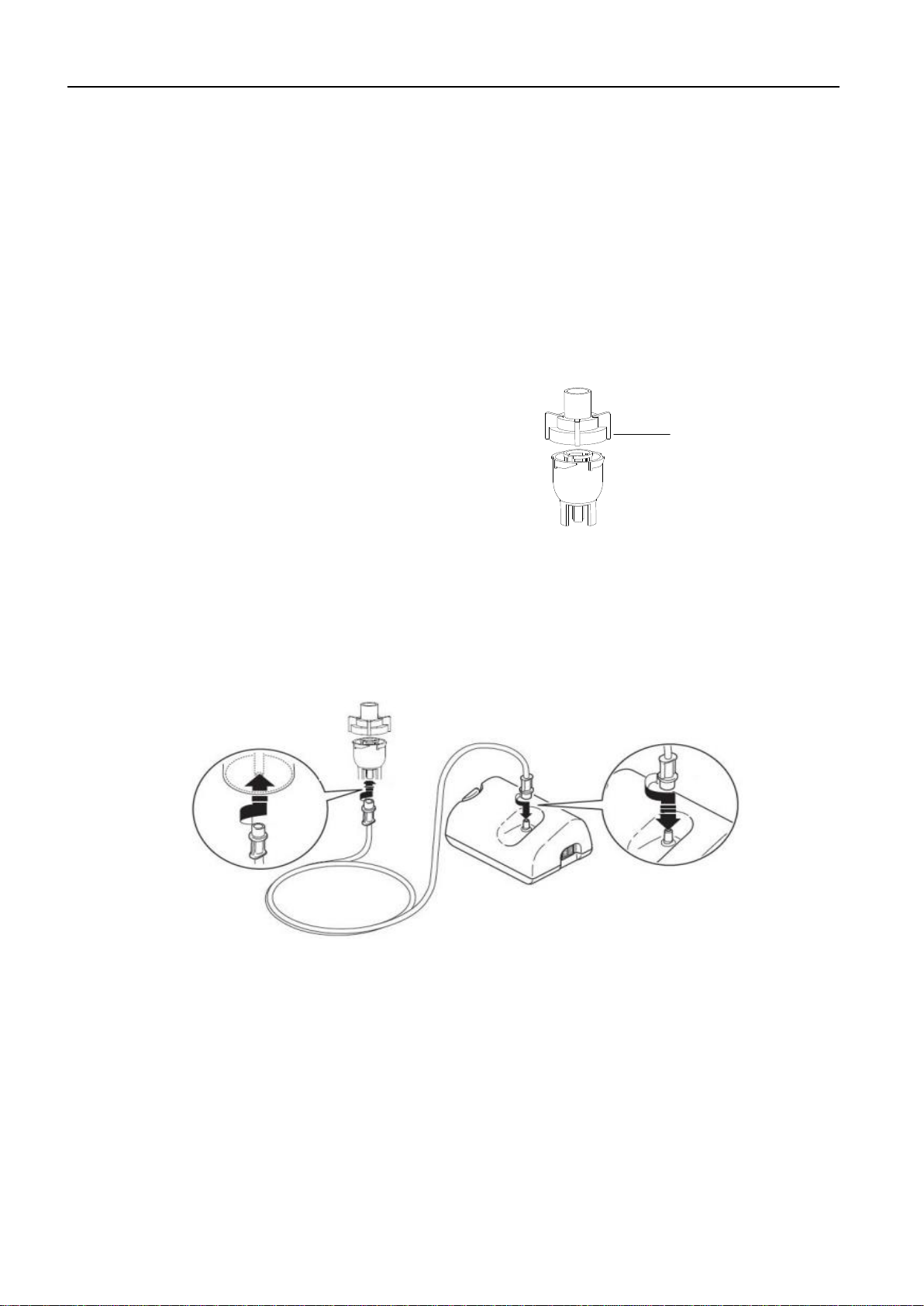

3. Gently twist the top part of the nebulizer counter-clockwise to disassemble
the nebulizer.
4. Fill the bottom section of the nebulizer
with the medication prescribed by your
physician. Be sure that the cone is put
inside the bottom section.
5. Gently twist the top part clockwise to
re-assemble the nebulizer. Be sure the
two sections fit well.
6. Attach one end of air tube to the base of the nebulizer.
7. Attach the other end of air tube to the air tube connector located on the front
of the compressor.
CAUTION
•Make sure the nebulizer is correctly assembled, the air filter is properly
installed, and the air tube is correctly connected to the compressor and
the nebulizer . Air may leak from the air tube during use if not securely
connected.
•Do not use the device if the air tube is bent.
8. Attach mouthpiece or mask per your choice to the top section of nebulizer.
9. Plug the power cord into an appropriate electrical outlet. Make sure at this
stage, the power switch is at “OFF” status.
10.Press power switch to begin your prescribed treatment.
Place cone inside
and fill medication

Shenzhen Homed Medical Device Co.,Ltd File No.: JLN23XX-CE-14
Page 7 of 12
Important:
The compressor motor has a thermal protector which will shut off the unit before
the unit is overheated. When the thermal protector shuts the unit off, please:
a. Switch off the unit.
b. Unplug the unit from the electrical outlet.
c. Wait 30 minutes for the motor to cool down before another treatment.
Make sure the air openings are not obstructed.
11.When treatment is finished, shut off the unit and unplug it from the electrical
outlet.
5. CLEANING
Rinsing (after each treatment)
1. Disconnect the air tube, nebulizer, mouthpiece and mask.
2. Gently twist the nebulizer to open it.
3. Discard remaining medication in the nebulizer.
4. Rinse the nebulizer, mouthpiece and mask with water.
5. Dry them with clean soft towel or let it air dry.
6. Reassemble the nebulizer when completely dry and put these parts in a dry,
sealed container.
6. DISINFECTION
Please follow the following steps to disinfect your nebulizer unless otherwise
specified by your physician. It is suggested that the unit is disinfected after the
last treatment of the day.
1. Use one part white vinegar with three parts distilled water. Make sure mixed
solution is enough to submerge the nebulizer, mouthpiece and mask.
2. Complete Rinsing Steps 1-3.
3. Wash nebulizer, mouthpiece and mask in warm water and a mild detergent.
Then wash them in hot tap water.
4. Submerge these parts in the vinegar and water solution for thirty minutes.
5. Complete Rinsing Steps 3-5.
Cleaning the compressor
1. Clean the casing of the main unit by using a soft cloth moistened with water or
a mild detergent.
2. Do not use abrasive cleaners.
3. Dry the casing immediately using a soft clean cloth.
Changing The Air Filter
1. Do not use cotton or any other materials. Do not wash or clean the filter. Use

Shenzhen Homed Medical Device Co.,Ltd File No.: JLN23XX-CE-14
Page 8 of 12
only Homed’s filters. And do not operate without a filter.
2. Change the filter every 30 days or when the filter turns gray.
3. Before inserting the new air filter make sure the air filter is clean and free of
dust. Do not operate the device without the air filter. Use only the Omron air
filter designed for this device.
4. Changing procedure:
A. Pull the air filter cover to remove from the back side of the compressor
B. Remove the dirty air filter
C. Replace the used filter with a new one.
D. Put the air filter cover back on the compressor.
7. REPLACEMENT PARTS & OPTIONAL ACCESSORIES
Replacement parts are available through your Baby pacifier inhaler
local retailer or they can be ordered by mail.
Optional accessories include adult mask and
baby pacifier inhaler. The pacifier inhaler allows
baby to receive aerosol treatment easily through
normal breath.
8. GUIDANC AND MANUFACTURER’SDECLARATION
Guidance and manufacturer’s declaration – electromagnetic emissions
The JLN-2305AS is intended for use in the electromagnetic environment specified below. The
customer or the user of the JLN-2305AS should assure that it is used in such an environment.
Emissions test
Compliance
Electromagnetic environment –guidance
RF emissions
CISPR 11
Group 1
The JLN-2305AS uses RF energy only for its
internal function. Therefore, its RF emissions are
very low and are not likely to cause any
interference in nearby electronic equipment.
RF emissions
CISPR 11
Class B
The The JLN-2305AS is suitable for use in all
establishments including domestic
establishments and those directly connected to
the public low-voltage power supply network
that supplies buildings used for domestic
purposes.
Harmonic
emissions
IEC 61000-3-2
Class A
Voltage
fluctuations/flicker
emissions
IEC 61000-3-3
Complies

Shenzhen Homed Medical Device Co.,Ltd File No.: JLN23XX-CE-14
Page 9 of 12
Guidance and manufacturer’s declaration – electromagnetic immunity
The JLN-2305AS is intended for use in the electromagnetic environment specified below. The customer or
the user of the JLN-2305AS should assure that it is used in such an environment.
Immunity test
IEC 60601
test level
Compliance level
Electromagnetic environment –
guidance
Electrostatic
discharge
(ESD)
IEC 61000-4-2
±6 kV contact
±8 kV air
±6kV Contact
±8kV Air
Floors should be wood, concrete or
ceramic tile. If floors are covered with
synthetic material, the relative humidity
should be at least 30 %. If ESD
interfere with the operation of
equipment, counter measurements
such as wrist strap, grounding shall be
considered.
Electrical fast
transient/burst
IEC 61000-4-4
±2 kV for power
supply lines
±1 kV for
input/output
lines
±2 kV for Power
supply lines
Mains power quality should be that of a
typical commercial or hospital
environment.
Surge
IEC 61000-4-5
±1 kV differential
mode
±2 kV common
mode
±1kV differential
mode
±2kV common mode
Mains power quality should be that of a
typical commercial or hospital
environment.
Voltage dips,
short
interruptions
and
voltage
variations
on power
supply
input lines
IEC 61000-4-11
<5 % UT
(>95 % dip in UT)
for 0,5 cycle
40 % UT
(60 % dip in UT)
for 5 cycles
70 % UT
(30 % dip in UT)
for 25 cycles
<5 % UT
(>95 % dip in UT)
for 5 sec
<5% UT for 0.5 cycle
40% UT for 5 cycles
70% UT for 25
cycles
<5% UT for 5 s
Mains power quality should be that of a
typical commercial or hospital
environment. If the user of the
JLN-2305AS requires continued
operation during power mains
interruptions, it is recommended that
the JLN-2305AS be powered from an
uninterruptible power supply or a
battery.
Power
frequency
(50/60 Hz)
magnetic field
IEC 61000-4-8
3 A/m
3 A/m
Power frequency magnetic fields
should be at levels characteristic of a
typical location in a typical commercial
or hospital environment.
Guidance and manufacturer’s declaration – electromagnetic immunity –for EQUIPMENT and
SYSTEMS that are not LIFE-SUPPORTING
Guidance and manufacturer’s declaration – electromagnetic immunity
The JLN-2305AS is intended for use in the electromagnetic environment specified below. The

Shenzhen Homed Medical Device Co.,Ltd File No.: JLN23XX-CE-14
Page 10 of 12
customer or the user of the JLN-2305AS should assure that it is used in such an environment.
Immunity test
IEC 60601
test level
Compliance
level
Electromagnetic environment –
guidance
Conducted RF
IEC 61000-4-6
Radiated RF
IEC 61000-4-3
3 Vrms
150 kHz to 80 MHz
3 V/m
80 MHz to 2,5 GHz
3V
3V/m
Portable and mobile RF communications
equipment should be used no closer to any
part of the JLN-2305AS, including cables,
than the recommended separation
distance calculated from the equation
applicable to the frequency of the
transmitter.
Recommended separation distance
d = 1.2
p
d = 1.2
p
80 MHz to 800 MHz
d = 2.3
p
800 MHz to 2,5 GHz
where P is the maximum output power
rating of the transmitter in watts (W)
according to the transmitter manufacturer
and d is the recommended separation
distance in metres (m).
Field strengths from fixed RF transmitters,
as determined by an electromagnetic site
survey, should be less than the compliance
level in each frequency range.
Interference may occur in the vicinity of
equipment marked with the following
symbol:
Recommended separation distances between portable and mobile RF communications equipment and the
EQUIPMENT or SYSTEM –For EQUIPMENT and SYSTEMS that are not LIFE-SUPPORTING
Recommended separation distances between Portable and mobile RF
communications equipment and the JLN-2305AS
The JLN-2305AS is intended for use in an electromagnetic environment in which radiated
RF disturbances are controlled. The customer or the user of the JLN-2305AS can help
prevent electromagnetic interference by maintaining a minimum distance between
portable and mobile RF communications equipment (transmitters) and the JLN-2305AS
as recommended below, according to the maximum output power of the communications
equipment.
Rated maximum
output power of
Separation distance according to frequency of transmitter
m

Shenzhen Homed Medical Device Co.,Ltd File No.: JLN23XX-CE-14
Page 11 of 12
transmitter
W
150 kHz to 80 MHz
d = 1.2
p
80 MHz to 800 MHz
d = 1.2
p
800 MHz to 2.5 GHz
d = 2.3
p
0.01
0.12
0.12
0.23
0.1
0.38
0.38
0.73
1
1.2
1.2
2.3
10
3.8
3.8
7.3
100
12
12
23
For transmitters rated at a maximum output power not listed above, the recommended
separation distance d in meters (m) can be estimated using the equation applicable to the
frequency of the transmitter, where P is the maximum output power rating of the
transmitter in watts (W) according to the transmitter manufacturer.
NOTE 1 At 80 MHz and 800 MHz, the separation distance for the higher frequency range
applies.
NOTE 2 These guidelines may not apply in all situations. Electromagnetic propagation is
affected by absorption and reflection from structures, objects and people.
9. SPECIFICATIONS
Power
AC 230V 50 Hz
Power
40W-65W
Flow
≧8L/min
Medication Capacity
2-8ml
Particle Size
0.5-6uM
MMAD
4.014 um
Sound Level
≦63dB
Working pressure
69-110Kpa
Max Pressure
≧230Kpa
Working temperature
10℃-40℃
Working humidity
30%-75%RH
Storage Temperature
-25℃-70℃
Storage Humidity
10%-95％RH
Atmospheric pressure
700 hPa -1060hPa
Dimension (L x W x H)
11.8’’ x 7.1x 4.5’’mm
Weight
1.65kg
Transporation condtions
-25℃-70℃, 10%-95％RH
Standard requirements
Comply with EN 60601-1-2,EN60601-1 and EN60601-1-11

Shenzhen Homed Medical Device Co.,Ltd File No.: JLN23XX-CE-14
Page 12 of 12
Protection against electric shock
- Type B applied parts
-Class Ⅱ
protection against harmful ingress of water
-IPX0(ordinary)
degree of safety in the presence of flammable anesthetics or oxygen
-No AP/APG(Not suitable for use in the presence of flammable anesthetice or
oxygen)
Symbol
Explanation
Manufacturer
Authorised representative in the European Community
Lot Number
Serial Number
Date of Manufacture
Caution
Batteries or electronic instruments must be disposed of in
accordance with the locally applicable regulations, not
with domestic waste.
Intertek Semko AB
Shenzhen Homed Medical Device Co,.Ltd.
3rd Floor, Block 1, Longquan Industrial Zone, Huawang Road,
Tongsheng Community, Dalang Street, Bao’an District, Shenzhen
518109, People’s Republic of China.
Shanghai International Holding Corp. GmbH (Europe)
Eiffestrasse 80, 20537 Hamburg, Germany
