Hisense HDE3211BIBUK Operating and maintenance manual

DETAILED
INSTRUCTIONS
FOR USE OF ELECTRIC
FREE STANDING
COOKER
HDE3211BIWUK
HDE3211BIBUK
GB IE MT

You’ll soon be enjoying your new Freestanding Cooker
It all begins here, with your instructions. Don’t worry, there’s
nothing too technical coming up. Just simple, step-by-step
guidance to get you up and running quickly. Sound good?
Then let’s get started.
2

3
Contents
Safety information
Getting to know your Freestanding Cooker
Installing your Freestanding Cooker
Using your Freestanding Cooker
Technical Data
Care and maintenance
Product support
Troubleshooting
Technical specification
Cleaning
Control panel
Installation requirements
Overview
SAFETY INFORMATION
Accessories
Electrical connection
Oven functions
General oven and cooking tips
Practical Cooking Advice
Cooking Tips - Hob
Replacing the oven lamps
How to remove the oven doors
Energy fiche
Declaration of conformance to product standards
Disposal
33
31
29
29
28
14
10
8
4
9
12
15
18
19
21
32
34
34

4
SAFETY INFORMATION
IMPORTANT
INSTALLATION WARNINGS
DURING USAGE
IMPORTANT: Prior to Installation ensure that the local supply conditions (electricity
voltageand frequency) arecompatible with the requirements of your freestanding
cooker.
IMPORTANT: Carefully unpack and examine the appliance for any damage. Ifyou
think there is a defect, do notusethe appliance and contact product support.
Packaging materialsshould be collected together and disposed of immediately as
they maybeharmful tochildren.
IMPORTANT: Keep the electricalcable (not supplied) ofyour freestanding cooker
away from the hot areas of yourappliance,do not let the cable touch the appliance.
Keep the cable away from sharp edges and heated surfaces.
IMPORTANT: If you do not intend touse yourbuilt in oven for a long period of time

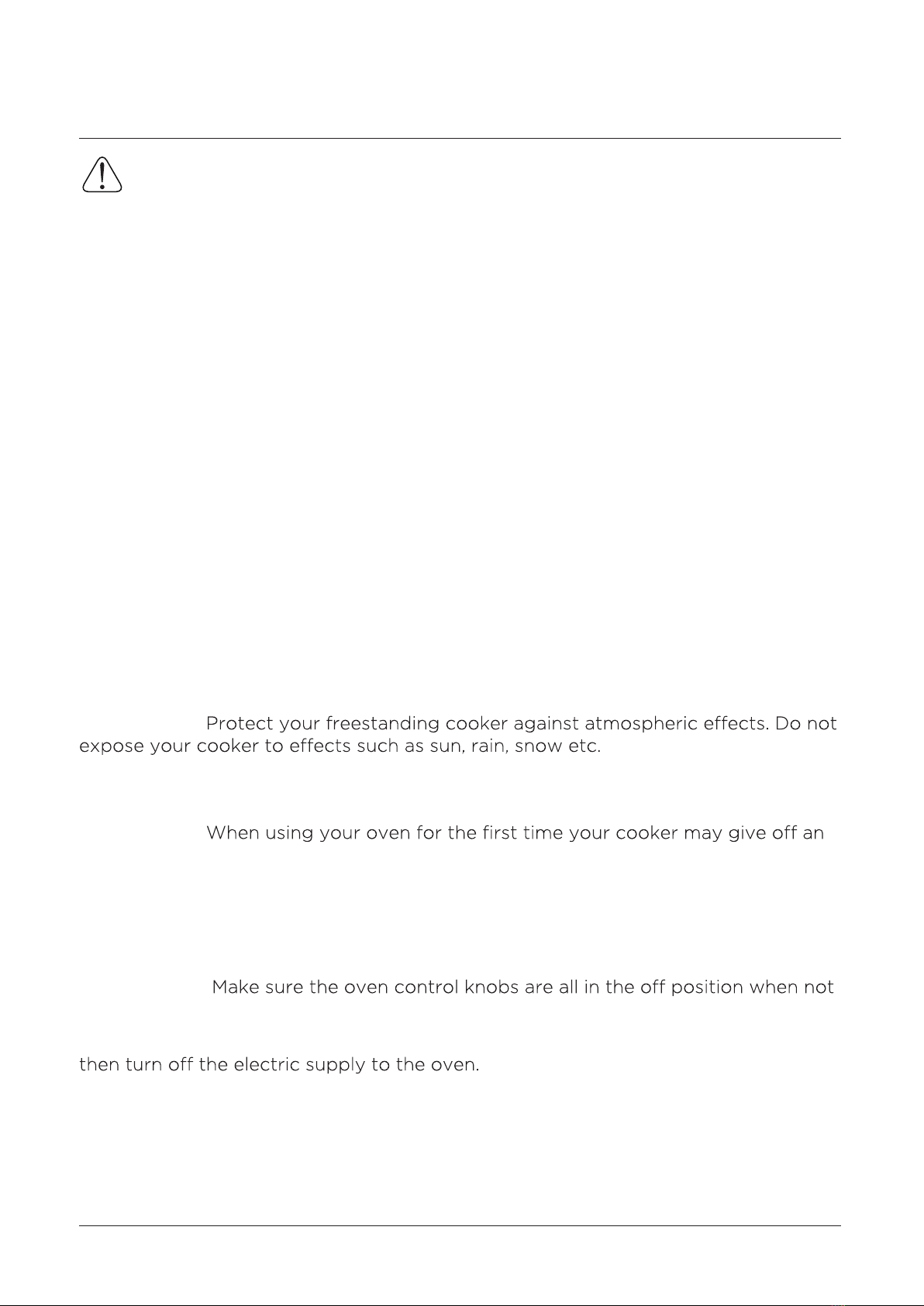

IIMPORTANT:
in use.
IMPORTANT: Thisappliance can be used by children aged from 8 years and above
and persons with reduced physical, sensory or mental capabilities or lack of
WARNING: Before obtaining access toterminals, all supply circuits must be
disconnected.
IMPORTANT:
smoke or an unusual odour from the heating elements and insulation materials.To
eliminate this odourrun theoven at 250 degrees for 40-60 minuteswith the oven
empty.
IMPORTANT: The materials surrounding the appliance(cabinets) mustbe ableto
withstand a minimum temperature of 100°C.
IMPORTANT:
IMPORTANT: In the event that the cable connecting yourfreestanding cooker
becomesdamaged, it must be replaced by a suitably qualified person. Thiscable
mustnot be replaced byan unauthorised person.
IMPORTANT: Ensure that the electric supply cableis nottrapped or damaged
during installation.
Please read these instructions fully before installing or
operating.

5
SAFETY INFORMATION
IMPORTANT: Thisappliance hasbeen designed for non-professional, domestic use
only. Do not use this oven forcommercial useor any other application e.g room
heating.
WARNING: Danger offire: do not store flammable itemson or near the cooking
surfaces or inside the oven.
IMPORTANT: Do nothang towels, dishcloths or clothes from the built-in oven or its
handles.
IMPORTANT: When the door oftheoven is open, do nothang orlean anything on
it. You mayunbalance your appliance or damage the door or door hinges.
IMPORTANT: When using the grill theoven door must be kept closed.
IMPORTANT: Maintenance and repairwork must only be performed by authorised
service technicians. Installation and repair work that is carried out byunauthorised
technicians is dangerous and could invalidate your guarantee.
IMPORTANT: Your appliance is produced in accordance with all applicable local and
international standards and regulations.
WARNING:
avoid the possibility ofelectric shock.
IMPORTANT: Do nottry tolift or move this appliance by pulling on the door handle.
CAUTION: Take carewhen closing the oven door that there is nothing obstructing
it from closing asthis may break theglass door.
CAUTION: Before starting touseyour appliance, ensure curtains, paper or
flammable items are keptaway from your appliance. Do not keep flammable
materials inside ofor around your cooker.
CAUTION: When the cooker is hot never touch the oven glassby hand or with tools.
CAUTION: Do notallow children in thekitchen when cooking or after, as the parts
may still be hot. Many parts ofthe cooker will become hot and present a
considerable hazard to children.
GENERAL SAFETY WARNINGS
WARNING:
the applianceand cover flamee.g with a lid or a fire blanket.
WARNING: The appliance and its accessible parts become hot during use. Care
should be taken to avoid touching heating elements.
experienceand knowledge if they have been given supervision or instruction
concerning use of the appliance in a safe wayand understand the hazards
involved. Children shall not play with the appliance. Cleaning and user
maintenance shall notbe made by children without supervision.

6
SAFETY INFORMATION
IMPORTANT:
cooker isolation switch.
WARN
W
WARNING:
CAUTION: The cooking process has to be supervised. A short term cooking process
has to be supervised continuously.
WARNING: Unattended cooking on a hob with fat or oil can be dangerous and may
result in a fire.
of electric shock.
ARNING: Metallic objects such as knives, forks, spoons and lids should not be
placed on the hob surface since they can get hot.
ING: Do not use harsh abrasive cleaners or sharp metal scrapers to clean the
oven door glass since they can scratch the surface, which may result in shattering
of the glass.
IMPORTANT: Do not remove the control knobs to clean the control panel.
GENERAL SAFETY WARNINGS

7
Getting toknow your Freestanding Cooker
Ready? Let’s begin...
If you require any furtherassistance, our technicalexperts are happy to help. For
full details, refer to the product support section at the end of these instructions.
Pleaseread these instructionscarefully.They contain important information which
will help you getthe best from your freestanding cooker and ensure safeand
correct installation and operation.

8
Getting to know your Freestanding Cooker

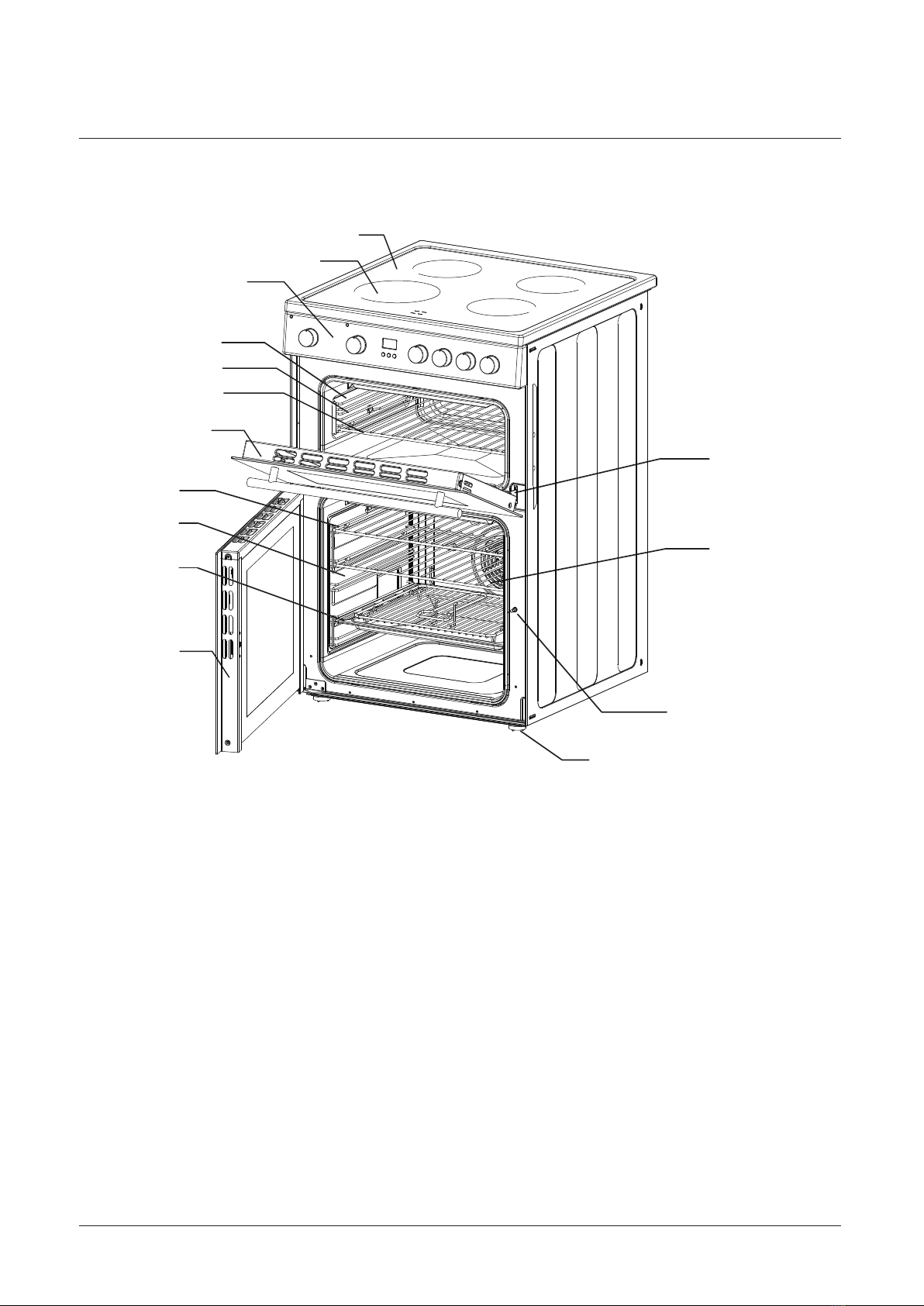

Overview
2
7
11
8
9
10
1
3
5
4
6
15
14
13
12
1. Hob
2. Cooking zone
3. Control Panel
5.
4.
Shelf positions
6.
7.
Wire Shelf
Oven Door
Shelf positions
Baking tray
Catalytic panel
Catalytic panel
8.
10.
9.
Oven Door11.
12. Hinge
13. Wire Shelf
14. Door lock
15. Anti slip feet

9
Getting to know your Freestanding Cooker

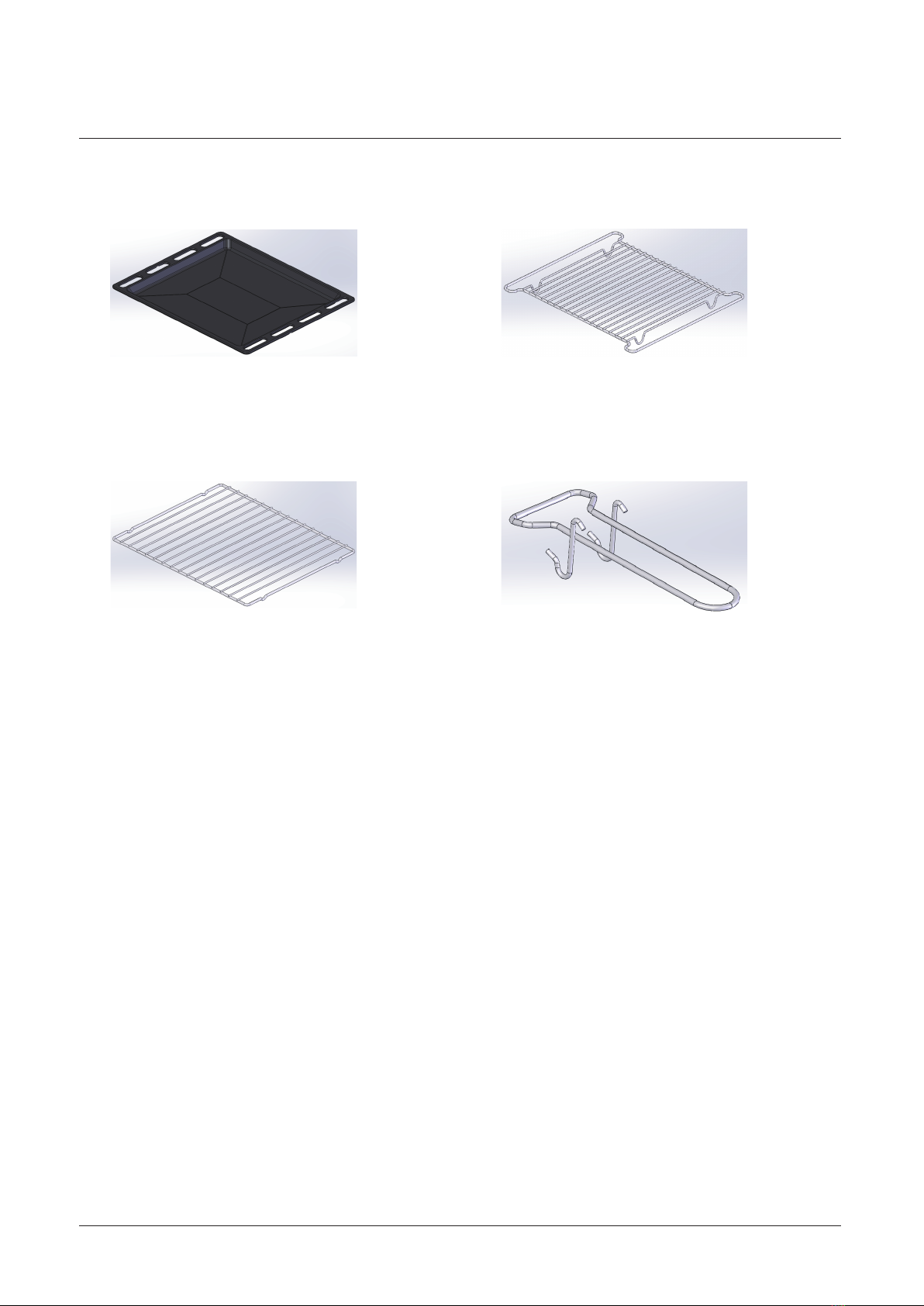

Accessories
Grill pan handle x 1
Baking tray x 1 Grill insert x 1
Chrome shelves x 3
1. 2.
4.3.

10
Installing your Freestanding Cooker
Installation requirements
Positioning
First Use
THIS COOKER MUST BE INSTALLEDBY A QUALIFIED INSTALLER IN
ACCORDANCE WITH LOCAL REGULATIONS.
IMPORTANT: CONTACT AN AUTHORISED SERVICE AGENT FOR
INSTALLATIONOF YOUR FREESTANDINGCOOKER!
1. Makesure thatthere areno combustible orflammable materials, such ascurtains,
in thevicinity of the installation.
2. Furnitureand cabinets surrounding the cooker must be of material resistantto
temperatures greaterthan 100°C.

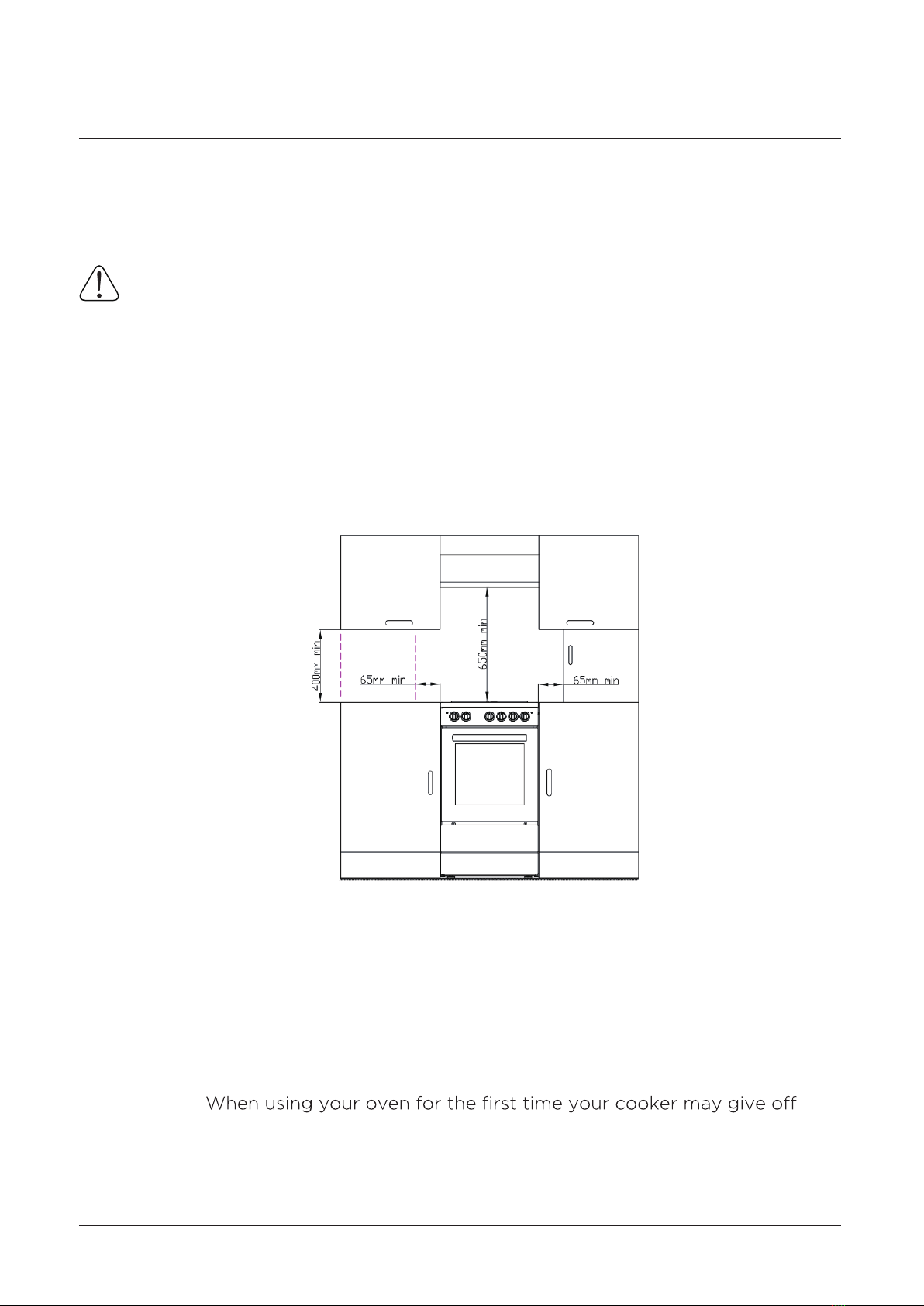

3. Surrounding furniture, cabinets and extractorfans should be positioned in
accordance with the diagram shown in the figure 1.
4. There must beat least 2cm offree space between the back walland therear of
the applianceto allow for ventilation and aircirculation.
5. If fitted, the extractor fan must be at least 65cm above the hotplates. Ifno fan is
fitted theminimum distance between the hotplates and any cabinetor other
structuremustbe75cm.
IMPORTANT:
smoke or an unusualodour from the heating elements and insulation materials.
This is normalfornew cookers. To eliminate this odour run the oven at 250
degrees for 40-60 mins with the oven empty.
Figure 1

11
Installing your Freestanding Cooker
Unpacking

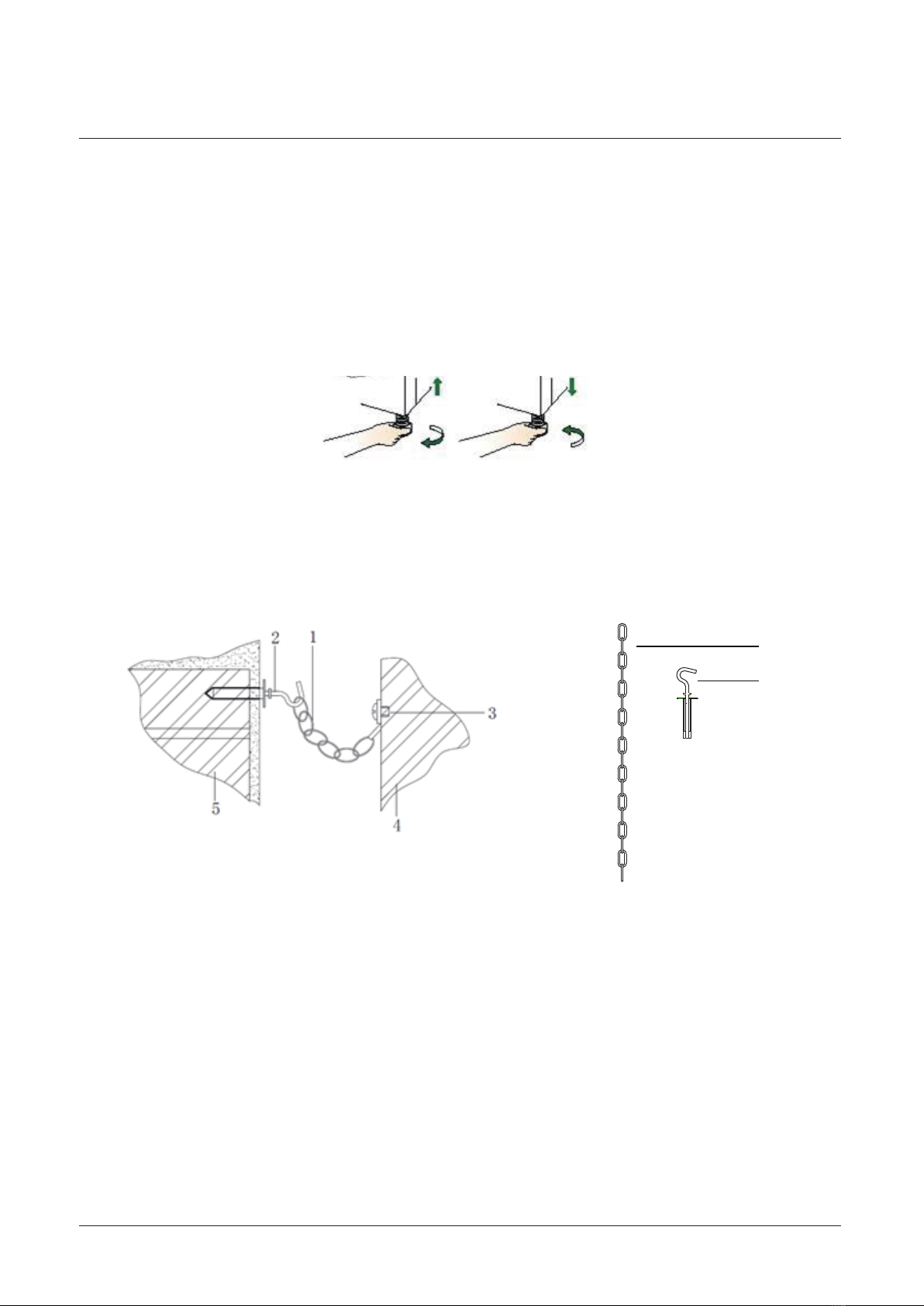

Levelling feet
Safety chain
Carefully unpack and examine the appliance forany damage. If you think there is a
defect, do not use the appliance and call an authorized service technician.
The height and level of theappliance can be adjusted by rotating the feet located
underneath the appliance at each corner. Rotate the feet to decrease or increase
the height.
The appliance must be secured against the possibility of tipping forward by using
the supplied safety chains attached to the rear of your oven. Fasten the stability
hook provided by inserting a wall plug into the kitchen wall and then connect the
safety chain to the hook via the locking mechanism.
1. Safety chain (supplied and mounted to oven)
Stability hook
Chain attachment for the rear of the cooker
Rear of the cooker
Kitchen wall
2.
3.
4.
5.
2
1

12
Installing your Freestanding Cooker
Fitting a Power Supply Cable
4 mm
2
4 mm
2
4 mm
2
Min 2.5 Min 2.5 Min 2.5 Min 2.5 Min 2.5
--
WARNING: Installation MUST ONLY
be carried out by a qualified approved
installer, ie. an Electrician.
WARNING: Connect the power cord
must be in accordance with the
instructions listed in the table below:
Connecting appropriate power supply
‘ terminalboard/ connector block’:
REFER toTECHNICAL table at the
rear of thismanualfor correct rating
for your corresponding model
purchased.
1. Using a screwdriver, prizeopen tabs
of the Terminalboard cover.
2. Remove the wireclamp screw.
4. Fasten cable clamp and close the
cover of the terminal board.
5. The AC power supply should be
220-240V or 380-415V, 50-60Hz.
3. Fasten the wires beneath the
corresponding screw heads,using
brass ‘bridge’ for singlephase supply.
EN - 4
WARNING:
WARNING:
WARNING:
WARNING:
EN - 4
1. SAFETY INSTRUCTIONS
1.1 General Safety Warnings
WARNING:
WARNING:
WARNING:
WARNING:
EN - 2
Icon Type Meaning
WARNING Serious injury or death risk
RISK OF ELECTRIC SHOCK Dangerous voltage risk
SYMBOL ISO 7010 W021
CAUTION
IMPORTANT / NOTE
220-240V 1N~
380-415V 3N~
Wire cross-sectional area L1 L2 L3 N E
(mm2) connection mode

13
Installing your Freestanding Cooker
Theelectrical capacity ofthe system and sockets will support the maximum
power of the appliance, as indicated on the data plate.
Earth continuity. The electrical safety of this appliance can only be guaranteed if
the cookeriscorrectly installed and earthed, in compliance with regulations on
electrical installations.
The supply cable should be positioned so that it does not reach a temperatureof
more than 50℃with respect to the room temperature, anywhere along its length.
Beforeswitching fuse ON in meter-box check:

14
Installing your Freestanding Cooker

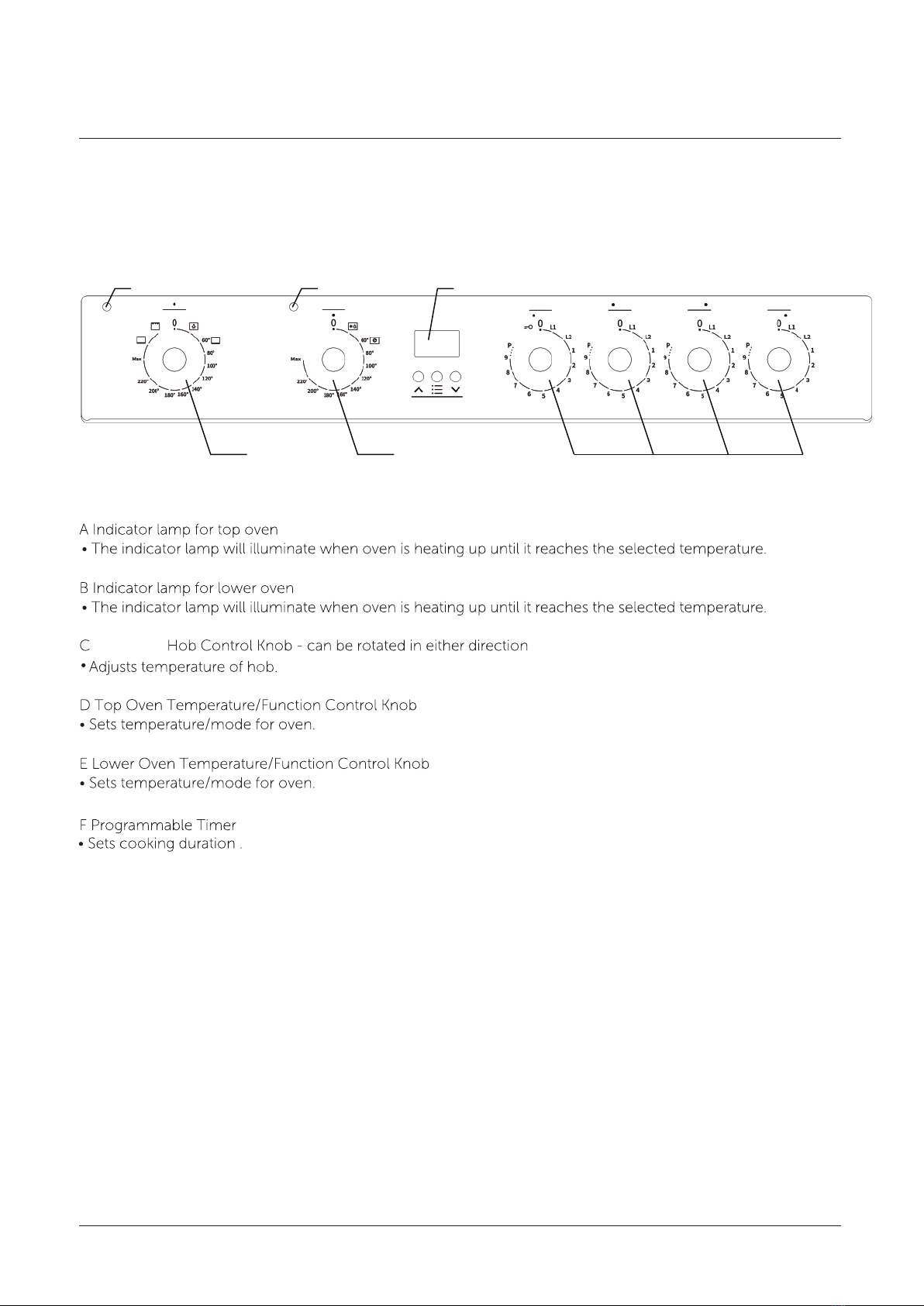

Control panel
AB F
C
ED
Induction

15
Using your Freestanding Cooker

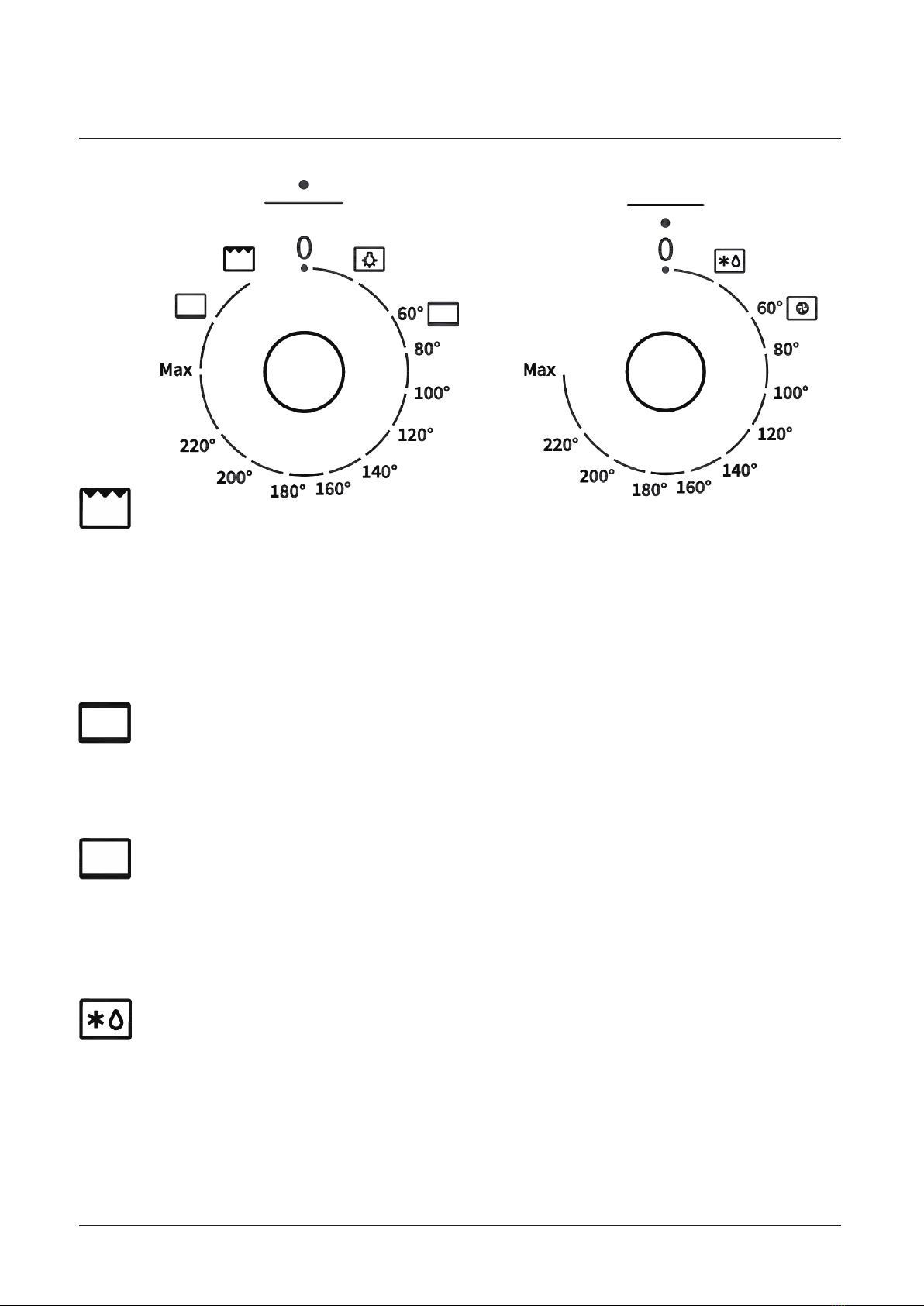

Oven functions
Grill
Defrost
Bottom Element
Convetional
The top central heating elements comes on .The extremely high and direct
temperature of the grill makes it possible to brown the surface of meats and roasts
while locking the juices in to keep them tender. The grill is also highly recommended
for dishes that require a high temperature on the surface: beef steaks, veal, rib steak,
fillets, hamburgers etc.
Hot air comes from the upper and lower element in the oven. This is called
Conventional cooking and is ideal for joints of meat.
When set to ‘Defrost’ mode, the fan located at the back of the oven circulates room
temperature air around the food. This is recommended for the defrosting of all
types of food, but in particular for delicate types of food which do not require heat,
for example: ice cream cakes, cream or custard desserts, fruit cakes, etc. By using
‘Defrost’ mode, the defrosting time is approximately halved.
Bottom element cooking is used for foods that typically need cooking with heat
from underneath - Cakes and Bread are examples of where this function would be
useful.

16
Using your Freestanding Cooker

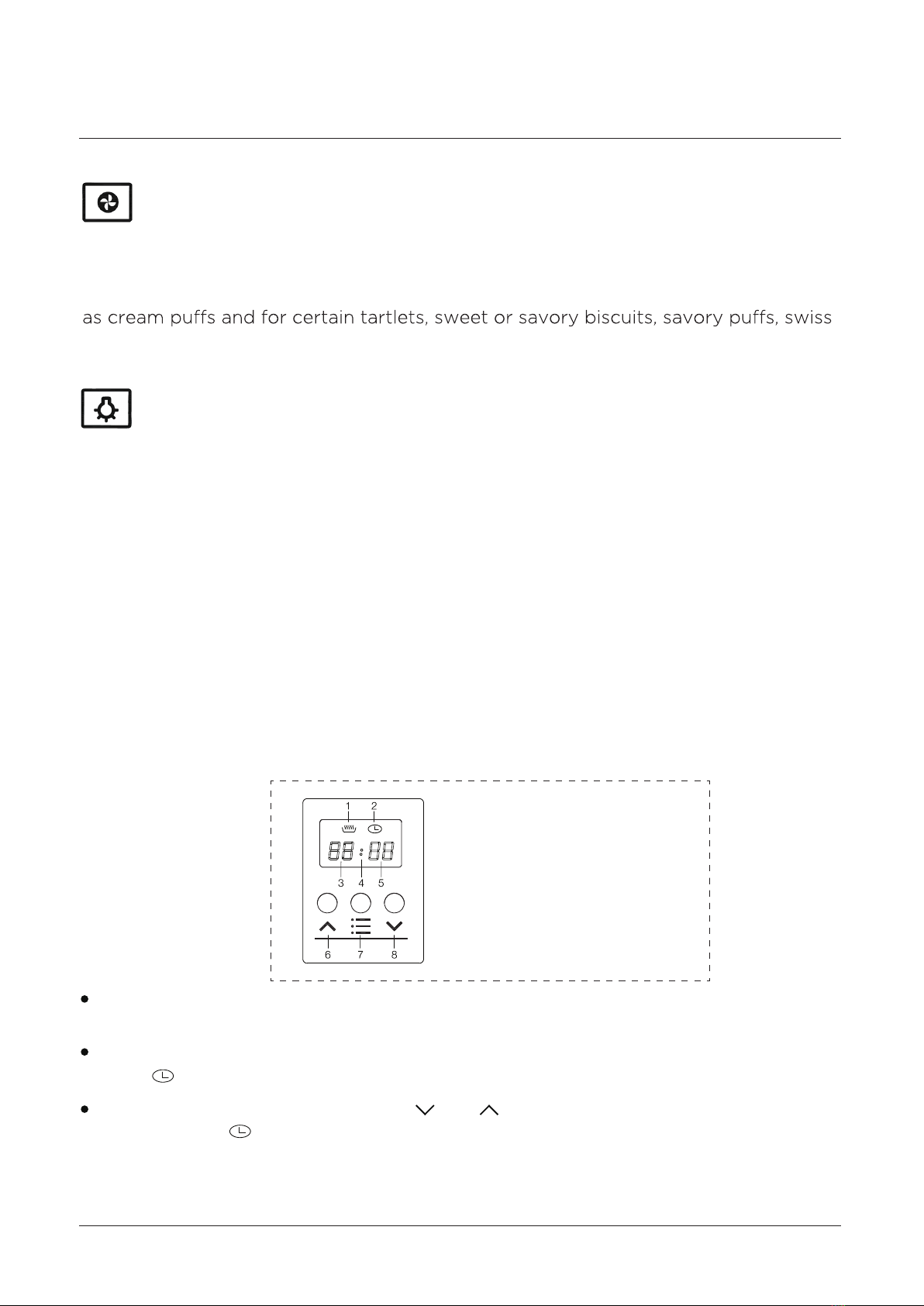

When set to Baking mode, thefan element and the fan operateproviding a delicate
heat distributed uniformly throughout the oven. Thismode is ideal for baking and
cooking delicate foods on multiple shelves, especially cakes that need to rise such
rolls and small portions of vegetables, etc.
The oven light will operate on all oven functions.
To set the time of day, press the “ ” or“ ” buttons. 15 seconds after the last
change, the will disappear, confirming the timehasbeen set.
After the appliance has been electrically connected “00.00” will bedisplayed and
the will flash.
The oven is fitted with a 3 button programmable timer, you must set the time of
day before you can operate your appliance.
The first time you use your appliance, we recommend that you set the temperature
setting to the highest mark. Set the function switch control knob to a cooking mode
and leave the oven on for about 40-60 minutes with nothing in itand the oven door
shut. Then, open the oven door and allow the oven to cool. Any odour thatmay be
detected during thisinitial use is due to the evaporation of substances used to
protect the oven during storage.
FanOven
Oven light
Using your appliance for the first time
Note: The clock has a 24-hour display
Digital Automatic Clock
1 Heating indication
2 Clock indication
3 Hour indication
4 Second indication
5 Minute indication
6 Up
7 Set
8 Down

17
Using your Freestanding Cooker
After power on, the screen will display “00: 00 ” and “ ” clock indicator will be on.
If you press “ ” up key or “ ” down key for more than 3 seconds, the value will
changequickly.
When setting the Time of Day or Duration Timer the “ : ” does not blink although
will blink when in either either normal Time of Day mode or Duration Timer is
displayed.
The buzzer will sound for up 60 secondsatthe end of the cooking time duration
thathas been sethas been reached. The “ 00: 00 ” display and “ ” heating
indication will flash for this period unless the“ ” selection button is pressed.
The clock will return to the time of day display when either of the above tow
actions occur.
Alternatively press the “ ” selection button and the oven will start cooking
immediately. If duration timer setting does need to exceed 59 minutes then initially
the “ ” selection button should bepressed 4 times instead of 3 to bypassthe
hour duration selection.
Press “ ” selection button 3 times until “ ” heating indicator is flashing, then
press “ ” up key or the “ ” do wn key to select the cooking duration time in hours.
Then press the “ ” selection button to enter the cooking duration time in minutes
setting.The “ ” heating indicator will remain flashing for 15 seconds once the
cooking duration time is set and neither of the “ ” up key or “ ” down keys are
pressed again whilst flashing.
When “ ” clock indicator and hour indication are flashing, press “ ” up key or
“ ” down key to select a number value from (0-23) for the hour time, then press
“ ” set key to change to the minute setting.Whilst flashing press ‘ ‘ up key or
‘‘ down key to select a number value from (0-59) for the minute time. The “ ”
clock indicator will remain flashing for 15 seconds once the timeis set and neither
of the “ ” up key or “ ” down keys and pressed again whilst flashing.
Time of day setting procedure
NOTE: Digitalclock is displayed in24 hour format
Starting-up procedure
Duration timer setting procedure
Audible ‘End of Cooking’ buzzer
Remarks

18
Usingyour Freestanding Cooker
When the oven is on, do not leave the door open for longer than necessary,
otherwise the knobs may get very hot.
Alwaysleave1cm gap between dishes on the same shelf. This allows the heatto
circulate freely around them.
To reducefat splashing when you add vegetables to hot fat around a roast, dry
them thoroughlyor brush lightly with cooking oil.
Where dishes may boil and spill over during cooking, place them on a baking tray.
The wire shelves should alwaysbepushed firmly to the back of the oven.
Baking trays with food cooking on them should be placed level with the front edge
of the oven’swire shelves. Other containers should be placed centrally. Keep all
traysand containers awayfrom the back of the oven, as over-browning of the food
may occur.Foreven browning,themaximum recommended size ofa baking tray is
340 mm (13½”) by 340 mm (13½”).
Set cooking mode selection knob to symbol to switch on the oven light/s. The oven
light/s stay on when the oven is operating.
The oven light
General ovenand cookingtips

19
Using your Freestanding Cooker
Place it on a lower rack, lower the temperature, and increase the cooking time.
Use less liquid, lower the temperature, and increasethe cooking time.
Grease the pan well and sprinkle it with a dusting of flour or use greaseproof paper.
Increase the temperature by 10℃and reduce the cooking time.
Use less liquid or lower the temperature by 10℃.
When baking cakes, always place them in a preheated oven .Make sure you wait
prevent cake from dropping/sinking – donot open the oven door during baking.
When using this mode, we advise you to set the thermostat to 200℃,as it is the
Please use the grill pan set provided ensuring that there isno unwanted spillages
formed inside your oven. When using this mode, we recommend you set the
thermostat to the highest setting. However, thisdoes not mean you cannot use
lower temperatures, simply by adjusting thethermostat knob tothe desired
temperature.
Use the grill mode , placing the food under the center of the grill (situated on
the 3rd or 4th rack from the bottom) due to the central part of the top heating
element being active.
You should always preheat your oven before placing food in it to cook.
Once the food has been placed in the oven, the most appropriate cooking mode
can then be selected.
Preheating
Using the Grill
Baking Cakes
Pastry is too dry
Pastry dropped
Pastry is too dark on top
Cooked well on the inside but sticky on the outside
The Pastry sticks tothe pan
food in the best possible way. With time you will learn to make the best use of this
versatile cooking appliance and the following directions are only a guideline which
may be varied according to your own personal experience.
Practical Cooking Advice

20
Usingyour Freestanding Cooker
Make surethatthegrid isinserted so that it is in the center of the oven. Ifyou would
like to increase the amount ofheat from below, use the low rack heights. For savory
roasts (especially duckand wild game), dress the meat with lard orbacon on the
top.
When cooking white meat ,fowl and fish,use temperature setting from 180℃to
200℃.
In general, the larger the roast, the lower the temperature setting. Place the meaton
the centerofthe grid and place the dripping pan beneath it to catch the fat.
For red meat that should bewell done on the outside while tenderand juicy in the
inside, it is a good idea to start with a high temperature setting (200℃-220℃) for a
short tim eth,en turn theoven down afterwards.
Cooking Fish andMeat
Use a lower temperature setting. It is not necessary to remove the food from all the
racks at the same time.
