Contents
Safety and warning information...........2
Installing your new appliance...............9
Reversing the door..........................10
Description of the appliance...............14
Display controls................................17
Using your appliance.........................21
Helpful hints and tips.........................24
Cleaning and care..............................25
Troubleshooting...............................26
Disposal of the appliance...................28
Safety and warning information
For your safety and correct usage, before installing and
first using the appliance,read this user manual carefully,
including its hints and warnings.To avoid unnecessary
mistakes and accidents,it is important to make sure that all
people using the appliance are thoroughly familiar with its
operation and safety features. Save these instructions and
be sure that they remain with the appliance if it is moved or
sold,so that anyone using it throughout its life,will be
properly informed on its usage and safety notices.
For the safety of life and property,keep the precautions of
these user's instructions as the manufacturer is not
responsible for damages caused by omission.
According to EN standard
This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
use of the appliance in a safe way and understand the
hazards involved.Children shall not play with the
appliance.Cleaning and user maintenance shall not be
made by children without supervision.
Children aged from 3 to 8 years are allowed to load and
unload refrigerating appliances.
According to IEC standard
This appliance is not intended for use by persons
Safety for children and others who are vulnerable people
●
●

3
(including children) with reduced physical,sensory or
mental capabilities,or lack of experience and knowledge,
unless they have been given supervision or instruction
concerning use of the appliance by a person being
responsible for their safety.
Children should be supervised to ensure that they do not
play with the appliance.
Keep all packaging away from children as there is a risk
of suffocation.
If you are discarding the appliance,pull the plug out of the
socket,cut the connection cable (as close to the appliance
as you can) and remove the door to prevent children
playing from suffering an electric shock or from closing
themselves inside it.
If this appliance, featuring a magnetic door seals,is to
replace an older appliance having a spring lock (latch) on
the door or lid,be sure to make the spring lock unusable
before you discard the old appliance.This will prevent it
from becoming a death trap for a child.
WARNING —This appliance is intended to be used
in household and similar applications such as
-staff kitchen areas in shops,offices and other working
environments;
-farm houses and hotels, motels and other residential type
environments;
-bed and breakfast type environments;
-catering and similar non-retail applications.
WARNING — Do not store explosive substances such as
aerosol cans with a flammable propellant in this appliance.
WARNING — If the supply cord is damaged,it must be
replaced by the manufacturer,its service agent or similarly
●
●
●
●
●
●
●
General safety

4
qualified persons in order to avoid a hazard.
WARNING — Keep ventilation openings,in the appliance
enclosure or in the built-in structure,clear of obstruction.
WARNING — Do not use mechanical devices or other
means to accelerate the defrosting process,other than
those recommended by the manufacturer.
WARNING — Do not damage the refrigerant circuit.
WARNING — Do not use electrical appliances inside the
food storage compartments of the appliance,unless they
are of the type recommended by the manufacturer.
WARNING — The refrigerant and insulation blowing gas
are flammable. When disposing of the appliance,do so only
at an authorized waste disposal centre.Do not expose to
flame.
WARNING —When positioning the appliance,ensure the
supply cord is not trapped or damaged.
WARNING —Do not locate multiple portable socket-
outlets or portable power supplies at the rear of the
appliance.
WARNING—The illuminating lamps must not be replaced
by the user! If the illuminating lamps is damaged,contact
the customer helpline for assistance.
This warning is only for refrigerators that contain
illuminating lamps.
The refrigerant isobutene (R600a) is contained within the
refrigerant circuit of the appliance,a natural gas with a high
level of environmental compatibility,which is nevertheless
flammable.During transportation and installation of the
appliance,ensure that none of the components of the
refrigerant circuit becomes damaged.
●
●
●
●
●
●
●
●
Replacing the illuminating lamps
Refrigerant

The refrigerant (R600a) is flammable.
WARNING — Refrigerators contain refrigerant and gases
in the insulation.Refrigerant and gases must be disposed
of professionally as they may cause eye injuries or ignition.
Ensure that tubing of the refrigerant circuit is not damage
prior to proper disposal.
The symbol is a warning and indicates the
refrigerant and insulation blowing gas are flammable.
If the refrigerant circuit should be damaged:
-Avoid opening flames and sources of ignition.
-Thoroughly ventilate the room in which the appliance is
situated.
It is dangerous to alter the specifications or modify this
product in any way.
Any damage to the cord may cause a short circuit,fire,
and/or electric shock.
1.The power cord must not be lengthened.
2. Make sure that the power plug is not crushed or
damaged.
A crushed or damaged power plug may overheat and
cause a fire.
3.Make sure that you can access the main plug of the
appliance.
4. Do not pull the main cable.
5. If the power plug socket is loose, do not insert the power
plug. There is a risk of electric shock or fire.
6.You must not operate the appliance without the interior
lighting lamp cover.
7.The fridge is only applied with power supply of single
●
WARNING : Risk of fire / flammable materials
Electrical safety
5

6
phase alternating current of 220~240V/50Hz. If fluctuation
of voltage in the district of user is so large that the voltage
exceeds the above scope,for safety sake, be sure to apply
A.C. Automatic voltage regulator of more than 350W to the
fridge.The fridge must employ a special power socket
instead of common one with other electric appliances. Its
plug must match the socket with ground wire.
Do not store flammable gas or liquids in the appliance,
there is a risk of an explosion.
Do not operate any electrical appliances in the appliance
(e.g. electric ice cream makers,mixers etc.).
When unplugging always pull the plug from the mains
socket,do not pull on the cable.
Do not place hot items near the plastic components of
this appliance.
Do not place food products directly against the air outlet
on the rear wall.
Store pre-packed frozen food in accordance with the
frozen food manufacture’s instructions.
The appliances manufactures storage recommendations
should be strictly adhered to.Refer to relevant instructions
for storage.
Do not place carbonated or fizzy drinks in the freezer
compartment as it creates pressure on the container,which
may cause it to explode,resulting in damage to the
appliance.
Frozen food can cause frost burns if consumed straight
from the freezer compartment.
Do not place the appliance in direct sunlight.
Keep burning candles,lamps and other items with naked
flames away from the appliance so that do not set the
appliance on fire.
Daily use
●
●
●
●
●
●
●
●
●
●
●

7
●
●
●
●
●
●
●
●
●
●
●
The appliance is intended for keeping food stuff and/or
beverages in normal household as explained in this
instruction booklet.You should take care when move it as
the appliance is heavy.
Do not remove or touch items from the freezer
compartment if your hands are damp/wet, as this could
cause skin abrasions or frost/freezer burns.
Never use the base,drawers,doors etc. to stand on or as
supports.
Frozen food must not be refrozen once it has been
thawed out.
Do not consume ice popsicles or ice cubes straight from
the freezer as this can cause freezer burn to the mouth and
lips.
To avoid items falling and causing injury or damage to the
appliance,do not overload the door racks or put too much
food in the crisper drawers.
●This refrigerating appliance is not intended to be used
as a a built-in appliance.
Before maintenance,switch off the appliance and
disconnect the mains plug from the mains socket.
Do not clean the appliance with metal objects,steam
cleaner,ethereal oils,organic solvents or abrasive
cleansers.
Do not use a sharp objects instead of a plastic scraper
to remove frost from the appliance.
For electrical connection carefully, follow the instructions
given in this manual.Unpack the appliance and check if
there are damages on it.
Do not connect the appliance if it is damaged. Report
possible damages immediately to the place you bought
caution!
Care and cleaning
Installation Important!

8
it.In this case retain packing.
It is advisable to wait at least four hours before
connecting the appliance to allow the oil to flow back in the
compressor.
Adequate air circulation should be around the appliance,
lacking this leads to overheating. To achieve sufficient
ventilation, follow the instructions relevant to installation.
Wherever possible the back of the product should not be
too close to a wall to avoid touching or catching warm parts
(compressor, ) to prevent the risk of a fire, follow
the instructions relevant to installation.
The appliance must not be locate close to radiators or
cookers.
Make sure that the mains plug is accessible after the
installation of the appliance.
Any electrical work required to do the servicing of the
appliance should be carried out by qualified electrician or
competent person.
This product must be serviced by an authorized Service
Center, and only genuine spare parts must be used.
1)If the appliance is Frost Free.
2)If the appliance contains freezer compartment.
●
●
●
●
●
●
●
Service
condenser

Note:
Leveling of appliance
●
●
●
●
●
This appliance performs well within
the climate class from SN to ST
showed in the table below.It may not
work properly if being left at a
temperature above or below the
indicated range for a long period.
Stand your appliance in a dry place to
avoid high moisture.
Keep the appliance out of direct
sunlight, rain or frost. Stand the
appliance away from heat sources such
as stoves,fires or heaters.
For sufficient leveling and air
circulating in the lower rear section of
the appliance, the bottom feet may
need to be adjusted.You can adjust
them manually by hand or by using a
suitable spanner.
To allow the doors to self-close, tilt the
top backwards by about 10mm .
9
Installing your new appliance
Before using the appliance for the first
time, you should be informed of the
following tips.
Ventilation of appliance
In order to improve efficiency of
the cooling system and save
energy,itisnecessaryto
maintain good ventilation around the
appliance for the dissipation of heat.For
this reason,sufficientclear space should
be available aroundthe refrigerator.
It is advisable for there to be
50-70mm of space from the back to the
wall,at least 100mm from its top,at least
100mm from its side to the wall and a
clear space upfront to allow the doors to
open 115°.As shown in follow
diagrams.
Suggest:
Climate class
SN
N
ST
Ambient temperature
+10°C to +32°C
+16°C to +32°C
+16°C to +38°C
831
717
115

10
Reversing the door
The side at which the door opens
can be changed, from the right side
(as supplied) to the left side, if the
installation site requires.
When reversing the door,
the appliance must not be connected
to the mains. Ensure that the plug is
removed from the mains socket.
When required, tilt the refrigerator
back in order to gain access to the
base, you should rest the appliance
on soft foam packaging or similar
material to avoid damaging the
backboard of the refrigerator. To
reverse the door, the following steps
are generally recommended.
Different models may correspond to
different pictures. Models will be
written in the picture. If some parts
are not shown in the picture, please
ignore the relevant description.
1. Stand the refrigerator upright.
Open the upper door to take out all
door racks (to avoid racks damaged)
and then close the door.
Warning!

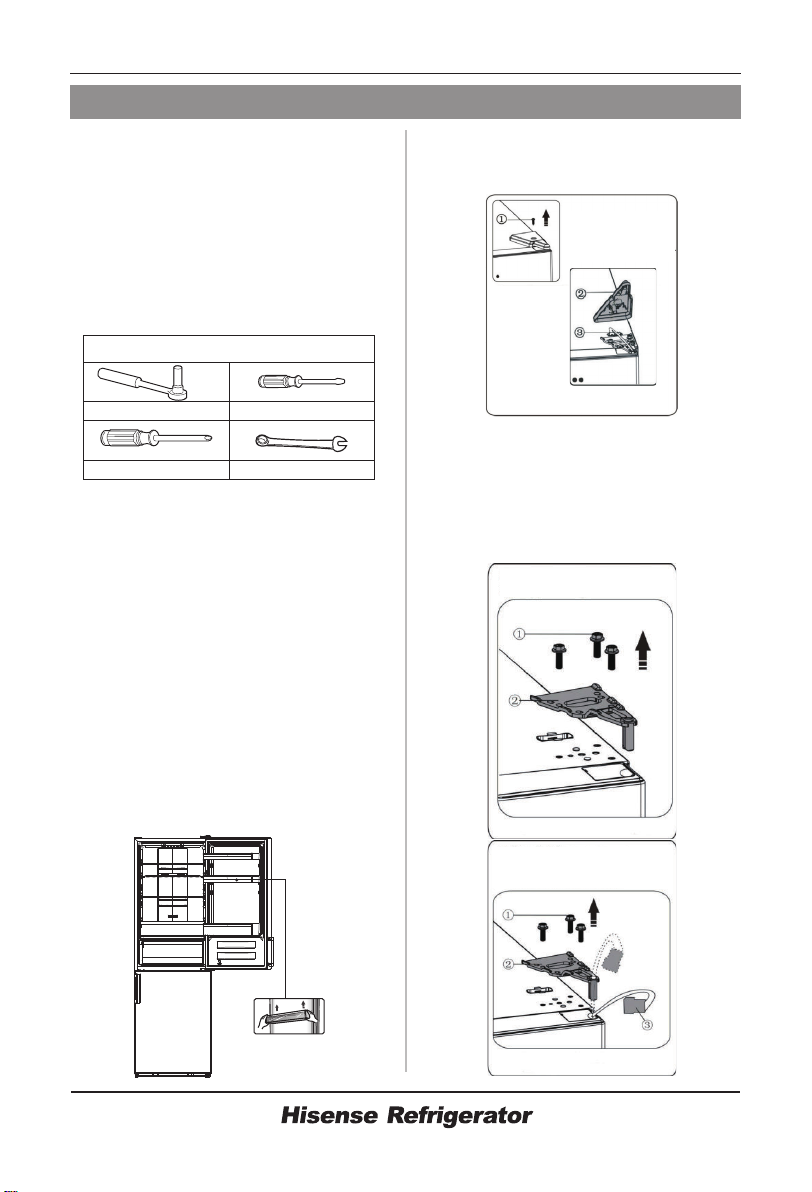

Tools you will need
●
2.Remove part loose part from
the top right side of refrigerator.
3.Remove screws and hinge
.When the refrigerator with
display on door, you need to pass
connector through the hole of
hinge (Please hold upper door by
hand when installing).
①, ②
③
①
②
②.
Not provided
8mm socket wrench Thin-blade screwdriver
8mm wrench
Cross-shaped screwdriver
Door racks
MODEL WITHOUT DISPLAY
①screwsSpecial flange
Upper hinge②
MODEL WITH DISPLAY
①screwsSpecial flange
Upper hinge
Electrical connector
②
③
①screwsSelf-tapping
Upper hinge cover②

11

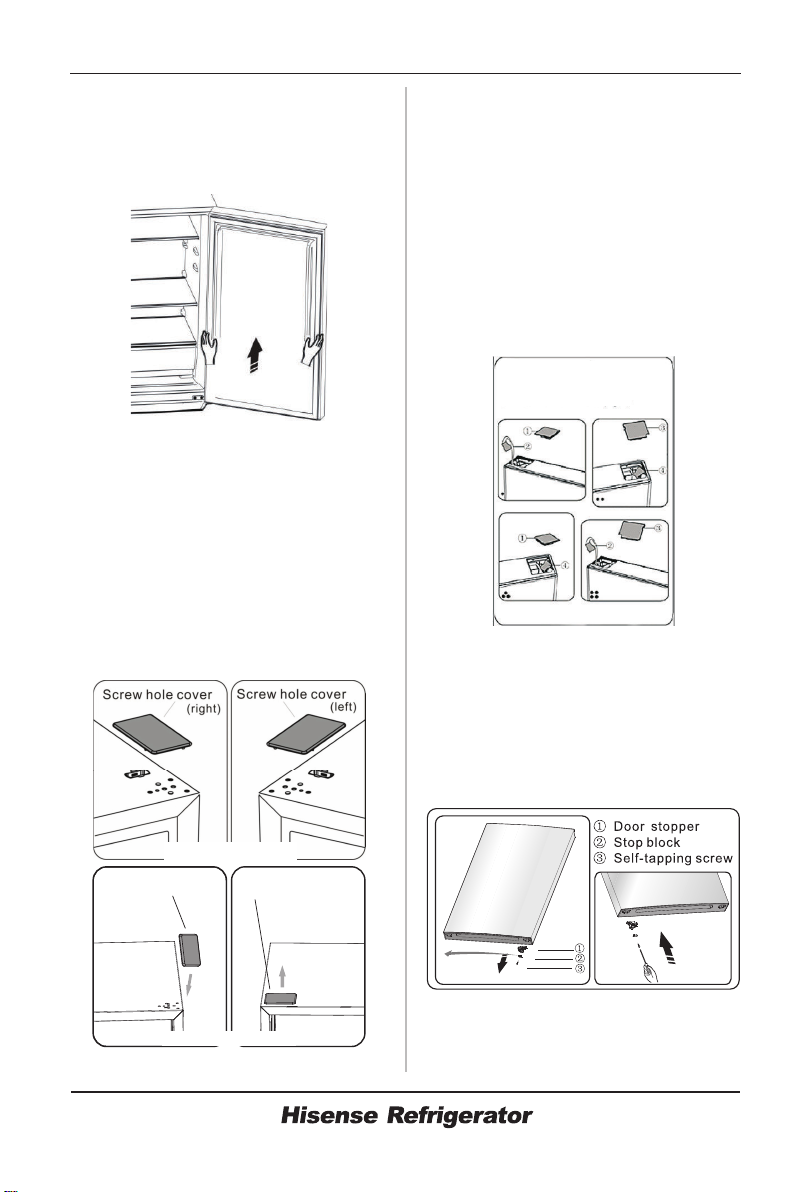

4. Remove the upper door from the
middle hinge by carefully lifting the
door straight up. Then place the
upper door on a smooth surface with
its upper cover upwards.
When the refrigerator with a
display on door, take screw hole
cover(right) from plastic bag and
install it onto the top right side of
refrigerator body.Then remove
screw hole cover(left) from the top
left side of appliance and put it into
plastic bag.
When the refrigerator without a
display on door, pull out screw hole
cover from the left side up rightly,
and fix it on the right side.
5.
6.When the refrigerator with a
display on door, remove part from
the top left side of upper cover and
take out part . Then remove part
and put part into the top right
side of upper cover. Refer to above
operation, install part and part
on to the top left side of upper
cover.Install part of the top right
side of upper cover. When the
refrigerator without a display on
door, skip this step.
①
②
③ ④
③ ④
①
7. Loose screw and take down
part and part , Install
replacement door stopper-left
provided (in the plastic bag) and part
(stop block) to the left side with
screw . Keep part with the
appliance for future reference.

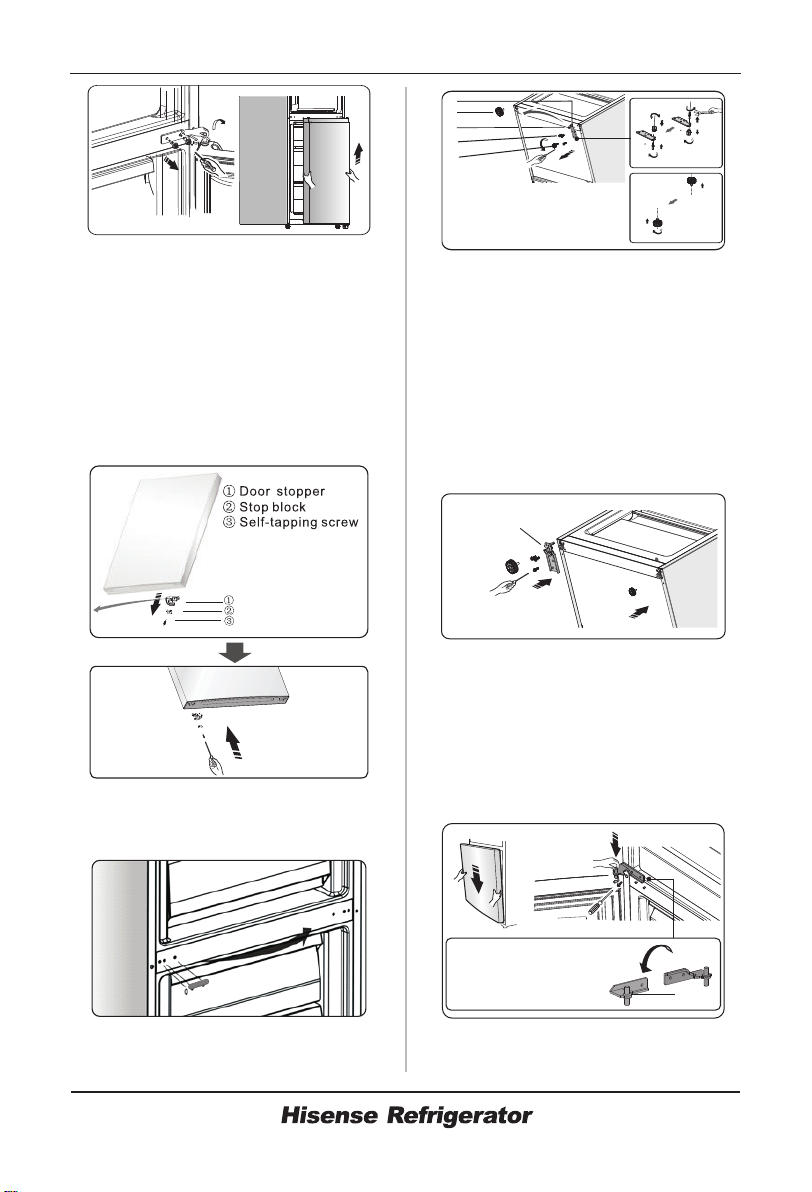

8. Loose screws used to fix the
middle hinge and remove middle
hinge. Then remove the lower door.
③
②
②
③
①
①
④
①orner cover left
Electrical connector left
Corner cover right
Electrical connector right
( )
②( )
③( )
④( )
C
MODEL WITH DISPLAY
MODEL WITH DISPLAY
Screw hole cover Screw hole cover
MODEL WITHOUT DISPLAY

12
9. Place the lower door on a smooth
surface with its panel upwards.
Loose screw and take down part
and part , Install replacement
door stopper-left provided (in the
plastic bag) and part (stop block)
to the left side with screw . Keep
part with the appliance for future
reference.
10. Change screw hole covers on
middle cover plate from left to right
(as shown in figure below).
③
②
②
③
11. Tip the refrigerator backwards,
remove part
①
①
②.
④
12.
13.
14.
15.
Remove part from the lower
hinge pin, loose out the lower hinge
pin, change it to the reverse hole
site, and then tighten into position,
then install part on the lower
hinge pin.
Slot the lower door onto the
bottom hinge pin and hold in
position. Turn the middle hinge by
180°, change the washer on the axis
to the lower side, adjust the middle
hinge to the appropriate position and
then install it ensuring the lower
door in secured place.
Move the upper door to an
appropriate position, and then fix
③
①
④.
②
③
Replace the items remount in
step 11, change part to left and
then fix them with screws Install
part at last.
,
Lower hinge part (left)
①Lower hinge part (right)
Adjustable bottom feet part
Adjustable bottom feet part
Self-tapping screws
Adjustable bottom feet part
②
③
④
⑤
①
②
③
④
⑤
Note: washer may
stick to lower door. Washer

13
part by screws .Before fix part ,
pass connector through hinge
refer to step 3. (Please hold upper
door by hand when installing)
Connect electrical connector
as shown in the picture, then fix part
by screw refer to step 2.
②
①
① ②
③ ②
16.
②③
17. Open the upper door, mount door
racks and then close it.
If your appliance has handle,you
have to reverse handle by follow
instructions below.
Remove the upper door and place it
on a smooth surface with its panel
upwards. Lever part and part ,
then loose screws , as shown in
the picture. Change handle to the
right side, then install screws ,
part and part in turn.
Note:
①④
②
③
②
① ④
②Special screws
③Handle
①Handle covers
④Screw hole cover
①Special flange screws
②Upper hinge
MODEL WITHOUT DISPLAY
①Special flange screws
Upper hinge
Electrical connector
②
③
MODEL WITH DISPLAY
①
②
③-
electrical connector
upper hinge cover
self tapping screw
MODEL WITH DISPLAY

14

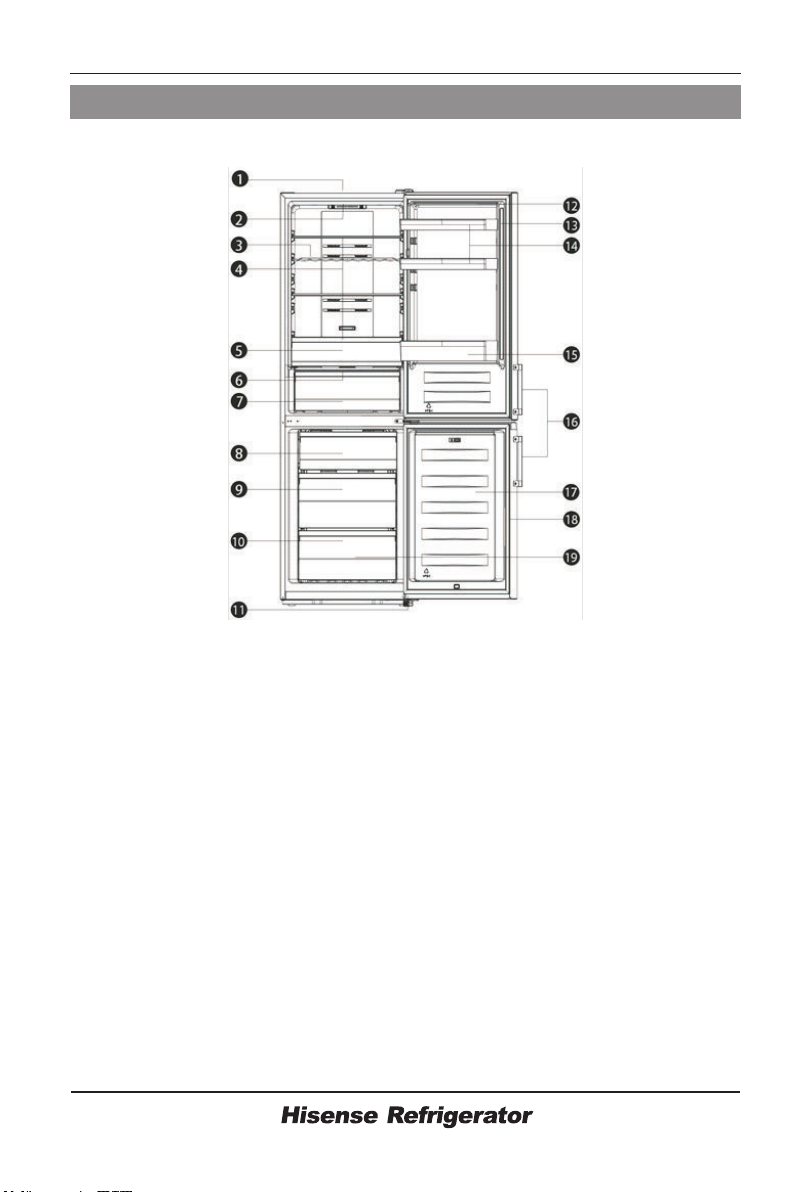

Description of the appliance
The view of an appliance with dispenser
Note:
Due to unceasing modification of our products,some parts of your
refrigerator may be slightly different from this instruction manual,
To get more space in the freezer, you can remove drawers(except the bottom
drawer in freezer! ) .To get the best energy of this product, please place all
shelves drawers on their original position as the illustration above.
but its
functions and using methods remain the same.
●
●
1.Cabinet
2.LED light & thermostat control
3.Wine shelf(alternative)
4.Glass shelves
5.Crisper cover
6.Crisper
7.Tray(alternative with a upper
8.Middle drawer
9.Lower drawer
10.Adjustable feet
drawer)
11.Refrigerator door
12.Refrigerator door gasket
13.Upper rack
14.Middle rack
15.Water tank
16.Lower rack
17.Handle(optional)
18.Freezer door
19.Freezer door gasket
20.Accessories

15
Note:
Due to unceasing modification of our products,some parts of your
refrigerator may be slightly different from this instruction manual,
To get more space in the freezer, you can remove drawers(except the bottom
drawer in freezer! ) .To get the best energy of this product, please place all
shelves drawers on their original position as the illustration above.
but its
functions and using methods remain the same.
●
●
The view of an appliance without dispenser
Description of the appliance
9.Lower drawer
10.Adjustable feet
11.Refrigerator door
12.Refrigerator door gasket
13.Upper rack(X2)
14.Lower rack
15.Handle(optional)
16.Freezer door
17.Freezer door gasket
1.Cabinet
2.LED light & thermostat control
3.Wine shelf(alternative)
4.Glass shelves
5.Crisper cover
6.Crisper
7.Tray(alternative with a upper
drawer)
8.Middle drawer

16
Note:
Due to unceasing modification of our products,some parts of your
refrigerator may be slightly different from this instruction manual,
To get more space in the freezer, you can remove drawers(except the bottom
drawer in freezer! ) .To get the best energy of this product, please place all
shelves drawers on their original position as the illustration above.
but its
functions and using methods remain the same.
●
●
The view of an appliance with display on door
Description of the appliance
1.Cabinet
2.LED light
3.Wine shelf(alternative)
4.Glass shelves
5.Upper crisper
6.Crisper cover
7.Lower Crisper
8.Upper drawer
9.Middle drawer
10.Lower drawer
11.Adjustable feet
12.Refrigerator door
13.Refrigerator door gasket
14.Upper rack(X2)
15.Lower rack
16.Handle(optional)
17.Freezer door
18.Freezer door gasket
19.Accessories

17
Display controls
Display panel inside door
User your appliance according to the
following control regulations, your
appliance has the corresponding
functions and modes as the display
panels showed in the pictures below.
When the appliance is powered on for the
first time, the backlighting of the icons on
display panel starts working. If no buttons
have been pressed and the doors are
closed, the backlighting will turn off.
Display panel inside door
Controlling the temperature
Caution!
For optimum food preservation,
Werecommendthatwhenyoustartyour
refrigeratorforthefirsttime,the
temperaturefortherefrigeratorissetto 4°
C.Ifyouwanttochangethe
temperature,followtheinstructionsbelow
.NOTE:High temperature setting will
accelerate food waste.
When you set a temperature, you set
an average temperature for the
whole refrigerator cabinet.
Temperatures inside each
compartment may vary from the
temperature values displayed on the
panel, depending on how much food
you store and where you place them.
Ambient temperature may also
affect the actual temperature inside
the appliance.

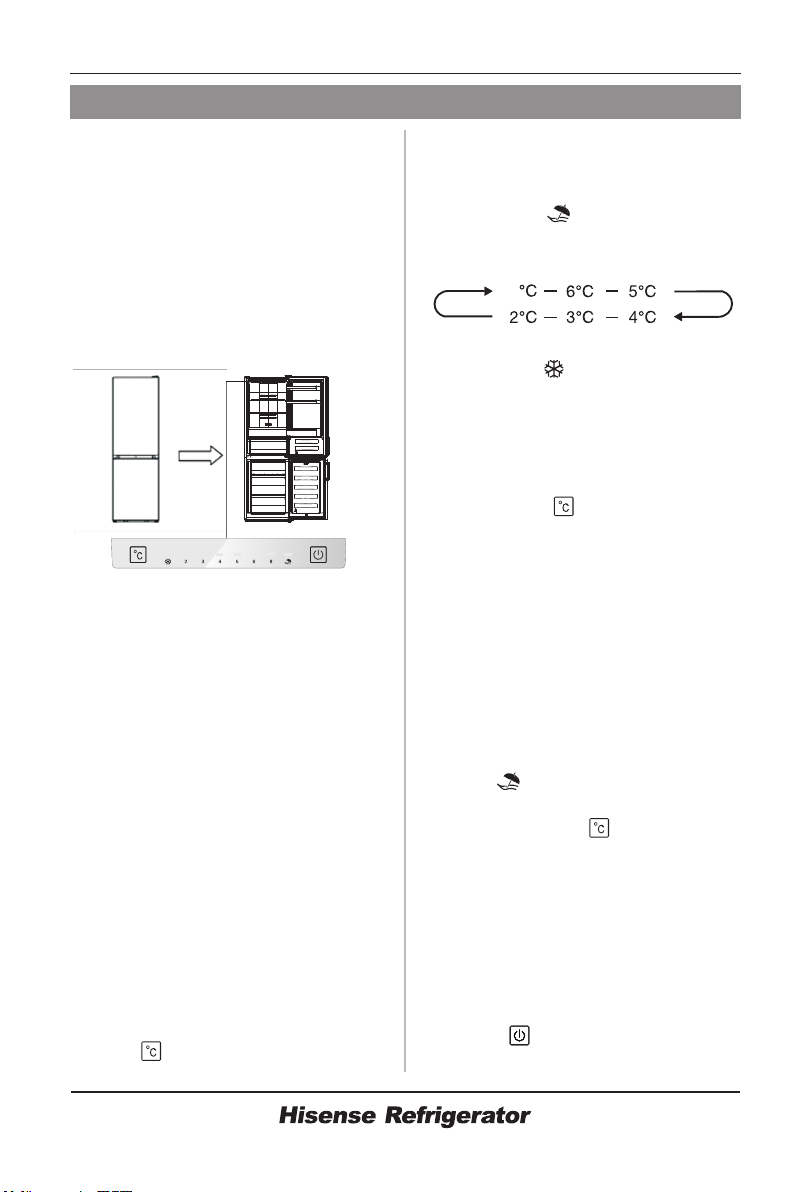

Fridge
●Press “ ”to set fridge temperature
between 2°C and 8°C as needed, and
display panel will display corresponding
values according to the following
sequence.
Note: When the“ ” is lighted, the holiday
mode is activated. Check the Holiday
mode instruction.
Super Freeze will quickly lower the
temperature within the freezer so food will
freeze faster. This can lock in the vitamins
and nutrients of fresh food and keep food
fresh longer.
You can press “ ”for 3 sec to get into
super freeze mode.
When Super freeze Mode is selected,
the light will be illuminated and the freezer
temperature will be set at -24°C.
In case of the maximum amount of food
to be frozen, please wait about 24 h.
Super freeze automatically switches off
after 52 hours and then the freezer
temperature setting will revert back to the
previous setting.
If you are going to be away for a long
period of time, press “ ”,you can
activate this function.
When Holiday Mode is activated, the
light will be illuminated. The freezer
temperature will be set at -18°C and the
fridge temperature will be set at 15°C.
Do not store any food in the
fridge during this time.
You can switch on or switch off your
Super Freeze( )
Holiday ( )
Important!
3.Switch( )(display panel inside
door)
●
●
●
●
●
8

for1seconds, after a
18
appliance by press this button.
Press “ ” for 3 seconds, after a
buzzer sound, the appliance will be
turned off.
●
Press “ ”
buzzer sound, the appliance will be
turned on.
●
