Hisense LASER TV 100L5H User manual

Quick Setup Guide
Before using the Laser TV, please read this guide carefully and keep it for future reference.
Disclaimer: This Quick Setup Guide is intended as a general guideline to help you set up your Laser TV. Images throughout this document are for illustrative purposes only and
may differ from the actual product.
Model 100L5H

© 2023 Hisense Company Ltd. All Rights Reserved.
All material in this Quick Setup Guide is the property of Hisense Company Ltd. and its subsidiaries, and is protected under US,
CANADA, MEXICO and International copyright and/or other intellectual property laws. Reproduction or transmission of the materials,
in whole or in part, in any manner, electronic, print, or otherwise, without the prior written consent of Hisense Company Ltd. is a
violation of Hisense Company Ltd. rights under the aforementioned laws.
No part of this publication may be stored, reproduced, transmitted or distributed, in whole or in part, in any manner, electronic or
otherwise, whether or not for a charge or other or no consideration, without the prior written permission of Hisense Company Ltd.
Requests for permission to store, reproduce, transmit or distribute materials may be made to one of the following addresses:
U.S.A. Hisense USA Corporation
105 Satellite BLVD Suite I, Suwanee, GA 30024
MEXICO
IMPORTER:
Hisense Mexico S. de R.L. de C.V.
Blvd. Miguel de Cervantes Saavedra No 301
Torre Norte Piso 2, Col. Ampliación Granada
Miguel Hidalgo, Ciudad de México, C.P. 11520
RFC: HME110512IY3
TEL: (52) (55) 5531-3515
CANADA Hisense Canada Co., Ltd
2283 Argentia Road, Unit 16
Mississauga, ON, Canada
L5N 5Z2
Hisense, and any and all other Hisense product names, logo’s, slogans or marks are registered trademarks of Hisense Company Ltd.
and its subsidiaries. All other trademarks are the property of their respective holders.

1
Table of Contents
Register Your Laser TV! 2
Important Safety Information 3
Packaged Contents 5
Laser TV Diagram 6
STEP 1. Mount the Screen 7
STEP 2. Set up the Laser TV 8

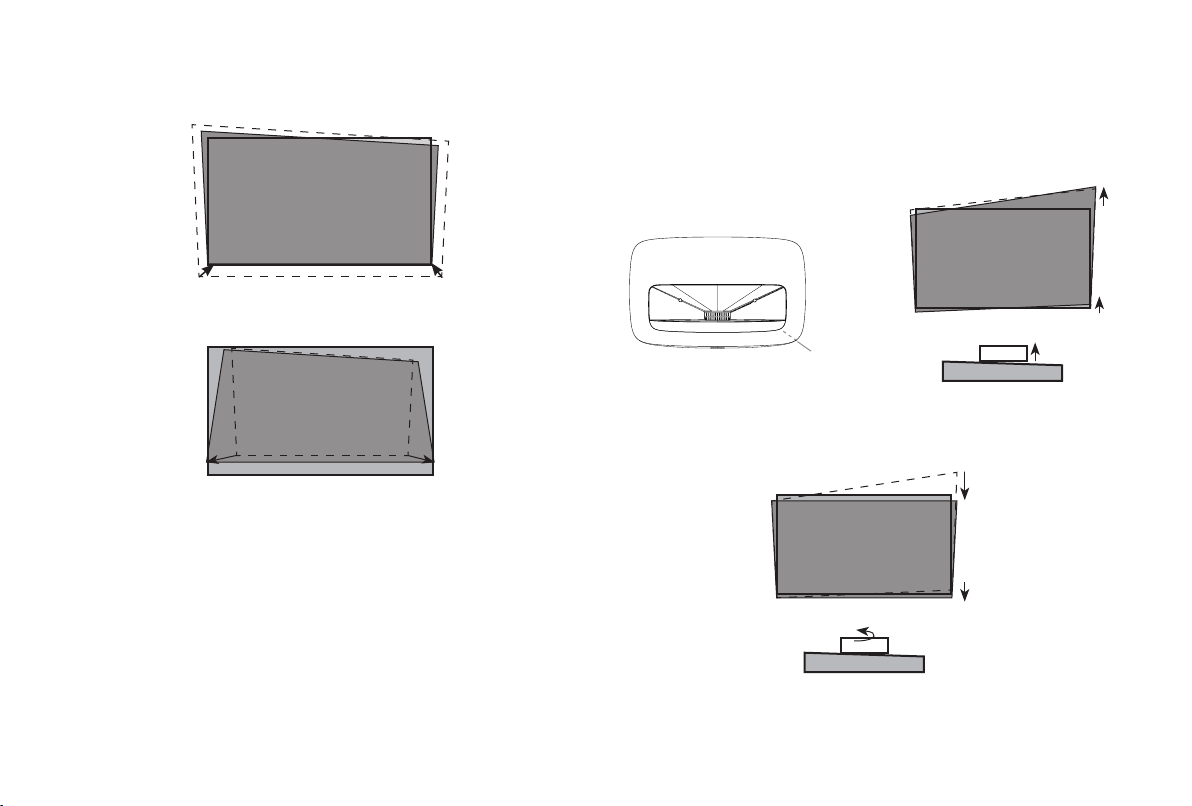

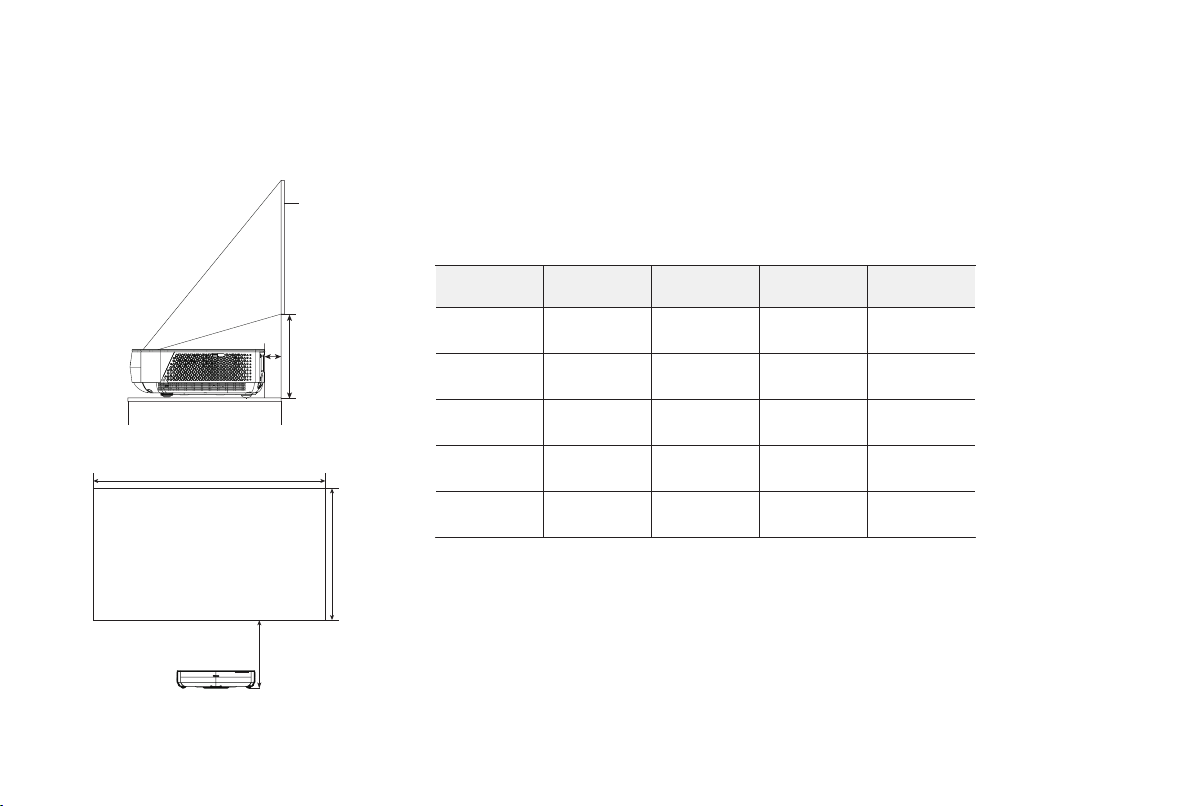

STEP 3. Adjust the Display Image and the Screen 11
STEP 4. Use Your Remote 15
STEP 5 Proceed through the Screen Setup Menu 17
Begin to Enjoy Your Laser TV 18
Maintenance & Quick Problem-Solving Tips 19
Product Specifications 22
Certification and Compliance 23
Congratulations on the purchase of your new Laser TV! This Quick Setup Guide will walk you through a
few easy steps to set up your Laser TV.
For detailed instructions, please refer to the E-Manual.

2
Register Your Laser TV!
Because we value your business, we want to keep you in the know of 'all things Hisense'. Using your mobile phone, scan the
Registration page QR code to register your Laser TV. Depending on the make and model of your phone, you may need to download a
QR code scanning app.
http://www.hisense-usa.com/support/
register
https://hisense.com.mx/support/register http://www.hisense- canada.com/
support/productReg.asp
U.S. Mexico Canada

3
Important Safety Information
SAFETY WARNINGS
Do not look directly at the lens when this device is on!
• This product comes with a laser module. Do not tear or modify this device in any manner; otherwise, it
may result in personal injury.
RG2
As with any bright light source, DO NOT STARE INTO THE BEAM IEC 62471-5: 2015
CLASS 1 LASER PRODUCT
λ = 455±6nm
Wavelength 455±6nm
CLASS 1 LASER PRODUCT IEC 60825-1: 2014
Caution—use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous
radiation exposure.
The Device Complies with 21 CFR 1040.10 and 1040.11 except for confromance as a Risk Group 2 LIP as defined in IEC 62471-5:
Ed.1.0. For more information see Laser Notice No.57, dated May 8, 2019.
• If this device requires a repair, please wear laser eye protection with an optical density OD that is 4 or
higher and has a wave length of 445-465 nm.
• Do not place any water-containing vessel on this device, such as cosmetics or liquid medicine.
• If any object or water enters this device, please unplug this device and contact the service staff of Hisense.
• Do not place any exposed fire source (e.g. burning candle) on this device. Keep away from high temperature and heat.
• Do not expose the battery to direct sunlight or candle light.
• Keep air vents on both sides clear from any objects to prevent the device from overheating inside.
• To avoid a short circuit, product damage or electric shock, do not use any sharp object or metal to touch the ports or other

4
openings on the Laser TV.
• If this device has been in a warm environment, allow any built-up condensation to evaporate first BEFORE you switch the device
on.
• Do not allow a child to stand on or climb up this device.
• Do NOT place any object above or in front of the lens because the laser light could cause the object to become flammable.
• Clean the lens periodically with a clean cloth and make sure the Laser TV is turned off before you start.
Low Blue light Content
• The long-term exposure to blue light may damage your eyes, in particular the retina, causing visual fatigue or eye strain. Children
are particularly vulnerable to excessive blue light and the damage to them is irreversible. The product can decrease blue light ratio
to reduce blue light hazard.
Health recommendations
• Avoid long time continuous use product, ensure adequate break time.
• Looking at distant objects or exercises for the eye after use product.

5
• Laser TV
• 1 Remote control
• 2 AAA or AA batteries
• 2 pairs of gloves for handling the Laser TV
• 1 Power Cord
• 1 Wrench to adjust the bottom of the Laser TV
• 1 Audio Out Cable
• Hisense 4K Laser TV Quick Setup Guide
• Important Safety Information & Warranty Card
• Cleaning kit for the lens
• 2 C-shaped blocks
• C-shaped Block Installing Instruction
Packaged Contents
NOTE:
• The accessories may be different from the list above due to different models, countries/regions. Please refer to the actual
accessory bag.
• Screen is not included.

6
We strongly recommend that two people handle this device when moving it from one place to another. Be
sure to protect the lens when you handle this device.
Laser TV Diagram
Power Indicator
Remote control receiver
Air vents
Eye protection sensor
Lens with laser Power button

7
STEP 2 Set up the Laser TV
To begin setting up the Laser TV, we strongly recommend that TWO people move it from one place to
another because of the weight. Be sure to protect the lens when you handle this device.
STEP 1 Mount the Screen
If you purchased a screen from Hisense to include with your Laser TV, then refer to the Screen Installation
Guide that’s included in the package.
1. Now, to get started, we recommend that you connect all cables to
the ports on the back of the Laser TV before you position it. (Audio,
video, Ethernet cables and external devices are not included.)
2. Position the Laser TV so it is parallel with the screen surface.
3. Plug the power cord into a wall outlet.
4. Press the POWER button to turn on the Laser TV.
WARNING: Insufficient ventilation space will cause this
device to overheat or become damaged.
• Do not block the air vents or place any object on this device.
• Do not place this device in any narrow, enclosed or poorly
ventilated space.

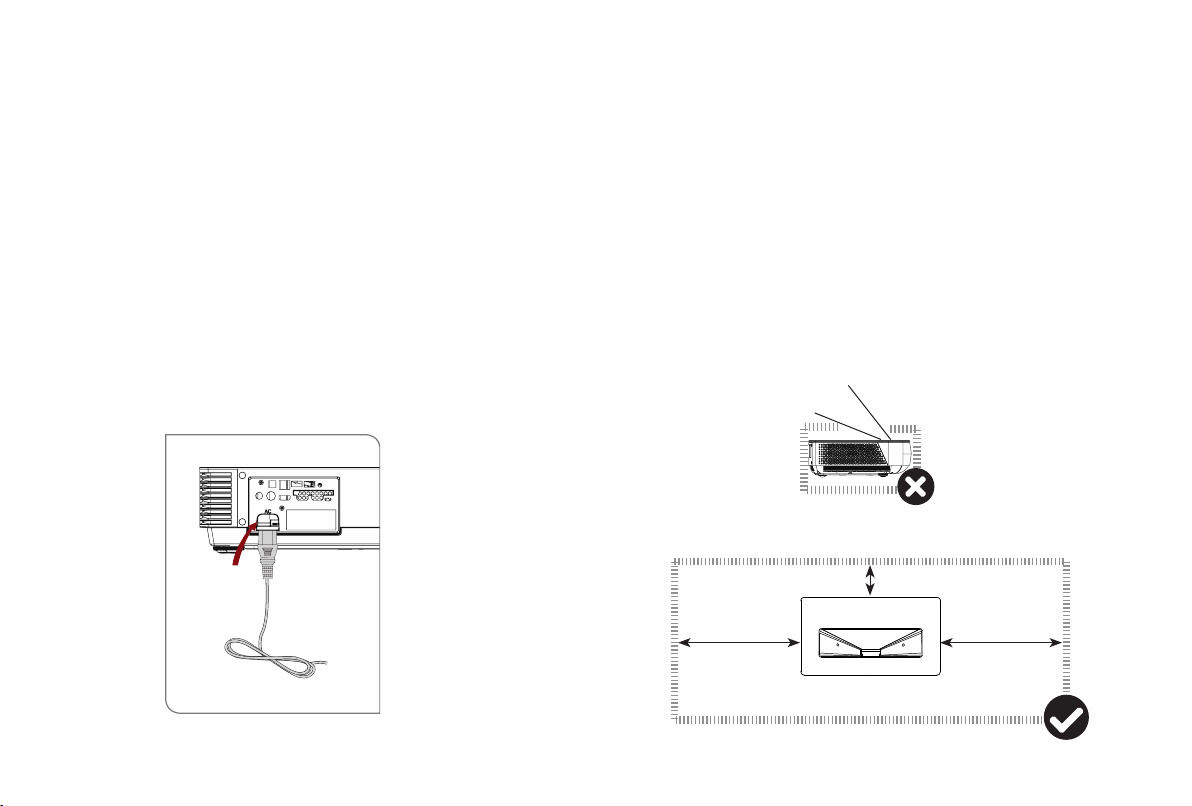

At a minimum, leave the amount of space shown in the diagram
below for this device to have proper ventilation.
Laser beam
Power cord 20 cm
20 cm
5 cm

8
Check to ensure that you have selected the right cables for the ports and that they are connected securely. Loose connections can
affect the quality of the picture image and color.

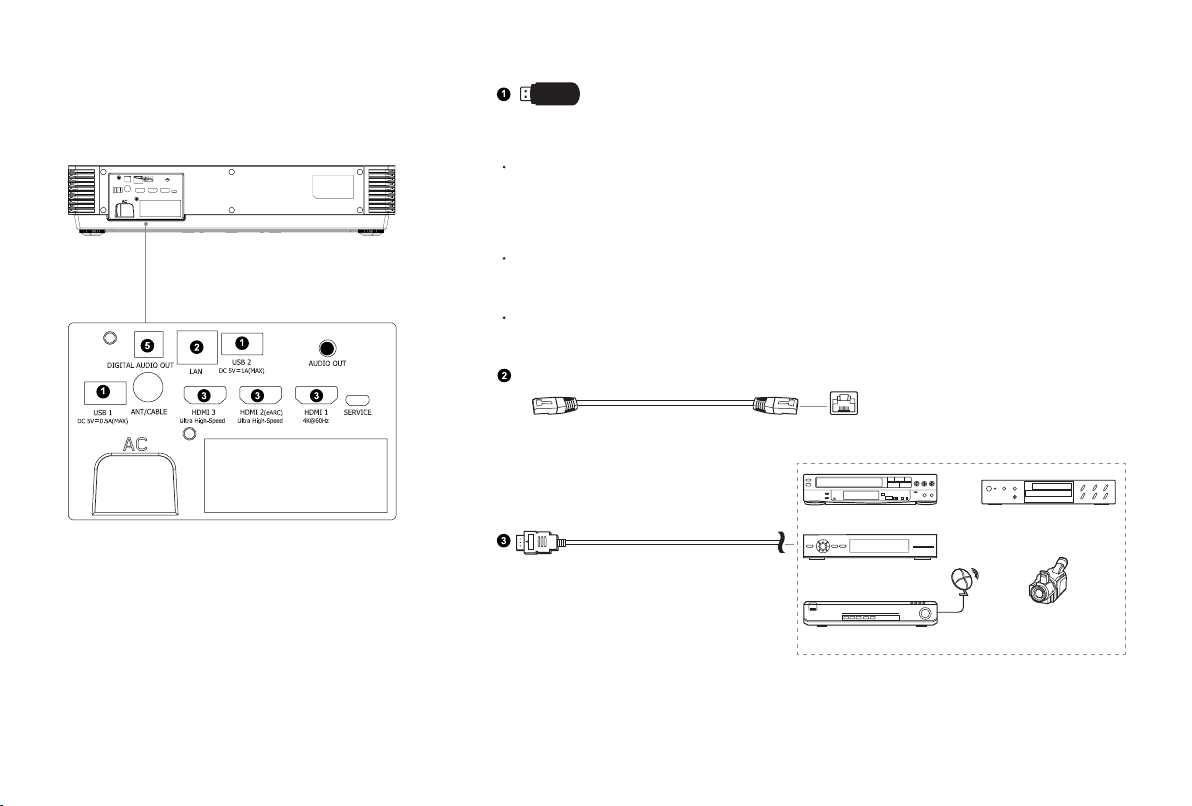

Ports to connect certain cables to
NOTE:
When connecting a hard disk or a USB hub, always connect the mains
adapter of the connected device to the power supply. Exceeding a total
current consumption may result in damage. The USB2.0 device maximum
current consumption is 500mA. The USB3.0 device maximum current
consumption is 1A.
If the impulse current for an individual non-standard high-capacity mobile
hard disk is greater than or equal to 1A, it may cause the Laser TV to reboot
or lock.
The USB port supports a voltage of 5V.
USB devices for browsing photos, music and movies. This unit only
recognizes USB Memory Sticks.
4
Video Camera
DVD Player
External AV devices
VCR
Set-top Box
Satellite Receiver
HDMI
Ethernet (you will need a router for Internet connectivity)
