Hisense RD-31WC4S series User manual

Refrigerator
Service manual
NO FROST
MODEL:RD-31WC4S* (BCD-228W)
NOTE: product specifications are subject to change.

Contents
Warnings and precautions for safety............................................................................................................................ 2
Parts Description.......................................................................................................................................................... 3
Cooling diagram.......................................................................................................................................................... 5
Checking the Compressor............................................................................................................................................ 7
Checking the Heater .................................................................................................................................................... 8
Checking the timer....................................................................................................................................................... 8
Checking the defrost fuse .......................................................................................................................................... 10
Checking the defrost thermostat................................................................................................................................ 10
◆The instruction of replacing the thermostat............................................................................................................11
◆The instruction of replacing refrigerator Light bulb............................................................................................ 12
◆The instruction of replacing the timer.................................................................................................................... 13
◆The instruction of of replacing fan motor............................................................................................................ 13
◆The instruction of replacing evaporator temperature temperature fuse and heater................................................ 15
◆The instruction of replacing Door switch. ........................................................................................................... 15
◆The instruction of replacing PTC Starting relay and Overload protector. ........................................................... 16
Water Dispenser......................................................................................................................................................... 17
Troubleshooting......................................................................................................................................................... 19
◆The common problem judgement method............................................................................................................. 19
◆The solution for the common problem. ................................................................................................................. 20
Note: .......................................................................................................................................................................... 22

Warnings and precautions for safety
Please observe the following safety precautions in order to use safely and correctly the refrigerator
and to prevent accident and danger during repair.
1. Be care of an electric shock. Disconnect power cord from wall outlet and wait for more than
three minutes before replacing PCB parts.
Shut off the power whenever replacing and repairing electric components.
2. When connecting power cord, please wait for more than five minutes after power cord was
disconnected from the wall outlet.
3. Please check if the power plug is pressed down by the refrigerator against the wall.
If the power plug was damaged, it may cause fire or electric shock.
4. If the wall outlet is over loaded, it may cause fire.
Please use its own individual electrical outlet for the refrigerator.
5. Please make sure the outlet is properly earthed, particularly in wet or damp area.
6. Use standard electrical components when replacing them.
7. Make sure the hook is correctly engaged.
Remove dust and foreign materials from the housing and connecting parts.
8. Do not fray, damage, machine, heavily bend, pull out or twist the power cord.
9. Please check the evidence of moisture intrusion in the electrical components.
Replace the parts or mask it with insulation tapes if moisture intrusion was confirmed.
10. Do not touch the icemaker with hands or tools to confirm the operation of geared motor.
11. Do not let the customers repair, disassemble and reconstruct the refrigerator for themselves.
It may cause accident, electric shock, or fire.
12. Do not store flammable materials such as ether, benzene, alcohol, chemicals, gas, or
medicine in the refrigerator.
13. Do not put flower vase, cup, cosmetics, chemicals, etc., or container with full of water
on the top of the refrigerator.
14. Do not put glass bottles with full of water into the freezer.
The contents shall freeze and break the glass bottles.
15. When you scrap the refrigerator, please disconnect the door gasket first and scrap it

Parts Description
Circuit diagrams and Basic parameters

Basic parameters
Voltage / frequency 220-240V~ 50HZ
Net capacity l 228L
Net capacity fridge compartmen (Fridge/Chill) l 147L
Net capacity freezer compartment
l 81L
Energy efficiency class A+
Climate class (SN=10~32°C, N=16~32°C,
ST=16~38°C, T=16~43°C) N、ST、T
Freezer compartment star rating 4 Star
Energy consumption / year kWh/year 266
Energy consumption (ISIRI 4853-2) per 24 h kWh/24 h 0.728
Freezing capacity / 24 hours kg/24 h 4
Compressor （W）220V,≦73.3W×115%
PTC starter （
V/
Ω）220V ,15±20%Ω
Overload protector (Turn off/Turn on) ° C120±5°C/ 61±9°C
Heater （
V/
W/Ω）
220V,150W±10%
322Ω±10%
Timer （
V/
W/h）220V!≤0.5W!10min!12h
Light bulb （
V/
W）220V，15W
fan motor （
V/
W）220V，2W
Max noise level dB(A) ≤42
Kind of coolant / Charge (R134a/R600a) /
grammes R / g R600a/35
Net weight kg 57.5
Gross weight kg 62.5
W x D x H (appearance) mm 550×572×1750
W x D x H (packaging) mm 583×598×1823

Cooling diagram
Checking the Therm os ta t
Use a multi-meter to test the resistance between L & C when the thermostat is at normal position

such as: “1, 2, .. 7”:
If there shows “000”then the thermostat is OK
If there shows anything but “000”then the thermostat is always at OFF Position and compressor
will not start ever.
Use a multi-meter to test the resistance between L & H and C&H when the thermostat is at shut
position such as “0”:
If there shows no response then the thermostat is OK
If there shows anything (have response) then the thermostat is always at ON Position and the
compressor will keep on working and will not stop ever.
Put the sensor pipe of the thermostat in the freezer compartment like the below pic shows.
Put the thermostat at Max 7 position and let it keep this position for 20 minutes.
Turn the knob from 7 to 1 slowly
If you can feel a stop signal like kind of noise of “da”the thermostat is ok.
If there is no stop signal then the thermostat is always at ON position and the compressor will keep
on working and will not stop.

Checking the Compressor
Use a multi-meter to test the resistance between C & S, M&S and M&C :
Normal range of C&M : About 10-30Ω
Normal range of C&S : About 10-32Ω
Normal range of S&M : About 20-60Ω
If the test result is not in this range then it means the inner coil has some problem and the
compressor can not work properly.
Compressor Protector test ——
Use a multi-meter to test the resistance between the two end as the pic show :
If there show 000 or almost 0 then it is OK.
If there is no response then it is broken.
Compressor PTC starter test ——
Use a multi-meter to test the resistance between the two end as the pic show :
If there show the number is between About 9-25Ωthen it is OK.

If there show 000 or no response then it is broken.
Checking the Heater
If defrost system failure，check the heater and the temperature fuse as well as wires.
Measuring temperature fuse and heater resistance about 361Ω then it is OK.(Blue and Yellow)
Checking the timer
Timer is an importance control component for air defrost refrigerator’s defrost system. The common
problems as following: bad cooling, evaporator don’t defrost or defrost incomplete. It’s working
principle as following picture。

1 means power port 2 means defrost port 3 means common port 4 means compressor port
1、1-3 is the timer coil running connect wire port.
2、3-4 is compressor running connect wire port
3、3-2 is defrost heater working connect wire port
Checking method as following picture:
As picture, set the timer to the compressor running, use the multimeter measure the foots of 3 and 4,
if the value of resistance is 0000, it means normal.
Because there is capacitance resistance in the timer’s internal circuit, so when you use the multimeter
to measure the coil running port, it will can’t measure the value. If you want to measure the coil
running is normal or not, you can power on (220V) to foot 1 and 3 of timer, then put the timer near to
your ear，if you can hear the running sound, it means normal, if no hearing the running sound, it
means anormal.
NOTE: When measure the using the power supply to measure please pay attention to the timer’s
working voltage.
Picture 1 Picture 2

As picture 1, adjusting knob as the picture it mean into the defrost, other area is compressor working.
As picture 2, adjusting the timer to defrost working, then use the multimeter measure the foots of 3
and 2, if the value of resistance is 0000, it means normal.
Checking the defrost fuse
Fuse is a high temperature protector of defrost system, when defrosting, if it feel the temperature is
more than 73℃, it will cut off the defrost heater, stopping defrost, so that it can protect the parts. The
common problems are evaporator defrost incomplete:
Checking method as following:
Picture 1 Picture 2
As picture 1，it is the defrost fuse.
As picture 2 , using the multimeter measure two foots of fuse, if the value of resistance is 0000, it
means normal.
Checking the defrost thermostat
The thermostat is a low temperature protector of defrost system, when it feel the temperature is more
than 6℃, it will cut off the timer, when it feel the temperature is less than -7℃, it will start switching
on the timer and let it working. The common problem is the evaporator don’t defrost:
Checking method as following:

Picture 1 Picture 2
The picture 1 is defrost thermostat
As picture 2, using the multimeter measure two foots of defrost temperature sensor, it should be open
circuited. If you want to judge the defrost temperature sensor is good or bad, you can put the defrost
temperature sensor into a refrigerator’s freezer (The temperature is below -18℃), after 10-20
mins, measuring two foots of defrost temperature sensor, if the value of resistance is 0000, it means
normal.
The guide for Disassembly Common parts of Refrigerator.
◆The instruction of replacing the thermostat.
1. Use a screwdriver to
remove the thermostat
box screws
2. Take out the
thermostat box
3. Tidy up the electrical
wires.

4. Remove the
thermostat fixing nut
5. Take out the
thermostat.

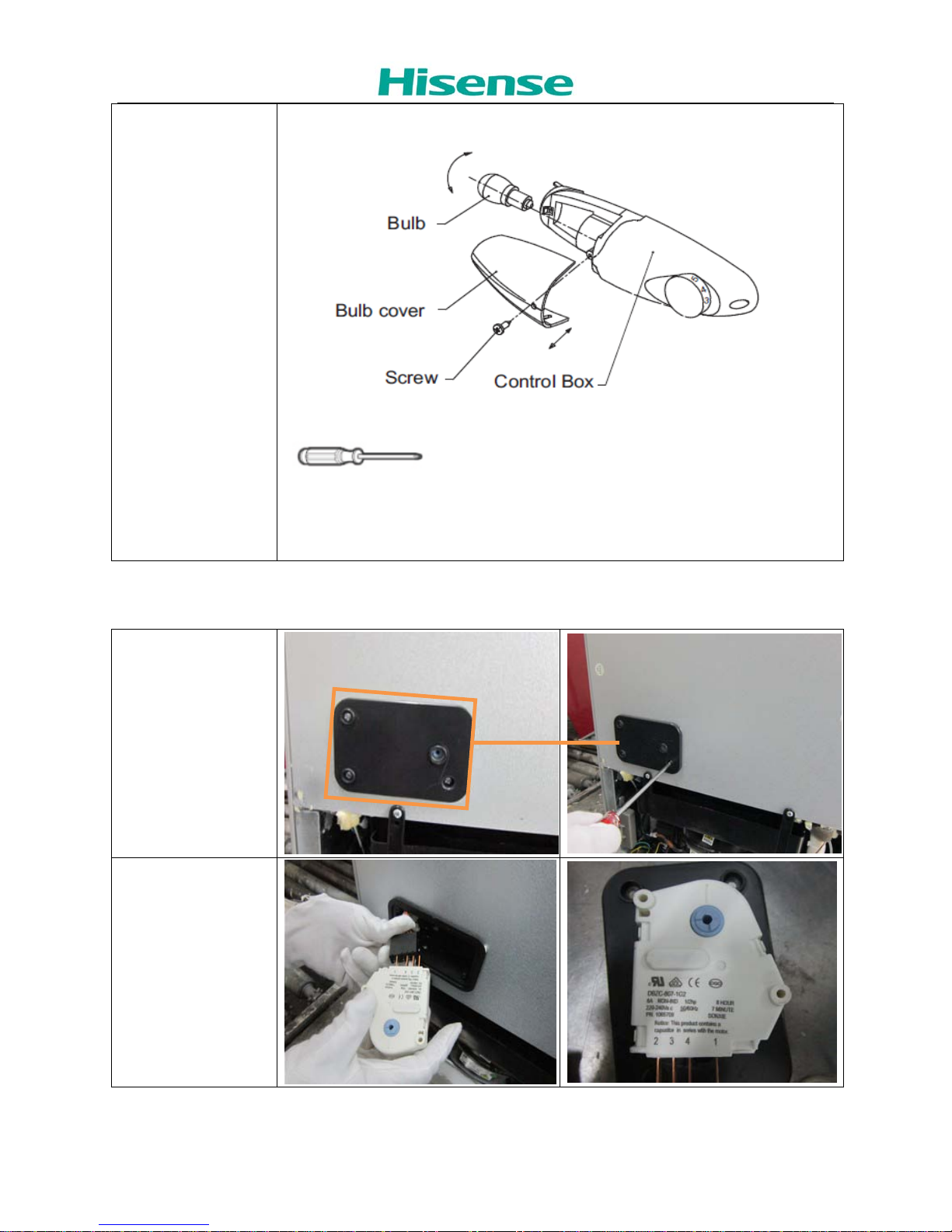

◆The instruction of replacing refrigerator Light bulb.
Light bulb data:
220-240 V,max.15W.
Unplug the mains plug

1.To change the light
bulb, undo the screw.
2.Press the light bulb
cover and slide
it backwards.
3.Change the defective
light bulb.
4.Refit the light bulb
cover and the screw.
5.Put the refrigerator
back into operation.
◆The instruction of replacing the timer
1. The locat ion of the
time.
2. Remove the screws
of Timer cover.
3. Take out timer and
unplug the connecting
wire.
◆The instruction of of replacing fan motor.

1. Remove the air duct
cover plate screw
2. Remove the screw
cover
3. Unscrew two screws
of the wind channel
part in freezer
chamber.
4. Removing wires.
5. Remove the wind
channel part in freezer
chamber.

6. Take out the fan
motor.
◆The instruction of replacing evaporator temperature temperature fuse
and heater
1. Take out the
evaporator
temperature fuse
2. Take out the
defrost temperature
sensor
3. Take out the
replacing heater
◆The instruction of replacing Door switch.
1. Use a screwdriver to
pry snap.

2. Take out of the door
switch.
◆The instruction of replacing PTC Starting relay and Overload protector.
1. The location of the
PTC Starting relay and
Overload protector.
2. Take down Spring
Tap and Cover.
3. Disconnect the
connect ing wire of the
PTC Starting relay and
Overload protector.

Water Dispenser

Troubleshooting
◆The common problem judgement method
Problem Cause
Refrigerator can’t start
1.1 Is the power cord connecting well？
1.2 Is the power voltage too low？
1.3 Is the sensor irrational setting?
1.4 Is the ambient temperature too low?
1.5 Is the circuit on power?
1.6 Is there some default in compressor
1.7 Is the refrigeration system blocked by ice or dirty, please stop the unit and restart
after 10 minutes to see if the compressor can start.
Weak cooling effects
2.1 Is there any heat source around the refrigerator?
2.2 Is there enough space around the refrigerator for rejection of heat?
2.3 Is the setting of the temperature appropriate?
2.4 Is there too much food or overheat ing food in it?
2.5 Does there open the door frequently?
2.6 Is the door completely closed?
2.7 Does the gasket destroyed or distort?
2.8 Does the gas leak?
The unit can not stop
running
3.1 Is there any heat source around the refrigerator?
3.2 Is there enough space around the refrigerator for rejection of heat?
3.3 Is the setting of the temperature appropriate?
3.4 Is there too much food or overheating food in it?
3.5 Does there open the door frequently?
3.6 Is the door completely closed?
3.7 Does the gasket destroyed or distort?
3.8 Is the thermostat good operation?
3.9 Does the gas leak?
Ice up in the freezing
chamber
4.1 Is the setting of the temperature appropriate?
4.2 Is there multi-moisture food and too close to the back wall of the refrigerator?
4.3 Is the ambient temperature too low?
4.4 Is the electric parts on good condition, specially the thermostat which will cause the
unit non-stopping .
Abnormal noise
5.1 Is the refrigerator stably placed?
5.2 Does the refrigerator bump other objects?
5.3 Whether the internal accessory of the refrigerator is in the right place.
5.4 Whether the water plate of compressor is fall from the unit.
5.5 Does the tube of the refrigeration system bump each other?
5.6 The noise sound likes Water flow inside the refrigerator ,in fact ,it is normal, which is
caused both when refrigerator start and shut-down; in addition, frost-
dissolving
causes this sound, too, which is a normal phenomenon.
5.7 There will be a cracking sound in the cabinet ,when the cabinet or cabinet accessory
