Hisense 49S4 User manual

English
QUICK SETUP GUIDE
49S4
Before using the TV, please read this guide thoroughly and
retain it for future reference.

A
Declaration

B
Important Safety Precautions

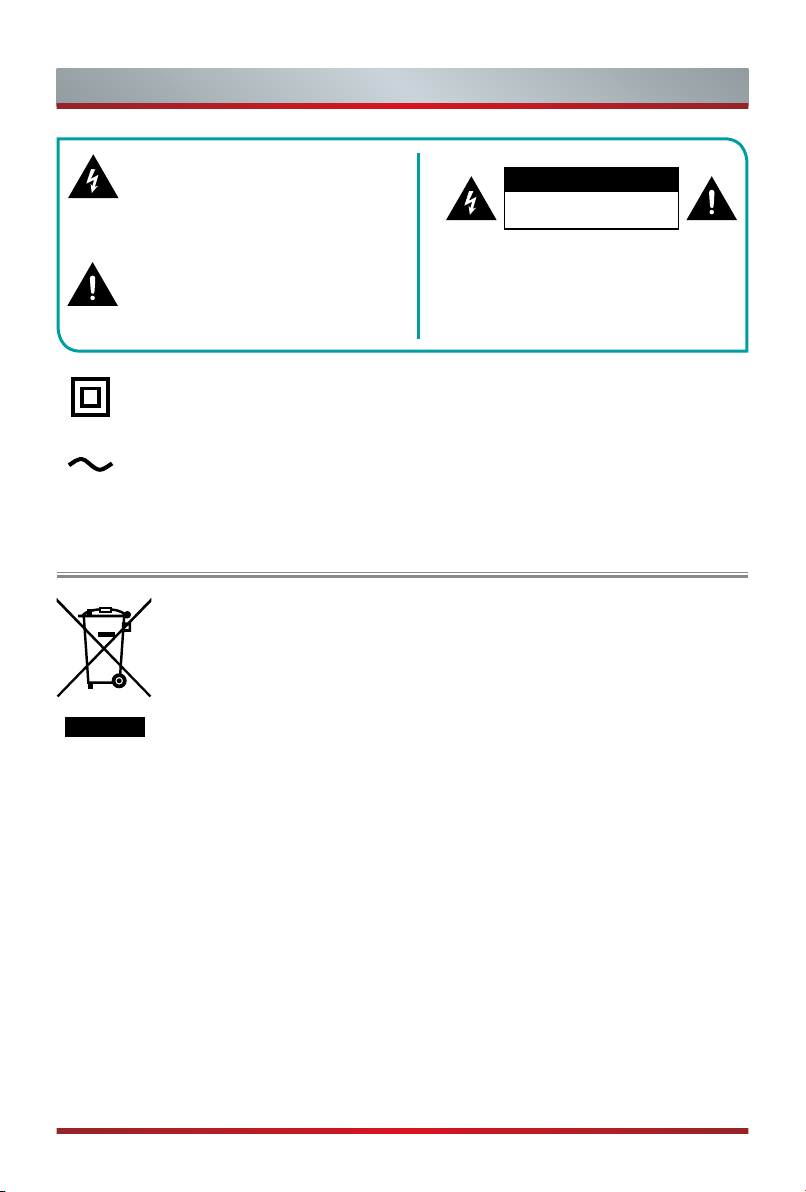

This symbol alerts user about the
presence of a dangerous voltage not
isolated inside the product which can
be sufficiently powerful to constitute a
risk of electrocution.
This symbol alerts user about the
presence of important operating
instructions and maintenance in the
document enclosed in the package.
Disposal of Used Electrical & Electronic Equipment
ATTENTION
RISK OF SHOCK
ELECTRIC
Packaging and electrical goods should be recycled appropriately, and
not treated as household waste. Please dispose of this equipment at
your applicable collection point for the recycling of electrical & electronic
equipment waste. By ensuring the correct disposal of this product,
you will help prevent potentially hazardous to the environment and to
human health, which could otherwise be caused by unsuitable waste
handling of this product. The recycling of materials will help conserve
natural resources. Please do not therefore dispose of your old electrical
and electronic equipment with your household waste. For more detailed
information about recycling of this product, please contact your local city
office, your household waste disposal service or the shop where you
purchased the product.
Do not open the back cover.
In no case the user is allowed to operate
inside the TV set. Only a qualified
technician is entitled to operate.
Class II product: This symbol indicates that it does not require a safety
connection of protective earthing (ground).
AC voltage: This symbol indicates that the rated voltage marked with the
symbol is AC voltage.

C
Important Safety Precautions
Warning
Never place a television set in an unstable location. A television set may fall, causing
serious personal injury or death. Many injuries, particularly to children, can be avoided
by taking simple precautions such as:
Using stands recommended by the manufacturer of the television set.
Only using furniture that can safely support the television set.
Ensuring the television set is not overhanging the edge of the supporting furniture.
Not placing the television set on tall furniture (for example, cupboards or
bookcases) without anchoring both the furniture and the television set to a suitable
support.
Not placing the television set on cloth or other materials that may be located
between the television set and supporting furniture.
Educating children about the dangers of climbing on furniture to reach the television
set or its controls.
If your existing television set is being retained and relocated, the same considerations
as above should be applied.

D
Safeguards
Important Safety Precautions
Please read the following safeguards for your TV and retain for future reference.
Always follow all warnings and instructions marked on the television.
1. A note about safety and operating instructions
Read and follow all safety and operating instructions, and retain them safely for future
reference.
2. Heed Warnings
Adhere to all warnings on the appliance and in the operating instructions.
3. Cleaning
Unplug the TV from the wall outlet before cleaning. Do not use liquid, abrasive, or
aerosol cleaners. Cleaners can permanently damage the cabinet and screen. Use a
lightly dampened cloth for cleaning.
4. Wall Bracket
After market brackets may be available to purchase locally. Please refer to the
specification page for dimensions.
5. Water and Moisture
Avoid dripping or splashing of liquids onto the product. Objects filled with liquids, such
as vases, should not be placed on the product.
6. Setting
Do not place this TV on an unstable cart, stand or table. Placing the TV on an unstable
base can cause the TV to fall, resulting in serious personal injuries as well as damage
to the TV. Use only a cart, stand, bracket or table recommended by the manufacturer
or salesperson.
7. Ventilation
Slots and openings in the cabinet are provided for ventilation, to ensure reliable
operation of the TV and to protect it from overheating. Do not cover the ventilation
openings in the cabinet and never place the set in a confined space such as built-in
cabinet unless proper ventilation is provided. Leave a minimum 10cm gap all around
the unit, the rear of the TV should be 6cm away from the wall.
8. Power Source
This TV should be operated only from the type of power source indicated on the
marking label. If you are not sure of the type of power supplied to your home, consult
your appliance dealer or local power company.

E
Important Safety Precautions
9. Power-Cord Protection
Power- supply cords should be routed so that they are not likely to be walked on or
pinched by items placed upon or against them, paying particular attention to cords at
plug, wall outlets, and the point where they exit from the TV. MAIN plug is used as the
disconnect device, the disconnect device shall remain readily operable.
10. Lightning
For added protection for this TV during a lightning storm, or when it is left unattended
and unused for long periods of time, unplug it from the wall outlet and disconnect the
antenna or cable system. This will prevent damage to the TV due to lightning or power-
line surge.
11. Power Lines
An outside antenna system should not be located in the vicinity of overhead power
lines or other electric light or power circuits, or where it can fall into such power lines or
circuits. Where installing an outside antenna system, extreme care should be taken to
keep from touching such power lines or circuits as contact with them might be fatal.
12. Overloading
Do not overload wall outlets and extension cords as this can result in a risk of fire or
electric shock.
13. Object and Liquid Entry
Never push objects of any kind into this TV through openings as they may touch
dangerous voltage points or short-out parts that could result in fire or electric shock.
Never spill liquid of any kind on or into the TV.
14. Outdoor Antenna Grounding
If an outside antenna or cable system is connected to the TV, be sure the antenna or
cable system is grounded so as to provide some protection against voltage surges and
built-up static charges.
15. Servicing
Do not attempt to service this TV yourself as opening or removing covers may expose
you to dangerous voltage or other hazards. Refer all servicing to qualified service
personnel.
16. Damage Requiring Service
Unplug the TV from the wall outlet and refer servicing to qualified service personnel
under the following conditions:
(a) When the power - supply cord or plug is damaged.
(b) If liquid has been spilled, or objects have fallen into the TV.
(c) If the TV has been exposed to rain or water.

F
Important Safety Precautions
Do not mix and use new batteries with old batteries, or batteries with
different types. Do not expose batteries to heat such as direct sunlight or
fire. Make sure the batteries' positive and negative ends are facing the
correct direction.
The device should not be exposed to dripping and spraying and it cannot
be placed under objects filled with liquids.
To fully disconnect the TV, remove power plug from wall socket. Be sure
to have the wall socket and power plug readily accessible.
(d) If the TV does not operate normally by following the operating instructions. Adjust
only those controls that are covered by the operating instructions as an improper
adjustment of other controls may result in damage and will often require extensive
work by a qualified technician to restore the TV to its normal operation.
(e) If the TV has been dropped or the cabinet has been damaged.
(f) When the TV exhibits a distinct change in performance - this indicates a need for
service.
17. Replacement Parts
When replacement parts are required, be sure the service technician has used
replacement parts specified by the manufacturer or have the same characteristics as
the original part. Unauthorized substitutions may result in fire, electric shock or other
hazards.
18. Safety Check
Upon completion of any service or repair to the TV, ask the service technician to
perform safety checks to determine that the TV is in safe operating condition.
19. Heat
The product should be situated away from heat sources such as radiators, heat
registers, stoves, or other products (including amplifiers) that produce heat.
20. Fire
The product should be situated away from naked flame sources such as lighted candle.
21. Off-gassing
The TV smells of plastic is normal and will dissipate over time.

1
Contents
Contents
Accessories List
The following accessories are included with TV:
TV Base Stand Quick Setup Guide
Remote Control AAA Battery × 2 Screw × 4 RCA jack to AV Cable
Figures and illustrations in this manual are provided for reference only and may
differ from actual product appearance.
Parts of the software function changes with the system upgrade.
Accessories List..............................................................................................................1
Installing the Stand or Wall mount bracket......................................................................2
TV Front..........................................................................................................................4
TV Rear ..........................................................................................................................5

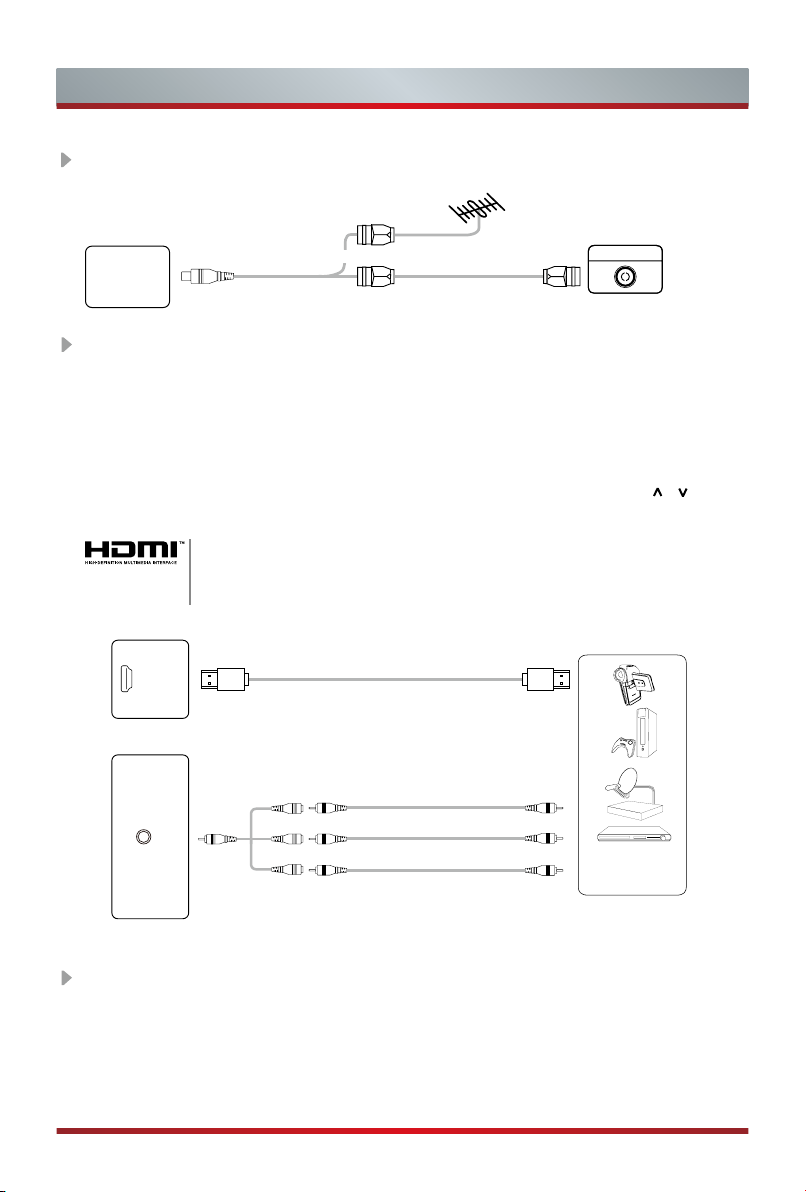

Making Connections.......................................................................................................6

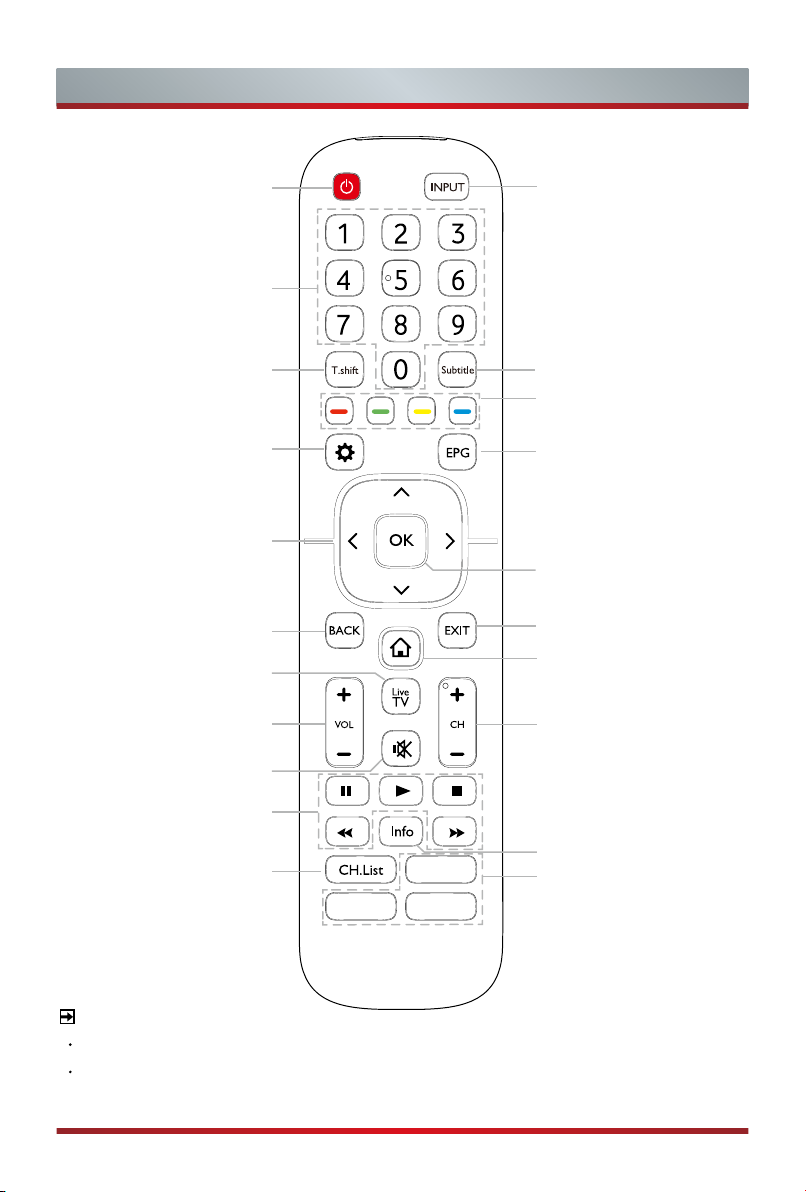

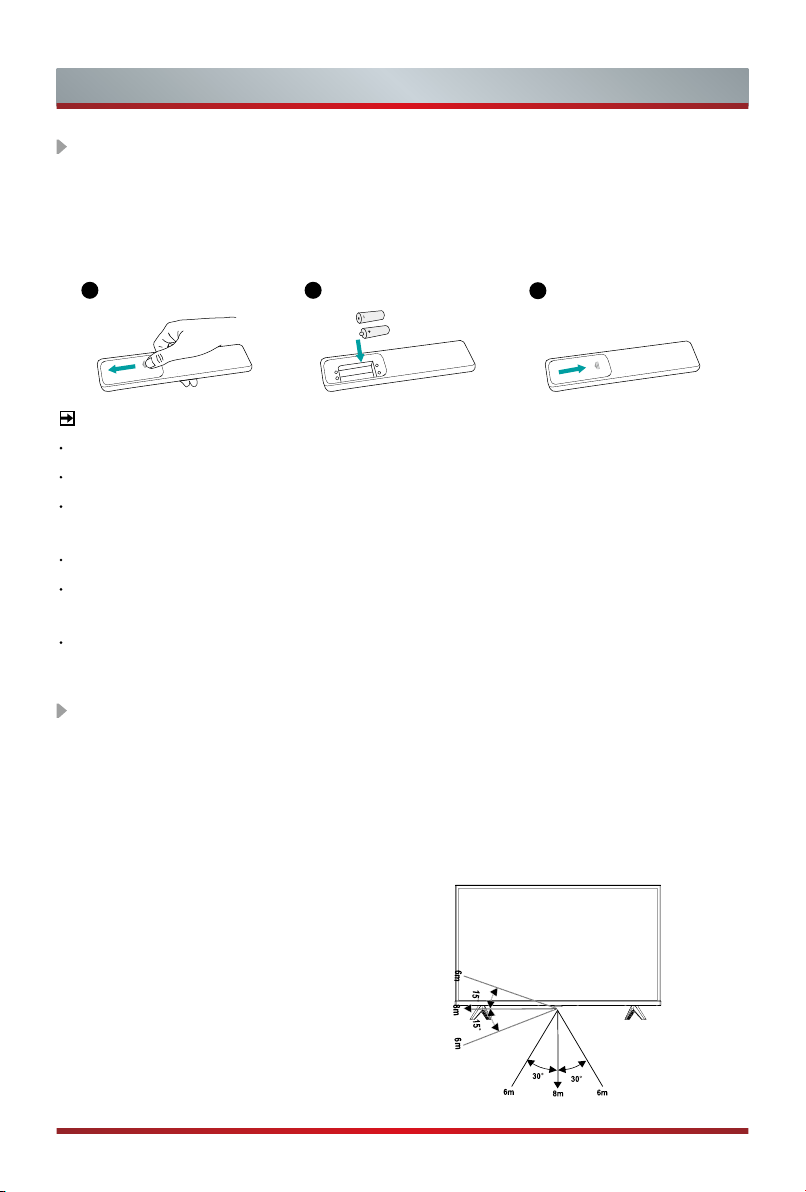

Remote Control ..............................................................................................................9
Turning the TV on for the First Time.............................................................................12
Specifications ...............................................................................................................13
Other Information..........................................................................................................14
NOTE
The accessories may be different from the list above due to different models, countries/
regions, please refer to the actual accessory bag.

2
CAUTION
Be sure to disconnect the A/C power cord before removing a base stand or
installing Wall-Mount brackets.
The screen display is very fragile, and must be protected at all times when installing
the base stand. Be sure that no hard or sharp object, or anything that could scratch
or damage the screen display, comes into contact with it. DO NOT exert pressure
on the front of the TV at any time because the screen could crack.
Follow the illustrations and textual instructions below to complete the installation steps:

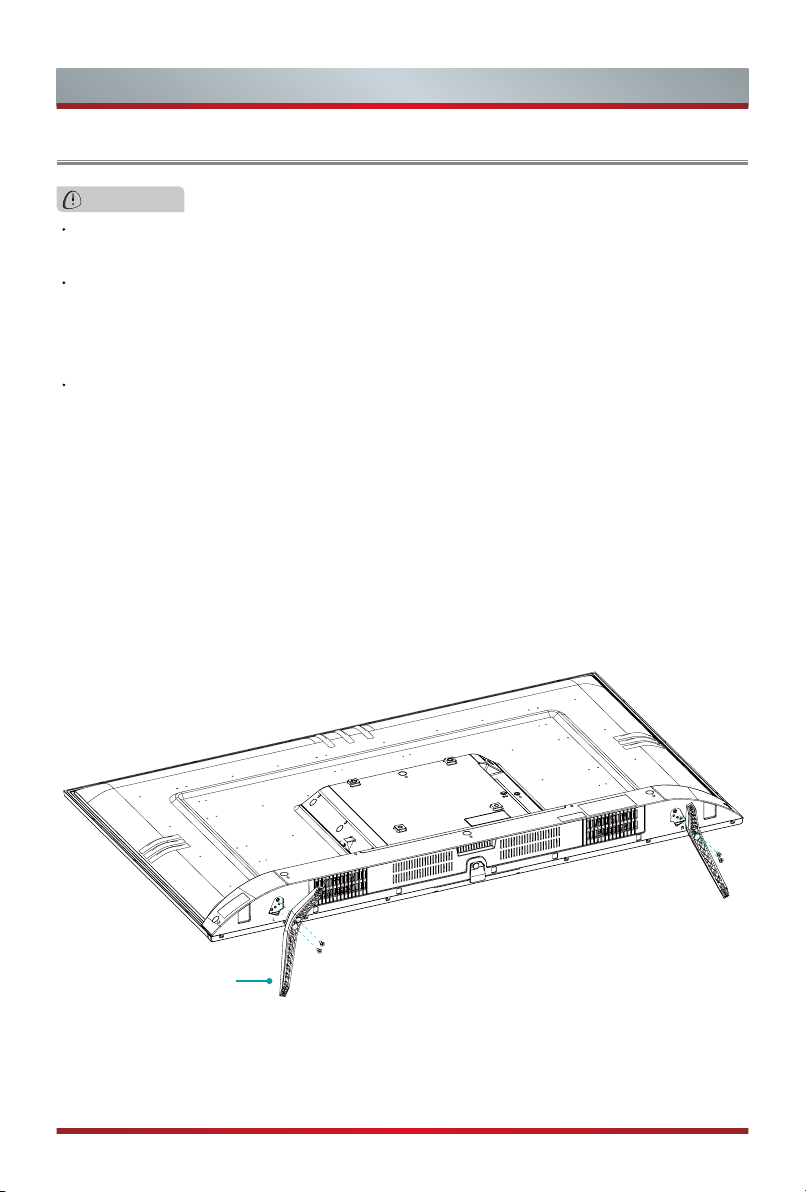

Installing the Stand
Installing the Stand or Wall Mount Bracket
1. Carefully place your TV face-down on a soft, flat surface to prevent damage to the
TV or scratching to the screen.
2. Take out the 2 stands from the accessory bag and then insert the stands into the
bottom slots of the TV.
3. Secure the Base Stand to the TV with the 4 screws in the accessory bag tightly.
Screws: M4 x 12
BASE STAND
After the installation is complete, make sure the TV is steady on a table or firmly
attached to a wall mount, before removing all protective film, if any.

3
Installing the Stand or Wall Mount Bracket
Installing the Wall Mount Bracket
8.0 -10.0 mm
Wall Mount Bracket
Wall Mount Screw
Wall Mount Spacer
Rear cover of the TV
Wall mount hole pattern (mm) 200 × 200
Wall mount screw size (mm) M6
• The diameter and length of the screws differ depending on the wall mount bracket model.
• Wall mount bracket is optional, your device may not have wall mount bracket, please refer
to the actual accessories.
Follow instructions provided with the wall mount bracket.
NOTE

4

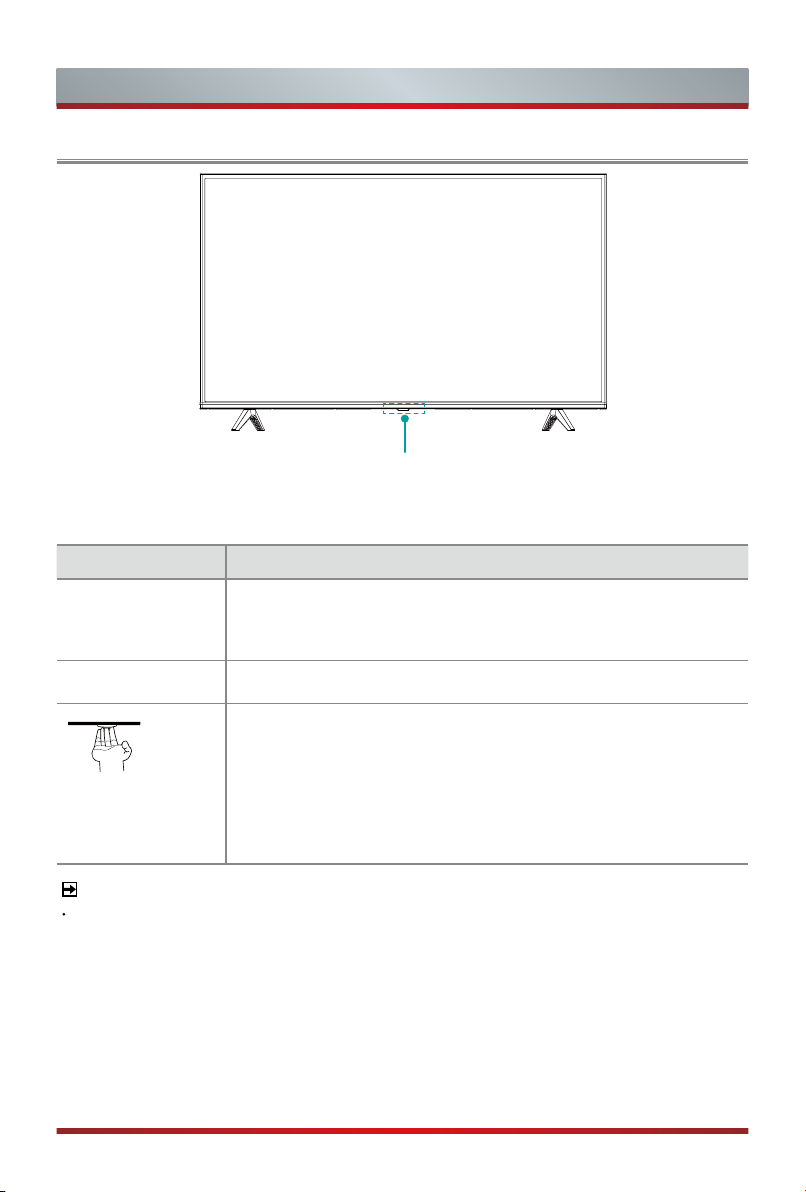

TV Front
TV Front
NOTE
Powering on the TV requires several seconds to load program. Do not rapidly turn
the TV off as it may cause the TV to work abnormally.
Item Description
Remote sensor
Receive remote signals from the remote control.
Do not put anything near the sensor, as its function may be
affected.
Power indicator The light is red in standby mode.
STANDBY /
SOURCE
Press the single button when in standby mode, TV
will be turned on.
Press the single button to call up the menu. Then press the
single button to switch between sources and Power Off, when
the focus is on one source or Power Off, TV will enter the
selection after 3 seconds automatically.
Single button
(Remote sensor / Power indicator / Standby)

5
TV Rear
TV Rear
NOTES
Check the jacks for position and type before making any connections. Loose
connections can result in image or color problems. Make sure that all connections
are tight and secure.
The TV may not be compatible with all external devices. To check compatibility,
please refer to the user manual of external device.
Do not connect external equipment while TV's power cord is plugged in. It may
cause electric shock.
Service jack is not available for you to connect an external device. It can only be
used by our factory for testing purposes.
ANT
LAN
USB2 USB1
DC 5V 0.5A(MAX)
HDMI 2(ARC) HDMI 1
DIGITAL AUDIO OUTAV IN
Power Input

6
Making Connections
ANT Connect an outdoor VHF/UHF antenna or cable.
ARC Connect an HDMI cable from an external digital audio system.
ARC enables the TV to directly output the digital sound through an HDMI cable.
Please note that it works only when the TV is connected to the audio receiver that
supports the ARC (Audio Return Channel) function.
When this port is used as the ARC function, it can't be used as signal input at the
same time.
ANT
Outdoor
Antenna
Antenna Cable (75Ω)
(not included)
or ANT OUT
Cable
VHF/UHF Antenna
HDMI / AV
Connect a HDMI / AV cable from an external AV equipment. No sound connection
is needed for HDMI to HDMI connection. If the signal resolution does not match the
specification table, you need to change the setting of device according to the table.
Please consult your device user manual for instruction.
·To select the HDMI / AV
Press the [INPUT] button, when the list of input Source appears, press the [
/ / < / >
]
buttons to select the source [HDMI] / [AV], then press the [OK] button to connect.
The terms HDMI and HDMI High-Definition Multimedia Interface, and
the HDMI Logo are trademarks or registered trademarks of HDMI
Licensing Administrator, Inc. in the United States and other countries.
Video Camera/
Set-top Box/
Satellite Receiver
BETTER (HDMI)
Video Effect:
HDMI
HDMI cable (not included)
GOOD (AV)
Video Effect:
AV IN
White(L)White(L)
Red(R)Red(R)
Yellow(Video)
Yellow(Video)
(Cables are not included)

7
Making Connections

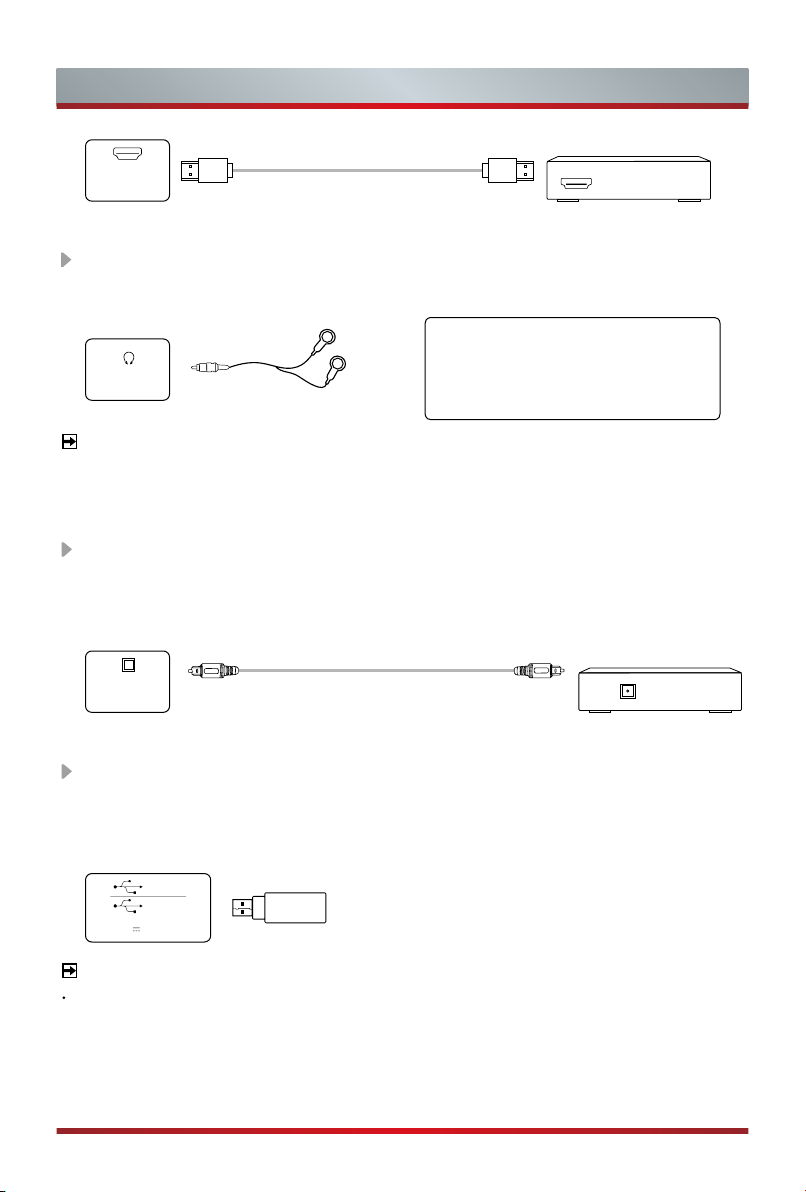

USB
Connect the USB1.1 and USB2.0 devices such as hard drives, USB sticks and
digital cameras for browsing photos, listening to music and watching recorded
movies. You can record live TV program (refer to PVR in User Manual).
NOTE
When connecting a hard disk or a USB hub, always connect the mains adapter
of the connected device to the power supply. If a USB 1.1 or USB2.0 device
requires more than 500mA or 5V, the USB device may not be supported.
Exceeding the max supported current may result in damage or data loss.
DIGITAL AUDIO OUT Connect to an external digital audio system.
Before connecting a digital audio system to the DIGITAL AUDIO OUT jack, you
should decrease the volume of both the TV and the system to avoid that the
volume suddenly becomes bigger.
HEADPHONE Connect Headphone for audio out of the TV.
The built-in speakers will be disabled once the headphone is connected.
NOTE
Please make sure that the headphone you plug in is without microphone function, or it
may not be supported.
USB2
USB1
DC 5V 0.5A(MAX)
ATTENTION
Excessive sound pressure from
earphones and headphones can
cause hearing loss.
Headphone (not included)
HEADPHONE
HDMI 2(ARC)
HDMI
Audio Amplier/Speaker
HDMI cable (not included)
Audio Amplier/Speaker
DIGITAL AUDIO cable (not included)
DIGITAL
AUDIO OUT

8
Making Connections
LAN (Wired setup)
Connect your TV to your network by connecting the LAN port on the back of your
TV to an external modem or router using a LAN (Ethernet/Cat 5) cable. See the
illustration below.
·We recommend you to use a modem or router that supports Dynamic Host
Configuration Protocol (DHCP). Modems and routers that support DHCP
automatically provide the IP address, subnet mask, gateway, and DNS, so you
don’t have to enter them manually. Most home networks already have DHCP.
Wireless setup
Connect your TV to your wireless network, you need a wireless router or modem.
See the illustration below.
·The TV’s built-in Wireless LAN Adapter supports the IEEE 802.11 b/g/n
communication protocols.
NOTES
You must use the built-in Wireless LAN Adapter to use a wireless network because
the set doesn’t support external USB network adapter.
If the wireless router supports DHCP, your TV can connect more easily to the
wireless network.
If you apply a security system which is not listed below, it will not work with the TV.
Security system : WPA, WEP, WPA2.
In order to guarantee smooth network, the distance between router and TV should be
less than 10 meters.
Modem CableLAN CableLAN Cable
LAN
IP Sharer (Router)
(with DHCP server)
External Modem
(ADSL / VDSL / Cable TV)
Wireless LAN Adapter
built-in TV set
Wireless router with DHCP
LAN Cable

9
Remote Control
Mute and restore sound
Exit the menu or exit
the application
Channel (up/down)
Returns to the previous
menu
Display the channel list on
the screen
Power Standby button:
Power on/ Standby
Volume (up/down)
Navigation buttons
(Up/Down/Left/Right)
Select a channel or input
numbers
Display subtitles in the
Live TV
Quick Setup
Conrm button / Display
the on-screen keyboard
Source selecting button
Special function buttons
Media content control
function buttons
Display the Home screen
Display the Electronic
Program Guide (DTV
mode)
Start Timeshift
Enter the Live TV screen
Display the current
program information
Quick access buttons to apps
APP
APPAPP
NOTE
The button information will vary depending on the remote control model.
The Picture is Only for Reference.Check information according to the actual remote control in
the accessory bag.

10
Remote Control
Media content control
function buttons
Display the Home screen
Enter the Live TV screen
Mute and restore sound
Exit the menu or exit
the application
Channel (up/down)
Returns to the previous
menu
Power Standby button:
Power on/ Standby
Volume (up/down)
Navigation buttons
(Up/Down/Left/Right)
Select a channel or input
numbers
Display subtitles in the
Live TV
Quick Setup
Conrm button / Display
the on-screen keyboard
Source selecting button
Special function buttons
Display the Electronic
Program Guide (DTV
mode)
Start Timeshift
Display the current
program information
Quick access buttons
to apps
APPAPP
APPAPP
NOTE
The button information will vary depending on the remote control model.
The Picture is Only for Reference.Check information according to the actual remote control in
the accessory bag.

11
Remote Control Operation Range
Remote Control
Installing Batteries in the Remote Control
NOTES
Dispose of your batteries in a designated disposal area. Do not throw the batteries into fire.
Do not mix battery types or combine used batteries with new ones.
Remove depleted batteries immediately to prevent battery acid from leaking into
the battery compartment.
If you do not intend to use the remote control for a long time, remove the batteries.
Batteries should not be exposed to excessive heat, such as sunshine, heat
registers, or fire.
Battery chemicals can cause a rash. If the batteries leak, clean the battery
compartment with a cloth. If chemicals touch your skin, wash immediately.
Disposal of this unit
Product should not be damaged,
dismantled or thrown in municipal
waste.
It should be packed and handed over
to authorised re-cycler.
1. The remote control can work at a distance of up to 8 meters in front of the TV set.
2. The remote control angle: taking the remote sensor as an apex, 6 meters away, its
controlled horizontal angle is within ±30°, while the vertical angle is within ±15°.
3. The operating distance may vary depending on the brightness of the room.
1. Slide the back cover to open the battery compartment of the remote control.
2. Insert two AAA size batteries. Make sure to match the ( + ) and ( - ) ends of the
batteries with the ( + ) and ( - ) ends indicated in the battery compartment.
3. Close the battery compartment cover.
1Gently push and slide 3Gently push and slide
2Insert the batteries

12
Turning the TV on for the First Time
Turning the TV on for the First Time
1. Connect the mains cable to the mains socket after you have completed all the
connections.
2. The first time you turn the TV on, it will go straight to the Installation Guide.
3. Press the [ / / < / >] to navigate the menu and change the settings. Press the [OK]
button to confirm.
Language Select your desired language to be displayed on the menu.
Location Select the location where you will operate the TV.
Time Zone Select the local time zone according to your region. (Only
available in certain countries)
End User
License
Agreement
Accept EULA.
Help promote the TV user experience.
Network
Connection
If your TV does not detect an Ethernet connection, then it will
select Wireless automatically, select your network from the list
that displays or you can also add a hidden network. When you’re
done, move to the next screen.
Success Congratulations, you have finished the Wizard setup.
Press "Finish" to use your TV, for retailers press "Store Mode".

13
Specifications
Features, appearance and specifications are subject to change without notice.
Item 49"
Dimension
(W × H × D)
Without Stand 1105 × 642 × 86 mm
With Stand 1105 × 697 × 219 mm
Weight
Without Stand 8.6 kg
With Stand 8.7 kg
Active Screen Size
(Diagonal) 123 cm
Screen resolution 1920 × 1080
Audio power 8W + 8W
Power consumption Please refer to the rating label.
Power supply 100 - 240V 50/60Hz
Standby Power 0.5W
Receiving
systems
Analog PAL-D/K, B/G, I SECAM-D/K, B/G
Digital DVB-T/T2, DVB-C
Environmental conditions
Temperature: 5°C - 45°C
Humidity: 20% - 80% RH
Atmospheric pressure: 86 kPa - 106 kPa
HDMI Input
60 Hz (640×480, 800×600, 1024×768)
60 Hz (480 I, 480 P, 720 P, 1080 I, 1080 P)
50 Hz (576 I, 576 P, 720 P, 1080 I, 1080 P)
