Hitachi HTD-K160 User manual

TK No.9211E
SPECIFICATIONS AND PARTS ARE SUBJECT TO CHANGE FOR IMPROVEMENT
DVD DIGITAL THEATER SYSTEM
SERVICE MANUAL
2002December Digital Media Division, Tokai
HTD-K160(S)
STAN
DBY
DVD
TUNER
AUX 2
5
8
0
SLEEP
REPEAT
A-B
N/P
MENU/PB
C
SLOW/MEMORY
Zoom
EQ
Language
AUDIO
GoTo
SubTitle
ANGLE
Return DISP
LAY
MUT
E
SEL
ECT
ADJ
/VOL
SET
UP
TITLE PLAY
/PAU
SE
OPE
N/CL
OSE
PRO
G
LIST
ENIN
G
ENT
POWER
REMOTE
CONTROLLE
R
RB-HTDK160
STANDBY

CONTENTS
1 GENERAL INFORMATION .................................................. 1-1
1-1 SPECIFICATIONS .......................................................... 1-1
1-2 CONTROLLING VERSION OF FIRMWARE .................. 1-2
1-3 REPAIR INSTRUCTIONS ............................................... 1-3
2 EXPLODED VIEW ................................................................ 2-1
2-1 MAIN UNIT SECTION .....................................................2-1
2-2 SUBWOOFER SECTION ................................................2-2
3 REPLACEMENT PARTS LIST ............................................. 3-1
3-1 MECHANICAL PARTS LIST............................................ 3-1
3-1-1 MAIN UNIT SECTION .............................................. 3-1
3-1-2 SUBWOOFER SECTION ......................................... 3-1
3-2 ELECTRICAL PARTS LIST ............................................ 3-2
3-2-1 MAIN UNIT SECTION .............................................. 3-2
TUNER ........................................................................... 3-2
RGB ................................................................................ 3-2
KEY PANEL .................................................................... 3-3
POWER .......................................................................... 3-4
MAIN ............................................................................... 3-5
3-2-2 SUBWOOFER SECTION ......................................... 3-8
AMP & JACK .................................................................. 3-8
POWER .......................................................................... 3-8
SCHEMATIC, CIRCUIT BOARD AND BLOCK DIAGRAMS ...... 1
1 WIRING DIAGRAMS ............................................................... 1
1-1 MAIN UNIT SECTION ........................................................ 1

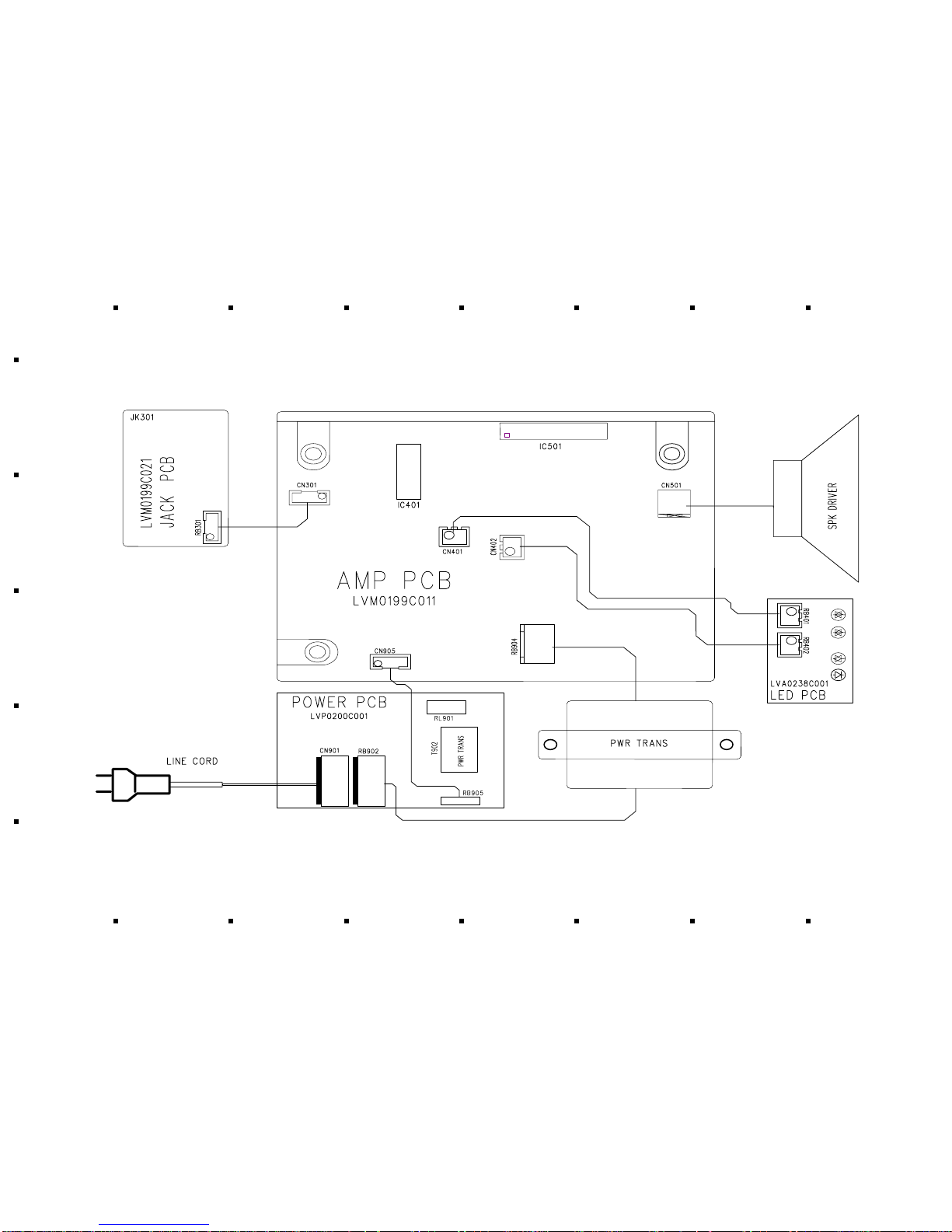

1-2 SUBWOOFER SECTION ...................................................2
2 SCHEMATIC DIAGRAMS ........................................................ 3
2-1 MAIN UNIT SECTION ........................................................ 3

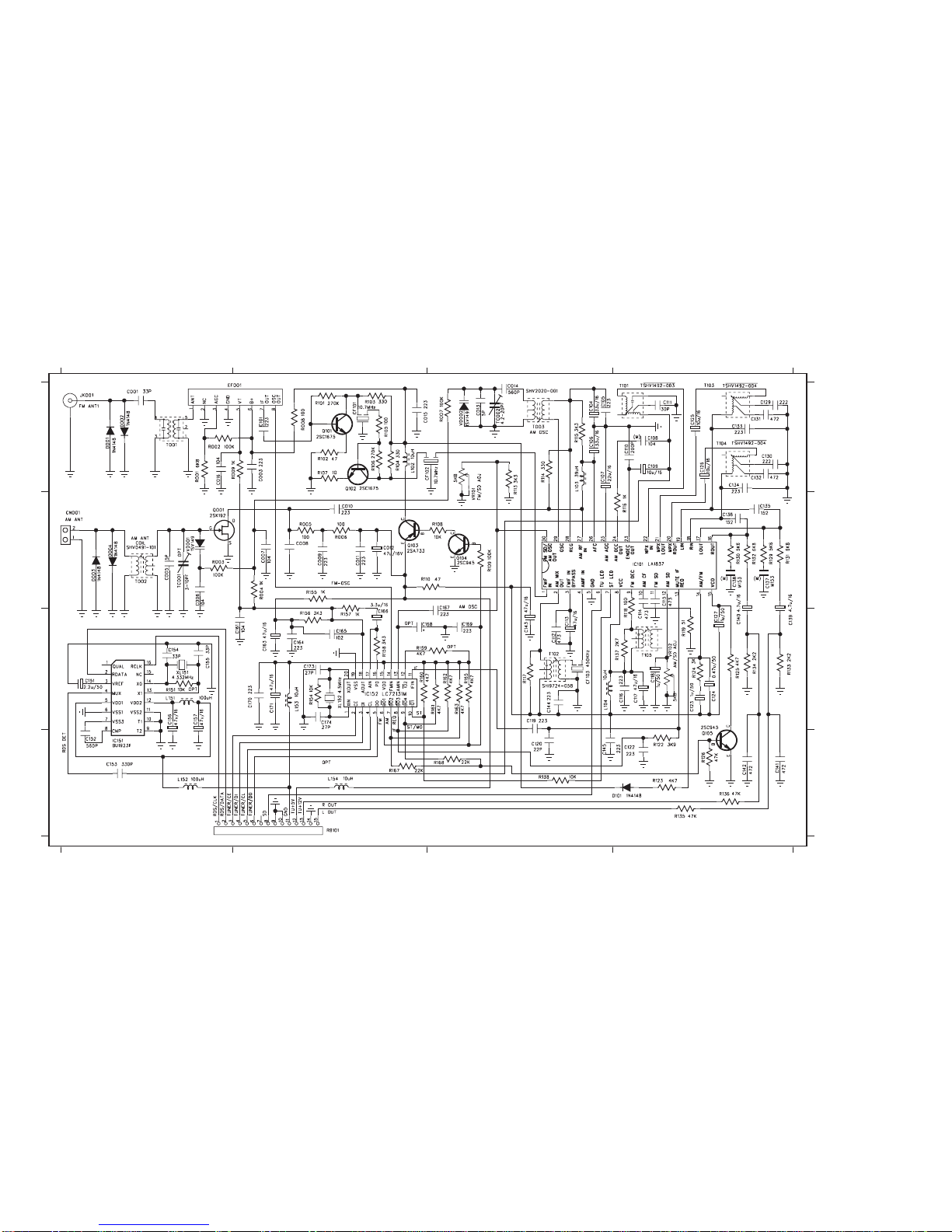

TUNER .................................................................................. 3
RGB .......................................................................................4
KEY PANEL, PHONE JACK & POWER SW ......................... 5
POWER ................................................................................. 6
MAIN ..................................................................................... 7
2-2 SUBWOOFER SECTION ................................................. 11
AMP & JACK ........................................................................11
POWER ............................................................................... 12
3 IC BLOCK DIAGRAMS ........................................................... 13
4 CIRCUIT BOARD DIAGRAMS ................................................18
4-1 MAIN UNIT SECTION ...................................................... 18
TUNER ................................................................................ 18
RGB .................................................................................... 20
KEY PANEL, PHONE JACK & POWER SW........................ 21
POWER ............................................................................... 22
MAIN ................................................................................... 23
4-2 SUBWOOFER SECTION ................................................ 25
AMP & JACK ....................................................................... 25
POWER ............................................................................... 26
5 BLOCK DIAGRAMS ...............................................................27
5-1 MAIN UNIT SECTION ...................................................... 27
5-2 SUBWOOFER SECTION .................................................28
PRODUCT SAFETY NOTICE
Many electrical and mechanical parts have special safety-related characteristics. These are often not evident from visual
inspection nor can the protection afforded by them necessarily be obtained by using replacement components rated for a
higher voltage, wattage, etc. Replacement parts which have these special safety characteristics are identified in this
Service Manual. Electrical components having such features are identified by marking with a on the schematics and
the parts list in this Service Manual. The use of a substitute replacement component which does not have the same
safety characteristics as the HITACHI recommended replacement one, shown in the parts list in this Service Manual, may
create shock, fire, or other hazards. Product safety is continuously under review and new instructions are issued from
time to time. For the latest information, always consult the current HITACHI Service Manual. A subscription to, or
additional copies for, HITACHI Service Manual may be obtained at a nominal charge from HITACHI SALES
CORPORATION.
LASER RADIATION

1 - 1
DVD Player
Pickup Semiconductor laser, Wavelength 650 mm
Signal system NTSC / PAL
Video signal horizontal resolution 480 lines (DVD)
Video signal-to-noise ratio 50 dB (DVD)
Audio signal-to-noise ratio 60 dB
Total harmonic distortion 0.05%
Dynamic range DVD : 80 dB ; CD: 80 dB
FM Tuner
System PLL quartz-locked digital synthesizer system
Tuning range 87.50 ~ 108.00 MHz (50 kHz step)
Antenna FM pigtail antenna
Antenna terminals 75 ohms, unbalanced
Intermediate frequency 10.7 MHz
AM Tuner
System PLL quartz-locked digital synthesizer system
Tuning range 522~1620 kHz (9 kHz step)
Antenna AM Loop antenna
Video outputs
CVBS Video 1 Vp-p 75 ohms
S-video Y: 1 Vp-p 75 ohms
Component video out Y: 1 Vp-p 75 ohms
Audio line outputs
Audio L/R 1 Vrms, 1k ohms
Subwoofer 1.2Vrms maximum (adjustable), 1k ohms
Coaxial out 1 Vp-p 75 ohms
Audio power outputs
Stereo mode 50 W + 50 W (8 ohms at 1 kHz, THD 10%)
Surround mode Front: 50 W + 50 W (8 ohms at 1 kHz, THD 10%)
Phones Headphones jack(stereo 3.54mm)
General (main unit)
Power requirements AC 220 - 240 V, 50/60 Hz
Power consumption 160 W
Dimensions W 435 x H 59 x D 345 mm
Weight 4.8 kg
Active Subwoofer
Output power : 100 W (4 ohms at 55Hz, THD 10%)
Speaker system : Bass reflex
Power requirements : AC 220 - 240 V, 50/60 Hz
Power consumption : 165 W
Speaker unit : 8 inches
Rated impedance : 4 ohms
Dimensions : W 200 x H 360 x D 345 mm
Weight : 9.8 kg
Front / Center / Rear speakers
Power: 50 W maximum
Speaker system: Bass reflex
Speaker unit: 3 inches,cone type: paper
Rated impedance: 8 ohms
Dimensions: W 90 x H 150 x D 110 mm
Weight: 0.64 kg (rear speaker)
0.82 kg (front , center speaker)
C: PAL 0.3 Vp-p 75 ohms / NTSC 0.286 Vp-p 75 ohms
C
B /C R : NTSC 0.7 Vp-p 75 ohms / PAL 0.698 Vp-p 75 ohms
Center: 50 W (8 ohms at 1 kHz, THD 10%)
Rear: 50 W + 50 W (8 ohms at 1 kHz, THD 10%)
1-1 SPECIFICATIONS
MAIN UNIT
GENERAL INFORMATION
1
SPEAKERS

1 - 2
1-2 CONTROLLING VERSION OF FIRMWARE
The firmware is regularly modified as required to improve the
performance.
Check to see whether the customer problem can be solved by
upgrading the firmware : If it can, do so.
<Procedure for checking the version of firmware>
1) Open the tray with power on.
2) While holding down the "ADJ/VOL (+)" key on remote con
trol, press the "Zoom" key.
3) The version of firmware will appear at the top left of screen.
(The display will disappear in approx. 5 seconds.)
VER XXXX 1 PAL EU 3 0
Version No. Region Code
Tuner Area
<Procedure for rewriting firmware>
1) Turn power on.
2) Place the upgrade CD-R on tray, and press the"OPEN/
CLOSE" or "PLAY" key.
3) Messages will appear at the top left of screen in the order
shown below ("MP3 STOP" will appear in the display).
4) When rewrite of the firmware is complete, the system will
automatically turn off.
5) Unplug the power cord and then plug it in again.
6) Turn power on, and press the "OPEN/CLOSE" key while
"LOADING" is shown in the display to remove the upgrade
CD-R (if the CD-R is left in the tray, rewrite of the firmware
will restart).
7) Check the version of firmware.
Caution: Be sure not to unplug the power cord during the
rewrite operation.
Note:
If the firmware has been changed, etc., we will use Service
News, etc. to report on how to obtain new firmware data and
create an upgraded disc.
DISC LOADING
BANK30.ROM
READ START
015
WRITING
READ START
000
READ OVER
DONE
READ START
000
READ OVER
Power will automatically turn off.
* 1) 015 will be counted down to 000.
* 2) WRITING will flash.

CConfirm Correct
F
1 - 3

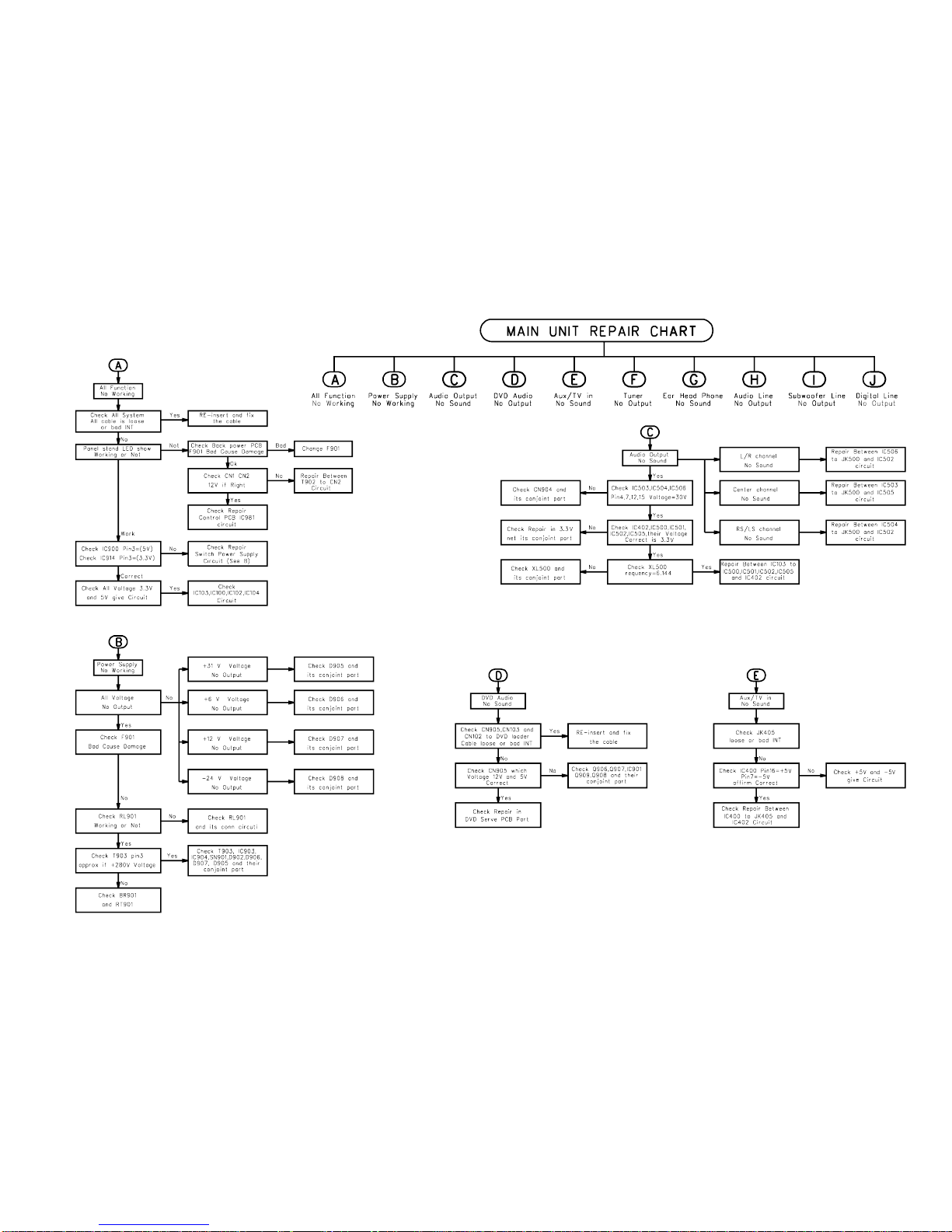

1-3 REPAIR INSTRUCTIONS

1 - 4

POWER PCB
RGB PCB
TUNER PCB
MAIN PCB
KEY PANEL PCB
PHONE JACK PCB
POWER SW PCB
321 4 65 78
321 4 65 78
A
B
C
E
D
2-1 MAIN UNIT SECTION
2 - 1
EXPLODED VIEW
2

321 4 65 78
321 4 65 78
A
B
C
E
D
2-2 SUBWOOFER SECTION
2 - 2

MECHANISM SECTION
No Part No Description
1 BPN100086-0001 DISPLAY WINDOW
2 BPF104014-0001 FRONT PANEL
3 GAL000092-0001 FOOT RING
4 DUF000024-0001 FRONT FOOT
5 BPK106028-0001 POWER KNOB
6 KVL0015-001 VFK
7 BPK108056-0001 OP/CL KNOB
8 GTP100008-0001 VFD BKT
9 IVE100176-0001 SPONGE
10 BPK108056-0001 FUNCTON KEY
11 APE0216C001 PHONE JACK
12 APE0223C001 CONTROL PCB
13 APE0202C003 POWER-SW PCB
14 GSE100164-0001 BOTTON CAB
15 BPD101040-0001 DOOR
16 BPH100059-0001 SV-PCB-HOLDER
17 WVD100004-0001 DVD LOADER
18 WPC0310-001 SV-PCB ASS‘Y
19 BRB00049-0004 BTM-FOOT
20 GSE100163-0001 TOP COVER
21 APE0203C001 MAIN PCB
22 GTP100006-0001 TUNER-SHIELD COVER
23 GTP100007-0001 TUNER-SHIELD BASE
24 GAL000104-0002 IC KEATSINK
25 GAL100103-0001 POWER-IC HTSK
26 GSE100165-0001 POWER CAB
27 DBU001004-0010 AC-CORD HOLDER
28 APE0202C001 POWER PCB
29 GAL100187-0001 HEATSINK-1
30 GAL100188-0001 HEATSINK-2
31 GSE100155-0001 HESTSINK BKT
33 GSE100162-0001 REAR PANEL
34 DBU001005-0020 AC-CORD HOLDER
35 GSE100152-0001 SCART-PCB HOLDER-L
36 GSE100153-0001 SCART-PCB HOLDER-R
37 APE0193C001 SCART PCB
38 APE0187C001 TUNER PCB
39 BRB100038-0001 CABLE CLIP RUBBER
40 BRB100039-0001 CABLE CLIP RUBBER
41 BRB100049-0001 RUBBER
42 DSS100018-0001 SPACER
43 DSS100005-0001 SPACER
S3 HSP140054-1080 SCREW
S2 HSW140054-1081 SCREW
S1 HST143048-1060 SCREW
ACCESSORIES
No Part No Description
1 VTA400003-0010 1000mm 1007#24 TC W/TERMINAL
2 VTA100001-0020 LOOP ANT SHINTA PS-100
3 AIR151009-0033 51 KEY Dr351 HITACHI
4 ESB015003-3021 SKT SPK ASS‘Y
5 FBY064015-0003 BATTERY UM-4 1.5V
6 ESB015003-3021 SAT SPK AY 50W 8 OHM (5 P CS)
7 FBY064015-0003 BATTERY Di0x44mm UM-4 1.5V
8 VSC000002-0010 SCART CABL SC/G-SC/G,1000mm
9 VIC101002-0030 RCA CABLE 5000mm BLACK D2.44mm
10 YOM100150-0001 OWN MANUAL 8 LANGUAGE
11 VRC202001-0040 RCA CABLE 1200mm BLK 0D2.6x5.2
12 VRC101008-0010 RCA CABLE 1200mm BLK 0D2.6mm
No Part No Description
01 IVE100221-0001 SPONGE
02 HSP140054-3080 SCREW
03 BPN10082-0001 LED LENS
04 BPH100069-0001 LENS COVER
06 APE100426-0001 LED PCB
07 BPN100060-0001 IEWFINDER
08 BPH100060-0001 LENS HOLDE
09 HSD143103-3250 SCREW
10 HNT140700-1300 NUT
11 HWT168540-1100 WASHER
12 GSE000110-0001 X‘FORMER BRACKET
13 TTI123001-0110 PWR TRANS
14 ICH080007-0007 RUBBER
15 APE100199-0011 MAIN PCB ASS‘Y
16 GSE100117-0001 PCB BRACKET
17 GSE000206-0001 IC BRACKET
18 HSP140054-3100 SCREW
19 DHU201001-0001 WASHER
20 HSP143084-3100 SCREW
21 HSP143084-3060 SCREW
22 GSE000093-0002 PCB BKT
23 BPC000021-0001 REAR COVER
24 IVE000096-0002 COVER SPONGE
25 IVE000095-0001 COVER SPONGE
26 APE100199-0021 JACK ASS‘Y
27 IVE100172-0001 SPONGE
28 GAL100090-0001 REAR PLATE
29 IVE100173-0001 SPONGE
30 HST140071-3140 SCREW
31 HSP140054-3100 SCREW
32 HSP143053-3060 SCREW
33 DBU001002-3060 BUSHING
34 VPE003252-0010 LINE CORD
35 HWF118040-6100 WASHING FIB
36 HSP143083-3160 SCREW
37 GAL100113-0001 HEAT SINK
38 HIM000001-0007 MICA SHEET
39 VFL211214-5500 CON/WIRE
40 IVN00042-0001 CLOTH
41 BPG101031-0001 SPK GRILLE
42 HST140091-3200 SCREW
43 FSB02A080-31110 SPK DRIVER
44 IVE000037-0001 DRV SPONGE
45 APE100200-0003 POWER PCB
46 HST140051-3220 SCREW
47 DSS100004-0003 SPACER
48 BPE100014-0001 PLAS.FOOT
49 BRF100021-0001 RUBBER FOOT
50 EVM100054-0001 WOOD BOX
51 BPR100027-0001 PORT TUBE
52 DPP017065-1250 PAPER PORT
53 IVE10074-0001 SPONGE
54 BPF102007-0001 FRONT CAB
MECHANISM SECTION
3-1 MECHANICAL PARTS LIST
3-1-1 MAIN UNIT SECTION 3-1-2 SUBWOOFER SECTION
3 - 1
REPLACEMENT PARTS LIST
3

TUNER PCB SECTION
Misellaneous
LVT100187-0001 TUNER PCB
CF101 JFT005002-0030 10.7 MHZ
CF102 JFT005002-0040 10.7 MHZ
CF103 JFT005001-0030 450 KHZ
CN001 CCN250000-0502 S2B-XH-A 2 PIN
EF001 WTP000011-0001 TUNER PACK
J101 XJP220000-0001 22 GA TINNED
J102 XJP220000-0001 22 GA TINNED
J103 XJP220000-0001 22 GA TINNED
J104 XJP220000-0001 22 GA TINNED
J105 XJP220000-0001 22 GA TINNED
J106 XJP220000-0001 22 GA TINNED
J107 XJP220000-0001 22 GA TINNED
J108 XJP220000-0001 22 GA TINNED
J109 XJP220000-0001 22 GA TINNED
J110 XJP220000-0001 22 GA TINNED
J111 XJP220000-0001 22 GA TINNED
J112 XJP220000-0001 22 GA TINNED
J113 XJP220000-0001 22 GA TINNED
J114 XJP220000-0001 22 GA TINNED
J115 XJP220000-0001 22 GA TINNED
J116 XJP220000-0001 22 GA TINNED
J117 XJP220000-0001 22 GA TINNED
J118 XJP220000-0001 22 GA TINNED
J119 XJP220000-0001 22 GA TINNED
J120 XJP220000-0001 22 GA TINNED
J121 XJP220000-0001 22 GA TINNED
J122 XJP220000-0001 22 GA TINNED
J123 XJP220000-0001 22 GA TINNED
JK001 CJA003002-2010 FEMALE TYPE ID1.44mm
L102 SAN001600-1000 10 uH 10%
L103 SIL106003-3930 39 mH 10% D6xH11xP5mm
L104 SAN001600-1000 10 uH 10%
L151 SAN001600-1000 10 uH 10%
L152 SAN001600-1000 10 uH 10%
L153 SAN001600-1000 10 uH 10%
L154 SAN001600-1000 10 uH 10%
RB101 CCP200010-0715 15 PIN P=2.0mm 90’
RB102A VSW243BB2-0160
160mm BLACK TO RB102B
RB103 CCP200010-0703 3 PIN P=2.0mm 90’
VD001 RHV100149-0001 TOSHIBA 1SV149B
VD002 RHV100149-0001 TOSHIBA 1SV149B
VR102 QCF015020-3920 3.9K OHM 1/10W 5%
XL151 JQC013101-4351 4.332 MHZ HC-49/U
XL152 JQC013101-4550 4.5000 MHZ HC-49/U
Capacitor
C001 PYL410370-3300 33 pF 50V 5%
C003 PYL439570-2230 0.022 uF 50V 20%
C005 PRD113870-5090 5 pF 50V +-0.25pF
C006 PYL456470-1040 0.1 uF 50V 10%
C007 PRD339670-1040 0.1 uF 50V +80-20%
C008 PYL456470-2220 0.0022uF 50V 10%
C009 PYL439570-2230 0.022 uF 50V 20%
C010 PYL439570-2230 0.022 uF 50V 20%
C011 PYL439570-2230 0.022 uF 50V 20%
C011 PRD249670-2230 0.022 uF 50V +80-20%
C012 PRE939540-4700 47 uF 16V 20%
C013 PYL410370-8090 8 pF 50V 5%
C014 PVP026370-5610 560pF 50V 5%
C015 PRD249670-2230 0.022 uF 50V +80-20%
C016 PYL456470-1040 0.1 uF 50V 10%
C101 PRD249670-2230 0.022 uF 50V +80-20%
C104 PRE939530-3300 33 uF 10V 20%
C105 PYL439570-2230 0.022 uF 50V 20%
C106 PRE939530-3300 33 uF 10V 20%
C107 PVE939540-2200 22 uF 16V 20%
C108 PYL456470-1040 0.1 uF 50V 10%
C109 PRE939540-1000 10 uF 16V 20%
C110 PYL410370-2010 200 pF 50V 5%
C111 PYL410370-3000 30 pF 50V 5%
C112 PYL439570-4730 0.047 uF 50V 20%
C113 PVE939540-4700 47 uF 16V 20%
C114 PYL439570-4730 0.047 uF 50V 20%
C115 PYL439570-4730 0.047 uF 50V 20%
C116 PYL439570-2230 0.022 uF 50V 20%
C117 PVE939540-4700 47 uF 16V 20%
C118 PRE939570-1090 1 uF 50V 20%
C119 PRD235470-1520 1500 pF 50V 10%
C120 PYL410370-2200 22 pF 50V 5%
C122 PYL439570-2230 0.022 uF 50V 20%
C123 PRE939570-1090 1 uF 50V 20%
C124 PRE939570-4780 0.47 uF 50V 20%
C125 PRE939540-1000 10 uF 16V 20%
C126 PRE939540-1000 10 uF 16V 20%
C127 PRE939570-1090 1 uF 50V 20%
C129 PYL456470-2220 0.0022uF 50V 10%
C130 PYL456470-2220 0.0022uF 50V 10%
C131 PYL456470-4720 0.0047 uF 50V 10%
C132 PYL456470-4720 0.0047 uF 50V 10%
C133 PYL439570-2230 0.022 uF 50V 20%
C134 PYL439570-2230 0.022 uF 50V 20%
C135 PYL456470-1520 1500 pF 50V 10%
C136 PYL456470-1520 1500 pF 50V 10%
C137 PYL456470-1530 0.015 uF 50V 10%
C138 PYL456470-1530 0.015 uF 50V 10%
C139 PRE939540-4790 4.7 uF 16V 20%
C140 PRE939540-4790 4.7 uF 16V 20%
C141 PYL456470-2220 0.0022uF 50V 10%
C142 PYL456470-2220 0.0022uF 50V 10%
C143 PRE939540-4700 47 uF 16V 20%
C144 PYL439570-2230 0.022 uF 50V 20%
C145 PYL439570-2230 0.022 uF 50V 20%
C151 PRE939540-2290 2.2 uF 16V 20%
C152 PYL410370-5610 560 pF 50V 5%
C153 PYL410370-3310 330 pF 50V 5%
C154 PRD113370-3300 33 pF 50V 5%
C155 PRD113370-3300 33 pF 50V 5%
C156 PRE939540-4700 47 uF 16V 20%
C157 PRE939540-4700 47 uF 16V 20%
C161 PYL456470-1040 0.1 uF 50V 10%
C163 PRE939540-4700 47 uF 16V 20%
C164 PRD249670-2230 0.022 uF 50V +80-20%
C165 PYL410370-1020 1000 pF 50V 5%
C166 PVE939540-3390 3.3 uF 16V 20%
C167 RD249670-2230 0.022 uF 50V +80-20%
C169 PYL439570-2230 0.022 uF 50V 20%
C170 PYL439570-2230 0.022 uF 50V 20%
C171 PVE939540-4700 47 uF 16V 20%
C173 PRD113370-2700 27 pF 50V 5%
C174 PRD113370-2700 27 pF 50V 5%
Diode
D001 RAD114148-0010 DIODE SW
D002 RAD114148-0010 DIODE SW
D003 RAD114148-0010 DIODE SW
D004 RAD114148-0010 DIODE SW
D101 RAD114148-0010 DIODE SW
Intergrated Circuit
IC101 RCI001837-0001 IC 30 PIN LA1837 SANYO151
IC151 RCI001923-0001 IC 16 PIN BUI1923F
IC152 RCI072131-0001 IC 20 PIN LC72131M SANYO
Transistor
Q001 RAM200192-1001 2SK192A-Y/GR
Q101 RAN201675-0001 2SC1675L NEC
Q102 RAN201675-0001 2SC1675L NEC
Q103 RAP200733-0001 2SA733Q,P NEC
Q104 RAN200945-0001 2SC945P
Q105 RAN200945-0001 2SC945P
Resistor
R001 QCF015020-6820 6.8K OHM 1/10W 5%
R002 QCF015020-1040 100K OHM 1/10W 5%
R003 QCF015020-1040 100K OHM 1/10W 5%
R004 QCF015020-1020 1K OHM 1/10W 5%
R005 QAF065000-3310 330 OHM 1/6W 5% CF
R006 QCF015020-1010 100 OHM 1/10W 5%
R007 QAF065000-1040 100K OHM 1/6W 5% CF
R008 QAF065000-1010 100 OHM 1/6W 5% CF
R009 QCF015020-1020 1K OHM 1/10W 5%
R101 QCF015020-2740 270K OHM 1/10W 5%
R102 QCF015020-4700 47 OHM 1/10W 5%
R103 QCF015020-3310 330 OHM 1/10W 5%
R104 QAF065000-3310 330 OHM 1/6W 5% CF
R105 QAF065000-1010 100 OHM 1/6W 5% CF
R106 QCF015020-2740 270K OHM 1/10W 5%
R107 QCF015020-1000 10 OHM 1/10W 5%
R108 QAF065000-1030 10K OHM 1/6W 5% CF
R109 QCF015020-1040 100K OHM 1/10W 5%
R110 QAF065000-4700 47 OHM 1/6W 5% CF
R112 QCF015020-3320 3.3K OHM 1/10W 5%
R113 QCF015020-5620 5.6K OHM 1/10W 5%
R114 QCF015020-3310 330 OHM 1/10W 5%
R115 QCF015020-3320 3.3K OHM 1/10W 5%
R116 QCF015020-1020 1K OHM 1/10W 5%
R117 QCF015020-1840 180K OHM 1/10W 5%
R118 QCF015020-4700 47 OHM 1/10W 5%
R119 QCF015020-5100 51 OHM 1/10W 5%
R122 QCF015020-3920 3.9K OHM 1/10W 5%
R123 QAF065000-4720 4.7K OHM 1/6W 5% CF
R124 QCF015020-3020 3K OHM 1/10W 5%
R125 QCF015020-1020 1K OHM 1/10W 5%
R126 QCF015020-4730 47K OHM 1/10W 5%
R129 QCF015020-4720 4.7K OHM 1/10W 5%
R130 QCF015020-4720 4.7K OHM 1/10W 5%
R131 QCF015020-6820 6.8K OHM 1/10W 5%
R132 QCF015020-6820 6.8K OHM 1/10W 5%
R133 QCF015020-2220 2.2K OHM 1/10W 5%
R134 QCF015020-2220 2.2K OHM 1/10W 5%
R135 QCF015020-4730 47K OHM 1/10W 5%
R136 QCF015020-4730 47K OHM 1/10W 5%
R137 QCF015020-2720 2.7K OHM 1/10W 5%
R138 QCF015020-1030 10K OHM 1/10W 5%
R139 QCF015020-5610 560 OHM 1/10W 5%
R151 QCF015020-1040 100K OHM 1/10W 5%
R151 QCF015020-1050 1M OHM 1/10W 5%
R154 QCF015020-1040 100K OHM 1/10W 5%
R154 QCF015020-1050 1M OHM 1/10W 5%
R155 QAF065000-1020 1K OHM 1/6W 5% CF
R156 QCF015020-3320 3.3K OHM 1/10W 5%
R157 QCF015020-1020 1K OHM 1/10W 5%
R158 QCF015020-3320 3.3K OHM 1/10W 5%
R159 QCF015020-4720 4.7K OHM 1/10W 5%
R160 QCF015020-4720 4.7K OHM 1/10W 5%
R161 QCF015020-4720 4.7K OHM 1/10W 5%
R162 QCF015020-4720 4.7K OHM 1/10W 5%
R163 QCF015020-4720 4.7K OHM 1/10W 5%
R165 QCF015020-4720 4.7K OHM 1/10W 5%
R167 QCF015020-2230 22K OHM 1/10W 5%
R168 QCF015020-2230 22K OHM 1/10W 5%
Coils
T001 SIL013012-0010 SUMIDA S-8N
T002 SIL013009-0011 4-6:10T 1-3:86T
T003 SIL013010-0012 108uH (796 KHz) COIL
T101 SIL016001-0010 78 KHz
T102 SIF010001-0040 455KHz Q=130
T103 SIL016001-0020 16 KHz
T104 SIL016001-0020 16 KHz
T105 SIF020001-0050 10.7MHz Q=60 MIN
TC001 MVC001001-0010 3 - 10 PF NP0
TC002 MVC001002-0010 4.2 - 20 PF N450
RGB PCB SECTION
Misellaneous
LVA100215-0001 RGB
RB181 VSW545455-0250 CCN / WIRE L=250mm
JK182 CJR001301-0030 1P YELLOW W/GND
JK183 CJD004201-1020 4 PIN SW -04 DVD
JK184 CJR003301-0020 3P RED/GRN AXIAL
C181 PRD113370-1500 15 pF 50V 5% Np0
C182 PRD113370-1500 15 pF 50V 5% Np0
C183 PRD113370-1500 15 pF 50V 5% Np0
C184 PRD113370-1500 15 pF 50V 5% Np0
C185 PRD113370-1500 15 pF 50V 5% Np0
C186 PRD113370-1500 15 pF 50V 5% Np0
C187 PRD113370-1500 15 pF 50V 5% Np0
ZD181 RAZ005004-0030 4.1-4.3V 0.5W
ZD182 RAZ005004-0030 4.1-4.3V 0.5W
ZD183 RAZ005004-0030 4.1-4.3V 0.5W
ZD184 RAZ005004-0030 4.1-4.3V 0.5W
ZD185 RAZ005004-0030 4.1-4.3V 0.5W
ZD186 RAZ005004-0030 4.1-4.3V 0.5W
FB181 SFB001001-0030 DIA 3.5x6mm
FB182 SFB001001-0030 DIA 3.5x6mm
FB183 SFB001001-0030 DIA 3.5x6mm
3 - 2
3-2 ELECTRICAL PARTS LIST
3-2-1 MAIN UNIT SECTION
