Hitachi CH 10DL (CG) User manual

CH 10DL
Handling instructions
使用說明書
취급 설명서
Hướng dẫn sửdụng
คูมือการใชงาน
Read through carefully and understand these instructions before use.
使用前務請詳加閱讀
본 설명서를 자세히 읽고 내용을 숙지한 뒤 제품을 사용하십시오.
Đọc kỹvà hiểu rõ các hướng dẫn này trước khi sửdụng.
โปรดอานโดยละเอียดและทําความเขาใจกอนใชงาน
CG 10DL
Cordless Shrub Shear
充電式籬笆剪
무선 식목바리캉
Máy cắt cành dùng pin
 
Cordless Grass Shear
充電式剪草機
무선 잔디깎기
Máy cắt cỏdùng pin
 
CH10DL
CG10DL
000BookCH10DLKoVT.indb1000BookCH10DLKoVT.indb1 2011/07/0314:21:162011/07/0314:21:16

2
10 mm 17 mm 25 mm
1
1
2
2
3
0
4
5
6
7
1
9
8
!
@
^
#
%
((
#
$
*
123
45
678
9
000BookCH10DLKoVT.indb2000BookCH10DLKoVT.indb2 2011/07/0314:21:162011/07/0314:21:16

3
CG10DLCH10DL
)
&
q
*
r
e
$
#
t
&
t
&
$
#
%
t
*
e
r
t
u
y
#
w
10 11 12
13 14
15
16 17 18
000BookCH10DLKoVT.indb3000BookCH10DLKoVT.indb3 2011/07/0314:21:162011/07/0314:21:16

4
#
i
i
19
English 中國語 한국어
1Rechargeable battery 充電式電池 충전식 배터리
2Latch 插銷 래치
3Pull out 拉出 잡아당김
4Insert 插入 삽입
5Handle 握把 핸들
6Push 推밀기
7Insert 插入 삽입
8Pilot lamp 指示燈 파일럿 램프
9
Hole for connecting the rechargeable battery
充電式電池連接孔 충전식 배터리 연결용 구멍
0Battery level warning lamp 電量警示燈 배터리 잔량 경고등
!Lock offbutton 解鎖按鈕 잠금 버튼
@Trigger switch 開關 작동 스위치
#Blade 鋸片 블레이드
$Blade case 鋸片護套 블레이드 케이스
%Blade cover 鋸片護蓋 블레이드 커버
^Blade box 鋸片收納盒 블레이드 박스
&Crank cam (A) 曲軸凸輪 (A) 크랭크 캠(A)
*Crank cam (B) 曲軸凸輪 (B) 크랭크 캠(B)
(Adjuster 調整器 조절 장치
)Tab on tool body 電動工具卡榫 탭온툴 본체
qAdjuster tab 調整器卡榫 조절 장치 탭
wLatch 卡閂 래치
eScrew 螺絲 나사
rBottom plate 底板 하부판
tCrank cam holder 曲軸凸輪固定器 크랭크 캠 홀더
yCenter hole 中央孔 가운데 구멍
uPin 插銷 핀
iSurface to be ground 觸地面 연삭면
000BookCH10DLKoVT.indb4000BookCH10DLKoVT.indb4 2011/07/0314:21:172011/07/0314:21:17

5
Tiếng Việtไทย
1Pin sạcแบตเตอรี่แบบรีชารจ
2Chốtสลัก
3Kéo ra ดึงออก
4Gắn vào เสียบเขา
5Cầmที่จับ
6Đẩyดัน
7Gắn vào เสียบเขา
8Đèn báo hiệuไฟแสดง
9Lỗđể lắp pin sạcชองสําหรับใสแบตเตอรี่แบบรีชารจ
0Đèn báo mức pin ไฟเตือนระดับแบตเตอรี่
!Nút tắt khóa ปุมล็อคปด
@Công tắc khởi động ทริกเกอรสวิตช
#Lưỡi cắtใบมีด
$Vỏbọc lưỡi cắtซองใบมีด
%Nắp đậy lưỡi cắtที่ปดใบมีด
^Hộp đựng lưỡi cắtกลองใบมีด
&Đĩa cam tay quay (A) ขอเหวี่ยงลูกเบี้ยว (A)
*Đĩa cam tay quay (B) ขอเหวี่ยงลูกเบี้ยว (B)
(Bộđiều chỉnh ที่ปรับ
)Thẻnhãn trên thân máy ลิ้นบนตัวเครื่องมือ
qNút điều chỉnh ลิ้นปรับ
wChốt khóa สลัก
eVít สกรู
rMặt đáy แผนดานลาง
tGiá đỡ đĩa cam tay quay ที่จับขอเหวี่ยงลูกเบี้ยว
yLỗtâm รูศูนยกลาง
uChân cắmขา
iBềmặt tiếp đấtพื้นผิวที่จะตอสายดิน
000BookCH10DLKoVT.indb5000BookCH10DLKoVT.indb5 2011/07/0314:21:172011/07/0314:21:17

English
6
GENERAL SAFETY RULES
WARNING!
Read all instructions
Failure to follow all instructions listed below may result in
electric shock, fire and/or serious injury.
The term “power tool” in all of the warnings listed below
refers to your mains operated (corded) power tool or battery
operated (cordless) power tool.
SAVE THESE INSTRUCTIONS
1) Work area safety
a) Keep work area clean and well lit.
Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive
atmospheres, such as in the presence of
flammable liquids, gases or dust.
Power tools create sparks which may ignite the dust
or fumes.
c) Keep children and bystanders away while
operating apower tool.
Distractions can cause you to lose control.
2) Electrical safety
a) Power tool plugs must match the outlet.
Never modify the plug in any way.
Do not use any adapter plugs with earthed
(grounded) power tools.
Unmodified plugs and matching outlets will reduce
risk of electric shock.
b) Avoid body contact with earthed or grounded
surfaces, such as pipes, radiators, ranges and
refrigerators.
There is an increased risk of electric shock if your
body is earthed or grounded.
c) Do not expose power tools to rain or wet
conditions.
Water entering a power tool will increase the risk of
electric shock.
d) Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges or
moving parts.
Damaged or entangled cords increase the risk of
electric shock.
e) When operating apower tool outdoors, use an
extension cord suitable for outdoor use.
Use of a cord suitable for outdoor use reduces the
risk of electric shock.
3) Personal safety
a) Stay alert, watch what you are doing and use
common sense when operating apower tool.
Do not use apower tool while you are tired
or under the influence of drugs, alcohol or
medication.
A moment of inattention while operating power tools
may result in serious personal injury.
b) Use personal protective equipment. Always
wear eye protection.
Protective equipment such as dust mask, non-skid
safety shoes, hard hat, or hearing protection used for
appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the
switch is in the off-position before connecting to
power source and/or battery pack, picking up or
carrying the tool.
Carrying power tools with your finger on the switch or
energising power tools that have the switch on invites
accidents.
d) Remove any adjusting key or wrench before
turning the power tool on.
A wrench or a key left attached to a rotating part of the
power tool may result in personal injury.
e) Do not overreach. Keep proper footing and
balance at all times.
This enables better control of the power tool in
unexpected situations.
f) Dress properly. Do not wear loose clothing or
jewellery. Keep your hair, clothing and gloves
away from moving parts.
Loose clothes, jewellery or long hair can be caught in
moving parts.
g) If devices are provided for the connection of
dust extraction and collection facilities, ensure
these are connected and properly used.
Use of dust collection can reduce dust related hazards.
4) Power tool use and care
a) Do not force the power tool. Use the correct
power tool for your application.
The correct power tool will do the job better and safer
at the rate for which it was designed.
b) Do not use the power tool if the switch does not
turn it on and off.
Any power tool that cannot be controlled with the
switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/
or the battery pack from the power tool before
making any adjustments, changing accessories,
or storing power tools.
Such preventive safety measures reduce the risk of
starting the power tool accidentally.
d) Store idle power tools out of the reach of children
and do not allow persons unfamiliar with the
power tool or these instructions to operate the
power tool.
Power tools are dangerous in the hands of untrained
users.
e) Maintain power tools. Check for misalignment or
binding of moving parts, breakage of parts and
any other condition that may affect the power
tools’ operation.
If damaged, have the power tool repaired before
use.
Many accidents are caused by poorly maintained
power tools.
f) Keep cutting tools sharp and clean.
Properly maintained cutting tools with sharp cutting
edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits
etc. in accordance with these instructions,
taking into account the working conditions and
the work to be performed.
Use of the power tool for operations different from those
intended could result in a hazardous situation.
5) Battery tool use and care
a) Ensure the switch is in the offposition before
inserting battery pack.
Inserting the battery pack into power tools that have
the switch on invites accidents.
b) Recharge only with the charger specified by the
manufacturer.
A charger that is suitable for one type of battery pack
may create a risk of fire when used with another
battery pack.
c) Use power tools only with specifically designated
battery packs.
Use of any other battery packs may create a risk of
injury and fire.
000BookCH10DLKoVT.indb6000BookCH10DLKoVT.indb6 2011/07/0314:21:172011/07/0314:21:17

English
7
d) When battery pack is not in use, keep it away
from other metal objects like paper clips, coins,
keys, nails, screws, or other small metal objects
that can make aconnection from one terminal to
another.
Shorting the battery terminals together may cause
burns or a fire.
e) Under abusive conditions, liquid may be ejected
from the battery; avoid contact. If contact
accidentally occurs, flush with water. If liquid
contacts eyes, additionally seek medical help.
Liquid ejected from the battery may cause irritation or
burns.
6) Service
a) Have your power tool serviced by aqualified
repair person using only identical replacement
parts.
This will ensure that the safety of the power tool is
maintained.
PRECAUTION
Keep children and infirm persons away.
When not in use, tools should be stored out of reach of
children and infirm persons.
SHRUB SHEAR SAFETY WARNINGS
○Keep all parts of the body away from the cutter
blade. Do not remove cut material or hold material
to be cut when blades are moving. Make sure the
switch is offwhen clearing jammed material. A
moment of inattention while operating the shrub shear
may result in serious personal injury.
○Carry the shrub shear by the handle with the cutter
blade stopped. When transporting or storing the
shrub shear always fitthe cutting device cover.
Proper handling of the hedge trimmer will reduce possible
personal injury from the cutter blades.
○Keep cable away from cutting area. During operation
the cable may be hidden in shrubs and can be
accidentally cut by the blade.
GRASS SHEAR SAFETY WARNINGS
IMPORTANT
READ CAREFULLY BEFORE USE
KEEP FOR FUTURE REFERENCE
Safe operation practices
●Training
a) Read the instructions carefully. Be familiar with the
controls and the proper use of the machine.
b) Never allow people unfamiliar with these instructions
or children to use the machine. Local regulations can
restrict the age of the operator.
c) Keep in mind that the operator or user is responsible for
accidents or hazards occurring to other people or their
property.
●Preparation
a) Before use, check the supply and extension cord for
signs of damage or aging. If the cord becomes damaged
during use, disconnect the cord from the supply
immediately. DO NOT TOUCH THE CORD BEFORE
DISCONNECTING THE SUPPLY. Do not use the
appliance if the cord is damaged or worn.
b) Never operate the machine while people, especially
children, or pets are nearby.
c) Wear eye protection and stout shoes at all times while
operating the machine.
●Operation
a) Keep supply and extension cords away from cutting
means.
b) Use the machine only in daylight or good artificial light.
c) Never operate the machine with damaged guards or
shields or without guards or shields in place.
d) Switch on the motor only when the hands and feet are
away from the cutting means.
e) Always disconnect the machine from the power supply
(i.e. remove the plug from the mains or remove the
disabling device)
–whenever leaving the machine unattended;
–before clearing ablockage;
–before checking, cleaning or working on the machine;
–after striking aforeign object;
–whenever the machine starts vibrating abnormally.
f) Take care against injury to feet and hands from the
cutting means.
g) Always ensure that the ventilation openings are kept
clear of debris.
●Maintenance and storage
a) Disconnect the machine from the power supply (i.e.
remove the plug from the mains or remove the disabling
device) before carrying out maintenance or cleaning
work.
b) Use only the manufacturer’s recommended replacement
parts and accessories.
c) Inspect and maintain the machine regularly. Have the
machine repaired only by an authorized repairer.
d) When not in use, store the machine out of the reach of
children.
●Recommendation
a) The appliance should be supplied via aresidual current
device (RCD) with atripping current of not more than
30 mA.
PRECAUTIONS FOR SHRUB SHEAR AND
GRASS SHEAR
1. Before starting work make sure there are no power cables
in the work area. The blade could come into contact with
the power cable causing electric shock, ground faults
and other accidents.
2. Hold the tool fi rmly with both hands during use to prevent
injury.
3. Keep your hands and all parts of the body away from the
blade to prevent contact that could lead to injury.
4. Make sure the blade and all accessories are properly
installed. Improper installation could cause the blade or
accessories to come loose resulting in an injury.
5. Make sure the blade is not cracked, deformed or
excessively worn before starting work. Do not use a
blade in this condition as it could break and cause injury.
6. Do not use the tool to cut wire, metal plates or other hard
objects. The tool could be damaged and cause injury.
7. If the tool does not work normally and is producing strange
noise, turn it offimmediately and have it inspected and
repaired.
8. If the tool falls or strikes against an object, check the blade
and the body for damage, cracking and deformation. Use
of adamaged, deformed or cracked blade could result in
injury.
9. Do not disassemble the blade. This may result in injury.
10. This product generates vibration during operation. This
makes long continuous work physically strenuous so avoid
apoor work posture and be sure to take frequent rests.
Also during short work periods, stop work immediately to
take arest when your fingers, hands, arms or shoulders
become tired.
000BookCH10DLKoVT.indb7000BookCH10DLKoVT.indb7 2011/07/0314:21:172011/07/0314:21:17

English
8
11. Use gloves, or cloth to protect your hands when handling
the blade. Careless handling may lead to injury.
12. Do not expose the blade to excessive pressure during
cutting as the blade could be damaged.
13. The blade is extremely hot after cutting. Do not touch it to
prevent burn injuries.
14. When working in high places, make sure that no one
is standing below. They could be injured should you
accidentally drop the tool or other object.
15. To prevent unforeseen accidents, never leave the tool
running unattended on astand or on the fl oor.
16. Do not expose the tool to insecticide and other chemicals.
Such chemicals could cause cracking and other damage.
PRECAUTIONS FOR BATTERY AND CHARGER
1. Always charge the battery at atemperature of 0–40°C.
Charging the battery at temperatures outside the range
of 0–40°C may prevent proper charging and reduce
battery life.
The most suitable temperature for charging is that of 20 –
25°C.
2. When one charging is completed, leave the charger for about
15 minutes before the next charging of battery.
3. Do not allow foreign matter to enter the hole for
connecting the rechargeable battery.
4. Never disassemble the rechargeable battery and
charger.
5. Never short-circuit the rechargeable battery. Short-
circuiting the battery will cause agreat electric current
and overheat. It results in burn or damage to the battery.
6. Do not dispose of the battery in fi re. If the battery is burnt,
it may explode.
CAUTION ON LITHIUM-ION BATTERY
To extend the lifetime, the lithium-ion battery equips with the
protection function to stop the output.
In the cases of 1to 3described below, when using this
product, even if you are pulling the switch, the motor may
stop. This is not the trouble but the result of protection
function.
1. When the battery power remaining runs out, the motor
stops.
In such case, charge it up immediately.
2. If the tool is overloaded, the motor may stop. In this
case, release the switch of tool and eliminate causes of
overloading. After that, you can use it again.
3. If the battery is overheated under overload work, the
battery power may stop.
In this case, stop using the battery and let the battery
cool. After that, you can use it again.
Furthermore, please heed the following warning and caution.
WARNING
In order to prevent any battery leakage, heat generation,
smoke emission, explosion and ignition beforehand, please
be sure to heed the following precautions.
1. Make sure that swarf and dust do not collect on the
battery.
○During work make sure that swarf and dust do not fall on
the battery.
○Make sure that any swarf and dust falling on the power
tool during work do not collect on the battery.
○Do not store an unused battery in alocation exposed to
swarf and dust.
○Before storing abattery, remove any swarf and dust that
may adhere to it and do not store it together with metal
parts (screws, nails, etc.).
2. Do not pierce battery with asharp object such as a
nail, strike with ahammer, step on, throw or subject the
battery to severe physical shock.
3. Do not use an apparently damaged or deformed battery.
4. Do not use the battery in reverse polarity.
5. Do not connect directly to an electrical outlets or car
cigarette lighter sockets.
6. Do not use the battery for apurpose other than those
specifi ed.
7. If the battery charging fails to complete even when a
specifi ed recharging time has elapsed, immediately stop
further recharging.
8. Do not put or subject the battery to high temperatures or
high pressure such as into amicrowave oven, dryer, or
high pressure container.
9. Keep away from fi re immediately when leakage or foul
odor are detected.
10. Do not use in alocation where strong static electricity
generates.
11. If there is battery leakage, foul odor, heat generated,
discolored or deformed, or in any way appears abnormal
during use, recharging or storage, immediately remove it
from the equipment or battery charger, and stop use.
CAUTION
1. If liquid leaking from the battery gets into your eyes, do not
rub your eyes and wash them well with fresh clean water
such as tap water and contact adoctor immediately.
If left untreated, the liquid may cause eye-problems.
2. If liquid leaks onto your skin or clothes, wash well with
clean water such as tap water immediately.
There is apossibility that this can cause skin irritation.
3. If you fi nd rust, foul odor, overheating, discolor,
deformation, and/or other irregularities when using the
battery for the fi rst time, do not use and return it to your
supplier or vendor.
000BookCH10DLKoVT.indb8000BookCH10DLKoVT.indb8 2011/07/0314:21:172011/07/0314:21:17

English
9

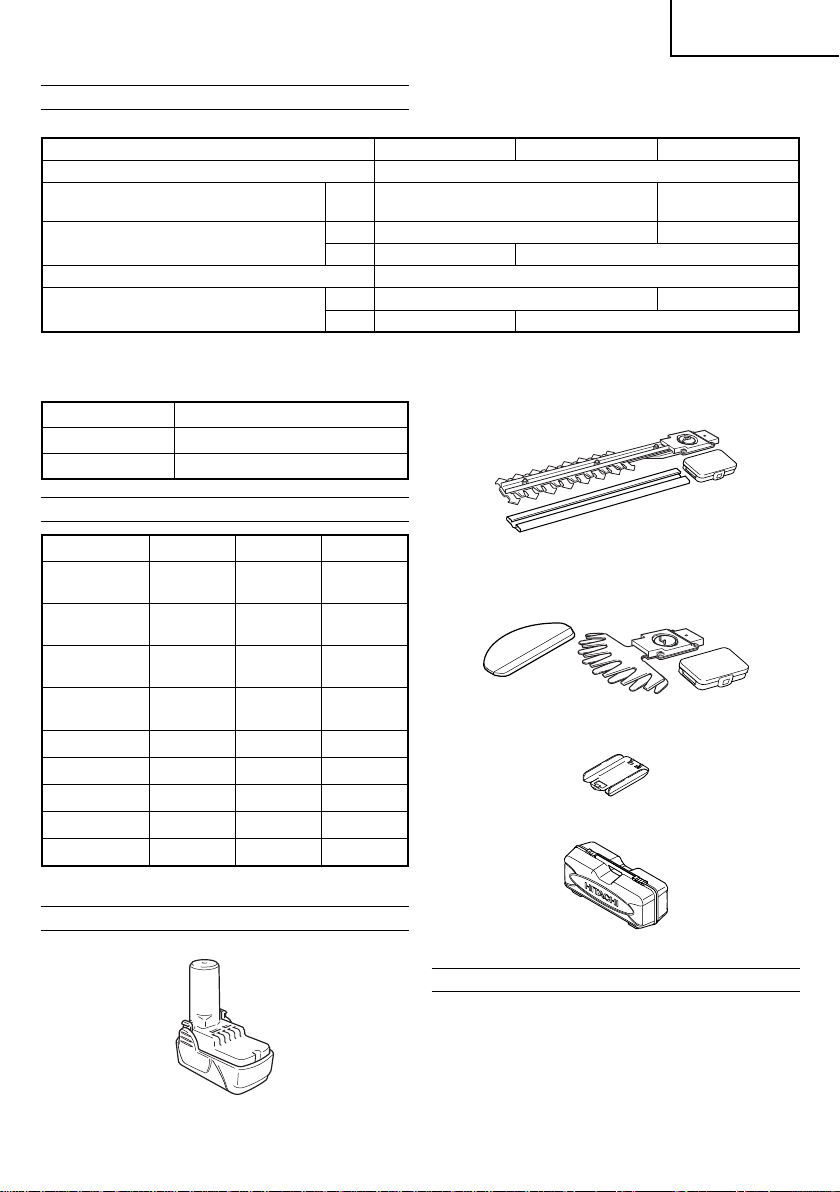

SPECIFICATIONS
POWER TOOL
Model CH10DL CH10DL(CG) CG10DL
No-load speed 1100 /min
Capacity *
(Thickness of branch that can be trimmed.) A8mm –––
Blade size
(Trimming width)
A 190 mm –––
B ––– 170 mm
Rechargeable battery
BCL1015: Li-ion DC 10.8 V(1.5 Ah 3cells)
Weight A 1.2 kg –––
B ––– 1.2 kg
A: With shrub shear blade installed B: With grass shear blade installed
*Actual performance depends on the type of vegetation cut and the sharpness of the blade.
CHARGER
Model UC10SFL
Charging voltage 10.8 V
Weight 0.35 kg
STANDARD ACCESSORIES
CH10DL CG10DL CH10DL (CG)
1Battery
(BCL1015) 111
2Charger
(UC10SFL) 111
3Shrub shear
blade 11
4Grass shear
blade 11
5Blade case 11
6Blade cover 11
7Adjuster 11
8Blade box 1
9Case 111
Standard accessories are subject to change without notice.
OPTIONAL ACCESSORIES (sold separately)
1. Battery (BCL1015)
2. Shrub shear blade set
(with blade case, crank cam and blade box)
3. Grass shear blade set
(With blade cover, crank cam and blade box)
4. Adjuster (for Grass shear)
5. Case
Optional accessories are subject to change without notice.
APPLICATIONS
○Shrub shear
Fine trimming hedges
Trimming and pruning garden trees
○Grass shear
Trimming lawns
000BookCH10DLKoVT.indb9000BookCH10DLKoVT.indb9 2011/07/0314:21:172011/07/0314:21:17

English
10
BATTERY REMOVAL/INSTALLATION
1. Battery removal
Hold the handle tightly and push the battery latch to
remove the battery (see Figs. 1and 2).
CAUTION
Never short-circuit the battery.
2. Battery installation
Insert the battery while observing its polarities (see
Fig. 2).
CHARGING
Before using the power tool, charge the battery as follows.
1. Connect the charger power cord to the receptacle
When connecting the plug of the charger to areceptacle,
the pilot lamp will blink in red (At 1-second intervals).
2. Insert the battery into the charger
Firmly insert the battery into the charger till it contacts the
bottom of the charger as shown in Fig. 3.
3. Charging
When inserting abattery in the charger, the pilot lamp will
light up continuously in red.
When the battery becomes fully recharged, the pilot lamp
will blink in red (At 1-second intervals). (See Table 1)
(1) Pilot lamp indication
The indications of the pilot lamp will be as shown in
Table 1,according to the condition of the charger or the
rechargeable battery.
Table 1
Indications of the pilot lamp
Pilot lamp
(red)
Before
charging Blinks
Lights for 0.5 seconds. Does not light for 0.5
seconds. (offfor 0.5 seconds)
While
charging Lights Lights continuously
Charging
complete Blinks
Lights for 0.5 seconds. Does not light for 0.5
seconds. (offfor 0.5 seconds)
Overheat
standby Blinks
Lights for 1second. Does not light for 0.5
seconds. (offfor 0.5 seconds)
Battery overheated.
Unable to charge
(Charging will commence
when battery cools).
Charging
impossible Flickers
Lights for 0.1 second. Does not light for 0.1
seconds. (offfor 0.1 seconds) Malfunction in the battery or
the charger.
(2) Regarding the temperatures of the rechargeable battery
The temperatures for rechargeable batteries are as
shown in the Table 2,and batteries that have become
hot should be cooled for awhile before being recharged.
Table 2Recharging ranges of batteries
Rechargeable batteries Temperatures at which the
battery can be recharged
BCL1015 0°C –50°C
3) Regarding recharging time
Depending on the combination of the charger and
batteries, the charging time will become as shown in
Table 3
Table 3Charging time (At 20°C)
Charger
Battery UC10SFL
BCL1015 Approx. 40 min.
NOTE
The charging time may vary according to temperature
and power source voltage.
4. Disconnect the charger’s power cord from the
receptacle.
5. Hold the charger firmly and pull out the battery.
NOTE
Be sure to pull out the battery from the charger after use,
and then keep it.
Regarding electric discharge in case of new batteries, etc.
As the internal chemical substance of new batteries and
batteries that have not been used for an extended period
is not activated, the electric discharge might be low when
using them the fi rst and second time. This is atemporary
phenomenon, and normal time required for recharging
will be restored by recharging the batteries 2–3times.
How to make the batteries perform longer
(1) Recharge the batteries before they become completely
exhausted.
When you feel that the power of the tool becomes
weaker, stop using the tool and recharge its battery. If
you continue to use the tool and exhaust the electric
current, the battery may be damaged and its life will
become shorter.
(2) Avoid recharging at high temperatures.
Arechargeable battery will be hot immediately after use.
If such abattery is recharged immediately after use, its
internal chemical substance will deteriorate, and the
battery life will be shortened. Leave the battery and
recharge it after it has cooled for awhile.
CAUTION:
○If the battery is charged while it is heated because it has
been left for along time in alocation subject to direct
sunlight or because the battery has just been used, the
pilot lamp of the charger lights for 1second, does not
light for 0.5 seconds (offfor 0.5 seconds).
In such acase, fi rst let the battery cool, then start
charging.
000BookCH10DLKoVT.indb10000BookCH10DLKoVT.indb10 2011/07/0314:21:182011/07/0314:21:18

English
11
○When the pilot lamp fl ikers (at 0.2-second intervals),
check for and take out any foreign objects in the charger’s
battery connector. If there are no foreign objects, it is
probable that the battery or charger is malfunctioning.
Take it to your authorized Service Center.
○Since the built-in micro computer takes about 3seconds
to confi rm that the battery being charged with UC10SFL
is taken out, wait for aminimum of 3seconds before
reinserting it to continue charging. If the battery is
reinserted within 3seconds, the battery may not be
properly charged.
FUNCTIONAL DESCRIPTION
1. Battery Level Warning Lamp
The battery level can be checked by pulling the trigger
switch while the power tool is in ano-load state. The
battery level warning lamp lights when the battery power
is very low. If this happens, charge the battery. (Fig. 4)
NOTE
○The level at which the battery level warning lamp lights
may vary due to the ambient temperature, characteristics
of the battery, etc. and is intended only as aguide.
○The battery level warning lamp may light when the power
tool is overloaded. This does not mean that the battery
power is very low.
Be sure to check the battery level while the tool is in a
no-load state.
2. Lock Offbutton (Fig. 5)
WARNING
Never lock the Lock Offbutton in depressed position.
Pulling back the switch would then cause the tool to
suddenly start operating, which could result in injury.
The tool will not start unless the Lock Offbutton is
pressed while the switch is pulled back.
The Lock Offbutton can be engaged by pressing it either
from the right or left.
When the switch is released, the Lock Offbutton
automatically disengages to prevent inadvertent motor
startup.
3. Blade case (Fig. 6) (Standard accessory with
CH10DL (CG), CH10DL)
When the shrub shear blade is to be attached to or
removed from the tool, or when the shear is not used,
place the blade in the blade case to prevent injury.
4. Blade cover (Fig. 7) (Standard accessory with
CH10DL (CG), CG10DL)
When the grass shear blade is to be attached to or
removed from the tool, or when the shear is not used,
place the blade in the blade cover to prevent injury.
5. Blade box (Fig. 8) (Standard accessory with CH10DL
(CG))
Place the shrub shear blade and the grass shear blade in
the blade box when they are not used.
Also place the crank cam (B) in the blade box to prevent
losing it.
WARNING
Be sure to turn the tool offand remove the battery from
the tool before attaching and removing the blade case or
blade cover.
CAUTION
To prevent injury, take care when placing the blade in the
blade case, blade cover or blade box.
6. Adjuster (Standard accessory with CH10DL (CG),
CG10DL)
WARNING
Be sure to turn the saw offand remove the battery from
the tool before attaching and removing the adjuster.
CAUTION
Be sure to place the blade in the blade case before
attaching and removing the adjuster to prevent injury by
the blade coming into contact with your hands or face.
[Trimming height guide]
The trimming height of the tool can be adjusted to three
heights by not attaching the adjuster or changing adjuster
orientation. (Fig. 9)
[Adjuster attachment]
(1) Turn the tool over and slide the adjuster tab in the
direction of the ribs on the tool. (Fig. 10)
(2) Press the front end of the adjuster to fi tthe adjuster onto
the tool. (A clicking sound will be heard) (Fig. 11)
[Adjuster removal]
Raise the adjuster latch to remove the adjuster. (Fig. 12)
REPLACING THE BLADE
The blade is aconsumable that has to be replaced with a
new blade when it loses sharpness.
Follow the steps below to replace the blade.
The tool shown in the illustration is the shrub shear, and it is
used in examples to explain features it shares with the grass
shear.
Before replacement, turn the switch on and offuntil the teeth
in the upper blade are positioned over the openings between
the teeth in the lower blade.
At this time, be careful of the moving blade.
WARNING
Be sure to turn offthe power switch and remove the
battery from the tool to prevent accidents.
CAUTION
Before blade replacement, be sure to use gloves and
attach the blade case or blade cover to prevent the blade
from coming into direct contact with your hands or face.
1. Remove the blade (Fig. 13)
(1) Turn the tool over, remove the four screws using aPhillips
screwdriver, remove the bottom plate and the blade (with
blade case).
(2) Remove the remaining crank holder and crank cam (A)
from the tool. The grease used may cause the crank
holder and crank cam (A) to stick to the blade.
(3) Remove any chips and other debris from inside the
housing.
2. Getting anew blade ready
Taking care to prevent injury from contact with the blade,
adjust the crank cam position as shown in Fig. 14.
This places the teeth in the upper blade over the openings
in the teeth in the lower blade.
3. Attach the crank cam and crank cam holder to the
blade (Fig. 15)
The same type of crank cam holder is used in the shrub
shear and the grass shear. Use the crank holder installed
in the product.
4. Attach the new blade
(1) Align the pin on the tool with the center hole in the crank
holder. (Fig. 16)
(2) When the hexagonal part in the crank holder and the
grooves in the gear do not align, fi ne adjust so that the
crank holder aligns with the gear grooves. (Fig. 17)
(3) Turn over the tool making sure that the blade does not
fall out, attach the bottom plate and secure it with the 4
screws. (Fig. 18)
NOTE
Be sure to check blade operation after it has been
attached. The blade and the crank cam has not been
properly fi tted if the blade does not operate correctly. Do
the instructions over from the beginning.
000BookCH10DLKoVT.indb11000BookCH10DLKoVT.indb11 2011/07/0314:21:182011/07/0314:21:18

English
12
HOW TO USE
WARNING
○To prevent accidents, make sure there are no people in
the work area.
○Keep your hands and all parts of the body away from the
blade to prevent contact that could lead to injury.
○Use protective goggles during work to prevent injury from
twigs and wood chips.
○Do not use to tool to cut wire, metal plates or other hard
objects. The tool could be damaged and cause injury.
1. Trimming hedges and garden trees [Shrab shear]
CAUTION
○Use apair of pruning shears to cut thick branches before
using the shrub shear.
Do not force the tool to prevent it from breaking.
○Stop the tool immediately if the blade stalls against atoo
heavy branch. Do not allow the motor to seize up as it
could damage the motor.
○Use asturdy ladder or step ladder when cutting tall
garden trees.
○Use only for cutting shrub.
(1) Clear the area around the garden tree you want to prune
and set up astable platform to work from.
(2) Place the blade in the blade case to prevent accidental
contact.
(3) Install the battery in the tool.
(4) Press the Lock Offbutton and pull back the switch to start
trimming.
NOTE
○Lubricate (using sewing machine oil, mineral oil, etc.)
the blade before starting and then every hour. Use an
adequate amount of oil and wipe away excess oil.
○During work (for example, when taking rests) do not
leave the tool in aplace exposed to direct sunlight or high
temperature. This will prevent proper cooling and could
result in damage.
○Do not use the tool for work that exceeds its capacity.
Such operation could cause the motor to lock up or slow
down and will damage it.
Trimming garden trees
○Use apair of pruning shears to remove 10 cm of branches
that are 8mm or thicker so that they do not interfere with
trimming. (Fig. 20)
Fig. 20
○Trees with luxuriant foliage should be trimmed starting
from the bottom and work up to achieve the desired
shape. (Fig. 21)
Fig. 21
Trimming hedges
○Trim the top of hedges by moving the tool from right to left
(or left to right) and trim the sides by starting from below
and working up. (Fig. 22)
Fig. 22
NOTE
○Do not use the tool for cutting the lawn or weeds. Grass
or weeds could stick to the blade.
○Cut thick branches by gently pressing the blades against
the branch.
2. Trimming lawns [Grass shear]
CAUTION
○Use only for cutting grass.
○Stop the tool immediately should gravel or branches
enter the blade during trimming and remove the battery.
Do not allow the motor to seize up as it could damage the
motor. Use apair of tongs to gently remove gravel from
the blade. To prevent injury, keep hands, fi ngers and
other body parts away from the blade.
(1) Remove gravel and branches from the lawn to be
trimmed.
(2) Place the blade in the blade cover to prevent accidental
contact.
(3) Install the adjuster when required to adjust trimming
height.
(4) Install the battery in the tool.
(5) Press the Lock Offbutton and pull the switch to start
trimming.
Place the tool on the lawn and slide the tool forward.
(Fig. 23)
Fig. 23
NOTE
○Lubricate (using sewing machine oil, mineral oil, etc.)
the blade before starting and then every hour. Use an
adequate amount of oil and wipe away excess oil.
000BookCH10DLKoVT.indb12000BookCH10DLKoVT.indb12 2011/07/0314:21:182011/07/0314:21:18

English
13
○During work (for example, when taking rests) do not
leave the tool in aplace exposed to direct sunlight or high
temperature. This will prevent proper cooling and could
result in damage.
○Do not use the tool for work that exceeds its capacity.
Such operation could cause the motor to lock up or slow
down and will damage it.
○Do not lower the front end of the blade to prevent sand,
gravel or soil from entering the blade and damaging it by
making it less sharp.
Trimming tall grass
Attempting to cut tall grass at one go will expose the
blade to excessive load and wear the blade. First remove
1/3 of the height starting from the top before trimming it to
the desired height.
Trimming around stone walls and curbs
When trimming around curbs, move the blade sideways
along the curb. (Fig. 24)
This makes it possible to trim without leaving untrimmed
edges.
Fig. 24
3. Continuous operating time
Approx. 30 minutes (depending on the work conditions)
MAINTENANCE AND INSPECTION
WARNING
○Be sure to turn the tool offand remove the battery
from the tool before making inspections or carrying out
maintenance.
○Do not disassemble to blade. Failure to heed this warning
may result in injury.
○Use gloves, or cloth to protect your hands when handling
the blade. Failure to heed this warning may result in
injury.

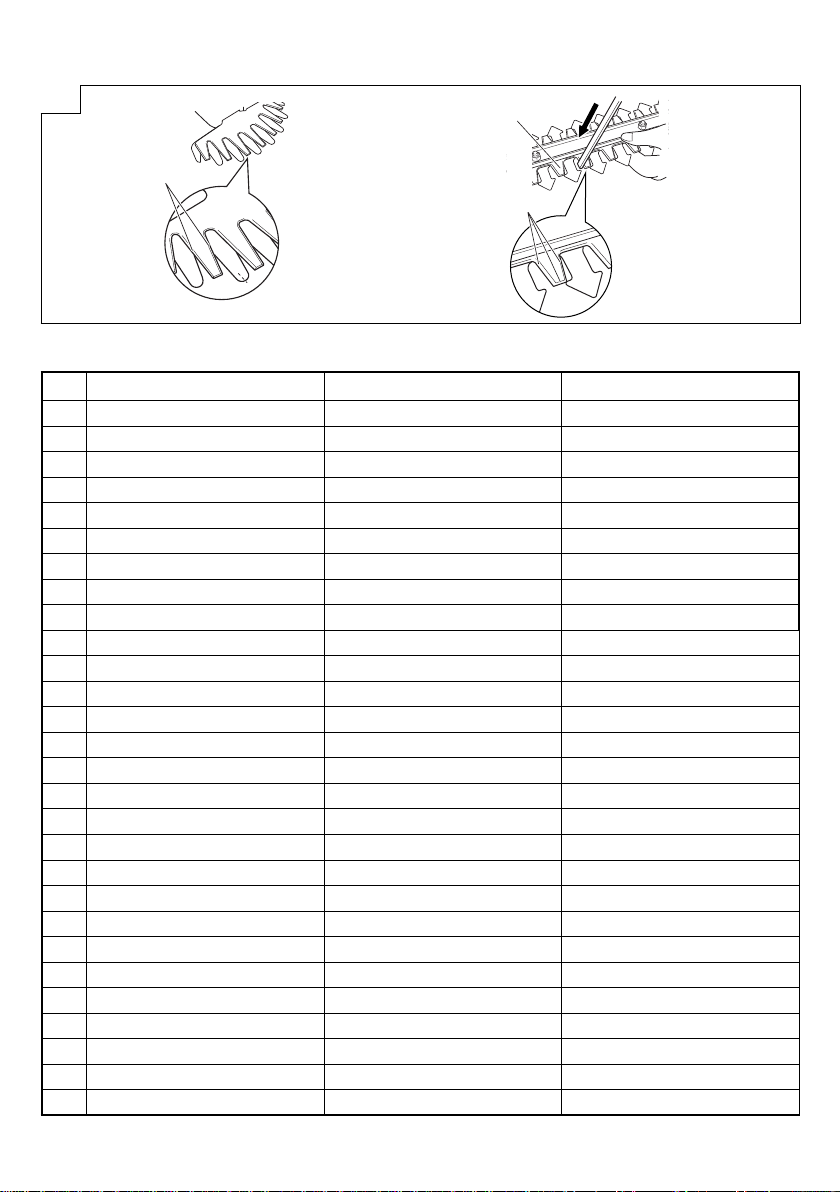

1. Sharpening the blade (Fig. 19)
Move an iron fi le in the direction of the arrow for arough
sharpening then use an oil stone to give the blade agood
fi nish.
(1) Use afi ne iron fi le or one of intermediate coarseness.
(2) Coat the oil stone with machine oil (bicycle oil or the like).
(3) Use awhetstone to gently remove any burrs from the
back of the blade edge.
When to sharpen the blade
While this will vary the type of trees that are trimmed and
how often it is used, it is agood idea to sharpen the blade
about once ayear to maintain asharp edge.
NOTE
Do not use water for cleaning the blade to prevent rust or
other damage.
2. Lubricating the blade
During trimming, sap adhering to the blade edge will
increase load and wear down the battery more rapidly.
Use machine oil (or bicycle oil or the like) to lubricate the
blade and wipe the blade with acloth. To prevent the
blade from rusting, be sure to lubricate the blade after
use and when it will not be used for an extended period
of time before placing it in the blade case.
3. Inspecting the mounting screws
Regularly inspect all mounting screws and ensure that
they are properly tightened. Should any of the screws be
loose, retighten them immediately. Failure to do so could
result in serious hazard.
4. Maintenance of the motor
The motor unit winding is the very “heart” of the power
tool.
Exercise due care to ensure the winding does not
become damaged and/or wet with oil or water.
5. Cleaning on the outside
When the power tool is stained, wipe with asoft dry cloth
or acloth moistened with soapy water. Do not use chloric
solvents, gasoline or paint thinner, for they melt plastics.
6. Storage
Store the power tool in aplace in which the temperature
is less than 40°C and out of reach of children.
7. Service parts list
A: Item No.
B: Code No.
C: No. Used
D: Remarks
CAUTION
Repair, modifi cation and inspection of Hitachi Power
Tools must be carried out by aHitachi Authorized Service
Center.
This Parts List will be helpful if presented with the tool to
the Hitachi Authorized Service Center when requesting
repair or other maintenance.
In the operation and maintenance of power tools, the
safety regulations and standards prescribed in each
country must be observed.
MODIFICATIONS
Hitachi Power Tools are constantly being improved
and modifi ed to incorporate the latest technological
advancements.
Accordingly, some parts (i.e. code numbers and/or
design) may be changed without prior notice.
000BookCH10DLKoVT.indb13000BookCH10DLKoVT.indb13 2011/07/0314:21:182011/07/0314:21:18

English
14
TROUBLESHOOTING
Use the inspections in the table below if the tool does not
operate normally. If this does not remedy the problem,
consult your dealer or the Hitachi Authorized Service Center.
Symptom Possible cause Remedy
Charger The Charge lamp does
not go on.
The power plug is not connected to an
AC outlet.
Connect the power plug to an AC outlet.
The battery is not properly connected to
the charger.
Insert the battery so that it is properly
seated in the charger.
The battery or charger electrodes are
soiled.
Use acotton swab or other tool to clean
the electrodes.
The battery is extremely hot. Allow the battery to properly cool before
charging.
The Charge lamp does
not go offafter 4hours
of charging.
The battery or charger is faulty. Disconnect the power plug and consult
your dealer or the Hitachi Authorized
Service Center.
Tool Does not operate. The battery is depleted. (The battery level
warning lamp does not go on.)
When astorage battery with little power
left is not used for an extended period of
time, battery power may drop so low that
it cannot turn on the battery level warning
lamp. Charge the battery.
The battery has not been properly
installed.
Remove the storage battery from the
battery compartment in the tool and
check for foreign matter. Also check the
battery electrodes for soiling. Make sure
that the battery is pressed in until it clicks
into place.
The blade has been incorrectly installed. If the blade does not move but the motor
is turning, the blade has probably been
incorrectly installed. Make sure that the
crank holder and crank cam has been
installed.
Foreign matter is lodged in the blade. When there is foreign matter in the
blade, remove the battery and use a
pair of tongs or similar tool to remove it.
Take great care since the tool may start
operating when the foreign matter has
been removed.
Sap or rust may also prevent the blade
from operating. Use awire brush or
similar tool to remove sap or rust.
The tool has been used for heavy work. This is the effect of afunction that
protects the battery by turning offthe
motor when the tool is exposed to an
excessive load. Release the switch and
remove what caused the excessive load
and pull back the switch to resume work.
The Lock Offbutton was not pressed
when the switch was pulled back.
To prevent accidents from incorrect
operation, the Lock Offswitch must be
pressed while the switch is pulled back to
start the motor.
The tool does not trim
well.
The blade has become dull. Use awire brush or other tool to remove
sap and rust and use afi le or whetstone
to sharpen the blade. If these efforts fail
to make the blade sharper, the blade
has reached the end of its service life.
Replace the blade with anew one.
000BookCH10DLKoVT.indb14000BookCH10DLKoVT.indb14 2011/07/0314:21:182011/07/0314:21:18

English
15
Symptom Possible cause Remedy
Toolr The tool does not trim
well.
[Shrub shear]
The blade stopped because it was used
to cut abranch whose width exceeded
the blade’s cutting capacity.
NOTE
Work that will repeatedly cause the
blade to stop will eventually damage
the motor.
Some garden trees have wood that
is very hard and may be beyond the
capacity of the tool even if it is of awidth
that is within normal capacity. Use a
pair of pruning shear to remove thick
branches before starting work.
An oblique cut may also exceed the
capacity of the tool since the length of
the cut increases. Be sure to trim thick
branches at right angles.
Important notice on the batteries for the Hitachi
cordless power tools
Please always use one of our designated genuine
batteries. We cannot guarantee the safety and
performance of our cordless power tool when used with
batteries other than these designated by us, or when
the battery is disassembled and modifi ed (such as
disassembly and replacement of cells or other internal
parts).
NOTE
Due to HITACHI’s continuing program of research and
development, the specifi cations herein are subject to
change without prior notice.
000BookCH10DLKoVT.indb15000BookCH10DLKoVT.indb15 2011/07/0314:21:182011/07/0314:21:18

16
中國語
一般安全規則
警告！
閱讀所有說明，未遵守下列之說明可能導致電擊、火
災及 / 或嚴重傷害。
「電動工具」一詞在下列警告中，關係到電源操作
（有線）之電動工具或電池操作（無線）之電動工具。
記住這些說明
1) 工作場所
a) 保持工作場所清潔及明亮。
雜亂及昏暗區域易發生意外。
b) 勿在易產生爆炸之環境中操作，譬如有易燃液
體、瓦斯或粉塵存在之處。
電動工具產生火花會引燃粉塵或煙氣。
c) 當操作電動工具時，保持兒童及過往人員遠離。
分神會讓你失去控制。
2) 電氣安全
a) 電動工具插頭必須與插座配合，絕不可以任何
方法修改插頭，且不得使用任何轉接插頭於有
接地之電動工具。
不修改插頭及所結合之插座可減少電擊。
b) 避免身體接觸到接地面諸如管子、散熱器、爐
灶及冰箱。
如果你的身體接地或搭地，會增加電擊的危險。
c) 勿讓電動工具淋雨或曝露在潮濕的環境下。
電動工具進水會增加電繫的危險。
d) 勿濫用電源線。絕勿使用電源線去纏繞、拖拉
電動工具或拔插頭，保持電源線遠離熱氣、油
氣、尖角或可動零件。
損壞或纏繞的電源線會增加電繫之危險。
e) 電動工具在室外操作時要使用一適合室外用的
延長線。
使用合適之室外用延長線會減少電擊的危險。
3) 人員安全
a) 保持機警，注意你正在做什麼，並運用普通常
識操作電動工具。
當你感到疲勞或受藥品、酒精或醫療影響時，
勿操作電動工具。
操作中瞬間的不注意可能造成人員嚴重的傷
害。
b) 使用安全裝備，常時佩戴安全眼鏡。
安全裝備有防塵口罩、防滑安全鞋、硬帽，或
在適當情況下使用聽覺防護，可減少人員傷害。
c) 避免意外地啟動。在插電前確認開關是在“off”
的位置。
以手指放在開關握持電動工具，或在電動工具
的開關於“on”的狀況下插上插頭，都會導致
意外發生。
d) 在將電動工具啟動前，先卸下任何調整用鑰匙
或扳手。
扳手或鑰匙遺留在電動工具的轉動部位時，可
能導致人員傷害。
e) 身體勿過度伸張，任何時間要保持站穩及平衡。
以便在不預期的狀態下，能對電動工具有較好
的控制。
f) 衣著要合宜，別穿太鬆的衣服或戴首飾。
保持你的頭髮、衣服及手套遠離轉動部位。
寬鬆的衣服、手飾及長髮會被捲入轉動部位。
g) 如果裝置要用於粉塵抽取及集塵設施，要確保
其連接及正當使用。
使用此類裝置能減少與粉塵有關之危害。
4) 電動工具之使用及注意事項
a) 勿強力使用電動工具，使用正確之電動工具為
你所需。
正確使用電動工具會依其設計條件使工作做得
更好更安全。
b) 如果開關不能轉至開及關的位置，勿使用電動
工具。
任何電動工具不能被開關所控制是危險的，必
須要修理。
c) 在做任何調整、更換配件或收存電動工具時，
要將插頭與電源分開，且 / 或將電池從電動工
具中取出。
此種預防安全措施可減少意外開啟電動機之危
險。
d) 收存停用之電動工具，遠離兒童，且不容許不
熟悉電動工具或未瞭解操作電動工具說明書的
人操作電動工具。
在未受過訓練的人手裡，電動工具極為危險。
e) 保養電動工具，檢核是否有可動零件錯誤的結
合或卡住、零件破裂及可能影響電動工具操作
的任何其他情形。
電動工具如果損壞，在使用前要修好。許多意
外皆肇因於不良的保養。
f) 保持切割工具銳利清潔。
適當的保養切割工具，保持銳利之切削鋒口，
可減少卡住並容易控制。
g)
按照說明書使用電動工具、配件及刀具等，使
用特殊型式之電動工具時要考量工作條件及所
執行之工作。
使用電動工具未如預期用途之操作時，會導致
危害。
5) 電池式工具的使用及注意事項
a) 在插入電池組之前，確保開關置於斷開（off）
的位置。
因插入電池組進入電動工具時，若開關置於接
通（on）的位置時，將導致意外事故發生。
000BookCH10DLKoVT.indb16000BookCH10DLKoVT.indb16 2011/07/0314:21:182011/07/0314:21:18

中國語
17
b) 需再充電時，僅能使用製造商指定的充電器。
因充電器僅適合同一型式的電池組，若使用任
何其它電池組時，將導致起火的危險。
c) 使用電動工具時，僅能使用按照其特性設計的
電池組。
因使用其它任何電池組時，將導致人員傷害及
起火的危險。
d) 當電池組不在使用時，需保存遠離其它的金屬
物件，例如： 迴紋針、錢幣、鑰匙、圖釘、螺
釘，或類似能造成端子與端子間連接的其它較
小金屬物件。
因電池組端子間短路時，將導致燃燒或起火的
危險。
e) 在誤用情況下，電解液可能自電池中噴出；請
避免接觸。當發生意外接觸時，請用清水沖洗。
若電解液觸及眼睛時，請儘速尋求醫療協助。
因自電池中噴出的電解液，將導致灼傷或刺激
皮膚。
5） 維修
a) 工具需維修時，請找合格修理人員，並請使用
與原材料相同的零組件予以更換。
遵循此規定，方能維持及確保電動工具的安全
性。
注意事項
不可讓孩童和體弱人士靠近工作場所。
應將不使用的工具存放在孩童和體弱人士伸手不及的
地方。
籬笆剪安全警告
○ 身體請勿靠近修剪鋸片。鋸片轉動時，請勿用手
拿起剪下的枝葉，或握住欲修剪的枝葉。請務必
關閉電源後再清理卡在本工具中的枝葉。使用籬
笆剪時請特別小心，以免造成嚴重的人員傷害。
○ 欲移動籬笆剪時，請先確認修剪鋸片已停止，再
握住把手提起籬笆剪。移動或收納籬笆剪時，請
務必裝上護蓋。
使用籬笆修剪機請多加留意，以免受傷。
○ 請移開修剪區域中的電線，以免不慎剪斷樹叢中
的電線。
剪草機安全警告
重要訊息
使用前請詳細閱讀
請妥善保存，供日後參考
安全操作守則
● 人員訓練
a) 仔細閱讀操作指示，熟悉本電動工具的操作與正
確使用方法。
b) 請勿讓孩童或不熟悉操作的人員使用本電動工具。
當地法規對於本電動工具操作員有年齡限制。
c) 請注意，若本電動工具對他人或他人財產造成危
害，則操作者或使用者需全權負責。
● 準備工作
a) 使用前，請先檢查電源線纜及延伸線纜是否有受
損或過於老舊的情況。若電源線纜在使用時受損，
請立即中斷供電；請勿在中斷供電前接觸線纜；
請勿使用受損或過於老舊的線纜。
b) 請勿在孩童、寵物或其他人員周遭使用本電動工
具。
c) 使用本電動工具時，請全程配戴護目鏡及防護鞋。
● 使用操作
a) 修剪時請避開電源線纜及延伸線纜。
b) 請在日照充足的白天，或良好照明場所使用。
c) 防護蓋受損或遺失時，請勿使用本電動工具。
d) 確認手腳避開修剪範圍後，再開啟馬達。
e) 請在下列狀況下中斷電動工具供電（即拔下已關
閉電動工具的插頭）
－ 離開電動工具時；
－ 清除堵塞前；
－ 在檢查、清理、使用電動工具前；
－ 碰擊異物後；
－ 電動工具產生異常振動時；.
f) 手腳請勿靠近修剪範圍。
g) 請務必保持電動工具排風口暢通。
● 維護及存放
a) 請先中斷電動工具供電（即拔下已關閉電動工具
的插頭），再進行維護或清理工作。
b) 請使用製造商建議的替換零件及附件。
c) 請定期檢查及維護本電動工具。如需維修服務，
請洽授權維修人員。
d) 未使用時，請將電動工具存放在孩童無法拿取的
地方。
● 建議事項
a) 本電動工具應使用殘餘電流裝置 (RCD) 供應低於
30 mA 的跳動電源。
修剪籬笆及草皮時的注意事項
1. 使用前，請先移開修剪區域中的電線。若鋸片接
觸到電線，可能會使操作者觸電、接地故障及其
他意外。
000BookCH10DLKoVT.indb17000BookCH10DLKoVT.indb17 2011/07/0314:21:192011/07/0314:21:19

18
中國語
2. 使用時，請以雙手緊握本電動工具，避免意外發生。
3. 身體請遠離修剪區域，避免接觸到鋸片而發生意
外。
4. 請確認鋸片及所有附件均安裝正確。若未正確安
裝，可能會使鋸片或附件鬆脫而導致意外發生。
5. 使用前，請檢查鋸片是否龜裂、變形或過於老舊。
請勿使用上述狀態的鋸片，否則鋸片會碎裂，導
致意外發生。
6. 請勿使用本電動工具切割電線、鐵片或其他堅硬
物體，否則會導致電動工具受損，造成人員傷害。
7. 若本電動工具運作發生異常，並產生發出異常雜
音，請立即關閉電源進行檢查及維修。
8. 若本電動工具不慎掉落在地或碰撞到物體，請檢
查鋸片與機身是否有損傷、裂痕或變形。使用上
述狀態的鋸片，會導致意外發生。
9. 請勿拆解鋸片，否則可能會發生意外。
10. 本產品運作時會產生振動。
長時間使用時較費體力，請維持正確的使用姿勢
並定時休息。工作時間較短時，若手指、手掌、
手臂或肩膀產生疲勞，也請立即休息。
11. 接觸鋸片時請使用手套或乾布保護雙手，避免發
生意外，導致人員傷害。
12. 使用時，請勿對鋸片過度施壓，否則會使鋸片毀損。
13. 使用後，鋸片的溫度會非常高，此時請勿觸碰，
以免灼傷。
14. 於高處使用時，請務必確認下方無人靠近，避免
本電動工具或其他物體掉落時造成人員傷害。
15. 為避免意外發生，請勿將運轉中的電動工具放置
在平台上或地板上。
16. 請勿讓本電動工具接觸殺蟲劑或其他化學物質，
否則可能會使電動工具龜裂或損傷。
電池與充電器的注意事項
1. 務請在 0 ∼ 40℃ 的溫度下進行充電。若在 0 ∼
40℃ 範圍以外的溫度下充電，可能造成充電異常
並縮短電池壽命。
最適合於充電的溫度是 20 ∼ 25℃。
2. 一次充電完成后，請將充電器擱置 15 分鐘以上，
然后再進行下一次充電。
3. 勿讓雜質進入充電池連結口內。
4. 切勿拆卸充電式電池與充電器。
5. 切勿使充電式電池短路。使電池短路將會造成很
大的電流和過熱，從而燒壞電池。
6. 請勿將電池丟入火中。
電池受熱將會爆炸。
鋰離子電池使用注意事項
為延長使用期限，鋰離子電池備配停止輸出的保護功
能。
若是在使用本產品時發生下列 1 至 3 的情況，即使
按下開關，馬達也可能停止。這並非故障，而是󳍏動
保護功能的結果。
1. 在殘留的電池電力即將耗盡時，馬達會停止。
在這種情況下，請立即予以充電。
2. 若工具超過負荷，馬達亦可能停止。在這種情況
下，請鬆開工具的開關， 試著消除超過負荷的原
因。之後您就可以再度使用。
3. 若電池在過載工作情況下過熱，電池電力可能會
中止。
在這種情況下，請停止使用電池，讓電池冷卻。
之後您就可以再度使用。
此外，請留心下列的警告及注意事項。
警告
為防止發生電池漏電、發熱、冒煙、爆炸及提前點燃，
請確保留意下列事項。
1. 確保電池上沒有堆積削屑及灰塵。
○ 在工作時確定削屑及灰塵沒有掉落在電池上。
○ 確定所有工作時掉落在電動工具上的削屑和灰塵
沒有堆積在電池上。
○ 請勿將未使用的電池存放在曝露於削屑和灰塵的
位置。
○ 在存放電池之前，請清除任何可能附著在上面的
削屑和灰塵，並請切勿將它與金屬零件（螺絲、
釘子等）存放在一起。
2. 請勿以釘子等利器刺穿電池、以鐵錘敲打、踩
踏、丟擲電池，或將其劇烈撞擊。
3. 切勿使用明顯損壞或變形的電池。
4. 使用電池時請勿巔倒電極。
5. 請勿直接連接電源插座或汽車點煙器孔座。
6. 請依規定方式使用電池，切勿移作他用。
7. 如果已過了再充電時間，電池仍無法完成充電，
請立即停止繼續再充電。
8. 請勿將電池放置於高溫或高壓處，例如微波爐、
烘乾機或高壓容器內。
9. 在發覺有滲漏或異味時，請勿接近遠離火源。
10. 請勿在會產生強烈靜電的地方使用。
11. 如有電池滲漏、 異味、發熱、褪色或變形，或在
使用、充電或存放時出現任何異常，請立即將它
從裝備或電池充電器拆下，並停止使用。
000BookCH10DLKoVT.indb18000BookCH10DLKoVT.indb18 2011/07/0314:21:192011/07/0314:21:19

中國語
19
注意
1. 若電池滲漏出的液體進入您的眼睛，請勿搓揉
眼睛，並以自來水等乾淨清水充彬沖洗，立刻
送醫。
若不加以處理，液體可能會導致眼睛不適。
2. 若液體滲漏至您的皮膚或衣物，請立即以自來
水等清水沖洗。
上述情況可能會使皮膚受到刺激。
3. 若初次使用電池時發現生銹、異味、過熱、褪色、
變形及或其他異常情況時，請勿使用並將該
電池退還給供應商或廠商。

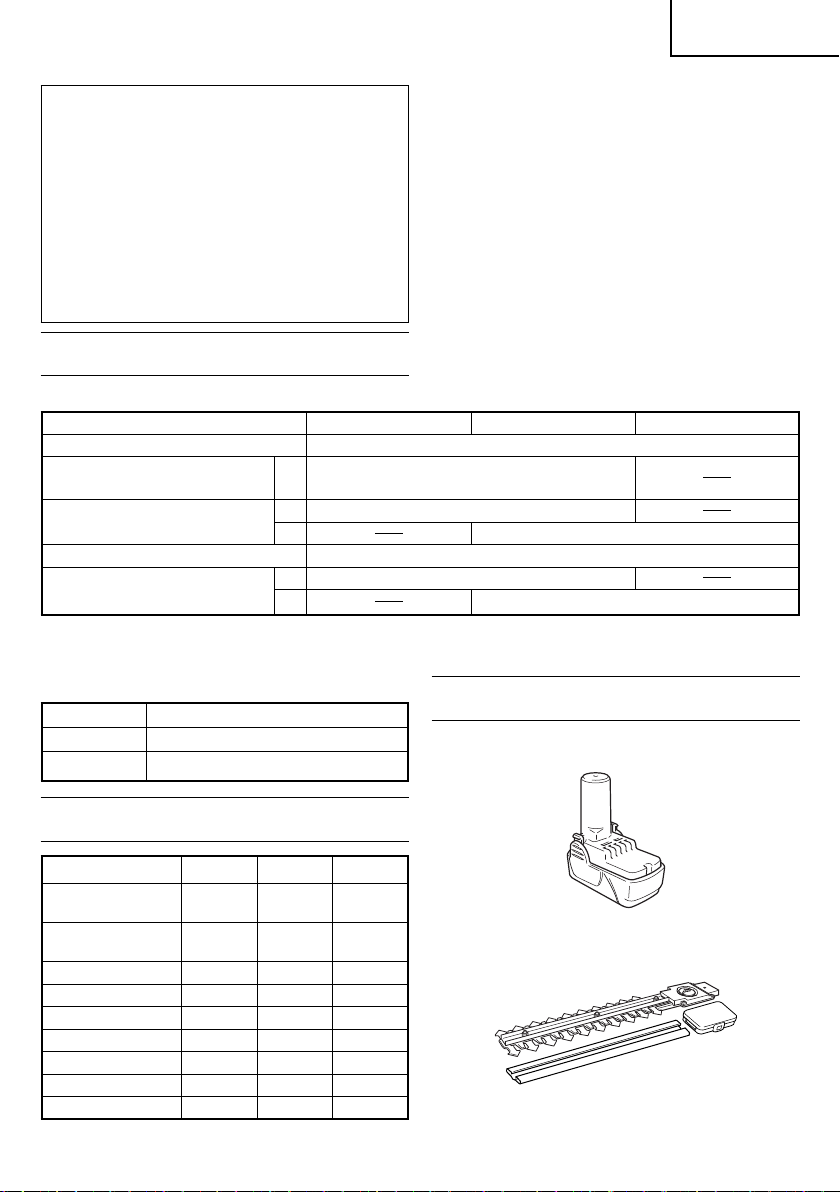

規 格
電動工具
型式 CH10DL CH10DL (CG) CG10DL
無負荷速度 1100 轉 / 分
修剪能力 *
（可修剪的樹枝寬度。） A 8 mm
鋸片尺寸
（修剪寬度）
A 190 mm
B 170 mm
充電式電池 BCL1015： Li-ion DC 10.8 V（1.5 Ah 3 節電池 )
重量 A 1.2 kg
B 1.2 kg
A: 安裝籬笆修剪鋸片時 B: 安裝草皮修剪鋸片時
* 實際情況取決於修剪的植物類型及鋸片銳利度。
充電器
型式 UC10SFL
充電電壓 10.8 V
重量 0.35 kg
標 準 附 件
CH10DL CG10DL CH10DL(CG)
1
電池
(BCL1015) 111
2充電器
(UC10SFL) 111
3籬笆修剪鋸片 11
4草皮修剪鋸片 11
5鋸片護套 11
6鋸片護蓋 11
7調整器 11
8鋸片收納盒 1
9外盒 111
標準附件可能不預先通告而徑予更改。
選 購 附 件（分 開 銷 售）
1. 電池 (BCL1015)
2. 籬笆剪鋸片組
（含鋸片護套、曲軸凸輪及鋸片收納盒）
000BookCH10DLKoVT.indb19000BookCH10DLKoVT.indb19 2011/07/0314:21:192011/07/0314:21:19

20
中國語
電池的拆卸 / 安裝法
1. 電池的拆卸法
緊握住手柄並推動電池卡榫即可拆除電池（請參
閱圖 1 與圖 2）。
注意
請勿使電池短路。
2. 電池的安裝法
請先確認了電池的正負極後，再將電池插進去
（見圖 2）。
充 電
使用電動工具之前，按下述方法將電池進行充電。
1. 將充電器的電源線纜連接插座。
插頭接上插座時，信號燈會閃爍紅燈（閃爍間隔
時間為 1 秒）。
2. 將電池裝入充電器
將電池裝入充電器，直到電池接觸充電器的底部
（如圖 3 所示）
3. 充電
充電器裝入電池後，信號燈便會持續亮起紅燈。
充電完成後，信號燈會閃爍紅燈（閃爍間隔時間
為 1 秒，請參閱表 1）
(1) 信號燈指示
信號燈會依據充電器或充電電池的狀態而有不同
的指示，請見表 1：
3. 剪草機鋸片組
（含鋸片護蓋、曲軸凸輪及鋸片收納盒）
4. 調整器（草皮修剪適用）
5. 外盒
選購附件可能不預先通告而徑予更改。
用 途
○ 籬笆剪
修剪樹叢
修剪樹木
○ 剪草機
修剪草皮
表 1
信號燈指示
信號燈
（紅）
充電前 閃爍
亮起 0.5 秒，熄滅 0.5 秒。（熄滅時
間 0.5 秒）
充電時 亮起 持續亮起
充電完成 閃爍
亮起 0.5 秒，熄滅 0.5 秒。（熄滅時
間 0.5 秒）
過熱待機 閃爍
亮起 1 秒，熄滅 0.5 秒。（熄滅時間
0.5 秒）
電池過熱。
無法充電。
（待電池降溫後便會開始充電）
無法充電 快速閃爍
亮起 0.1 秒，熄滅 0.1 秒。（熄滅時
間 0.1 秒） 電池或充電器故障
000BookCH10DLKoVT.indb20000BookCH10DLKoVT.indb20 2011/07/0314:21:192011/07/0314:21:19
