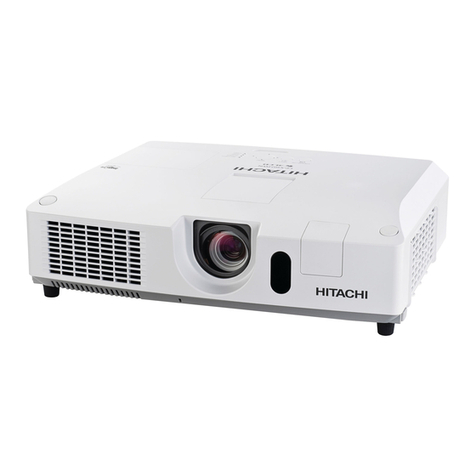

CP-X4022WN LCD Projector
Collegiate Series
Key Features
■XGA 1024 x 768 resolution
■4,000 ANSI lumens white/color output
■3000:1 contrast ratio
■Horizontal and vertical lens shift
■5,000 hours hybrid lter*
■3,000 hours lamp life (Standard mode);
5,000 hours lamp life (Eco mode)**
■ImageCare Technology for energy
savings
■Embedded LAN/wireless compatible
■Projector Quick Connection iOS App
1.800.HITACHI
[email protected]
hitachi-america.us/projectors
CP-X4022WN
As part of Hitachi’s Collegiate Series, the CP-X4022WN combines XGA
1024 x 768 resolution with super-bright 4,000 ANSI lumens white/color
light output for a stunning visual achievement. It can transform classrooms,
lecture halls, and auditoriums into true learning centers. The CP-X4022WN is
easily stackable which enables you to place one projector on top of another
to project the same image from both onto a screen for added brightness.
Plus, Hitachi’s Intelligent Eco Mode with ImageCare combines optimal picture
performance with maximum energy savings for a lower cost of ownership.
For added peace of mind, Hitachi’s CP-X4022WN is also backed by a
generous warranty and our world-class service and support programs.
Designed for academic achievement in
larger classrooms, corporate boardrooms
and campus standard.

CP-X4022WN LCD Projector
Hitachi America, Ltd.
900 Hitachi Way, Chula Vista, CA 91914
Toll Free: 1.800.HITACHI •Email: [email protected]
Web: hitachi-america.us/projectors
* Actual filter life will vary by individual filter and based on environmental conditions, selected operating mode, user settings
and usage. Hours of average filter life specified are not guaranteed and do not constitute part of the product warranty.
** Actual lamp life will vary by individual lamp and based on environmental conditions, selected operating mode, user
settings and usage. Hours of average lamp life specified are not guaranteed and do not constitute part of the product or
lamp warranty. Lamp brightness decreases over time.
Collegiate Series
HI0154-04/13 WEB
All specifications subject to change without notice.
3LCD and the 3LCD logo are registered trademarks of the Seiko Epson Corporation.
iPad and iPhone are registered trademarks of Apple Inc., registered in the U.S. and other countries.
©2013 Hitachi America, Ltd. All Rights Reserved .
STANDARD FEATURES
UNIQUE FEATURES
Perfect Fit 2
Enables the user to adjust individual corners and sides
independent of one another. Perfect Fit 2 provides vertical
and horizontal digital correction of either barrel or pin
cushion distortions. This feature helps correct geometric and
complicated distortions. Perfect Fit 2 allows the projected image
to fit correctly to the screen quickly and easily.
DICOM®Simulation Mode
Images in DICOM (Digital Imaging and Communications in
Medicine) Mode are reproduced with an advanced grayscale
level. This mode is ideal for viewing grayscale medical images
such as X-rays, and for training and educational purposes.
These projectors are not approved medical devices. They should not be used for
actual medical diagnosis.
PJMessenger
PJMessenger function allows you to send and display text
messages and audio alerts on your networked projectors. It
is an easy and efficient way to send announcements out to
multiple units.
Microphone Input
A microphone can be used via the jack located on the
input panel. Allows for more dynamic presentations even in
standby mode.
Display via USB
Simply plug and play using the USB port
instead of the 15 pin D-sub VGA cable.
Network Control, Maintenance and Security
Embedded networking gives you the ability to manage and
control multiple projectors over your LAN. Features include
scheduling of events, centralized reporting, image transfer and
e-mail alerts for reactive and routine maintenance.
Present Content via LAN
Hitachi’s suite of networking software allows you to easily
send content directly from your PC to the projector via your
LAN connection.
Transition Detector and Security Bar
A security sensor located inside the projector recognizes when
the projector has been moved. Moving the projector without
using the correct PIN code will disable the projector.
Wireless Presentation Compatible
Connect the projector to a a computer or your network using
the optional USB wireless adapter (part number USBWL11N).
The adapter supports IEEE802.11b/g and the latest 11n.
ImageCare Technology
ImageCare is a lamp power control function that combines
optimal picture performance with maximum energy savings
by decreasing energy usage, improving contrast ratio and
lengthening lamp life. The result is a lower total cost of
ownership and decreased maintenance cost.
Intelligent Eco and Saver Modes
Automatically changes the brightness of the lamp according to
the brightness level of the screen. Also, automatically changes
the brightness of the lamp if there is no change in the screen
image. Using ImageCare technology, these features give
optimal picture performance with maximum energy savings.
Easily Stackable
Using the lens shift and the perfect fit you can
easily stack two units for two times the light output.
Projector Quick Connection iPad®App
Our iOS application offers full projector control and also
provides the capability to display photos, document files and
web site contents. Available for iPad®and iPhone®devices.
Works over your LAN via your RJ-45 port or via an optional
USBWL11N wireless adapter.
PC-Less Presentation
By using a USB memory stick or other storage device, you can
use the projector without a computer. Menus are easy to see
with a thumbnail display. There is also a slideshow function. This
feature also supports the following file types: JPG, PNG, BMP,
GIF, AVI, and MOV — frame rate is under 12fps 640 x 480.
Serial Number and Media Access Control Label
A label is affixed to side of projector to more easily access
and read the model name, serial number and MAC address
while mounted in ceiling use. This is a convenience for
installers, end users and auditors for instant accessibility.
Serial #
Wired and Wireless Switcher Solutions
Multifunctional switcher operates in conjunction with the
receiver to provide expanded source selection and switching
options for connected devices. The switcher is sold as an
optional accessory that can provide 1080p 30 fps wireless via
WHDI for both video and audio.
Cloning Function
Copy configuration settings from one projector to others of the
same model via USB memory. Cloning can save almost all PJ
settings such as gamma and keystone via USB memory.
settings
settings

CP-X4022WN LCD Projector
Installing innovation on campus
standards nationwide.
The CP-X4022WN is part of Hitachi’s Collegiate
Series projector line and combines 4,000 ANSI
lumens brightness and XGA 1024 x 768 resolution
achieving academic excellence in any higher
education application. The CP-X4022WN combines
powerful capabilities with installer-friendly features,
inorganic optics, a dust resistant design, and a
generous warranty making it ready for the long run.
Incorporating Hitachi’s leading-edge technology,
the CP-X4022WN also features high contrast ratio,
long lamp life, easy maintenance and is wireless
compatible. Vivid colors. Bold graphics. Crisp text. It’s
easy to see how Hitachi’s CP-X4022WN will enhance
the learning experience on college and university
campuses nationwide.
CP-X4022WN
Side Profile
Rear View
Top View
HDMI
AMX Device
Discovery
Hitachi Trade-Up
Program
Crestron
Integrated Partner
4 Year Warranty
Closed Captioning
3LCD Technology
Collegiate Series
Front View
Hitachi America, Ltd.
900 Hitachi Way, Chula Vista, CA 91914
Toll Free: 1.800.HITACHI •Email: [email protected]
Web: hitachi-america.us/projectors
Input/Outputs
5 621 3 4
18 16 15 1314 10111219 17
7 8 9
1. LAN
2. USB Type A x 2
3. USB Type B
4. HDMI
5. Audio Out
6. Audio in 3
7. Computer in 1
8. Computer in 2
9. Remote Control
10. Monitor Out
11. Microphone
12. Component Video
13. Video
14. S-Video
15. Audio in 2
16. Audio in 1
17. Kensington Lock
18. Control (RS-232C)
19. Security Bar
HI0154-04/13 WEB
All specifications subject to change without notice.
3LCD and the 3LCD logo are registered trademarks of the Seiko Epson Corporation.
iPad and iPhone are registered trademarks of Apple Inc., registered in the U.S. and other countries.
©2013 Hitachi America, Ltd. All Rights Reserved .

CP-X4022WN LCD Projector
* Actual lamp life will vary by individual lamp and based on environmental conditions, selected operating mode, user settings and usage. Hours of average
lamp life specified are not guaranteed and do not constitute part of the product or lamp warranty. Lamp brightness decreases over time.
** Actual filter life will vary by individual filter and based on environmental conditions, selected operating mode, user settings and usage. Hours of average
filter life specified are not guaranteed and do not constitute part of the product warranty.
Accessories and Lenses
Supplied
Accessories
Remote control, power cord,
computer cable, user’s manuals, safety
manual, lens cap, security label
Optional
Accessories
TB-1 wireless USB tablet, USBWL11N
USB wireless adapter, HL02651 laser/
wired remote control, MS-1 switcher,
MS-1WL wireless multifunction switcher,
LCDS2000 soft sided case
Replacement Parts
Lamp C PX5 021NL A MP (DT 01171)
Remote Control HL02881
Filter MU07791
CP-X4022WN
Hitachi America, Ltd.
900 Hitachi Way, Chula Vista, CA 91914
Toll Free: 1.800.HITACHI •Email: [email protected]
Web: hitachi-america.us/projectors
HI0154-04/13 WEB
All specifications subject to change without notice.
3LCD and the 3LCD logo are registered trademarks of the Seiko Epson Corporation.
iPad and iPhone are registered trademarks of Apple Inc., registered in the U.S. and other countries.
©2013 Hitachi America, Ltd. All Rights Reserved .
Projection Throw Chart (In inches)
Screen Size 4:3 Throw Distance
Diagonal Width Min Max
30 24 34 57
60 48 70 117
80 64 94 157
100 80 118 197
150 120 179 297
200
160 239 396
300 240 360 596
Throw Ratio: 1.5 - 2.5 : 1 (distance : width)
Specifications
Display
Projection Technology 3LCD, 3 chip technology
Resolution XGA 1024 x 768
White Light Output 4,000 ANSI lumens
Color Light Output 4,000 ANSI lumens
Colors 16.7 million colors
Aspect Ratio Native 4:3 / 16:9 and 16:10 compatible
Contrast Ratio 3000 : 1 (using active IRIS)
Throw Ratio
(distance : width)
1.5 - 2.5 : 1
Focus Distance 34" - 596"
Display Size 30" - 300"
Lens & Operation
Lens F = 1.6 - 2.1, f = 19 - 32 mm
x 1.7 manual zoom, focus, lens shift
Lamp Wattage 245W
Expected Lamp Life* Approximately 3,000 hours (standard mode)
5,000 hours (Eco mode)
Expected Filter Life** Approximately 5,000 hours
Speaker Output 16W
Acoustic Noise Level 35 dB (29 dB in Eco mode)
Keystone H: +/- 35º and V: +/- 37.5º
Compatibility
Computer VGA, SVGA, XGA, WXGA/SXGA/WXGA+/SXGA+/UXGA
(compressed), MAC 16"
H-Sync 31.5 kHz - 106 kHz
V-Sync 56 Hz - 120 Hz
Composite Video NTSC, NTSC4.43, PAL, PAL-M, -N, SECAM
Component Video 480i, 480p, 576i, 720p, 1080i, 1080p
HDMI 480i, 480p, 576i, 720p, 1080i, 1080p,
Computer signal TMDS Clock 27 MHz - 150 MHz
Connectors
Digital Input HDMI x 1 (HDCP compliant)
Computer Input 1 15-pin mini D-sub x 1
Computer Input 2 BNC x 5
Computer Monitor Output 15-pin mini D-sub x 1
Video Input
S-Video Mini DIN 4-pin x 1
Composite Video RCA jack x 1
Component Video RCA jack x 3, 15-pin mini D-sub x 1 (shared with computer In 1)
BNC x 3 (shared with computer In 2)
Audio Input 3.5 mm stereo mini jack x 2, RCA jack (L/R) x 1, MIC-in 3.5 mm
mini jack x 1
Audio Output RCA jack (L/R) x 1
Network LAN Wired RJ-45 port (10 base-T / 100 base-TX)
Network LAN Wireless USB-A, IEEE802.11 b/g/n - optional wireless adapter required
USB Type A x 2 (PC-less presentation, wireless adapter, TB-1)
Type B x 1 (USB display or mouse control)
Control Terminals 9-pin D-sub x 1 (RS-232 control)
Ratings & Warranty
Power Supply AC100-120V / AC220-240V, 50/60Hz
Power Consumption 370W
Operating Temperature 41ºF - 95ºF (5ºC - 35ºC)
Dimensions (W x D x H) 15.8" x 12.5" x 4.1" (excluding protruding parts)
Weight approx. 10.1 lbs.
Approvals UL 60950-1 / cUL, FCC Part 15 subpart B class B
Warranty 4 year limited parts and labor
Extended Service Contract available (additional cost)
Collegiate Series
