Hitachi E990 User manual

Installing your VSP E990 storage system
Hitachi Virtual Storage Platform E990 storage systems are designed for self-installation, so you can install and set up
your storage system for the first time without assistance from a Hitachi Vantara representative.
Make sure your data center meets all site preparation requirements before you install the storage system. If you are not
using a Hitachi Universal Rack make sure the electrical specifications of your rack meet the power requirements of the
storage system.
Step 1: Unpack the storage system
Procedure
1. Inspect all materials for signs of damage. If you see damage, discontinue the installation and contact your Hitachi
Vantara representative.
2. Loosen the band around the cartons and open all boxes. Remove all packing materials, envelopes, and boxes
from the cartons.
3. Retain all packing materials and cartons in case you need to transport or ship the storage system in the future.
4. Check the items you received against the packing list. If any items are missing or damaged, discontinue the
installation and contact your Hitachi Vantara representative.
5. Check the labels of each controller and drive box and verify the location of each component on the rack layout
diagram.
6. Place the keys for the front bezel in a safe place. You will need them to attach the bezel to the front of the
controllers.
Step 2: Verify component location in the rack
The controller and drive boxes for the VSP E990 are shipped fully configured and must be installed in the rack at the
specific location designated by the rack layout.
Each pre-configured component is shipped with two identification labels: one attached to the shipping box, the other
attached to the component itself. The labels include a unit number that corresponds to a location on the rack layout.
An example rack layout is shown in the following figure:
https://knowledge.hitachivantara.com/Documents/Storage/VSP_E_Series/93-05-0x/Installation/Installing_your_VSP_E990_st…
Updated: Thu, 15 Feb 2024 22:27:14 GMT
Powered by
1

https://knowledge.hitachivantara.com/Documents/Storage/VSP_E_Series/93-05-0x/Installation/Installing_your_VSP_E990_st…
Updated: Thu, 15 Feb 2024 22:27:14 GMT
Powered by
2

Item Description
RACK# Which rack the component belongs to.
UNIT# The rack unit that corresponds to the rack layout.
CBL# Controller number
DBN# Drive box number
CBL (E990) Storage system model for the controller
DBN (E990) Storage system model for the drive box
U Location The rack unit where the component must be installed.
SYSTEM Serial # The serial number assigned to the storage system.
SYSTEM COO The region or location where the storage system is installed.
Procedure
1. Find the component label on the shipping box and verify it matches the label on the component included in the
box.
Repeat step for each component.
2. Place each component in descending order by Unit# and match the Unit# to the corresponding place on the rack
layout.
3. Match the U Location on the label with the Unit Number on the physical rack.
Step 3: Install the controller into the rack
https://knowledge.hitachivantara.com/Documents/Storage/VSP_E_Series/93-05-0x/Installation/Installing_your_VSP_E990_st…
Updated: Thu, 15 Feb 2024 22:27:14 GMT
Powered by
3

Mount the controller into the Hitachi Universal Rack or into a 4-post EIA 310-D compliant 19-inch rack with square
mounting holes and rear-facing power distribution units (PDUs).
For information about installing the controller in a third-party rack, see the documentation for that rack.
NoteThe rail kit comes with pins that will fit racks with square or circular shaped holes. Use the correct pin type for your
rack.
Number Item
1 Pin for square holes
2 Pin for round holes
Before you begin
• Make sure the rack is secure and cannot fall over.
• Make sure the rack has at least two PDUs installed.
• Verify that all power cables are removed from the AC power receptacles on the rear of the controller.
• Install the rack stabilizers before mounting the storage system in the rack.
Procedure
https://knowledge.hitachivantara.com/Documents/Storage/VSP_E_Series/93-05-0x/Installation/Installing_your_VSP_E990_st…
Updated: Thu, 15 Feb 2024 22:27:14 GMT
Powered by
4

1. Attach stopper with three screws on the rear side of the rail. Repeat step for both rails.
Number Item
1 Stopper
2 Screws
3 Rail
2. Insert pins on the front and back of the rail into the holes on the front and back of the rack and hold in place using
the rail clips. Repeat step for both sides.
3. Install the rear side of the rail with a washer and binding screw. Repeat step for both sides.

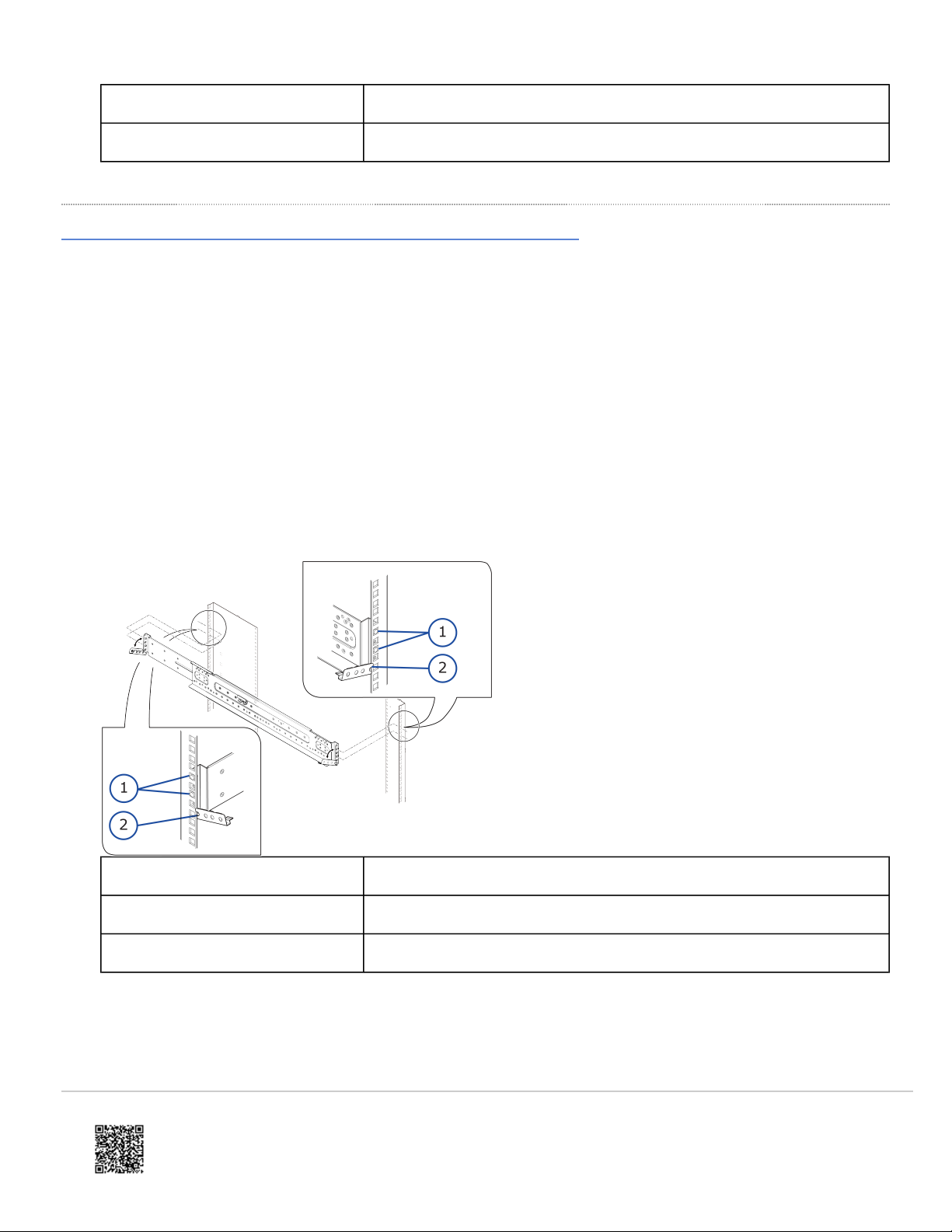

Number Item
1 Pin
https://knowledge.hitachivantara.com/Documents/Storage/VSP_E_Series/93-05-0x/Installation/Installing_your_VSP_E990_st…
Updated: Thu, 15 Feb 2024 22:27:14 GMT
Powered by
5

Number Item
2 Clip
3 Washer and bind screw
4. Position the controller so the front faces the front of the rack, and then slide the controller gently onto the rails.
Stop sliding when the mounting flanges on the front of the controller touch the vertical face of the rack.
NoteCheck the rear of the controller chassis to be sure the chassis is fit securely into the stoppers.
Number Item
1 Stopper

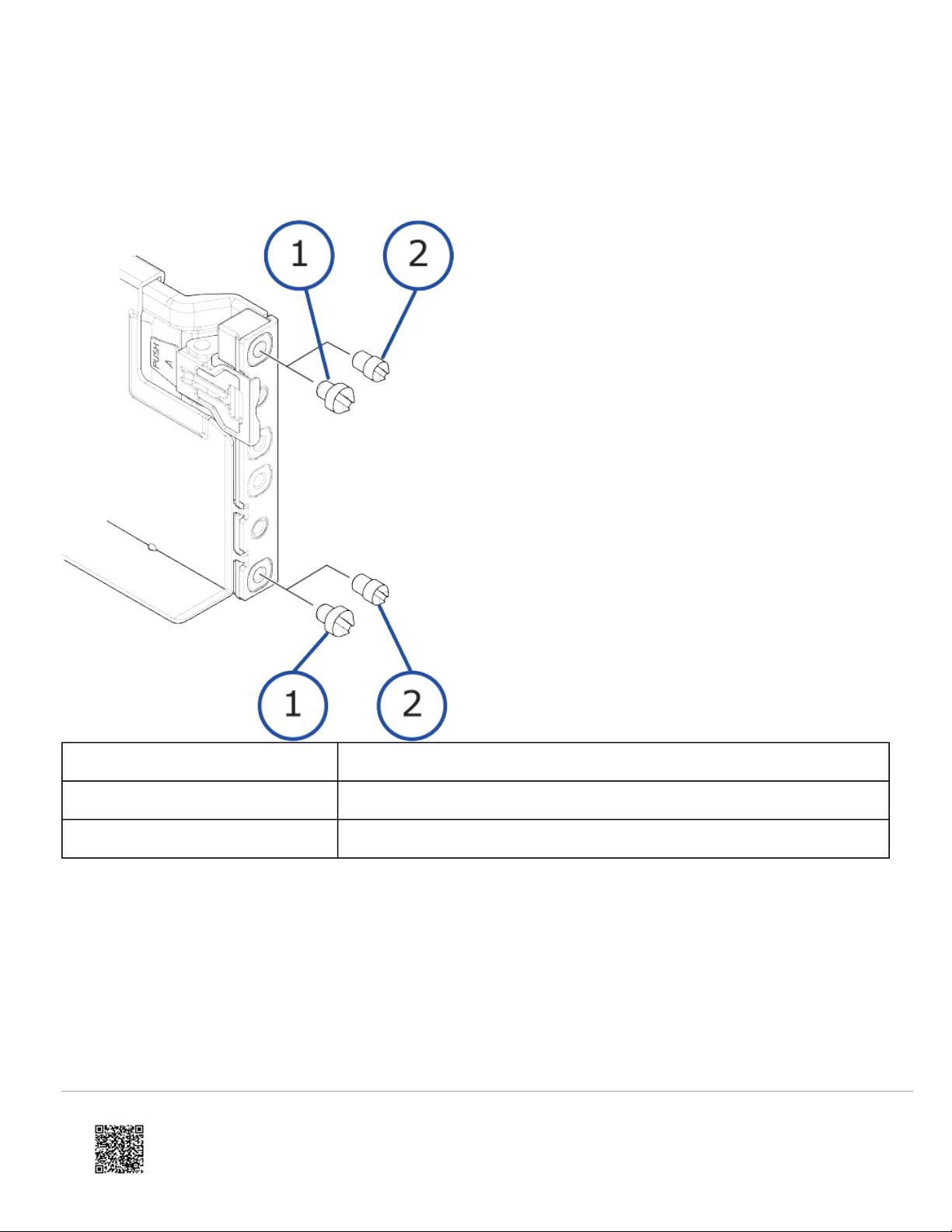

5. On the front of the controller chassis, attach the two bind screws and washers to each side of the rack.
https://knowledge.hitachivantara.com/Documents/Storage/VSP_E_Series/93-05-0x/Installation/Installing_your_VSP_E990_st…
Updated: Thu, 15 Feb 2024 22:27:14 GMT
Powered by
6

Number Item
1 Bind screws
Step 4: Installing the drive boxes into the rack
Drive boxes must be installed using a rack rail at specific locations on the rack depending on the rack layout.
Before you begin
Match or replace the positioning pins on the rail with either circular or square positioning pins depending on the shape of
the position holes on the rack.
Procedure
1. Pull down the clips on the front and rear of the rail.
2. Fit the positioning pins into the position holes on the right side of the rack.
3. Replace the clips to the upright position to hold the rail in place.
Number Item
1 Pin
2 Clip
4. Fix the loop cable tie with the rail screw and fix into position on the rear of the rack.
https://knowledge.hitachivantara.com/Documents/Storage/VSP_E_Series/93-05-0x/Installation/Installing_your_VSP_E990_st…
Updated: Thu, 15 Feb 2024 22:27:14 GMT
Powered by
7

Number Item
1 Clip
2 Cable tie
3 Screw
5. Repeat Steps 1-4 on the left side of the rack.

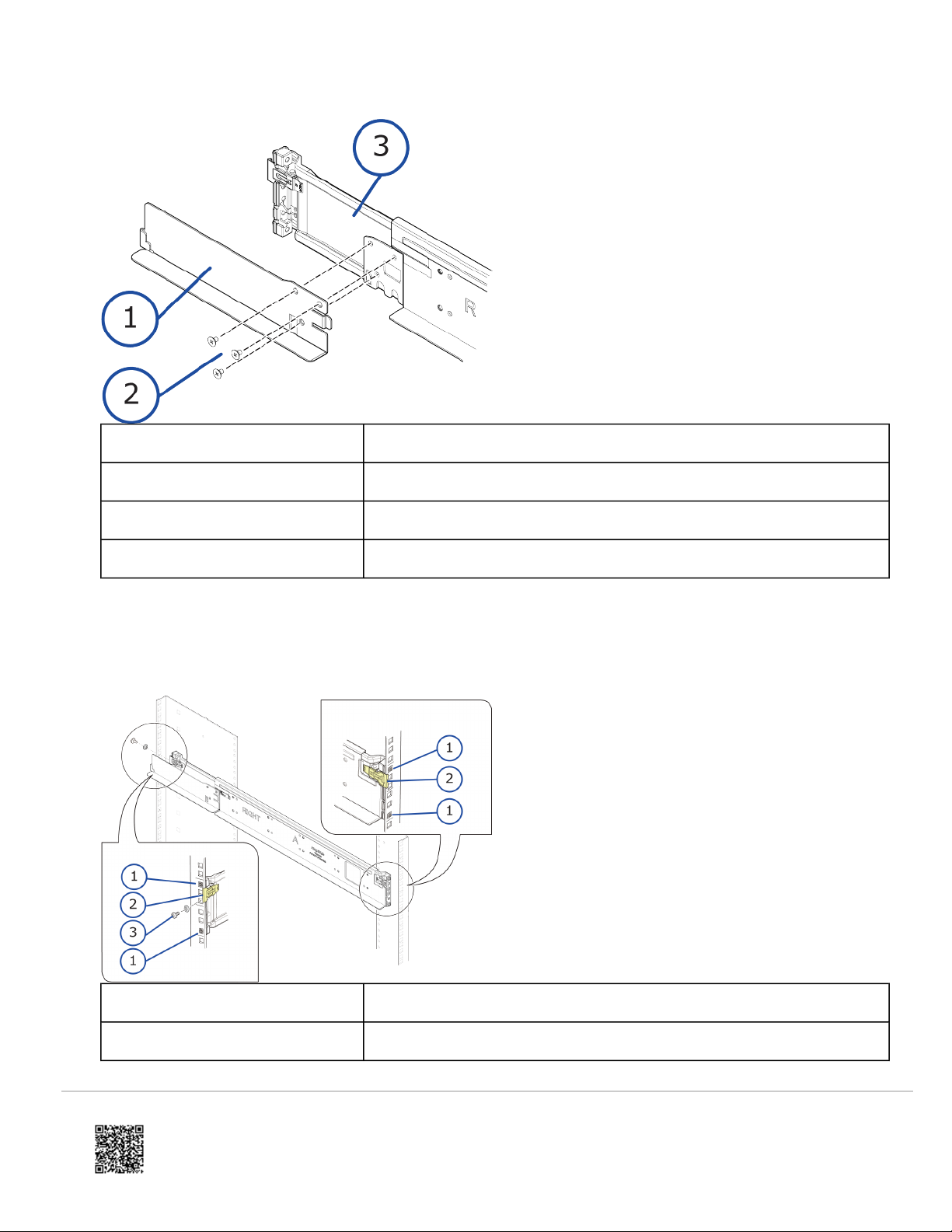

6. Install the drive box to the rail using the drive box bracket.
7. Fasten the bracket and drive box to the rail using two screws on each side of the rack.
Number Item
1 Bracket
2 Screws
https://knowledge.hitachivantara.com/Documents/Storage/VSP_E_Series/93-05-0x/Installation/Installing_your_VSP_E990_st…
Updated: Thu, 15 Feb 2024 22:27:14 GMT
Powered by
8

Number Item
3 Clip

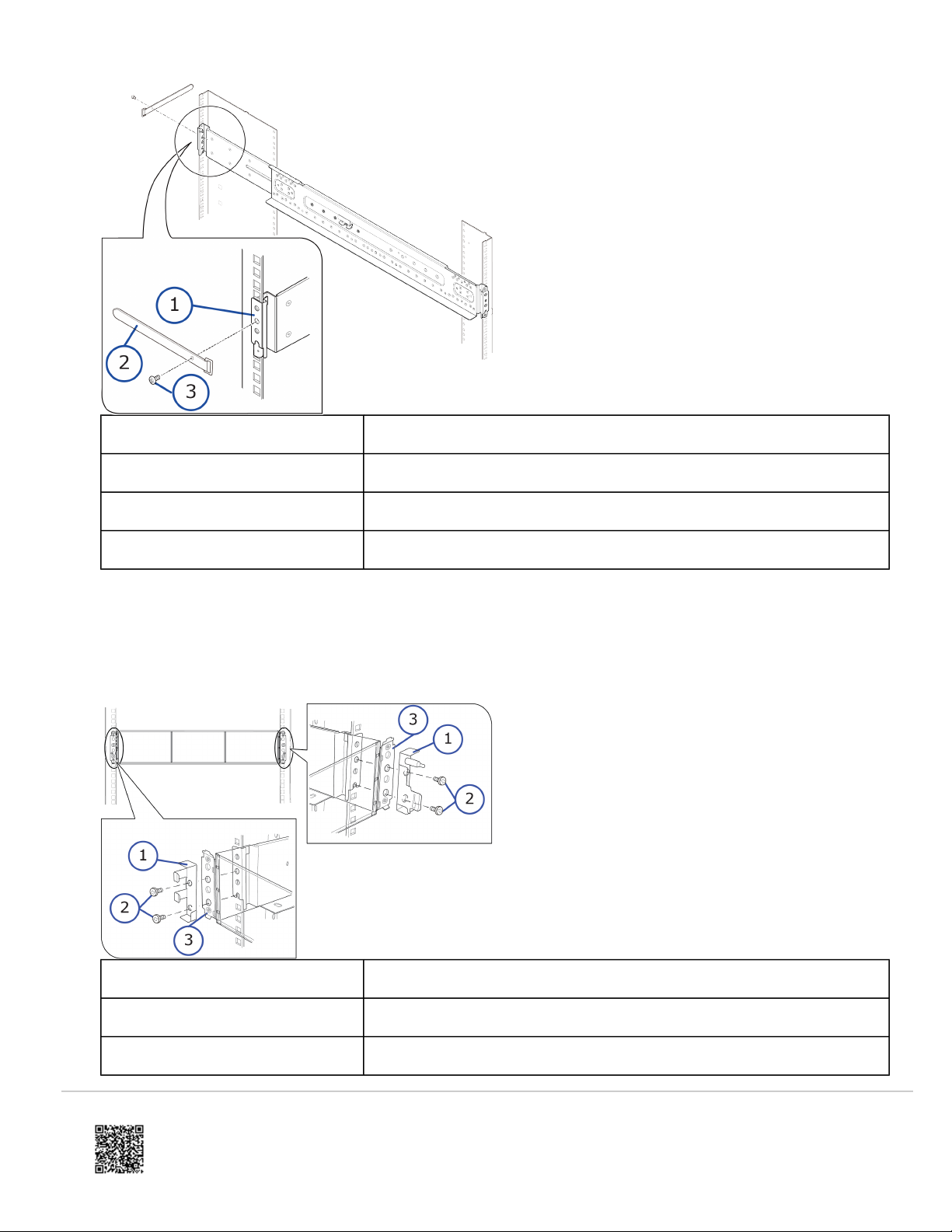

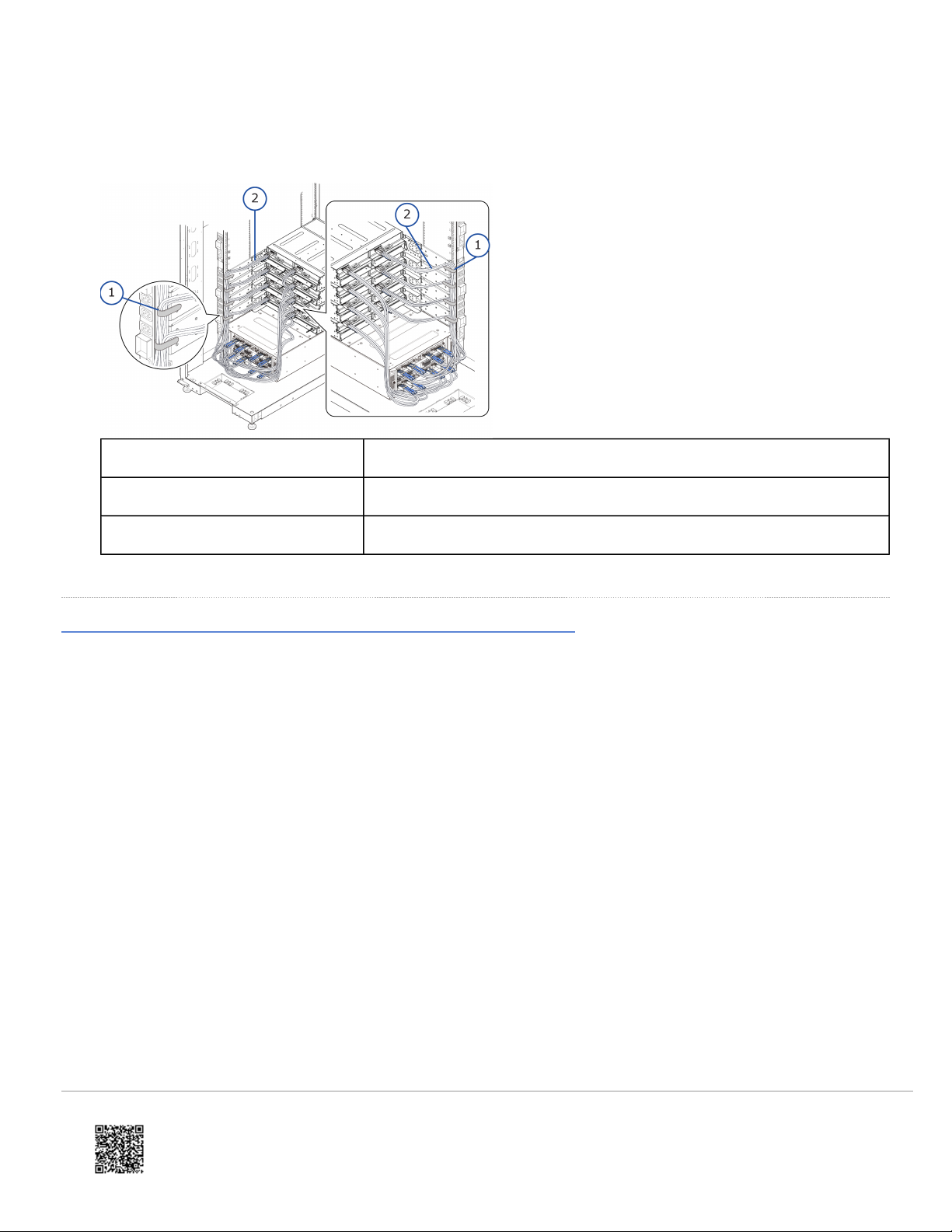

8. Attach the side bezel to the left and right sides of the rack by sliding the bezels in place.
Step 5: Cable the drive boxes
The drive boxes must be cabled to the controller exactly how they were configured before shipping.
The drive boxes and controllers are shipped pre-configured and must be cabled according to the following cable
diagram.
Procedure
https://knowledge.hitachivantara.com/Documents/Storage/VSP_E_Series/93-05-0x/Installation/Installing_your_VSP_E990_st…
Updated: Thu, 15 Feb 2024 22:27:14 GMT
Powered by
9

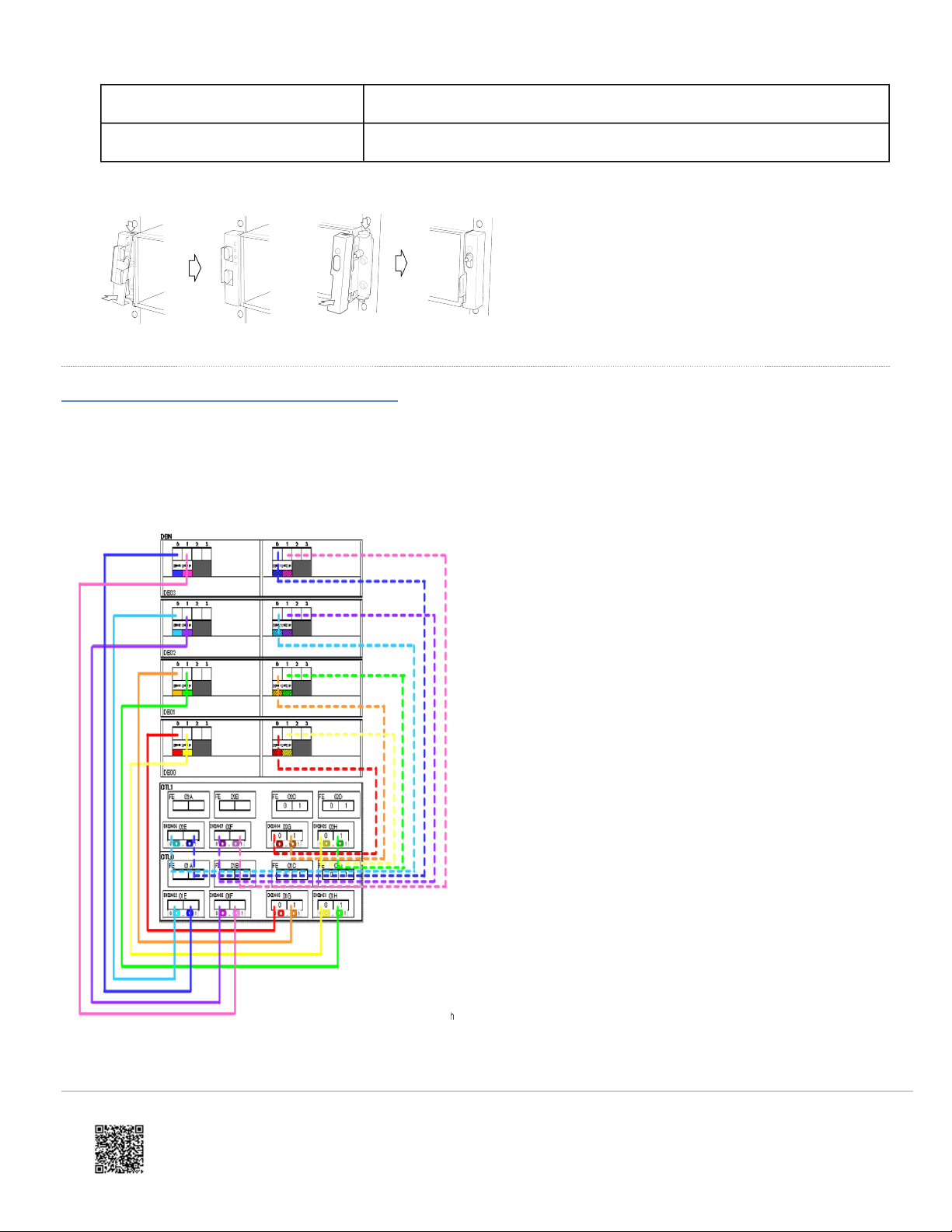

1. Using the cabling diagram, connect each drive box to the controller using either iSCSI or fibre channel cables
depending on the connectors on the controller.
2. Route cables for each drive box through the loop cable tie.
Number Item
1 Cable tie
2 Cable
Step 6: Connect the storage system to power
Power for the storage system is provided through two power supplies, one per controller. The input voltage is auto-
adjusting for 200-240 (-11%) VAC, 50-60 Hz power connections.
For best practice, establish power redundancy by routing each power supply to independent PDUs and then routing the
PDUs to separate external power sources on different branch circuits. This arrangement enables the storage system to
continue operating if AC power is lost to one power supply.
NoteMultiple outlets in a PDU or power strip do not constitute an independent electrical source.
Procedure
1. Confirm that all power sources are off.
2. Connect an AC power cable to the power receptacle on the rear of each controller.
3. Route the power cables from each controller to separate PDUs, and then use the pre-installed tie wraps at each
controller power receptacle to secure the power cables.
4. Connect the PDUs to separate external power sources on different branch circuits.
NoteTo prevent the storage system from being turned off by accident, make sure the external power sources are
not controlled by a wall switch.
https://knowledge.hitachivantara.com/Documents/Storage/VSP_E_Series/93-05-0x/Installation/Installing_your_VSP_E990_st…
Updated: Thu, 15 Feb 2024 22:27:14 GMT
Powered by
10

Step 7: Cable the management console
A customer-supplied computer is used to set up and manage your storage system.
Before you begin
• Obtain a Category 5 or better Ethernet cable.
• Obtain a customer-supplied Windows-based PC that will serve as the management console for setting up the
storage system for the first time and, thereafter, to manage the storage system. The management console must
have a supported web browser: Internet Explore version 11 or later, Chrome, or Firefox.
Procedure
1. Connect one end of the Ethernet cable to the management port on the rear of either controller.
2. Connect the other end of the cable to a management console.
Step 8: Power on the storage system
After connecting the management console to the storage system, you can power on the storage system.
Procedure
1. Power on the PDUs.
2. Confirm that the top (POWER) LED on the lower left front side of the controller is lit amber, as shown in the
following figure. If the storage system has a drive tray, confirm that the POWER LED on the lower left front side of
the drive tray is lit green.
Number Item Description
1 POWER LED
Green: Storage system is powered on.
Amber: Storage system is receiving power.
2 READY LED Green: Normal operation.
3 WARNING LED
Off: Normal operation.
Amber: Component requires maintenance.
https://knowledge.hitachivantara.com/Documents/Storage/VSP_E_Series/93-05-0x/Installation/Installing_your_VSP_E990_st…
Updated: Thu, 15 Feb 2024 22:27:14 GMT
Powered by
11

Number Item Description
Blink: Failure requires maintenance.
Note: When system option mode (SOM) 1097 is set to
ON, the WARNING LED does not blink, even if the
following failure service information messages (SIMs) are
issued: 452xxx, 462xxx, 3077xx, 4100xx, and 410100.
LED might turn off during user maintenance.
4 ALARM LED
Off: Normal operation.
Red: Processor failure (system might be down). For
assistance, contact customer support:
https://support.hitachivantara.com/en_us/contact-us.html.
3. If the front bezel is not attached to the front of the controller, attach it as follows:
1. Line up the two tabs on the left side of the controller with the two slots on the left side of the bezel.
2. Connect the bezel by sliding it on and swinging the bezel closed.
3. Use the key to secure the bezel to the front of the unit.
4. On the lower left front side of the controller, press and hold the POWER ON/OFF button until the POWER LED
changes to green (about 3 seconds), and then release the button.
5. Wait for the green READY LED on the front of the controller to go on (approximately 13 minutes).
NoteIf the READY LED does not go on after 30 minutes, contact customer support.
Step 9: Perform the initial setup
Initial setup of the storage system is performed using the Windows-based management console.
Preparing the storage system
Before you begin
Confirm that the Windows-based management console has an Internet connection and an installed version of one of the
following web browsers: Internet Explorer version 11 or later, Chrome, or Firefox.
Procedure
https://knowledge.hitachivantara.com/Documents/Storage/VSP_E_Series/93-05-0x/Installation/Installing_your_VSP_E990_st…
Updated: Thu, 15 Feb 2024 22:27:14 GMT
Powered by
12

1. Connect the management ports on controller 1 and controller 2 to a management (non-production) network.
2. Configure the management console to use an IP address of 192.168.0.18 and a subnet mask of 255.255.255.0.
Next steps
Change the storage system's default password.
Changing the password
Procedure
1. On your management console PC or laptop, open a web browser and enter the following IP address:
192.168.0.16
2. Enter the default user name and the password sent with the system, and then press the Enter key to log in to
Hitachi Storage Advisor Embedded. Contact customer support for the default user name and password if missing.
If the login window does not appear, check whether the browser is configured to allow pop-ups. If pop-ups are
allowed, make sure the management console IP address is set to 192.168.0.18 and the subnet mask is set to
255.255.255.0. If the IP address and subnet mask are correct and pop-ups are allowed, but the login window does
not appear, contact customer support.
3. In the top-right corner, click the gear icon, and then select User Administration.
4. Click Support Personnel Group.
5. On the Users tab, select the maintenance user check box if it is not already selected, and then click Edit.
https://knowledge.hitachivantara.com/Documents/Storage/VSP_E_Series/93-05-0x/Installation/Installing_your_VSP_E990_st…
Updated: Thu, 15 Feb 2024 22:27:14 GMT
Powered by
13

6. Type the new case-sensitive password for the maintenance user in New Password and Re-enter Password. For
security, each typed password character is masked with a dot.
Important This password is required for storage system maintenance and for running the Initial Setup wizard.
Record the new password for the maintenance user and keep it in a safe location.
7. Click Finish, and then click OK, Apply, and Close.
Next steps
Run the Initial Setup wizard.
Running the Initial Setup wizard
The Initial Setup wizard allows you to configure system information, date and time settings, and network settings.
The Initial Setup wizard settings are presented on three windows. Buttons at the bottom of each window allow you to
apply or skip the settings on that window. If you skip settings, you can complete them later by running the Initial Setup
wizard again. To display details about the settings in the windows, click the question mark icon in the bottom right.
Before you begin
Log in to Storage Advisor Embedded, and then open the maintenance utility by clicking the gear icon at the top-right
corner and selecting User Administration.
https://knowledge.hitachivantara.com/Documents/Storage/VSP_E_Series/93-05-0x/Installation/Installing_your_VSP_E990_st…
Updated: Thu, 15 Feb 2024 22:27:14 GMT
Powered by
14

Procedure
1. In the maintenance utility navigation tree, under Menu, click Initial Setup Wizard.
TipInitial Setup Wizard is near the bottom of the navigation tree. If you do not see this selection, scroll down the
tree.
2. At the bottom, click Skip this step two times to bypass the Set Up System Information and Set Up Date & Time
screens.
3. In the Set Up Network Settings screen, enter the IPv4 or IPv6 configuration settings for the production network to
which the storage system will be connected. For example:
Setting Description
Protocol IP addressing method to be used for configuring the
storage system.
MAC Address Read-only field that shows the MAC address for
controllers 1 and 2.
IPv4 Configuration/ IPv6 Configuration ◦ IPv4 Address: IPv4 address of the production
https://knowledge.hitachivantara.com/Documents/Storage/VSP_E_Series/93-05-0x/Installation/Installing_your_VSP_E990_st…
Updated: Thu, 15 Feb 2024 22:27:14 GMT
Powered by
15

network to which the storage system will be
connected (IPv4 only).
◦ IPv6 Address: IPv6 address of the production
network to which the storage system will be
connected (IPv6 only).
◦ Subnet Mask: IP address mask that identifies the
range of IP addresses in the subnet to which the
storage system will be connected.
◦ Subnet Prefix Length: Subnet prefix length of the
network to which the storage system will be
connected (IPv6 only).
◦ Default Gateway: IP address of the default
gateway to which the storage system will be
connected. The gateway is the IP address of the
router used to communicate outside the local
subnet.
◦ DNS Server 1-3: If your configuration uses DNS
to resolve IP addresses (for example, the IP
address for the NTP server used with the storage
system), enter up to three DNS IP addresses.
Network Connection Mode
Determines whether the storage system negotiates
the speed and duplex mode automatically with the
attached device. The default setting (Auto-
Negotiation) connects the storage system at the
highest speed and appropriate duplex setting
supported by itself and the connected device.
Option
◦ DNS Domain Name: IP address of the DNS
server that will perform address resolution.
◦ DNS Search Order: Search domain names. Use
the Up and Down buttons to order the domain
names.
◦ Maintenance Port: Do not change these values.
◦ Internal Network: Do not change this value.
4. Click Apply, and then click Close.
The system logs you out.
5. Remove the Ethernet cable from the management console and attach the cable to your production network. Leave
the other end of the cable connected to the management port on the rear of the controller.
6. Connect one end of another Ethernet cable to the management port on the rear of the other controller. Connect
the other end of the cable to your production network.
7. Wait 5 minutes for the maintenance utility to fetch the new IP addresses.
https://knowledge.hitachivantara.com/Documents/Storage/VSP_E_Series/93-05-0x/Installation/Installing_your_VSP_E990_st…
Updated: Thu, 15 Feb 2024 22:27:14 GMT
Powered by
16

8. Open a web browser, and log in to Storage Advisor Embedded again. Use the new IP address you specified in the
Initial Setup wizard and the new password you specified for the maintenance user.
9. In the top-right corner, click the gear icon, and then select User Administration.
10. In the maintenance utility navigation tree, under Menu, click Initial Setup Wizard.
11. Enter the system information, and then click Apply and Next.
Setting Description
Storage System
Name
Name used to identify the storage system. This name will appear in the maintenance
utility, so use a name that is meaningful.
Contact Name of the contact person associated with the storage system.
Location Location of the storage system.
12. Enter the date and time settings, and then click Apply and Next.
https://knowledge.hitachivantara.com/Documents/Storage/VSP_E_Series/93-05-0x/Installation/Installing_your_VSP_E990_st…
Updated: Thu, 15 Feb 2024 22:27:14 GMT
Powered by
17

Setting Description
UTC Timezone Time zone in which the storage system is located.
Automatically adjust clock for Daylight Saving Time
If the time zone in which the storage system is located
follows Daylight Saving Time, check this box to have
the storage system automatically adjust its time twice
a year.
Use NTP Server
Determines whether the storage system time is
synchronized with an NTP server.
◦ Yes: Synchronize system time with an NTP
server. Enter the IP address or domain name of
the NTP server. To add more than three servers,
click the + Add NTP Server button. To
synchronize the system time to the NTP server
time now, check Synchronize immediately.
◦ No: Do not synchronize system time with an NTP
server. In Date & Time, enter the date and time
that the storage system will use.
Synchronizing Time
To synchronize the storage system time with the NTP
server at a specific time, enter the time when the two
will be synchronized.
13. Confirm or change the network settings that you entered earlier in this procedure, and then click Apply.
https://knowledge.hitachivantara.com/Documents/Storage/VSP_E_Series/93-05-0x/Installation/Installing_your_VSP_E990_st…
Updated: Thu, 15 Feb 2024 22:27:14 GMT
Powered by
18

14. When prompted that initial settings are complete, click Close.
Next steps
(Optional) Configure syslog and SNMP notifications.
Configure syslog and SNMP notifications
Before you begin
Make sure the storage system is connected to your production network.
Procedure
1. In the navigation tree of the maintenance utility, under Administration, click Alert Notifications. Then click Set Up in
the Alert Notifications pane on the right.
NoteAlthough a tab is provided for configuring email notifications, we recommend that you set up email
notifications using Hitachi Remote Ops monitoring system.
2. To configure the storage system to send notifications in syslog format, complete the settings in the Syslog tab.
Then open a firewall port on your network for transferring syslogs.
https://knowledge.hitachivantara.com/Documents/Storage/VSP_E_Series/93-05-0x/Installation/Installing_your_VSP_E990_st…
Updated: Thu, 15 Feb 2024 22:27:14 GMT
Powered by
19

3. To configure the storage system to send notifications as SNMP traps, complete the settings in the SNMP tab.
4. Click Apply, and then click OK.
Step 10: Make host connections
Host attachment tasks include configuring ports and preparing the host hardware and software for connection to the
storage system. For information and instructions, see the host attachment preparation procedures in the Open-Systems
Host Attachment Guide. You will also find the following resources helpful:
• For the latest interoperability and compatibility information about supported hosts and host attachment hardware,
see the Hitachi Vantara Interoperability Reports.
• For information about preparing your hosts for use with the storage system, see the documentation for the product.
Connecting Fibre Channel ports to hosts
Important Before connecting the storage system to a host, review the requirements and detailed instructions in the
Open-Systems Host Attachment Guide.
Before you begin
Make sure the storage system is connected to your production network.
Procedure
1. Connect the Fibre Channel data ports on each storage system controller to your Fibre Channel switch.
2. Connect your Fibre Channel switch to the Fibre Channel HBA card in each host computer or server.
Connecting iSCSI ports to hosts
Each controller supports 10-gigabit Ethernet copper (R -45) or optical (fiber) iSCSI connectivity to your data network.
Important Before connecting the storage system to a host, review the requirements and detailed instructions in the
Open-Systems Host Attachment Guide.
Before you begin
Make sure the storage system is connected to your production network.
Procedure
1. Using the appropriate cable, connect the iSCSI data ports on each storage system controller to your Gigabit
Ethernet network switch.
https://knowledge.hitachivantara.com/Documents/Storage/VSP_E_Series/93-05-0x/Installation/Installing_your_VSP_E990_st…
Updated: Thu, 15 Feb 2024 22:27:14 GMT
Powered by
20
