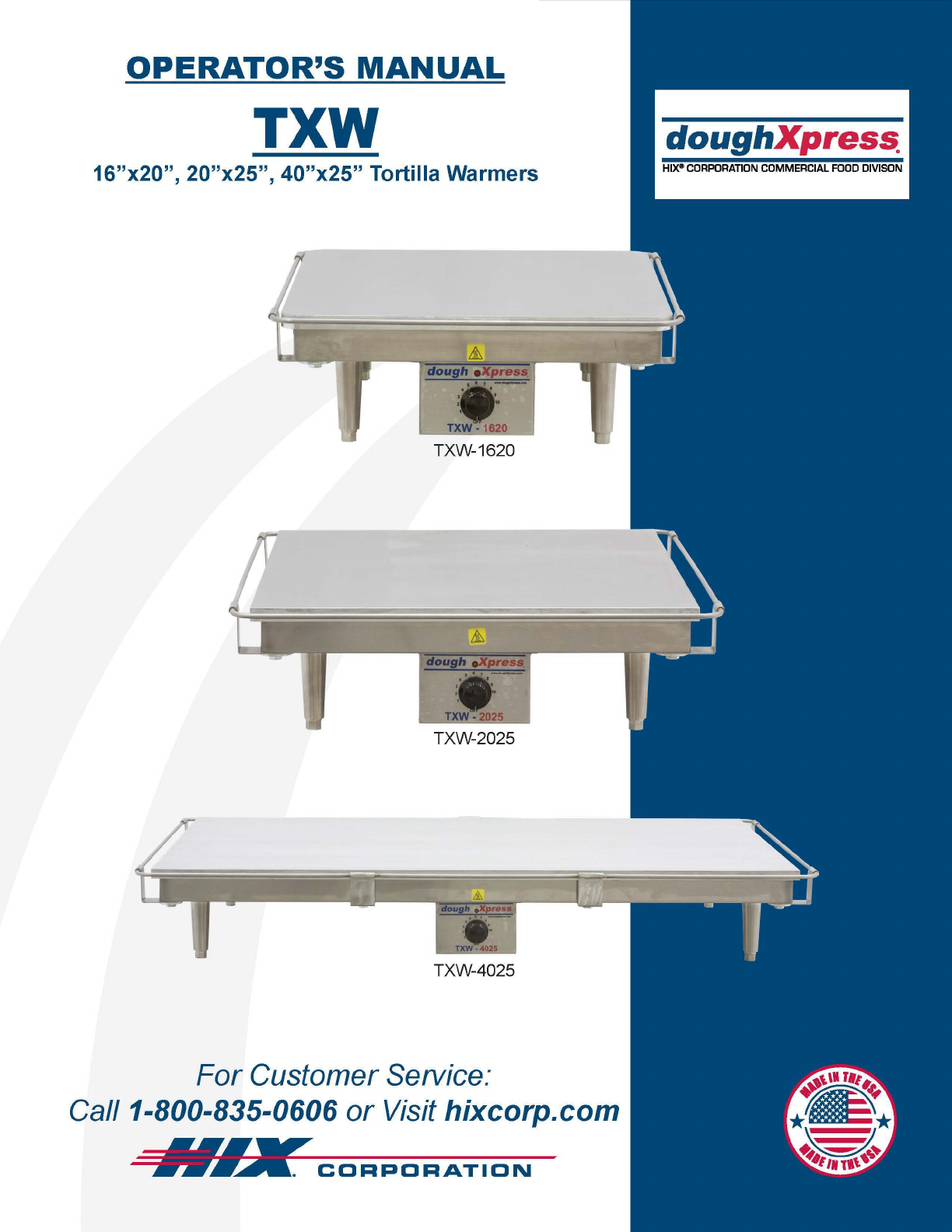

Hix doughXpress TXW User manual
OPERATOR'S
MANUAL
TXW
dough
Xpress.
16"x20"
20"x25"
40"x25"
Tortilla Warmers
' '
HIX'"
CORPORATION
COMMERCIAL
FOOD
OIVISON
TXW-1620
..
..
TXW-
2025
TXW-2025
For
Customer Service:
Call 1-800-835-0606
or
Visit
hixcorp.com
#11--
~CDRPDRATIDN

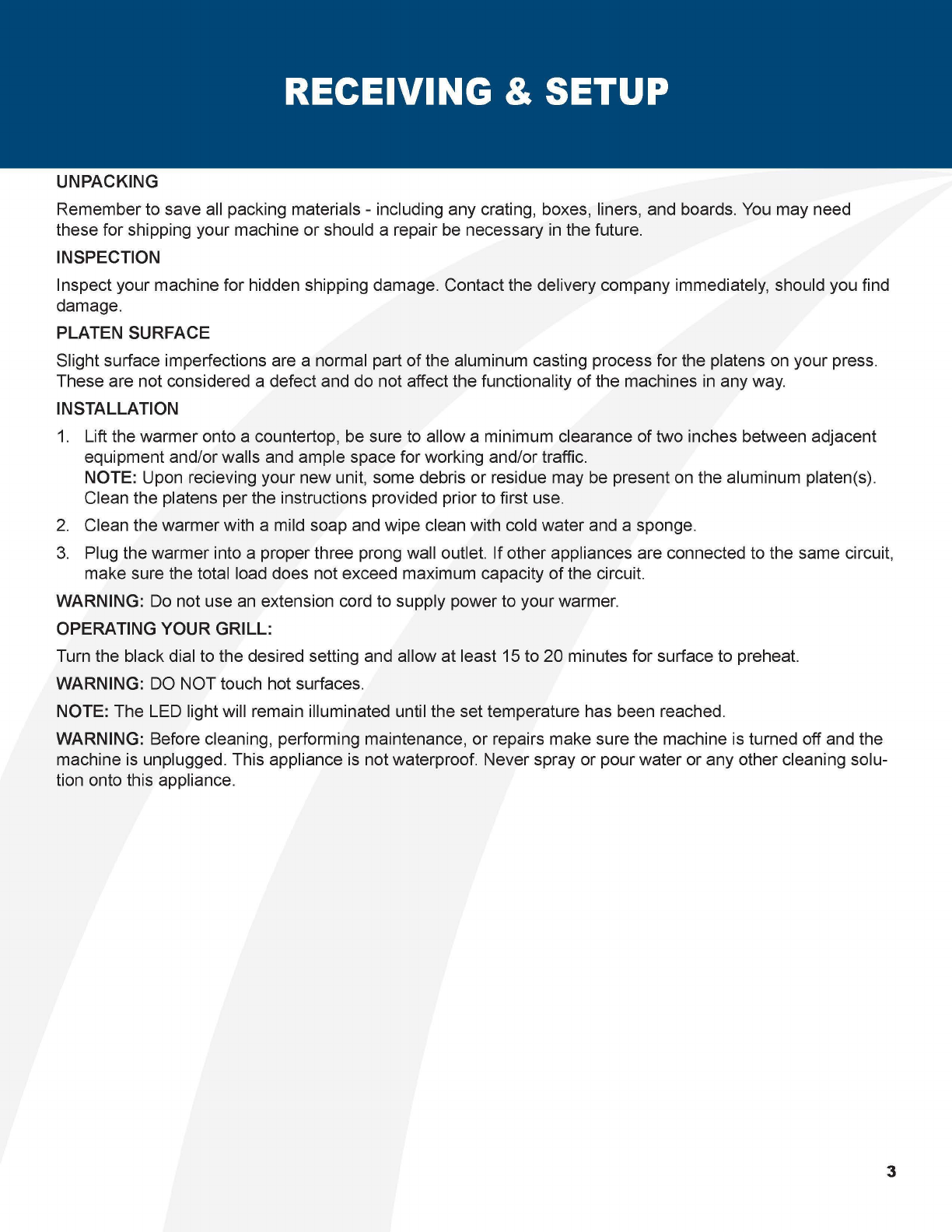

Receiving & Setup
........................
3
Operation
...............................
4
Cleaning & Troubleshooting
...............
5
Parts
List
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Warranty.
..............................
12
#II-~
CORPORATION
lntertek lntertek
UNPACKING
Remember to save all packing materials -including any crating, boxes, liners, and boards. You may need
these for shipping your machine
or
should a repair be necessary
in
the future.
INSPECTION
Inspect your machine for hidden shipping damage. Contact the delivery company immediately, should you find
damage.
PLATEN SURFACE
Slight surface imperfections are a normal part
of
the aluminum casting process for the platens on your press.
These are not considered a defect and do not affect the functionality of the machines
in
any way.
INSTALLATION
1.
Lift the warmer onto a countertop, be sure to allow a minimum clearance of two inches between adjacent
equipment and/or walls and ample space for working and/or traffic.
NOTE: Upon recieving your new unit, some debris
or
residue may be present on the aluminum platen(s).
Clean the platens per the instructions provided prior to first use.
2.
Clean the warmer with a mild soap and wipe clean with cold water and a sponge.
3.
Plug the warmer into a proper three prong wall outlet. If other appliances are connected to the same circuit,
make sure the total load does not exceed maximum capacity
of
the circuit.
WARNING: Do not use an extension cord to supply power to your warmer.
OPERATING
YOUR
GRILL:
Turn the black dial to the desired setting and allow at least 15 to 20 minutes for surface to preheat.
WARNING: DO NOT touch hot surfaces.
NOTE: The LED light will remain illuminated until the set temperature has been reached.
WARNING: Before cleaning, performing maintenance,
or
repairs make sure the machine is turned off and the
machine
is
unplugged. This appliance
is
not waterproof. Never spray or pour water or any other cleaning solu-
tion onto this appliance.
3
KNOB SETTING TEMPERATURE
1 200°F
2 223°F
3 247°F
4 270°F
5 293°F
6 317°F
7 340°F
8 363°F
9 387°F
10
410°F
4
CLEANING ALUMINUM HEAT PLATEN
1.
Unplug the machine and allow it to cool.
2.
Dampen a non-metallic scrubbing sponge with mild soap or detergent to remove any excess material from
the heat platen.
3.
Wipe clean with dry cloth.
CLEANING OUTSIDE SURFACES OF THE MACHINE
• Use a mild soap and warm water, applied with a soft cloth or sponge.
Do
not use steel wool, scrub spong-
es,
kitchen or oven cleaners, or other abrasives that will damage the surface.
TROUBLESHOOTING
WARMER WON'T
TURN
ON
YES
....,_
__
.....,.
Is
the
warmer
plugged
in?
Has
the
breaker
been
tripped?
YES
Reset
the
breaker.
Does
the
warme
turn
on?
NO
NO
Plug in
the
warmer.
NO
Does
the
warmer
turn
on
now?
Problem
Solved
YES
5
6

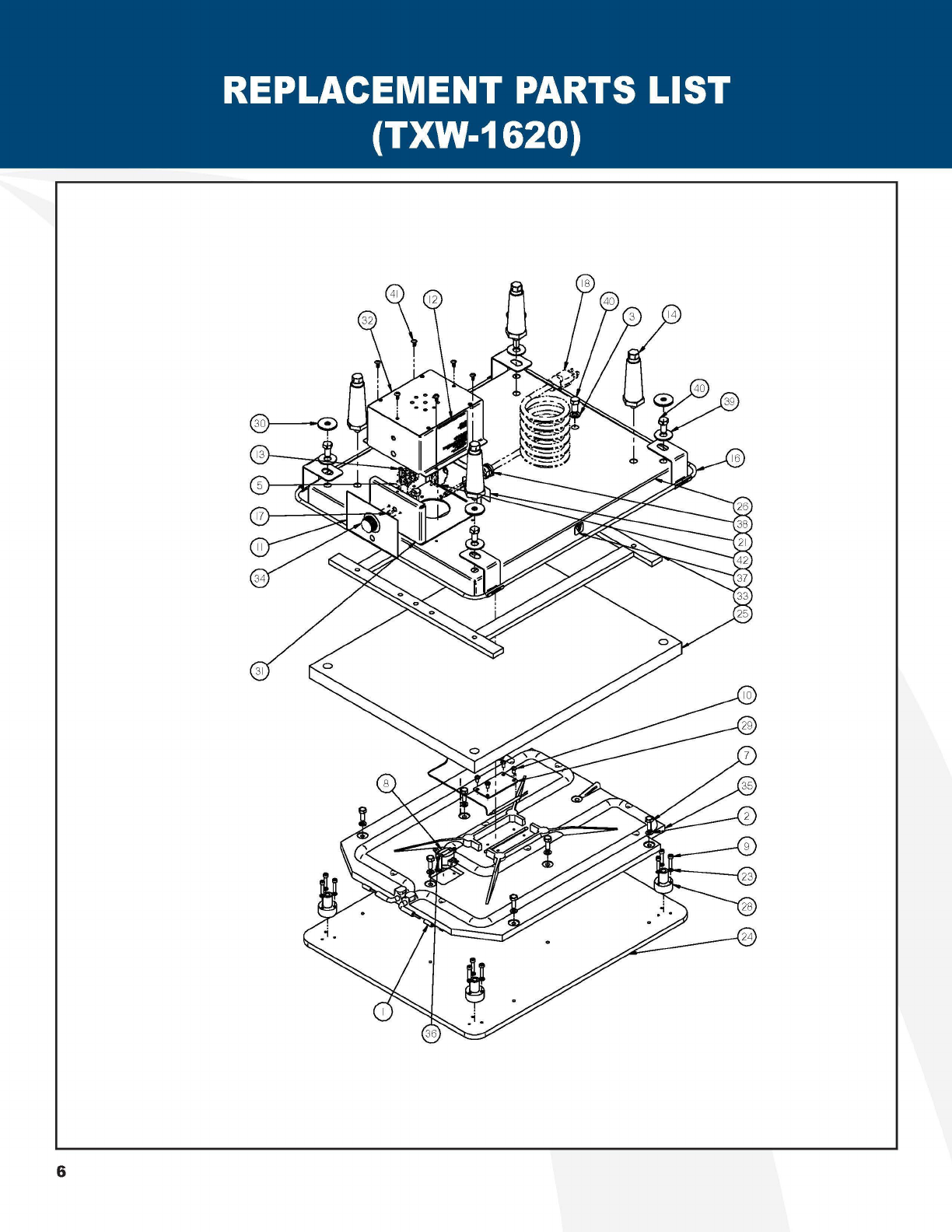

ITEM#I
PART#
TITLE
ITEM#I
PART#
TITLE
94919 CONNECTOR COMPRESS SLEEVE
2 79426 WASHER LOCK HEL SPR 1/4 ZP
3 79418 WASHER LOCK HEL SPR 3/8 ZP
4* 75077 SLEEVING SZ 4 H-C-1
5 72223 TERM
BO
601-2-KT37, 38,39
6 71085 AMBER INDICATOR LIGHT 230V NL2951WL3A
7 71062 BOLT 1/4-28x0.750
8 70997 THERMOSTAT SNP 500F 49T21
9 70893 SCREW CPSKT 10-32x0.875
10 70630 SCREW MCH 10-24x0.375 PHPH
11
70352 DECAL TXW-1620
12 70268 DECAL HIX I.D.
3"
X
3"
SILVER
13 70236 SCREWTAP 8-18x0.750 PHPH DRL
14 70218 LEG METAL
TXW
15* 70212 MANUAL OWNERS
TXW
16 70059
TXW
1620 BURN GAURD
17 70048 THERMOSTAT CAPLARY CAP-122-483
18 39768 CORDSET 120v 14/3
STOW
5-15P
19* 36188 TERM 20-14 FDISC .250 NON SS
20* 34525 WIRE APPL 12GA250C/600V NPC
21
33605 DECAL, UNPLUG MACHINE
22* 33028 WIRE KIT TXW-1620 120V
23 32228 WASHER LOCK HEL SPR #10 ZP
24 3201024 1620 LAMINATED WARMER PLATE
25 3201013
TXW
1620 INSULATION
26 3201003 TXW20 BOTTOM COVER
27* 3200030 TXW-1620 PACKAGING
28 3102103 BOLT
ON
CORNER POST
29 3102102 2025 LAMINATED THERMO BULB COVER
30 3102004 TXW18R INSULATING WASHER
31
3101004
TXW
CONTROL BOX BASE
32 3101002
TXW
CONTROL BOX TOP
33 3100010 TXW20 LEG SUPPORT WELDMENT
34 23256 KNOB SKIRTED #1600
35 2011209 MODIFIED CASTING 1800WTXW1620 120V
36 15438 SCREWTAP 6X0.250 PHPH
37 14910 DECAL HOT SURFACE SYMBOL
38 13250 CORD GRIP HEYCO 1557 RDD201
39 12229 WASHER FLT .500x1 .250x.078 ZPS
40 10843 BOLT 3/8-16X0.750
41
10480 SCREWTAP 10x0.375 PHPH
42 10350 CIRCUIT BKR 1-POLE PTR 30A ST
7
15
8
ITEM#I
PART#
TITLE
ITEM#I
PART#
TITLE
94919 CONNECTOR COMPRESS SLEEVE
2 79426 WASHER LOCK HEL SPR 1/4 ZP
3 79418 WASHER LOCK HEL SPR 3/8 ZP
4* 72495 CORDSET 220V 14/3 SJTOW6-20P
5 72223 TERM
BO
601-2-KT37, 38,39
6 71085 AMBER INDICATOR LIGHT 230V NL2951WL3A
7 71062 BOLT 1/4-28x0.750
8 71060 MODIFIED HOSS CASTING FOR 2025
TXW
9 70997 THERMOSTAT SNP 500F 49T21
10 70893 SCREW CPSKT 10-32x0.875
11
70630 SCREW MCH 10-24x0.375 PHPH
12 70352 DECAL TXW-1620
13 70268 DECAL HIX I.D.
3"
X
3"
SILVER
14 70236 SCREWTAP 8-18x0.750 PHPH DRL
15 70218 LEG METAL
TXW
16* 70212 MANUAL OWNERS
TXW
17 70060
TXW
2025 BURN GUARD
18 70048 THERMOSTAT CAPLARY CAP-122-483
19* 34525 WIRE APPL 12GA250C/600V NPC
20 33605 DECAL UNPLUG MACHINE
21* 33027 WIRE KIT TXW-2025 220V
22 32228 WASHER LOCK HEL SPR #10 ZP
23 3201014 TXW25 INSULATION
24* 3200031 TXW-2025 PACKAGING
25 3200010 TXW25 LEG SUPPORT WELDMENT
26 3102103 BOLT
ON
CORNER POST
27 3102102 2025 LAMINATED THERMO BULB COVER
28 3102101
TXW
2025 PLATEN MODIFICATION 4
29 3102004 TXW18R INSULATING WASHER
30 3101100
TXW
2025 BOTTOM COVER
31
3101004
TXW
CONTROL BOX BASE
32 3101002
TXW
CONTROL BOX TOP
33 25720 WASHER FLT .406X1 .500X.120 ZPS
34 23256 KNOB SKIRTED #1600
35 15438 SCREWTAP 6X0.250 PHPH
36 14910 DECAL HOT SURFACE SYMBOL
37 13250 CORD GRIP HEYCO 1557 RDD201
38 10843 BOLT 3/8-16X0.750
39 10480 SCREWTAP 10x0.375 PHPH
40 10350 CIRCUIT BKR 1-POLE PTR 30A ST
9
10
ITEM#I
PART#
TITLE
ITEM#I
PART#
TITLE
94919 CONNECTOR COMPRESS SLEEVE
2 79426 WASHER LOCK HEL SPR 1/4 ZP
3 79418 WASHER LOCK HEL SPR 3/8 ZP
4 72495 CORDSET 220V 14/3 SJTOW6-20P
5 72223 TERM
BO
601-2-KT37, 38,39
6 71085 AMBER INDICATOR LIGHT 230V NL2951WL3A
7 71062 BOLT 1/4-28x0.750
8 70997 THERMOSTAT SNP 500F 49T21
9 70893 SCREW CPSKT 10-32x0.875
10* 70793 WIRE APPL 16GA250C/600V NPC
11
70352 DECAL TXW-1620
12 70630 SCREW MCH 10-24x0.375 PHPH
13 70268 DECAL HIX I.D.
3"
X
3"
SILVER
14 70236 SCREWTAP 8-18x0.750 PHPH DRL
15 70218 LEG METAL
TXW
16* 70212 MANUAL OWNERS
TXW
17 70048 THERMOSTAT CAPLARY CAP-122-483
18 33605 DECAL UNPLUG MACHINE
19 32228 WASHER LOCK HEL SPR #10 ZP
20* 3200032 TXW-4025 PACKAGING
21
3102106 M-TXW4025 TOP PLATE 3/8
22 3102103 BOLT
ON
CORNER POST
23 3102004 TXW18R INSULATING WASHER
24 3101507 CAPILLARY TUBE COVER
25 3101503
TXW
4025 INSULATION
26 3101501
TXW
4025 BOTTOM COVER
27 3101004
TXW
CONTROL BOX BASE
28 3101002
TXW
CONTROL BOX TOP
29 3100040 TXW4025 LEG SUPPORT WELDMENT
30 3100030 ASSEMBLY, TXW4025 BURN GUARD
31
25720 WASHER FLT .406X1 .500X.120 ZPS
32 23256 KNOB SKIRTED #1600
33 21482 SCREWTAP 8x0.500 PHPH
34 2011206 CASTING 16X20 220V TXW4025
35 15438 SCREWTAP 6X0.250 PHPH
36 14910 DECAL HOT SURFACE SYMBOL
37 13250 CORD GRIP HEYCO 1557 RDD201
38 10843 BOLT 3/8-16X0.750
39* 10563 WIRE KIT TXW-4025 220V
40 10480 SCREWTAP 10x0.375 PHPH
41
10351 CIRCUIT BKR 1-POLE PTR 40 AMP

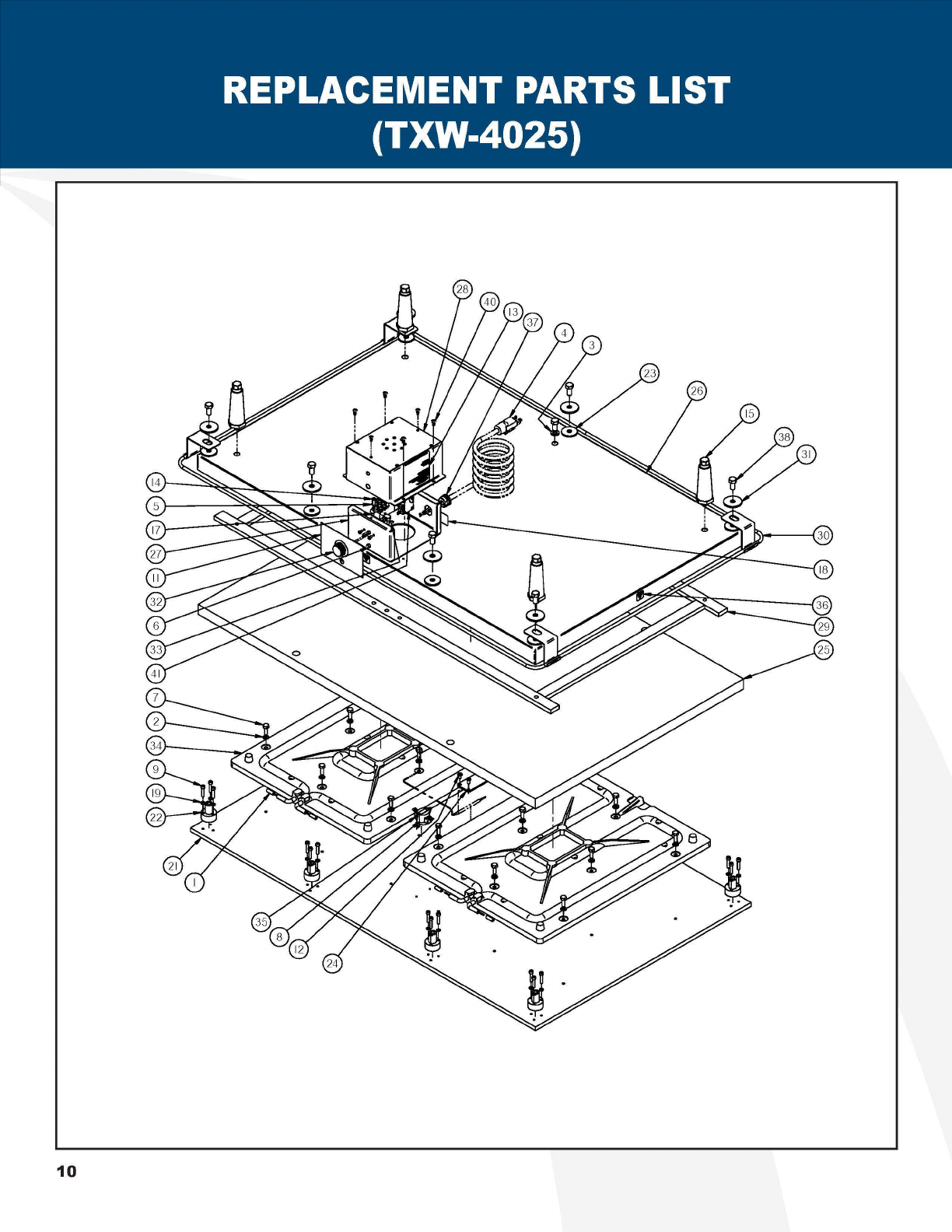

11

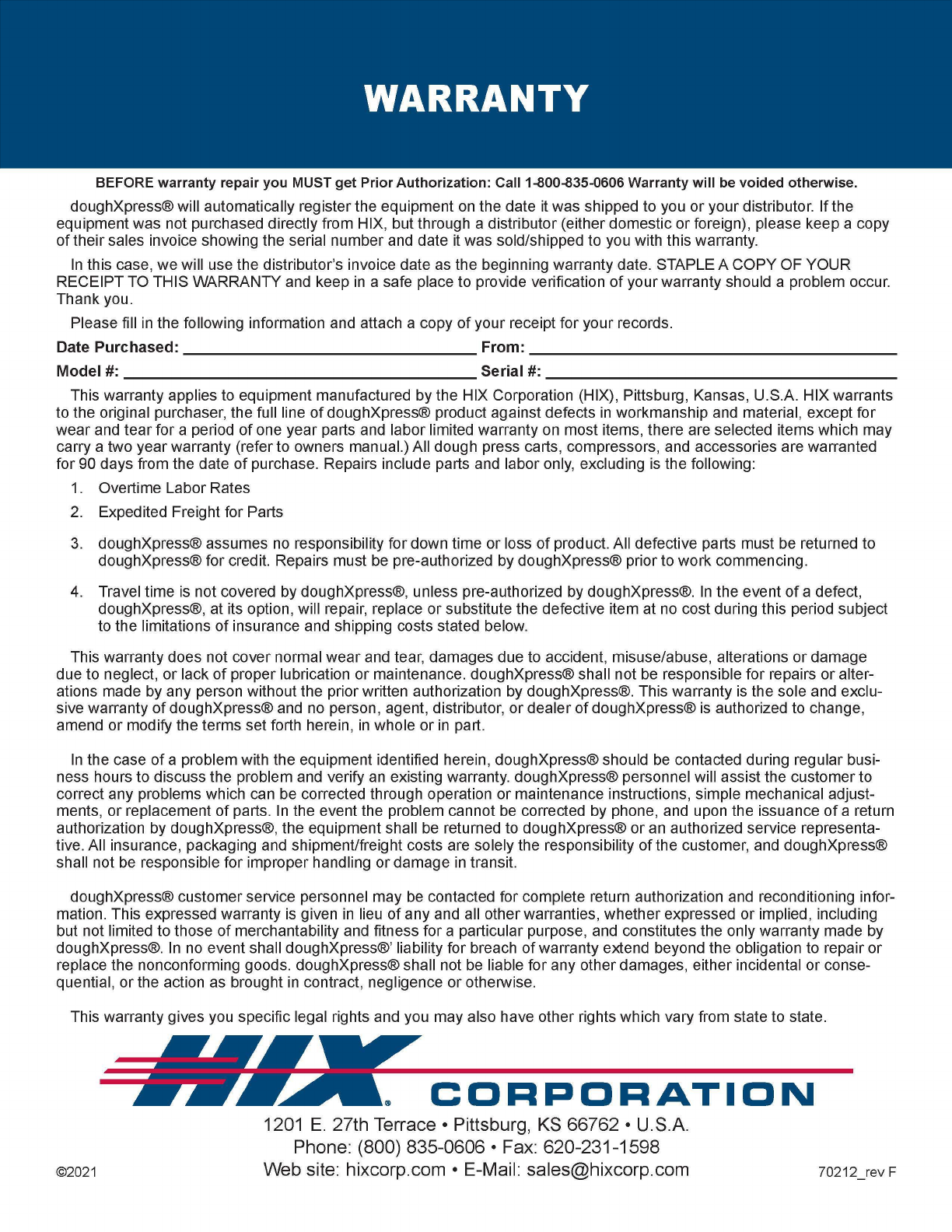

BEFORE warranty repair you MUST get PriorAuthorization: Call 1-800-835-0606 Warranty will be voided otherwise.
