Hix DOUGHXPRESS TXM-15 User manual
OPERATOR'S
MANUAL
TXM-15
dough
Xpress.
Manual Cold Meat Press
HIX'"
CORPORATION
COMMERCIAL
FOOD
OIVISON
For
Customer Service:
Call 1-800-835-0606
or
Visit
hixcorp.com
#11--
~CORPORATION
CONTENTS
Receiving & Setup
........................
3
Operation
...............................
3
Cleaning
................................
3
Parts
List
...............................
4
Warranty
................................
6
BEFORE
warranty
repair
you
MUST get
Prior
Authorization
#II-~
CORPORATION
UNPACKING
Remember to save all packing materials -including any crating, boxes, liners, and boards.
You
may need
these for shipping your machine or should a repair
be
necessary
in
the future.
INSPECTION
Inspect your machine for hidden shipping damage. Contact the delivery company immediately, should you find
damage.
PLATEN SURFACE
Slight surface imperfections are a normal part ofthe aluminum casting process for the platens
on
your press.
These are not considered a defect and do not affect the functionality of the machine
in
any
way.
NOTE: Upon receiving your new equipment, some debris or residue may be present
on
the aluminum
platen(s). Clean the platens per the instructions provided prior to first use.
OPERATION
1.
With the press
in
the open position, adjust the press to the desired thickness by turning the thickness
control knob located
on
the top of the machine. Thickness
is
reduced by turning the know clockwise and
increased by turning it counterclockwise. Using the thickness control knob, turn left for thicker or right for
thinner until you have the thickness you desire.
CAUTION: DO NOT OPERATE THIS PRESS WITH ANY OTHER PERSON(S) / HAND(S) NEAR YOU
OR
THE PRESS. SERIOUS INJURY COULD RESULT.
2.
Pull down the handle all the
way,
applying pressure, until it stops. Raise the handle all the way
up.
3.
Rotate the upper platen away and remove your flattened product.
CLEANING
CLEANING THE PLATENS
1.
Open the press for easier access
2.
Clean the platen(s) with a mild soap and warm water applied with a soft cloth or sponge. Do not use steel
wool, scrub sponges, kitchen or oven cleaners, or any other kind of abrasive material. This will damage the
platen.
3.
Wipe clean with a dry cloth.
CLEANING OUTSIDE SURFACES OF THE MACHINE
Use a mild soap and warm water applied with a soft cloth or sponge.
Do
not use steel wool, scrub sponges,
kitchen or oven cleaners, or other abrasives that will damage the surface.
LUBRICATION
Your press requires lubrication every 15,000 cycles, or every 6 months. Lubricate weekly
in
a heavy use pro-
duction evironment. Use NSF/NLG12 rated food grade grease (such
as
Bel-Ray No-Tox #2 or equivalent). A
general purpose food grade machine
oil
spray
is
also acceptable such
as
CRC03055 lubricant (available from
retailers such as Amazon). Lubricate all moving or hinged points.
3
4
ITEM#I
PART#
TITLE
ITEM#I
PART#
TITLE
9152500 M-TXM15ANTI ROTATION BOLT
2 9151002 TXM-15 CP FRAME WELDMENT
3 9150030 TXM15 PIVOT ARM WELDMENT CURVED
4 9141500 TXM-15 CP LOWER PLATEN
5 9141010 SWG15 PRESSURE ADJ ROD
6 87056 NUT 1/2-13 JAM
7 84806 NUT WING 5/16-18 ZPS
8 71662 NUT 5/16-18 JAM NYLON INSERT ZPS
9 71498 BOLT 5/16-18x0.750
GS
10*
71011
M-DECAL DOUGHXPRESS
11
7051500
DD
LWR
PLATEN SPACER
12 7051035 TXM15 MAIN ARM STOP SLEEVE
13 70426 CLAMP TOGGLE TXM15 SHOVEL DIP
14* 70359 MANUAL OWNERS TXM-15 CP
15 70283 PLUG TUBE 1.5x1.5x.120 BLK
16 70268 DECAL HIX I.D.
3"
X
3"
SILVER
17 65935 SCREW SET 5/16-18x0.750 ZP
18 63886 BOXHT SWINGMAN LINER
19 63622 BEARING THRUST .500x0.937x.078
20 63584 SWG15 PLATEN MNT PLATE
21
63320 BEARING WSHR .500x0.937x.031
22 62898 KNOB PHENOLIC SWINGMAN
23 37214 NUT M12x1.75 ZPS
24 25434 SCREW SET 5/16-18x3.000
25 24732 WASHER FLT .344X0.688X.063 ZPS
26 16683 WASHER FLT .375x0.875x.078 ZPS
27 14907 BOXHT PRESTO 15 BOX
28 14571 NUT 3/8-16 ZPS
29 11434 DECAL, FOR SERVICE 2 X
.5
30 10963 DECAL, QR CODE DXP
31
10769 BOLT 5/16-18x1 .000
32 10664 DECAL MADE
IN
USA
33 10550 DECAL THICK THIN
34 0101013 SWINGMAN 15 MOUNTING BOARD
5
BEFORE warranty repair you MUST get PriorAuthorization: Call 1-800-835-0606 Warranty will be voided otherwise.
doughXpress® will automatically register the equipment
on
the date
it
was shipped to you or your distributor. Ifthe
equipment was not purchased directly from HIX, but through a distributor (either domestic or foreign), please keep a copy
of
their sales invoice showing the serial number and date
it
was sold/shipped to you with this warranty.
In
this case, we will use the distributor's invoice date
as
the beginning warranty date. STAPLE A COPY OF YOUR
RECEIPT
TO
THIS WARRANTY and keep
in
a safe place to provide verification
of
your warranty should a problem occur.
Thank you.
Please fill
in
the following information and attach a copy
of
your receipt for your records.
Date Purchased:
________________
From:
___________________
_
Model#:
__________________
Serial#:
_________________
_
This warranty applies to equipment manufactured by the HIX Corporation (HIX), Pittsburg, Kansas, U.S.A. HIX warrants
to the original purchaser, the full line
of
doughXpress® product against defects
in
workmanship and material, except for
wear and tear for a period
of
one year parts and labor limited warranty
on
most items, there are selected items which may
carry a two year warranty (refer to owners manual.) All dough press carts, compressors, and accessories are warranted
for
90
days from the date
of
purchase. Repairs include parts and labor only, excluding
is
the following:
1.
Overtime Labor Rates
2.
Expedited Freight for Parts
3.
doughXpress® assumes
no
responsibility for down time or loss
of
product. All defective parts must
be
returned to
doughXpress® for credit. Repairs must
be
pre-authorized by doughXpress® prior to work commencing.
4.
Travel time
is
not covered by doughXpress®, unless pre-authorized by doughXpress®.
In
the event
of
a defect,
doughXpress®, at its option, will repair, replace or substitute the defective item at
no
cost during this period subject
to the limitations
of
insurance and shipping costs stated below.
This warranty does not cover normal wear and tear, damages due to accident, misuse/abuse, alterations or damage
due to neglect, or lack
of
proper lubrication or maintenance. doughXpress® shall not
be
responsible for repairs or alter-
ations made by any person without the prior written authorization by doughXpress®. This warranty
is
the sole and exclu-
sive warranty
of
doughXpress® and
no
person, agent, distributor, or dealer
of
doughXpress®
is
authorized to change,
amend or modify the terms set forth herein,
in
whole or
in
part.
In
the case
of
a problem with the equipment identified herein, doughXpress® should
be
contacted during regular busi-
ness hours to discuss the problem and verify
an
existing warranty. doughXpress® personnel will assist the customer to
correct any problems which can
be
corrected through operation or maintenance instructions, simple mechanical adjust-
ments, or replacement
of
parts.
In
the event the problem cannot
be
corrected by phone, and upon the issuance
of
a return
authorization by doughXpress®, the equipment shall
be
returned to doughXpress® or
an
authorized service representa-
tive. All insurance, packaging and shipment/freight costs are solely the responsibility
of
the customer, and doughXpress®
shall not
be
responsible for improper handling or damage
in
transit.
doughXpress® customer service personnel may
be
contacted for complete return authorization and reconditioning infor-
mation. This expressed warranty
is
given
in
lieu
of
any and all other warranties, whether expressed or implied, including
but not limited to those
of
merchantability and fitness for a particular purpose, and constitutes the only warranty made by
doughXpress®.
In
no
event shall doughXpress®' liability for breach
of
warranty extend beyond the obligation to repair or
replace the nonconforming goods. doughXpress® shall not
be
liable for any other damages, either incidental or conse-
quential, or the action
as
brought
in
contract, negligence or otherwise.
This warranty gives you specific legal rights and you may also have other rights which vary from state to state.
©2021
CORPORATION
1201
E.
27th Terrace• Pittsburg,
KS
66762 • U.S.A.
Phone: (800) 835-0606 • Fax: 620-231-1598
Web site: hixcorp.com • E-Mail: [email protected] 70359 rev D
Other manuals for DOUGHXPRESS TXM-15
1
Table of contents
Other Hix Power Tools manuals
Popular Power Tools manuals by other brands
Cherry Aerospace
Cherry Aerospace CHERRYLOCK G695B Original instructions
Alcoa
Alcoa Huck 2600 Series instruction manual
Rossum Electro-Music

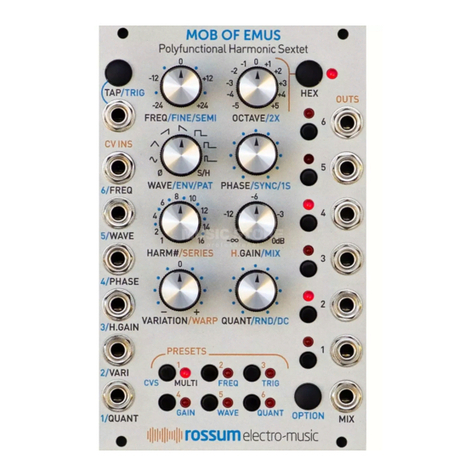

Rossum Electro-Music MOB OF EMUS Operation manual
