HL Display Multivo Max User guide

Multivo™ Max
Mounting instruction
- Installation on wire shelf

Multivo™ Max - Mounting instructions on 3-4 mm wire shelf
Place the MU-rail with the thinner
edge outwards.
Place the pusher tray on the rail.
Multivo™ Max is now ready-installed on wire shelf. For the bottom shelf, a rail of magnetic tape is used.
Press the MU-clip, item reference: 732757, on the wire
shelf until you hear a click. Use at least three clips per
shelf, mount these at approximately 15-20 cm interval.
Remove the protective plastic from the rail.
MU-WRAIL (MU-clip included) or MU-MAX rail
MU-MAX pusher tray
For freezer: Use TTFC
For cooler: Use TTMR, TTP & TP
TAPE RECOMMENDATION:WHAT YOU NEED:
Press down firmly.
© HL Display - CORP0218AB6 - Edition 1/2018

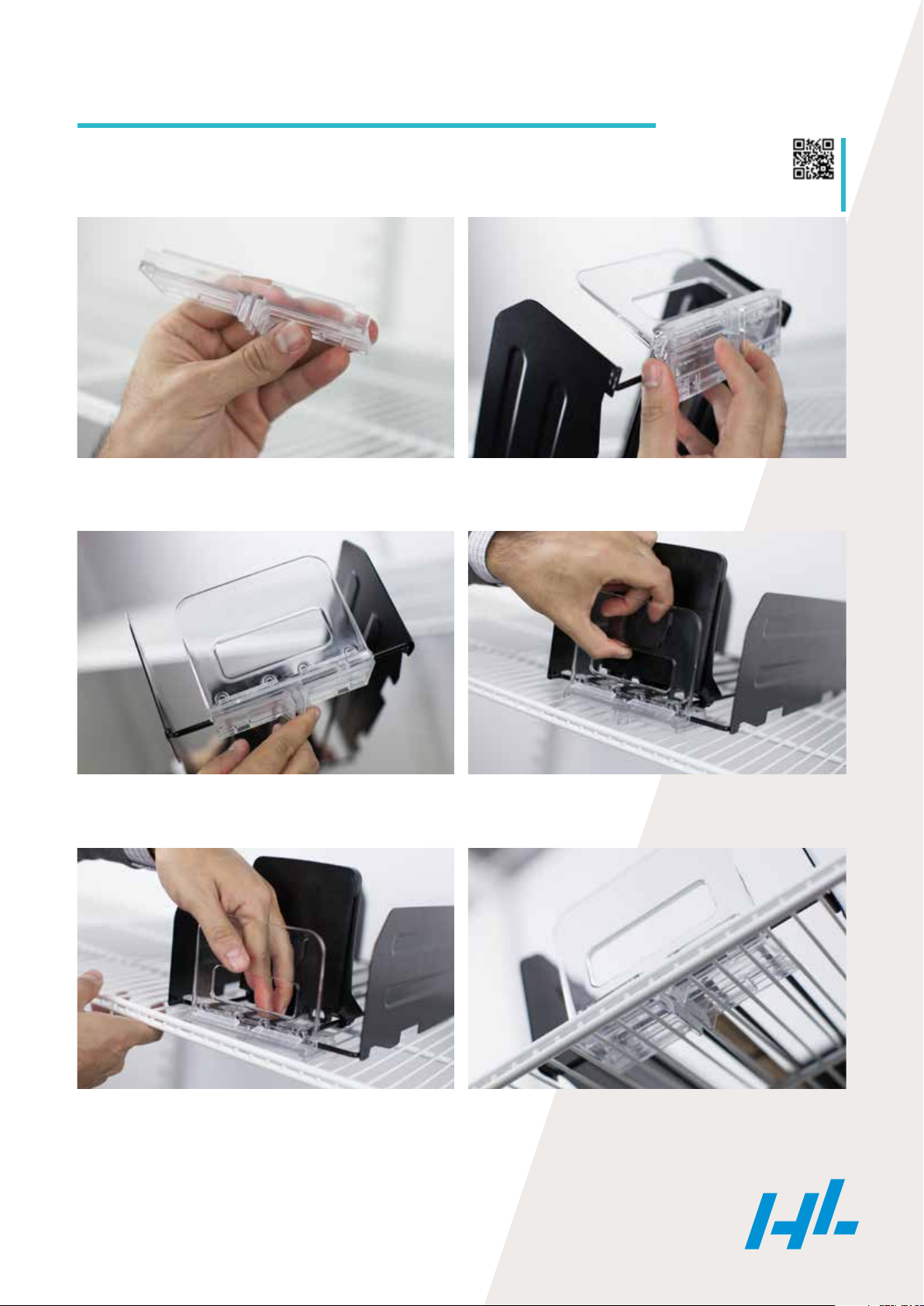

Multivo™ Max - Mounting instructions on 3 mm wire shelf
Apply force and make sure the back side of the MU-MAX
clip attach correctly to the plastic front. The MU-MAX clip
should not move.
Mount the MU-MAX tray in the wire shelf and adjust the
tray dividers according to package width.
Make sure the MU-MAX clip is properly attached to the
shelf.
Multivo™ Max is now ready-installed on wire shelf.
MU-MAX clip, item: 554257. Front clip side as shown in
the picture.
Open the metal dividers, attach the MU-MAX clip to the
plastic front making sure that the frontal part is in right
position (pic 1).
HL DISPLAY AB
Cylindervägen 18, Box 1118
131 26 Nacka Strand - Sweden
Tel [phone]
[e-mail]
www.hl-display.com
Scan to watch
installation video!
MU-MAX clip
MU-MAX pusher tray
WHAT YOU NEED:
© HL Display - CORP0218AB6 - Edition 1/2018
