Hobbico Extra 300 User manual

ALMOST READY-TO-FLY RADIO CONTROLLED MODEL AIRPLANE
•SUPERIOR QUALITY INAN ALMOST-READY-TO-FLY MODEL.
•SPECIAL COVERING PROCESS YIELDS A STRONG, BRILLANT, AND FUEL-PROOF
FINISH.
•80%COMPLETE OUTOFTHE BOX - NOSANDING, PAINTING, OR FINISHINGREQUIRED
•WORLD CLASS AEROBATIC CAPABILITIES, JUST LIKE THE REAL EXTRA 300.
•BEAUTIFUL SEMISCALE APPERANCE.
WINGSPAN: 553/4"
LENGTH: 44 1/2"
WING AREA:543sq.in.
WEIGHT: 91-95 oz.
RADIO: 4-Channel (Not Included)
ENGINE:.46Performance 2-Cycle (NotIncluded)
or60-70 4-Cycle (Not Included)
ACCESSORIES: Starting Battery w/Clip, FuelEtc. (Not Included)
ENTIRE CONTENTS © 1990, V1.0INC.

IMPORTANT: BEFORE YOU BEGIN.
Congratulationsonyourchoiceofan ASAP kit.BEFORE you beginassembly, carefully lookthroughtheboxand
thoroughly read the instruction manual.Also check the parts listagainstthe items inthe boxto besure you have
everythingthat isonthe parts list.Also checktheparts listagainstthe items inthe boxto besure you have everything
that ison the parts list.Although we have taken great painsto simplify the buildingprocess, there are noshortcuts
to safety. These instructions are your guideto safe andsuccessful flying.
Onlyafter you are thoroughly familiar with the construction process shouldyou proceedwith assembly.
Remember! Undernocircumstanceswilla dealeraccept a kitbackfor return ifassembly has already begun.
Ifthe Extra 300 isnotquitewhat youexpected, return itto yourdealerinNew andUnusedcondition.However,
wethinkyouwillagreewithusthatthe Extra300 kitisoneofthefinestmodelsofitstypeandwillofferyou many hours
of enjoyment.
BEFORE ASSEMBLY
CONSTRUCTIONHINTS:
1.Trialfiteachpartbeforegluing.Becertainthatthepartsfitproperly.
2.UsePlastiZap ora thintypeCyanoacrylate gluefor installingthe
plastic parts. Donotusetoomuch,as itmay run andspoilthe
appearance.DonotgetCyanoacrylateonthefoam partsoftheExtra
300.Cyanoacrylate will destroy thefoam.
3.Itisbestto use30minute epoxywhere required.Thisallowstime
topositiontheparts before theepoxy cures.
4. Before assembly, placeyour radiosystem oncharge.
5.Thereisa metricruleronpage3 toaidinfindingthecorrect screw
sizes.
ADDITIONAL ITEMS
The following items are neededfor completing theExtra 300kit:
Medium Fuel Tubing (12")................................................................... 1
.46Sized 2-Cycle Engine.................................................................... 1
OR
.60 - .70Sized 4-Cycle Engine............................................................ 1
4-ChannelRadioSystem .................................................................... 1
Pacer PlastiZap CA Glue .................................................................... 1
Goldberg #481 Foam Rubber ....................................................................1
Hobbico(HCAR3950)30-Minute Epoxy.............................................. 1
Silicone Sealer.................................................................................... 1
Dubro 121 E-Z Connects (Optional) ....................................................2
Dubro 203 Kwik-Switch Mount (Optional)............................................ 1
Hobbico(HCAR3760) Threadlock....................................................... 1
Dubro In Line Fuel Filter...................................................................... 1
TOOLSREQUIRED
TOOLS-
YouwillneedthefollowingtoolstoassembletheExtra300:X-Actoknife,
Philipsscrewdriver(smallandmedium),needlenosepliers,drill,drillbits,
sandpaper,ruler,andstring.
2-
Mostenginesrequire a 1.5V glowplugstarting battery,a glowplugclip,
and a quality brand fuel (consult the enginemanufacturer's
recommendatiions).
Aqualitybrandenginewillbeneeded.WerecommendtheO.S..46SF
2-cycleengineorthe O.S.70Surpass4-cycle. Apropandfueltubingwill
berequiredfortheengine.
Afour-channel radiocontrol sytem with4 servos isrequired fortheExtra
300.Thevarious components arepicturedabove.

PARTS LIST
Before assembly, match the parts
inthe explodedview of the Extra
300 with the parts inthe kit.Check
off each partonthe parts list.Ifany
parts are missing or damaged
return the kitto your hobbydealer.
Check to make sure that allthe
listedpartsare includedinyourkit.
1Fuselage
2Right Wing
3Left Wing
4Wing Center Cover (Plastic)
5Vertical Fin
6Rudder
7HorizontalStabilizer
8Cowl (4Piece)
9FuelTank
10NeopreneRing
11PlasticDisc(Small)
12PlasticDisc(Large)
13Silicone Tubing
14Clunk
153x18mmSelf-Tapping Screw
16RubberPlug
17PlasticCollar
Aileron Horn
Control Horns
Snap Clevis
Rod Clevis
BackPlates
18FuelPipe
19Mounting Plates(Angled)
20Clevis Retaining Tube
21PushRod Exits
22Stab.Root Cover (Plastic)
23Wheels
24 MainGear
25 Wheel Pants
26 Cock Pit
27 Canopy
28 Main Wing Joiners
29 Rear Wing Joiner
30 Front Wing Joiner
31Rubber Shock Absorber
32 Cowl Brace
33Aileron Servo Tray Mount
34 Aileron Servo Tray
35 8mm Dowel Rod
36 Wing Bolt Mounting Block
37 BalsaTank Support
38 Wing Mounting Brace
39 3x12mmSelfTapping Screw
21/4" Spinner
Spinner Back Plate
40EngineMount
41MountingPlates
42 ShrinkTubing
43 Control Rod (Short-Bent)
44 Control Rods
45 Throttle Control Rod (Long)
46 Throttle Tube
47 Wood Push Rods
48 Plastic Disc(Red)
49 MainServo Tray
50Stabilizer Supports
51Plastic Disc(Blue)
52 CockPit Mounts
53Brass Sleeve
54Brass Tube
55Tail Wheel
56Tail Gear
57 Tail Gear Mount
581/8" Wooden Wedge
590-Ring
60 Collars
61Wheel Collar
624 x 40mm Screw
634 x 30mm Screw
642x15mmScrews
653 x 8mm Self-Tapping Screw
663 x 8mm Screw
673x12mmSelf-Tapping Screw
683 x 5mm Screw
693.5x 15mm Screw
703x12mmScrew
714x15mmScrew
724 x 20mm Screw
734mm Nut
742mm Nut
75 3mm Nut
764mm Washer
773mm Washer
782mm Washer
79LockWashers
804mm Washer
814mm Nylon Nut
82 Cowl Stripes (Red)
83DecalSheet
-3-

WINGASSEMBLY
A. RightWing (Aileron Installed)..........1
B.Left Wing(Aileron Installed).........1
C.MainWing Joiner......................... 2
D.RearWing Joiner......................... 1
E. FrontWing Joiner........................1
FWing CenterCover(Plastic)........1
G.8mm Dowel Rods ..........................2
H.Wing Bolt Mounting Block............. 1
I.WingMountingBrace..................1
J. 4 x 30mm Bolts ...........................2
K.4mm Washer ...............................2
L 0-Ring ........................................2
M.Aileron Servo Tray ......................1
N.Aileron Servo Tray Mount............1
0. Main Swvo Tray.......................... 1
3.Remove thefoam coveringfrom theaileronservo mountingarea
fromthetopsideofthewing. Testfitthemainwingjoinerandthe
rearwingjoinerintherightand left wing sections. Thedihedralangle
ofthejoinersshouldmakethe wingtipsslightlyhigherthanthe
center.
4. Makesurethatthereisnogapbetweenthewinghalves.Ifthereis,
sandthewingjoinerendsuntilthereisa tightfit.
1.Alignandepoxythetwo mainwingjoinerstogether.Holdtightuntil
thegluesets.You'llnoticethatthereisdihedralanglecutintothe
joinerssomakesuretheyareperfectlylinedup.
2.Checkeachwinghalfforsmoothaileronoperation.Itisagoodidea
toexercise (move backandforth) theaileronsto insureeasy
deflection.Trim theendof theaileronifanyrubbingisnoticed.
-4-
5.Applyepoxytoonehalfofonesideofboththemainandrearwing
joinersandgluethemtoonewinghalf.Makeabsolutelysurethe
wingjoinerpocketiswellcoatedwithepoxy. Makesure the
dihedralangleiscorrectandthatthewinghalves are slidinallthe
way. Cleananyexcess epoxy withpapertowel andisopropyi
alcohol.

6.After thejoiners havecured,applyepoxy whereshown.Thewing
roots, thewing joiners shouldbeevenlyandliberallycovered with
epoxy. Thewingjoinerpocketshouldbeheavilycoatedwithepoxy.
9.Drilltwo 8mm (5/16") holes intothewingjoiners for thedowel
rods.Drillthroughthefront joinerandintotherear wingjoiner.
7.Slidethe two winghalves together slowly andwipeoffany excess
glue.Withthewingona flatsurface, holdonewinghalfdownsothe
otherendwillbeelevated. Thewingtip shouldbe1 1/16"offof
thesurface. Holdthetwowinghalvesfirmlytogetherwithtapeuntil
theepoxy hascured.
10.Epoxythetwo dowelrodsintotheholes.Makesuretheypassallthe
way throughthefront joinerplateandareinserted intotherear
joiner.
8.Oncecured,remove thetape.Positionthefrontjoiner as shown.
Theflat edgeof thejoinershould lineupwith thetop of the wing.
Next,removeandepoxyinthatsameposition.Letcure.NOTE: You
may haveto trim thecovering fora tightwood to woodjoint.Thisis
very important tothestructural integrity of thewing.
11.Positionthewingcenter cover on thebottomof thewing. Apply
Cyanoacrylateglue(PlastiZap) undertheedges andholduntil it
sets.
-5-

12.Epoxyinthemainservo tray as shown.15.Screwinthewing boltsintothe wing bolt mounting block so thatthe
heads are 1/4" abovethe block.Apply inkorpaint to the heads of
thetwo bolts.
13.Testfitthewingboltmountingblocktotheinsideof thefuselage. The
blindnuts shouldface down.Makesure that theblindnuts are
securlypressed inandthen placeadrop or two ofCyanoacrylate to
holdthemin.Makesure thatnoglue gets on thethreads
16.Aftertheepoxyhascured,placethewingintothefuselageasshown.
Putthefront infirstby insertingthedowel rods inthe holes. Once
inplacelowerthebackintoposition.This willmarkwhere you need
to drill.
14. Epoxyinthewingboltmountingblock.Thisisahighstresspointand
extra care should betaken to ensure a strong joint. Let cure. 17.Placethewingmounting braceonto thewing as shown andcenter
thewingandbrace inthefuselage. NOTE:Thetwo indentations on
thebraceshouldface up.Trim away any wood to allow theaileron
torquerodsto move freely. UsePlastiZapto gluethis inplace.
-6-

LANDING GEAR INSTALLATION
18.Drilltwo 4mm holes90'from thetopwingsurfaceforthewingbolts
where thepaintmarksare.
19.Assemble thewingboltsas shown(Bolt- Washer - Wing-0-ring)
andtemporarilyfastendownthewing.Checkfor a goodfit and
thenremove.
20.Trialfittheaileronservotraymountandtraytothewing.NOTE:The
frontedgeshouldbeonthewood.Youwillhavetotrimawayalittle
coveringtoinsureagoodfit. You mayalsohavetotrimthebottom
oftheservotraymountsoitwillfitflush insidethewing.Epoxy the
aileronservotraymountintotherearsectionofthewingservomount
andthenepoxy inthetray.
A.MainGear..................................1 H Wheel Pants...............................2
B. Rubber Shock Absorber.............. 1 I.4mm x 40mm Screw ...................2
C4mm x 30mmScrew ....................2 J. 3mm x 12mm Screw ...................2
D.4mmWasher.............................4K. 3mmWasher.............................2
E.4mm Nut... .................................6 L 3mm Nut. ................................2
F.4mm Nylon Nut............................ 2 M. Plastic Spacer................................ 2
G. Wheel............................................2
1.Drilltwo4mmholesattheindents.
2.Remove thewing.Placethetwo 4mm x 30mm screwswiththe
4mmwashersintothetwolandinggearholesthatarelocatedinside
thefrontfuselagesection.

3.Thread two 4mm nutsonto thetwo screws andtightenNext place
therubbershockabsorberover thescrews.
6.Arrange theaboveparts as shownandthenassemble together.Do
this twice.Place threadlockonthe threadswhen installing the nuts
4.Nowplacethemain gear overthe screwsand secure itwithtwo 4mm
nylon nutsNOTE:tighten thenuts all thewayandthenloosenthem
bothoneturn.Thiswillgivethegearthecorrectshockabsorbing
qualities.
7.Placethe3mm screw/washer intothetop holeof the wheel pants
from theinsideAnd then attach itto the top holeof themaingear
usinga3mm nutwiththreadlock.
5.Next, takethe two wheelpantsanddrilltwo holes ineach oneThe
first holeshould beat theindent(4mm indiameter) The second
shouldbe3/8" above thefirstandsmaller (3mm diameter) Apply
thewheel pant's decal stripes to both sidesof thetwo wheelpants.
8.Flareopenthepantsandinsertthewheelassembly Installthe4mm
nutwith threadlock andtighten, holdingtheinsidenutwith needle
nosepliers.
-8-

9.Makesure that both wheels rotatefreely.If they donot,trim away
theplastic as needed.Orif need be,loosen thenuts and reposition
thewheel.
2.Installthetwo mountingplates onto the enginemount. Next, paint
astriponeach plateusingfour4mm x 15mm screws andwashers
andproceedwith thefollowingstepbefore the paintdries.
ENGINEINSTALLATION
FOLLOWTHE SAME PROCEDURE FOREITHER 2-CYCLE OR 4-
CYCLE INSTALLATION.
A. Engine Mount.............................................................................. 1
B.4mm x 20mm Screws .................................................................4
C. Mounting Plates .......................................................................... 2
D.4mm x 15mmScrews .................................................................4
E. 4mm Washers............................................................................. 4
F. LockWashers .............................................................................8
G. 3.5mmScrew ..............................................................................4
H.3.5mm Nuts ................................................................................4
3.Before touching the plates, aligntheenginesoitispointingstraight
forward. Center theenginewith theplates and carefullytouch the
engineintoposition.Now carefully remove the engineandthere
willbetheguides for drillingthemounting holes.
1.Installtheenginemountto thefuselage usingfour4mm x 20mm
screws andfour lockwashers. Note thedirectionthemount is
installedfor properenginepositioning.Also usethreadlockonthe
screw threads.
-9-
4.Drilltwo4mm holesineachmountingplateatthemarks.

5.Mounttheplatestotheengineusingthe3.5mmscrewsupfrom the
bottomasshown.Nextapplyscrewlockingcompoundtothescrew
threadsand tighten onthe3.5mmnuts with lockwashers. Do this
tobothsides.
6.When mountinga four cycle engine,theexisting throttle control
rod hole(for 2-cycle engines)willnotwork. Position the enginetothe
mount anddrilla 1/8"holeintothefirewall soit will lineupwith the
throttlearmontheengine.
7.Nowmount theengineto thefuselage.Usefour 4mm x 15mm
screwswiththefour4mmwashers.Besuretousethreadlockonthe
screws.
ENGINEINSTALLATION
A. Fuel Tank................................................................................... 1
B.Clunk ..........................................................................................1
C. Silicone Tubing .................................................................... .. ...1
D. Fuel Pipe........................................................... (2) Long (1) Short
E.PlasticDisc(Large).....................................................................1
F.PlasticDisc(Small ......................................................................1
G.3mm x 18mm Self-Tapping Screw ..............................................1
H.RubberPlug.............................................................................1
I.NeopreneRing............................................................................1
J.BalsaTankSupport....................................................................1
1.Installoneofthelongandone oftheshort fuel pipesthrough the
rubberplug.Centerthepipesinthecap. Placethetwoplasticdiscs
ontoeachside.Thelargeoneshouldbeontheoutside. Thebump
onthesmalloneshouldface therubbercap Putthe3mm x 18mm
self-tappingscrewinthecenterholefromthelargeendandtighten
itonlyacoupleof turnsintothesmalldisc
10-
2.Attach the silicone tubing to theshort fuelpipeand attachthe clunk
to theother end

3.Carefully benduptheother fuel pipesoitwilljusttouch theinside
top of the fueltank.
6.Puta beadof siliconesealeron theneoprenering.
4. Attach the complete fuel tank capto thetank.Makesure thatthe
bentpipeis pointingto thetop. Slidethecapon untilthelipon the
fueltankisinthe groove of the cap.Then tightenthe screw. Check
to make sure theclunkis free to swingatthebottomofthetank.This
iswhere the term "clunk"comes from.
7.Installthefueltankfromtheinside ofthefuselagewiththefuellines
facing front. Slidethe tank intoits mountandupinto theholeinthe
front of thefuselage.Makesurethatthe fuel tubingisthroughthe
hole.
5.Glue the neoprene ring to the tankwith siliconesealer. Attach two
piecesof fueltubing(6"each) to the pipes.Oneisforthe carburetor
the other isfor thepressure tapon themuffler.
8.Epoxythetanksupportto theinsideof thefrontfuselage. Once
dryapplya beadof siliconesealerwhere the supportandthe
tanktouch.
-11 -

RADIOINSTALLATION
A. Aileron Horn................................. 2
B. Wood Push Rods......................... 2
C.Control Rods................................ 5
D.ControlRod(Short-Bent).............2
E. ShrinkTubing..............................1
F.ThrottleControlRod (Long).........1
G.SnapClevis.................................2
H. Push RodExits ...........................3
i. ClevisRetainingTubing ..............1
J. Throttle Tube............................... 1
3.Screw two snapclevises half way upthethreads onthe aileron
controlrods. Next, cut two piecesof theclevisretainingtubing
(3/16")andslidethemontotherods.
1.Checkthefitofyouraileronservo intheaileron servo tray. You may
havetotrimaway some of the servo tray for a good fit.Installthe
rubbergrommetsonto theservo case flange. Route the servo lead
throughtheholeinthebottomof thewingandfasten itto theaileron
servomountusingthe screws providedwiththeradiosystem.
4.Attach theclevises to theaileron horns andslideon the retaining
tubes.After checkingtheneutral position of theaileron servo and
ailerons,putamarkon thepush rodswhere the servo arm holesline
up.Besuretheaileronisintheneutralposition.
2. Screwtheaileronhornsontotheaileroncontrolarms.Trimthewing
mountingbraceasneededforfullaileronmovement. Makesureyou
usethetwohornswiththelargerholes.
5.Atthemark, bendeach pushrod at a rightangle.Next, cut the push
rods6mm from thebend.
12-

RADIO INSTALLATION
6.Locatetwo rodclevisesfrom theplasticpartstree.
9.Trial fit the servos into thefuselage servo tray,andtrim thetray as
neededforagoodfit.
7.Attach therods to theservo arm usingtherod clevis. NOTE:You
may havetouseadifferentstyleservo hornfor morethrowasshown.10.Installthe three remainingservos (1/4"apart) intothetray using
grommet eyelets andscrews. Besure that the servos are
positionedcorrectly. Next, mount theradio switch. NOTE: Make
sure thatthe servowires allrun forwardsotheyareeasily accessible.
8.Connecttheaileronservo to thereceiver andcheck the movement
of theailerons.Makesurethatboth aileronsareneutralwhenthe
servo isneutral.Adjust theclevises as needed.
11.We suggest installing an external switch mount sothattheradio
system caneasily beturned on andofffrom theoutside without
takingthewingoff.(TheDubro#203 Kwik-Switch Mountworks
well.)
-13-

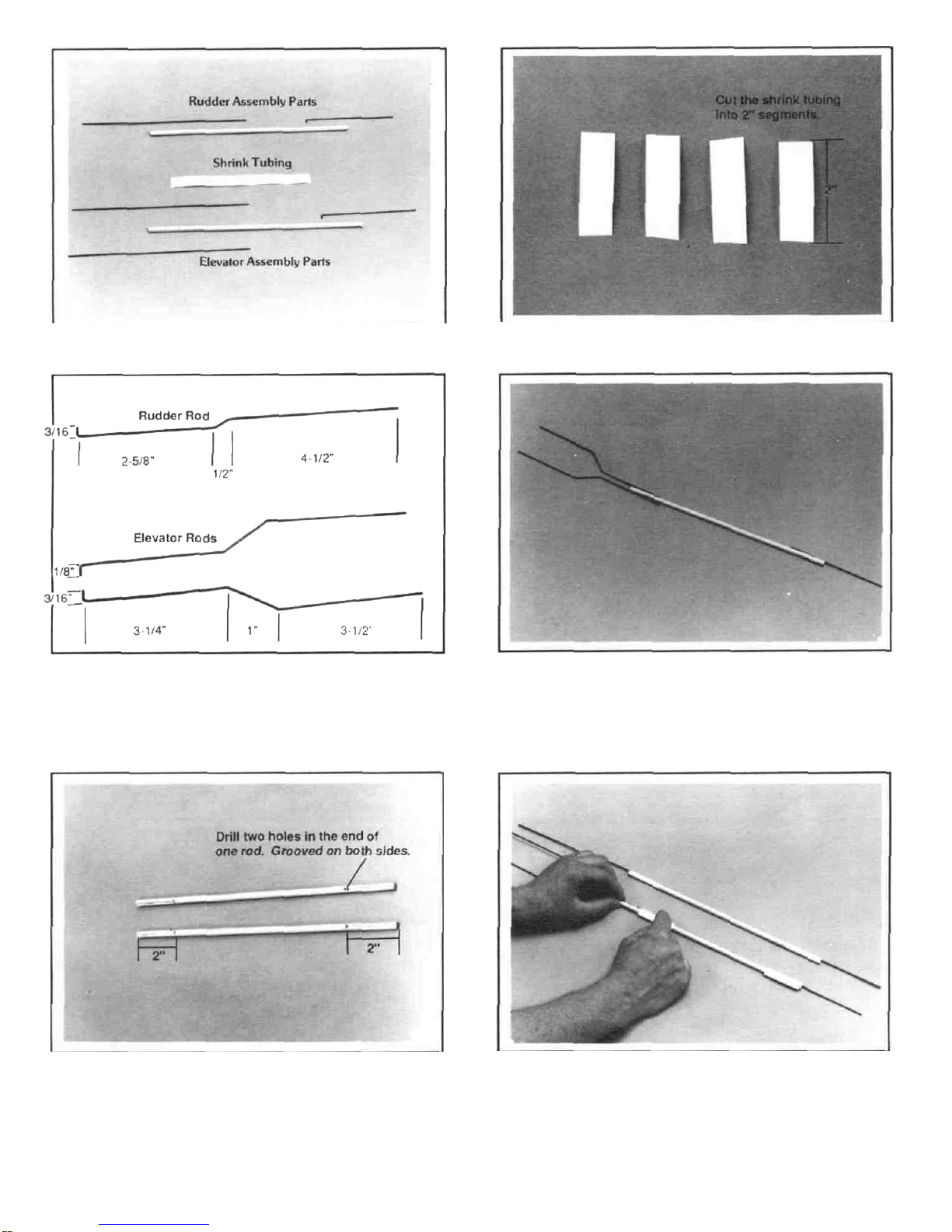

12.Assemble therudderandelevator control rodsusingthe parts
above.15.Cut four equalpieces of thewhite shrinktubing (about 2" each)
13.Bendtwo of the longrods as shown for theelevator andoneof the
rodsfortherudder.
16.Assemble theelevator push rod as shown. Placethe two elevator
rodsintothedoublegrooved endofoneoftherods. Next, placeone
oftheshort (pre-bent)rodsintotheother end.
14.Drilla 1/16" hole2" from theends (2 holes1/16" aparton one end
of onerod)of both wood pushrods.With a hobbyknife, carefully
cut straight grooves from theholes to theends.Onlycut a groove
ononesideofeachend.exceptforone endofone rod (the onewith
two holes).Forthisoneend,make a groove on bothsides.
17.Next, dothesamewith theother rudderrod.Makesure that each
rod fitsina groove. Nowslidethefour pieces ofshrink tubingover
theendsof the wooden rods andshrink them with a heat gun or
lighter. To ensure durability, placea dropor two of Cyanoacrylate
gluetotheedges.
-14

18.Punchoutthethreerodexitsatthetailandinserttherudderpushrod
intothefuselagefrom thefront andthenthrough thebottom exit on
therightside.Dothesamewiththeelevator rod,butputthose
throughthetoptwo holes.Itmay benecessaryto bendtherods
slightlytofit.
21.Usethethrottle control rod andthewhite throttletube forthe engine
linkage.Lightlysand the plastic tube sotheepoxy willadhere toit.
Cuttheplastictubesoitisonly 12" long.
19UsingPlasiZap, gluethethree plastic push rod exitsto the
fuselage.
22. Install the plastic tubing through the holeinthe firewalltothe servo
tray Epoxy the tube where it goes inIfusing a fourcycle engine,
install thetube into the drilled hole fromPage 10.
20Checkto make surethattherodswill easily move inandoutwith little
resistance. You may have to bendtherods slightly fora perfect fit
(wewill connect therods to theservos after the tail assembly).
23.Makea "Z" bendon one end of the throttle control rod and insert the
oppositeendintothetube.
-15-

24. Connecttheservos to thereceiver andbattery andcenter all radio
controls(includingthethrottle stick andmove theservo horns so
theyareinlinewith theservo as shown.Aftertheyare centered, pull
thethrottlestick backdown (low throttle). Installthe straight servo
hornsthatareincludedwith your radiosystem.
27.Fromtheinside,pullbackthethrottle control rod sothecarburetor
isclosed. Now, marktherod where itcrosses thethrottle servo horn
(inlowposistion).
25.Connectthe"Z"bendtotheenginethrottlearm. Itmaybenecessary
toremove thearmfrom theenginefor easierinstallation.
28.Next, atthemarked point,make another "Z" bend,cutofftheexcess
andattach itto the servo arm. Foreasy adjustments, aneasy
connectcanbeusedhere.(Dubro#121 E-ZConnectorsworkwell.)
26.Epoxy the white tubeto thetubeguide.29.Check for properradiooperation of thethrottle. Make sure that the
carburetorwillmove fromlowtohighcompletely.
-16-

NOTE:ThetailwheelpartsM-Tmayvaryduetoanupdateddesign.
Seepage18,Step10.
A. Horizontal Stabilizer.....................1
LTailWheel...................................1
M.TailGear.....................................1
N.MetalStrip...................................1
0. 3mmx12mmSelf-TappingScrew 2
P. 3mm x 5mm Screw ..................... 1
Q.WheelCollar ...............................1
R. BrassCollar ................................1
B.Vertical Fin................................... 1
C. Rudder.........................................1
D.1/8-WoodenWedge....................1
E. Stab.RootCover(Plastic) ........... 1
F.Stab.Supports.............................2
G.PlasticDisc ..................................4
H. BrassSleeve ...............................2
I. 2mm x 15mmScrew ....................2
J. 2mmNut......................................2
K. 2mm Washer ...............................4
3.Installthemainwing.Next placethe horizontal stabilizer ontothe
tail.Holditon andvisually seeifthe wing andstabilizer are parallel.
Ifnot,sandthehighersideofthestabilizermountuntil!thestabilizer
isparallel.
4. Next take a piece of string and attachitwitha pinto the top center
ofthefuselage. Makesurethatthestabilizeriscenteredandstretch
the stringto thecorneroftheelevator.Adjustthe positioning ofthe
stabilizersothatbothcornersarethe samelengthwhen moving the
stringfrom sideto side.
1.Test fit the1/8"wooden wedgeintothetailendof thefuselage. If
thereisa goodfit, epoxy itinplacemakingsure that itiseven with
thefuselage sides.NOTE:Itmay benecessary totrimaway some
wood or glueto make thewedge fitflush.
5.Next, remove thestabilizerandapply epoxy to thewedge.Reinstall
thestabilizerandre-center likebefore.
-17-
2.Trim away as necessary part of theplastic rear cover to allow
proper fitofthehorizontal stabilizer.

6. Oncethehorizontal stabilizerepoxyhascured, trial fitthe vertical fin
(withouttherudder) on top of thehorizontal stabilizer and the back
edgeisevenwith therearofthefuselage.Drawalineonbothsides
of the finas shown
9.Whensatisfiedwiththefairingpositioning,applycyanoacrylateglue
totheundersideedgeof the stabilizercover andinstallinplace
7Next, apply epoxy to thetop of thehorizontal stabilizer andre
positionthe fin between thelines Make sure that the fin isstill90"
to the stabilizer Dothe next step before theglue sets
10.Assemble thetail wheelsection shown Slideon a brass collar,
thetailwheel,andinstallthewheelcollarwitha3x5mm screw.
8.Whiletheepoxy isstillwet, position the plastic stabilizerfairing cover
overthe fin Doublecheckthepositioningofthe finafter doingthis.
Allowepoxy to set.
11Inserta 3mmx12mm selftappingscrew through themiddlehole of
themetal strip andattach totheundersideof thetailsection so
thatthescrew ispositioned1/2"from theendof thefuselage.
-18-

12.Nowtakethesupportsandbendtheendsasshownabove.15.Installthetailwheel
assembly throughthe metal strip. Next, trail fit
therudderontotheverticalfin.Noticewhere thebottomhinge
meetsthefuselageandmakeaslotinthetailwheretherudderhinge
needstobewithanX-Actoknife.
13.Attachthetwosupportsontothefuselagewitha3mmx12mmself-
tappingscrew.Makesurethatthemetal stripisstraight.16.Next,drilla2mmholeabout1"deepat7/8" from thebottomofthe
rudder.Theholeshouldbestraightinfrom thefront edge.
14. Position the supportsstraightout(90') to the fuselage. Markwhere
thesupportstouchthehorizontalstabilizer,drilla2mmholeoneach
sideatthemarks.Next,cut 1/8"offoftwo brasssleeves. Finally,
attachthesupportsas showninthedrawingabove.
17.Notch a small groove (1/8" deep)from theholedownto thebottom
forthetailcontrolarm.
-19-

18.Placea smallamountof epoxyonthe hinges,inthe groove, andon
theendof thetailcontrol arm. (It isa good ideato placesome
petroleum jelly onto thehingecenterjoint(pointof movement) to
keep out anyepoxy.
1.Glue(usingPlastiZap)therectangularmounting platestotherudder
sothattheyarecentered, oneoneach side,overthetailcontrolarm
thatis"inside"therudder.
19.Carefully postionthetailcontrol rod intotheholeandthegroove.
Wipeoffanyexcessepoxyandthen insert thehingesinto the slots.
Wipeoff any excess epoxy from thehingesandcheck for free
operation. Letcure.
2.UsingPlastiZap again, glue theangled mounting plates, one on
eachside,onthetwoelevatorhalvesasshown.
ELEVATOR/RUDDER CONTROL ROD INSTALLATION
A. Control Horns..............................................................................3
B.Back Plates....................................................................................3
C.MountingPlates (Rectangled) .....................................................2
D.MountingPlates (Angled) ............................................................4
E.Brass Tubes................................................................................6
F.2mm x 20mm Screws .................................................................6
G.Clevis RetainerTube .................................................................. 1
H.RodClevis ..................................................................................2
I. Snap Clevis................................................................................. 3
3.Usingthecontrol hornas a guide,center andmark two holesfor
drillingon allthree mountingplates.Thehorns will thenbe
mounted - two underneaththeelevator andoneon therightside
of therudder(asviewed from therear).
-20-
