HOCHIKI FIRESCAPE LITE INSTALLATION
INSTRUCTIONS
General information
FIREscape lite® is a highly cost-
effective and environmentally friendly
range of self-contained emergency
lighting luminaires and exit signs,
utilising the latest LED technology and
featuring a uniquely designed ‘step-
down’ transformer, which allows them to
be mains-powered. The integral back-
up battery provides enough power to
illuminate the standard units for over
three hours exceeding both UK and
European standard requirements.
FIREscape lite® units may be fitted at
any location where a permanent live
feed connection to the lighting circuit
can be made. The luminaire range
provides 3rd Party verified, ICEL
compliant levels of illumination for
escape routes, points of emphasis,
open areas and final exits with the high-
power models able to perform at heights
of 9 metres plus. The exit sign range
provides ISO7010 compliant, easy-to-
read signage in a variety of direction
formats.
The internal electronics of each device
provide continual self-diagnosing of the
charging circuit, back-up battery and the
main LED. The integral bi-coloured
status LED instantly indicates if there is
a problem with the performance of any
element, ensuring the device will always
perform to its optimum. With these
features FIREscape lite® provides the
ultimate in emergency lighting safety for
your building and its occupants.

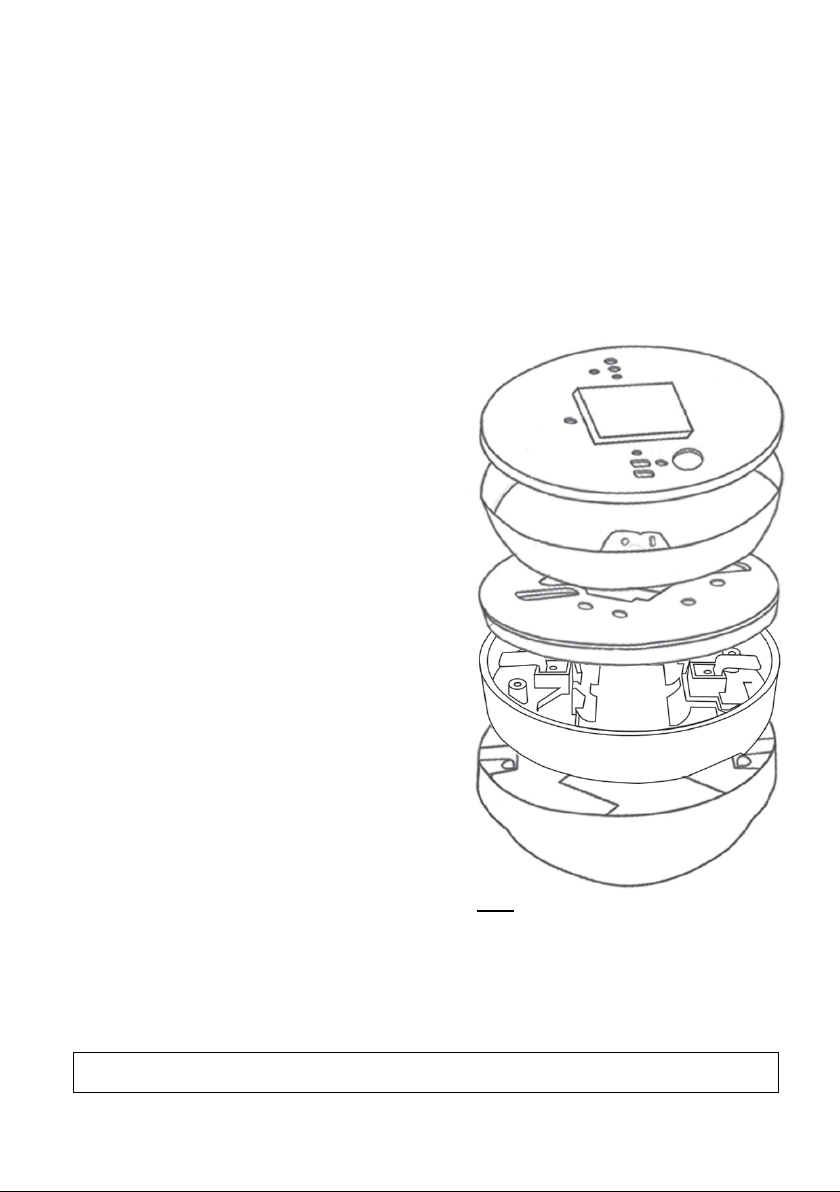

Components
The standalone lighting unit is installed
in the following sequence (see below).
KEY
1. NFW-SDT Transformer
2. YBD-RA Spacer
3. YBN-R/3 Mounting Base
4. Luminaire / Exit Sign
1.
2.
3.
*
4.
* NF89 Spacer (if required)
*SURFACE MOUNT ONLY, WILL NOT SECURE TO BESA BOX
www.acornfiresecurity.com
www.acornfiresecurity.com
2
2-3-0-2294/ISS1/JAN17
Thread the mains cable through the NFW-SDT using HOLE 1. Alternatively, if the cable runs along
the surface of the fixing plane. Make a cable entry hole in the side of the spacer unit (YBD-RA).
Fix the transformer unit to the fixing surface using HOLES 2 using screws (supplied). Note there are
two sets of fixing holes for 60mm or 78mm. If necessary, use fastening plugs supplied. Connect the
terminal blocks to the mains lead and then attach them to the brown and blue cables.
Fix the spacer unit (YBD-RA) onto the transformer unit using HOLES 3 and 4x16mm screws
(supplied). Offer up the standard mounting base (YBN-R/3) to the fitted spacer unit and feed the
flying leads from the transformer through the base’s central hole.
Fit the mounting base to the spacer unit using HOLES 4 and screws (supplied)
*If fitting a high power luminaire, please fit the NF89 Battery Spacer: Fit the NF89 battery into section
A & connect the battery to the luminaire. When completing step 4, if you have fitted the spacer, the
luminaire or exit sign is fitted as normal to the spacer.
Terminate the red & black flying leads from the transformer unit on to the following terminals on the
mounting base.
RED LEAD
TERMINALS 1 or 2
BLACK LEAD
TERMINALS 5 or 6
Fit an EL-BAT450 or an EL-NF89BAT
battery to the luminaire or exit sign and
twist-fit onto the mounting base.
3
5
2
2
5
3
1
6
4
3
3
4
4
4
STEP 1
STEP 2
STEP 3
STEP 4
COMPLETE SETUP

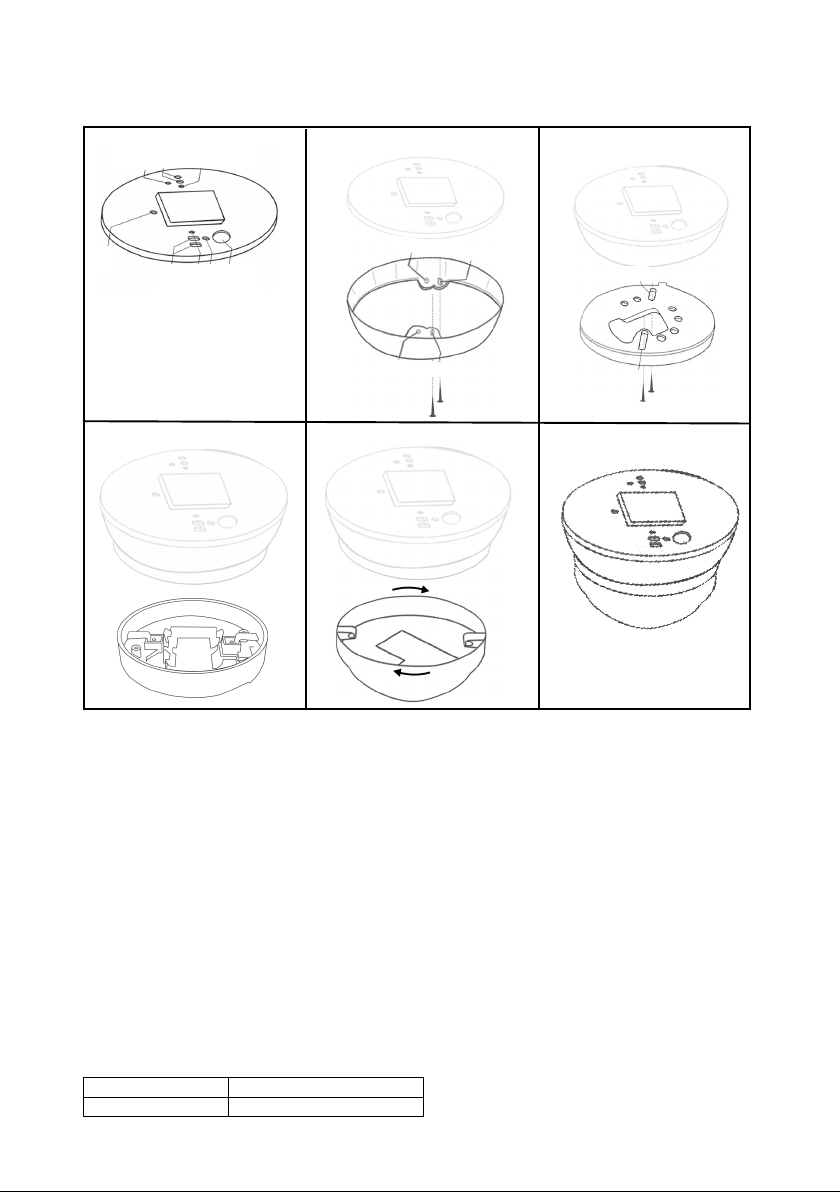

Fitting Sequence
* If NF89 Spacer is used
A
STEP 1
STEP 2
STEP 3
* NF89
STEP 4
www.acornfiresecurity.com
www.acornfiresecurity.com
4
2-3-0-2294/ISS1/JAN17
Battery Connections & Requirements
A battery is included in the box, but if a replacement battery is required, please
review the parts list below -
Parts List
Standard Kit Contents
Step Down Transformer
NFW-SDT
Common Mounting Base
YBN-R/3 (WHT)
Spacer
YBD-RA (WHT)
Battery Spacer
NFW89 Spacer
Battery
EL-NF89BAT / EL-BAT450 Battery
12 Variants
Corridor Down Light
NFW-SDT/DL2 Kit
Open Space Down Light
NFW-SDT/DL3 Kit
High Power Corridor Down Light
NFW-SDT/NFW89/C
High Power Open Space Down Light
NFW-SDT/NFW89/O
FIREscape 20m Lens Right Arrow
NFW-SDT/EL20R Kit
FIREscape 20m Lens Down Arrow
NFW-SDT/EL20D Kit
FIREscape 20m Lens Left Arrow
NFW-SDT/EL20L Kit
FIREscape 20m Lens Up Arrow
NFW-SDT/EL20U Kit
FIREscape 40m Lens Right Arrow
NFW-SDT/EL40R Kit
FIREscape 40m Lens Down Arrow
NFW-SDT/EL40D Kit
FIREscape 40m Lens Left Arrow
NFW-SDT/EL40L Kit
FIREscape 40m Lens Up Arrow
NFW-SDT/EL40U Kit
Replacement Battery Requirements
Model
Battery Type
NF89-O
EL-NF89BAT 2950mAh
NF89-C
EL-NF89BAT 2950mAh
DL2
EL-BAT450
DL3
EL-BAT450
EL20
EL-BAT450
EL40
EL-BAT450
(BLUE)
www.acornfiresecurity.com
www.acornfiresecurity.com
5
2-3-0-2294/ISS1/JAN17

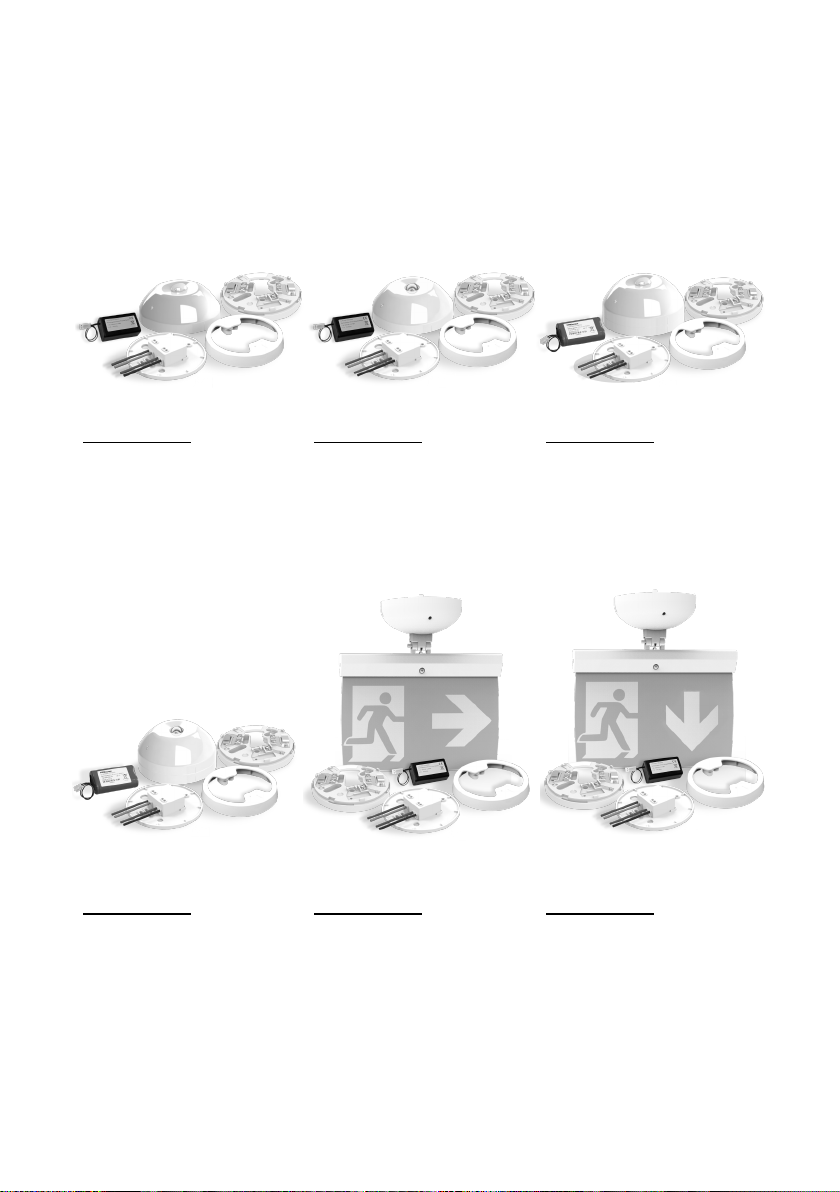

NFW-SDT/DL2 Kit
Kit Includes –
Corridor luminaire
Step-Down Transformer
Base
Spacer
Battery
Instruction Manual
NFW-SDT/DL3 Kit
Kit Includes –
Open space luminaire
Step-Down Transformer
Base
Spacer
Battery
Instruction Manual
NFW-SDT/NF89/C Kit
Kit Includes –
High-powered corridor
luminare
Step-Down Transformer
Base
Spacer & Battery Spacer
Battery
Instruction Manual
NFW-SDT/NF89/O Kit
Kit Includes –
High powered open
space luminaire
Step-Down Transformer
Base
Spacer & Battery Spacer
Battery
Instruction Manual
NFW-SDT/EL20R Kit
Kit Includes –
20m Frame
Right Arrow Legend
(ISO7010)
Step-Down Transformer
Base
Spacer
Battery
Instruction Manual
NFW-SDT/EL20D Kit
Kit Includes –
20m Frame
Down Arrow Legend
(ISO7010)
Step-Down Transformer
Base
Spacer
Battery
Instruction Manual
KIT OPTIONS AVAILABLE
www.acornfiresecurity.com
www.acornfiresecurity.com
6
2-3-0-2294/ISS1/JAN17
NFW-SDT/EL20L Kit
Kit Includes –
20m Frame
Left Arrow Legend
(ISO7010)
Step-Down Transformer
Base
Spacer
Battery
Instruction Manual
NFW-SDT/EL20U Kit
Kit Includes –
20m Frame
Up Arrow Legend
(ISO7010)
Step-Down Transformer
Base
Spacer
Battery
Instruction Manual
NFW-SDT/EL40R Kit
Kit Includes –
40m Frame
Right Arrow Legend
(ISO7010)
Step-Down Transformer
Base
Spacer
Battery
Instruction Manual
NFW-SDT/EL40D Kit
Kit Includes –
40m Frame
Down Arrow Legend
(ISO7010)
Step-Down Transformer
Base
Spacer
Battery
Instruction Manual
NFW-SDT/EL40L Kit
Kit Includes –
40m Frame
Left Arrow Legend
(ISO7010)
Step-Down Transformer
Base
Spacer
Battery
Instruction Manual
NFW-SDT/EL40U Kit
Kit Includes –
40m Frame
Up Arrow Legend
(ISO7010)
Step-Down Transformer
Base
Spacer
Battery
Instruction Manual
www.acornfiresecurity.com
www.acornfiresecurity.com
7
2-3-0-2294/ISS1/JAN17
Technical Data
Model NFW-SDT including YBN-R/3(WHT) & YRD-RA(WHT)
Dimensions of Above (mm) 32H x 100 Ø
Dimensions (mm) These figures include 32H from above
NFW89/O 94H x 100 Ø
NFW89/C
94H x 100 Ø
EL-DL2
72H x 100 Ø
EL-DL3
72H x 100 Ø
40m Exit Sign & Lens
322H x 330W
20m Exit Sign & Lens
242H x 200W
Mains transformer 1VA / 30VAC
Equipment supplied
2 x fastening plug, 2 x fastening screw,
4 x fastening screw for frame and rim
Connection Block
Water Resistance
IP20
LED Status Indicator
As soon as the luminaire or exit sign is attached to the mounting base the fitted battery
will begin to trickle charge from the connected step down transformer. During this time
the LED status indicator on the luminaire or exit sign will blink green. Once fully
charged, the LED will show steady green.
The LED is bi-coloured and will show the following indications:
Steady Green
Fully charged and healthy
Blinking Green
Battery charging
Steady Red
LED and battery failure
Blinking Red
Battery fault
Blinking Red/Green
LED fault
Hochiki Europe (UK) Ltd. reserves the right to alter
the specification of its products from time to time
without notice. Although every effort has been made
to ensure the accuracy of the information contained
within this document it is not warranted or
represented by Hochiki Europe (UK) Ltd. to be a
complete and up-to-date description. Please check
our web site for the latest version of this document.
Hochiki Europe (UK) Ltd
Grosvenor Road, Gillingham Business Park,
Gillingham, Kent, ME8 0SA, England
Telephone: +44(0)1634 260133 Facsimile:
+44(0)1634 260132
Email: sales@hochikieurope.com
Web: www.hochikieurope.com
