Holaday Industries HI-1801 User manual

HI-1801
Microwave Survey Meter
User's Manual
Copyright ©1999 by Holaday Industries, Inc.
Manual #600041 3/99 $5.00

Revision Record
Manual #600041
HIn1801 Microwave Survey Meter
Revision Description Date
--- Release 2/90
ARevised, Reformatted 3/99

TABLE OF CONTENTS
1.0 INTRODUCTION ..................... 1
2.0 ABOUT THE HInn1801 ................. 3
Description ......................... 3
Unique Features ..................... 3
Accuracy .......................... 5
Calibration Method ................... 7
Maintenance ........................ 8
Recalibration Service .................. 9
Service Centers ..................... 9
Return Procedures .................... 9
3.0 HI-1801 SPECIFICATIONS ............. 11
4.0 ACCEPTANCE ..................... 13
Introduction ....................... 13
Unpacking and Acceptance ............ 13
5.0 GETTING READY ................... 15
Introduction ....................... 15
Preparing the Oven .................. 15
Preparing the Meter .................. 16
6.0 MAKING THE MEASUREMENT .......... 17
Introduction ....................... 17
7.0 USING THE CHECK FEATURE ........... 21
Introduction ....................... 21
8.0 WHAT THE MEASUREMENT MEANS ...... 23
Introduction ....................... 23

Limited Warranty
Holaday Industries, Inc. warrants each model HIn1801 to be free
from defects in material and workmanship for aperiod of one
year from the date of shipment to the purchaser. This warranty
extends to the original purchaser only, and does not apply to the
batteries or to any products or parts subject to misuse, neglect,
accident, unauthorized service or abnormal conditions of
operation.
In the event an instrument covered by this warranty fails,
Holaday Industries, Inc. will, without charge, repair and
recalibrate the instrument if returned to their factory within one
year of the original purchase—provided that Holaday Industries'
examination discloses, to its satisfaction, that the product is
defective. Holaday Industries, Inc. may, at its option, replace the
product in lieu of repair. If the defect was caused by misuse,
neglect, accident, unauthorized service or abnormal conditions of
operation, repairs will be billed at anominal cost. In such cases,
an estimate will be provided before work is started, if requested
by the purchaser.
For warranty service, contact Holaday Industries, Inc. Provide
the serial number of the instrument and complete details
regarding the failure mode. You will then be given either service
information or shipping instructions. Return the instrument to
the factory, transportation prepaid. Repairs will be made at the
factory and the instrument will be returned to you, transportation
prepaid. Holaday Industries, Inc., assumes no responsibility for
loss of, or damage to, products in transit.
Warning!
EXTREME CAUTION IS ADVISED WHEN WORKING IN
ENVIRONMENTS WHERE HIGH-INTENSITY ELECTROMAGNETIC
FIELDS MAY EXIST AND WHERE CONTACT WITH HIGH VOLTAGE
OR HIGH CURRENT CIRCUITS OR APPARATUS IS POSSIBLE.
ACCIDENTAL CONTACT WITH OBJECTS OR CIRCUITS OPERATING
AT HIGH VOLTAGES OR HIGH CURRENTS CAN BE LETHAL!
HOLADAY INDUSTRIES, INC. ASSUMES NO LIABILITY FOR ANY
DAMAGES OR PERSONAL INJURY WHICH MAY RESULT FROM

HIn1801 Manual Page — 1
1.0 INTRODUCTION
The HI-1801 Microwave Survey Meter is arugged,
compact, portable instrument that is virtually immune to
failure caused by excessive fields or physical abuse. This
instrument is acceptable to the US Government Center
for Devices and Radiological Health (FDA/CDRH) and to
all major microwave oven manufacturers for testing ovens
in use and after repair.
This easy to use meter, and the step-by-step instructions
in this manual will enable you to easily and accurately
measure leakage from your microwave oven.
This manual is divided into seven sections:
1. About the HI-1801
2. Specifications
3. Acceptance
4. Getting Ready
5. Making the Measurement
6. Using the Check Feature
7. What the Measurement Means

Page — 2 HIn1801 Manual
Figure 1
HI-1801 Microwave Survey Meter

HIn1801 Manual Page — 3
2.0 ABOUT THE HI-1801
Description
Microwave leakage (electromagnetic fields) is detected by
an array of eight hot carrier diodes housed in the large
end of the plastic probe. This antenna array has the
unique feature of being able to sum microwave electric
fields of any polarization in aplane perpendicular to the
axis of the probe. The antenna lobe (effective measuring
area) is also very broad, making the instrument easy to
use when measuring leakage around an oven door. The
spacer cone is designed to provide a5 cm spacing from
the tip of the probe to the center of the array.
This instrument has asingle calibrated range of zero to
ten (0-10) mW/cm2.The scale is divided into three
zones, with a calibration point at midscale (5 mW/cm2).
If the reading is in the green zone, it is less than 5
mW/cm2.If the reading is in the red zone, it is greater
than 5 mW/cm2.
NOTE:
The HI-1801 must not be used without the spacer cone
in place. Using the instrument without the cone will
result in reading errors and may damage the unit.
Unique Features
When testing today’s microwave ovens, the observed
leakage levels are often well below 1mW/cm2.Many of
these values are below the sensitivity threshold of the HI-
1801.
Observers are often concerned that the instrument may
not be operating properly when no leakage indication is
noted.

Page — 4 HIn1801 Manual
Figure 2

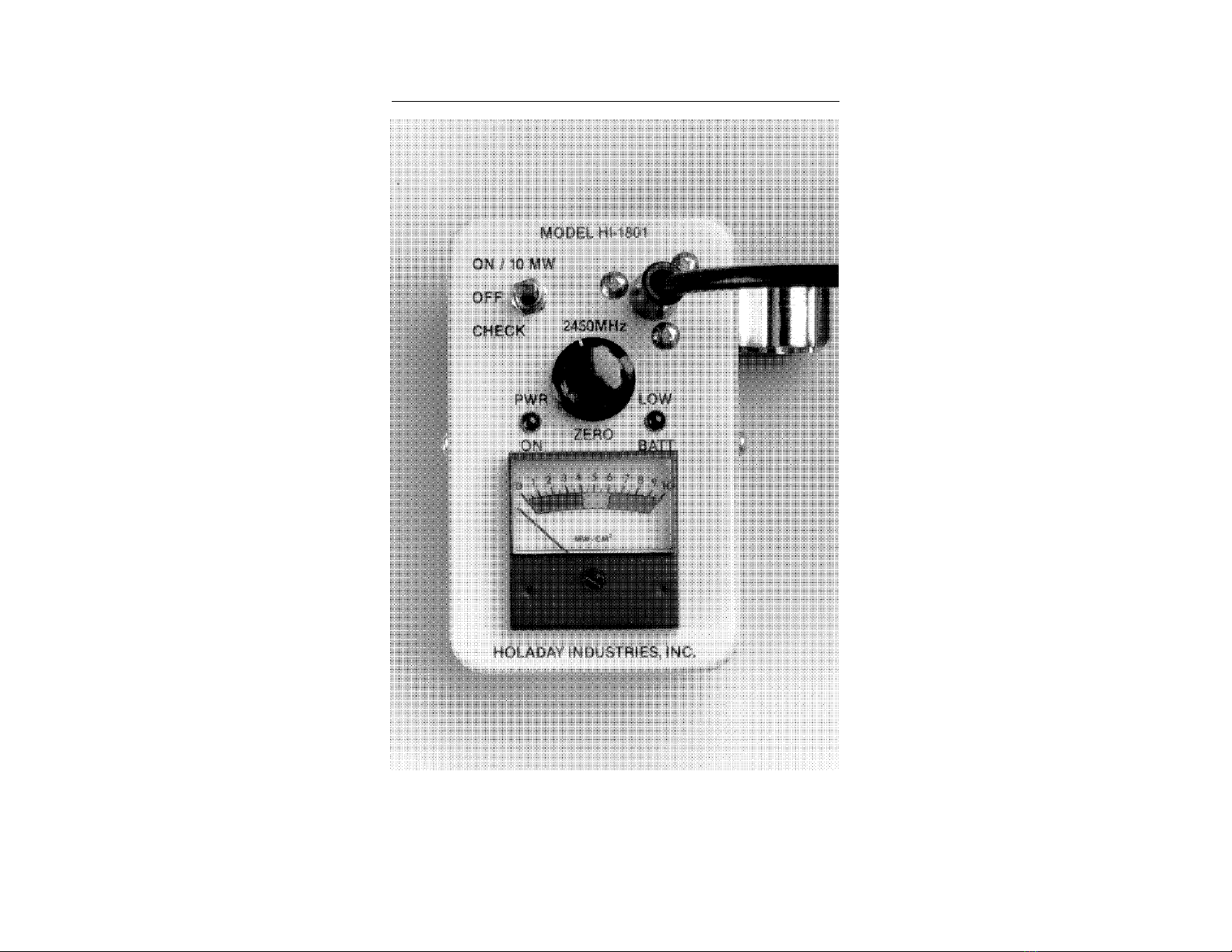

HI-1801 Front Panel

HIn1801 Manual Page — 5
When used on the same oven, low cost microwave
leakage indicators may show a significant or even
dangerous leakage level. This is due to the lack of
damping and to the detection characteristics of the
particular meter. The HI-1801 is designed to comply with
the requirements of the US Government criteria for
testing microwave ovens.
The HI-1801 provides a“check” feature that allows you
to check the operation of the instrument at any time
while testing amicrowave oven. The control switch has
two positions, an “ON/10 MW” position and a“CHECK”
position.
The “ON/10 MW” position is used for testing microwave
ovens in the normal manner.
The “CHECK” position provides an additional
uncalibrated, highly sensitive mode for checking meter
operation. In the “CHECK” position mode, the meter will
respond to very low levels of leakage and will assure you
that the instrument is responding to microwave energy.
With this increased sensitivity, most ovens will cause
some deflection of the meter, verifying proper operation
of both the oven and the meter.
After using the “CHECK” mode, return to the “TEST”
mode and perform the oven test in the normal manner.
Note that meter readings in the “CHECK” mode have no
significance; the only purpose of this mode is to verify
proper meter function.
Accuracy
The accuracy of this instrument is within ± 1 db
(+25%, -20%) when used according to these
instructions:

Page — 6 HIn1801 Manual
1. Always use aclean Holaday spacer cone.
Accuracy will be affected by wear of the cone and
by dirt and metallic particles which may become
imbedded in the EPS (expanded polystyrene foam
- Styrofoam).
2. Hold the instrument case at approximately 45/.
The balance of the meter movement causes the
needle to move slightly when held horizontally
(flat) or vertically (upright). The meter is
calibrated while at an angle of 45/and if it is used
at that angle, no additional error will be
introduced.
3. The normal operating temperature range is
between 60/and 90/F. If used outside this
range, an additional error will be introduced. This
error can be approximated as -0.1% per
Fahrenheit degree. The negative temperature
coefficient means that the instrument reads high
at lower temperatures and low at higher
temperatures.
4. The parameters which affect the accuracy of this
instrument are listed along with the error
contribution of each in the following table.

HIn1801 Manual Page — 7
Parameter Error (dB)
Calibration - Precision
- Accuracy ±0.09 ±0.13
Nonlinearity and AM response ±0.17
Near Field vs. Far Field ±0.29
Receiving Pattern -0.11
Temperature Response ±0.06
Frequency Response * ±0.04
Polarization * ±0.21
RFI * ±0.04
Drift * ±0.04
Total +0.96 / -0.81
* Errors combined in RMS manner
Calibration Method
Each meter is calibrated by placing the probe in a CW
(continuous wave) 2450 MHZ electromagnetic field
generated by acrystal controlled solid state source. The
source feeds an anechoic chamber through a section of
waveguide terminating in aslot radiator. Calibration is
performed at alevel of 5mW/cm2and a standard
temperature of 75/F.
The accuracy of the field is determined by comparing
with an LCR (local calibration reference) which is
traceable to NIST (National Institute of Standards and
Technology [formerly NBS]) through FDA/CDRH (Food
and Drug Administration / Center for Devices and

Page — 8 HIn1801 Manual
Radiological Health).
Maintenance
The only maintenance that is required is the replacement
of the batteries or the spacer cone, should it become
damaged or worn. Both items may be purchased from
Holaday Industries, Inc.
NOTE:
Do not use the HI-1801 without the spacer in position.
To maintain stated instrument accuracy, use only spacer
cones provided by Holaday.
Battery Replacement
Remove the two screws that hold the instrument
cover in place. Remove the foam block that holds the
batteries. Always replace both batteries at the same
time. Any nine (9) volt alkaline battery may be used.
Spacer Cone Replacement
The spacer cone must be replaced when worn or
contaminated. Simply remove the old cone by pulling
straight off the end of the probe. Slip a new cone on,
being sure the cone is fully seated on the probe. A
polystyrene cone shield is available which provides
protection for the relatively soft material of the cone.
The following spare parts and options are available from
Holaday:
1. Spacer Cone Kit (Holaday part number 540013)
(Includes two spacer cones and four cone shields)
2. Nine Volt Batteries (Holaday p/n 30MN1604)
(Duracell MN1604 or equivalent)
3. 600 mL Beaker (Holaday p/n 44600MLP)

HIn1801 Manual Page — 9
Recalibration Service
It is recommended that the HI-1801 be recalibrated every
12 months.
Holaday Industries, Inc. will recalibrate and repair any
damaged instrument for anominal charge. The
calibration fee will be quoted on request.
Service Centers
Holaday Industries, Inc. has established factory-
authorized repair and recalibration centers in the US and
the UK. If your microwave survey meter requires service
or recalibration, contact Holaday for the nearest center.
Return Procedures
To return a product, use the following procedure:
Step 1. Briefly describe the problem in writing. Give
details regarding observed symptom(s), and
whether the problem is constant or intermittent.
If you have already talked to Holaday Customer
Service about the problem, provide the date(s),
the name of the service representative you
spoke with, and the nature of the conversation.
Include the serial number of the item.
Step 2. Package the probe carefully. Return the
product, using the original boxes and packing
materials, if possible to:
Holaday Industries Inc.
Attn. Service Department
14825 Martin Drive
Eden Prairie, MN USA 55344

Page — 10 HIn1801 Manual

HIn1801 Manual Page — 11
3.0 HInn1801 SPECIFICATIONS
Frequency: 2450 MHZ (± 50 MHZ)
Power Range: 0 -10 mW/cm2
Accuracy: ± 1 dB
Response Time: 2 - 3 seconds
Overload Capacity: Continuous 2000 mW/cm2
Dimensions: 2.09 in. (5.3 cm) x 2.68 in. (6.8
cm) x 4.13 in. (10.5 cm)
Probe Length: 12.00 in. (30.5 cm)
Cable Length: 3.3 ft. (1.0 m)
Spacer: 1.97 in. (5 cm), EPS (Expanded
Polystyrene - Styrofoam)

Page — 12 HIn1801 Manual
