We thank you for choosing Holden and want to
assure you of our continuing interest in your
driving pleasure and satisfaction.
This handbook applies to the current Captiva model.
Therefore, due to different models and options, you may
nd reference in this handbook to some equipment
not tted to your own vehicle.
Please note that all information, illustrations and
specications in this handbook are based on the latest
production information available at the time of printing.
Holden reserves the right to make changes at any time
without notice and without incurring any obligation.
CAPTIVA BOOK.indb 2 30/05/2007 12:48:38 PM

Chapter 1A – Dashboard
Dashboard layout
Gauges
Warning lamps
Driver Information Display (DID)3
Dimmer and clock
Wipers and washers
Headlamps
Fog lamps
Turn signals and ignition switch
Immobiliser and hazard warning
Horn
Ventilation system
Manual heating &
air conditioning system3
Climate control3
Glovebox
Storage compartments
Chapter 1B – Audio
Audio system
Single CD player controls
Six CD changer3controls
Audio display screen
Security code
Radio operation
MP3 player operation
Steering wheel audio controls
General information
Chapter 2 – Locks
Keys and keyless entry
Manual lock operation
Rear tailgate lock
Child proof lock
Bonnet release
Chapter 3 – Know your vehicle
Seat adjustment
Head restraint adjustment
Seat belts
Which type of child restraint for
your child?
Child restraints
Airbags
Mirrors
Tilt steering and antenna
Power windows
Interior lamps
Accessory power outlets
Sun visors and assist grips
Storage compartments
Roof rails3
Chapter 4 – Driving
Safety
Engine starting
Driving precautions
4X4 Driving precautions
Automatic transmission3
Manual transmission3
Anti-lock Brake System (ABS)
Electronic Stability Program (ESP®)
Descent Control System (DCS)
All Wheel Drive system (AWD)
Park brake
Cruise control
Add on equipment
Chapter 5 – Fuel
Fuel
Fuel lling
Fuel types
Emission control petrol engine
Emission control diesel engine
Reducing fuel consumption
CONTENTS
3The asterisk signies equipment options not
in all vehicles; model variants, engine options,
optional equipment and Genuine Holden
Accessories (and Parts).
ESP is a registered trademark of Daimler ChryslerAG.
CAPTIVA BOOK.indb 3 30/05/2007 12:48:38 PM

CONTENTS cont.
Chapter 6 – Emergencies
Customer assistance
For New Zealand Holden owners
Hazard warning
Flat tyre
Towing your disabled vehicle
Engine overheating
Transmission shift lock
control system3
Flat battery
Diesel fuel lter3
Fuses
Bulb replacement
Chapter 7 – Weekly checks
Miscellaneous checks
Check locations
Engine coolant level
Engine oil level
Engine oil consumption
Automatic transmission3 uid level
Brake uid level
Clutch3 uid level
Power steering and
washer uid levels
Tyres
Battery
Chapter 8 – Specications
Specications petrol engines
Specications diesel engines
General specications
Identication labels
Chapter 9 – Tow and load
Loading the vehicle
Towing
Towing precautions
Chapter 10 – Cleaning
Interior cleaning
Exterior cleaning
Cleaning products
Index
CAPTIVA BOOK.indb 4 30/05/2007 12:48:38 PM

Dashboard
CHAPTER
1A
Page
Dashboard layout ........................1A-2
Gauges........................................1A-3
Warning lamps.............................1A-6
Driver Information
Display (DID)3...........................1A-12
Dimmer and clock......................1A-15
Wipers and washers..................1A-16
Headlamps ................................1A-18
Fog lamps..................................1A-19
Turn signals and
ignition switch............................1A-20
Immobiliser and
hazard warning..........................1A-21
Horn...........................................1A-22
Ventilation system......................1A-23
Manual heating and
air conditioning system3............1A-24
Climate control3.........................1A-28
Glovebox ...................................1A-32
Storage compartments..............1A-33
3The asterisk signies equipment options not
in all vehicles; model variants, engine options,
optional equipment and Genuine Holden
Accessories (and Parts).
CAPTIVA BOOK.indb 1 30/05/2007 12:48:38 PM

1A-2 Chapter 1A
DASHBOARD
DASHBOARD LAYOUT
Page
1Side vent outlet........................1A-23
2Front passenger airbag...............3-13
3Centre vent outlet.....................1A-23
4Digital clock..............................1A-15
5Centre storage compartment...1A-33
6Driver Information
Display (DID)3..........................1A-12
7Sunlight sensor........................1A-31
8Upper storage compartment....1A-33
9Hazard warning asher
button.......................................1A-21
:Lever for wipers
and washers.............................1A-16
;Gauges ......................................1A-3
<Driver airbag ...............................3-13
=Lever for:
• turn signal...........................1A-20
• high/low beam.....................1A-18
• fog lamps............................1A-19
Page
>Cruise control switches...............4-20
?Card holder..............................1A-33
@Coin storage.............................1A-33
ABonnet release lever.....................2-7
BTilt steering lever.........................3-18
CSteering wheel audio controls...1B-15
DAudio system .............................1B-2
EAuxiliary power outlet..................3-23
FGear shift lever
• automatic3...............................4-8
• manual3.................................4-12
GControls for:
• climate control3...................1A-28
• manual heater3...................1A-24
HGlovebox..................................1A-32
C100_1A001
CAPTIVA BOOK.indb 2 30/05/2007 12:48:39 PM

1A-3
Chapter 1A
DASHBOARD
GAUGES
C100_1A002
Speedometer
The speedometer indicates the vehicle’s
speed in kilometres per hour (km/h).
Tachometer
The tachometer indicates the engine
speed in revolutions per minute (RPM).
The red zone of the tachometer indicates
critical engine speed.
WARNING
Never operate the vehicle with
the tachometer needle in the red
zone. Continued operation with the
tachometer needle in the red zone
will lead to serious engine damage.
C100_1A003
C100_1A004
CAPTIVA BOOK.indb 3 30/05/2007 12:48:39 PM

1A-4 Chapter 1A
DASHBOARD
Fuel gauge
The fuel gauge indicates the level of fuel
within the fuel tank when the ignition
switch is turned to the ON position. F
represents full and E represents empty.
The needle in the fuel gauge falls to E
when the ignition switch is turned to the
LOCK position.
Refer to Fuel in chapter 5 for refuelling
instructions.
Note Avoid letting the tank run empty;
this can cause damage to the catalytic
converter.
Diesel engines: if run dry, the fuel system
must be bled. Refer to Diesel fuel lter in
chapter 6.
Refer to Specications in chapter 8, for
fuel tank capacity.
Temperature gauge
The temperature gauge indicates the
temperature of the engine coolant when
the ignition switch is turned to the ON
position.
Stop-start driving in heavy trafc, driving at
high speed in warm weather, hill climbing
or towing may cause the temperature to
increase. This is normal, and is no cause
for concern.
WARNING
Do not continue driving with the temperature gauge needle in the red area, the
engine is too hot. Continued operation of an overheated engine will result in
severe engine damage. Refer to Engine overheating in chapter 6.
GAUGES cont.
C100_1A006
C100_1A007
CAPTIVA BOOK.indb 4 30/05/2007 12:48:40 PM

1A-5
Chapter 1A
DASHBOARD
GAUGES cont.
Odometer and tripmeter
Asmall window under the speedometer is
used for the odometer and tripmeter.
The odometer records the distance
travelled since the vehicle was built, and
thetripmeterrecordsthedistancetravelled
on a particular journey. The tripmeter can
keep a record of two different journeys at
the same time. The two trip odometers
are distinguished as TRIP A and TRIP B.
The trip odometer reset button is located
at the lower right-hand side of the
speedometer dial.
With the ignition switched on, push the trip odometer reset button to change the display
between the odometer, TRIP A and TRIP B. If the trip odometer reset button is pressed
and held, the tripmeter resets to zero.
C100_1A005
CAPTIVA BOOK.indb 5 30/05/2007 12:48:40 PM

1A-6 Chapter 1A
DASHBOARD
Anti-Lock Brake System (ABS)
TheABS warning lamp illuminates when the ignition switch is turned to
the ON position, and goes out after approximately 4 seconds.
If the lamp:
• Does not ash or stays on when the ignition is in the ON position.
• Stays on after several ashes.
• Flashes while driving.
• Stays on continuously while driving.
Carefully stop the vehicle and switch off the engine. If the lamp still
exhibits a fault condition while driving, contact your Holden Dealer
immediately.
Note This lamp indicates the anti-lock braking system is not operating
although the vehicle’s brake system will still operate conventionally.
Refer to Anti-lock brake system in chapter 4.
Airbag and Supplemental Restraint System (SRS)
To check if the warning lamp is working, the SRS warning lamp
ashes several times when the ignition switch is rst turned to the ON
position.
If the lamp:
• Does not ash or stays on when the ignition is in the ON position.
• Stays on after several ashes.
• Flashes while driving.
• Stays on continuously while driving.
If the SRS warning lamp exhibits any of the above conditions while
driving, it indicates the airbag system or seat belt pretensioner system
may not function correctly, especially in an accident. Contact your
Holden Dealer immediately.
WARNING LAMPS
C100_1A054
CAPTIVA BOOK.indb 6 30/05/2007 12:48:41 PM

1A-7
Chapter 1A
DASHBOARD
WARNING LAMPS cont.

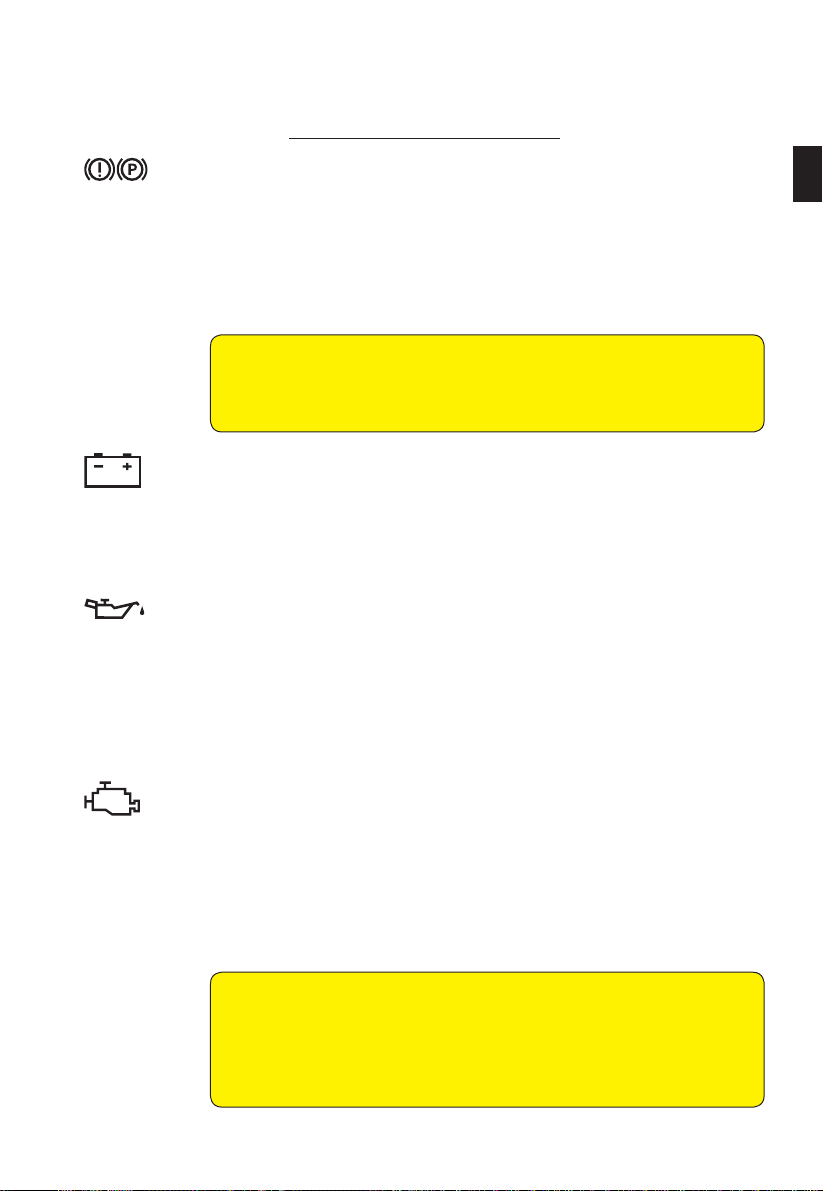

Brake
The brake warning lamp illuminates when the ignition is switched to
the ON position and goes out after approximately 4 seconds.
The lamp also displays when the park brake is engaged. The lamp
extinguishes when the park brake is released.
If the brake warning lamp displays while you are driving and the park
brake is fully released, you should stop the car as soon as possible
and contact your Holden Dealer immediately.
WARNING
Driving with the brake warning lamp on can lead to an accident.
Have the brakes checked immediately if the brake warning lamp
stays on.
Battery
The battery warning lamp illuminates when the ignition is switched to
the ON position and goes out after approximately 4 seconds.
If the lamp illuminates when driving, this may indicate the alternator
is not charging the battery. If the alternator drive belt is intact, there is
a problem in the charging system. Contact your Holden Dealer.
Oil pressure
The oil pressure warning lamp illuminates when the ignition is switched
to the ON position and goes out after approximately 4 seconds.
If the oil pressure lamp illuminates while driving, this indicates the oil
pressure is dangerously low. Stop the vehicle as soon as possible and
check the engine oil level. Refer to Engine oil level in chapter 7. Do
not drive the vehicle with the oil pressure indicator lamp illuminated.
Contact your Holden Dealer.
Malfunction indicator lamp
The Malfunction Indicator Lamp (MIL) monitors the emission control
system. This lamp illuminates when the ignition switch is in the
ON position and the engine is not running. If it stays illuminated or
illuminates while driving, there may be a problem with the system.
Contact your Holden Dealer.
The MIL will also illuminate to indicate that there is a malfunction in
the Diesel Particle Filter (DPF). If this happens, contact your Holden
Dealer. Refer to Emission control in chapter 5.
WARNING
If you keep driving your vehicle with the malfunction indicator
lamp illuminated, after a while, your emission control system
may not work as well, your fuel economy may not be as efcient
and your engine may not run as smoothly. This could lead to
costly repairs.
CAPTIVA BOOK.indb 7 30/05/2007 12:48:42 PM

1A-8 Chapter 1A
DASHBOARD
Winter mode indicator (automatic transmission only)
The winter mode indicator illuminates when the winter mode button
is pressed, use this mode to drive away smoothly during icy and
slippery road conditions.
Shift select position indicator
(automatic transmission only)
Displays the position of the automatic transmission shift select
lever.
Front fog lamp indicator3
Illuminates when the front fog lamps are switched on.
Rear fog lamp indicator
Illuminates when the rear fog lamps are switched on.
Driver’s seat belt reminder
When the ignition switch is switched to the ON position, the seat belt
reminder lamp illuminates to remind the driver to fasten the seat belt,
if the seat belt is not fastened after the engine has been started the
lamp will ash for approximately 90 seconds and then stay illuminated
continuously until the driver’s seat belt is fastened.
When the vehicle is driven away and the speed is above 22 km/h the
lamp will ash again and a warning chime will sound for approximately
90 seconds, after which the lamp will stay illuminated continuously
until the driver’s seat belt is fastened.
If the driver’s belt is buckled, neither the chime nor the lamp will
illuminate.
Turn signals
When the turn signal switch or hazard warning lamp switch is
switched on, the turn signal indicator lamp (within the instrument
panel) ashes to indicate operation of the turn signal lamps or hazard
warning lamps.
High beam
This indicator lamp is illuminated when the headlamps high beams
are in use.
WARNING LAMPS cont.
CAPTIVA BOOK.indb 8 30/05/2007 12:48:43 PM

1A-9
Chapter 1A
DASHBOARD
Electronic stability program (ESP®) off indicator
Whenthe ignitionswitchisturnedto theON position,theESP®indicator
illuminates for approximately 4 seconds.
The ESP®off indicator will illuminate after the button on the centre
of the instrument panel has been pressed.
Electronic stability program (ESP®) not ready indicator
TheESP®notreadyindicatorilluminatestoindicatetheESP®isnotready
for operation.
Electronic stability program (ESP®) active
and warning lamp
Whenthe ignitionswitchisturnedto theON position,theESP®indicator
illuminates for approximately 4 seconds.
This lamp ashes while ESP®is actively helping the vehicle with road
grip and stability. If the lamp illuminates constantly, this indicates there
is a malfunction in the system. Consult your Holden Dealer.
Descent control system (DCS) active
and not ready warning lamps
When the ignition switch is turned to the ON position, the DCS lamp
illuminates for approximately 4 seconds.
•Thegreen DCS lampilluminates whenDCSis activatedbypressing
the DCS button in the centre of the instrument panel and ashes
while DCS is active.
•The amber DCS lamp indicates the DCS is not ready or there is a
malfunction in the system. Consult your Holden Dealer.
Immobiliser system
When the ignition switch is turned to the ON position, the immobiliser
indicator illuminates for approximately 4 seconds.
If this lamp illuminates constantly, there is a malfunction in the system.
Consult your Holden Dealer.
Low windscreen washer uid
When the ignition switch is turned to the ON position, the low washer
uid indicator illuminates for approximately 4 seconds.
If this lamp illuminates constantly, the uid in the washer reservoir is
low and must be relled.
WARNING LAMPS cont.
CAPTIVA BOOK.indb 9 30/05/2007 12:48:44 PM

1A-10 Chapter 1A
DASHBOARD
Service vehicle soon (SVS)
When the ignition switch is turned to the ON position, the SVS indicator
illuminates for approximately 4 seconds.
The service vehicle soon lamp will constantly illuminate if a malfunction
exists in the non-emission related components or the related sub
systems. Consult your Holden Dealer.
WARNING
If you keep driving your vehicle with the service vehicle soon lamp
on, damage may result in the non-emission related components
or related sub systems. This could lead to costly repairs.
Engine coolant temperature
When the ignition switch is turned to the ON position, the coolant
temperature indicator illuminates for approximately 4 seconds.
If the engine coolant warning illuminates while driving, it indicates the
engine coolant temperature is excessively hot. It is advisable to stop
thevehicleas soon asitis safe todoso. If thelampdoes not extinguish,
consult your Holden Dealer.
WARNING
Do not continue driving with the temperature gauge needle in
the red area, the engine is too hot. Continued operation of an
overheated engine will result in severe engine damage. Refer to
Engine overheating in chapter 6.
Door ajar warning
Illuminates when a door is open or not securely latched.
Tailgate ajar warning
The tailgate ajar warning lamp illuminates when the ignition is switched
to the ON position and goes out after approximately 4 seconds.
Illuminates when the tailgate or the tailgate window is open or not
securely latched.
Cruise control indicator
Illuminates when the cruise control has been set and extinguishes
when cruise control is turned off.
All Wheel Drive system (AWD)
When the ignition switch is turned to the ON position, theAWD indicator
illuminates for approximately 4 seconds.
The lamp ashes when the AWD system is temporarily disabled. The
lamp remains on continuously when there is a malfunction in the AWD
system. Consult your Holden Dealer.
WARNING LAMPS cont.
CAPTIVA BOOK.indb 10 30/05/2007 12:48:45 PM

1A-11
Chapter 1A
DASHBOARD
Low fuel
Illuminates when the ignition is switched to the ON position and goes
out after approximately 4 seconds.
The low fuel indicator lamp displays when the fuel tank is approaching
empty. When the low fuel lamp illuminates add fuel as soon
as possible.
Note If diesel engines run empty, the fuel system must be bled. Refer
to Diesel fuel lter in chapter 6.
Glow plug indicator3 (Diesel preheating system)
Illuminates when the ignition is switched to the ON position and will
stay illuminated until the engine is sufciently warmed. Refer to Engine
starting in chapter 4.
Note Preheating system switches on only if outside temperature is low.
Diesel particle lter (DPF)3 (Diesel engine only)
Illuminates when the diesel particle lter requires cleaning. As soon as
the road and trafc situation permits it, increase speed to more than
50 km/h for a brief period (approx. 15 minutes). The warning lamp
extinguishes as soon as the cleaning is complete.
Refer to Emission control in chapter 5.
Water in fuel lter3 (Diesel engine only)
Illuminates when the water level in fuel lter is excessive. If this occurs,
drain the water from fuel lter as soon as possible. Refer to Diesel fuel
lter in chapter 6.
The warning lamp will extinguish when draining is completed.
Note
•Before starting the engine after draining, a priming operation must
be performed. Refer to Diesel fuel lter in chapter 6.
• The diesel fuel lter will be drained by your Holden Dealer when the
vehicle is serviced. Refer to the service/warranty booklet.
Front passenger seat belt reminder
When the ignition switch is turned to the ON position, the front
passenger seat belt indicator illuminates for approximately 4 seconds.
The system performs a self check, then the lamp extinguishes if the
front passenger seat is not occupied.
If the front passengers seat is occupied the lamp remains on until the
passenger’s seat belt is fastened.
Note Thefrontpassengerseat belt reminderislocatedonthedashboard
directly in front of the passenger seat.
WARNING LAMPS cont.
CAPTIVA BOOK.indb 11 30/05/2007 12:48:46 PM

1A-12 Chapter 1A
DASHBOARD
The Driver Information Display (DID) displays information for the trip computer, climate
control system and the compass when the ignition switch is in the ON position.
1Climate control display.
2Trip computer.
3Compass.
Trip computer
The trip computer displays driving information such as driving distance for remaining
fuel, average fuel consumption, average speed and driving time.
Each time the MODE button is pressed the display changes in the following
sequence:
•Driving distance for remaining fuel.
• Average speed.
• Driving time.
• Average fuel consumption.
To reset average speed, driving time or average fuel consumption, press the MODE
button for more than 2 seconds.
To change the display from km to miles or from °F to °C proceed as follows:
1. Press the SET button for more than 2 seconds then the temperature display
will blink.
2. Press the SET button again, the distance display will blink.
3. Press the ▲ and ▼ button to change the distance display (km. mile or °F. °C).
DRIVER INFORMATION DISPLAY (DID)3
C100_1A008
 

CAPTIVA BOOK.indb 12 30/05/2007 12:48:47 PM

1A-13
Chapter 1A
DASHBOARD
Driving distance for
remaining fuel
This mode indicates the estimated driving
distance to empty from the current fuel in
the fuel tank.
When the distance to empty is less than
50 km, LO will be displayed.
Note The driving distance for remaining
fuel can differ from the actual distance
according to driving conditions, driving
pattern or vehicle speed.
Average speed
This mode indicates the average speed
of the vehicle.
To reset the average speed to zero,
press the MODE button for more than
2 seconds.
Driving time
This mode indicates the total drive time.
To reset the driving time to zero, press the
MODE button for more than 2 seconds.
The driving time will be initialised to 0:00
after being displayed to 99:59.
Average fuel consumption
This mode calculates the average fuel
consumption from the total fuel used and
the distance since the last average fuel
consumption reset.
To reset the average fuel consumption
to zero, press the MODE button for more
than 2 seconds.
Note
•Average fuel consumption is reset to 10:0 if the battery is disconnected.
• The average fuel consumption can differ from the actual average fuel consumption
according to driving conditions, driving pattern or vehicle speed.
DRIVER INFORMATION DISPLAY (DID)3cont.
km
C100_1A009
C100_1A010
km/h
C100_1A011
C100_1A012
/ 100 km
CAPTIVA BOOK.indb 13 30/05/2007 12:48:48 PM

1A-14 Chapter 1A
DASHBOARD
DRIVER INFORMATION DISPLAY (DID)3cont.
Compass
Thisdisplaysthevehicle’sdrivingdirection
in 8 directions, (N, NE, E, SE, S, SW,
W, NW).
Note The direction will be displayed when
the ignition is switched to the ON position.
Compass calibration
The compass needs to be calibrated the
rst time it is used or when the battery has
been disconnected.
Follow these steps to calibrate the
compass:
1. Press the MODE and SET buttons
simultaneously for more than
2 seconds, and the compass display
will ash.
2. Drive the vehicle around slowly in one
complete circle within 90 seconds,
then the calibration will be complete.
3. When the calibration is complete the compass display stops ashing.
4. If enough space is not available to turn the vehicle in one complete circle, follow the
diagram opposite for an alternate method.
Note
•The vehicle can be turned in any direction, left or right.
• If the compass display continues to ash, drive the vehicle slowly in a circle
again until it stops ashing.
Cancelling compass calibration
• Press the SET button twice continuously.
• If the vehicle was not turned within 90 seconds after the calibration mode was
started.
Deection calibration
Inthecompasscalibration mode, press theSET button to move to deection calibration
mode. Then press ▲ and ▼ button to adjust the deection calibration value.
C100_1A013
C100_1A014
CAPTIVA BOOK.indb 14 30/05/2007 12:48:48 PM
