Holder C4.74 User manual

Beat the Seasons — Get the HOLDER Advantage!
AIR FILTER
Cartridge type with acoustical warning system
ENGINE
Deutz, Diesel, 2732cc, Model 2011F Turbo, 4 cylinder. Gross HP 80 SAE at
2500 RPM. Direct injection, air/oil cooled, EPA Tier 2 Emissions approved
DIFFERENTIAL LOCK
Differential lock; positive 4 wheel lock, electric over hydraulic, mechanically
actuating on all 4 wheels by depressing a toggle switch
TRANSMISSION
Hydrostatic transmission has automatic load sensing, with electro-mechanical
2speed. Module varies ground speed to maintain PTO speed
GROUND SPEED
Forward and reverse: Low 0-10 mph (14 kph)
Forward and reverse: High 0-21 mph (31.7 kph)
BRAKES
Front drum type, hydraulically actuated. Electro mechanical hand brake with
dashboard indicator light
TURNING RADIUS
7.6 ft. (2.3 meters)
MAXIMUM ALLOWABLE AXLE LOAD
Front: 5511 lb (2500 kg)
Rear: 5511 lb (2500 kg)
PTO
13/8” 6 spline dry clutch toggle switch actuation, front and rear. Direction of
rotation (in direction of travel), front-clockwise and rear-counterclockwise. PTO
RPM: front 540 @ 2260; rear 540 PTO optional
CONSTRUCTION
Frame construction, 4-wheel drive, articulated steering with hydraulic wheel
stabilizer
WEIGHT (CURB)
4850 lbs. (2200 kg)
STEERING
Articulated design 2-cylinder closed system
HYDRAULIC SYSTEM
Bosch, gear type, driven by engine. Max operating pressure 190 bar (2800 PSI).
Hydraulic Reservoir Capacity, 11.9 gallons (45 liters)
FUEL TANK CAPACITY
15.8 gallons (60 liters), fitted with micronic fuel filter
HOLDER of North America Inc.
1351 Barfield Road, Greely, ON, Canada K4P 1A1
1-888-TRACTOR
Tel: [phone] Fax: [phone]
www.holder.on.ca
[e-mail]
This information is intended to be of a general nature only;
specifications are subject to change as we continue to improve our products.
COOLING SYSTEM
Integrated air/oil cooled

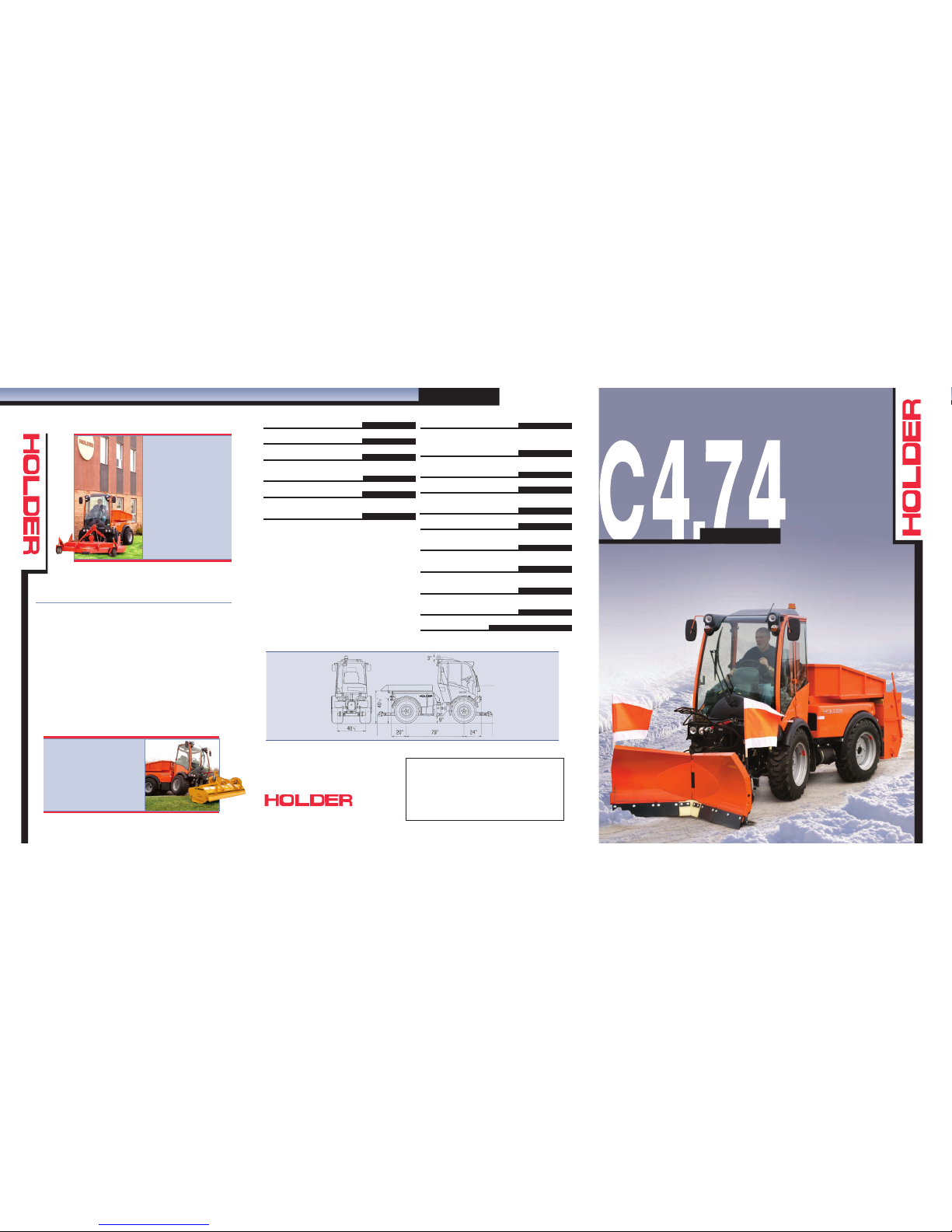

HOLDER C4.74
SPECIFICATIONS
SUPERIOR CONTROL AND POWER COMBINATION
FOR EXCEPTIONAL MANEUVERABILITY
HOLDER’s ingenuity
provides simple solutions
to your everyday tasks.
Innovation and superior
design have been
HOLDER’s legacy for
more than a century, and
that culminates in the
new C4.74!
HOLDER has long been the
industry leader in articulated
compact tractors. With its
advanced engineering,
sleek design, durability and
versatility,the C4.74 is your
ideal year-round workhorse.
HOLDER’spatented articulation and oscillation technology provides
the operator with unparalleled control and comfort. The patented
oscillation/articulation system consists of two steering rams and two
stabilizer rams. This articulated chassis creates a perfect twisting
motion that applies even pressure to the ground. Complemented by
four equal-sized wheels with an integrated stabilizer system, the
C4.74 provides the ultimate in traction and maneuverability.Plus an
incredible turning radius of only 7.6 feet! Rely on optimum traction,
negotiate tight corners easily, work effectively in constrained areas,
and handle terrain variations smoothly.Get equipment that will sur-
pass your expectations – get the HOLDER advantage!
Beat the Seasons — Get the HOLDER Advantage!
HOLDER C4.74
CCoonnttaaccttaaHHOOLLDDEERRddeeaalleerrttooggaaiinntthheeaaddvvaannttaaggee!!
CONTROL EQUIPMENT
6-function hydraulic bank, single multi function joystick proportional unit. All
functions are double acting with a float position, and function lockout
• One-man cab, tested and approved
under J1040 specifications
• One door with popout windows
(L.H. and R.H.) and ventilation
roof hatch for emergency exit
• Door is removable and
replaceable without tools, door
positioned with pressurized gas
cylinders
• Interior temperature and sound-
absorbing lining; test rating
79 dbA
• Tilt steering
• Tinted windows
• Air ride operator’s seat is high
back four-way adjustable
• 2 exterior breakaway rear view
mirrors (L.H. and R.H.) adjustable
from inside cab through windows
CAB EQUIPMENT
• 2 front headlights, 2 front top
working lights, 1 reverse/rear
working light, top strobe warning
light, front and rear traffic lights,
high low beam dash indicator
light, brake lights, 4-way flasher,
and wired 7-prong trailer plug
• Lower vision aids (windows) for
front attachment hook-up.
• Overhead window for truck loading
• Windshield wiper and washer
front; pantograph design 2 speed
intermittent
• High-performance two-speed
heater with pressurized air circula-
tion system; fresh air filter; two-
speed ventilation fan. Capable of
defrosting front, side and rear win-
dows. Heat transfers 22,000 BTU
• High output integrated
air conditioner

We make mowing easy
The operator can engage
HOLDER’s pendulum system
from within the cab so that the
3-point arms can oscillate. This
allows the front attachment to
carefully hug the contour of the
ground, providing a close and
even cut without scalping.
HOLDER offers a truly profes-
sional mowing system — from
60” to 12 feet!
Low center of gravity and
smart-engineered weight trans-
fer at the wheels effects superior
traction and performance, even
with a single set of summer
tires! HOLDER’s patented stabi-
lizer system allows the tractor
to safely negotiate 40°inclines,
eliminating the need for special
slope-cutting machinery.
HOLDER C4.74
Beat the Seasons — Get the HOLDER Advantage!
Maximize efficiency and
minimize downtime
HOLDER’s professional sweep-
ing with dust control system
defines performance with four
nozzles and a 150 gallon water
tank. Available in widths of 50”,
60” and 72” as well as PTO or
hydraulic drive.
We make the cut
With less vibration and a con-
trolled milling speed, as low as 3
feet per minute, HOLDER’s cold
planer allows hydraulically con-
trolled angle, depth and sideshift.
Add our 150 gallon water tank for
superior dust control.
The ultimate in reach
and maneuverability
A boom mower set in front of
the operator provides comfort,
visibility and safety. The C4.74’s
low center of gravity eliminates
the need for dual wheels allow-
ing the equipment to operate
tight to guard rails and maximiz-
ing the boom’s impressive 13’
reach. HOLDER’s ergonomic
joystick control makes for simple and convenient operation. The
boom mower’s smart break-away system minimizes the danger
of damage from impact.
Virtually a 360°view
The C4.74’s new cab design
surrounds the operator with
safety glass, providing an
unparalleled view of the attach-
ment and surrounding area,
including overhead for optimal
visibility when truck loading.
Simple yet smart, a single joy-
stick controls all functions!
Standard features include inte-
grated air-conditioning, intermittent 2-speed wipers, 4-way
adjustable air-ride seat, tilt steering, AM/FM cassette, pop-out
side windows and roof vent.
Get the HOLDER
winter advantage
With the 1.5 cubic yard capacity
provided by our sander/dump
box combination, operators
complete routes faster and
without the inefficiencies of
refilling the hopper. The C4.74’s
contoured windshield and
optional 5’ truck chute make
roadside snow removal easy.
Your choice of 50”, 60” or 72”
blowers and plows make this
combination the most efficient
and effective snow-fighting
package in the world. Even
more versatility is gained with
our variable plow — it’s like
having several plows in one!”

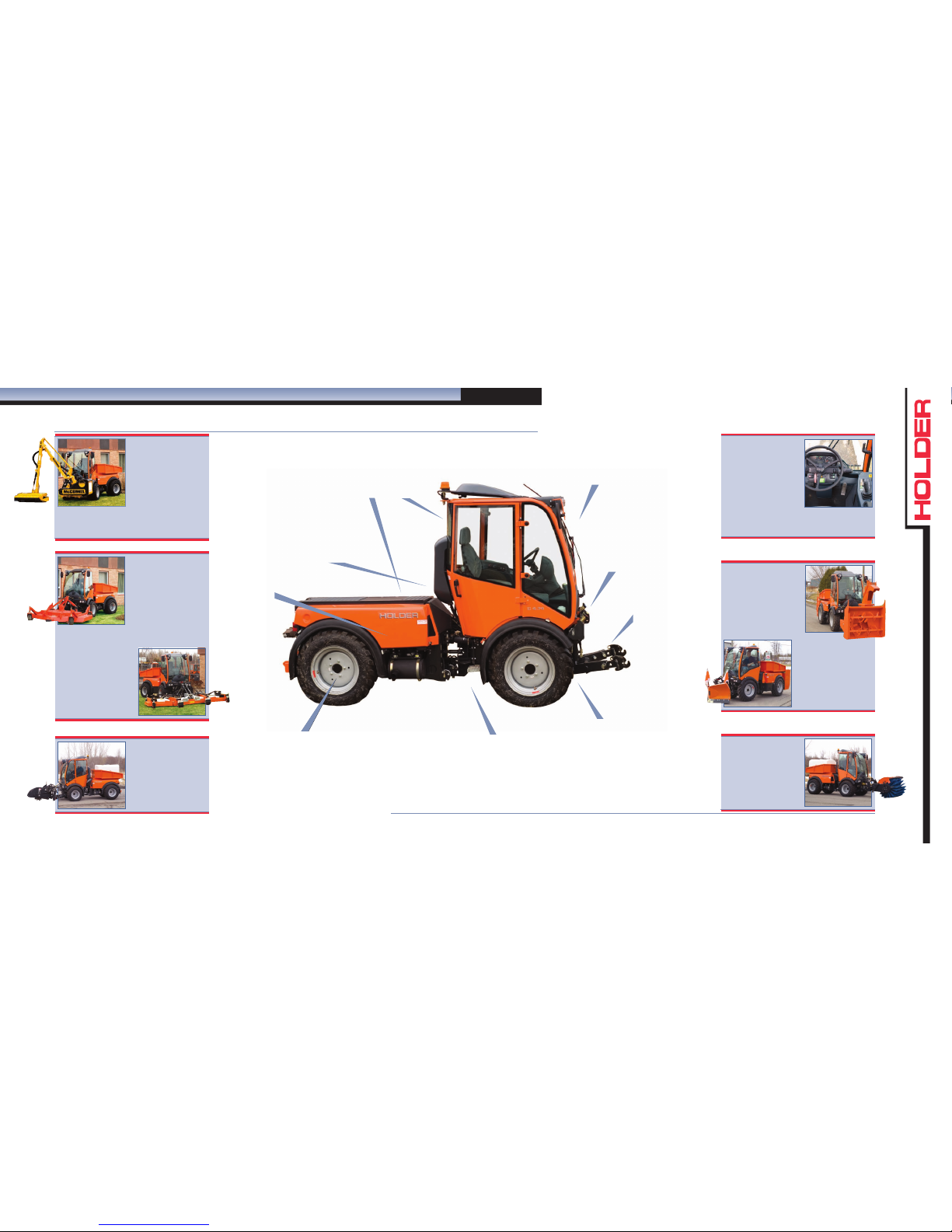

Integrated High Output A/C
is standard equipment and is strategically
located for optimum access to fresh air.
Easy Maintenance Access
makes routine servicing quick with both the
cab and the over-engine dumping platform
conveniently tilting up.
Ergonomically Designed Cab
provides excellent 360° vision, over-
head visibility for truck loading, and full
visibility for attachment hook-up.
540 rpm PTO
with HOLDER’s unique load-sensing
system that automatically adjusts
ground speed to maintain optimum
attachment speed.
Heavy Duty Front
3-point Arms
adjustable to Category 1 or 2
and feature HOLDER’s
Hydraulic Front Arm
Oscillation for maximum
efficiency on uneven contours.
Hydraulic Accumulator
allows attachments to “float”
independently of the tractor,
prolonging the life of the
tractor, improving handling
and reducing operator fatigue.
Hydrostatic Drive System
provides the convenience and
versatility of two speed ranges, plus
hand and foot controls. Benefit from
the superior traction of constant 4-
wheel drive and the C4.74’s advanced
hydraulic differential locking system.
Redesigned Hydraulic Stabilizer,
Articulating & Oscillating Center
HOLDER’s patented articulation/oscillation system provides
unparalleled maneuverability in virtually any situation. The
hydraulic stabilizer assures exceptional control over rough
terrain. The C4.74 mounts curbs easily while maintaining
even ground pressure on all four wheels.
Reliable & Fuel
Efficient
the Deutz 2011 engine
provides the power you
need to get the job
done quickly.
1-888-TRACTOR www.holder.on.ca
BEAT THE SEASONS.
THE TRUE 4-SEASON MULTI-PURPOSE TRACTOR.
