Holm rNook-16 Quick start guide

ARCHITECTURAL & LANDSCAPE LIGHTING |holmlighting.com A Hunter Industries Company
INSTALLATION NOTES: rNook-16
1. Caution and Safety Instructions
•Qualied personnel must install product in a
manner consistent with its intended use and in
compliance with the National Electrical Code,
Canadian Electrical Code, and/or all Local and
Provincial Codes.
•Follow all product label information and
installation instructions.
•Qualied personnel must perform all servicing of
this product.
•Turn o power at the fuse or circuit breaker
before installation or servicing.
•The use of damaged components may cause an
unsafe condition and void the product warranty.
•Do not block light emanating from the product in
whole or part.
•Never operate the xture with a missing or
damaged lens. The lens must be cleaned on a
regular basis.
•The entire xture may become extremely hot.
Do not touch the hot lens or xture body. Do not
touch the light source at any time.
•Keep all gaskets and sealing surfaces clean
during installation and servicing; failure to do so
may lead to premature failure of the
product.
2. Product Information
•Suitable for mounting within 1.2 M (4 ) of the ground
•Vapor barrier must be suitable for 90°C
•For use in non-re-rated installations only
•Not for use in environmental air-handling spaces
3YJ8

ARCHITECTURAL & LANDSCAPE LIGHTING |holmlighting.com Customer Service 1-844-200-4656
INSTALLATION NOTES: rNook-16 2

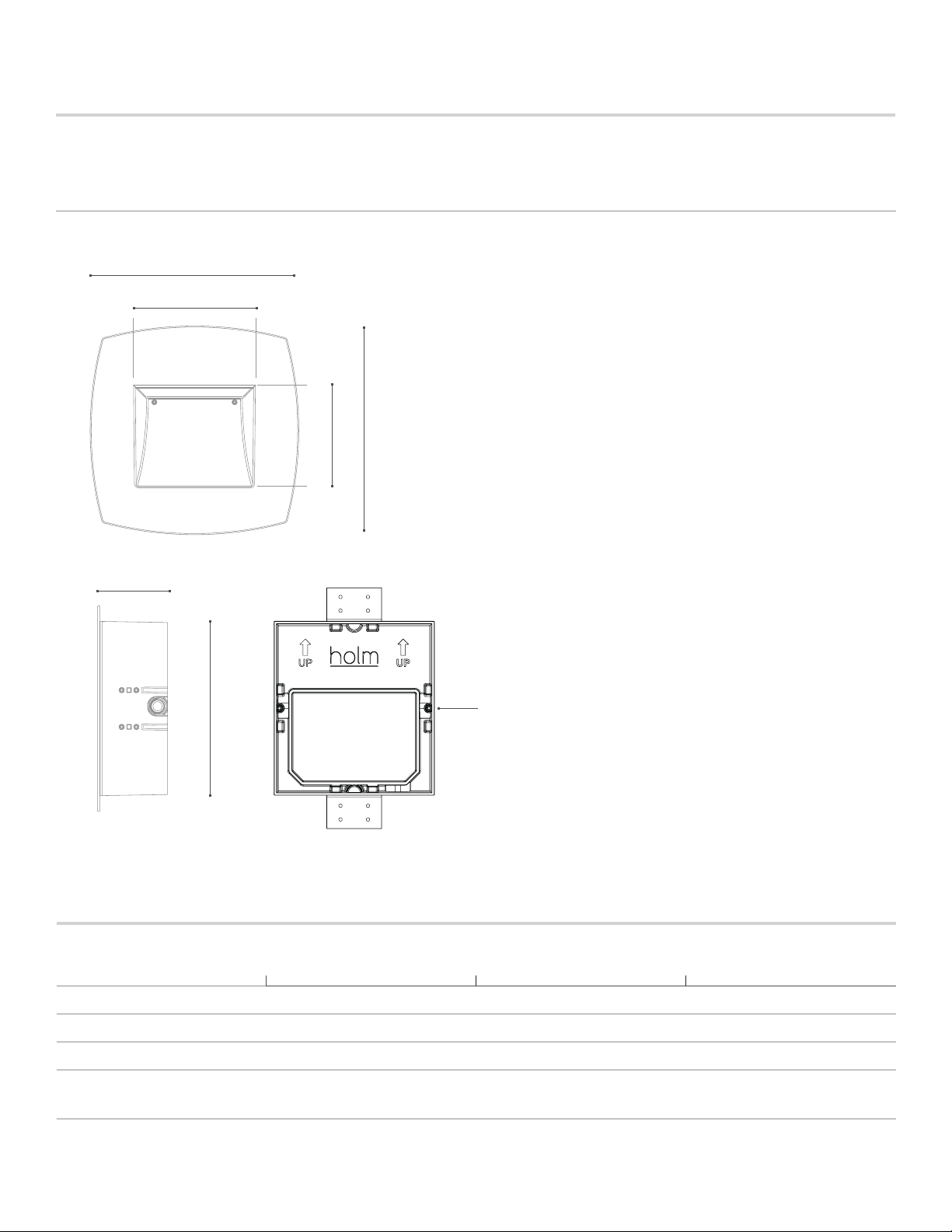

2. Product Information (cont.)
11.2"/28.5 cm
9.4"/23.9 cm
11.2"/28.5 cm
6.3"/16.0 cm
3.8"/9.6 cm
1/2"-14 NPT knockout (X3)
5.3"/13.5 cm
Tools Needed:
•7/64"Allen wrench (installation)
•#3 Phillips screwdriver (installation)
•#1 & #2 Philips screwdriver (servicing)
E0000 AAA 7/22/2012
REV ECO REVISION DESCRIPTION DRFT DATE APVD
Standard Voltage (SV) Universal Voltage (UV) High Voltage (HV)
Input Power 120V 110V to 277V 220V to 240V
Dimming Phase 0-10V N/A
Number of Wires 3 5 3
Black, White, Green Black, White, Green,
Purple, Gray Brown, Blue, Green/Yellow
Power Requirements

ARCHITECTURAL & LANDSCAPE LIGHTING |holmlighting.com Customer Service 1-844-200-4656
INSTALLATION NOTES: rNook-16 3

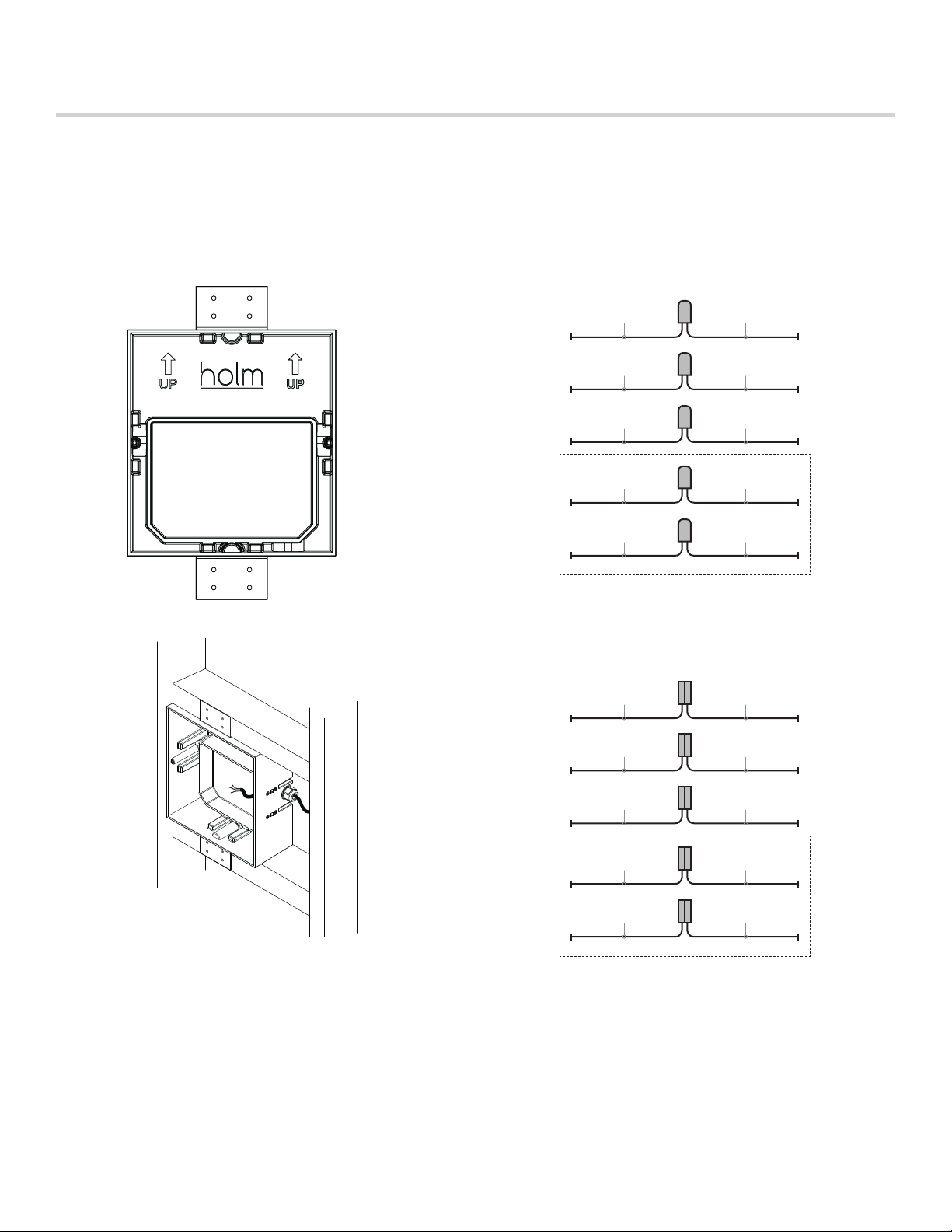

3. Product Installation
Install construction sleeve (“sleeve”) inside the wall
using provided L-brackets, mounting to structural
supports (e.g. 2"x4"framing studs). For lighting in
the downward direction, ensure the arrow in the
sleeve is pointing upward.
Wiring Chart (North America)
Wiring Chart (International)
BlackLine/Hot/Switching
WhiteCommon
Green (via stud or
green lead)
Ground
Gray*0-10V (-)
Purple*0-10V (+)
FIXTUREFIXTURE
BUILDINGBUILDING
E0000 AAA 7/22/2012
REV ECO REVISION DESCRIPTION DRFT DATE APVD
E0000 AAA 7/22/2012
REV ECO REVISION DESCRIPTION DRFT DATE APVD
*For use with 0-10V driver only
*For use with 0-10V driver only
Front View
3/4 View
①
BrownLine/Hot/Switching
BlueCommon
Green/YellowGround
Black*0-10V (-)
Grey*0-10V (+)

ARCHITECTURAL & LANDSCAPE LIGHTING |holmlighting.com Customer Service 1-844-200-4656
INSTALLATION NOTES: rNook-16 4
3. Product Installation (cont.)

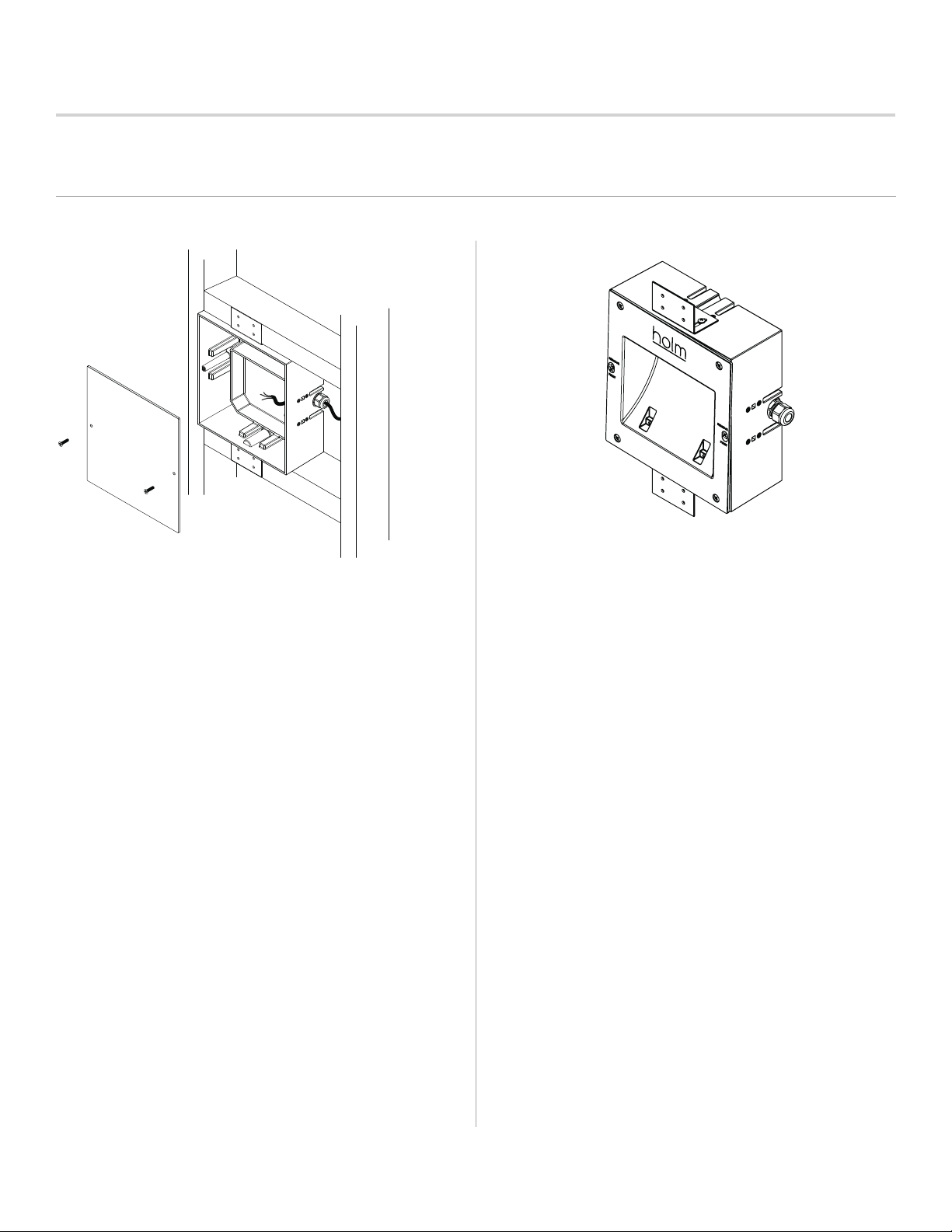

Run conduit and/or wiring (code dependent) to the
ideal “knockout(s)” in the construction sleeve.
Connect the conduit/wire runs to the sleeve with
couplings of choice (1/2”-14 NPT).
Attach sleeve cover to protect the interior during
wall nishing using included fasteners.
Remove sleeve cover to resume installation.
Connect wiring from housing assembly to the
incoming power lines using the wiring diagram (see
previous section) and approved wire connectors.
Insert complete housing assembly into
construction sleeve
Use a tool of choice to forcefully remove the
knockout.
Place the housing inside the sleeve and fasten
screws through center slots on le and right sides.
Before fully tightening, rotate housing according to
level for ideal installation.
② ⑥
⑦
⑧
⑨
③
➍
⑤
E0000 AAA 7/22/2012
REV ECO REVISION DESCRIPTION DRFT DATE APVD
MATERIAL:
PRODUCT:
DRAWN
BY:
3/3/2017
SIZE:
B
THIRD ANGLE PROJ.
.XX = ±.01
.XXX = ±.005
.XXXX = ±.0005
SHEET 1 OF 1
Hunter Industries
Engineering
1940 Diamond St.
San Marcos, CA 92078
±1°
ANGLES:
1:3
DO NOT SCALE DRAWING
ALL DIMENSIONS ARE IN INCHES
SURFACE FINISH:
UNLESS OTHERWISE SPECIFIED:
PRINT
DATE:
REV. DRAWING NO.
SCALE:
DESIGNER:
CHECKED
BY:
TITLE:REL.
DATE:
DIMENSIONAL
TOLERANCES:
CONFIDENTIAL AND PROPRIETARY
THIS DRAWING/DOCUMENT CONTAINS TRADE SECRET INFORMATION OF HUNTER INDUSTRIES, INC. USE, PUBLICATION, AND/OR
DISCLOSURE OF THIS INFORMATION TO THIRD PARTIES ARE ALL PROHIBITED EXCEPT AS EXPRESSLY AUTHORIZED IN ADVANCE BY HUNTER.
NO PATENT LICENSE IS GRANTED TO ANY INVENTIONS DESCRIBED AND/OR ILLUSTRATED HEREIN. ©COPYRIGHT HUNTER INDUSTRIES, INC.
FX B1 FORMAT REVISION 09/19/12
DENOTES CRITICAL INSPECTION POINTS
DENOTES FUNCTIONALLY CRITICAL POINTS

INSTALLATION NOTES: rNook-16 5
ARCHITECTURAL & LANDSCAPE LIGHTING |holmlighting.com Customer Service 1-844-200-4656
3. Product Installation (cont.)
Attach faceplate to housing using
included fasteners.
⑩
5. Warranty
STATEMENT OF LIMITED WARRANTY
Hunter®Industries Incorporated (“Hunter”) warrants Holm lighting products to be free of defects in materials or workmanship
under normal use for a period of ve (5) years from the date of invoice. If a defect in a Holm product is discovered during the applicable
warranty period, Hunter will repair or replace, at its option, the product or the defective part. This limited warranty does not extend to
repairs, adjustments, or replacement of Holm products or parts resulting from misuse, negligence, alteration, modication, tampering,
or improper installation and/or maintenance of the product. This warranty extends only to the original installer of the product. If a
defect arises in a Holm product or part during the warranty period, contact the local authorized manufacturer’s representative. Hunter’s
obligation to repair or replace its products as set forth above is the sole and exclusive warranty set forth by Hunter. There are no other
warranties, expressed or implied, including warranties of merchantability and tness for a particular purpose. Hunter will not be liable to
distributor or any other party in strict liability, tort, contract, or any other manner for damages caused or claimed to be caused as a result
of any design or defect in Holm products, or for any special, incidental, consequential, or exemplary damages or any nature, including
without limitation lost business or prots. Notwithstanding the foregoing, if for any reason Hunter is found to be liable, in no event shall
Hunter’s liability exceed the price of the product which gives rise to the claim, loss, or damage.
If you have any questions concerning the warranty or its application, please write to: Customer Service Department -
Holm, 1940 Diamond Street, San Marcos, CA 92078, U.S.A.
E0000 AAA 7/22/2012
REV ECO REVISION DESCRIPTION DRFT DATE APVD
N/A
rNook-16
MATERIAL:
PRODUCT:
DRAWN
BY:
3/3/2017
SIZE:
B
THIRD ANGLE PROJ.
.XX = ±.01
.XXX = ±.005
.XXXX = ±.0005
SHEET 1 OF 1
Hunter Industries
Engineering
1940 Diamond St.
San Marcos, CA 92078
±1°
ANGLES:
N/A
A1+
21110619XXXX
CE
NOOK, ASSEMBLY
1:2
DO NOT SCALE DRAWING
ALL DIMENSIONS ARE IN INCHES
SURFACE FINISH:
UNLESS OTHERWISE SPECIFIED:
PRINT
DATE:
REV. DRAWING NO.
SCALE:
DESIGNER:
CHECKED
BY:
TITLE: REL.
DATE:
DIMENSIONAL
TOLERANCES:
CONFIDENTIAL AND PROPRIETARY
THIS DRAWING/DOCUMENT CONTAINS TRADE SECRET INFORMATION OF HUNTER INDUSTRIES, INC. USE, PUBLICATION, AND/OR
DISCLOSURE OF THIS INFORMATION TO THIRD PARTIES ARE ALL PROHIBITED EXCEPT AS EXPRESSLY AUTHORIZED IN ADVANCE BY HUNTER.
NO PATENT LICENSE IS GRANTED TO ANY INVENTIONS DESCRIBED AND/OR ILLUSTRATED HEREIN. ©COPYRIGHT HUNTER INDUSTRIES, INC.
FX B1 FORMAT REVISION 09/19/12
DENOTES CRITICAL INSPECTION POINTS
DENOTES FUNCTIONALLY CRITICAL POINTS
E0000 AAA 7/22/2012
REV ECO REVISION DESCRIPTION DRFT DATE APVD
N/A
rNook-16
MATERIAL:
PRODUCT:
DRAWN
BY:
3/3/2017
SIZE:
B
THIRD ANGLE PROJ.
.XX = ±.01
.XXX = ±.005
.XXXX = ±.0005
SHEET 1 OF 1
Hunter Industries
Engineering
1940 Diamond St.
San Marcos, CA 92078
±1°
ANGLES:
N/A
A1+
21110619XXXX
CE
NOOK, ASSEMBLY
1:2
DO NOT SCALE DRAWING
ALL DIMENSIONS ARE IN INCHES
SURFACE FINISH:
UNLESS OTHERWISE SPECIFIED:
PRINT
DATE:
REV. DRAWING NO.
SCALE:
DESIGNER:
CHECKED
BY:
TITLE: REL.
DATE:
DIMENSIONAL
TOLERANCES:
CONFIDENTIAL AND PROPRIETARY
THIS DRAWING/DOCUMENT CONTAINS TRADE SECRET INFORMATION OF HUNTER INDUSTRIES, INC. USE, PUBLICATION, AND/OR
DISCLOSURE OF THIS INFORMATION TO THIRD PARTIES ARE ALL PROHIBITED EXCEPT AS EXPRESSLY AUTHORIZED IN ADVANCE BY HUNTER.
NO PATENT LICENSE IS GRANTED TO ANY INVENTIONS DESCRIBED AND/OR ILLUSTRATED HEREIN. ©COPYRIGHT HUNTER INDUSTRIES, INC.
FX B1 FORMAT REVISION 09/19/12
DENOTES CRITICAL INSPECTION POINTS
DENOTES FUNCTIONALLY CRITICAL POINTS
HL-005-IN-rNook US 3/17
