Holux FunTrek 132 User manual

HOLUX FunTrek 132
FunTrek 132
User Manual
Holux Technology Inc.

HOLUX FunTrek 132
ii
Copyright Declaration
HOLUX is trademarks of HOLUX Technology, Inc
All other trademarks belong to registered companies
 The contents of this manual will be modified without further notice
 Without the written consent of HOLUX Technology, Inc, this manual may not be translated or copied
Copyright HOLUX Technology, Inc All rights reserved
So tware Copyright
FunTrek 132 software is China and international copyright law protection Copyright HOLUX Technology, Inc
All rights reserved Other products mentioned herein and company names are trademarks of their respective
owners

HOLUX FunTrek 132
iii
Product Caution
About operation environment
 The operating temperature for the product is between -10℃~60℃
 Operating or recharging in an environment with a temperature over 45℃ might cause the system
malfunction However, this should be considered a normal phenomenon Please do not operate under
extreme temperatures
About the altimeter
 The device estimates altitude based on air pressure Its means that altitude readings for the same location
may vary with air pressure changes
 The semiconductor pressure sensor used by the device for altitude measurements also is affected by
temperature When taking altitude measurements, make sure the device is not subjected to temperature
changes
 Do not use this device for measuring altitude in applications that demand professional or industrial level
precision
 Do not rely upon this device for altitude measurements or perform button operations while sky diving,
hang gliding, or riding a gyrocopter where there is the chance of sudden altitude changes
 The air inside of a commercial aircraft is pressurized Because of this, the readings produced by this
device will not match the altitude readings announced or indicated the flight crew
Power sa ety precautions
 Use the power adapter and USB cable that are included with the package Using other power adapters or
USB cables than the one provided will result to malfunction and could proof to be dangerous
 The device should only be used with the supplied batteries
About the power adapter
1 Do not use the power adapter in a wet environment When hands and feet are wet, do not touch the power
adapter
2 While using the power adaptor, ensure that the area is well ventilated Do not let paper or other material
cover the power adaptor, as this will interfere with cooling Do not use the power adaptor whilst it is in a
bag
3 Do not attempt to repair the device If device is damaged or is in a wet environment, replace the device
immediately
4 It is not recommended to charge from a PC because the PC power voltage is not enough to supply the
device

HOLUX FunTrek 132
iv
About the battery
1. Use only the original factory approved power adapter
2. A Lithium battery is built into the device To prevent fire or skin burns, do not disassemble, pierce, impact,
or expose the battery to fire The battery will crack, explode, or release dangerous chemicals if placed in a
fire
Important instructions
1 Note: Replacing with an incorrect battery may result in an explosion When disposing of the battery, follow
the instructions The replacement battery must be a factory approved original
2 Regulations must be observed when recycling or disposing of batteries
3 The battery should only be used in this device
Normal care and maintenance
FunTrek 132 is a product of superior design and craftsmanship and should be treated with care The following
suggestions will help you protect your warranty coverage
1 If your device does get wet, remove the battery, allow the device to dry completely and then replace the
battery
2 Use a soft clean cloth to wipe the screen
3 Do not use or store the device in dusty, dirty areas Accessories can be damaged
4 Do not store the device in hot areas High temperatures can shorten the life of electronic devices, damage
batteries, and warp or melt certain plastics
5 Do not store the device in cold areas When the device returns to its normal temperature, moisture can
form inside the device and damage electronic circuit boards
6 Please do not disassemble the product other than in accordance with the user manual This may void the
warranty and damage the unit
7 Do not drop, knock or shake the device Rough handling will break internal circuit boards and fine
machinery
8 Do not use harsh chemicals, cleaning solvents, or strong detergents to clean the device
9 Do not paint the device Paint can clog the moving parts and prevent proper operation
10 Please remember to back up important information such as track log, waypoints, and routes
11 Sometimes you can reset the device to ensure the best operation status, please turn off the power and
remove the battery
These proposals are only applicable to FunTrek 132, its battery, charger or any other accessories

HOLUX FunTrek 132
v
Product introduction
Receiver unction:
 GPS Positioning：
：：
：Hidden antenna design, high-sensitivity GPS receiver chip can do quick positioning
 Electronic compass：
：：
：Provides direction for location information, with compass function
 Altimeter：
：：
：Measure the altimeter by using the GPS altitude and pressure altimeter calibration
 Touch screen LCD: A high resolution color, touch screen TFT LCD with backlight
 Water resistant: IPX6 Waterproof
 Language support：
：：
：Simplified Chinese/ Traditional Chinese/ English
 Chinese/ English handwriting input: Support Simplified Chinese/ Traditional Chinese/ English
handwriting functions
 Memory：
：：
：Use micro SD card to store waypoints, routes and navigation map It is can be used as a
removable storage device (flash drive)
Navigation record:
 Record in ormation ：
：：
：Store waypoints (including coordinates, altitude etc), track log (including
coordinates, altitude etc), and edit routes
 Display in ormation：
：：
：Contains waypoints, track log, routes, speed, track distance, moving average speed,
vertical speed, altitude change, heading, location, reducing the carbon content, and slope, and the other
40 Trip Computer It also displays the changes on altitude maps information chart
 Support Map：
：：
：Support all kinds of navigation maps that were developed for FunTrek 132
Outdoor unction:
 Alert setting：
：：
：You can set the alert for altitude, speed, distance and time It can be used for outdoor
climbing
 ANT+ Heart rate monitor：
：：
：With ANT+ heart rate monitor sensor to measure heart rate
 ANT+ bike cadence sensor：
：：
：With ANT+ cadence sensor to measure cadence
 ANT+ bike speed sensor：
：：
：With ANT+ speed sensor for bike

HOLUX FunTrek 132
vi
Application unctions：
：：
：
 G-Finder：
：：
：Use the G-Finder feature to calibrate points in order to measure the field area
 Coordinate Datum switching：
：：
：Support Beijing1954, Xian 80, Taiwan TWD 67, TWD 97 and WGS 1984
coordinates system which are switchable You also can set more than 250 coordinates
 Area calculation：
：：
：Measures area for Resources Field Survey
 Average location：
：：
：Calculate average value of coordinates and average altitude
 Other application：
：：
：Contains calendar, calculator, stopwatch, and Geocaching
Electronic map database：
：：
：
 Maps characteristic：
：：
：FunTrek 132 is pre-installed China’s (or Taiwan) factory for land-based electronic
navigation map on a 2GB microSD card Its virtual map supports turn-by-turn navigation
 Maps characteristic：
：：
：The map contents include highway, state and provincial roads, and all other road
information; details on the road map of cities across the country generally
 Point o Interest (POI) in ormation：
：：
：About 5 million in mainland China, Taiwan, more than 310,000 points
of interest, including landmarks, attraction, restaurants, gas station all kind of facilities, institutions,
information-rich to meet the needs of various types of queries It supports fast and easy search functions
based on the category or the manual text entering query
FunTrek 132 has a variety of GPS applications, not only hiking, bike, also a best partner for car driving to
outdoor, which is a convenient tool for the measurement work that is truly full-function handheld product

HOLUX FunTrek 132
vii
Table o Contents
Copyright Declaration ii
Software Copyright ii
Product Caution iii
Product introduction v
Table of Contents vii
Product Spec 1
Main program spec 1
Hardware spec 2
Unit Overview 3
Basic Operation 4
Power on and off 4
Charging Battery 4
Install/ Remove microSD card 4
Power on and Positioning 5
Right button 6
Left button 9
Lock/ unlock the screen 11
Screenshot 12

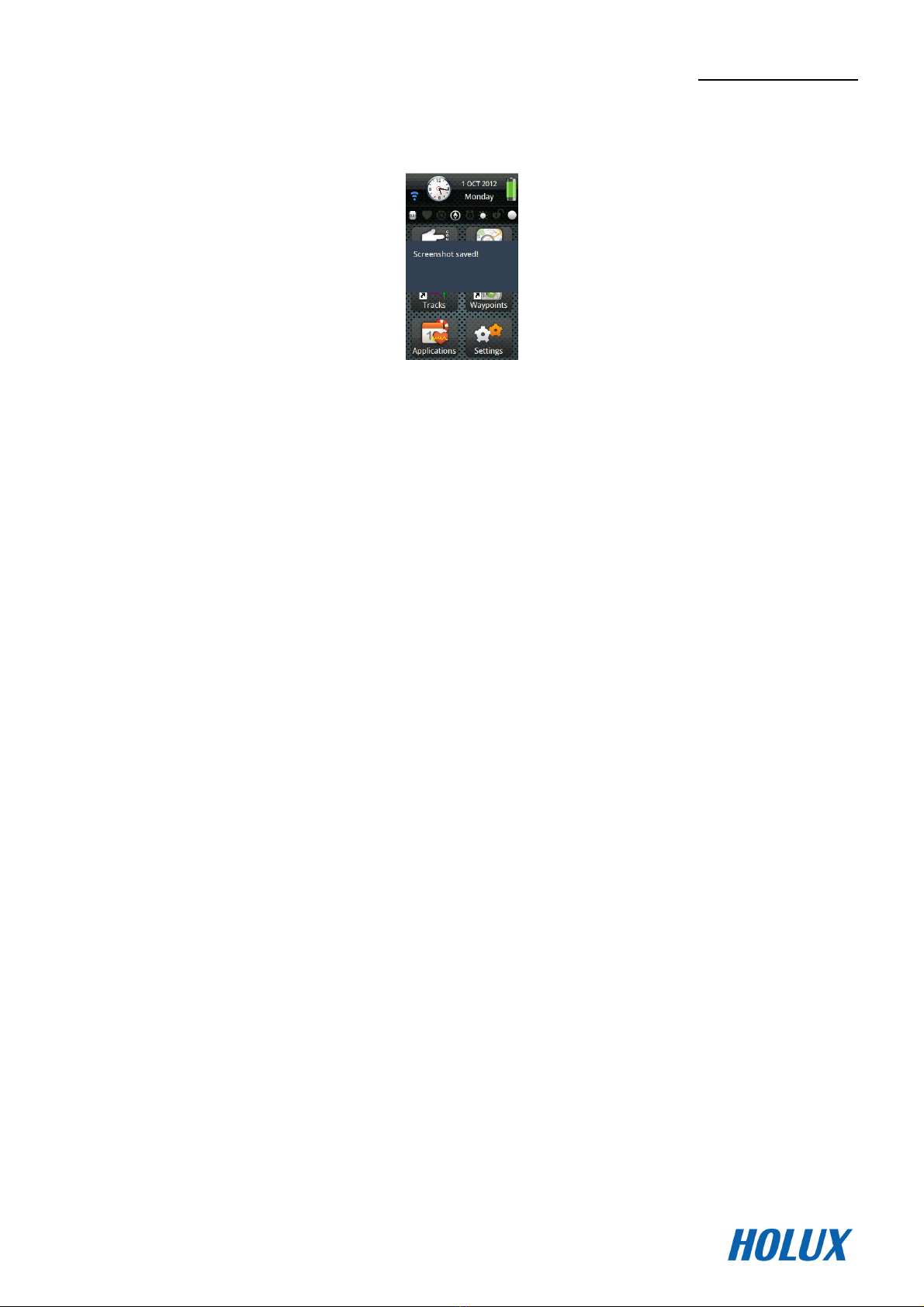

Main menu list 13
Status bar 13
Follow Course 15
By Track 15
By Route 16
G-Finder 17
View Map 18
Create Map 19
Tracks 20
Search track log 20
Track Detail 20
Altitude/ Speed Plot 21
View Track 21
Edit track 22
Delete Track 22
Copy to new 23
View multiple Tracks 23
Mass Storage 24
Read the microSD card data 24
Folders 24
Application 25
Shortcut 25
Using an External Application 25
Training 27
Area calculation 30

HOLUX FunTrek 132
viii
Geocaching 34
Calendar 36
Alarm clock 36
Calculator 37
Stopwatch 37
Unit Conversion 38
Health 38
Emer (Emergency info) 38
Tips 38
Waypoints 39
Routes 45
Settings 49
Personal 49
Sensors 52
System 56
Alerts 64
Profiles 65
About 65
ezTour Plus Installation 66

HOLUX FunTrek 132
1
Product Spec
Main program spec
Item Spec parameter
Operation interface Simplified Chinese/ Traditional Chinese/ English/
Czech switching operation
Support external program Yes
The numbers of waypoints 2000
The numbers of routes 1000
Waypoints of every route 1000
Track log 10000
The total number of sub-record 1000
Record by time interval Yes
Record by distance interval Yes
Atomically record Yes
Continuous recording time 8 hours
Datum Yes
Beijing 1954 Yes
Xian 80 Yes
Huzih Mountain system Yes
TWD 67 Yes
WGS 1984 (TWD 97) Yes
Users define Coordinate Datum Yes
Coordinate format Yes
Latitude and longitude Yes
UTM Yes
Users define coordinate format Yes
Computing DGPS differences feature MSAS, WAAS and EGNOS receiver system

HOLUX FunTrek 132
2
Hardware spec
GPS chip
 High Sensitivity (-165dBm) GPS Chip
Memory
 128M mobile DDR SDRAM
 Internal 4GB Flash
 Support microSD card up to 32GB
Display
 3 0 ‘’WQVGA (16:9) TFT LCD
 Transflective Touch Screen (Sunlight viewable)
 240 x 400 Pixels Resolution
Sensors
 3D Digital Compass
 Altimeter
 Auto backlight adjustment sensor
 Support 2 4G wireless ANT+
TM
heart rate straps,
bike cadence sensors, bike speed sensors, and
combined bike speed/ cadence sensors
Battery
 Up to 15 hrs (Backlight off)
 Removable & Rechargeable, Li-Ion 1150mAh
Waterproo
 IPX-6
IO inter ace
 USB 2 0 (mini USB )
Adaptor
 Input: 100~240V, 0 5A, 50~60Hz
 DC output: 5V, 1A
Dimension:
 58 x 105 x 23 mm
Weight
 122g (with battery)
Environment temperature
 Operating Temp: -10℃~60℃
 Storage Temp: -20℃~70℃
 Charging temp: 0°C ~ 40°C

HOLUX FunTrek 132
3
Unit Overview
Component Function Description: (Front View)
Item Description
Touch Screen LCD The device is using the touch-screen control
Right button When the device is powered off, press the right button for 3 seconds to turn on this
device
When powered on, press this button for 3 seconds to turn off
Left button When the device is powered on, press the left button to switch to the Main Menu,
Trip Computer page and Navigation
LED 1 The LED flashes red when charging
2 The LED stop flashing but lights on when charging is complete
3 The LED dims when the USB is unplugged
4 The LED will first light on a second, and the opening screen appears on the
screen
Component Function Description: (Rear View)
Item Description
Battery lid Press and push to open the battery lid for installing or replacing batteries
Screw holes Fix and secure screws
Component Function Description:
Item Description
USB port Connect power or PC/NB for charger or data transfer
Stylus Lanyard You can attach the bundled stylus to the device
Front View Back View
Low Rear View

HOLUX FunTrek 132
4
Basic Operation
Power on and o
When device is turned on, press and hold the right button for 3 seconds to power off the device The prompt
"Saving data… please wait " will appear while the device is powering off When device is turned off, press and
hold the right button for 3 seconds to power on
Note: Please do not power off the devices when you use the “Training” or “Area calculation” functions, the track
log can’t be saved nor ally.
Charging Battery
You may choose one of the following methods to charge the device
1. Connect the USB adapter to a wall outlet
2. Connect the USB cable to your computer For details, please refer to the charging mode
3. If the supplier includes with a car power adapter, plug the respective ends of the device to the card
cigarette lighter and the USB cable interface in order to charge the device
Charging mode
Connect FunTrek 132 to the PC with an USB cable When the device is power off and connect to the PC, enter
charging mode
Install/ Remove microSD card
Step:
1. Open the battery lid and remove the battery
2. Insert microSD with its chip facing down and flat into the microSD slot and push upward to lock the
microSD card slot
3. To remove the microSD card, unlock the SD socket and remove the SD card

HOLUX FunTrek 132
5
Power on and Positioning
First positioning
Please take the device out of the room, and turn on the device Then enter into the satellite status page to
displays the position status When searching satellite signal will display “Acquiring” “2D Fixed” means the
positioning status mode “3D fixed” means the coordinate information is available for reference
Only after the positioning is successfully for the first time, it will begin to record the track
General positioning
Once starts up, it will automatically do the positioning
Satellite status page
Positioning precision
Positioning status
Satellite number
Satellite signal strength
WGS1984 coordinate value User define coordinates value
GPS signal's CN value
GPS measured Height
GPS Estimated Position Error
Average location
Cold start

HOLUX FunTrek 132
6
Right button
Backlight
Step:
 Press the right button once to enter the operation page as shown above
 Click the button to increase/decrease the backlight brightness
Auto Light
FunTrek 132 is equipped with a sensor that automatically detects the ambient light level and adjusts the
backlight brightness to save power
Step:
 Press the right button once to enter the operation page
 Select in the backlight adjustment area and the backlight brightness will be automatically adjusted
to suit the ambient light
New Track
Step:
 Press the right button once to enter the operation page
 The middle area of the screen shown as is the operation area
 Automatically record: Users have to complete the satellite positioning and altimeter calibration when they
first powered on The device will record track log automatically
 Manually record: press the button to enter the new a track log On the page, users can edit name,

HOLUX FunTrek 132
7
notes, and view sport modes
 Press the button to save the track log, and start to record
 Press the button to pause recording; press the button to start/continue recording
 Press the button to stop recording, and save the track data
Note:
 Track log na e can be input up to 20 words, notes can be input up to 50 words.
 When device is anually powered off, the track log will be auto atically saved.
 The track log will be lost if power is accidentally interrupted or the battery is re oved after a crash.
New checkpoint
After adding a track, you can create a checkpoint on the track
Step:
 Press the right button once to enter the operation page
 The right bottom of page is the area to mark checkpoint Press the button to enter the checkpoint
edit page You can edit checkpoint name, add notes, edit checkpoint coordinates location and input
checkpoint altitude
 Click “location” button to define the checkpoint coordinates Press the button to set coordinates
formate and system Press the button to save the coordinates edit result
 Click “altitude” button to define the altitude information of checkpoint Press the button to save the
altitude editing result
 When completed, return to checkpoint edit page, and press the button to save checkpoint
information
Note: Checkpoint name can be input up to 20 words, notes can be input up to 50 words

HOLUX FunTrek 132
8
New waypoint
Step:
 Press the right button once to enter the operation page
 The bottom of page is the area to mark waypoints Press the button to enter the waypoint edit
page You can edit waypoint name, select waypoint symbol, add notes, edit waypoint coordinates location
and input waypoint altitude
 Click “location” button to define the waypoint coordinates Press the button to set coordinates formate
and system Press the button to save the coordinates edit result
 Click “altitude” button to define the altitude information of waypoints Press the button to save the
altitude editing result
 When completed, return to waypoints edit page, and press the button to save waypoints information
Note: Waypoint na e can be input up to 20 words, notes can be input up to 50 words.

HOLUX FunTrek 132
9
Le t button
Trip Computer
Step:
 Press the left button once to enter the Trip Computer
 In the Trip Computer page, you can view travel distance, travel time, current speed and altitude, and the
other 40 Trip Computer
 Use the button to check more navigation data
Change Trip Computer Items
Step:
 Press the setting button You can select the item that you want to change Click the item to enter the
Trip Computer list, and use the up/down button to flip page and search
 Select the item to be added, press confirmation button to change

HOLUX FunTrek 132
10
Page Display Selection
In the Trip Computer, press the button You can use and buttons to change the number of pages
displayed on the screen
: displays 3 items of Trip Computer on screen
: displays 8 items of Trip Computer on screen
View statistical curve
FunTrek 132 can record the height, speed, pressure, time and distance curve for the user to view the analysis
Step:
 Press the left button once to enter the Trip Computer
 Press the button, and enter the statistical curve page
 Click the two trip information areas on the top of page, you can switch the item You can select from the
items: “Time”, “Location”, “ALT”, “Speed”, “Heart Rate”, “Cadence” and “Air Pressure”
 Press the button to switch axis User can select the axis item to display to the altitude, speed, Heart
Rate, Cadence, pressure chart according to its changes with time or distance
 Use the and buttons to zoom in and zoom out the altitude chart
 When you change the graph scale, use to return normal status
Note: If you didn’t record track log, the device doesn’t have the altitude, speed, and pressure infor ation and it
also doesn’t display the statistical curve.

HOLUX FunTrek 132
11
Compass
Step:
 Press the left button once to enter the Trip Computer
 Press the button to enter compass page On the compass page, you can view current direction,
azimuth and compass
 Compass which has not done with its calibration can not accurately show the direction Press the
button to calibrate the compass For details, please refer to the Compass
General in ormation
Step:
 Press the left button once to enter the Trip Computer
 Press the button to enter general page Users can view GPS coordinates information, GPS signal
strength, DOP and Time
Lock/ unlock the screen
If the screen is unlocked, press the left button for 3 seconds to lock the screen, the message of "Screen
locked” appears on the screen The “unlock" message pops up on the screen if press the left button for 3
seconds Once the screen is locked, press the left button for 3 seconds to unlock the screen

HOLUX FunTrek 132
12
Screenshot
FunTrek 132 can take a screenshot and save as a picture Press both the left and right buttons at once to take
a screenshot If screenshot is successful, a prompt will appear When the FunTrek 132 is connected to a PC in
storage mode, the saved screenshot can be accessed in the "sc" folder
Note: Do not use the capture screen function when the screen is locked.
