M-9129
SPECIFICA ION
GPS Engine Board

GPS Engine Board M-9129
- i -
Version Update History
Version Date Revised Reason
0.1 2010/07/07 Draft release
0.2 2010/11/11 Add pin definition op View

- ii -
Index
1 Introduction.............................................................................................1
1 1 General introductions .......................................................................1
1 2 Key Features......................................................................................1
1 3 Applications.......................................................................................1
2 Technical Description.............................................................................2
2 1 Block Diagram ...................................................................................2
2 2 Pin Definition .....................................................................................2
2 3 Specification ......................................................................................4
3 Mechanical Dimension ...........................................................................6
3 1 Mechanical Dimension......................................................................6
4 Package ...................................................................................................7
4 1 Packing ..............................................................................................7
4 2 Reference Product Photo.................................................................8
5 User Interface..........................................................................................9
5 1 NMEA Protocol..................................................................................9
5 2 NMEA Protocol format ......................................................................9
5 3 MTK NMEA Packet Format .............................................................10
6 Reference Design .................................................................................11
6 1 Reference circuit............................................................................. 11
6 2 Reference PCB pattern...................................................................12
6 3 Recommendation reflow profile.....................................................13

GPS Engine Board M-9129
- 1 -
1 Introduction
1 1 General introductions
M-9129 is an ultra miniature 13 * 15 * 2.2 mm GPS engine board designed
by low power consumption M K GPS solution. It provides superior
sensitivity up to -165 dBm and fast ime- o-First-Fix in navigation
application. he stable performance of M-9129 is your best choice to be
embedded in your portable device design, like PDA、PND、mobile phone、
Digital Camera for GPS service.
1 2 Key Features
‧ Small form factor: 13* 15 * 2.2 mm
‧ RoHS/WEEE compliant
‧ High sensitivity -165 dBm ( racking)
‧ Up to 66 parallel searching,22 tracking channels
‧ Fast Position Fix
‧ Low power consumption
‧ R CM-in ready.
‧ Built-in WAAS/EGNOS/MSAS Demodulator.
‧ Support NMEA0183 V 3.01 data protocol.
‧ Real time navigation for location based services.
‧ For Car Navigation, Marine Navigation, Fleet Management, AVL and
Location-Based Services, Auto Pilot, Personal Navigation or touring
devices, racking devices/systems and Mapping devices application
1 3 Applications
‧ Automotive and Marine Navigation
‧ Automotive Navigator racking
‧ Emergency Locator
‧ Geographic Surveying
‧ Personal Positioning
‧ Sporting and Recreation
‧ Embedded applications: Smart phone, UMPC, PND, MP4

GPS Engine Board M-9129
- 2 -
2 Technical Description
2 1 Block Diagram
2 2 Pin Definition
op view Button view
P1
P2
P3
P4
P5
P6
P7
P8
P9
P10
P11
P22
P21
P20
P19
P18
P17
P16
P15
P14
P13
P12
P1
P2
P3
P4
P5
P6
P7
P8
P9
P10
P11
P22
P21
P20
P19
P18
P17
P16
P15
P14
P13
P12
22
17 6
12
11
M-9129 VA1 100813

GPS Engine Board M-9129
- 3 -
Pin Pin Name Type Function description
1 RXDB I Serial Data Input B
2 TXDB O Serial Data Output B
3 1PPS O
1 PPS output, synchronized with GPS time.
IME_MARK 1 PPS output, 1us/s
4 TXDA O Serial Data Output A
5 RXDA I Serial Data Input A
6 GND G Ground
7 GPIO8 I/O General purpose I/O
8 GPIO0 I/O General purpos
e I/O. flash at 1Hz when position is
fixed.
9 GPIO4 I/O General purpose I/O
10
VOUT O Power State Indicate, 2.8 VDC Output
11
Standby I Low active
for power down,(Keep NC if not used is
High)
12
V_BAT I R C and backup SRAM power Input:
DC Input:2.8~4.2V.
NC: provided it by module internal LDO.
13
VCC_IN I 3.3 ~ 4.2 VDC Power Input
14
GPIO6 I/O General purpose I/O
15
GPIO7 I/O
General purpose I/O
16
GPIO5 I/O
General purpose I/O
17
GND G Ground
18
RESET I Reset , Low active
19
VCC_R _O
O Active antenna power supply output, 2.8 VDC
20
GND G Ground
21
R _IN I GPS signal input, 2.80 VDC output
22
GND G Ground

GPS Engine Board M-9129
- 4 -
2 3 Specification
General (Follow M K chip specification)
GPS technology M 3329 GPS chipset
Frequency L1,1575.42 MHz
C/A Code 1.023 MHz chip rate
Channels 66 parallel searching,22 tracking channels
Sensitivity - 165 dBm ( racking)
Receiver Accuracy (Follow M K chip specification)
Position
Without aid:3.0 M 2D-RMS
DGPS(WAAS, EGNOS, MSAS, R CM):2.5 M
Velocity Without aid:0.1 M/sec
ime 0.1µs. Sync GPS time
Datum
Datum WGS84(Default) total 219 datum’s
Time to First Fix (Follow M K chip specification)
Hot start < 1 sec.
Warm start < 33 sec.
Cold start < 35 sec.
Reacquisition
＜1sec.
Protocol
GPS Output Data
NMEA0183(V3.01)- GGA,GLL,GSA,GSV,RMC,V G
Support Baud rate 4800/9600/…./1152
00 bps (default
4800), Data bit:8 , Stop bit:1, No parity.
Update Rata
1 Hz(default)
Protocol Support NMEA-0183
1PPS Enable(1 Hz pulse 10% duty cycle)
Limitations (Follow M K chip specification)
Acceleration Limit
＜4G
Altitude Limit
＜18000 meters
Velocity Limit
＜515 M/sec
Jerk Limit 20 M/sec
3
Power
Operation Current Acquisition 42≒ [email protected]
Operation Current
racking:＜36 [email protected]
DC Input Range
VCC_IN: 3.3~4.2V
V_BA : 2.0~4.2V

GPS Engine Board M-9129
- 5 -
Processing Core
Processor ype ARM7EJ-S
Processor Speeds
Up to 56 MHz
Interface CMOS 2.8 V Level
Temperature
Operating emperature -30 to +80
Storage emperature
-40 to +85
Operating Humidity
5% to 95%, Non condensing
Physical
Dimension
13 * 15 * 2.2 mm.
Weight <2g.

GPS Engine Board M-9129
- 6 -

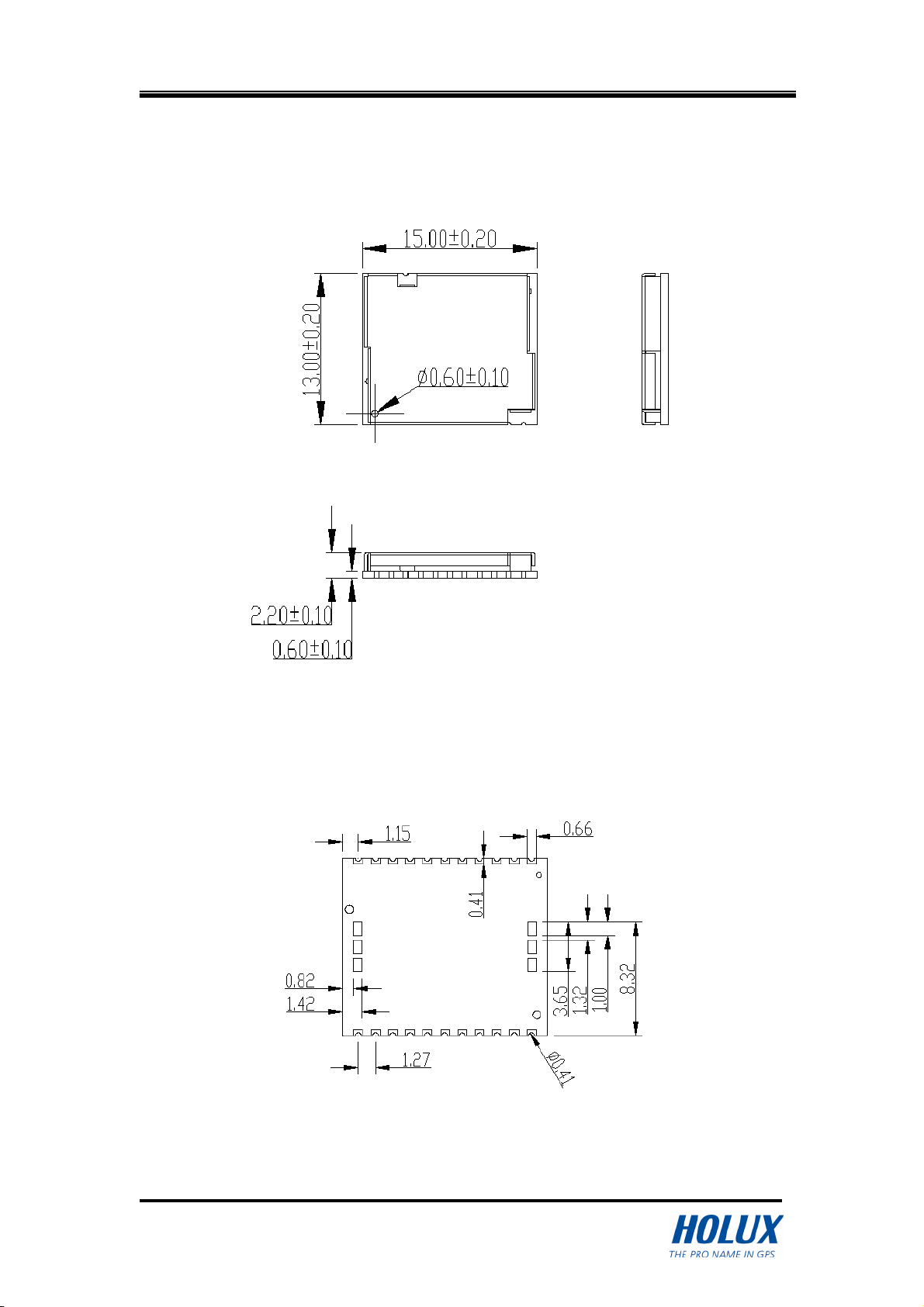

3 Mechanical Dimension
3 1 Mechanical Dimension
OP VIEW
BO OM VIEW

GPS Engine Board M-9129
- 7 -
4 Package
4 1 Packing
ray dimension: 325*220*9 mm, Standard Content Qty : 100 pcs.
Carton dimension: 340*235*120 mm, Standard Content Qty : 2,000 pcs.

GPS Engine Board M-9129
- 8 -

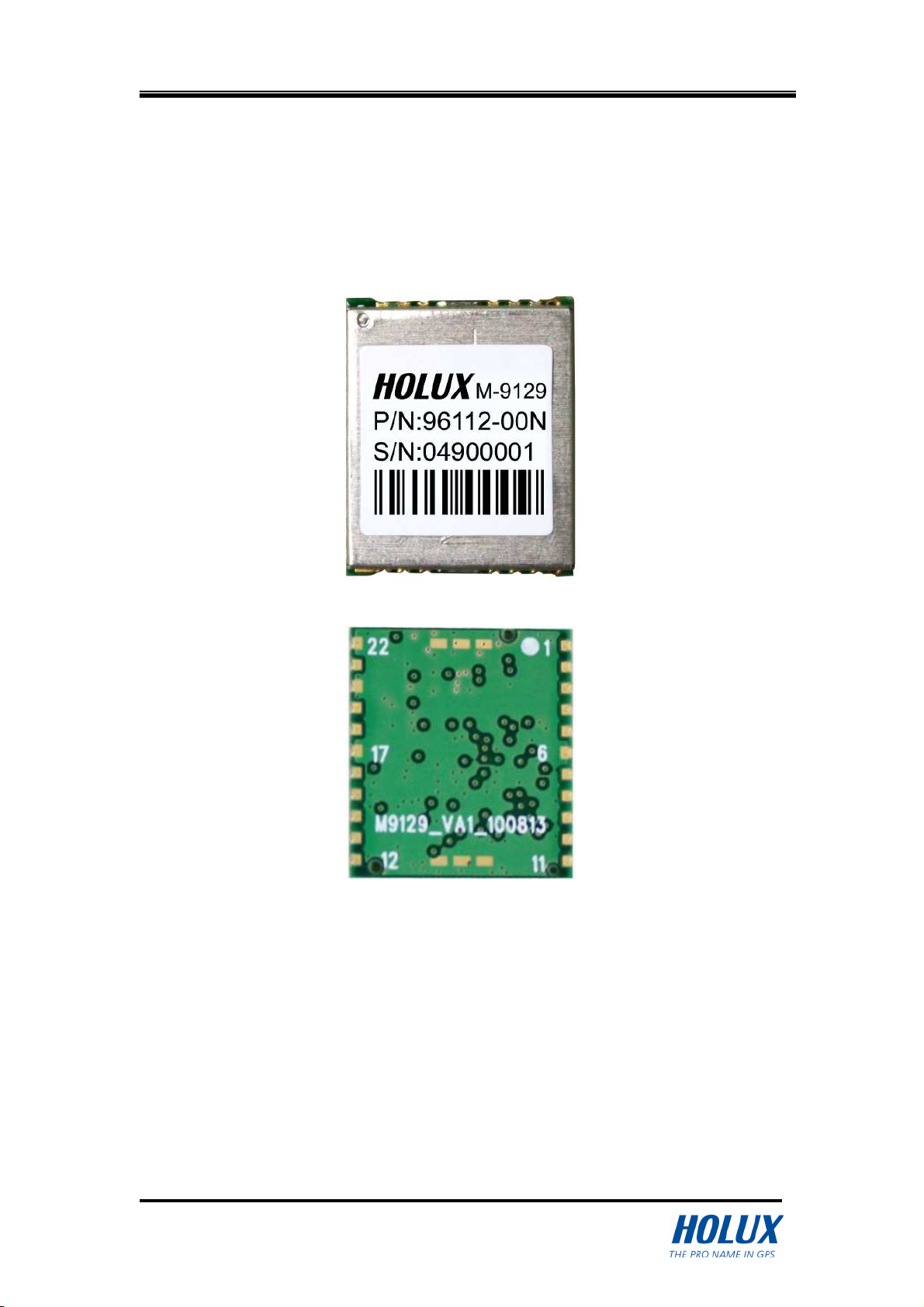

4 2 Reference Product Photo
he photo is for reference, the real content will depend on the real
configuration.
op side:
Bottom side: ( he PCB version depend)

GPS Engine Board M-9129
- 9 -
5 User Interface
M-9129 provides 2-wire digital UAR port for communication of GPS position
data using NMEA protocol or M K extension protocol. UAR port is capable of
4800 to 115200 baud rate.
5 1 NMEA Protocol
M-9129 is default to support standard NMEA-0183 protocol. In addition, a
series of M K extensions (PM K messages) have been developed that can
be used to provide extended capabilities common to many applications.
5 2 NMEA Protocol format
M-9129 is capable of supporting following NMEA formats:
NMEA RECORD Description
GGA GPS fix data
GLL Geographic
GSA GNSS DOP and active satellite
GSV GNSS Satellites in view
RMC Recommended minimum specific GNSS data
VTG Course Over Ground and Ground Speed
ZDA Time & Data

GPS Engine Board M-9129
- 10 -
5 3 MTK NMEA Packet Format
Preamble TalkerID PktType Datafield * CHK1 CHK2 CR LF
Maximum packet length is restricted to 255 bytes
Field Length Type D
Preamble 1 byte Character “$”
alkerID 4 byte Character string “PM K”
Pkt ype 3 byte Character string
“000”to “999”, an
identifier used to tell
the decoder how to
decode the packet
DataField Variable
“, ”must be inserted
ahead each data
filed to help the
decoder process
the Data Field
* 1 byte Character
he star symbol is
used to mark the
end of Data Field
CHK1
CHK2 2 byte Character string
checksum of the
data between
Preamble “, ”and “*”
CR, LF 2 byte Binary data used to identify the
end of a packet

GPS Engine Board M-9129
- 11 -
6 Reference Design

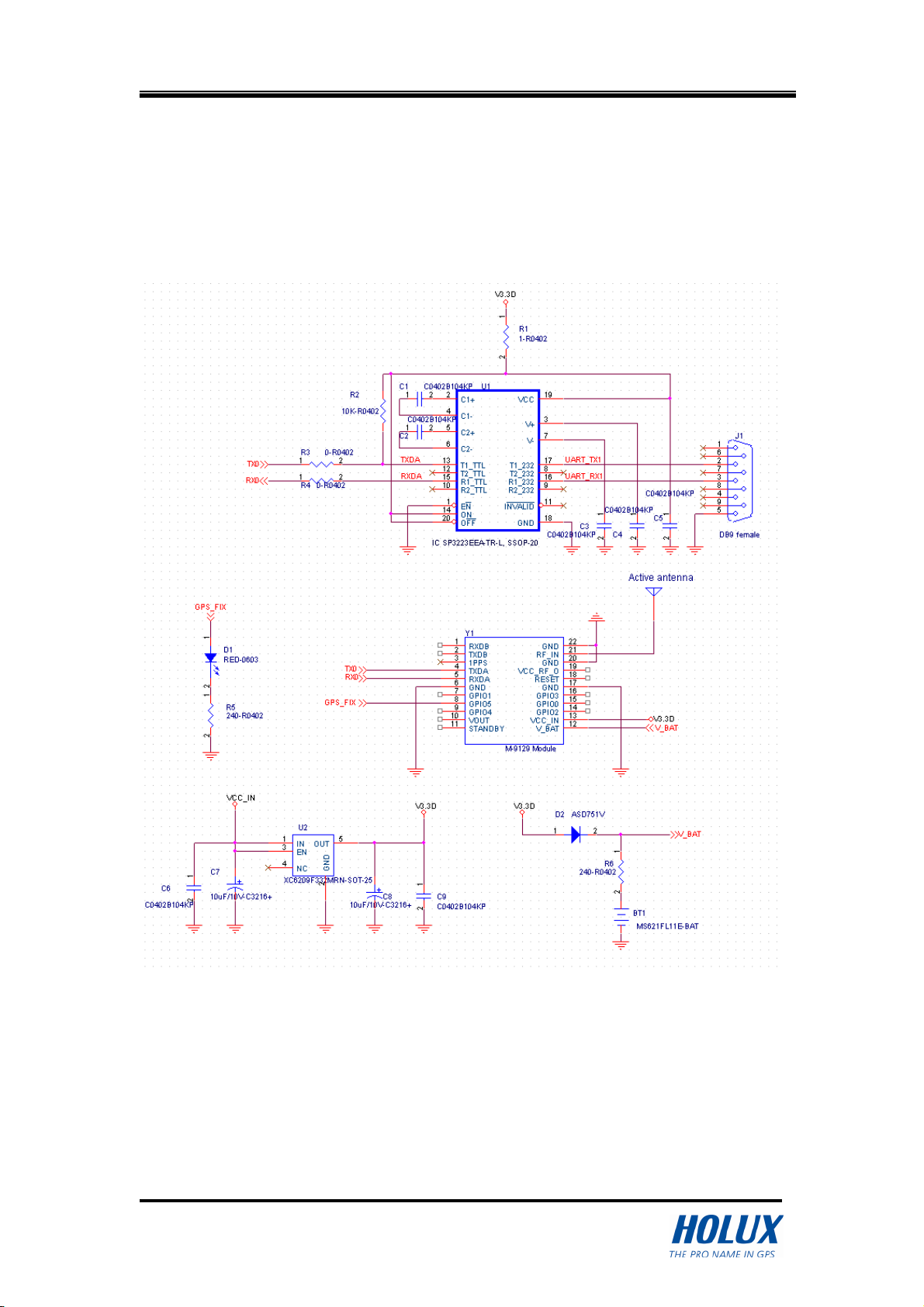

6 1 Reference circuit
Fig A-1 is M-9129 uses Active Antenna connects to RS-232 transceiver
solutions intended for portable or hand-held applications such as notebook
and palmtop computers.
Fig.A-1

GPS Engine Board M-9129
- 12 -
6 2 Reference PCB pattern

GPS Engine Board M-9129
- 13 -

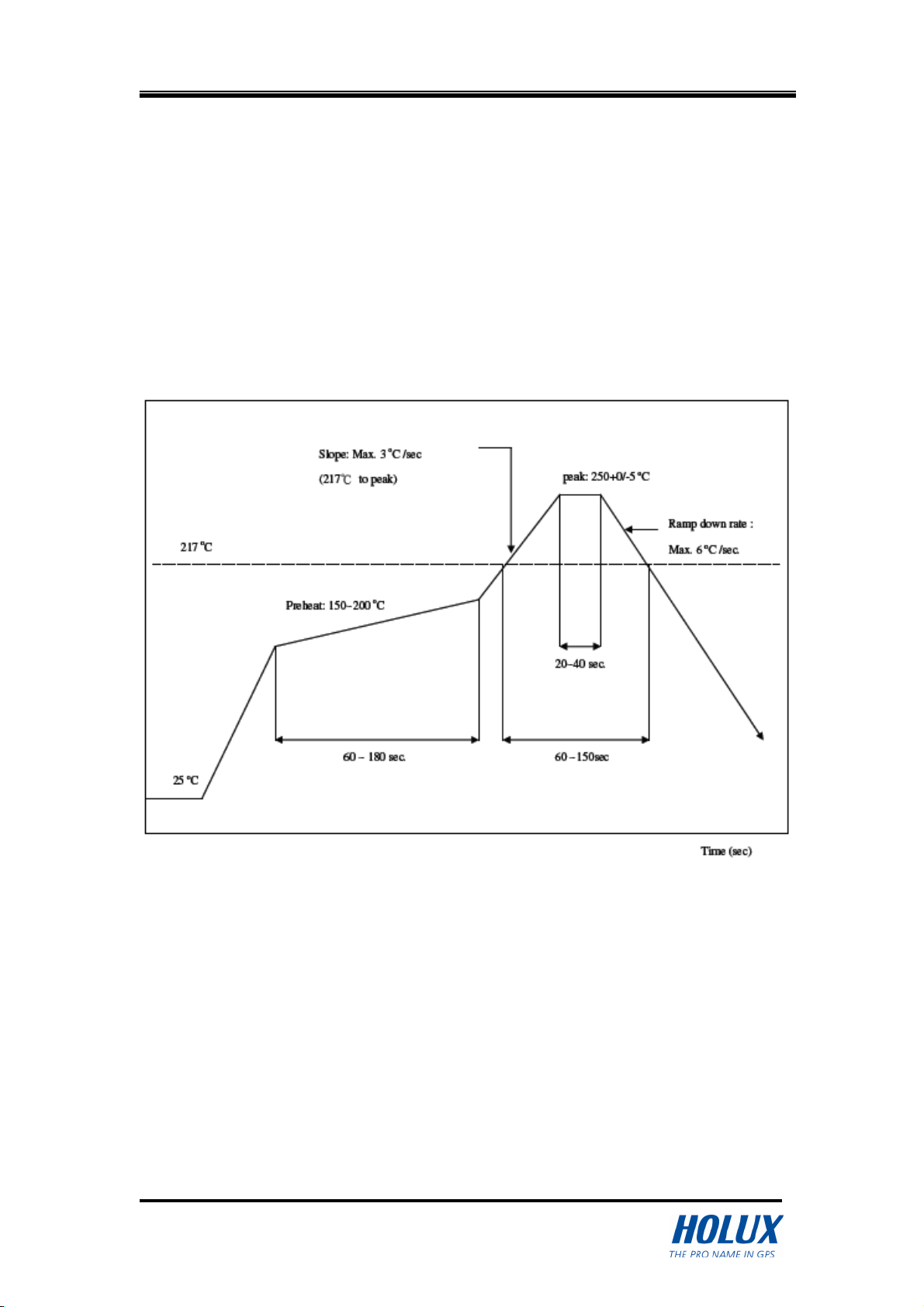

6 3 Recommendation reflow profile
1. We strongly recommend that this module should be designed to mount on
top side of motherboard with main chip together which process the final
reflow.
2. he maximum frequency of this module to pass reflow process should be
no more than twice, including repair operation, otherwise it may cause side
effect to the performance.
3. Below is the recommend reflow profile referred to Main M K chip set.
