Holzstar ADH Series User manual

ADH 26 C
Operating Instructions
ADH 26 C 230V, 400V
ADH-SERIES
Planer-Thicknesser
ADH 31 C 230V, 400V
ADH 41 C 400V
ADH 31 C

2ADH-Series | Version 1.02
Imprint
Product identification
Planer-Thicknesser Item number
ADH 26 C 230V 5904026
ADH 26 C 400V 5904027
ADH 31 C 230V 5904031
ADH 31 C 400V 5904032
ADH 41 C 400V 5904041
Manufacturer
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26
D-96103 Hallstadt
Fax: [phone]
E-Mail: [email protected]
URL: www.holzstar.de
Indication regarding the operating instructions
Original instructions
Edition: 15.06.2018
Version: 1.02
Language: English
Author: SN/FL
Indication regarding the copyright
Copyright © 2018 Stürmer Maschinen GmbH, Hallstadt,
Germany.
The contents of these operating instructions are the sole
property of the company Stürmer Maschinen GmbH.
Passing on as well as copying of this document, the use
and distribution of its content are prohibited if not expli-
citly permitted. Contraventions are liable to compensa-
tion.
Subject to technical modifications and error.
Content
1 Introduction .............................................................3
1.1 Copyright............................................................ 3
1.2 Customer service................................................ 3
1.3 Disclaimer........................................................... 3
2 Safety........................................................................3
2.1 Legend of symbols............................................. 3
2.2 Operator responsibility ....................................... 4
2.3 Operating staff qualification ............................... 4

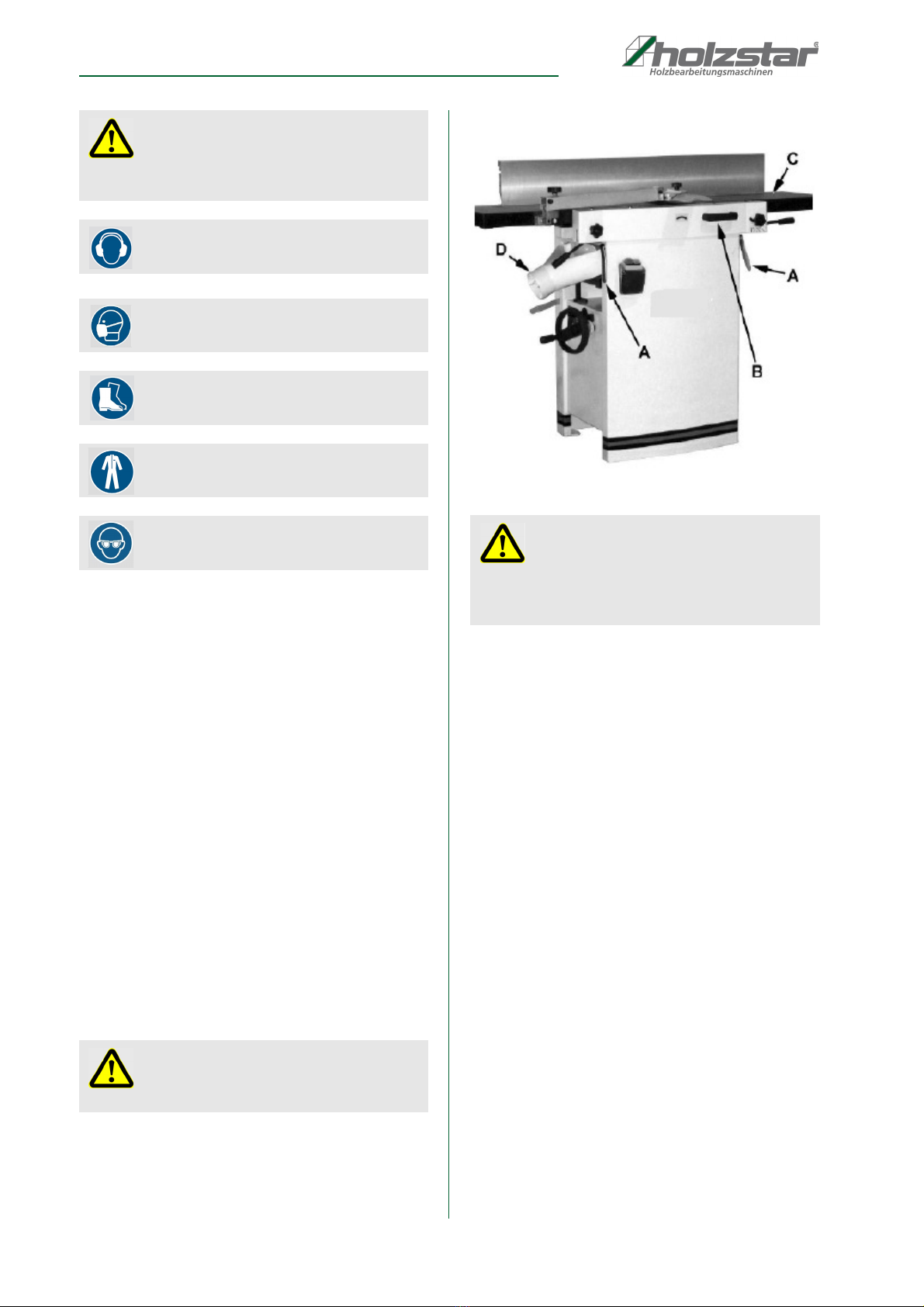

2.4 Personal protective equipment........................... 5
2.5 Safety labels on the Planer-Thicknesser ............ 6
2.6 For your own safety ............................................ 6
2.7 Safety equipment................................................ 7
2.8 General safety instructions ................................. 8
3 Indended Use...........................................................9
4 Technical Data.........................................................9
4.1 Operating conditions.......................................... 9

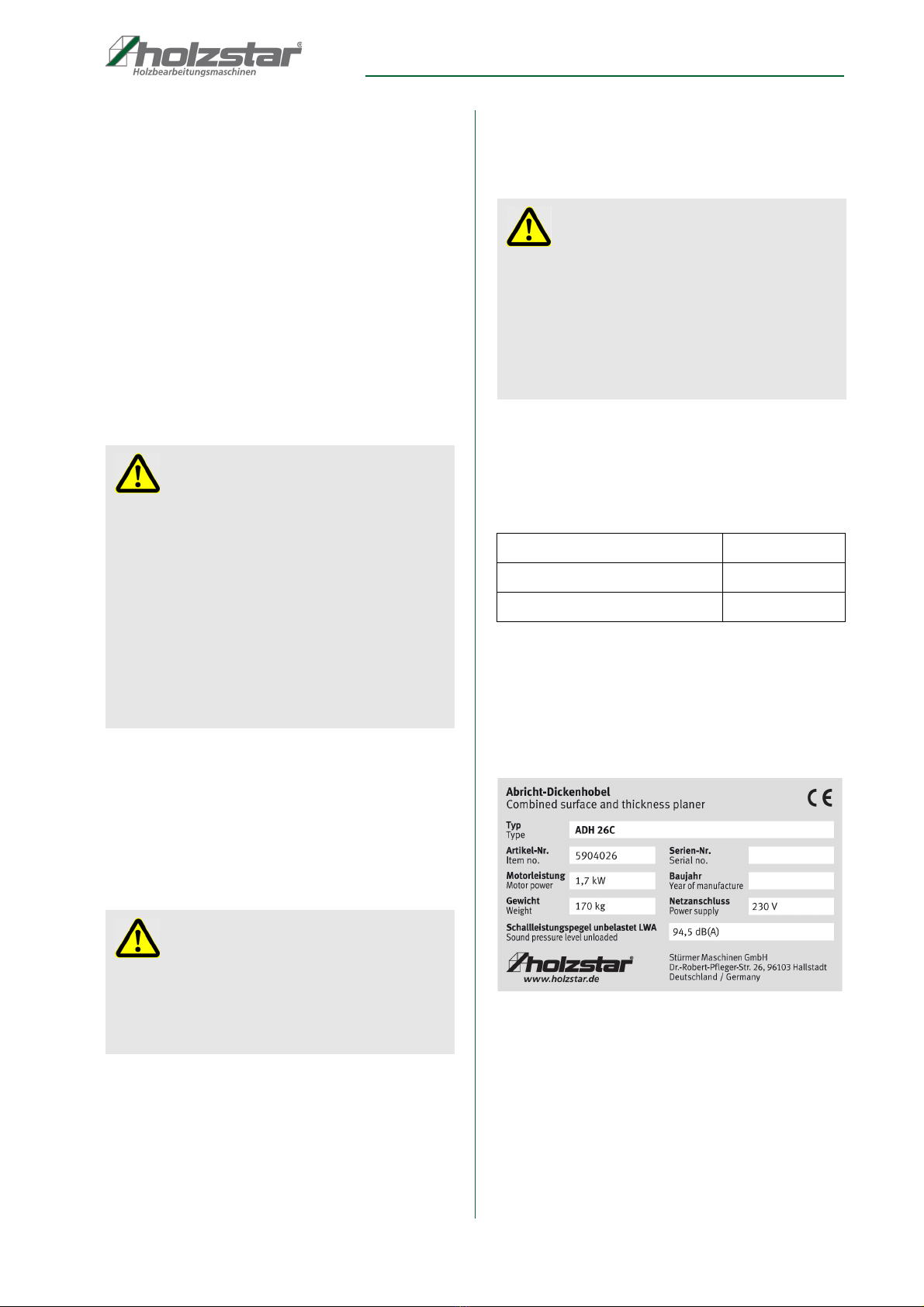

4.2 Type plate........................................................... 9
4.3 Table................................................................. 10
5 Transport, packaging, storage.............................11
5.1 Delivery and transport ...................................... 11
5.2 Packaging......................................................... 11
5.3 Storage ............................................................. 12

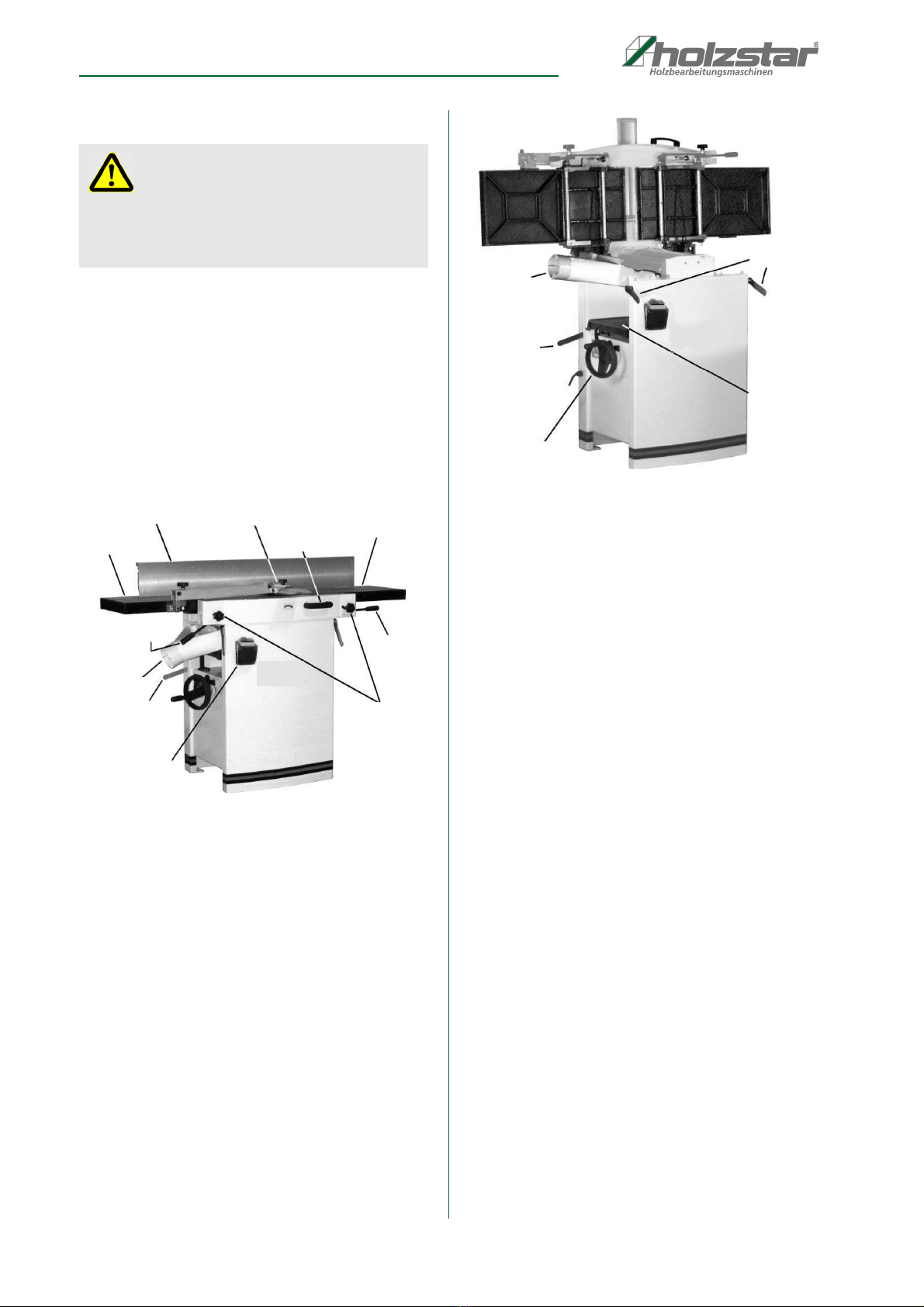

6 Description of device............................................12
7 Setting up and connection ...................................12
7.1 Requirements for the place of operation.......... 12
7.2 Setting up of the Planer-Thicknesser................ 13
7.3 Electrical connection ........................................ 13
8 Operation ...............................................................13

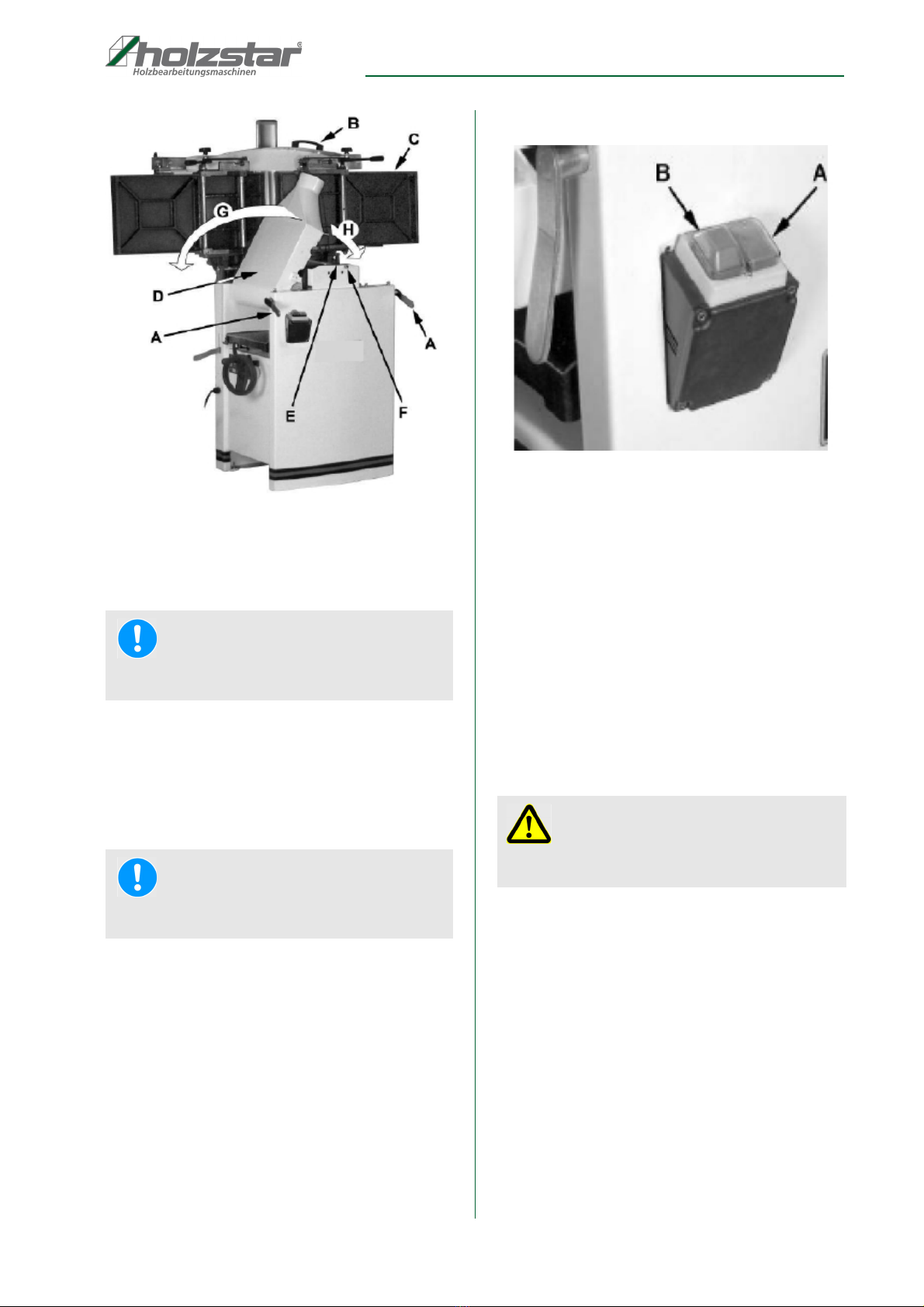

8.1 Operating elements.......................................... 14
8.2 Adjustments...................................................... 17
8.3 Initial start up .................................................... 23
8.4 Changing mode of operation............................ 24
8.5 Thicknesser operations .................................... 24
8.6 Thicknessing..................................................... 25
8.7 Beveling............................................................ 26
8.8 Planer operations.............................................. 26
8.9 Planing.............................................................. 27
9 Care, maintenance and repair..............................28
9.1 Blade care ........................................................ 28
9.2 Sharpening the knives...................................... 28
9.3 Care after work ................................................. 29
9.4 Maintenance and repair ................................... 29
10 Troubleshooting tables.......................................30
10.1 Troubleshooting table - Thicknesser .............. 30
10.2 Troubleshooting table - Planer ....................... 31
10.3 Mechanical Troubleshooting .......................... 32
11 Disposal, recycling of used devices..................34
11.1 Decommissioning........................................... 34
11.2 Disposal of electrical equipment.................... 34
11.3 Disposal of lubricants..................................... 34
12 Spare parts...........................................................34
12.1 Ordering spare parts ...................................... 34
12.2 Spare parts drawings ADH 26 C .................... 35
12.3 Spare parts drawings ADH 31 C .................... 42
12.4 Spare parts drawings ADH 41 C .................... 48
13 Electrical circuit diagrams..................................55
14 EC Declaration of Conformity ............................56

Introduction
ADH-Series | Version 1.02 3
1Introduction
You have made an excellent choice in purchasing a
HOLZSTAR Planer-Thicknesser.
Carefully read the operating instructions prior to commission-
ing.
They describe correct commissioning, intended use
and safe as well as efficient operation and maintenance
of the Planer-Thicknesser.
The operating instructions form part of the Planer-Thick-
nesser. Always keep them at the Planer-Thicknesser´s
location of use. Please also observe the local accident
prevention regulations and general safety regulations
for the use of the Planer-Thicknesser.
1.1 Copyright
The contents of these operating instructions are pro-
tected by copyright. Their use is permitted within the
context of using the Planer-Thicknesser. Any further use
shall not be permitted without written consent by the ma-
nufacturer.
To protect our products, we register our rights to our
brands, patents and designs where possible in each in-
dividual case. We take strong action against any viola-
tion of our intellectual property.
1.2 Customer service
Please contact your specialist retailer if you have any
questions regarding your Planer-Thicknesser or require
any technical information. Your specialist retailer will be
happy to support you with specialist advice and infor-
mation.
Germany:
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26
D-96103 Hallstadt / Germany
Repair service:
Fax: [phone]
E-Mail: [email protected]
Internet: www.holzstar.de
Spare parts orders:
Fax: [phone]
E-Mail: [email protected]
Please submit any information and experiences you
make during application of the machine as these may
be valuable for product improvements.
1.3 Disclaimer
All data in this operation manual has been compiled on
the basis of the state-of-the-art, valid standards and gui-
delines as well as our many years of expertise and ex-
perience.
The manufacturer shall not be liable for damage in the
following cases:
- Failure to comply with the operation manual,
- Unintended use
- Deployment of untrained staff
- Conversions at one's own responsibility
- Technical modifications
- Use of unauthorised spare parts
The actual scope of delivery may deviate from the des-
criptions and illustrations in this document as a result of
special variants, optional extras or recent, technical mo-
difications. The obligations defined in the supply con-
tract shall apply in addition to the general terms and
conditions and the manufacturer's general terms and
conditions as well as the statutory regulations valid at
the time of the conclusion of the contract.
2 Safety
This section provides an overview of all important safety
packages for personal protection as well as safe and re-
liable operation. The individual sections contain
additional, task-specific safety information.
2.1 Legend of symbols
Safety instructions
Safety instructions in this operation manual have been
highlighted with symbols. Safety instructions are indica-
ted by signal terms that express the degree of risk
involved.
WARNING!
This combination of symbol and signal term indica-
tes a potentially dangerous situation which may
cause death or serious injury if not averted.
DANGER!
This combination of symbol and signal term indica-
tes a immediate dangerous situation which may
cause death or serious injury if not averted.

4ADH-Series | Version 1.02
Safety
Tips and recommendations
Observe the safety information in these operating in-
structions to minimise the risk of personal injury as well
as material damage and prevent hazardous situations.
2.2 Operator responsibility
Operators are defined as the persons who operate the
machine for commercial or profit-based purposes or
provide the machine to third parties for use or applica-
tion and bear the legal product responsibility in terms of
the protection of users, staff or third parties during
operation.
Obligations of the operator:
If the machine is used for commercial purposes, opera-
tors are subject to the legal stipulations in terms of occu-
pational safety. For this reason, the safety instructions in
these operating instructions as well as the safety, acci-
dent prevention and environmental protection regulati-
ons valid at the installation location must be complied
with. In this process, the following shall apply in
particular:
- Operators shall obtain information about valid oc-
cupational safety regulations and determine addi-
tional hazards as part of a risk assessment which
result from the specific operating conditions at the
machine's installation location. Said risk as-
sessment shall be reflected in operating instructi-
ons for machine operation.
- During the entire machine operating time opera-
tors must check whether the operating instructions
they created meet current standards and adapt
the operating instructions where necessary.
- Operators shall clearly manage and specify the
responsibilities for installation, operation, trouble-
shooting, maintenance and cleaning.
- Operators must make sure that all persons hand-
ling the machine have read and understood these
operating instructions. Operators must also regu-
larly train staff and notify of the hazards.
- Operators shall provide staff with the required pro-
tective equipment and wearing the required pro-
tective equipment shall be mandatory.
Operators shall also be responsible for maintaining the
machine in a technically perfect condition. For this rea-
son, the following shall apply:
- Operators shall make sure that the maintenance
intervals described in these operating instructions
are complied with.
- Operators shall regularly check that the safety
equipment is fully functional and complete.
2.3 Operating staff qualification
The different tasks described in these operating instruc-
tions require different levels of skills in terms of the qua-
lifications of operating staff working with the machine.
Exclusively persons of whom it can be expected that they
reliably complete assigned tasks shall be authorised to
carry out any tasks. Persons whose reactions have been
impaired shall not be authorized, e.g. drug users, users
under the influence of alcohol or medication.
These operating instructions specify the following per-
sonal qualifications for the different tasks:
ATTENTION!
This combination of symbol and signal term indica-
tes a potentially hazardous situation which may
cause minor or light injuries if it is not averted.
IMPORTANT!
This combination of symbol and signal term indica-
tes a potentially dangerous situation which may
cause material damage or harm the environment if it
is not averted.
NOTE!
This combination of symbol and signal term indic tes
a potentially dangerous situation which may cause
material damage or harm the environment if it is not
averted.
Tips and recommendations
This symbol highlights useful tips and recommenda-
tions as well as information for efficient and reliable
operation.
WARNING!
Risk from inadequately qualified persons!
Inadequately qualified persons are unable to assess
the risks when handling the machine, thus putting
themselves and others at risk of severe injuries.
- All work must be carried out by qualified persons
only.
- Keep inadequately qualified persons and children
away from the work area.

Safety
ADH-Series | Version 1.02 5
Operating staff:
Operating staff has undergone an induction by the ope-
rator about the entrusted tasks and potential hazards
resulting from improper behaviour. Tasks which go
beyond normal operation may only be carried out by the
operator if they are listed in the operation manual and
the operator has made him/herself familiar with them.
Qualified electrician:
Due to the electrician's specialised training, know-how,
experience and knowledge of pertinent standards and
regulations the electrician is in a position to work on the
electrical systems, and autonomously identify and avoid
potential hazards.
Specialist staff:
As a result of specialist training, expertise, experience
and skills in terms of the relevant standards and regula-
tions, specialist staff is able to complete the tasks they
are entrusted with and independently identify hazards
and avert risks.
Manufacturer:
Certain work must be carried out by manufacturer spe-
cialist staff only. Other staff is not permitted to carry out
this work. Contact our customer service to have the work
carried out.
2.4 Personal protective equipment
Personal protective equipment is intended to protect the
health and safety of persons at work. Staff must wear the
personal protective equipment indicated in individual
sections of these operating instructions when carrying
out the different tasks on the machine.
The personal protective equipment is described in the
following section:
Head protection
The industrial helmet protects the head against fal-
ling objects and bumping into stationary objects.
Hearing protection
The hearing protection protects the ears against
damages of hearing due to noise.
Eye protection
Protective glasses protect the eyes against pro-
jected parts and splashes of liquid..
Protective dust-mask
The dust protection mask protects the respiratory
tract from wood chips and wood dust.
Protective gloves
The protective gloves provide protection for the
hands against sharp-edged components, as well as
against friction, abrasions or deeper injuries.
Safety boots
The safety boots protect the feet against crushes, fall-
ing parts and slipping over on slippery underground.
Protective clothes
Protective work clothing means tight-fitting clothing
with low tear resistance.
CAUTION!
Impurged, possibly contaminated body protection
products can cause illnesses.
Clean them after each use and once a week.

6ADH-Series | Version 1.02
Safety
2.5 Safety labels on the Planer-Thicknesser
The following safety labels and instructions are attached
to the Planer-Thicknesser s (Fig. 1) and must be
observed.
Fig. 1: Safety labels
1 Warning of danger | 2 Warning of dangerous electrical
voltage | 3 Warning of hand injuries | 4 Warning of danger of
entanglement I 5 Ground symbol | 6 Mandatory signs
If safety labels on the machine are damaged or missing,
this can cause errors, personal injury and material
damage. The safety symbols attached to the machine
must not be removed. Damaged safety symbols must
be replaced immediately.
As soon as the signs are not clearly visible and compre-
hensible at first glance, the machine must be stopped
until new signs have been attached.
2.6 For your own safety
The European standards must be observed when instal-
ling, operating, maintaining and repairing the planer-
thicknesser. For the European standards not yet trans-
posed into the respective national law, the still valid
country-specific regulations must be applied.
Operators of planer-thicknesser outside the scope of
the European Standards are obliged to comply with the
safety and accident prevention regulations applicable in
the country of operation. If necessary, appropriate mea-
sures must be taken to comply with the country-specific
regulations before the planer-thicknesser is put into
operation.
Safety during operation
Before using the planer-thicknesser, make sure that the
following is true
- there is no danger to persons.
- no things are damaged.
- do not work in any way that could compromise
safety.
- use personal protective equipment such as a dust
mask, ear protection, protective goggles.
- The residual hazards listed below basically exist on
planer-thicknessers and cannot be completely
averted by safety devices.
2
3
1
4
5
6
WARNING!
- A planer-thicknesser is a dangerous machine that
can cause serious injury if left unattended. It is the-
refore essential that you follow the following safety
instructions:
- The planer-thicknesser may only be put into opera-
tion and operated by persons who are familiar with
the planer-thicknesser and are aware of the dan-
gers involved in working with the planer.
- Persons under 18 years of age may only use the
planer-thicknesser within the scope of a vocational
training and under the supervision of a trainer.
WARNING!
Always disconnect the planer-thicknesser from the
electrical power supply when carrying out adjust-
ment, inspection, cleaning or maintenance work.
DANGER!
Do not use your fingers to look for end position swit-
ches in order to be able to switch on the planer-thic-
knesser in a way other than intended.

Safety
ADH-Series | Version 1.02 7
Danger due to insecure position.
For long workpieces, use suitable workpiece supports
on both sides of the planer-thicknesser. Avoid an unfa-
vorable posture. Make sure that you stand securely.
Keep the working area clean.
Danger to other persons in the working area
Keep the unauthorised persons, especially children,
away from the danger area. Point out the hazards of the
planer-thicknesser to persons who will help you when
working on the planer-thicknesser.
Danger from touching the rotating cutter head
Always keep sufficient distance to the cutter head.
Switch off the planer-thicknesser when it is not in use.
Risk of the workpiece hitting back
The workpiece is picked up by the cutter head and
thrown against the operator. Work only with the non-re-
turn device functioning correctly. Only use sharp pla-
ning knives. Check the workpiece for foreign objects be-
fore starting work.
Consider work area’s environment
Do not expose tools to rain. Do not use tools in damp or-
wet location. Keep work area well lighted. Do not use
tools in the presence of flammable liquids or gases.
Keep the unauthorised persons, especially children,
away from the danger area. Point out the hazards of the
planer-thicknesser to persons who will help you when
working on the planer-thicknesser.
Risk due to defects in the planer-thicknesser
Before each use, check the planer-thicknesser for da-
mage or dismantled, defective protective covers and
protective devices. Do not use the planer-thicknesser if
a part is defective. Replace the blunt planing knives im-
mediately. There is a risk of kickback if a blunt planing
knife gets caught in the surface of the workpiece.
Danger of overloading the planer-thicknesser
Only operate the planer-thicknesser in the specified po-
wer range. Use the planer only for the purpose for which
it is intended.
Before each switch-on, make sure that there are no objects such
as tools in the planer-thicknesser.
2.7 Safety equipment
Undervoltage release
In the event of an electrical power failure, an undervol-
tage relay is triggered. This prevents the planer-thick-
nesser from starting up again on its own as soon as
electrical voltage is present again. To reset the ma-
chine, it must be restarted.
Overload protection
The planer-thicknesser has a built-in overload protec-
tion. The overload protection switches off the planer-
thicknesser if the motor has become too hot. To switch
the planer-thicknesser on again:
- Let the motor cool down for about ten minutes.
- Switch the machine on again
Automatically switch-off by opening
A microswitch switches off the machine when the table
is opened.
A microswitch switches the machine off when the chip
catcher is opened in the "Thickness planing" mode.
The machine cannot start if the tables of the dressing
machine and the chip catcher are not closed during
operation of the planer.
Chip catcher
The chip catcher covers the cutter head when opera-
ting as a thicknesser and prevents access to the cutter
head below the tables when operating as a planer de-
vice. The chip catcher can be fixed in both positions -
for the planer device and for the thickness device.
Separator devices
Separator devices between the cutter head and the
feed roller (or discharge roller) are used to avoid contact
and access to the cutter shaft underneath the tables of
the planer
Motor brake
Electronic brake for electrodynamic braking of motors.
Ensures tool braking in less than 10 seconds after motor
switch-off.
ENTANGLEMENT HAZARD!
Ensure that no parts of the body or clothing can be
caught by the machine and pulled in during opera-
tion. Wear tight-fitting clothing and if necessary a
hair net.
Protective gloves
Use protective gloves when changing the planing
knife.

8ADH-Series | Version 1.02
Safety
2.8 General safety instructions
This machine is equipped with several safety devices
designed to protect both the operator and the machine.
However, this cannot yet cover all safety aspects and
thus the operator. Before you put the machine into ope-
ration, you must read and fully understand this chapter.
In addition, the operator must also consider other as-
pects of the hazard in relation to the environmental con-
ditions and the material
Note the following:
- Before connecting the device to the mains, make
sure that all safety elements are activated and
check their positions and function.
- If it is necessary to remove the doors or protective
covers, turn off the switch and disconnect the plug
from the outlet.
- The non-return device must move freely and its
operation must be checked regularly (several
times a day).
- Do not connect the appliance to the mains if the
door or protective cover has been removed.
- To avoid operating errors, familiarize yourself with
the location of the switches on the machine before
switching them on.
- Memorize the position of the emergency stop
switch so that you can use it immediately at any
time.
- Be careful not to touch any switches while the ma-
chine is in operation.
- Never touch a rotating tool with your hands or
other objects.
- If you are not working on the machine, switch off
the machine at the MAIN switch and disconnect
the plug from the socket.
- Before cleaning the machine, switch off the ma-
chine and unplug the machine.
- Switch off the machine before carrying out main-
tenance work on the machine and disconnect the
plugs from the machine.
- Do not modify the machine in a way that poses a
risk to safe operation.
- Carry out regular inspections in accordance with
the instructions for use.
- Check and ensure that the machine is not subject
to any malfunctions caused by the user.
- After the work is finished, adjust the machine so
that it is ready for use in another production series.
- If there is a power failure, switch the machine off
immediately.
- Do not paint, soil, damage, alter or remove the
safety plates. If they become illegible or are lost,
contact the production line and replace the plates.
- Always keep the working area clear. Overcrowded
areas and workbenches cause injury.
- Consider the surroundings of the work area. Do
not expose tools to rain. Do not use tools in damp
or wet locations.
- Keep the work area well lit.
- Do not use tools near flammable liquids or gases.
- Therefore, remove objects such as rings, watches,
bracelets, ties, etc. before starting work, as they
may get caught on different parts of the machine.
- Protect and secure your hair properly so that it
cannot be caught by moving parts on the ma-
chine.
- Wear shoes that are recommended or required by
the health and safety regulations of all countries.
- Always wear the necessary safety equipment
(safety glasses, apron, safety shoes, hearing pro-
tection, etc.).
- Wear a helmet if there are obstacles above your
head - in the work area.
- Always wear a dust mask while working on mate-
rial that generates dust during the process.
- Never wear loose work clothing.
- Do not work on the machine under the influence of
drugs or alcohol and when you are tired.

Indended Use
ADH-Series | Version 1.02 9
3 Indended Use
The Planer-Thicknesser is designed for dressing and pla-
ning boards and mouldings made of solid wood or similar
wood materials, e.g. wood fibre surfaces, boards made of
wood parts, chipboards, plywood, laminated and non-lami-
nated surfaces with rectangular or square cross section.
The permissible dimensions of the workpieces must be ob-
served. Machining of other materials is not intended and
not permitted. The machine is designed for operation by
only one worker.
The machine must be operated with a suitable extraction
system. It is suitable for private use, not for industrial use.
Intended use also includes compliance with all the informa-
tion in these instructions. Any use beyond the intended use
or any other use is considered misuse.
Every workpiece must be inspected for foreign objects
such as screws or nails before machining. The planer-
thicknesser is designed and built for use in a non-hazar-
dous environment. If the planer-thicknesser is used in a
different way than mentioned above, if it is modified
without the approval of HOLZSTAR®woodworking ma-
chines, the planer-thicknesser will no longer be used as
intended.
All persons involved in installation, commissioning, ope-
ration and maintenance must have the necessary quali-
fications to observe these operating instructions exactly.
In case of improper use may cause danger to persons,
the planer thickness and other material assets can be
endangered, the function of the dressing plane may be
impaired.
Stürmer Maschinen GmbH assumes no liability for con-
structive and technical changes to the planer thicknes-
ser. Claims of any kind for damage due to improper use
are excluded.
4 Technical Data
4.1 Operating conditions
The machine is not intended for outdoor use.
The machine is not intended for operation under explo-
sive conditions.
4.2 Type plate
Fig. 2: Type plate ADH 26 C
WARNING!
Danger in case of misuse!
A misuse of the Planer-Thicknesser can result in
dangerous situations.
- Only operate the Planer-Thicknesser in the power
range given in the technical specifications.
- Never operate the machine without the safety de-
vices.
- Never work up other materials that do not correspond
to those which are required for the intended use.
- Only operate the Planer-Thicknesser in a techni-
cally flawless status.
- Never machining several workpieces at the same
time.
WARNING!
Severe injuries due to improper use.
Modifications and changes to the operating values of
the planer are prohibited. They endanger people
and can cause damage to the planer.
Always keep the operating instructions close to the
planer.
WARNING!
The planer-thicknesser may only be operated with
functioning safety devices.
Switch off the planer immediately if you discover that
a safety device is faulty or has been dismantled!
All additional equipment provided by the operator
must be equipped with the prescribed safety
devices. must be equipped.
You as the operator are responsible for this!
relative humidity 30% to90%
Operating temperature range +5°C to +40°C
max. height above sea level 1000 m

10 ADH-Series | Version 1.02
Technical Data
4.3 Table
The values given refer to emissions and do not necessarily mean safe working values.
While there is a correlation between the value of emissions and the exposure values, these values cannot be used to re-
liably determine whether additional measures are necessary or not.
Factors influencing the actual exposure of the worker include the characteristics of the work, the area, other noise sour-
ces, etc., e.g. the number of machines and other adjacent processes. The maximum permissible exposure values may
also vary in different countries. This information should help the machine user to better assess the risk and the risk rate.
ADH 26 C 230 V / 400 V ADH 31 C 230 V / 400 V ADH 41 C
Length (product) [mm] 1120 1300 1620
Width/Depth (product) [mm] 630 720 920
Height (product) [mm] 960 1010 1010
Net weight [kg] 170 210 260
Input power drive motor [kW] 2,3 / 2,2 2,84 / 2,77 3,73
Output power drive motor [kW] 1,7 2,2 3
Electrical connection[V] 230 / 400 230 / 400 400
Phase (s) [Ph] 1 / 3 1 / 3 3
Rated frequency [Hz] 50 50 50
Length planing table [mm] 1120 1295 1640
Width planing table [mm] 275 325 425
Working height [mm] 830 850 850
Max. depth of planing [mm] 3 3 3
Length thicknessing table [mm] 545 545 600
Width thicknessing table [mm] 258 308 408
Min. working height thicknessing [mm] 5 5 5
Max. working height thicknessing [mm] 225 225 225
Max. depth of thicknessing [mm] 333
Feed speed [m/min] 5,5 7 7
Number of planing knives 3 3 3
Planing shafts-Ø [mm] 70 70 70
Planing shaft speed [1/min] 5200 5200 5200
Max. planing width [mm] 258 308 408
Extraction port Ø [mm] 100 100 120
Specifications concerning noise of the device
Level of noise A in the place of operation (LpAeq) without load LpAeq = 81,7 dB(A)
with load LpAeq = 89,5 dB(A)
Level of acoustic power A (LWA) without load LWA = 94,5 dB (A)
with load LWA = 103 dB (A)

Transport, packaging, storage
ADH-Series | Version 1.02 11
5 Transport, packaging, storage
5.1 Delivery and transport
Delivery
After delivery, check the planer-thicknesser for visible
transport damage. If you discover any damage to the
planer-thicknessers, report it immediately to the trans-
port company or dealer.
Carefully unpack the machine and all loose objects from
the wooden box and inspect them for damage. Read the
operating instructions thoroughly to familiarize yourself
with proper assembly.
Remove the screws securing the machine to the ship-
ping skip. Remove the protective layer from the table,
bed rollers, feed rollers, cutter head, and loose items
packed with the machine. The coating can be removed
with a soft cloth moistened with kerosene. Do not use
acetone, petrol or paint thinner for this purpose.
Do not use solvents to clean plastic parts.
Transport
Transport with a forklift/lift truck:
For shipping, the device packed in a carton is delivered
on a pallet so that it can be transported with a forklift
truck or pallet truck.
The forks of the forklift truck must be at least 1200 mm
long.
Transport by crane
Prepare 2 ropes or belts with the necessary load capa-
city and length.
The ropes are hung on the crane hook; the crane must
have the respective load capacity.
The ropes are then attached to the areas of the planing
and thicknessing machine reinforced for crane trans-
port, and the machine is then lifted by crane. Make sure
that the centre of gravity of the machine is taken into ac-
count.
Align the ropes well; if necessary, move the crane
slightly to ensure vertical and stable lifting;
Do not tilt the machine. Lifting the machine must be slow
and without jolting or swinging.
Put down the machine with the crane on the selected
place.
Unpacking
Step 1: Remove all parts from the carton. Do not throw
away the carton or packaging material until the
machine is set up and running satisfactorily.
Step 2: Inspect the contents for transport damage. Re-
port any damage to your dealer.
Tools required for assembly:
1x Cross-point Screwdriver (approx. 2 ft)
1x Phillips-head screwdriver
1x 4mm hex-wrench (included in delivery)
1x 5mm hex-wrench
1x 6mm hex-wrench (included in delivery)
1x 10mm box wrench
1x 13mm box wrenchr
5.2 Packaging
All packaging materials and packaging aids used in the
planer-thicknesser are recyclable and must always be
recycled.
Cardboard packaging components are crushed and
sent for waste paper collection.
The films are made of polyethylene (PE) and the pad-
ding parts of polystyrene (PS). You hand these materials
over to a recycling collection point or to the disposal
company responsible for you.
WARNING!
If the weight of the machine and the permissible load
capacity of the lifting equipment are not observed
during transport or lifting work, the machine may tilt
or fall.
- During transport and lifting work, observe the
weight of the unit and the permissible load capacity
of the lifting equipment.
- Check that hoists and load slings are in perfect
condition.
- Lifting and transport of the machine must be carried
out by qualified specialists. They must also have
the necessary special equipment at their disposal.
WARNING!
When lifting and transporting the machine, make
sure that there are no persons in the danger area
who could be injured by falling or tilting the machine!
NOTE!
During transport, the machine must be protected
from excessive vibration and moisture by appropri-
ate means.
NOTE!
The use of socket spanners and ratchets speeds up
the assembly time, but is not necessary.

12 ADH-Series | Version 1.02
Description of device
5.3 Storage
Store the planer-thicknesser thoroughly cleaned in a
dry, clean and frost-free environment. Cover the ma-
chine with a protective tarpaulin.
Ambient temperature range: -25 °C to +55 °C.

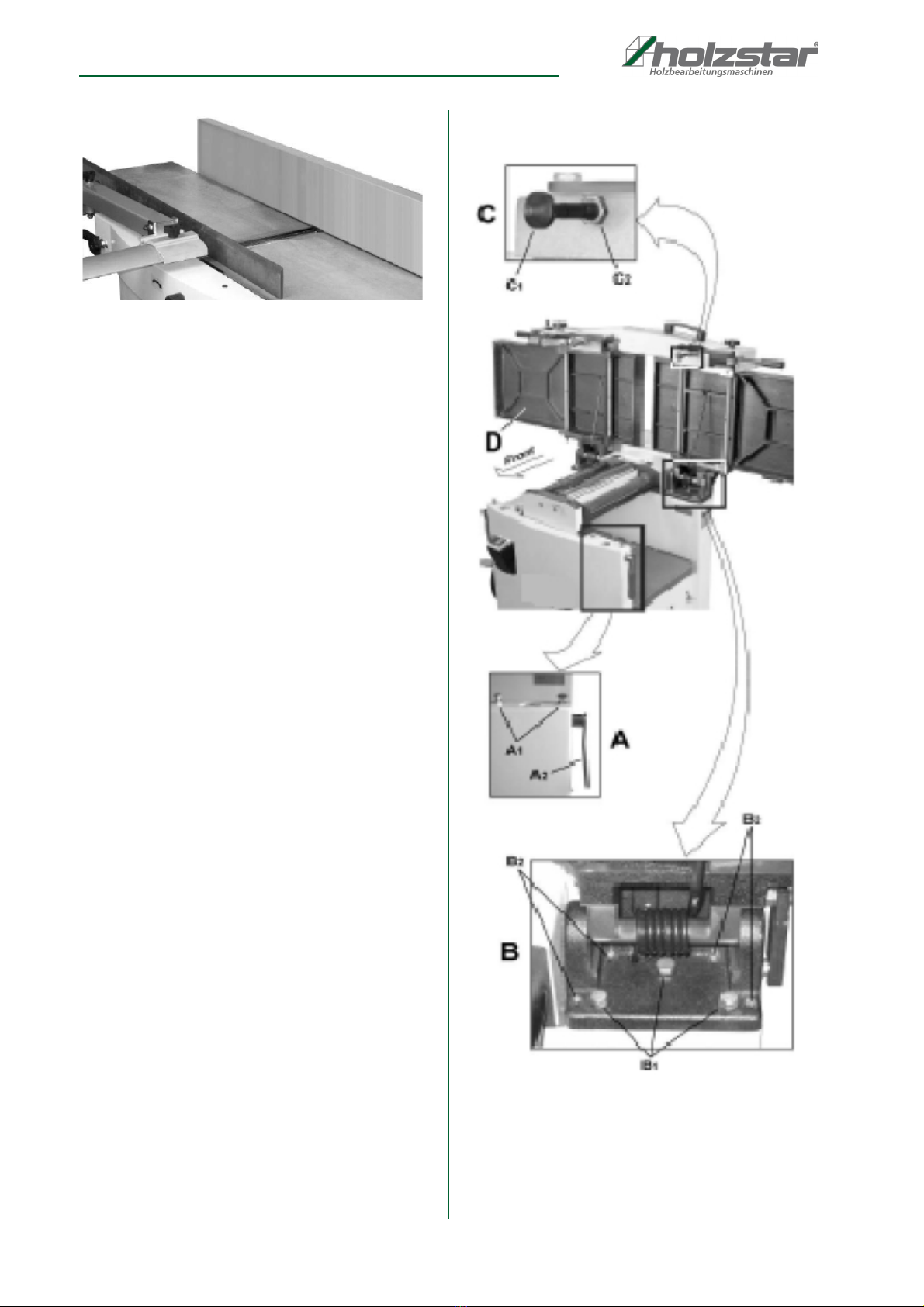

6 Description of device
The illustrations in these operating instructions serve the gen-
eral comprehension and may deviate from the actual type.
Fig. 3: Planer-Thicknesser ADH 26 C
1 Thicknesser outfeed table
2 Thicknesser fence
3 Cutter head guard
4 Table tilt handle
5 Thicknesser infeed table
6 Infeed table lifting handle
7 Thicknesser table lock knob
8 ONN/OFF Switch, Electrical connection
9 Power feed ONN/OFF handle
10 Dust hood
11 Outfeed table lifting handle
Fig. 4: Planer-Thicknesser ADH 26 C
12 Dust hood
13 ONN/OFF Switch, Electrical connection
14 Planer table height adjustment
15 Table lock
16 Planer table
7 Setting up and connection
7.1 Requirements for the place of operation
The Planer-Thicknesser must be installed securely on a
level and firm surface. Ensure that there is sufficient
freedom of movement for working. The place of opera-
tion should meet the following criteria:
- The underground must be even, solid and vibra-
tion-free.
- The underground must not allow any lubricants to
pass through.
- The installation or working area must be dry and
well ventilated.
- No machines causing dust or chips should be
operated near the machine.
- There must be sufficient space for the operating
personnel, for material transport and for adjust-
ment and maintenance work (see installation
plan).
- The place of operation must have good lighting.
- There must be an extraction device with sufficient
dimensions for the machine.
WARNING!
Keep the planer-thicknesser in a safe place so that it
cannot be operated by unauthorised persons and so
that nobody can injure themselves on the standing
planer-thicknesser.
1
2
3
4
5
6
7
8
9
10
11
16
14
13
12
15

Operation
ADH-Series | Version 1.02 13
7.2 Setting up of the Planer-Thicknesser
The planer-thicknesser is delivered in a carton and is al-
ready largely assembled. Only a few parts have to be
assembled after delivery.
Only use the parts included in the scope of delivery.
Do not make any changes to the parts.
After unpacking from the carton, lift the machine and
park it at the desired location.
Remove the protective agent. This can be done with the
usual solvents. Do not use nitro solvents or similar and
do not use water.
7.3 Electrical connection
Only use the planer-thicknesser in a dry environment.
Only operate the planer-thicknesser on an electrical
supply that meets the following requirements:
- The mains voltage and the current frequency of the
power supply must correspond to the specifications
on the type plate.
- Fuse protection with a residual current circuit brea-
ker (RCD).
- Use a socket outlet with earthing contact (properly
earthed socket outlet).
- Lay the mains cable in such a way that it does not
interfere with work and cannot be damaged.
- Protect the power cord from heat, aggressive li-
quids, and sharp edges.
- After the electrical connection, make sure that the
cutter head moves in the correct direction. If this is
not the case, invert the two phase wires at the po-
wer input.
Check motor direction of rotation
After the electrical connection, check that the direction
of rotation of the spindle corresponds to the direction in-
dicated on the plate. If the direction of rotation is incor-
rect, the connections of the phase lines must be re-
placed.
8 Operation
CAUTION!
Risk of injury from an improperly installed machine!
Check the stability of the machine after setting it up
on stable ground.
CAUTION!
Observe the weight of the machine!
The machine may only be set up by two persons
together.
Check the correct dimensioning and load-bearing
capacity of the supporting equipment.
ATTENTION!
In order to ensure sufficient stability of the machine,
it should be fixed to the ground with screws.
DANGER!
Risk of death due to electric shock!
Contact with live components may result in fatal
injury. Switched-on electrical components can make
uncontrolled movements and lead to serious injuries.
- Disconnect the mains plug before making any adju-
stments to the machine.
ATTENTION!
All work on the electrical installation may only be car-
ried out by a qualified electrician.
WARNING!
Danger to life!
There is a danger to life for the operator and other
persons if they do not comply with the following
rules.
- The Planer-Thicknesser may only be operated by
an instructed and experienced person.
- The operator must not work when under the influ-
ence of alcohol, drugs or medication.
- The operator must not work if he is overtired or suf-
fers from illnesses affecting his concentration.
- The Planner Thicknesser may only be operated by
one person. Other persons must stay away from the
work area during operation.
ATTENTION!
Health hazard!
Wood dust and chips can damage the lungs when
inhaled.
The machine may only be operated with a suitable
extraction system.

14 ADH-Series | Version 1.02
Operation
- Always ensure an sufficient working area and free
movement to the machine and its peripherals.
- Place tools and other objects in a designated loca-
tion at a sufficient distance from the machine.
- Provide sufficient lighting in the work area that
does not create shadows or a stroboscopic effect.
A value for safe and high quality work is set by the
hygienic standards the minimum before intensity
500 lux.
- Never place tools or other objects on the worktable
or covers.
- Always keep the work area clean and tidy.
8.1 Operating elements
Disconnect the unit from the power source before ma-
king any adjustments:
- Blade heads are dangerously sharp.
- Be extremely careful when working with the ma-
chine.
8.1.1 Conversion from planer to thickness function
Fig. 5: Operating elements
Step 1: Release both housing locks (Pos. A, Fig. 5) by
rotating the handles toward the operator, then
pulling away from the machine.
Step 2: Raise the table (Pos. C, Fig. 5) using the handle
(Pos. B, Fig. 5).
Table is heavy. Use care when raising. Failure to comply
may cause serious injury.
When raised, the table should be in the vertical position
as shown in Fig. 6, Pos. C. The latch (Pos. E, Fig. 6)
should be engaged, preventing the table from an acci-
dental forward fall.
ATTENTION!
Before commissioning, check the electrical connec-
tion, cables and contacts.
Wear hearing protection
Wear a dust mask!
Wear safety boots!
Wear protective clothes!
Use protective goggles!
ATTENTION!
Failure to do so may result in serious injury.
ATTENTION!
The machine must be switched off at the ON/OFF
switch before switching from planer operation to thic-
kness operation.

Operation
ADH-Series | Version 1.02 15
Fig. 6: Conversion to thickness function
Step 3: Position the dust chute (D, H Fig. 6) to the right.
Use extreme care to avoid contact with cutter head
knives.
8.1.2 Conversion from thickness to planer function
Step 1: Pull the release knob (Pos. F, Fig. 6) and reposi-
tion the dust chute (Pos. D & Pos. G, Fig. 6) to the
left. It should be positioned as shown in Fig. 5,
Pos. D).
Step 2: Release the latch (Pos. E, Fig. 6) and bring the ta-
ble forward using the tilt handle (Pos. B, Fig. 6). It
should be positioned as shown in Fig. 2, Pos. C.
Step 3: Lock the table (Pos. C, Fig. 6) by pushing the lock
handles (Pos. A, Fig. 6) in toward the machine
and rotating down (away from the operator).
Power connection
Step 1: Plug the power cord into the wall outlet when a
properly sized plug is connected.
Step 2: Press the green on button (Pos. A, Fig. 7).
Step 3: Press the red off button (Pos. B, Fig. 4) to stop.
Fig. 7: START and STOP Buttons
A START button
B STOP button
8.1.3 Controls and Adjustments of the planer
Power feed
Placing the planer power feed handle (Pos. D, Fig. 8) in
the up position turns the planer power feed on (see ar-
row). Placing the handle in the down position turns the
power feed off.
Table lock
Turn the table lock (Pos. E, Fig. 8) clockwise to lock the
height adjustment handwheel (Pos. F, Fig. 8) and secure
the planer table (Pos. C, Fig. 8) in its selected position.
Turn the table lock (Pos. E, Fig. 8) counterclockwise to
release and permit table adjustment.
Table height adjustment
Step 1: Unlock the table lock (E).
Step 2: Rotate the height adjustment handwheel (Pos. F,
Fig. 8) clockwise to raise the planer table (Pos.
C, Fig. 8), counterclockwise to lower.
Step 3: Lock the table lock (Pos. E, Fig. 8). Each revolu-
tion of the handwheel (Pos. F, Fig. 8) results in a
4mm up or down movement of the table (Pos. C,
Fig. 8).
A scale on the handwheel column indicates the amount
of handwheel rotation. A pointer (Pos. B, Fig. 8) indica-
NOTE!
The planer table may need to be lowered to allow
clearance needed to position the dust collector.
NOTE!
Table is heavy. Use care when lowering. Failure to
comply may cause serious injury.
ATTENTION!
After completing the adjustment work, tighten all loc-
king elements again.

16 ADH-Series | Version 1.02
Operation
tes the table position relative to the cutter head on the
scale (A) located on the side of the cabinet.
Fig. 8: Operating elements
8.1.4 Controls and Adjustments of the thicknesser
Outfeed Table Height Adjustment
Lock knob (Pos. C, Fig. 9) and lifting handle (Pos. B, Fig.
9) control the height adjustment of the outfeed table
(Pos. A, Fig. 9).The outfeed table is initially adjusted at
the factory and should not be repositioned except du-
ring certain adjustments.
Infeed Table Height Adjustment
Lock knob (Pos. D, Fig. 9) and lifting handle (Pos. E, Fig.
9) control the height adjustment of the infeed table (Pos.
F, Fig. 9).To adjust:
Step 1: Loosen lock knob (Pos. D, Fig. 9).
Step 2: Raise the lifting handle (E) to raise the infeed ta-
ble for a shallow depth of cut. Lower the handle
for a deeper cut.
Step 3: Tighten the lock knob (Pos. D, Fig. 9).
Fig. 9: Thicknesser
Cutter head guard
Properly positioned, the cutter head guard (Pos. H, Fig.
10) should rest against the fence (Pos. A, Fig. 10).

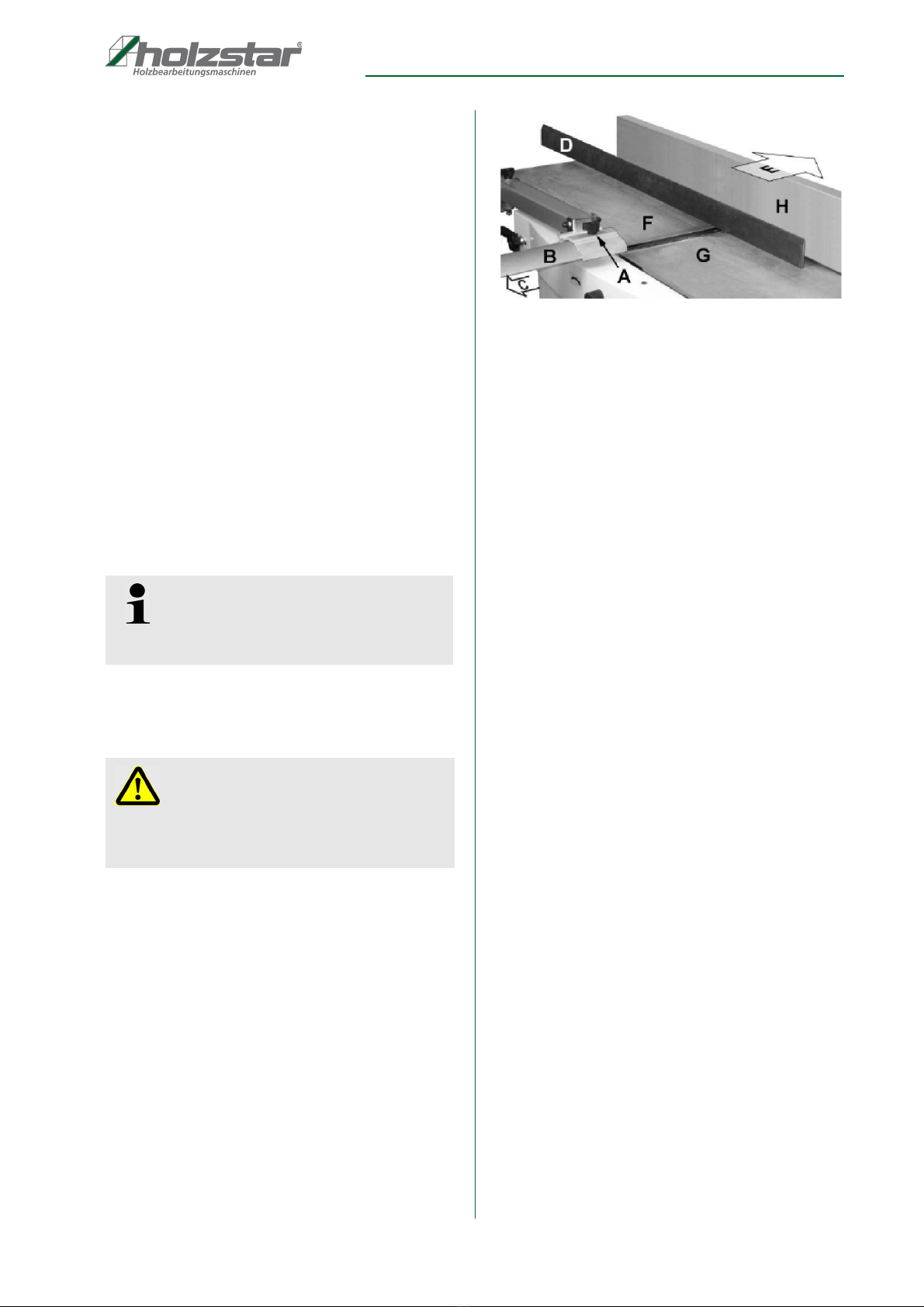

Fence movement
The fence (Pos. A, Fig. 10) can be moved forward (Pos.
B, Fig. 10) or backward (Pos. C, Fig. 10) across the
width (Pos. W, Fig. 10) of the table. It also tilts up to 45
degrees backwards (Pos. D, Fig. 10).
Fig. 10: Thicknesser
Step 1: Loosen the lock knob (Pos. J, Fig. 10), slide the
guard into position, then tighten the lock knob.
Step 2: To slide fence forward or backward:
When edge jointing, the fence assembly should
nperiodically be moved to different positions to
distribute wear on the cutter head knives. This is
done as follows:
NOTE!
A depth of cut of 1.5mm or less is recommended.

Operation
ADH-Series | Version 1.02 17
Step 2.1: If necessary, loosen the cutter head guard
(Pos. H, Fig. 10) to permit the fence assembly
to move freely without being constrained by
the guard.
Step 2.2: Loosen two fence assembly locking handles
(Pos. E, Fig. 10).
Step 2.3: Move the entire fence assembly to the desired
position; then re-tighten the handles (Pos. E,
Fig. 10).
Step 2.4: Readjust and secure the cutter head guard.
Tilt the fence backward.
Step 2.5: The fence (Pos. A, Fig. 10) can be tilted back-
ward (Pos. D, Fig. 10) up to 45°(that is, for a to-
tal included angle of 135° from table surface)
as follows:
a) Loosen locking handles (Pos. F, Fig. 10).
b) Tilt the fence back (Pos. A & Pos. C, Fig. 10)
to the desired angle up to 135 degrees.
c) Tighten the locking handles (Pos. F, Fig.10).
d) Readjust and secure the cutter head guard.
8.2 Adjustments
8.2.1 Table and knife adjustments
For accurate jointing, at least three things must be true:
- Infeed and outfeed tables must be coplanar.
- Knives or knife inserts must be set in the cutter head
so that the highest point of their arc is level with the
outfeed table.
- On the standard cutter head, knives must be paral-
lel with the outfeed table across the entire length of
the knives.
Fig. 11: Table setting
These alignments are explained below:
Coplanar Alignment
Definition of coplanar
When the infeed table is set to the same level as the out-
feed table and together both tables form a "perfect" flat
surface, the tables are said to be coplanar.
For optimum performance of the jointer, the infeed and
outfeed tables must be coplanar. If they are not, the fi-
nished workpiece may have a slight taper or twist
across jointed its width or length.
The tables have been set coplanar at the factory, but
they should be double-checked by the operator.
Also, as the machine undergoes use, the tables should
be checked occasionally and adjusted if necessary.
The procedure described below uses a steel straight
edge to set the tables, which should be accurate
enough for most purposes.
Important: The tables must be locked in position when
performing the following test:
Step 1: Disconnect the thicknesser from power source.
Step 2: Loosen the lock knob (Pos. A, Fig. 11) and slide
the cutter head guard (Pos. B & Pos. C) to clear
the table.
Step 3: Slide the fence assembly back (Pos. H & Pos. E,
Fig. 11) as far as it will go, or remove it from the
machine entirely.
Step 4: Rotate the cutter head to avoid knife interference.
Step 5: Place a straight edge (Pos. D, Fig. 11) across the
front of the outfeed table (Pos. F, Fig. 11) and ex-
tending over the infeed table (Pos. G, Fig. 11).
Note the position of the infeed table (Pos. G, Fig.
11). Note the position of the straight edge in Fi-
gure 9 with respect to the fence (Pos. H, Fig. 11).
Step 6: Raise the infeed table (Pos. G, Fig. 11) until it
contacts the straight edge (Pos. D, Fig. 11). The
straight edge should be straight and level over
both tables.
Tips and recomendations
You can use a reference piece or a measuring
instrument to facilitate the alignment of the stop.
ATTENTION!
The machine must be switched off at the ON/OFF
switch before switching from planer to thickness ope-
ration.

18 ADH-Series | Version 1.02
Operation
Fig. 12: Table setting
Step 7: Move the straight edge to the back of the output
table as shown in Fig.12 and perform the test
for this as well.
If the straight edge is not level, the front or rear table
must be adjusted to make the tables coplanar. If align-
ment is required as described in the previous section,
proceed as follows:
Disconnect the device from the power source before
making any adjustments. Failure to do so may result in
serious injury.
Step 1: Disconnect power from machine.
Step 2: Unlock both cabinet lock handles (Pos. A2,
Fig. 13).
Step 3: Raise the table (D) fully upright. Adjustment is
performed by means of four setscrews (Pos. B2,
Fig. 13) that adjusts the table pitch and tilt at the
back (towards the fence) and two hex cap
screws (Pos. A1, Fig. 13) that adjusts the table
toward the front.
Adjustment can consist of a front adjustment, rear adju-
stment or (more probable) a combination of both.
Adjustment of the rear area:
Required tools:
- 13 mm. wrench
- 4 mm. hex wrench
Step 1: With a 13mm wrench, loosen three hex cap
screws (B1).
Step 2: Using a 4mm hex wrench, make very slight adjust-
ments of 1/8 to 1/4 turns to four setscrews (B2) as
required.
- A clockwise turn will raise the table;
- A counterclockwise turn will lower the table;
- Adjusting the two right setscrews will have greatest
adjustment impact to the table's right side;
- Adjusting the two left setscrews will have greatest
adjustment impact to the table's left side.
Fig. 13: Adjustment of rear and front area
Step 3: When adjustment is complete, tighten the hex cap
screws (Pos. B1, Fig. 13).

Operation
ADH-Series | Version 1.02 19
Adjustment of the front area:
Required tools:
- 2 x 13 mm. wrench
Step 1: Hold the hex cap screws (A1, Fig. 13) in place
with one wrench while using the other to loosen
the locking hex nuts.
Step 2: Adjust the screws (Pos. A1, Fig. 13) slightly from
1/8 to 1/4 turn.
Step 3: Loosen the three hex head screws (Pos. B1,
Fig. 13) with a 13 mm socket wrench:
- A counterclockwise turn willraise the table;
- A clockwise turn will lower the table.
- Adjusting the right screw will have greatest adjust-
ment impact to the table's right side;
- Adjusting the left screws will have greatest adjust-
ment impact to the table's left side.
Step 4: When adjustment is complete, secure by tigh-
tening the hex nut while maintaining the position
of the screw with the second wrench.
It may be necessary to repeat the exercise in this
section more than once to achieve coplanar align-
ment.
8.2.2 Setting cutter head knives
Step 1: Disconnect machine from the power source.
Step 2: Remove the cutter head guard (Pos. B, Fig. 11).
Step 3: Carefully number each knife blade (Pos. C, Fig.
14 and Fig. 15) with a magic marker to differen-
tiate each.
Step 4: Rotate the cutter head (Pos. E, Fig. 14 and
Fig. 15) and determine the 12 o'clock position of
knife number one.
The 12 o'clock position is the highest point a
blade will reach in the cutting arc (Pos. C,
Fig. 15).
Fig. 14: Cutter head
Step 5: Set a straightedge (Pos. J, Fig. 14) on the out-
feed table (Pos. F, Fig. 14) near the fence
(Pos. H, Fig. 14).
- One end of the straightedge should be positioned
over the cutting knife (C) near the end of the blade
as shown in Fig. 12.
- Use care when handling the straight edge near the
blades to prevent damage.
NOTE!
If the table does not lock properly after adjustment,
the thicknesser table lock lever must be adjusted.
NOTE!
Before performing any adjustments in this section,
the infeed and outfeed tables must be coplanar.
DANGER!
Cutter head knives are dangerously sharp! Use
extreme caution when inspecting, removing, shar-
pening or replacing knives into the cutter head. Fai-
lure to comply may cause serious injury
NOTE!
To rotate the cutter head the cutter head pulley
must be turned. This requires removing the panel on
the back of the cabinet for access.

20 ADH-Series | Version 1.02
Operation
Fig. 15: Cutter head cross-section
Step 6: Note the position of the knife blade with respect
to the straight edge, then move the straight
edge to the other side of the table and again
note the position of the knife blade with respect
to the straight edge. Blade number one must be
at the same height at each end and must also
be at the same height as the outfeed table (bot-
tom of straight edge). If this is not the case, ad-
justment is required as follows:
Step 6.1: Slightly loosen five gib lock screws (Pos. A,
Fig. 14) by turning into the lock bar (Pos. B,
Fig. 14), clockwise as viewed from the infeed
table (Pos. G, Fig. 14).
Step 7: Adjust the knife height by turning jack screws
(Pos. D, Fig. 14) upon which the knives rest. To
lower the knife, turn the screw clockwise. To
raise, turn the screw counterclockwise.
Step 8: When the knife is at the proper height, alterna-
tely tighten the five gib lock screws (Pos. A,
Fig. 14).
Step 9: Repeat steps 4 – 8 for knives two and three.
D
8.2.3 Replacement of cutting knives
Disconnect machine from power source before making
any adjustments. Failure to comply may cause serious
injury.
Step 1: Disconnect machine from the power source.
Step 2: Remove the cutter head guard (Pos. B, Fig. 9).
Step 3: Turn all five screws (Pos. A, Fig. 14 and Fig. 15)
into the lock bar (Pos. B, Fig. 14 and Fig. 15) by
turning in a clockwise direction as viewed from
the infeed table (Pos. G, Fig. 14 and Fig. 15).
Step 4: Carefully remove the cutter knife (Pos. C, Fig. 14
and Fig. 15) and lock bar (Pos. B, Fig. 14 and
Fig. 15).
Step 5: Repeat for remaining two knives.
Step 6: Thoroughly clean all surfaces of the cutter head,
knife slots and lock bars of any dust or debris.
Step 7: Insert replacement knife (Pos. C, Fig. 15) into the
knife slot, making sure it faces the proper direction.
Step 8: Insert lock bar (Pos. B, Fig. 15) and tighten just
enough to hold in place.
Step 9: Repeat steps for other two knives.
ATTENTION!
- For workpieces with different thicknesses, first ma-
chine the stronger side (risk of wedging).
- Divide greater material removal into individual in-
feed steps.
- If wedging occurs, reduce infeed.
- Clean the worktable regularly.
- Make sure that the workpieces are free of resin or
dirt.
- Do not treat the worktable with lubricating oil or
grease.
- Use roller supports or extensions for long work-
pieces.
- Always machine workpieces to their full length.
- Do not machine bent or deformed workpieces.
DANGER!
Cutter head knives are dangerously sharp! Use
extreme caution when inspecting, removing, shar-
pening or replacing knives into the cutter head. Fai-
lure to comply may cause serious injury
