HOMCOM C00-022V70 User manual

ASSEMBLY & INSTRUCTION MANUAL
INafe001_UK
C00-022V70
IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY
INSTRUCTION MANUAL

IMPORTANT SAFEGARDS
1. When the power cord is damaged, do not touch the AC power cord with your hands to avoid
danger.
2. When using the product, please note that the voltage used is absolutely correct (the applicable
voltage of this product is clearly marked on the product nameplate).
3. The vehicle-used function can be only activated when the vehicle is running. Be sure to turn off
its power and unplug the vehicle-used power cord after the vehicle stops running.
4. The product should not be used for transporting or loading the acid-corrosive items, and the
product should not be wiped with corrosive solvents.
5. Do not block the the ventilation openings in normal use.
6. Use this product in strict accordance with the instructions, please do not disassemble the
internal parts without permission.
7. Under the heating condition, the temperature inside the appliance can be controlled within a
temperature at about 149℉, please pay attention to high temperature to avoid burns.
8. When make switch between "Cool" and "Heat" settings, be sure to turn the switch to
“OFF”setting firstly and then switch to another setting after 15 minutes.
9. The product should be stored in a place which is tidy and of good draft, and a ventilation channel
with a width of 10cm should be kept around it. And do not put the product at the rainy places or the
places with heat sources, such as electric stoves, LPG stoves, heat pipes or flames.
10. The Mini Refrigerator should be cleaned regularly if there is residual water inside it.
11. The Mini Refrigerator is not a refrigerator, and it is not allowed to be used for freezing fresh
meat. It is better to put frozen foods and drinks into it for storage.
12. Please do not open the door frequently and the door cannot be opened for too long in order to
keep contents inside it be fresh.
13. Children should be supervised to ensure that they cannot play with appliances.
PRODUCT DESCRIPTION
1. This product can not only be used for cooling but also for warming. It is of simple and cute
appearance, compact, easy to carry, as well as of long service life and low power consumption. It is
a good helper for home and travel use.
2. This product is fully embodied a concept of "Green and Environmentally-friendly”. And this
product uses semiconductor refrigeration technology, it has no bulky compressor and no refrigerant
2

to avoid noise and fluorine pollution. It is an environmentally-friendly refrigeration product without
pollution.
3. This product is particularly suitable for drivers, tourists, migrant workers, singles, mother, office
workers and students due to its multi-function, light weight, small size and easy-to-carry.
4. This product has simple structure and long service life, and it is convenient to maintain, and is of
low power consumption and strong shock-resistant capability.
5. This product has a long service life, and the life of the cooling module can reach 50000 hours.
PRODUCT PARAMETERS
Product name:
Mini Refrigerator
Product model:
RE1000-UL/GS
Rated voltage: 100-240V/12V
Rated power: 48W
Working principle: semiconductor
refrigeration technology
Heating temperature: Heat up to
149℉
Cooling temperature: 59 ℉-64.4 ℉
lower than the current ambient
temperature
1. Front 2. Side 3. Back
3

ILLUSTRATION FOR POWER SUPPLY
DC AC
12V 100V- 240V
Cool & Heat Switch
AC power socket
Mode Switch
DC power socket
OPERATION INSTRUCTION
1. Vehicle use (DC 12V)
(1) Turn to the “Cool” setting. (2) Align the vehicle-used power cable with the socket of the vehicle
(DC12V) , and then insert it well in position.
4

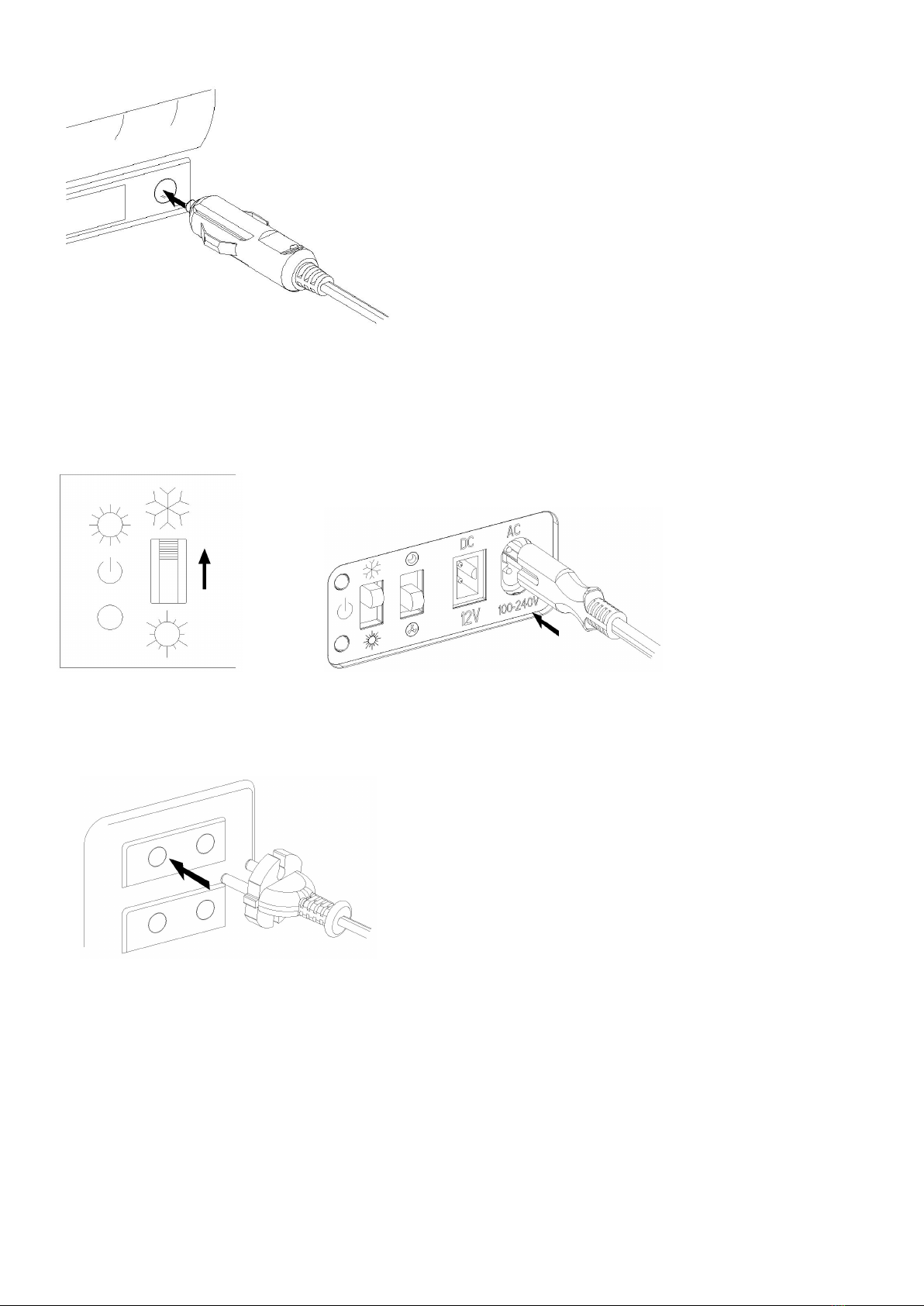

(3) Directly insert the cigarette lighter of the vehicle-used cord into the cigarette lighter socket of the
vehicle.
2. Home use (AC 100V-240V )
(1) Turn to the “Cool” setting. (2) Insert one end of the household power cord into the AC socket of
the Mini Refrigerator（100V-240V）.
1. (3) Insert the other end of the household power cord into
the household outlet.
3. Operation for “Cool” and “Heat”
(1) When cooling, turn the “Cool and Heat Switch” to "Cool" setting, the green indicator lights up
and the Mini Refrigerator starts to cool.
(2) When heating, turn the “Cool and Heat Switch” to "Heat" setting, the red indicator lights up and
the Mini Refrigerator starts to heat.
5

(3) When need to turn off the Mini Refrigerator, turn the “Cool and Heat Switch” to the middle “OFF”
position, and the Mini Refrigerator stops working.
(4) When make switch between "Cool" and "Heat" settings, be sure to turn the switch to
“OFF”setting firstly and then switch to another setting after 15 minutes. Do not directly make switch
between “Cool” and “Heat” setting as the cooling system of the Mini Refrigerator may be damaged
due to the drastic change of temperature.
Cool: Green indicator lights up Heat: Red indicator lights up
4. Operation for “Normal mode” and “Silent mode”
(1) Normal mode: The fan runs at higher speed under normal mode, it is recommended to select
this mode in the daytime.
(2) Silent mode: The fan runs at lower speed under normal mode, it is recommended to select this
mode at night.
TIPS FOR OPERATION
(1) The closer to the cooling position, the better the cooling effect.
(2) Metal cans can be selected for cooling drinks for better results.
(3) The fruits such as watermelon can be cut into two halves and be sealed by the plastic wrap, and
then make its flat surface be attached to the inner wall of the Mini Refrigerator.
(4) For make the meal be fresh, firstly put the meal into a flat stainless steel plate, and then seal the
plate with the plastic wrap, finally, make the bottom surface of plate be attached to the inner wall of
the Mini Refrigerator.
(5) Cosmetics and medicines are spread on the inner wall of the Mini Refrigerator flatly. The closer
to the cooling module, the better the cooling result.
SUGGESTED TEMPERATURE
1. Fruits: The suggested temperature for refrigerating fruits is about 32-50 ℉, which can maintain
the quality and flavor of the fruits and extend the freshness period of the fruits.
2. Beer: The suggested temperature for storing beers should be between 32-59℉, preferably
about 50 ℉. And bottled beer should be stored between 41-77 ℉.
6

3. Tea: The tea can be kept better if the temperature is controlled between 41-50℉, and the flavor
of the tea can be maintained for more than 1 year.
4. Cosmetics / skincare products: Generally, the temperature should be below 77 ℉, and the
temperature for storing cosmetics or skincare products is 50-64.4 ℉. Too high or too low
temperature will deteriorate the cosmetics, and the cosmetics (skincare products) which are cooled
will have a good cooling effect for the skin which is hot, and it will make the skin shrink and be
comfortable.
5. Medicines: The temperature for refrigerating the household medicines should be set according
to the requirements of the medicines. Generally, the refrigerating temperature is below 68 ℉.
SCOPE OF APPLICATION
1. Application places: Car, home, yacht, office, dormitory and cosmetics store etc.
2. Be suitable for refrigeration: Fruits, bottled/canned beverages, tea, medicines, breast milk
and cosmetics etc.
3. Not suitable for refrigeration: Frozen foods such as ice cream and others , chemical reagents,
and meat etc. The cooked food can be stored for 5-8 hours.
TROUBLESHOOTING
1. If the Mini Refrigerator is not energized, please follow the steps below to operate:
(1) Check and make sure the power cord is properly connected to the power outlet.
(2) Check and make sure the Mini Refrigerator is turned on.
(3) Check and make sure the AC/DC switch of the Mini Refrigerator is operated correctly.
(4) Check and make sure the cigarette lighter is properly connected and turned on, and please
clean the base of the cigarette lighter with a non-metallic brush if it is contaminated.
2. If the cooling effect is not good, please deal with it according to the following measures:
(1) Check and make sure the fan is running normally. If not, please replace the fan. It is
recommended to replace the fan every 3-6 months.
(2) Touch the four screws inside the Mini Refrigerator to check if it is cold. Replace the cooling
module if there is no cooling effect.
CLEANING AND MAINTENANCE
1. Before perform cleaning and maintenance, the “Cool & Heat Switch” must be firstly turned off
and then unplug to disconnect the power source.
2. Wipe the dirt and dust on the surface of the body with a piece of soft cloth dipped with detergent.
And you can use a piece of soft cloth dipped with warm water to clean the inside of the appliance.
7

3. The body must not be rinsed with water, especially the parts of the body such as the ventilation
openings of the switch socket, otherwise it will cause damage to the product and a risk of electric
shock.
SERVICE
Please call our customer service hotline if you encounter problems during use.
1. Welcome to use the vehicle-used series products. Please read this manual carefully before
using it, pay special attention to "IMPORTANT SAFEGARDS", and save this manual for future
reference.
2. If this product is given to others, please give it together with this instruction manual.
3. The upgrade and specification of this product are subject to change without notice. The form and
color of the actual product may be slightly different from those shown on the manual, please
understand!
GUARANTEE
The customers can contact the after-sales, explain the reason for the return and reach an
“Agreement on Returning Goods”. Customers who purchase the product will enjoy the
comprehensive service in accordance with the relevant national regulation "Provisions on the
Liability for the Repair, Replacement and Return of Some Commodities".
ENVIRONMENT FRIENDLY DISPOSAL
You can help protect the environment!
Please remember to respect the local
regulations: hand in the non-working electrical
equipment to an appropriate waste disposal
center.
