Home cookin Professional Style Deep Fryer User manual
Professional Style Deep Fryer
IMPORTANT SAFEGUARDS
When using electrical appliances, basic safety precautions should
always be followed, including the following:
READ AND SAVE THESE INSTRUCTIONS
• Read all instructions before using.
• Do not touch hot surfaces. Use handles or knobs.
• To protect against risk of re, electric shock, and personal injury do not
immerse control panel assembly, cord or plugs in water or other liquids.
• Close supervision is necessary when Deep Fryer is used near children.
Children should not use this appliance.
• Unplug from outlet when not in use, before putting on or taking off parts
and before cleaning. Allow to cool before putting on or taking off parts,
and before cleaning appliance.
• Do not operate any appliance with a damaged cord or plug, or after
the appliance malfunctions or has been dropped or damaged in
any manner. Contact Customer Service (see warranty) to return for
examination, repair, or electrical or mechanical adjustment.
• The use of accessory attachments not recommended by HomeCookin®
ma y result in injury.
• Do not use outdoors.
• Do not let cord hang over edge of table or countertop, or touch hot
Surfaces including the stove.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• Extreme caution must be used when moving fryer containing hot oil.
Always use oven mitts or hot pads.
• Always attach plug to appliance rst, then plug AC cord into the wall outlet.
To disconnect, turn control to OFF, then remove AC cord from wall
outlet.
• Do not use appliance for other than intended use.
• Periodically check the handle for looseness. If loose, re-tighten the
screws using a Phillips screwdriver.
CAUTION: Over tightening can result in stripping of screws or cracking
of handle.
This unit is for household use only!
This Deep fryer is equipped with an exclusive Sure Release Power Cord
System, which includes a detachable magnetic cord designed to
separate from the unit when certain amounts of force are applied.
(See details on pages 5-6 for instructions on proper usage of the Sure
Release magnetic cord.)
A short power supply cord is provided to reduce the risk resulting from
becoming entangled in or tripping over a longer cord.
WARNING: Do not use an extension cord. No user-serviceable parts
inside. Do not attempt to
service this product.
POLARIZED PLUG
This appliance has a polarized plug, (one blade is
wider than the other). As a safety feature to reduce
the risk of electrical shock, this plug is intended to t
in a polarized outlet only one way. If the plug does
not t fully in the outlet, reverse the plug. If it still
does not t, contact a qualied electrician. Do not attempt to defeat
this safety feature or modify the plug in any way. If the plug ts loosely
into the AC outlet or if the AC outlet feels warm do not use that outlet.
SAVE THESE INSTRUCTIONS
Welcome:
Congratulations on your purchase of a HomeCookin® Deep Fryer!
To learn more about HomeCookin® products, please visit us at
www.wallbeyond.com
Before Using Your Deep Fryer:
Before using your HomeCookin® Deep Fryer for the rst time, remove
all packaging materials from the exterior and interior of the fryer. Make
sure the fryer is unplugged. Clean the frying basket, lid, oil reservoir and
condensation trap (all these parts are dishwasher safe). Gently wipe the
Heating Element with a damp cloth. Dry all parts thoroughly. (See care
and cleaning.)
DO NOT IMMERSE THE CORD, POWER STRIP OR CONTROL
PANEL ASSEMBLY IN WATER OR ANY OTHER LIQUID!
5
Getting to Know Your HomeCookin® Deep Fryer...............................................6
Preparing to use Your HomeCookin® Deep Fryer..............................................7
Care and Cleaning...............................................................................................9
Frying time and temperature............................................................................10

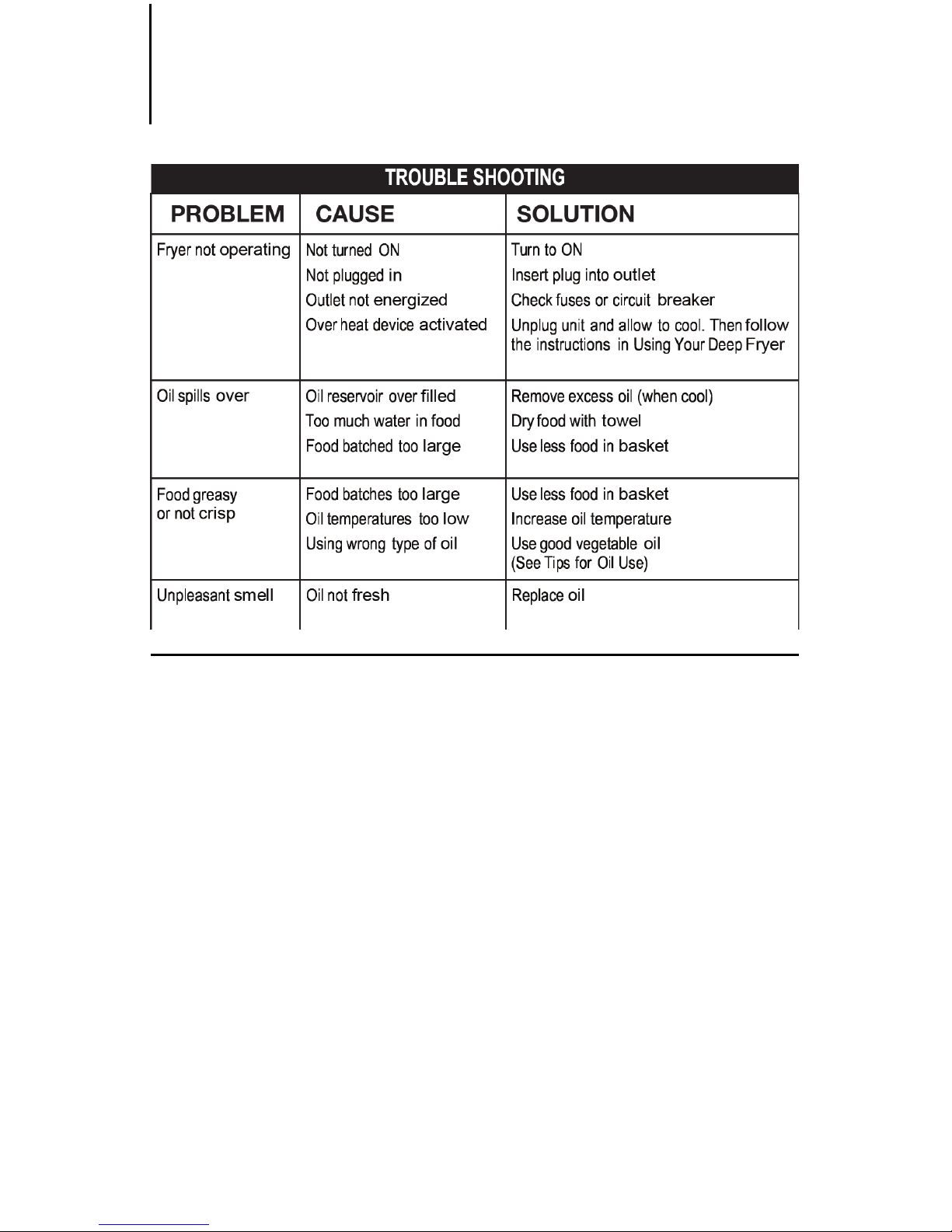

Troubleshooting Guide......................................................................................12
Recipe Guide.....................................................................................................12
Warranty ...........................................................................................................15
Thank You for purchasing the HomeCookin® Deep Fryer
Contents
6

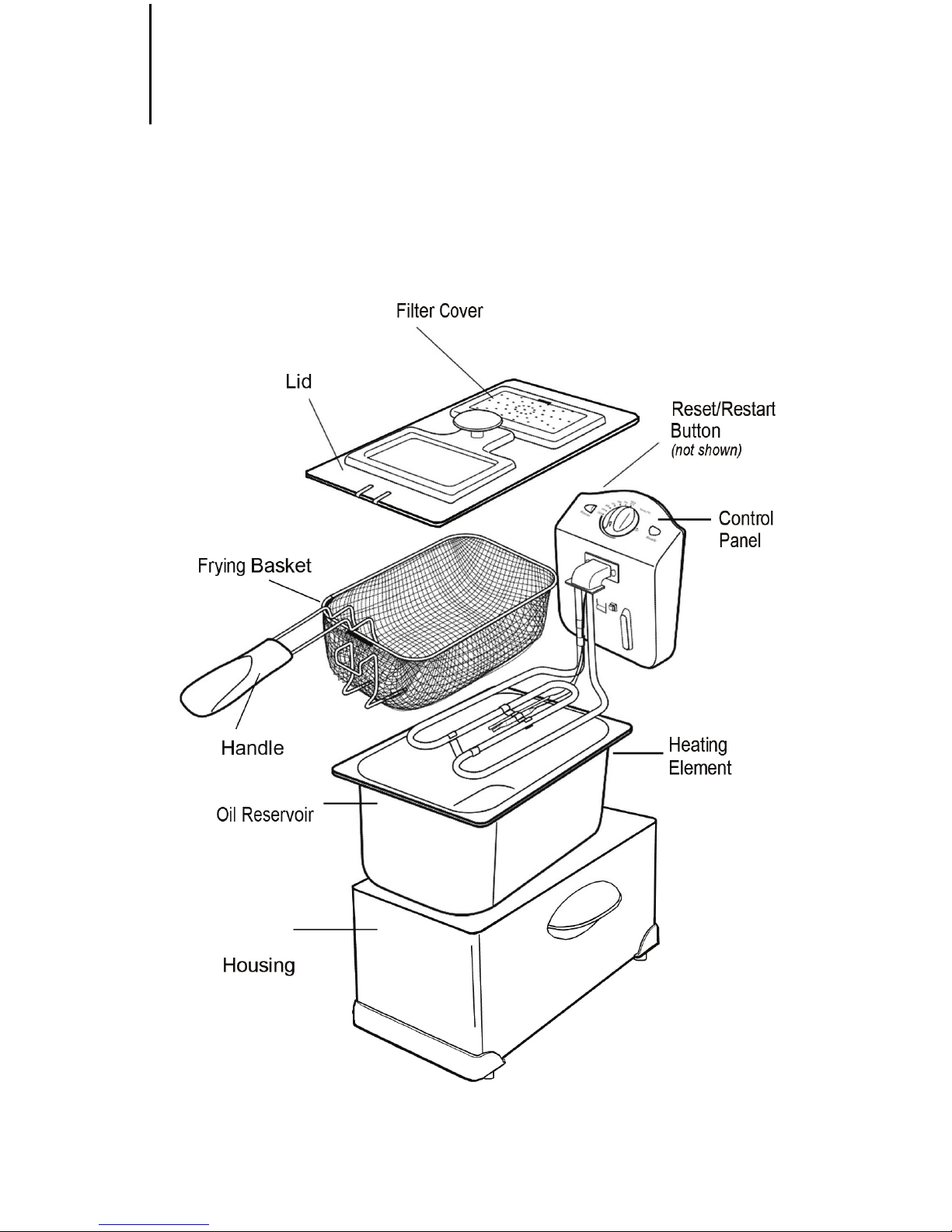

Getting to Know Your Deep Fryer
Before using your Deep Fryer for the rst time, you should become familiar
with all of the parts. Read all Instructions and Safeguards carefully.
7
Preparing to Use
Prior to rst use, remove all packaging materials from the exterior
and interior of the fryer. Make sure the fryer is unplugged. Wash the
Frying Basket and removable Oil Reservoir in hot soapy water. Gently
wipe the Heating Element with a damp cloth. Dry all parts thoroughly.
See CARE AND CLEANING section.
CAUTION: Do not immerse cord, plugs or control panel assembly in water.
Baskets handle assembly instructions:
1. Remove Handle and Frying Basket from inside the deep fryer.
2. Squeeze the handle prongs in the middle.
3. Release the prongs into the eyelets on the interior side of the basket.
4. Press rmly down on the handle to lock in place.
Tips for deep frying:
• Fill the unit with oil between the maximum and minimum capacity lines only.
• Do not over ll the basket. To achieve quality results deep frying food
needs to be surrounded by oil. Too much food causes the oil temperature
to drop, resulting in “soggy” food. Food should be no higher than the
top of the basket.
• Be sure that all ice crystals are removed from the food and food is
completely dry. Excessive water and ice can cause the oil to splatter
and/or overow.
• Coated foods (bread crumbs, batters, etc.) are best for deep frying. The
coating acts as a protective layer keeping food moist on the inside and
crisp on the outside.
• For best results, defrost frozen foods for 20 minutes prior to frying.
• Fry foods at the correct temperature for best results. This will prevent
burning and give you even colored, crispy food.
• Prepackaged frozen, cooked chicken, may cook faster than uncooked food.
• For even cooking, shake basket half way through cooking time.
Using your deep fryer:
NOTE: Never turn on the fryer with an empty Oil Reservoir. Always use
your fryer on a at, heat resistant surface.
• Attach magnetic end of Sure Release power cord assembly directly to
the fryer. This should be done prior to plugging the cord into the wall
outlet. The magnetic end of the cord is designed only to go on one way.
Be sure the side stating “THIS SIDE UP” is facing up.
• Remove Frying Basket by pulling the Basket Handle up.
• Make sure the Oil Reservoir is seated in place. Pour cooking oil into
8
Preparing to Use cont.
Oil Reservoir until it reaches between “MIN” and “MAX” marks inside
reservoir. DO NOT OVER OR UNDER FILL.
• Make sure that fryer is OFF and insert plug into 120 volt AC outlet.
• Turn fryer to desired temperature position.
• Power Light will turn on.
• Ready light will turn on when oil is pre-heated. Remove the lid and
place Frying Basket onto basket hook inside Oil Reservoir.
• Place food inside Frying Basket (Do not over stack food). Lower Frying
Basket into Oil Reservoir. CAUTION: Always replace Lid after immersing
food in oil.
• Open Lid, then lift Frying Basket by handle and pour contents onto
plate covered with paper towels before serving.
• When nished cooking, make sure fryer is in OFF position.
WARNING: DO NOT USE SURE RELEASE POWER CORD SYSTEM
TO DISCONNECT THE FRYER. ALWAYS DISCONNECT PLUG FROM
WALL OUTLET FIRST TO DISCONNECT FRYER.
Use only Model #LT-512 magnetic cord set with this product. The use of
any other magnetic cord set may cause re, electric shock, or injury.
CAUTION: The Sure Release Power Cord is only for accidental
disconnection and is not to be removed during normal operation. If the
cord becomes disconnected, the user should immediately unplug the
cord set from the wall outlet, then reconnect the magnetic cord to the
deep fryer.
Care and cleaning:
WARNING: Always turn control to OFF then disconnect plug from wall
outlet.
REMOVE CORD FROM FRYER.
CAUTION:
• Do not immerse cord sets in water or any liquids
• Do not attempt to defeat the detachable magnetic Sure Release Cord
system by trying to permanently attach cord set to product.
• Do not stick pins or other sharp objects in holes on magnetic cord set.
• Do not use any type of steel wool to clean magnetic contacts.
NOTE: Make sure fryer has cooled before cleaning.
• Turn unit OFF.
• Unplug from outlet and allow unit to cool completely.
9
Care and Cleaning
• Remove Sure Release magnetic cord from the fryer socket.
• Remove the Lid. (See TO REMOVE AND REPLACE LID for detailed
instructions.)
• Open the Filter Cover and remove the Filters.
• Remove Frying Basket. Wash the Frying Basket in the dishwasher with
hot soapy water. Rinse and towel dry carefully.
• Carefully lift Oil Reservoir straight up out of the exterior housing by
holding the rim of the bowl. Store in an airtight container. See Tips for
Oil Use and Storage. Oil Reservoir is also dishwasher safe.
WARNING: Do not remove Oil Reservoir until the unit has cooled and is
unplugged.
• The Basket, Lid, Oil Reservoir and Housing are dishwasher safe. Dry all
parts thoroughly after cleaning.
• The Control Panel should never be immersed in water or other liquids.
Gently clean the outer surface of the Control Panel with a damp cloth
containing mild soap solution or plain water.
• Ensure that both the Lid and Oil Reservoir are completely dry after
washing and before use.
• Insert Oil Reservoir back into housing.
• Place Basket into Oil Reservoir.
• Put Filters back into Lid and put Cover on.
• Close lid.
To remove and replace lid:
• Remove Lid by pulling rmly upwards. Reverse the sequence to secure
Lid from the vertical position to secure back in place.
NOTE: Always remove Lid before emptying the Oil Reservoir or cleaning.
CAUTION: Ensure that Lid is in place prior to operation of unit.
Replacing and cleaning lter:
• Open the Filter Cover, and remove lters.
• Wash lters in hot soapy water and thoroughly rinse. Allow to air dry.
• Clean the inside of the cover with a damp soapy sponge. Rinse and dry
thoroughly.
• Place clean White Grease Filter on Lid, followed by Black Charcoal
Odor Filter, then replace Filter Cover.
10

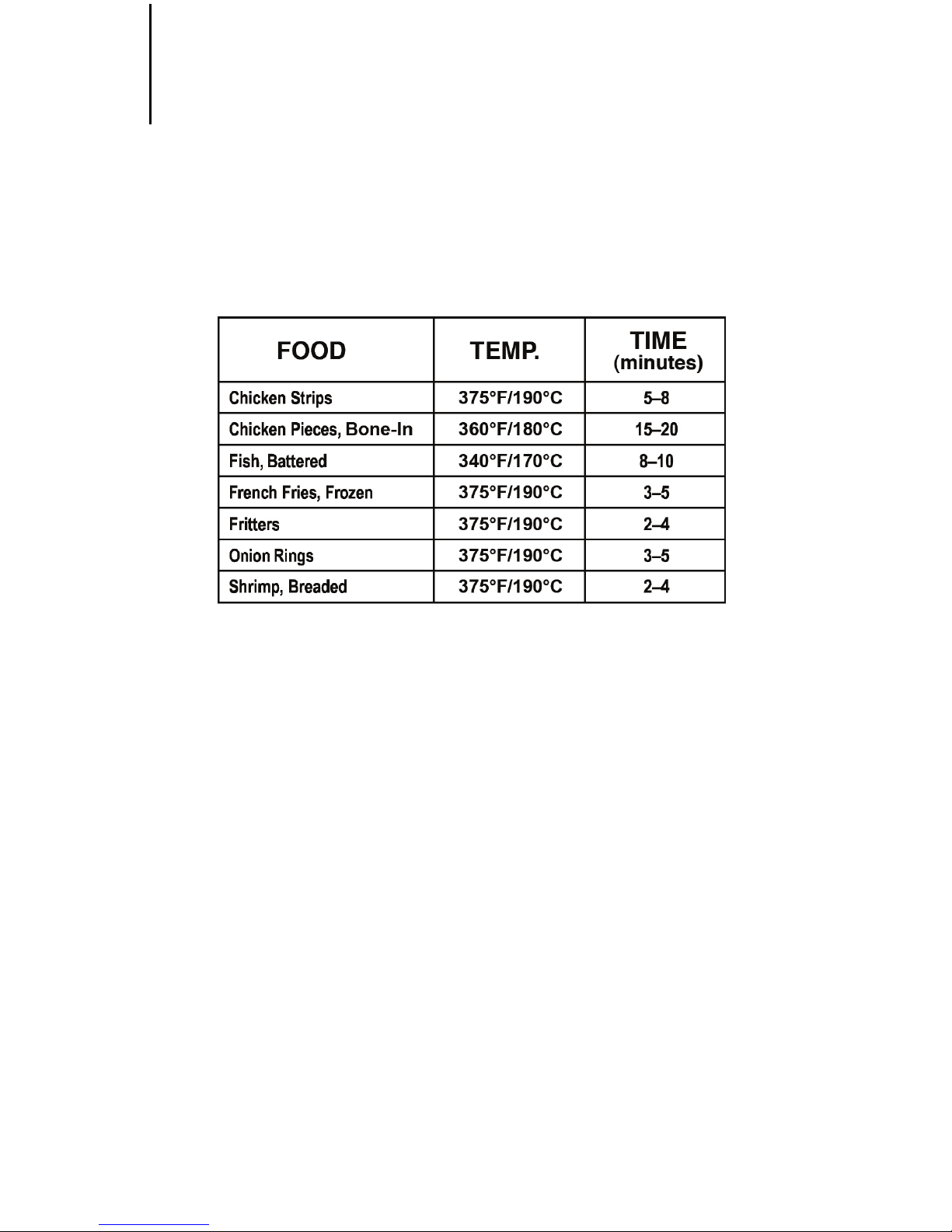

Frying Time and Temperature
The frying times in this chart are a guide and should be adjusted to suit
the different quantities or thickness of food and to suit your own taste.
Preheat time is 7–10 minutes for fryer to reach desired temperature.
(Ready light will cycle On/Off during frying as temperature uctuates due
to food load.)
NOTE: Prepackaged frozen cooked chicken may cook faster than above time.
Tips for oil use and storage:
• Do not use seasoned or avored oil such as walnut, olive oil, lard
or drippings because they have a low smoke point. Use blended
vegetable oil, pure corn oil, sunower oil, soybean oil or grape seed oil
(canola oil) because these oils have a high smoke point. Peanut oil is
not recommended because it impacts the avor greatly.
• Oils should never be mixed when deep frying.
• High heat, water and burnt food particles break down the oil’s smoke
point.
• Replace oil if you notice:
• Excessive smoking at normal temperatures
- Strong oil discoloration
- A rancid smell
- Excessive foaming around the frying food
• Oil darkens with use because the oil and food molecules burn when
subjected to high/prolonged heat. The more you use an oil, the more
slowly it will pour. Its viscosity changes because of changes to the oil’s
molecular structure. When smoke appears on the oils’ surface before
the temperature reaches 375°F/190°C, your oil will no longer deep-fry
11
Frying Time and Temperature cont
effectively.
• When frying foods with strong avor and/or aroma like sh or chicken,
use the oil only once.
• Filtering the oil with a cooking oil lter or ne-mesh strainer can keep it
fresher. Although storing oil in a refrigerator may extend the life of the
oil, this should never be done. This process of chilling oil then bringing
the oil to room temperature causes excessive splattering during the
heat up process.
• Store the covered oil in a cool dark place, for up to three months. Check
the oil before using for color, smell, or excessive foaming. Discard the
oil if it shows any of these qualities.
Reset the Over Heat protection button:
Resetting the Overheat Protection Reset Button may be necessary
if unit will not turn on at start up (power indicator light illuminated and
temperature dial set to selected temperature) or if unit appears to have
stopped working during use.
1. Unplug the unit from the wall electrical outlet.
2. Allow the unit to cool down.
3. Check the oil level in your unit. If it is below the minimum level, oil
should be added before resetting the unit and resuming cooking cycle.
4. Remove the control box with heater.
5. Using a narrow slotted screwdriver or pen, gently press the recessed
reset button on the back of the control box, located on the right hand
side as indicated by the arrow
(see gure 1).
12
Troubleshooting Guide
Preheat oil to 375°F/190°C.
Combine our, baking powder, salt and sugar; set aside.
Combine egg, cooking oil and vanilla.
Combine dry and liquid ingredients and stir to blend thoroughly.
Add orange juice and apple and mix well.
Add teaspoon of combined mixture to raised frying basket.
Close Lid and lower basket into oil.
Fry for about 2 minutes until crisp and brown.
Remove basket from oil and drain.
Open Lid and place on a plate covered with paper towel to absorb the
excess oil.
Dust with powdered sugar or a mixture of granulated sugar and cinnamon;
serve at once.
Apple Fritters:
• 3 cups all-purpose our
• 4 tbsp. cooking oil
• 2 tsp. baking powder
• 1 tsp. pure vanilla extract
• ½ tsp. salt Juice of
• 1 orange (¹⁄³ cup)
• 1 cup sugar
• 1 cup chopped apple
• 1 large egg, lightly beaten
13
Recipe Guide
Beer batter for sh or chicken:
• 2 large eggs, separated
• ¼ tsp. ground black pepper
• 1 tbsp. oil or butter
• 1¹⁄³ cups all-purpose our
• 1 tsp. salt
• ¾ cup at beer
Preheat oil to 375°F/190°C.
Beat egg yolks with oil/butter, salt and pepper.
Alternately add the beer and our to mixture.
Beat ingredients well and refrigerate for 3–12 hours.
When you are ready to use mixture, carefully fold in 2 stify beaten egg whites.
Pat sh or boneless chicken breasts.
Coat lightly with our then dip into beer batter.
Place sh or chicken in raised fryer basket.
Close Lid and lower basket into oil.
Fry sh for 3 minutes or until golden brown.
Fry chicken 5–8 minutes until brown and fully cooked.
Remove basket from oil and drain.
Open Lid and place on a plate covered with paper towels to absorb
excess oil.
Deep Fried Chicken:
• 1 fryer chicken (2½ lbs.), cut up
• ¼ tsp. salt
• 1½ cups all-purpose our
• 1¼ cups milk
• 1 tsp. seasoned salt
Preheat oil to 375°F/190°C.
Combine our and seasonings.
Dip chicken pieces in our, then milk, then our again.
Place chicken in raised fryer basket.
Close Lid and lower basket into oil.
Fry for 20 minutes or until golden brown and done.
Remove basket from oil and drain.
Open lid and place on a plate covered with paper towels to absorb
excess oil.
Serve warm.
14
Recipe Guide cont
Chicken Kiev:
• 4 whole boneless, skinless
chicken breasts
• 1 stick of butter or margarine
• 1 tbsp. chopped onion
• ½ cup all-purpose our
• 1 tbsp. chopped parsley
• 1 large egg, beaten
• 1¹⁄³ tsp. salt 1 cup ne, dry bread
crumbs
Preheat oil to 375°F/190°C.
Place chicken breasts between two pieces of plastic wrap.
Pound with wooden mallet to atten to ¼-inch thick. Remove plastic.
Combine onion, parsley and salt and sprinkle on chicken.
Cut butter into 8 pieces.
Place a piece of butter on seasoned chicken toward one end. Roll as jelly
roll, starting at end with butter, tucking in sides of meat. Press to seal
well. Secure with toothpicks.
Dust with our, dip in beaten egg, and then roll in bread crumbs.
Chill rolls of chicken thoroughly (at least one hour).
Place rolled chicken in a single layer in raised fry basket.
Close Lid and lower basket into oil.
Cook 5 minutes or until brown. To test for doneness, remove a piece of
chicken from the oil. When fork can be inserted with ease, chicken is done.
Remove basket from oil and drain.
Open lid and place on a plate covered with paper towels to absorb
excess oil.
Serve warm.
Quick Doughnuts:
• Refrigerated can of biscuits
• ½ cup sugar
• 2 tbsp. ground cinnamon
Preheat oil to 375°F/190°C.
Take each biscuit and atten slightly with palm of hand.
With nger, punch holes in center of each biscuit to shape into doughnuts.
Place into raised frying basket. Close Lid and lower basket into oil.
Fry for 2 minutes turning once.
Remove basket from oil and drain.
Open Lid and place on a plate covered with paper towels to absorb
excess oil.
Dip doughnut in mixture of cinnamon and sugar.
Serve warm.
15
1 Year Limited Warranty
Homecookin®Products, doing business as Wallbeyond®warrants that for a period of one year
from the date of purchase, this product will be free from defects in material and workmanship.
Wallbeyond®, at its option, will repair or replace this product or any component of the product found
to be defective during the warranty period. Replacement will be made with a new or remanufactured
product or component. If the product is no longer available, replacement may be made with a
similar product of equal or greater value. This is your exclusive warranty. Do NOT attempt to repair
or adjust any electrical or mechanical functions on this product. Doing so will void this warranty.
This warranty is valid for the original retail purchaser from the date of initial retail purchase and is
not transferable. Keep the original sales receipt. Proof of purchase is required to obtain warranty
performance. Wallbeyond®dealers, service centers, or retail stores selling Wallbeyond®products
do not have the right to alter, modify or any way change the terms and conditions of this warranty.
This warranty does not cover normal wear of parts or damage resulting from any of the following:
negligent use or misuse of the product, use on improper voltage or current, use contrary to the
operating instructions, disassembly, repair or alteration by anyone other than Wallbeyond®or an
authorized Wallbeyond®service center. Further, the warranty does not cover: Acts of God, such as
re, ood, hurricanes and tornadoes
What are the limits on Wallbeyond®’s Liability?
Wallbeyond®shall not be liable for any incidental or consequential damages caused by the breach
of any express, implied or statutory warranty or condition.
Except to the extent prohibited by applicable law, any implied warranty or condition of merchantability
or tness for a particular purpose is limited in duration to the duration of the above warranty.
Wallbeyond®disclaims all other warranties, conditions or representations, express, implied,
statutory or otherwise.
Wallbeyond®shall not be liable for any damages of any kind resulting from the purchase, use
or misuse of, or inability to use the product including incidental, special, consequential or similar
damages or loss of prots, or for any breach of contract, fundamental or otherwise, or for any claim
brought against purchaser by any other party.
Some provinces, states or jurisdictions do not allow the exclusion or limitation of incidental or
consequential damages or limitations on how long an implied warranty lasts, so the above limitations
or exclusion may not apply to you.
This warranty gives you specic legal rights, and you may also have other rights that vary from
province to province, state to state or jurisdiction to jurisdiction.
How to Obtain Warranty Service
In the U.S.A.
If you have any question regarding this warranty or would like to obtain warranty service, please call
1-800-376-3698 and a convenient service center address will be provided to you.
In the U.S.A., this warranty is offered by Wallbeyond®
PLEASE DO NOT RETURN THIS PRODUCT TO THE PLACE OF PURCHASE.
Table of contents
