Home Decorators Collection HB7083-35 User manual

Questions, problems, missing parts? Before returning to the store,
call Home Decorators Collection Customer Service
8 a.m. –6 p.m., EST, Monday –Friday
1-800-986-3460
www.homedepot.com/homedecorators
USE AND CARE GUIDE
____________________________________
EXTERIOR LED WALL FIXTURE
THANK YOU
We appreciate the trust and confidence you have placed in Home Decorators Collection through the purchase of this
exterior LED wall fixture. We strive to continually create quality products designed to enhance your home. Visit us
online to see our full line of products available for your home improvement needs. Thank you for choosing Home
Decorators Collection!
Item:
Model: 1000 639 096 HB7083-35

Before starting installation of this fixture or
removal of a previous fixture, disconnect
the power by turning off the circuit breaker
or by removing the fuse at the fuse box.
Consult a qualified electrician if you have
any electrical questions or need to replace
the driver.
If you have any non-electrical questions
about this fixture, please contact our
Customer Service Team at 1-800-986-3460
or www.homedepot.com/homedecorators.
WARNING: Disconnect the power prior to
removing or installing a light fixture.
Table of Contents
Safety Information
Warranty
WHAT IS COVERED
The manufacturer warrants this lighting fixture to be free from defects in materials and workmanship
for a period of five (5) years from date of purchase. This warranty applies only to the original
consumer purchaser and only to products used in normal use and service. If this product is found to
be defective, the manufacturer’s only obligation, and your exclusive remedy, is the repair or
replacement of the product at the manufacturer’s discretion, provided that the product has not been
damaged through misuse, abuse, accident, modifications, alterations, neglect or mishandling.
WHAT IS NOT COVERED
This warranty shall not apply to any product that is found to have been improperly installed, set-up,
or used in any way not in accordance with the instructions supplied with the product. This warranty
shall not apply to a failure of the product as a result of an accident, misuse, abuse, negligence,
alteration, or faulty installation, or any other failure not relating to faulty material or workmanship.
This warranty shall not apply to the finish on any portion of the product, such as surface and/or
weathering, as this is considered normal wear and tear.
The manufacturer does not warrant and specially disclaims any warranty, whether expressed or
implied, of fitness for a particular purpose, other than the warranty contained herein. The
manufacturer specifically disclaims any liability and shall not be liable for any consequential or
incidental loss or damage, including but not limited to any labor/expense costs involved in the
replacement or repair of said product.
Contact the Customer Service Team at 1-800-986-3460 or visit
www.www.homedepot.com/homedecoratorscom.
2
Installation 5
Operation 6
Care and Cleaning 6
Exterior Maintenance 6
Interior Maintenance 6
Driver Replacement 7
FCC Notice 7
Troubleshooting 7
Table of Contents 2
Safety Information 2
Warranty 2
Pre-Installation 3
Planning the Installation 3
Tools 3
Hardware 3
Package Contents 4
WARNING: Changes or modifications not
expressly approved by the party responsible for
compliance could void the user's authority to
operate the equipment.

Pre-Installation
PLANNING THE INSTALLATION
Read all instructions before assembly and installation. Before starting installation of the fixture or
removal of a previous fixture, disconnect the power by turning off the circuit breaker or by removing
the fuse at the fuse box. To avoid damaging this product, assemble it on a soft, non-abrasive
surface such as carpet or cardboard.
NOTE: Keep your receipt and these instructions
for Proof of Purchase.

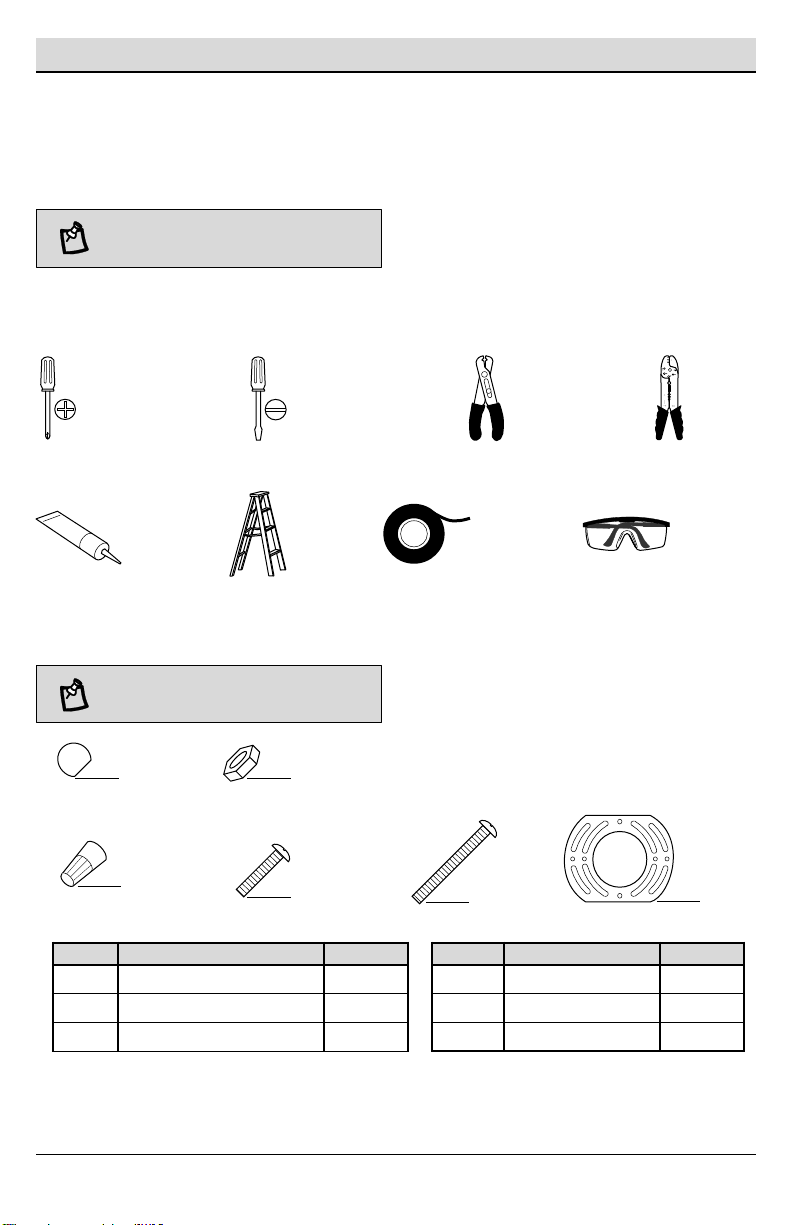

TOOLS REQUIRED
HARDWARE REQUIRED
NOTE: Hardware not shown to actual size.
www.homedepot.com/homedecorators
Please contact 1-800-986-3460 for further assistance.
Part
Description
Quantity
DD
Bracket Mounting Screw
2
EE
Fixture Mounting Screw
2
FF
Mounting Bracket
1
Part
Description
Quantity
AA
Lock Nut
2
BB
Hex Nut
2
CC
Wire
Nut 3
3
BB
AA
EE
DD
CC
Phillips
Screwdriver
Wire
Cutter
Wire
Stripper
Flathead
Screwdriver
Ladder Safety
Goggles
Electrical
Tape
Silicone Rubber
Sealant for
exterior use
FF

Pre-Installation (continued)
PACKAGE CONTENTS
4
Part
Description
Quantity
A
Fixture Body
1
A

www.homedepot.com/homedecorators
Please contact 1-800-986-3460 for further assistance.

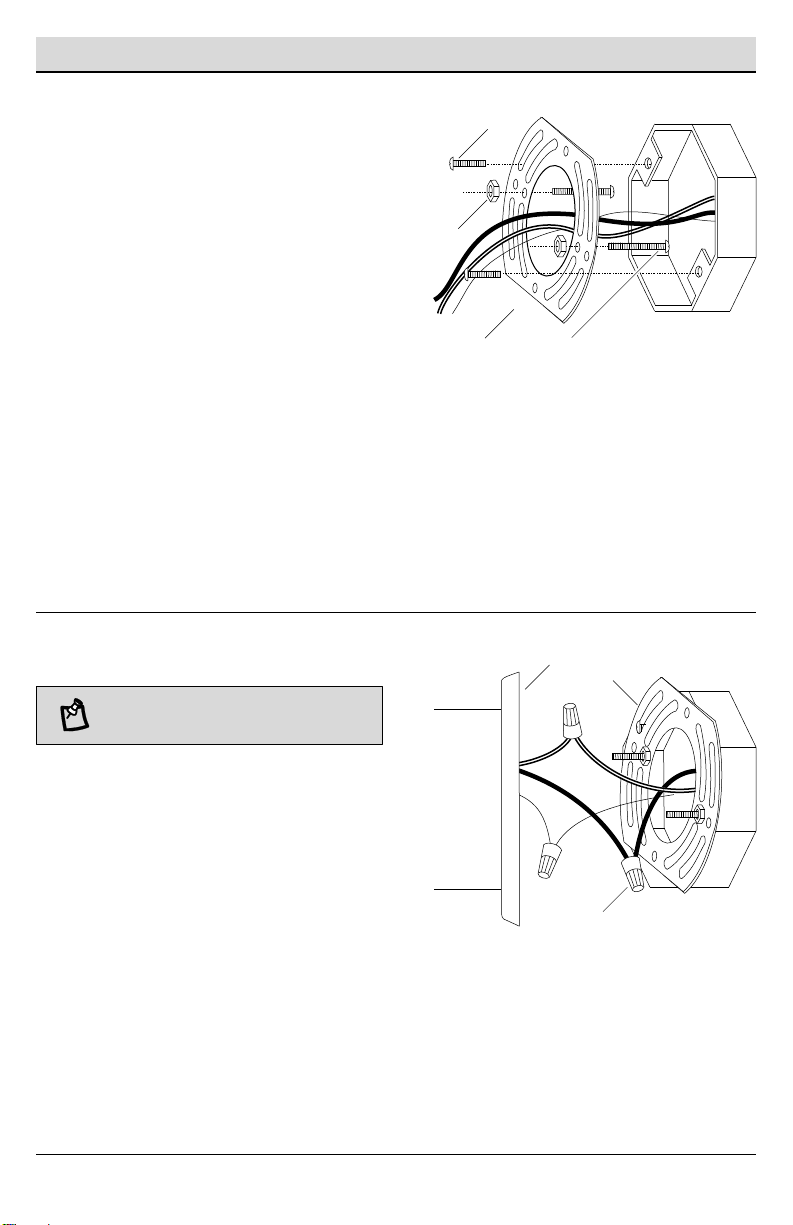

1 Mounting the hardware
Thread the fixture mounting screws (EE)
into the provided holes of the mounting
bracket (FF).
Thread the hex nuts (BB) onto the fixture
mounting screws (EE). Do not tighten the
hex nuts (BB) at this time.
Pull the supply wires out from the outlet
box and mount the mounting bracket (FF)
to the outlet box using the bracket
mounting screws (DD).
Place the fixture body (A) over the outlet
box and onto the fixture mounting screws
(EE).
Adjust the fixture mounting screws (EE)
until they protrude out from the fixture body
(A) 1/4 in.
Remove the fixture body (A) and secure
the position of the fixture mounting screws
(EE) by tightening the hex nuts (BB)
against the mounting bracket (FF).
2 Connecting the wires
Connect the black supply wire to the black
fixture wire using a wire nut (CC).
Connect the white supply wire to the white
fixture wire using a wire nut (CC).
Connect the fixture ground wire to the
supply ground wire using a wire nut (CC).
Wrap all wire connections with electrical
tape for a more secure connection.
Installation
5
NOTE: If you have electrical questions consult
your local electrical code for approved
grounding methods.
FF EE
DD
BB
CC
FF
A

3 Mounting the fixture
Place the fixture body (A) onto the fixture
mounting screws (EE) and secure it into
place by using the lock nuts (AA).
Caulk the upper 2/3rds of the back plate on
the fixture body (A).
Leave the bottom 1/3rd un-caulked for
drainage of any water that may leak into
the enclosure.
Installation (continued)
6
Operation
Turn on power at the circuit breaker or fuse box.
Turn the light switch on to activate the fixture.
Care and Cleaning
EXTERIOR MAINTENANCE
Use a dry or slightly dampened clean
cloth and wipe the surface of the
fixture.
INTERIOR MAINTENANCE
Disconnect power to the fixture by
turning off the circuit breaker or by
removing the fuse at the fuse box.
Use a dry or slightly dampened clean
cloth to wipe the interior surface of the
fixture.
NOTE: Do not use any cleaners with chemicals,
solvents, or harsh abrasives. Use only a dry
soft cloth to dust or wipe carefully.
A
AA EE

www.homedepot.com/homedecorators
Please contact 1-800-986-3460 for further assistance.
Driver Replacement
This product is ENERGY STAR ® listed. The driver can be replaced without having to cut wires.
Please contact a qualified electrician if driver replacement is needed.
FCC Notice
NOTICE: This device has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instruction
manual, may cause harmful interference to radio communications. However, there is no guarantee
that interference can be determined by turning the equipment off and on, the user is encouraged to
try to correct the interface by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the device and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
Troubleshooting
7
Problem
Solution
The
light will not turn on.

Make sure the power supply is on.

Test or replace the switch.

Check the wiring.

Replace the driver.
The
fuse blows or circuit breaker trips
when light is turned on.

Check the wire connections.

Questions, problems, missing parts? Before returning to the store,
call Home Decorators Collection Customer Service
8 a.m. –6 p.m., EST, Monday-Friday
1-800-986-3460
www.homedepot.com/homedecorators
Retain this manual for future use.
