ASSEMBLY INSTRUCTIONS
Coleridge 42 in. Mantel Console with Infrared Electric Fireplace
in Medium Cherry Finish
Questions, problems, missing parts? Before returning to the store,
call Home Decorators Collection Customer Service
8 a.m. - 7 p.m., EST, Monday-Friday
9 a.m. - 6 p.m., EST, Saturday
1-800-986-3460
HOMEDEPOT.COM/HOMEDECORATORS

2
Table of Contents
Table of Contents................................................................... 2
Safety Information................................................................. 2
Warranty................................................................................ 2
Pre-Assembly ........................................................................ 2
Planning Assembly........................................................... 2
Tools required .................................................................. 2
Hardware Included ...........................................................3
Package Contents.............................................................4
Assembly ...............................................................................5
Care and Maintenance.........................................................18
Safety Information
Please read and understand these instructions before
assembling and using this console. Save these instructions
for future reference.
MAXIMUM RECOMMENDED WEIGHT LOADS
WARNING: This unit is not intended for use with CRT TVs.
Use only with flat panel TVs and audio/video equipment
meeting recommended size and weight limits. Never use
with larger/heavier than recommended flat panel TVs or
equipment. To avoid instability, place flat panel TV in the
centre of the unit; the base of the television must be able
to rest on the supporting surface of the unit without
over-hanging the edges. Improperly positioned flat panel
TVs, or flat panel TVs or other equipment that exceed
recommended size and weight limits could fall off or break
the unit, causing possible serious injury.
Warranty
We are confident that you will be delighted with this purchase. Should this product be defective in workmanship or materials, or
fail under normal use, we will repair or replace it for a period of up to one (1) year from date of purchase.
This warranty gives you specific rights and you may also have other rights which vary from state to state.
Contact the Customer Service Team at 1-800-986-3460 or visit www.HomeDepot.com/homedecorators.
Pre-Assembly

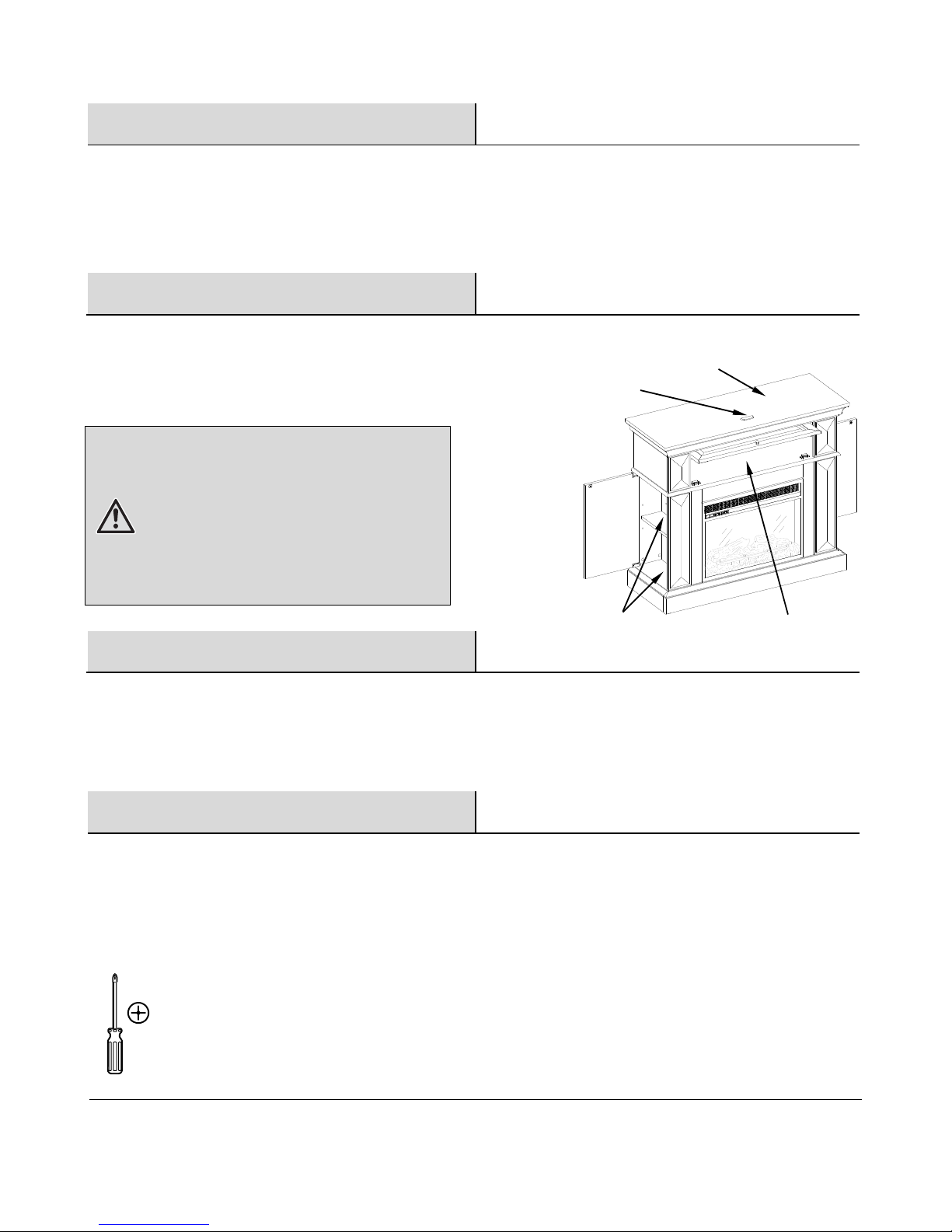

PLANNING ASSEMBLY
Compare all parts with the Hardware Included and Package Contents list. If any part appears missing or damaged, do not
assemble this product and contact the Customer Service Team at 1-800-986-3460.
TOOLS REQUIRED
Phillips
screwdriver
(not provided)
Maximum load 6.8 kg / 15 lb Maximum load 22.6 kg / 50 lb
Place TV behind
t
he sto
pp
er
Fits up
t
o most 127 cm / 50 in.
f
lat panel TVs
Maximum load 61.2 kg / 135 lb

3 HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Pre-Assembly (continued)
HARDWARE INCLUDED
NOTE: Hardware not shown to actual size.
Part Description Quantity Part Description Quantity
AA Cam loc
k
39 + 1 extra MM Push magnetic catch 2
BB Cam bolt 39 + 1 extra NN Corner connector 2
CC Wood dowel 44 + 2 extra OO Hoo
k
2
DD Long wood screw 14 + 1 extra PP Left bottom / right upper pivot hinge 2
EE Short wood screw 16 + 1 extra QQ Right bottom / left upper pivot hinge 2
FF Washer head screw 16 + 1 extra RR Acrylic stopper 1
GG Long pan head screw 12 + 1 extra SS Knob 1
HH
L
-shaped metal brace 2 TT Knob bolt 1
II Cam lock cover 24 + 1 extra UU Glue 1
JJ Shelf support 8 + 1 extra VV Touch-up pen 1
KK Straight metal plate 2 W
W
Tipping restraint hardware
k
it 2
L
L
Magnetic catch 2 XX Short pan head screw 6 + 1 extra
MM
LL NN OO PP QQ RR SS
VV UU WW XX
TT
AA BB CC DD EE FF GG HH II JJ KK

4
Pre-Assembly (continued)

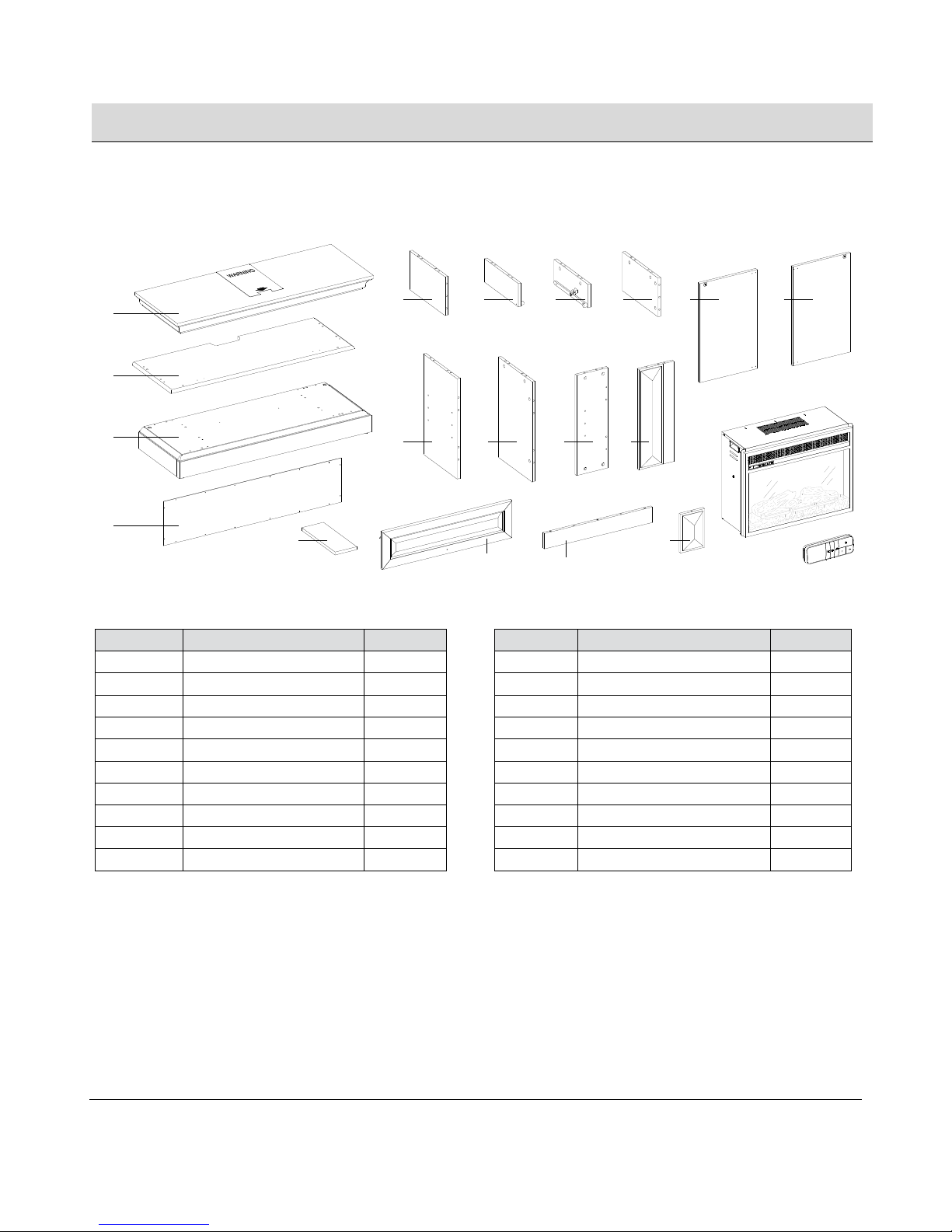

PACKAGE CONTENTS
Part Description Quantity Part Description Quantity
A Top panel 1 K Left lower side panel 1
B Center shel
f
1
L
Right lower side panel 1
C Base 1 M
L
ower back panel 2
D Back panel 1 N
L
ower
f
ront panel 2
E
L
eft upper side panel 1 O Adjustable shelf 2
F Barrister door left support 1 P Barrister door 1
G Barrister door right support 1 Q Center crossbar 1
H Right upper side panel 1 R Upper front molding 2
I Left door 1 Fireplace insert 1
J Right door 1 Remote control with battery 1
A
B
C
D
EF
GH
I J
KLMN
PQ
R
O

5 HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Assembly
1
Screwing the cam bolts
NOTE: Do not fully tighten all bolts until you finish assembling all parts. Once assembled, go back and fully tighten all bolts.
This will make the assembly easier.
□ Unpack the unit and confirm that you have all the hardware and required parts. Assemble the unit on a carpeted floor or
the empty carton to avoid any scratches.
□ Securely screw the cam bolts (BB) into the designated small holes on the top panel (A), the base (C), the lower front
panels (N) and the upper front moldings (R) using a Phillips screwdriver.

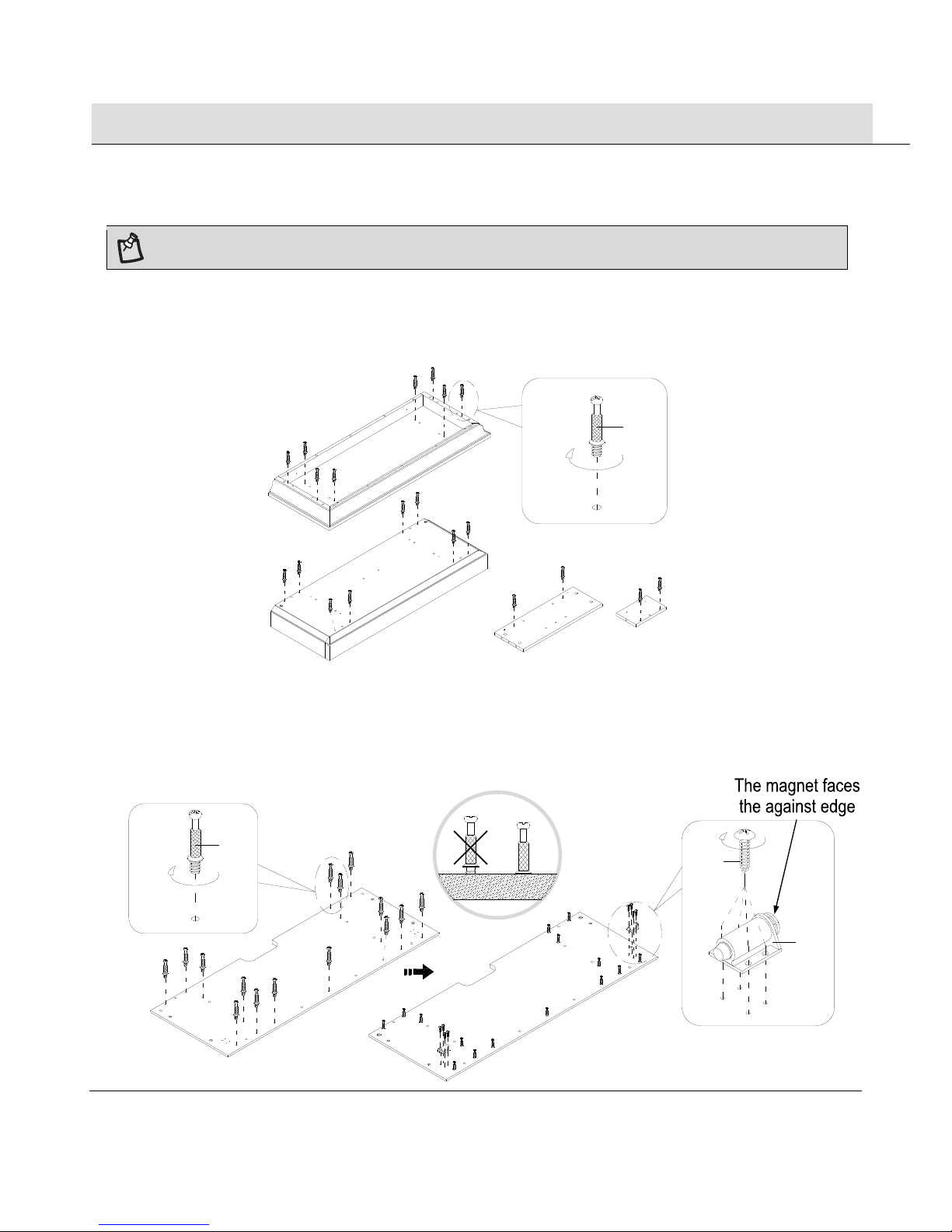

2
Attaching the cam bolts and push magnetic catches
□ Securely screw the cam bolts (BB) into the designated small holes on the center shelf (B) using a Phillips screwdriver.
□ Using the pilot holes as a guide, fasten two push magnetic catches (MM) to the center shelf (B) with eight long pan head
screws (GG). Make sure that the magnet faces outward.
MM
GG
B
B
BB
BB
A
C
R
NX2
X2

6
Assembly (continued)
3
A
ttaching the magnetic catches
□ Flip the center shelf (B) around.
□ Align two magnetic catches (LL) to the pilot holes on the center shelf (B). Keep the magnetic plates facing the finished
edge. Then attach the magnetic catches (LL) in place using two long pan head screws (GG) per catch.
4
Combining the upper moldings and side panels
NOTE: Refer to the dowel and cam lock assembling guide drawings in this step for further clarification on how to properly glue in
the wooden dowels and install cam locks. Apply this method whenever instructed to install wood dowels and cam locks .
□ Glue one wood dowel (CC) into the inner hole of the left upper side panel (E) and attach it to one upper front molding (R)
by engaging two cam locks (AA) as shown.
□ Repeat the same procedure to combine the other upper front molding (R) and the right upper side panel (H) together.
E
H
R
R
AA
CC
BLL
GG
GLUE
X
X
FINAL
12 43

7 HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Assembly (continued)

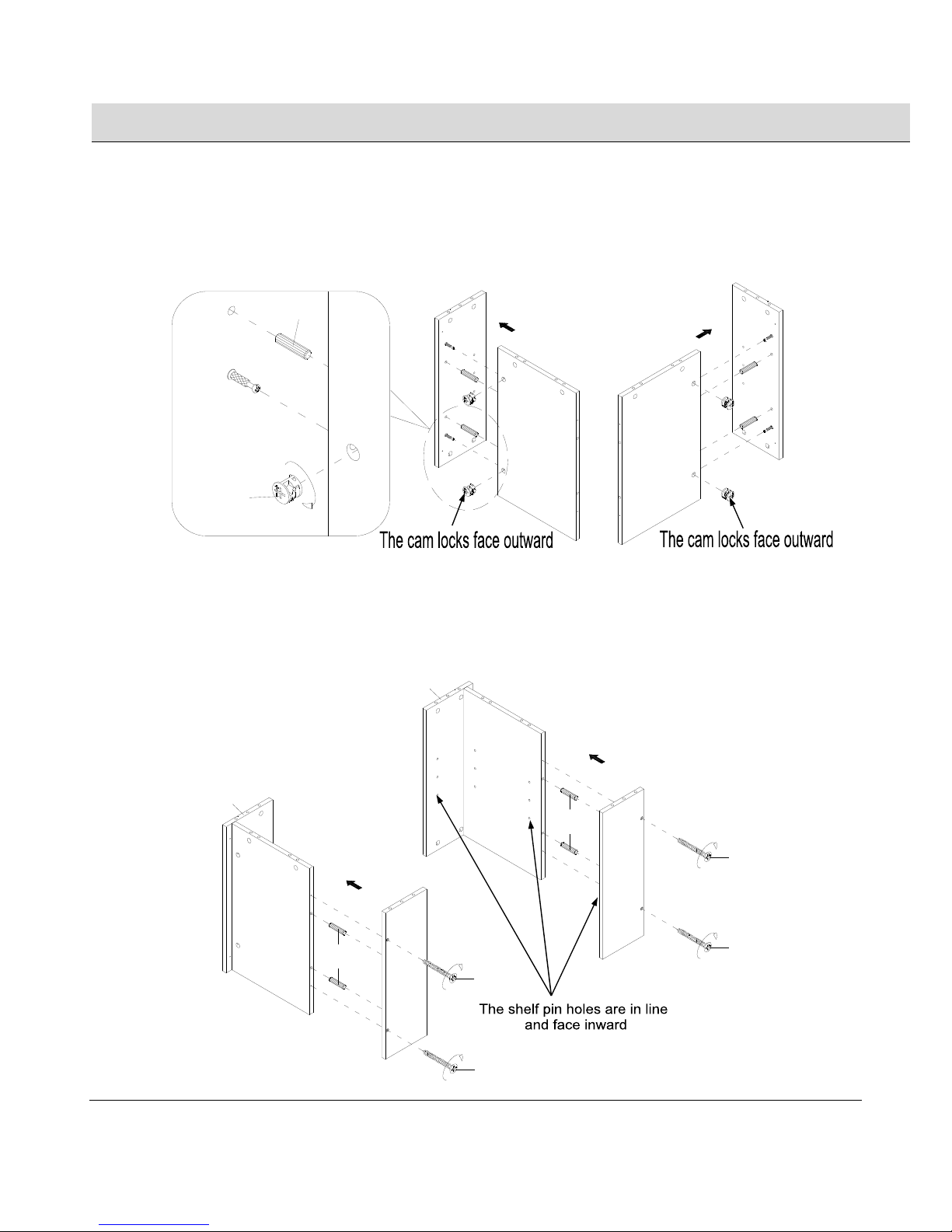

5 Installing the upper side panel assemblies
□ Glue six wood dowels (CC) into the inner holes drilled on the top edge of upper side panel assemblies (E, H and R) and
attach them to the top panel (A) by engaging four cam locks (AA).
6 Installing the corner connectors
□ Using the pilot hole as a guide, fasten one corner connector (NN) to the
f
ront bottom corner o
f
barrister door left support
(F) with one short pan head screw (XX). Make sure that the front edges are even with each other.
□ Repeat the same procedure with the barrister door right support (G).
A
E
H
AA
CC
F
G
XX
NN
NN
XX

8
Assembly (continued)
7

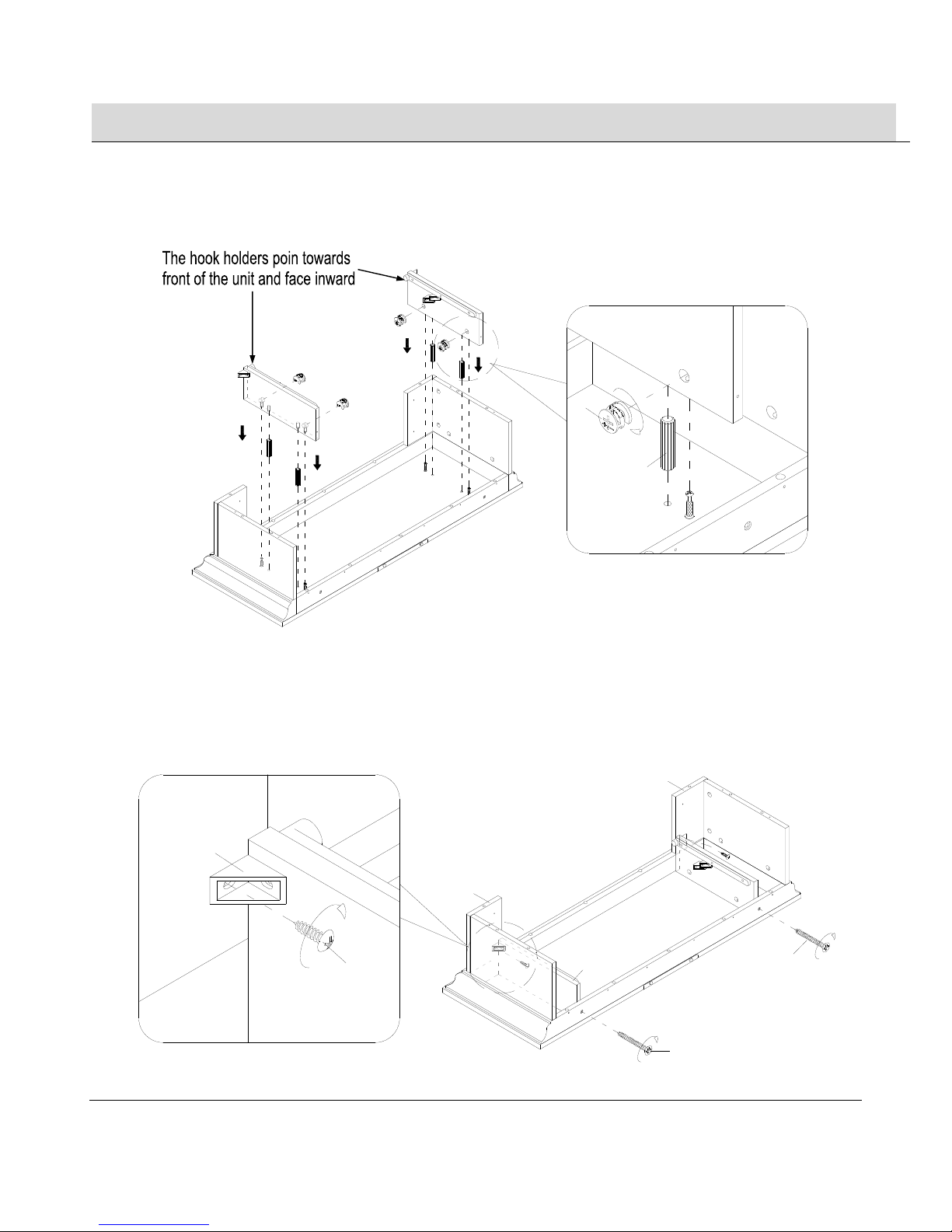

Attaching the barrister door supports
□ Glue
f
our wood dowels (CC) into the inner holes on the upper edge of
t
he barrister door supports (F and G) and attach
them to the top panel (A) by engaging four cam locks (AA).
8
Securing the barrister door supports
□ Fasten the barrister door supports (F and G) to the back stretcher of
t
he
t
op panel (A) with two long wood screws (DD).
□ Insert two short pan head screws (XX) through the corner connectors (NN) installed on the barrister door supports (F
and G) and securely screw into the top front moldings (R).
AA
CC
A
E
H
F
G
DD
DD
R
R
G
F
XX
NN

9 HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Assembly (continued)
9
Attaching the center crossbar
□ Align and attach the center crossbar (Q) to the center shelf (B) with two wood dowels (CC) and three cam locks (AA).
10
Installing the center shelf
□ Glue six wood dowels (CC) into the inner holes at the bottom edge of the upper side panels (E and H) and front moldings (R).
□ Properly position the center shelf (B) onto the inserted wood dowels (CC) and secure in place by engaging four long
wood screws (DD).
DD
DD
B
E
H
CC
CC
AA
CC
Q
B

10
Assembly (continued)

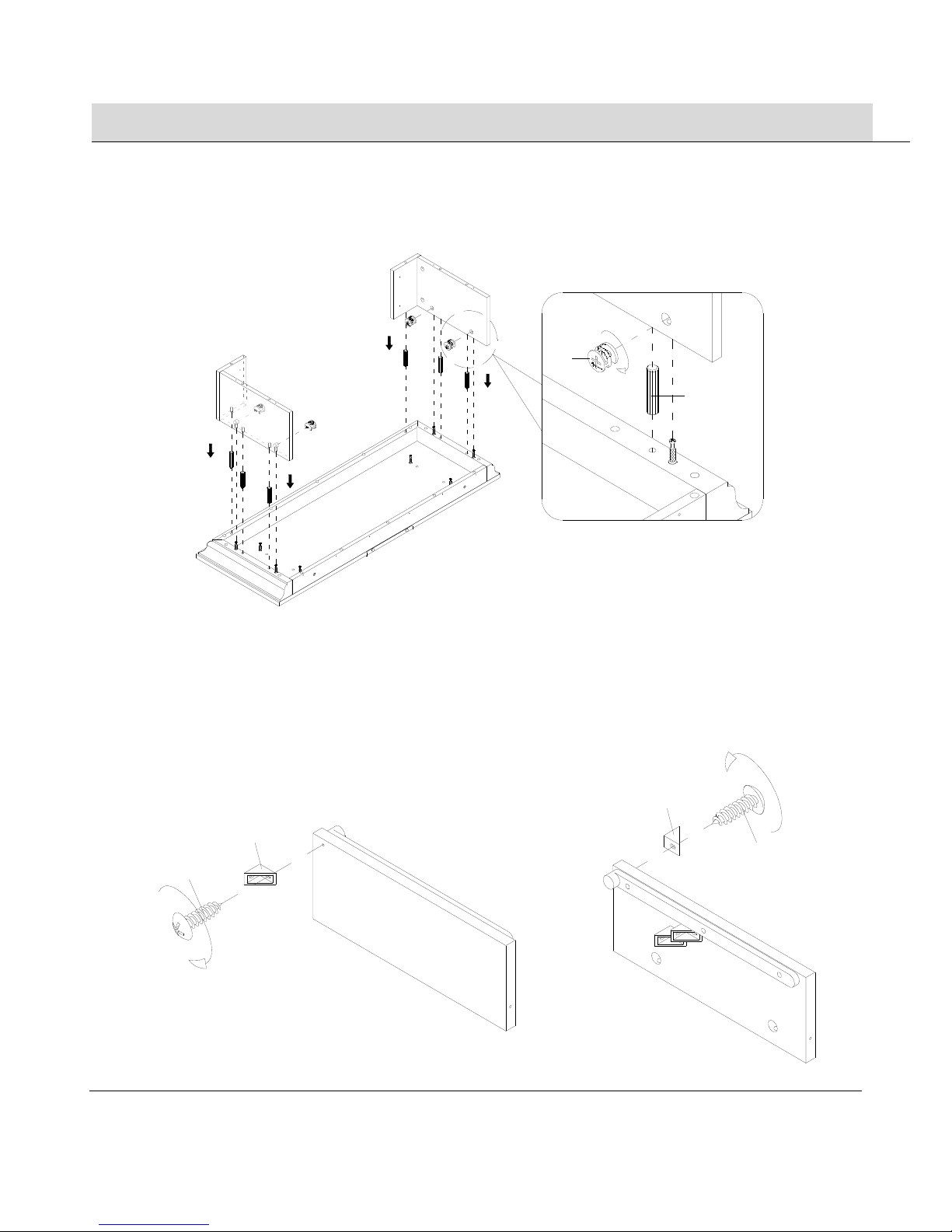

11
Combining the lower panels
□ Glue two wood dowels (CC) into the inner holes of left lower side panel (K) and attach it
t
o one lower front panel (N) by
engaging two cam locks (AA) as shown.
□ Repeat the same procedure to combine the right lower side panel (L) and the other lower front panel (N) together.
12
Attaching the lower back panels
□ Align and attach lower back panels (M) to the lower side panels (K and
L
) with
t
wo wood dowels (CC) and
t
wo long wood
screws (DD) per panel.
CC
AA
K
N
L
N
DD
DD
DD
DD
CC
CC
K
N
N
L
M
M

11 HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Assembly (continued)
13
Installing the lower side panel assemblies
□ Glue eight wood dowels (CC) into the top inner holes of both lower side panel assemblies.
□ Align the large holes on the center shelf (B) with the inserted wood dowels (CC) and press them together. Secure the
lower side panel assemblies in place by engaging twelve cam locks (AA).
14
Installing the base
□ Align and attach the base (C) to
t
he previous assemblies with eight wood dowels (CC) and eight cam locks (AA), as
shown.
M
K
N
N
L
M
C
K
M
M
L
N
N
B

12
Assembly (continued)

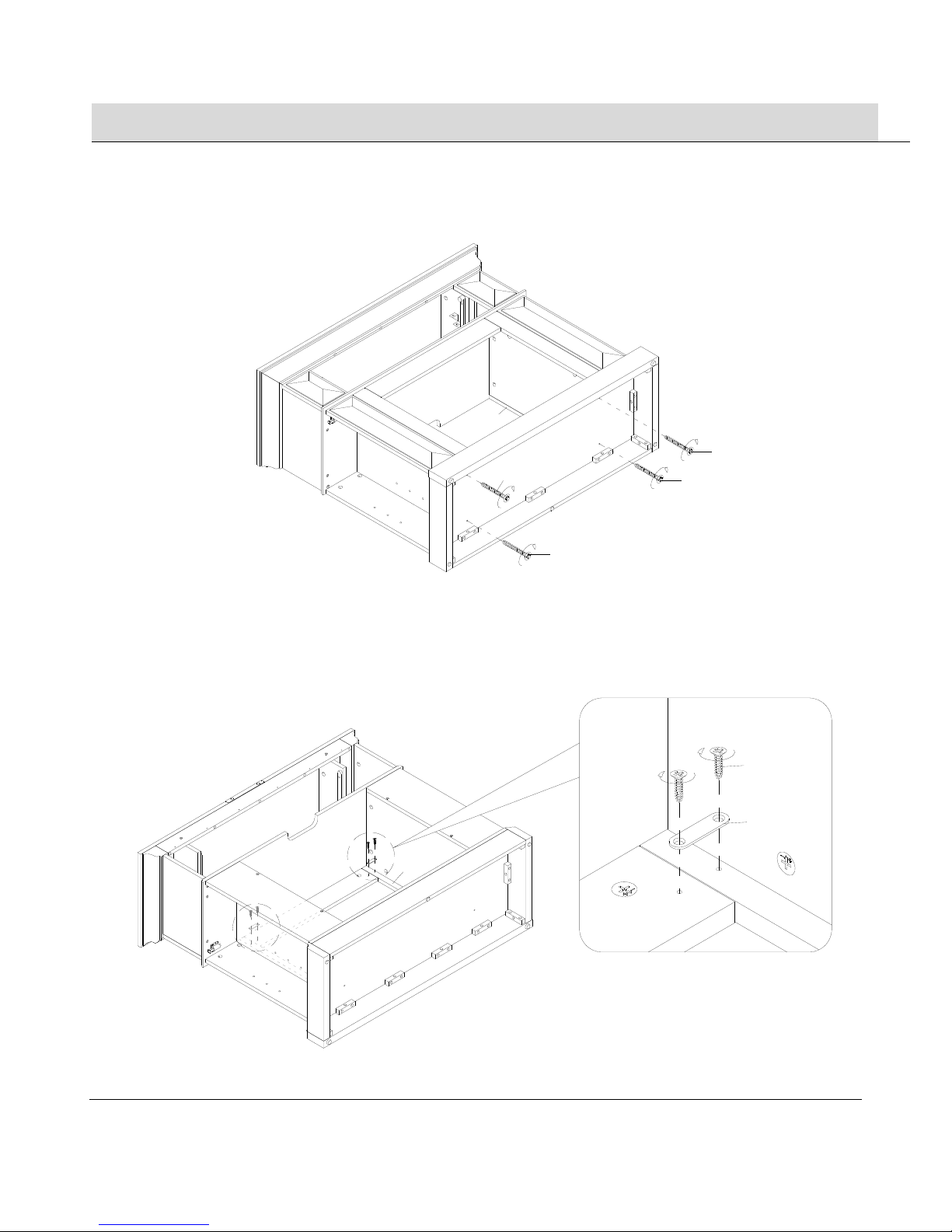

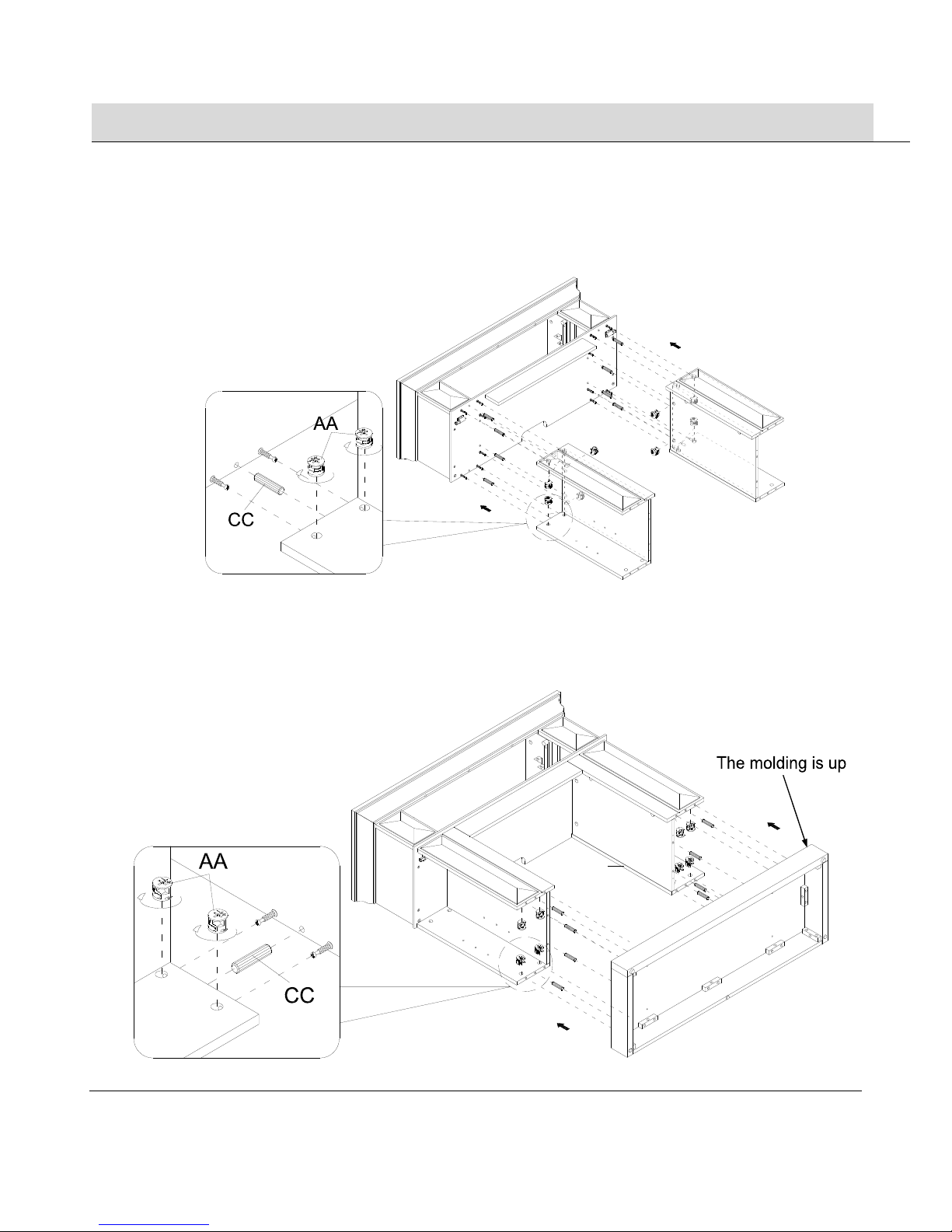

15 Securing the base
□ Insert
f
our long wood screws (DD)
t
hrough the drilled holes on
t
he base (C) and securely screw in
t
o
t
he lower side
panels (K and L).

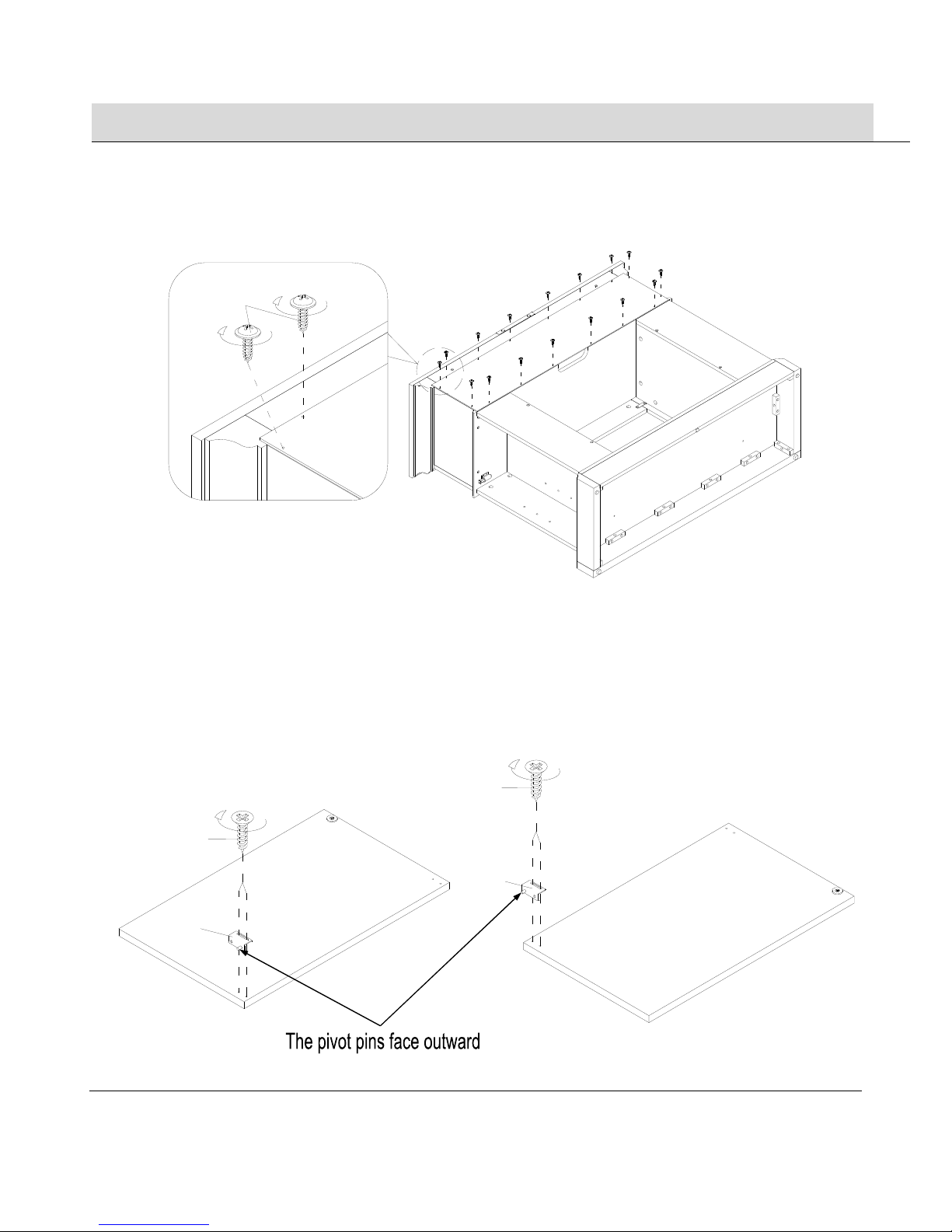

16 Installing the metal plate
□ Flip the assembled unit around at its front edges. Secure the middle crossbar (Q) to both lower front panels (N) by
attaching two metal plates (KK) at the joints, using two short wood screws (EE) in each, as shown.
C
M
K
N
L
N
M
DD
DD
DD
DD
N
N
Q
KK
EE

13 HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Assembly (continued)
17
Attaching the back panel
□ Pick up the back panel (D) and align the drilled holes against the upper long edge with the pilot holes on the back
stretcher of the top panel (A). Attach the back panel (D) in place using the provided washer head screws (FF).
18
Attaching the bottom pivot hinges
□ Using the pilot holes as a guide, attach the left bottom pivot hinge (PP) to the left door (I) with
t
wo shor
t
wood screws
(EE) as shown. Make sure that the pivot pin runs against the edge.
□ Repeat the same procedure to attach the right bottom pivot hinge (QQ) to the right door (J).
FF
D
B
H
A
IJ
PP
EE
QQ
EE

14
Assembly (continued)
19
Installing the left door
□ Stand the assembled unit upright.
□ Tilt and insert the pivot pin under the left door (I) into the plastic bushing pre-attached on the base (C).
□ Attach the left upper pivot hinge (QQ) to the plastic bushing pre-attached on the center shelf (B) as shown. Make sure
that the pivot hinge mounting plate will face inward.
□ Fit the left door (I) to the inserted pivot hinge (QQ) making sure the mounting holes overlap the pilot holes on the door
panel. Secure the left upper pivot hinge (QQ) to the left door (I) with two short wood screws (EE). Open and close the
door to make sure it is aligned and shut correctly. If necessary, adjust the screws for a good fit.
20
Installing the right door
□ Repeat
t
he same procedure with the right door (J).
QQ QQ
I
QQ
EE
I
B
C
I
PP PP
PP
EE
C
B
J
J
J

15 HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Assembly (continued)

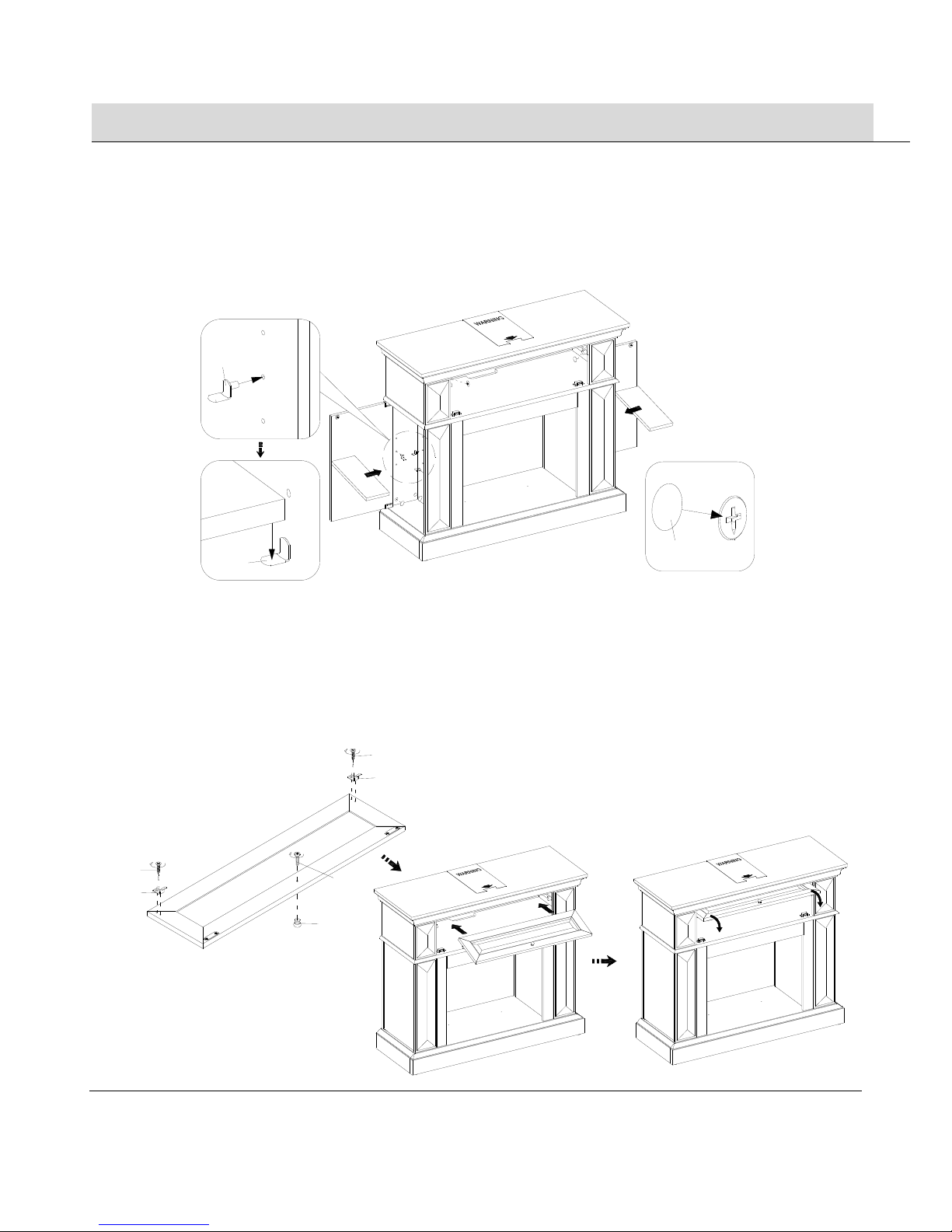

21
Installing the adjustable shelves and cam lock covers
□ Open the doors (I and J) and insert four shelf supports (JJ) into the desired holes inside each side compartment. Make
sure you place the four shelf supports in the same level so the shelf is not tilted. Rest the adjustable shelves (O) onto
the shelf supports (JJ).
□ Plug the cam lock covers (II) onto the visible cam locks to conceal the cams.
22 Installing the barrister door
□ Using the pilot holes as a guide, fasten two hooks (OO) to the upper corners of the barrister door (P) with four short
wood screws (EE).
□ Attach one knob (SS) to the front side of the barrister door (P) with the knob bolt (TT).
□ Hook the barrister door (P) onto the pre-attached plastic slides on the barrister door supports (F and G) and tuck it
underneath the top panel (A) in one smooth motion.
OO
EE
P
TT
SS
OO
EE
P
P
O
O
M
N
N
L
JJ
O
JJ
II

16
Assembly (continued)
23
Installing the fireplace insert
□ Lift the fireplace insert carefully into the back of the assembled mantel and center it in the opening. DO NOT drag the
insert across the bottom panel (C) as it may scratch the unit.
24
Attaching the L-shaped metal braces
□ Using the pilot holes as a guide, align and attach two L-shaped metal braces (HH) to the base (C) by screwing one short
pan head screw (XX) in each.
C
XX
HH
C

17 HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Assembly (continued)
25
Installing the acrylic stopper
□ Remove the paper backing of acrylic stopper (RR), then properly align the acrylic stopper into the cut-out on the acrylic
stopper template on the front of the top panel (A). Press down on the acrylic stopper to help adhesion.
□ At the back of the top panel (A), carefully pull out the thumb tacks to remove the acrylic stopper template.
NOTE: You must install the acrylic TV stopper to prevent TV from tipping when placing your flat panel television on the
top panel.
26
Installing the tipping restraint hardware
WARNING: Young children can be seriously injured by tipping furniture. You must install the tipping restraint hardware with
the unit to prevent the unit from tipping, causing any accidents or damage. The tipping restraints are intended only as a
deterrent, they are not a substitute for proper adult supervision. The tipping restraints are not earthquake restraints. If you wish
to add the extra security of earthquake restraints, they must be purchased and installed separately.
□ With assistance, position the assembled fireplace at the desired location against a wall. In case of uneven floor, floor
levelers are provided at the bottom of the mantel. If necessary, adjust the floor levelers by hand to correct tilting, until
the unit is level.
□ Follow the instructions printed on the plastic bag containing the tipping hardware to attach the tip-over restraint to the
unit and the wall.
□ Connect the fireplace to the power transformer. Follow the operating manual for the electric fireplace insert to control
your fireplace.

18
Care and Maintenance
A Touch-up Pen has been provided to repair any small nicks or scratches that may occur during assembly or shipping.
To clean and care for your furniture:
□ Use a soft, clean cloth that will not scratch the surface when dusting.
□ Use of furniture polishes is not necessary. Should you choose to use polishes, test first in an inconspicuous area.
□ Using solvents of any kind on your furniture may damage the finish.
□ Never use water to clean your furniture as it may cause damage to the finish.
□ Always use coasters under beverage glasses and flowerpots.
□ Liquid spills should be removed immediately. Using a soft clean cloth, blot the spill gently. Avoid rubbing.
□ Always use protective pads under hot dishes and plates. Heat can cause chemical changes that may create spotting
within the furniture finish.
□ Stains or marks from crayons or ink markers will be difficult to remove.
□ In the event that your furniture is stained or otherwise damaged during use, we recommend that you call a professional
to repair your furniture.
□ Check bolts/screws periodically and tighten them if necessary.
CARING FOR WOOD FURNITURE
It is best to keep your furniture in a climate-controlled environment. Extreme temperature and humidity changes can cause
fading, warping, shrinking and splitting of wood. It is advised to keep furniture away from direct sunlight as sun may damage
the finish.
Proper care and cleaning at home will extend the life of your purchase. Following these important and helpful tips will enhance
your furniture as it ages.
CLEANING THE FIREPLACE TRIM
Clean the metal trim using a soft cloth, slightly dampened with citrus oil based product and buff with a clean soft cloth. DO NOT
use brass polish or household cleaners as these products will damage the metal trim. Citrus oil based products can be obtained
at supermarkets or hardware stores.

Questions, problems, missing parts? Before returning to the store,
call Home Decorators Collection Customer Service
8 a.m. - 7 p.m., EST, Monday-Friday
9 a.m. - 6 p.m., EST, Saturday
1-800-986-3460
HOMEDEPOT.COM/HOMEDECORATORS
Retain this manual for future use.
