Home Decorators WSFP54HD-31 User manual

THANK YOU
We appreciate the trust and confidence you have placed in Home Decorators Collection through the purchase of this fireplace console
We strive to continually create quality products designed to enhance your home Visit us online to see our full line of products available
for your home improvement needs Thank you for choosing Home Decorators Collection!
OMSID # 304604077
# 304604076
# 304603998
Model # WSFP54HD-31
# WSFP54ECHD-32
# WSFP54ECHD-33
ASSEMBLY INSTRUCTIONS
Ashmont 54 in Media Console Infrared Electric Fireplace
Questions, problems, missing parts? Before returning to the store,
call Home Decorators Collection Customer Service
8 a m - 7 p m , EST, Monday-Friday
9 a m - 6 p m , EST, Saturday
1-800-986-3460
HOMEDEPOT COM/HOMEDECORATORS
IMPORTANT
Easy step-by-step
interactive 3D instructions
for this product can be found in
Available on most iOS and Andriod devices
INTELLIGENT
INSTRUCTIONS
Your
Logo
Here
SEARCH FOR “BILT INSTRUCTIONS” AND
DOWNLOAD THEFREE APP

2
Table of Contents
Table of Contents 2
Safety Information 2
Warranty 2
Pre-Assembly 2
Planning Assembly 2
Tools required 2
Hardware Included 3
Package Contents 4
Assembly 5
Care and Maintenance 17
Safety Information
Please read and understand these instructions before
assembling and using this console Save these instructions
for future reference

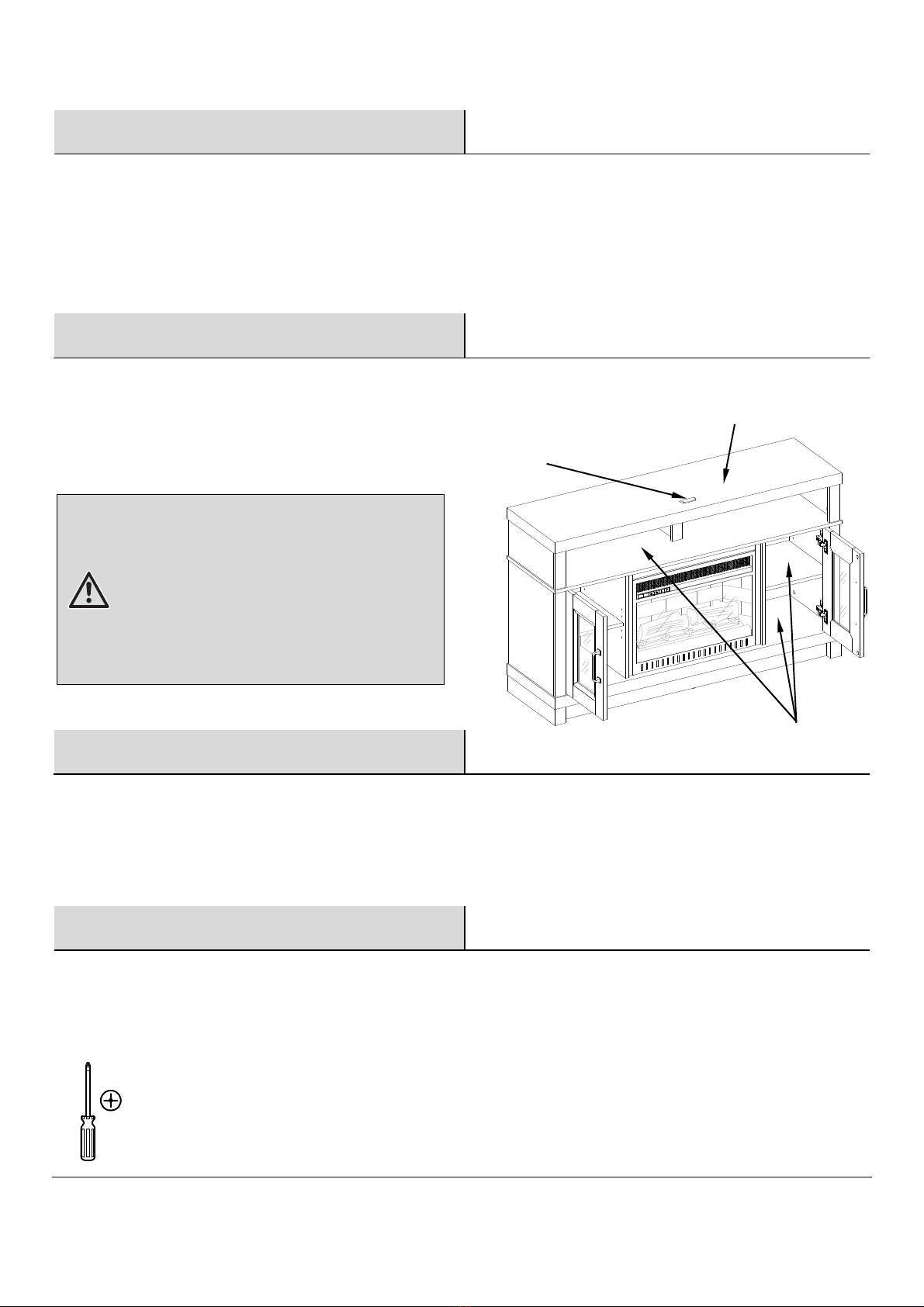

MAXIMUM RECOMMENDED WEIGHT LOADS
WARNING: This unit is not intended for use with CRT TVs Use
only with flat panel TVs and audio/video equipment meeting
recommended size and weight limits Never use with
larger/heavier than recommended flat panel TVs or
equipment To avoid instability, place flat panel TV in the
center of the unit; the base of the television must be able
to rest on the supporting surface of the unit without
over-hanging the edges Improperly positioned flat panel
TVs, or flat panel TVs or other equipment that exceeds
recommended size and weight limits could fall off or break
the unit, causing possible serious injury
Warranty
We are confident that you will be delighted with this purchase Should this product be defective in workmanship or materials, or
fail under normal use, we will repair or replace it for a period of up to one (1) year from date of purchase
This warranty gives you specific rights and you may also have other rights which vary from state to state
Contact the Customer Service Team at 1-800-986-3460 or visit www HomeDepot com/homedecorators
Pre-Assembly
PLANNING ASSEMBLY
Compare all parts with the Hardware Included and Package Contents list If any part appears missing or damaged, do not assemble
this product and contact the Customer Service Team at 1-800-986-3460
TOOLS REQUIRED
Maximum load 22 7 kg / 50 lb
Fits up to most 165 1 cm / 65 in flat panel TVs
Maximum load 61 3 kg / 135 lb
Place TV behind the stopper
Phillips
screwdriver
(not provided)

3 HOMEDEPOT COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance
Pre-Assembly (continued)
HARDWARE INCLUDED
NOTE: Hardware not shown to actual size
Part
Description
Quantity
Part
Description
Quantity
AA
Small w
ood dowel
39
+
1
extra
LL
Straight metal plate
2
BB Cam lock 41 + 2 extra MM Bumper 4 + 1 extra
CC Cam bolt 41 + 2 extra NN Shelf pin 8 + 1 extra
DD Short wood screw 4 + 1 extra OO Cam lock cover 30 + 1 extra
EE
Washer head
screw
44
+
2
extra
PP
Acrylic stopper
1
FF Tipping restraint hardware kit 2 QQ Large wood dowel 4 + 1 extra
GG Long wood screw 10 + 1 extra RR Glue 1
HH
Corner
c
onnector
4
SS Touch-up pen
(Not included for WSFP54ECHD-33) 1
II
L
-
shaped metal brace
2
JJ Handle 2
KK Handle bolt 4
JJ
AA BB CC DD EE FF GG HH
II
QQ
KK LL MM NN OO PP
RR
SS

4
Pre-Assembly (continued)

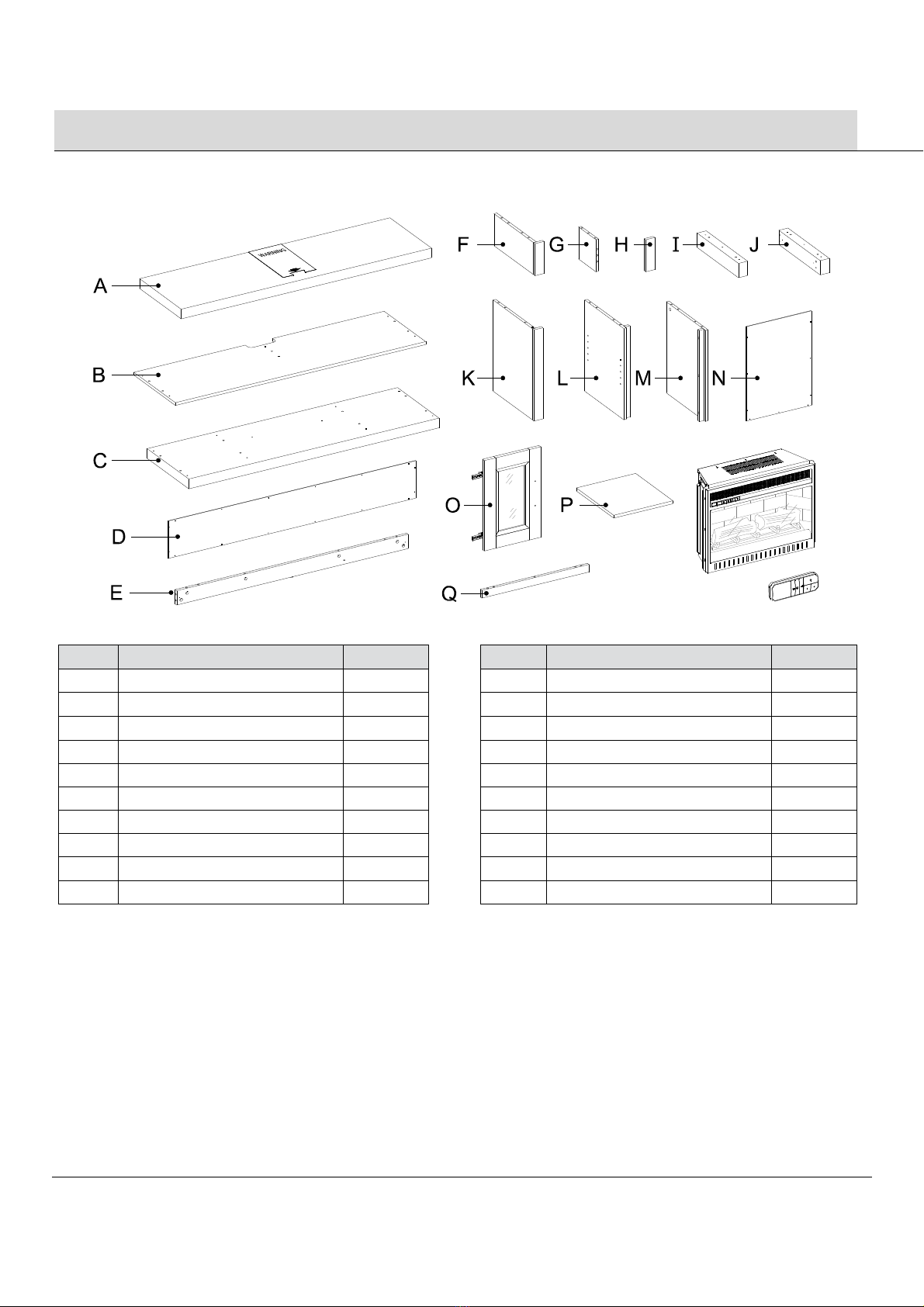

PACKAGE CONTENTS
Part Description Quantity Part Description Quantity
A Top panel 1 K Lower side panel 2
B Fixed shelf 1 L Left lower partition panel 1
C Bottom panel 1 M Right lower partition panel 1
D
Upper back panel
1
N
Lower back panel
2
E Bottom long support 2 O Door 2
F Upper side panel 2 P Adjustable shelf 2
G
Upper partition panel
1
Q
Middle cross bar
1
H
Upper partition molding
1
Fireplace insert
1
I Left bottom support 1 Remote control with battery 1
J Right bottom support 1

5 HOMEDEPOT COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance
Assembly
1
Screwing the cam bolts
□Unpack the unit and confirm that you have all the hardware and required parts Assemble the unit on a carpeted floor
or the empty carton to avoid any scratches
□Securely screw the cam bolts (CC) into the designated small holes on the top panel (A) and upper partition molding
(H) Fully tighten with a Phillips screwdriver
2
Attaching the upper partition molding
□Attach the upper partition molding (H) to the upper partition panel (G) with one small wood dowel (AA) and two cam
locks (BB)
GLUE
XX
FINAL
1 2 43

6
Assembly (continued)
3
Screwing the cam bolts
□
Securely screw the cam bolts (CC) into the designated
small holes
on the
fixed shelf
(B)
at both sides
Fully tighten
with a Phillips screwdriver
4
Attaching the middle crossbar
□Attach the middle crossbar (Q) to the fixed shelf (B) using two small wood dowels (AA) and three cam locks (BB)

7 HOMEDEPOT COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance
Assembly (continued)
5
Attaching the upper side panels and the middle partition panel
□
Glue
the
small wood dowels (AA)
into the in
ner holes of the
upper side panels (F) and the
upper
partition panel (G)
and attach them to the top panel (A) by engaging five cam locks (BB)
6
Installing the fixed shelf
□
Glue
five
small wood dowels (AA)
into the
inner holes on
the
vertical
panels
(
F
and
G
) Position the
fixed shelf
(
B
)
onto
the inserted small wood dowels (AA) and fasten it in place with six cam locks (BB)

8
Assembly (continued)
7
Attaching the lower side panels and the lower partition panels
□
Align and attach
the
lowe
r
side panels
(
K
)
and
partition panel
s
(
L and M
) to the
fixed shelf
(
B
)
using two
small wood
dowels (AA) and two cam locks (BB) in each
8
Screwing the cam bolts
□
Securely screw the cam bolts (CC) into the designated
small holes
on
the
botto
m
panel
(
C
)
at both sides
Fully tighten
with a Phillips screwdriver
□Securely screw the cam bolts (CC) into the designated small holes on bottom side supports (I and J)

9 HOMEDEPOT COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance
Assembly (continued)
9
Installing the bottom panel
□ Glue eight small wood dowels (AA) into the inner holes on the vertical panels (K, L and M) Position the bottom panel
(C) onto the inserted small wood dowels (AA) and fasten it in place with four cam locks (BB)
10
Fasten the bottom panel
□ Fasten the bottom panel (C) to the lower partition panels (L and M) using four Long wood screws (GG)

10
Assembly (continued)
11

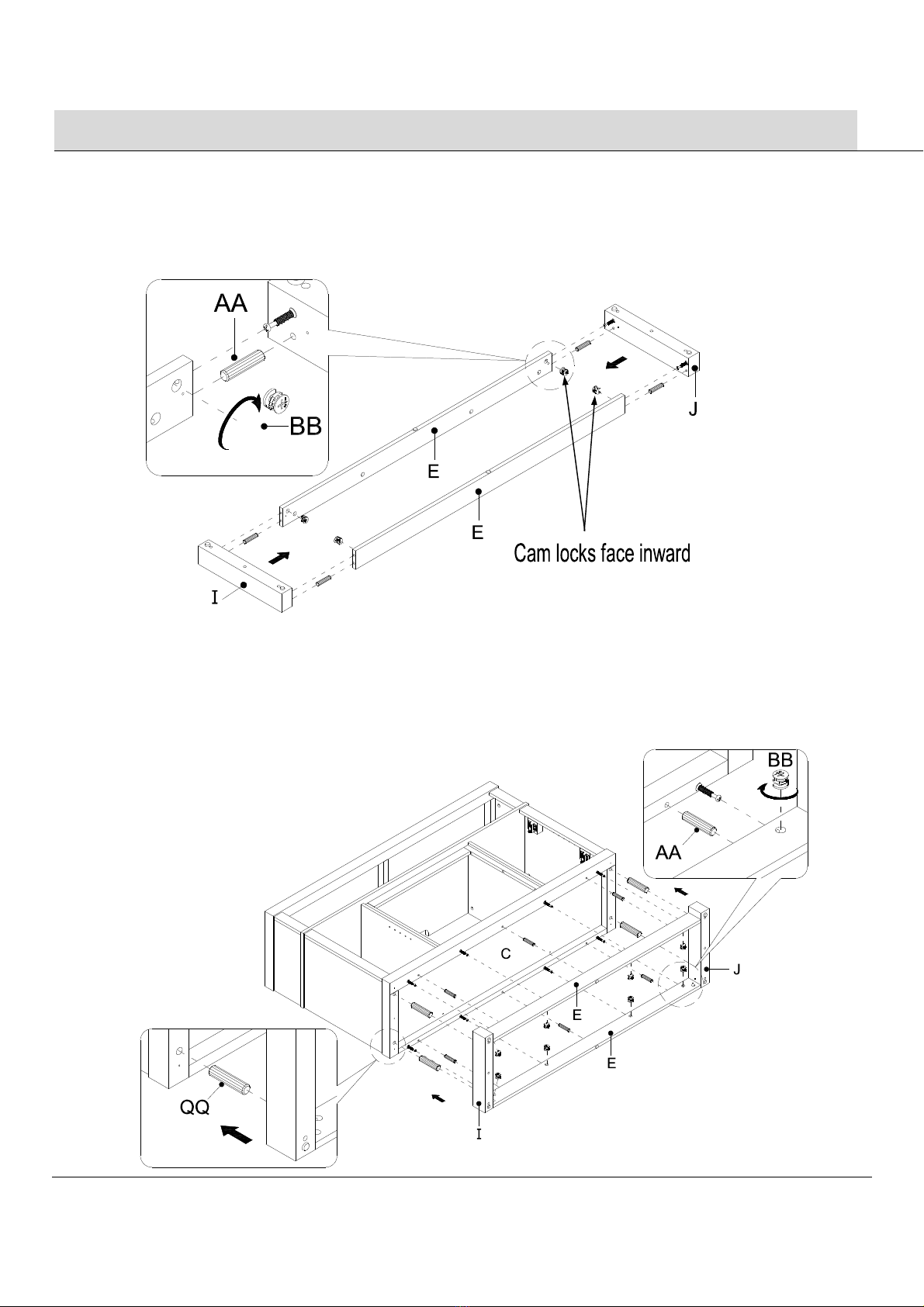

Combining the bottom supports
□
Glue
two
small wood dowels (AA)
to each bottom long support
(E)
at both ends
□ Combine the long supports (E) between the bottom side supports (I and J) with four cam locks
12
Attaching the assembled base
□ Glue six small wood dowels (AA) and four large wood dowels (QQ) into the inner holes on bottom panel (C)
□ Position the assembled base (E, I and J) onto the inserted wood dowels (AA and QQ) and fasten it in place with eight
cam locks (BB)

11 HOMEDEPOT COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance
Assembly (continued)
13
Fastening the bottom side supports
□ Fasten the bottom side supports (I and J) to the bottom panel (C) using six long wood screws (GG)
14
Attaching the corner connectors
□ With the pilot holes as a guide, fasten the bottom supports (E, I and J) in place by attaching four corner connectors
(HH) at the joints, using two washer head screws (EE) per connector

12
Assembly (continued)
15
Attaching the metal plate
□
Flip around the previous assembly at its front edge
□ Fasten the middle crossbar (Q) to the stiles of the lower partition panels (L and M) by attaching two brackets (LL) at the
joints, using two short wood screws (DD) in each
16
Attaching the back panels
□ Pick up the upper back panel (D) and align the drilled holes against the upper long edge with the pilot holes on the
back stretcher of the top panel (A) Attach the upper back panel (D) in place using the provided washer head screws
(EE)
□ Align and attach two lower back panels (N) to the lower panels (K, L and M) with the provided washer head screws
(EE), using the pilot holes as a guide

13 HOMEDEPOT COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance
Assembly (continued)
17

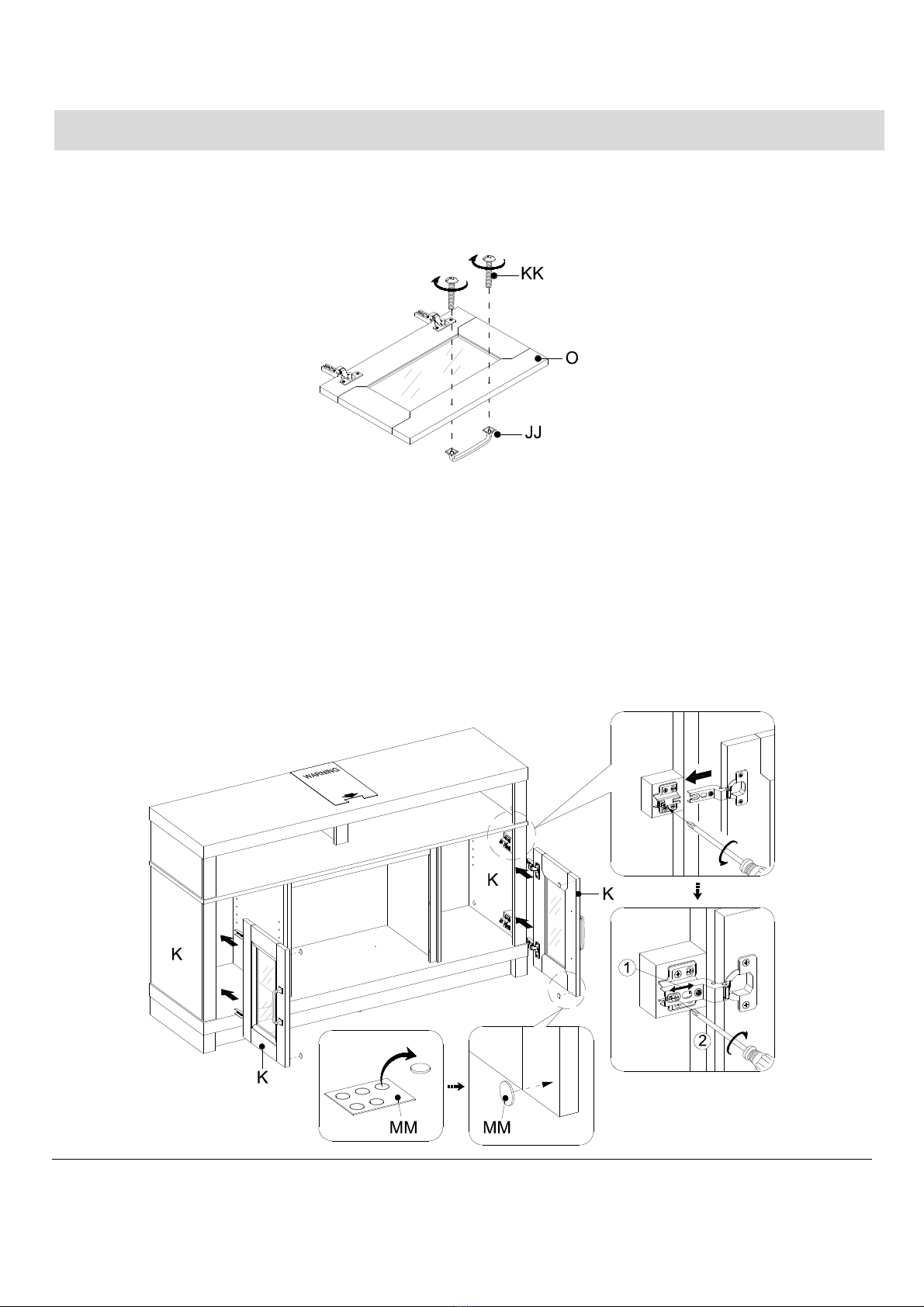

Installing the handle
□ Attach one handle (JJ) to the front side of each door (O) with two provided handle bolts (KK)
18
Attaching the doors and bumpers
□ Stand the assembled unit upright
□ Pick up one door (O) and attach the extended hinge arms to the mounting plates installed on one lower side panel (K)
Loosen the bolt on the back of mounting plates for a comfortable fit Align and insert the “U” slot on hinge arm under the
bolt head on the mounting plate Make sure that both door hinges engage and function properly Tighten the bolts on the
mounting plates to lock the hinges in place
□ Repeat the same procedure to install the other door (O) to the other lower side panel (K)
□ Open and close the doors to make sure they are aligned and shut correctly If necessary, adjust the screws for a good fit
(see the door hinge stickers on the door)
□ Stick the bumper (MM) onto the front corners of the doors (O) where they come in with the lower partition panels (L and
M)

14
Assembly (continued)
19

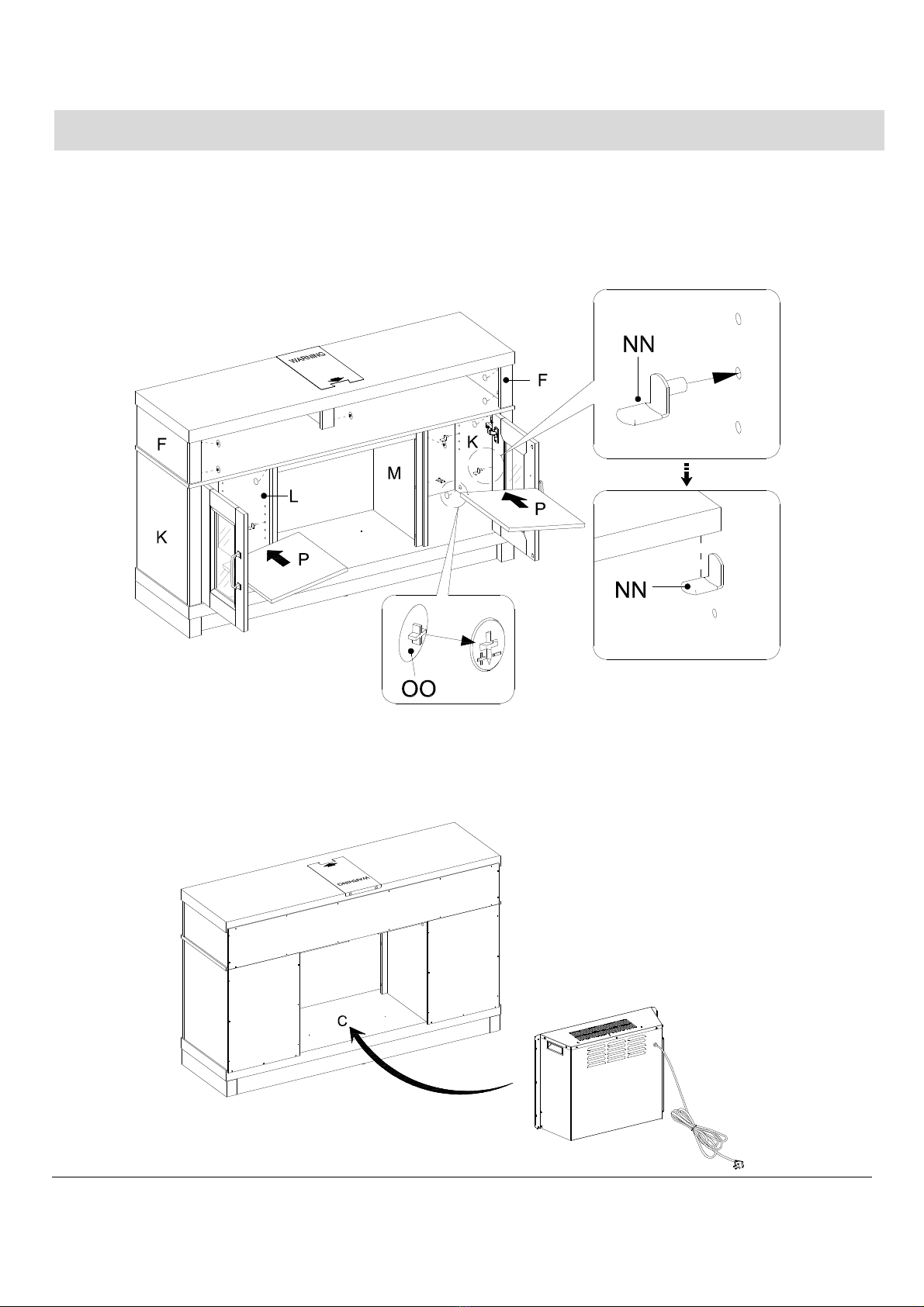

Installing the adjustable shelves
□ Insert four shelf pins (NN) into the desired holes inside each side compartment Tilt and rest the adjustable shelves (P)
onto the shelf pins (NN)
□ Plug the cam lock covers (OO) onto the visible cam locks to conceal the cams
20
Installing the fireplace insert
□ Lift the fireplace insert carefully into the back of the assembled mantel and center it in the opening DO NOT drag the
insert across the bottom panel (C) as it may scratch the unit

15 HOMEDEPOT COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance
Assembly (continued)
2
1

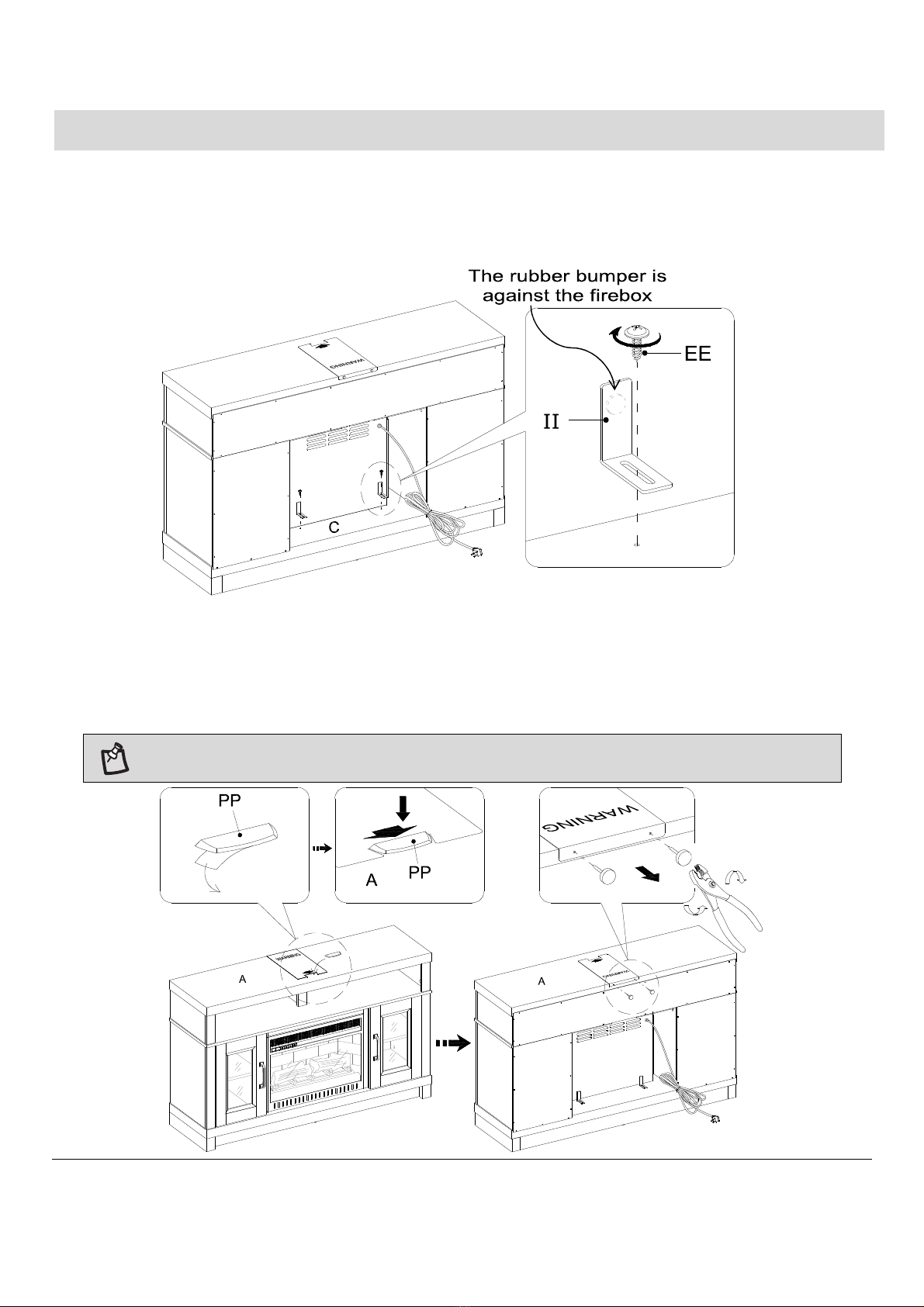

Attaching the L-shaped metal braces
□ Using the pilot holes as a guide, align and attach two L-shaped metal braces (II) to the bottom panel (C) by screwing one
washer head screw (EE) in each
2
2
Installing the acrylic stopper
□ Remove the paper baking form the acrylic stopper (PP), then properly align the acrylic stopper into the cut-out on the
acrylic stopper template on the fornt of the top panel (A) Press down on the acrylic stipper to help adhesion
□ At the back of the top panel (A), carefully grip the head of plastic tack with pliers and, with a gentle twisting motion, pull
the tack loose out to remove the acrylic stopper template
NOTE: You must install the acrylic stopper to prevent the TV from tipping when placing your flat panel television on the top panel.
C

16
Assembly (continued)
23
Installing the tipping restraint hardware
WARNING: Young children can be seriously injured by tipping furniture You must install the tipping restraint hardware with the unit
to
prevent the unit from tipping, causing any accide
nts or damage The tipping restraints are intended only as a deterrent, they are not a
substitute for proper adult supervision
The tipping restraints are not earthquake restraints If you wish to add the extra security of
earthquake restraints, they must be purchased and installed separately
□ With assistance, position the assembled fireplace at the desired location against a wall In case of uneven floor, floor levelers
are provided at the bottom of the mantel If necessary, adjust the floor levelers by hand to correct tilting and/or level the
doors, until the unit is level
□ Follow the instructions printed on the plastic bag containing the tipping hardware to attach the tip-over restraint to the unit
and the wall
□ Connect the fireplace to the power transformer Follow the operating manual for the electric fireplace insert to control your
fireplace

17 HOMEDEPOT COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance
Care and Maintenance
A touch-up pen (not included for white finish) has been provided to minimize the small nicks or scratches that may occur
during assembly or shipping
To clean and care for your furniture:
□ Use a soft, clean cloth that will not scratch the surface when dusting
□ Use of furniture polishes is not necessary Should you choose to use polishes, test first in an inconspicuous area
□ Using solvents of any kind on your furniture may damage the finish
□ Never use water to clean your furniture as it may cause damage to the finish
□ Always use coasters under beverage glasses and flowerpots
□ Liquid spills should be removed immediately Using a soft clean cloth, blot the spill gently Avoid rubbing
□ Always use protective pads under hot dishes and plates Heat can cause chemical changes that may create spotting within
the furniture finish
□ In the event that your furniture is stained or otherwise damaged during use, we recommend that you call a professional
to repair your furniture
□ Check bolts/screws periodically and tighten them if necessary
CARING FOR WOOD FURNITURE
It is best to keep your furniture in a climate-controlled environment Extreme temperature and humidity changes can cause fading,
warping, shrinking and splitting of wood It is advised to keep furniture away from direct sunlight as sun may damage the finish
Proper care and cleaning at home will extend the life of your purchase Following these important and helpful tips will enhance
your furniture as it ages
CLEANING THE FIREPLACE TRIM
Clean the metal trim using a soft cloth, slightly dampened with citrus oil based product and buff with a clean soft cloth DO NOT
use brass polish or household cleaners as these products will damage the metal trim Citrus oil based products can be obtained
at supermarkets or hardware stores

Questions, problems, missing parts? Before returning to the store,
call Home Decorators Collection Customer Service
8 a m - 7 p m , EST, Monday-Friday
9 a m - 6 p m , EST, Saturday
1-800-986-3460
HOMEDEPOT COM/HOMEDECORATORS
Retain this manual for future use
