HOME RETAIL GROUP Winchester 656/7035 User manual

Dimensions
Width - 126.3cm
Depth - 52cm
Height - 184.5cm
Issue 1 - 10/03/10
Important – Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline: 0870 160 1490
Winchester - 3 Door 4 Drawer Wardrobe
Assembly Instructions - Please keep for future reference
656/6988
656/7035

Safety and Care Advice
Important – Please read these instructions fully before starting assembly
• Check you have all the
components and tools listed on
pages 2, 3 and 4.
• Remove all ttings from the
plastic bags and separate them
into their groups.
• Keep children and animals
away from the work area, small
parts could choke if swallowed.
• Make sure you have enough
space to layout the parts before
starting.
• Do not stand or put weight on
the product, this could cause
damage.
• Assemble the item as close
to its nal position (in the same
room) as possible.
• Assemble on a soft level
surface to avoid damaging the
unit or your oor.
• Parts of the assembly will be
easier with 2 people.
• We do not
recommend the
use of power
drill/drivers for
inserting screws,
as this could damage the unit.
Only use hand screwdrivers.
• Dispose of all packaging
carefully and responsibly.
• When handling mirror care
must be taken to ensure it is not
knocked or damaged.
• Only clean using a damp cloth
and mild detergent, do no use
bleach or abrasive cleaners.
• From time to time check that
there are no loose screws on
this unit.
• This product should not be
discarded with household waste.
Take to your local authority
waste disposal centre.
Care and maintenance
1

Large drawer front x 2
(71.3 x 19cm)
Bottom panel x 1
(112.3 x 48.6cm)

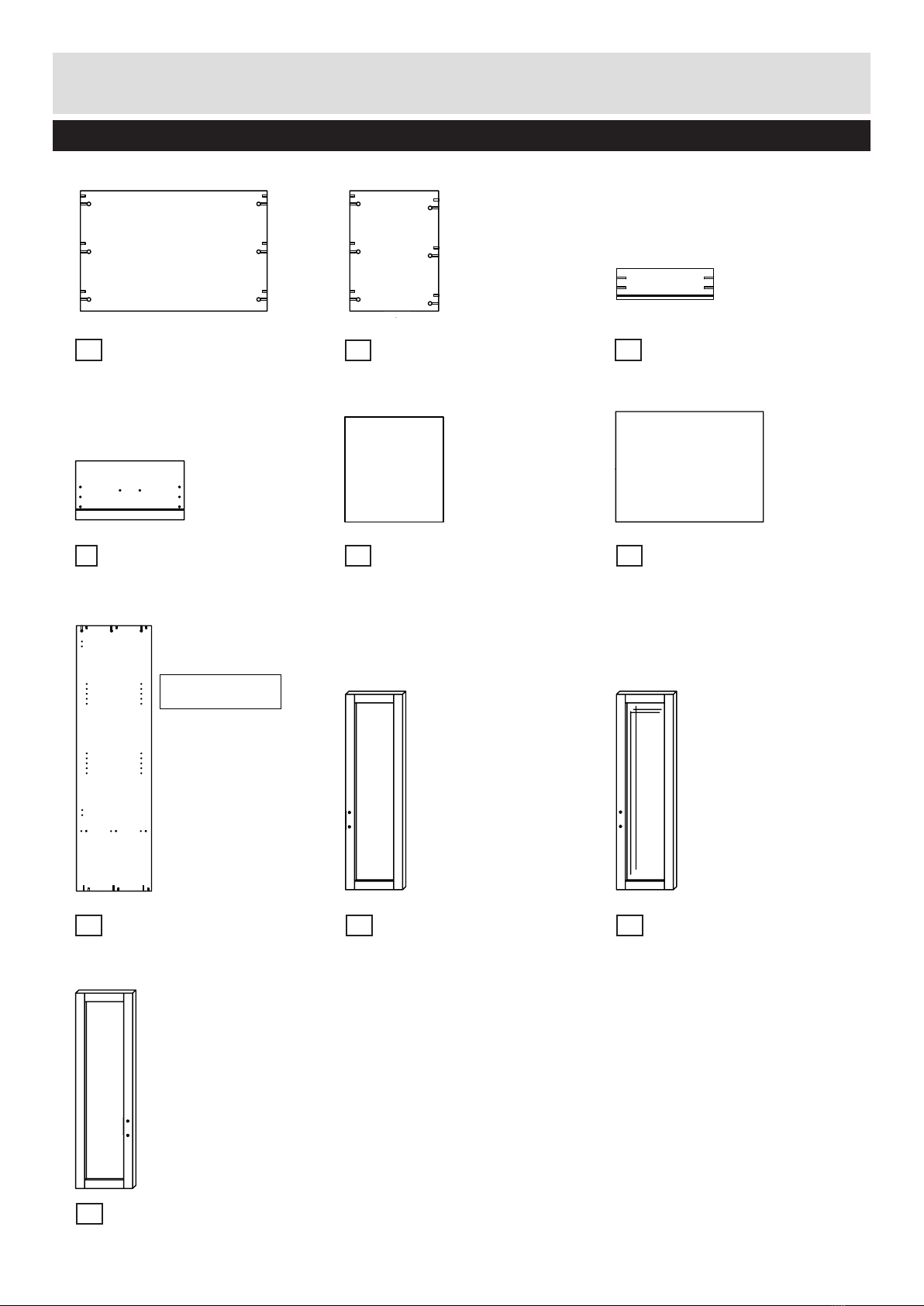

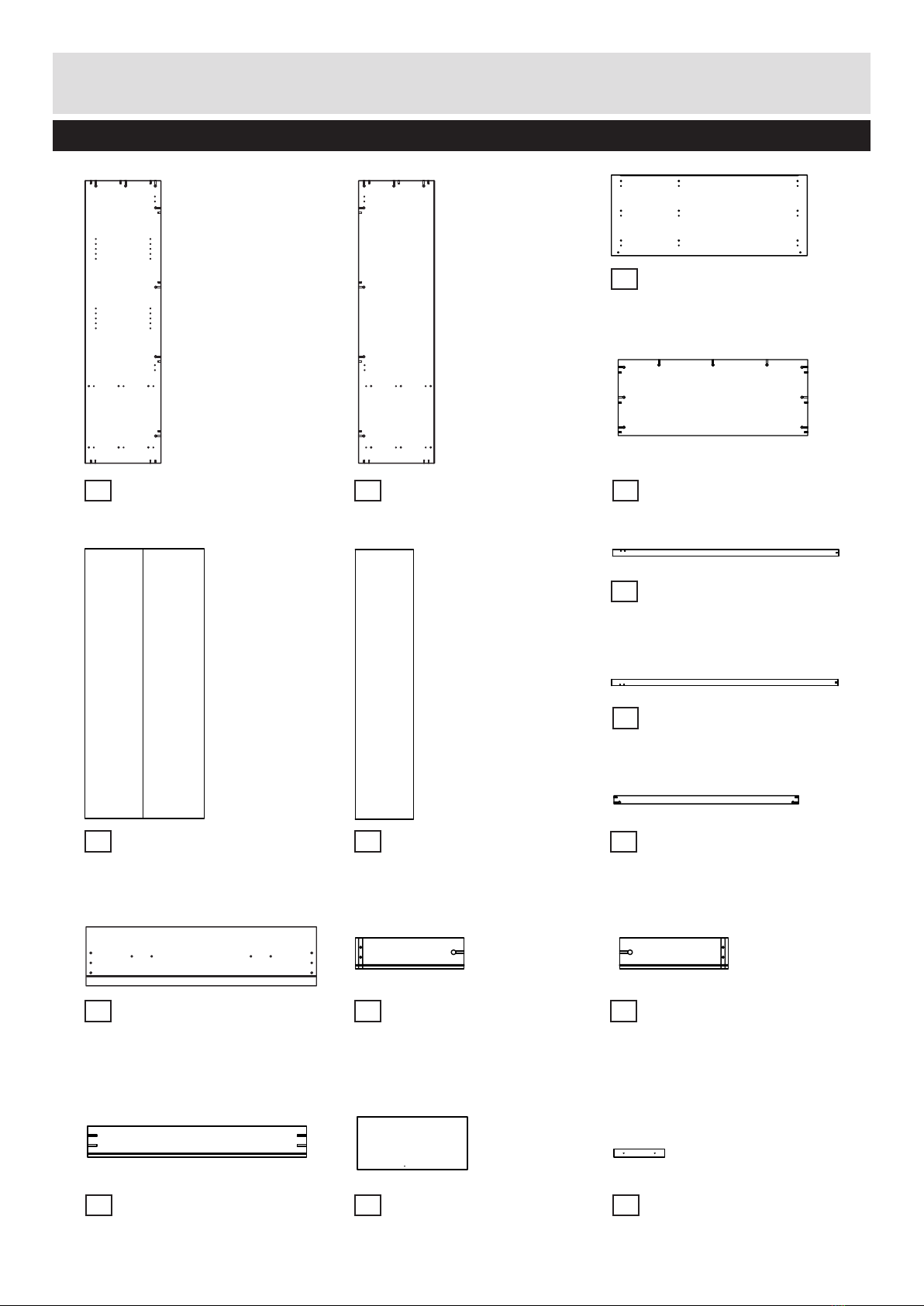

Components - Panels
Please check you have all the panels listed below
2
Top panel x 1 (126.3 x 52cm)
3
Left side panel x 1
(49.5 x 182.2cm)
2
Right side panel x 1
(49.5 x 182.2cm)
1
Back panel x 1
(76.8 x 174.1cm)
5
10
Back panel x 1
(37.5 x 174.1cm)
6
Right hinge frame x 1
(5.3 x 182.2cm)
7
4
Right drawer side x 4
(35 x 10cm)
11 Left drawer side x 4
(35 x 10cm)
12
Left hinge frame x 1
(5.3 x 182.2cm)
8
Large drawer back x 2
(70.6 x 10cm)
13
Bottom plinth x 1
(105.4 x 5.3cm)
9
Handle x 9 (10.5 x 1.9cm)
15
Large drawer base x 2
(71 x 33.9cm)
14
If you have damaged or missing components,
call the Customer Helpline: 0870 160 1490

Vertical partition wall x 1
(48.4 x 171.3 cm)
Components - Panels
Please check you have all the panels listed below
Small horizontal partition
shelf x 1 (35.7 x 48.4cm)
17
22
Small drawer back x 2
(31.3 x 10cm)
18
Small drawer front x 2
(37 x 19cm)
19
Large horizontal partition
shelf x 1 (75 x 48.4cm)
16
Right door x 1 (37 x 132cm)
23 Middle mirror door x 1
(37 x 132cm)
24
Small drawer base x 2
(31.7 x 33.9cm)
20
Left door x 1 (37 x 132cm)
25
Shelf x 2 (35.6 x 47.6cm)
21
Right side
3

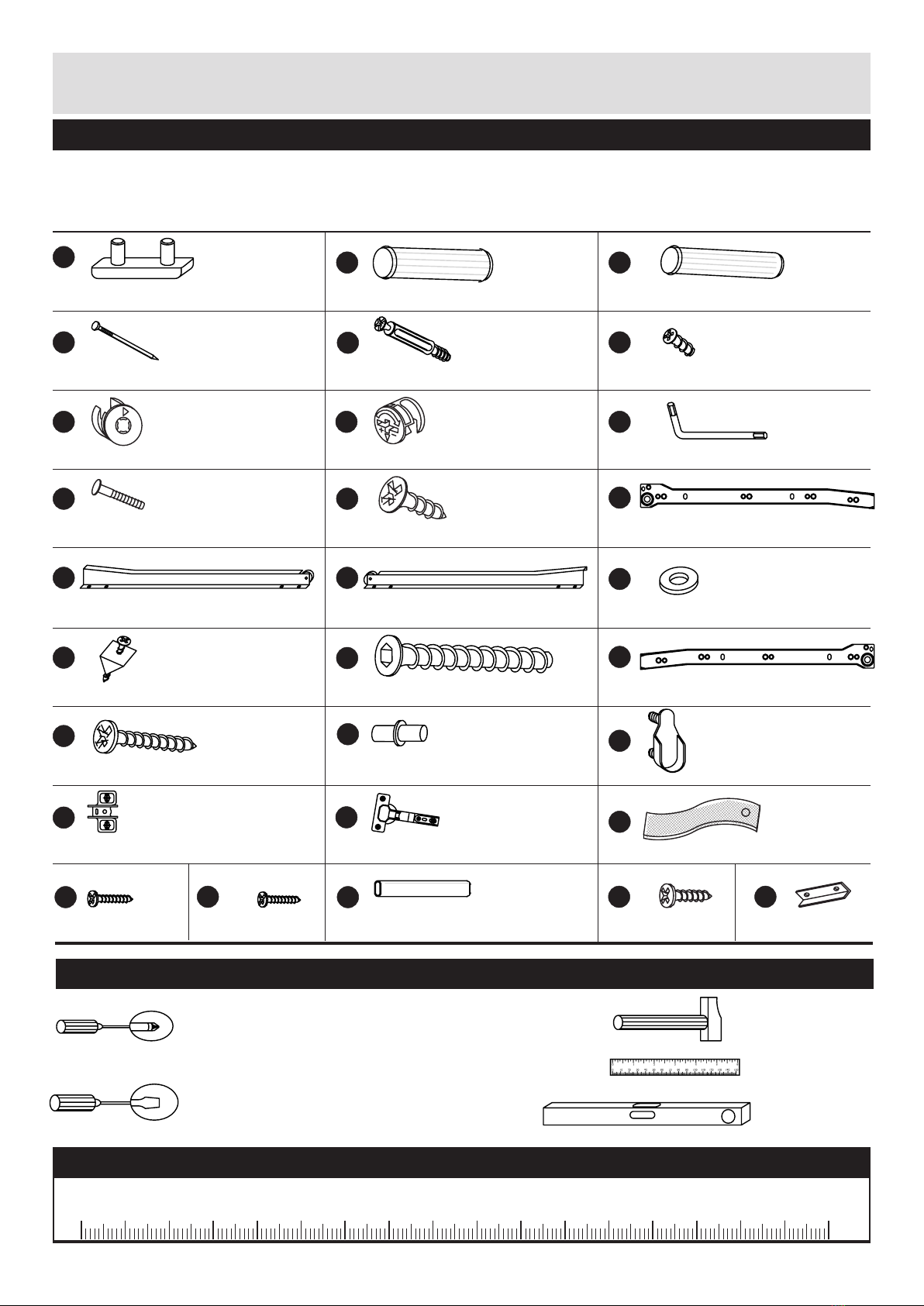

Please check you have all the ttings listed below
Feet x 4
Tools required
A
Screw x 48
E
8/30mm Wooden dowel x 48
B
Small locking nut x 8
H
6/30mm Wooden dowel x 16
C
Key x1
R
L
I
Drawer base support x 4
Q
Note: The quantities below are the correct amount to complete the assembly. In some cases more ttings
may be supplied than are required.
Ruler - Use this ruler to help correctly identify the screws
100 20 30 40 50 60 70 80 90 100
0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100 110 115 120 125 130 135 140 145 150 155 160 165 170
105
Hanger rail support x 2
Hanger rail x 1 14mm Screw x 2 Door stop x 1
V
9mm Screw x 16
F
Door hinge x 6 Wall strap x 1
Hinge plates x 6
13mm Screw x 1 12mm Screw x 8
W
Nail x 50
D
20mm Screw x 16
K
Underlay x 2
O
Runner left B x 4
M
P
Runner right B x 4
N
Shelf support x 8
U
X
Z ZZ
Y Z
Runner left A x 4
L
Large locking nut x 40
G
Plastic dowel x 16
J
50mm Screw x 3
R
Runner right A x 4
S
35mm Screw x 18
T
Components - Fittings
Phillips screwdriver
(medium & large)
Flatblade screwdriver
(medium)
Hammer
Spirit level
2 34
Ruler/tape
measure
4

Attaching runners
a: Position runners T
15mm in from front edge
of the left side panel 1.
Slide top of the runners
back.
Fix through holes shown
using screws C.
Assembly Instructions

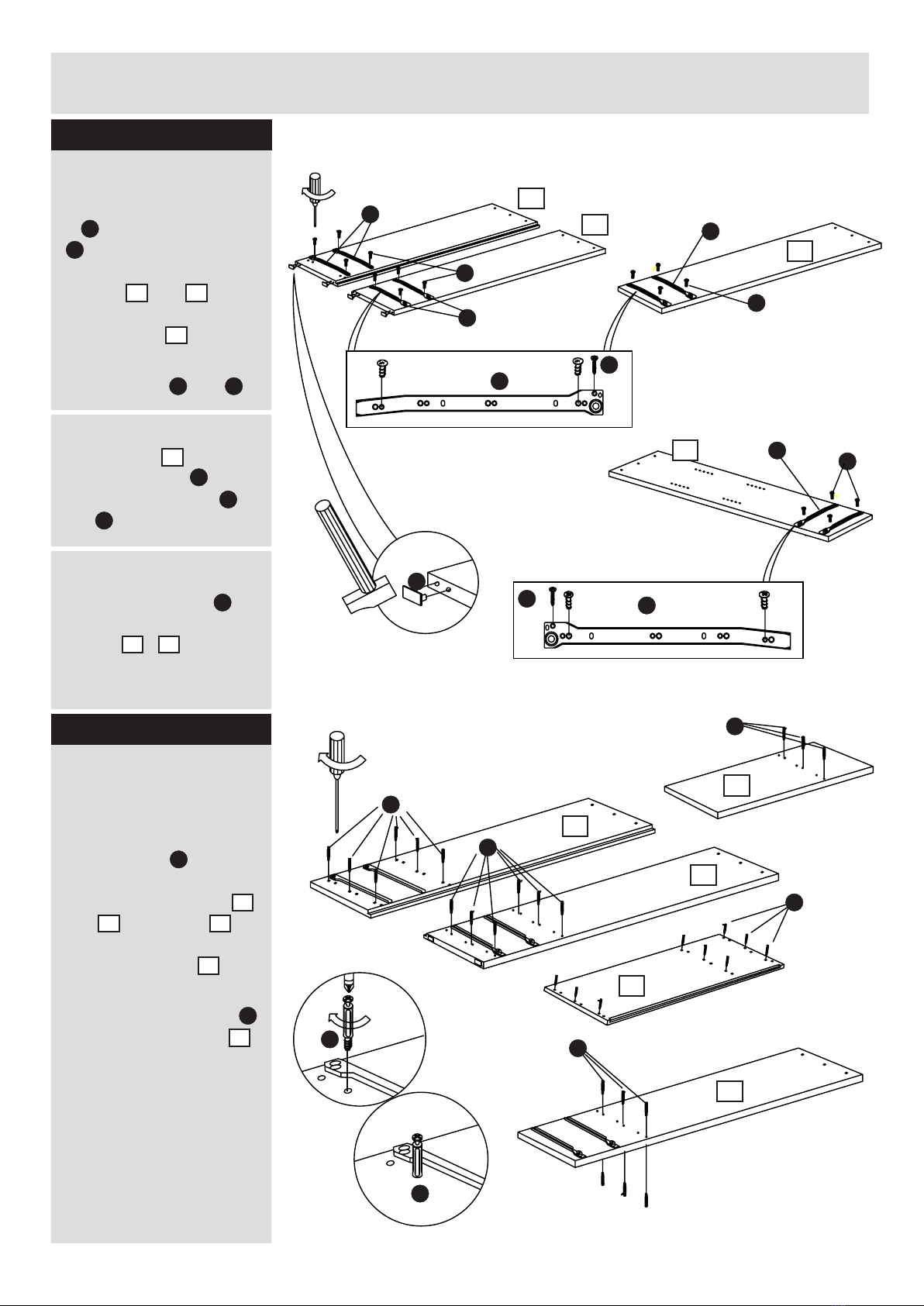

Step 1
Attaching runners
a: Position left runner
A Land right runner A
Ron to the drilled holes
of the left and right side
panels 1and 2and
the left side of vertical
partition wall 22 .
Fix through holes shown
using screws Fand Z4.
4
a:
c:
E
E
B
E
E
E
1
2
3
22
R
R
F
L
22
1
2
A
E
Left side
LF
b: Right side
R
b: Turn over the vertical
partition wall 22 and
attach runners A Las
shown using screws F
and Z4.
c: Attaching feet
Position plastic feet A
to the left and right side
panels 1, 2from
below and x them using
the hammer.
F
22
5
L
Z4
Z4
Preparation for the
attaching of horizontal
partition shelf and
bottom panel
Insert screws Einto the
drilled holes of the left
and right side panels 1
and 2, top panel 3
and vertical partition wall
(from both sides) 22 and
x them.
Insert wooden dowels B
into the bottom panel 4
as shown on the picture.

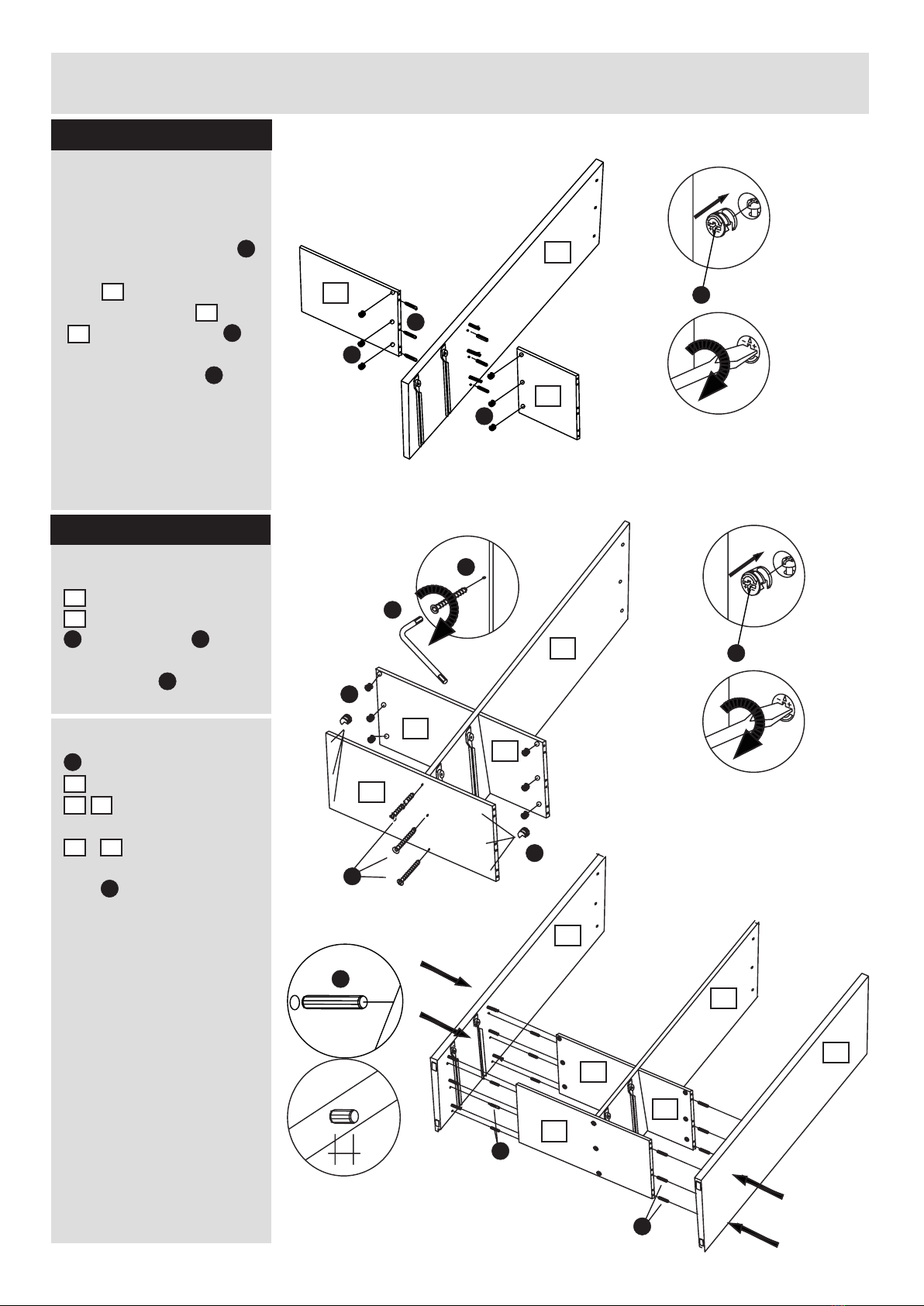

Step 2

Attaching runners
a: Position runners T
15mm in from front edge
of the left side panel 1.
Slide top of the runners
back.
Fix through holes shown
using screws C.
Assembly Instructions
Attaching horizontal
partition shelves to the
vertical partition wall
Insert wooden dowels B
into the vertical partition
wall 22 , place horizontal
partition shelves 16 ,
17 on to the screws E,
align correctly and insert
large locking nuts Ginto
the drilled holes and turn
them clockwise to lock.
Step 3
16
22
17
B
G
G

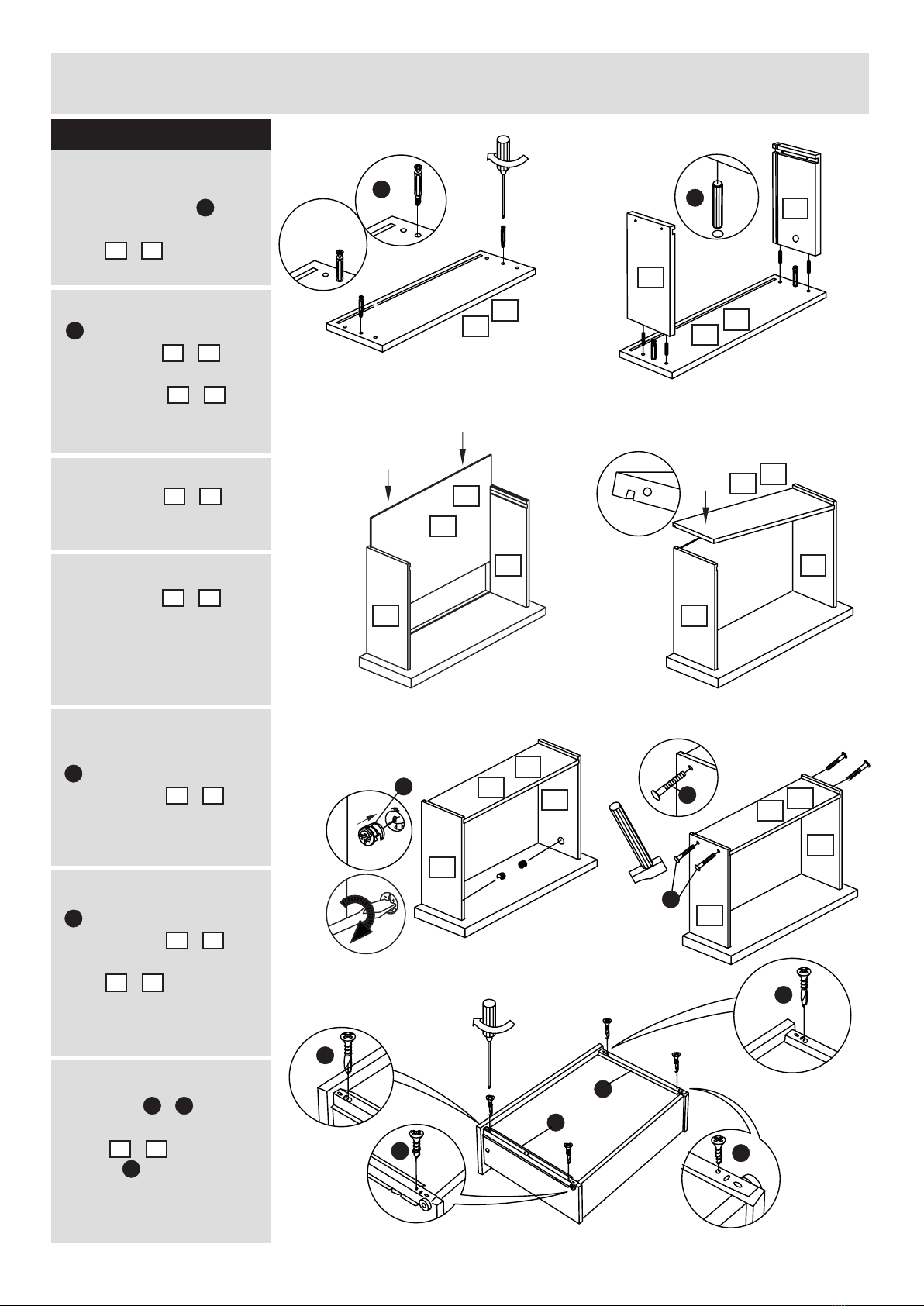

Step 4
a: Place bottom panel
4to the partition wall
22 and screw the screws
Qusing the key I. Align
correctly and insert large
locking nuts G.
b: Insert wooden dowels
Binto the bottom panel
4and partition shelves
16 17 and place left
and right side panels
1, 2. Align correctly
and insert large locking
nuts Gand turn them
clockwise to lock.
a:
b:
6
B
11 mm
Q
I
G
G
16
2
1
22
16
17
4
17
B
B
22
4
Q
G
G

Attaching runners
a: Position runners T
15mm in from front edge
of the left side panel 1.
Slide top of the runners
back.
Fix through holes shown
using screws C.
Assembly Instructions

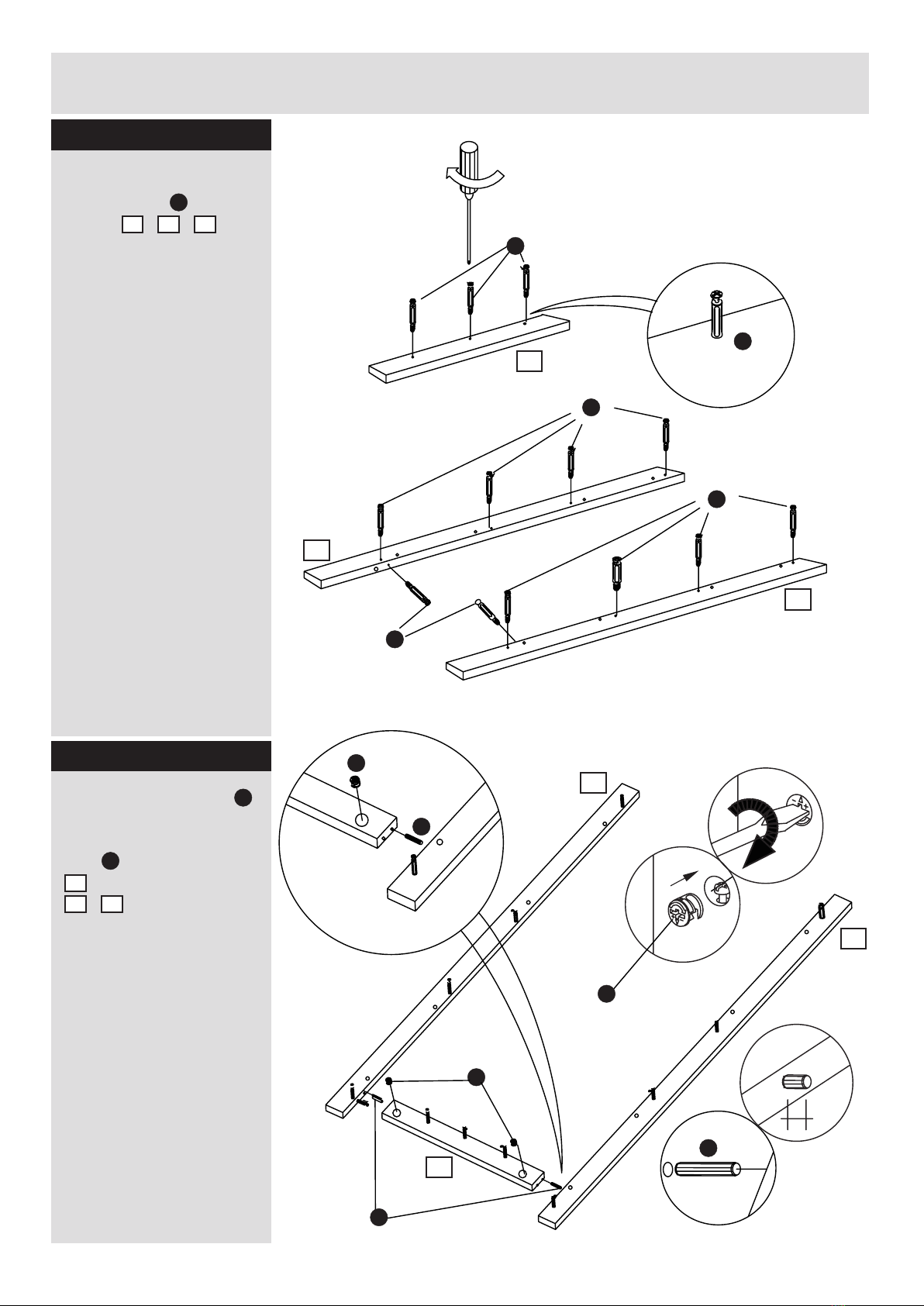

Frame assembly
Insert screws Ein to the
frames 7, 8, 9.
Insert wooden dowels B
as shown, align correctly
and insert large locking
nuts Gin to the frame
9, place the frames
7, 8and turn them
clockwise to lock.
Step 6
7
9
8
E
E
7
8
E
Step 5
9
E
E
G
G
B
B
G
B11 mm
7

Attaching runners
a: Position runners T
15mm in from front edge
of the left side panel 1.
Slide top of the runners
back.
Fix through holes shown
using screws C.
Assembly Instructions
Step 7
Step 8
Step 9

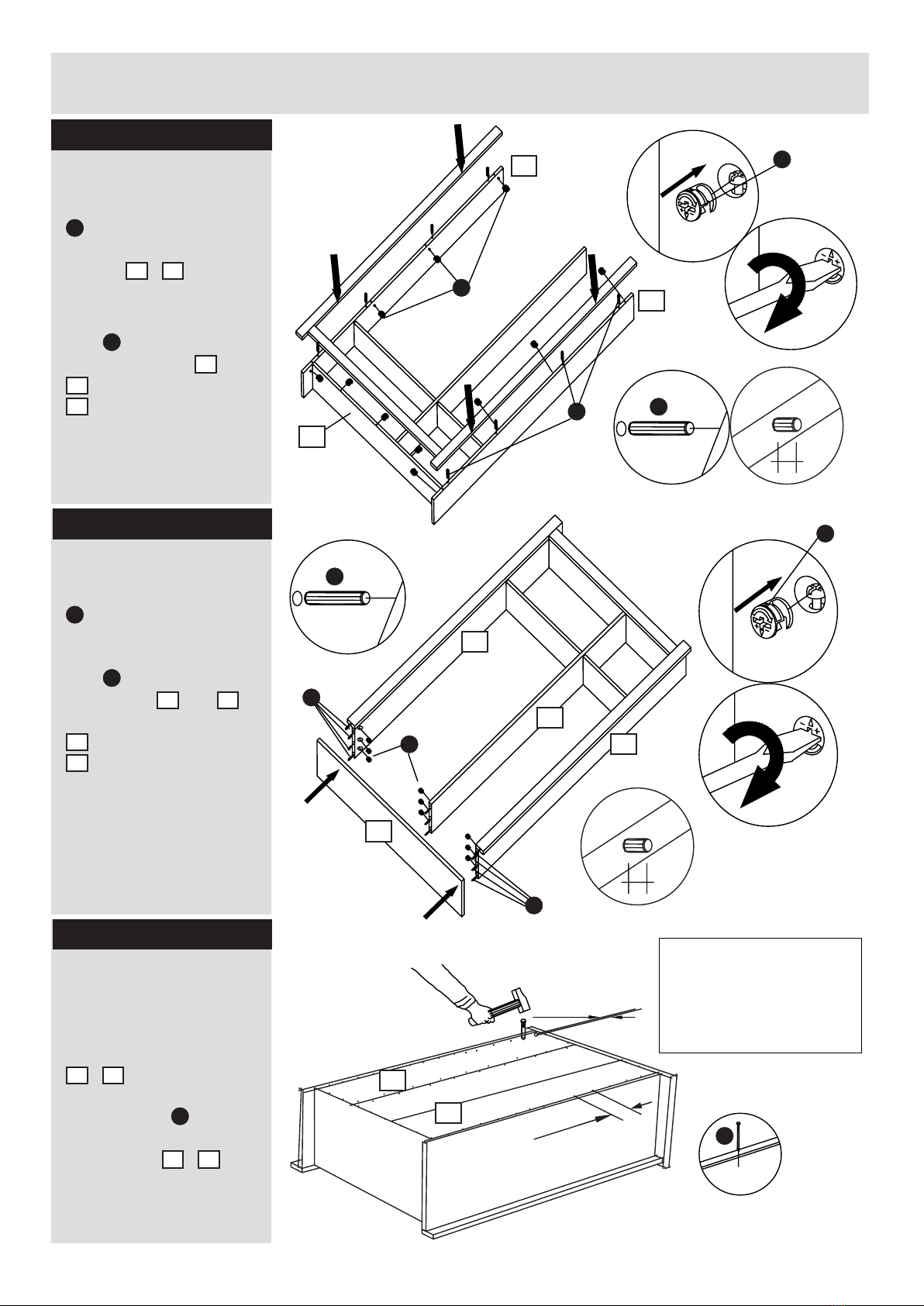

Attaching top panel
Insert wooden dowels
Binto the top edges as
shown, align correctly
and insert large locking
nuts Ginto left and right
side panels 1and 2
and vertical partition wall
22 , place the top panel
3and turn locking nuts
clockwise to lock.
Attaching back panels
With help, carefully lay
wardrobe down.
Position back panels
5, 6in position on
the back of wardrobe.
Position nails D5 mm
in from side edge of the
back panels 5, 6
with distance 100 mm
between each other. Fix
them using the hammer.
2
D
5 mm
100 mm
6
8
5
1
G
G
B
1
3
2
G
22
G
4
Note: You must
ensure the wardrobe
is square before
attaching the back
panels.
B
11 mm
B
11 mm
Attaching the frame
Insert wooden dowels
Binto the edge of
the left and right side
panels 1, 2.
Align correctly and
insert large locking
nuts Ginto left and
right side panels 1,
2and bottom panel
4, place the frame
and turn locking nuts
clockwise to lock.
B
B

Attaching runners
a: Position runners T
15mm in from front edge
of the left side panel 1.
Slide top of the runners
back.
Fix through holes shown
using screws C.
Assembly Instructions
Step 10

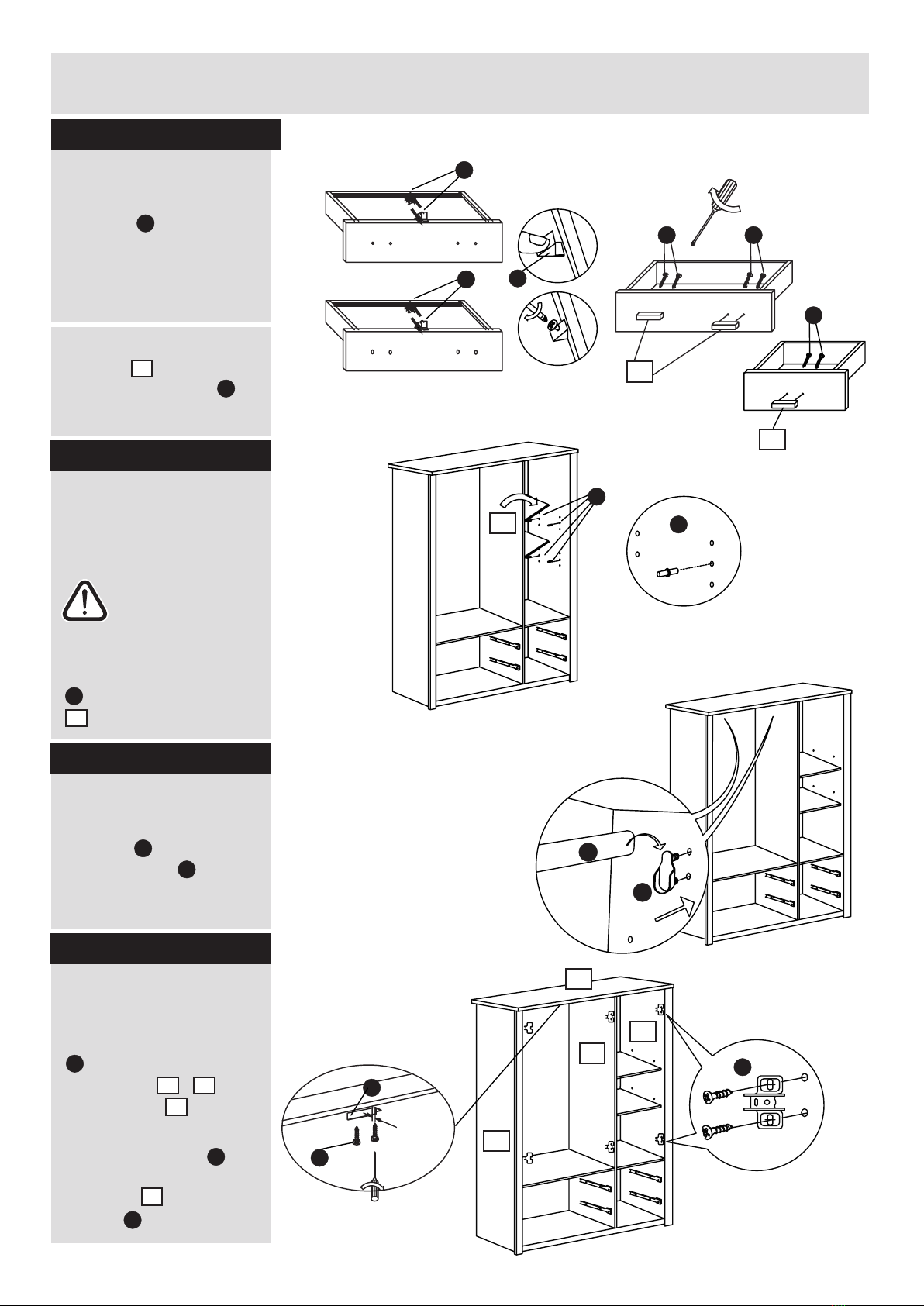

Drawer assembly
a: Insert screws Einto
large or small drawer
front 10 , 19 .
b: Insert wooden dowels
Bin to large or small
drawer front 10 , 19 .
and place left and right
drawer sides 11 , 12 .
c: Slide large or small
drawer base 14 , 20 iinto
the grooves.
d: Place large or small
drawer back 13 , 18
onto sides.
e: Align correctly and
insert small locking nuts
Hinto left and right
drawer sides 11 , 12 and
turn them clockwise to
lock.
f: Insert plastic dowels
Jinto left and right
drawer sides 11 , 12
and large or small drawer
back 13 , 18 and x
it together using the
hammer.
g: Position left and right
runners B M, Non
to left and right drawer
sides 11 , 12 , x using
screws K.
10
14
13
K
M
N
K
J
J
H
a: b:
c: d:
e: f:
g:
E
12 12
12
12
11 11
11
11
13
13
K
K
19
20
18
18
18
11
12
B
19
10
continued on next page
9

Attaching runners
a: Position runners T
15mm in from front edge
of the left side panel 1.
Slide top of the runners
back.
Fix through holes shown
using screws C.
Assembly Instructions
Attaching hanger rail
Insert hanger rail
supports Uand place
the hanger rail Z.
Fitting hinges to doors
and door stop
Position 2 hinge plates
Vinto left and right
side panels 1, 2and
partition wall 22 . Fix
using supplied screws.
Position door stop Z3
onto the underside of the
top panel 3 , x using
screws Z2.

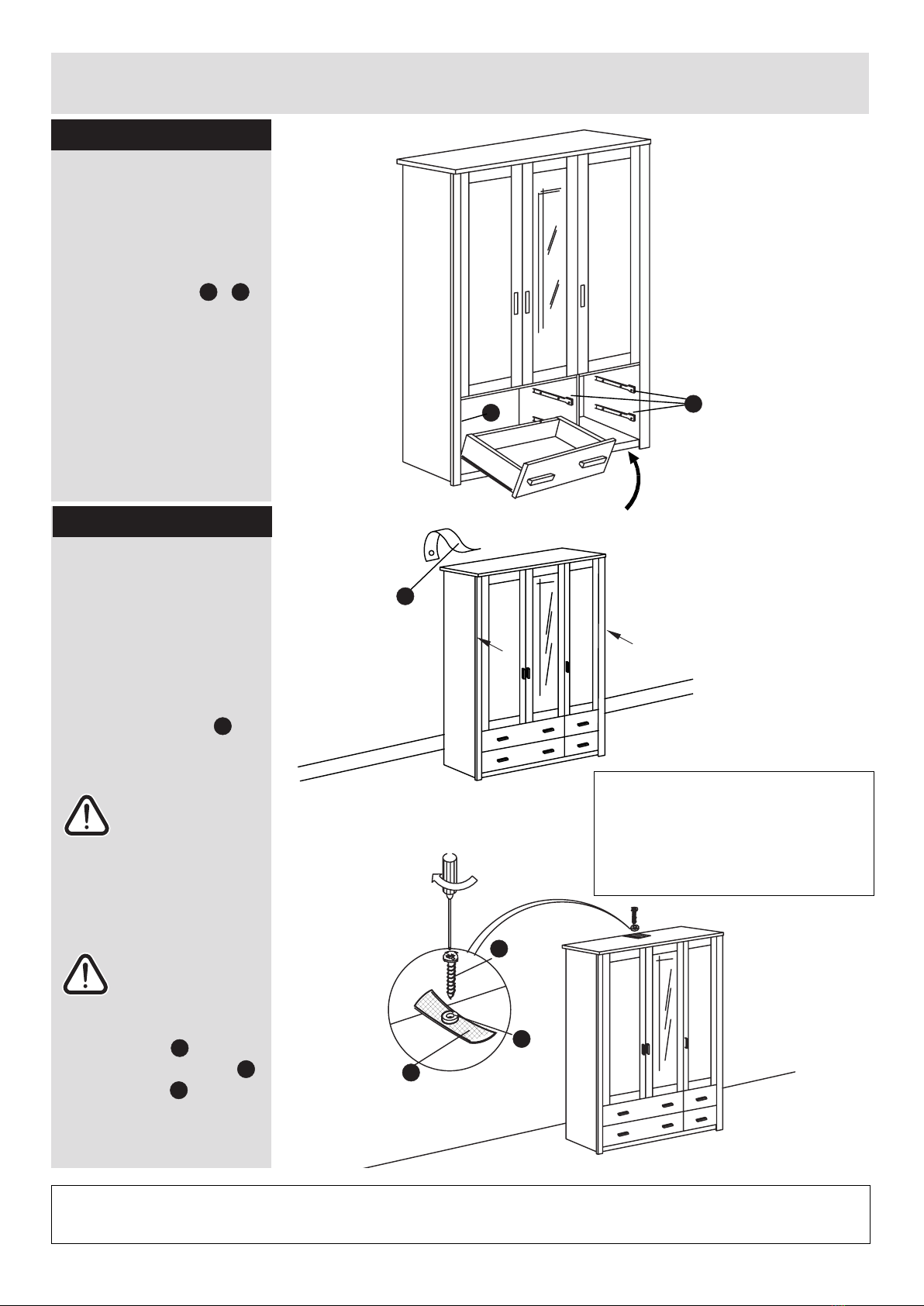

Step 11
Placing shelves
With help, carefully stand
wardrobe upright.
Warning:
The wardrobe
is heavy.
Lift with care.
Position shelf supports
Tand place the shelves
21 .
Step 12
Step 13
P
S
15
15
S S
Z
U
10
h: i:
T
21
V
1
2
22
P
P
T
Z
Z
3
h: Large drawers only:
Position 2 drawer base
supports Ponto the
underside of the large
drawers as shown. Fix
using supplied screw.
i: All drawers: Attach
handles 15 to drawer
fronts using screws S.
2
3
32 mm
Step 10 - continued

Attaching runners
a: Position runners T
15mm in from front edge
of the left side panel 1.
Slide top of the runners
back.
Fix through holes shown
using screws C.
Assembly Instructions
W

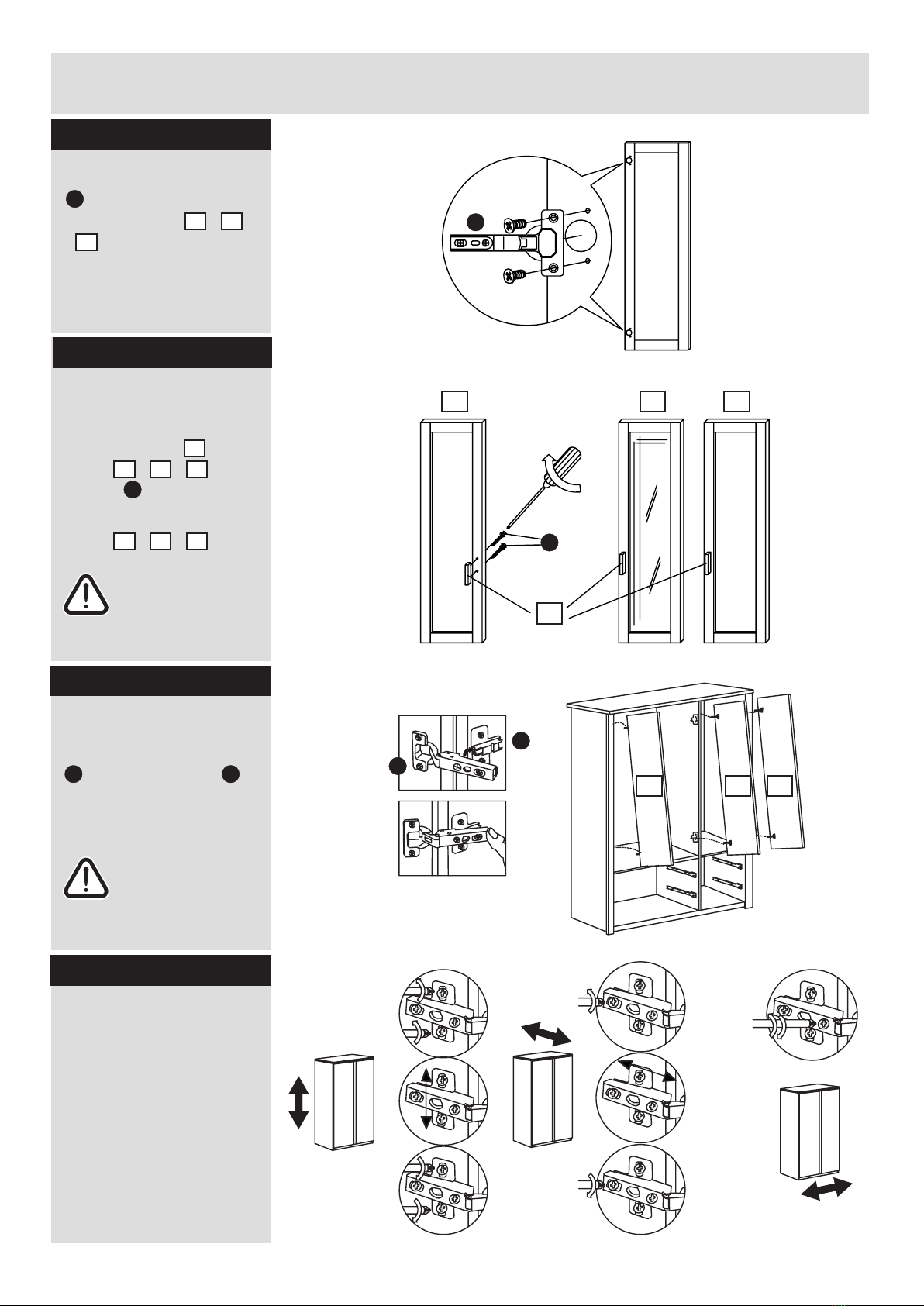

Hanging doors
With help, slot door hinges
Wonto hinge plates V
and click into position.
Repeat for all doors.
Hinge adjustment
To move doors up or
down, in or out, left or
right: loosen screws as
shown and move doors
up or down, in or out, left
or right as required.
Retighten screws.
Step 14
Position 2 door hinges
Winto left, middle mirror
and right doors 23 , 24
, 25 , x using supplied
screws.
Step 15
Attaching handles to
the doors
Attach handles 15 to
doors 23 , 24 , 25 using
screws S.
Repeat this step with all
doors 23 ,24 , 25 .
Step 16
Step 17
25
15
24 23
S
V
click!
25 24 23
W
Warning:
The mirror door.
Handle with
care.
Warning:
The mirror door.
Handle with care.
11

Attaching runners
a: Position runners T
15mm in from front edge
of the left side panel 1.
Slide top of the runners
back.
Fix through holes shown
using screws C.
Assembly Instructions
Fix wall strap Xto top of
wardrobe using screw Y
and underlay O.
Assembly is complete.
Fixing to wall
It is recomended that the
wardrobe is xed to a
wall.
Mark xing hole onto
wall. Drill a hole and
insert a suitable wall
plug. Fix wall strap X
using a suitable screw.
With help, move
wardrobe into position.
Step 18
Inserting drawers
Insert the drawers with
the move from down to
up as shown and ensure
that wheels t onto left
and right runners L, R.
Step 19
O
Y
X
12
If you need help or have damaged or missing parts, call the Customer Helpline: 0870 160 1490
Home Retail Group Plc, 489 - 499 Avebury boulevard, Milton Keynes, MK9 2NW
Warning:
The wardrobe
is heavy.
Lift with care.
Warning:
Before drilling,
check wall for
hidden pipes and
cables.
Note: Wall xings are not
supplied with this unit.
The correct type of xing must
be used for your wall, seek
professional advice if in doubt.
R
L
X
